Introduction
Henry Ford's moving assembly line changed manufacturing forever. When it launched at Highland Park in October 1913, assembly time for a single vehicle dropped from 12.5 hours to just 93 minutes, according to the Library of Congress. Conveyors made that possible, and they still do.
More than a century later, not all conveyors are built the same. Choosing the wrong type creates bottlenecks, damages product, and leads to unplanned downtime that eats into your production schedule.
This article breaks down the main types of assembly line conveyor systems, how they differ, and how to pick the right one for your production line.
Key Takeaways
- Assembly line conveyors eliminate manual product handling between stations
- Belt, roller, chain, and overhead systems each fit different loads, speeds, and environments
- Choose based on product weight and shape, floor space, line speed, and automation compatibility
- Skipping a proper trade-off evaluation is the costliest mistake in conveyor selection
What Is an Assembly Line Conveyor System and Why Does It Matter?
An assembly line conveyor system is a mechanized setup that transports parts or products between workstations. Instead of a worker carrying a part from Station A to Station B, the conveyor does it, freeing up labor and keeping the line moving at a consistent pace.
That pace matters more than it sounds. Conveyors effectively set takt time — the rhythm that synchronizes human and robotic workstations across the entire line. Get that rhythm wrong, and every downstream station feels it.
The Cost of Getting It Wrong
Manual material handling isn't just slower. It's a documented safety risk.
NIOSH reports that roughly half of all compensable low-back pain cases are associated with manual material handling. Lifting alone is implicated in 37% to 49% of cases, according to NIOSH's engineering controls data.
Skip proper conveyor planning and you typically see:
- Bottlenecks where one station can't keep pace with the next
- Inconsistent takt time that ripples through the whole line
- Product damage from improper handling or transitions
- Increased injury risk from repetitive lifting and carrying

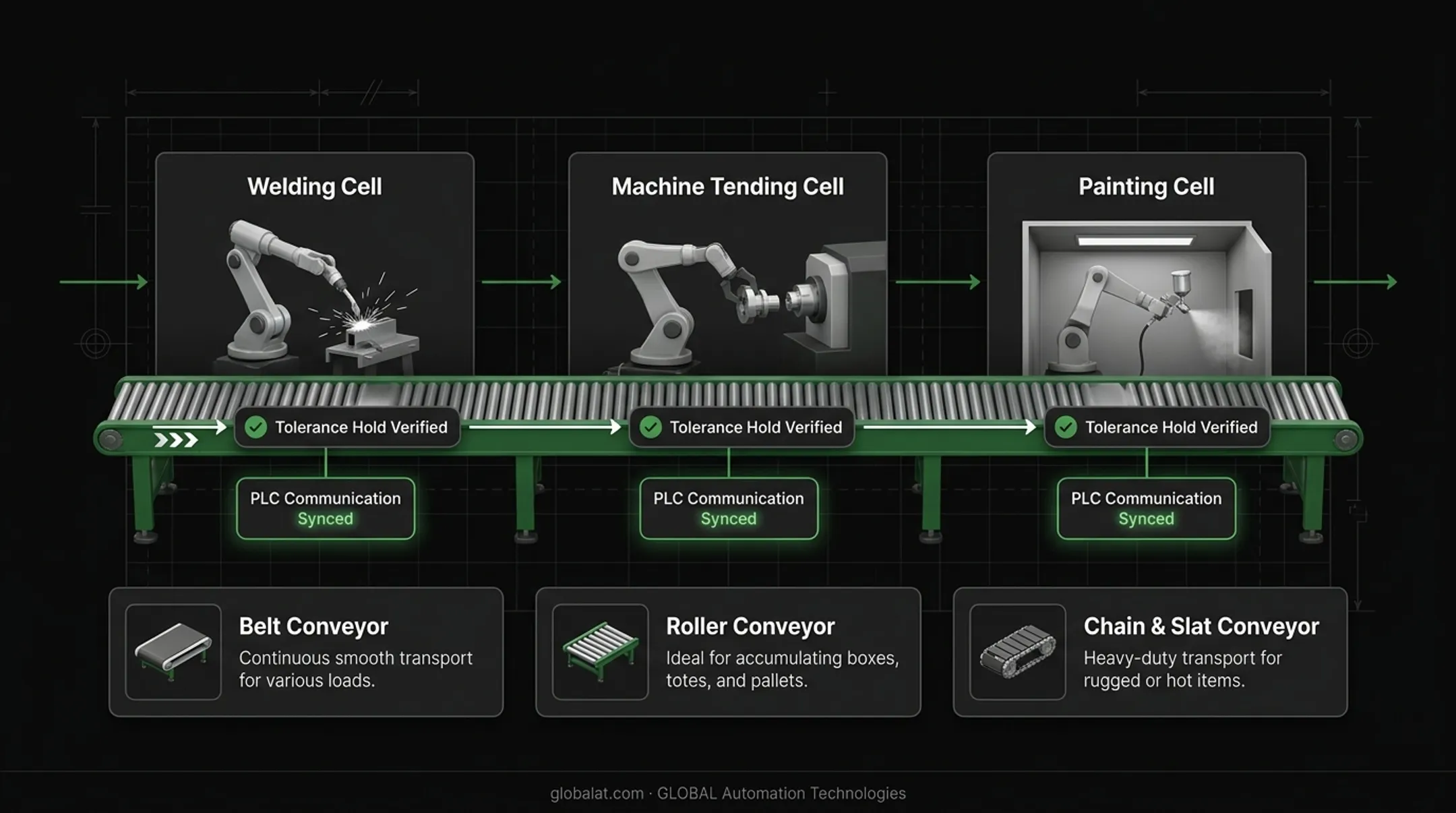

The Robotic Integration Factor
More assembly lines now feed conveyors directly into robotic workstations for welding, machine tending, and painting. That raises the stakes on conveyor selection. A conveyor that can't communicate cleanly with a robot's PLC, or that can't hold tolerance during hand-off, turns a well-designed robotic cell into a bottleneck of its own.
The sections below break down the main assembly line conveyor types so you can match the system to your process, product, and automation goals.
Types of Assembly Line Conveyor Systems
Conveyor systems aren't one-size-fits-all. The right type depends on product weight, shape, line speed, and plant environment. Many facilities actually combine two or more conveyor types in sequence (a roller section feeding into an overhead line, for example) rather than relying on just one system throughout.
Here's how the four main types stack up.
Belt Conveyors
A belt conveyor uses a continuous loop of rubber, PVC, or fabric that moves flat across a frame, carrying items via surface friction. The flat, unobstructed surface makes it more adaptable to varied product shapes than rollers or chains.
Best suited for:
- Light-to-medium-duty items in electronics and small-parts assembly
- Applications needing inclines or elevation changes
- Product lines where accumulation and gentle transfer matter
Some modular belt systems handle loads up to 1,000 lb at speeds of 400 ft/min, though most electronics and small-assembly applications run well below that ceiling. Belts stay quiet, smooth, and easy to configure into custom lengths. The trade-off: they're not the go-to for very heavy loads or extreme heat and chemical exposure unless you specify a reinforced belt material.
Roller Conveyors
Roller conveyors use a series of rollers, either gravity-fed or powered, to move rigid-bottomed products along the line. Mechanical rollers handle heavier, rigid loads more efficiently than belts, and gravity-fed versions don't even need a power source.
Best suited for:
- Pallets, engine blocks, and metal components common in automotive plants
- Heavy equipment manufacturing where rigidity matters more than flexibility
- Applications needing simple, low-maintenance accumulation zones
Representative heavy-duty roller models support up to 880 lb total load at 330 ft/min. Rollers excel at heavy-duty throughput but struggle with small, irregular, or flexible items that can slip between the rollers themselves.
Chain Conveyors
Chain conveyors use single or double-strand chains to pull heavy pallets or fixtures along the line, often paired with slat or tooling fixtures. They're built for far heavier loads and harsher environments than belts or rollers can handle.
Best suited for:
- Automotive body-in-white lines
- Foundries and heavy equipment manufacturing
- Environments with heat, debris, or chemical exposure
Some double steel roller chain systems handle loads up to 1,100 lb and tolerate dirty, oily, high-temperature conditions. That durability comes at a cost: chain systems tend to run louder and demand more frequent maintenance and lubrication than their belt or roller counterparts.

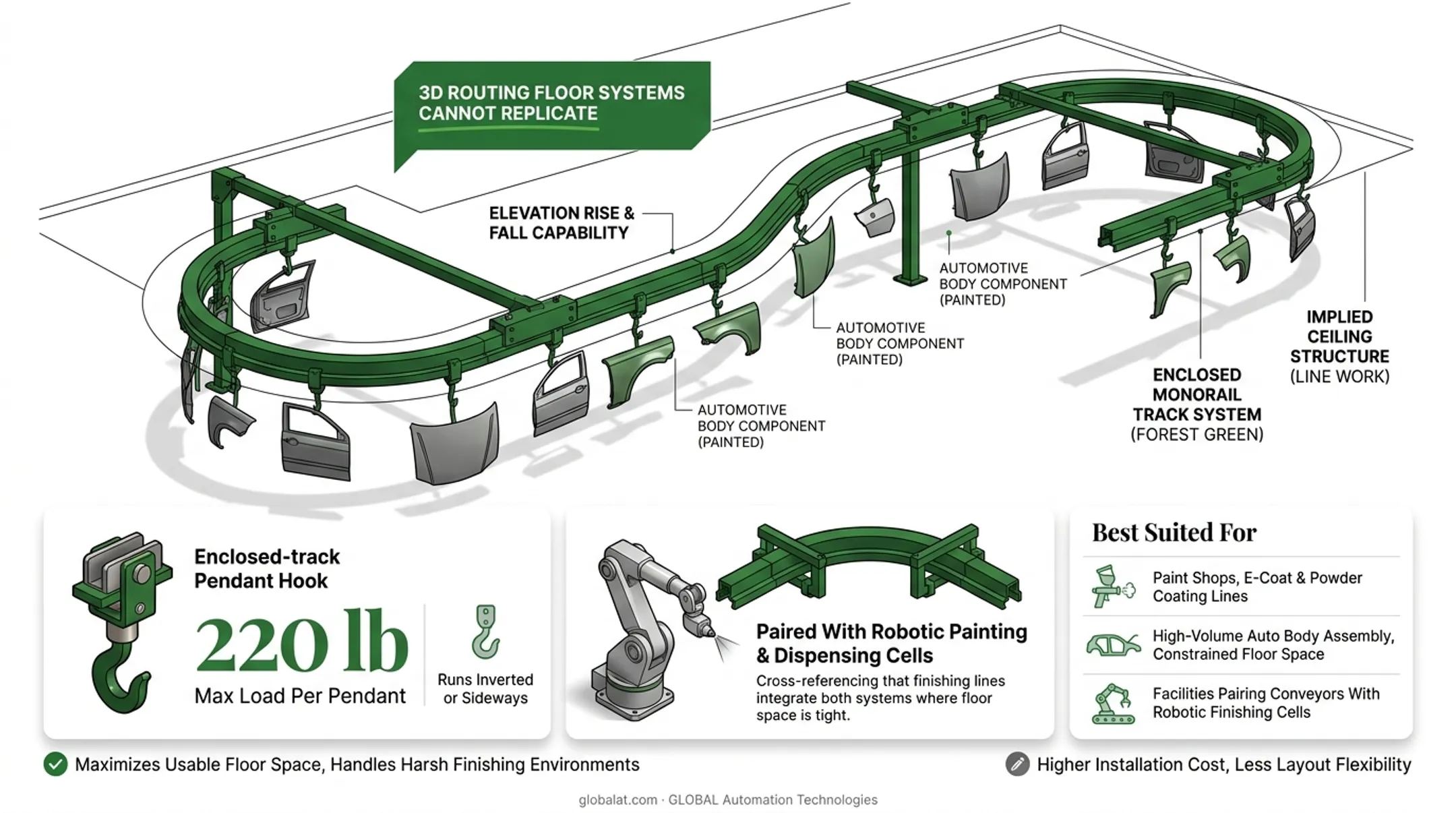

Overhead Conveyors
Overhead conveyors use suspended trolleys or monorail systems to carry parts through the air above the factory floor. This frees up valuable floor space and allows for complex 3D routing, including elevation changes and loops that floor-based systems simply can't replicate.
Best suited for:
- Paint shops, e-coat lines, and powder coating operations
- High-volume automotive body assembly with constrained floor space
- Facilities pairing conveyor lines with robotic finishing cells
Paint and finishing lines often pair these conveyors with robotic painting and dispensing cells. GLOBAL Automation Technologies, which holds Level 5 status in FANUC’s Authorized System Integrator program, integrates both in plants where floor space is tight and process consistency matters. Some heavy-duty enclosed-track models support up to 220 lb per pendant and can run inverted or sideways.
Overhead systems maximize usable floor space and handle harsh finishing environments well. The downside: higher installation cost and less flexibility if you need to modify the layout down the road.
How to Choose the Right Type of Conveyor System
The "right" conveyor depends on your product, your environment, and your production goals, not on which system is newest or most talked about. Run through these five factors before making a decision.
1. Product characteristics. What are you moving, and how does it behave? Consider weight, shape, fragility, and temperature sensitivity. A rigid steel casting has completely different requirements than a fragile PCB assembly.
2. Line speed and throughput targets. Your required takt time and production volume dictate conveyor speed and capacity. A system rated for 100 m/min doesn't help if your line needs to move product twice as fast.
3. Facility layout and floor space. Look at available horizontal versus vertical space. If floor space is tight, an overhead system that routes through the air might solve a problem a floor-based conveyor can't.
4. Integration with automation. Compatibility with robotic workstations, PLCs, and AGVs/AMRs is increasingly critical. GLOBAL evaluates this closely when designing turnkey robotic cells that hand off parts to and from conveyor lines. Speed matching, trigger signals, fault handling, and E-stop coordination all need to work as one system, not as separate pieces bolted together.
5. Budget and long-term flexibility. Weigh upfront installation cost against maintenance, energy use, and future reconfiguration needs. Cisco-Eagle's analysis on total cost of ownership notes that replacing a conveyor due to an application mismatch can cost more than any maintenance savings gained upfront.
Common Mistakes to Avoid When Selecting a Conveyor Type
Even experienced teams get conveyor selection wrong. Watch for these four traps:
- Overengineering the solution: choosing a fully automated system when a simpler type meets the same production need
- Ignoring known trade-offs: noise, maintenance frequency, and load limits surface after installation instead of before
- Underestimating total cost of ownership: focusing on upfront price while ignoring operating costs, maintenance, and useful life
- Selecting based on familiarity: defaulting to a familiar vendor or conveyor type instead of what the line requires
Each of these mistakes shares a root cause: skipping the evaluation step. A few extra hours spent mapping product characteristics against conveyor capabilities saves months of downtime, rework, and change orders later.
Conclusion
Conveyor systems remain the backbone of assembly line efficiency, but performance always comes down to matching type to task. Belt, roller, chain, and overhead systems each serve distinct purposes. There's no universal "best" option, only the best fit for your product, your floor, and your production goals.
As more lines pair conveyors with robotic workstations, how those systems integrate matters as much as which conveyor you choose. An integrator like GLOBAL Automation Technologies — one that handles conveyor and robot integration and can staff the engineers to run them — supports smoother installation and long-term reliability once the line goes live.
Frequently Asked Questions
What are assembly line conveyors?
Assembly line conveyors are mechanized systems that move parts or products between workstations, keeping production continuous without manual transport. They set the pace for the entire line.
What are the four main types of conveyors?
The four most common types used in assembly line manufacturing are belt, roller, chain, and overhead conveyors. Each is suited to different loads, speeds, and environments.
What are the four main types of assembly lines?
The common classifications are manual, semi-automated, fully automated, and flexible/modular assembly lines. This differs from conveyor type, though the two often overlap in overall line design.
What is the difference between a belt conveyor and a roller conveyor?
Belt conveyors use a continuous flat surface, ideal for varied light-to-medium loads. Roller conveyors use individual rollers, better suited to heavier, rigid-bottomed items like pallets or metal components.
How do you choose the right conveyor system for a new assembly line?
Match the system to product weight and shape, required line speed, available floor space, and any robotic load/unload points. Those four factors usually narrow the field quickly.
Can conveyor systems be integrated with robotic automation?
Yes. Integration hinges on hand-off timing, cell layout, and PLC-to-PLC communication between the robot and conveyor controls. That planning is standard when building a turnkey robotic cell around a new or existing line.
