FANUC KAREL Programming: An Introduction Most FANUC robot programmers spend their careers inside the Teach Pendant, never opening a text editor. That's fine for 90% of production tasks. But when a project demands custom TCP/IP communication, complex data structures, or logic beyond what TP instructions can handle, engineers need KAREL.

FANUC robots actually run on two languages: TP for day-to-day motion and logic, and KAREL for everything TP can't touch. KAREL unlocks capabilities like custom communication protocols, advanced math, and structured data handling that TP simply wasn't built for.

This guide covers KAREL's history, its program structure, a working code example, and where it fits into real production environments.

Key Takeaways

  • KAREL is a compiled language that extends FANUC robots beyond standard TP programming
  • Compile .KL source into .PC p-code via ROBOGUIDE or KTRANS before it runs on a controller
  • Best fit: Ethernet comms, custom data structures, and third-party vision or sensor integration
  • Motion stays in TP — KAREL cannot drive physical robot moves directly
  • Basics help engineers troubleshoot cells and work clearly with integration partners

What Is KAREL in FANUC Robotics?

KAREL's name traces back to an educational programming language created by Richard E. Pattis in 1981, published by Wiley as Karel the Robot: A Gentle Introduction to the Art of Programming with Pascal. FANUC's industrial version shares the name but serves a very different purpose: it's built for real robot controllers, not a grid-world simulation.

FANUC's own documentation describes KAREL as a powerful compiled programming language capable of accessing and controlling nearly every aspect of the robot controller, with one major exception: motion. That job stays with TP.

Pronunciation note: It's pronounced "Carl," not "kuh-REL" — a detail FANUC Academy makes a point of clarifying for new users.

When to Reach for KAREL Instead of TP

TP handles the bulk of standard robot programming. Engineers typically switch to KAREL when a task involves:

  • Complex math or custom algorithms TP's instruction set can't perform
  • String and array manipulation
  • Communication with external devices such as PCs, PLCs, and vision systems
  • Custom logic structures beyond TP's built-in commands

One requirement worth flagging early: on R-30iB and R-30iB Mate controllers, engineers need the R632 KAREL software option installed before any custom KAREL program will load. Skipping this check is a common source of confusion during commissioning.

Is KAREL Still Used Today?

Yes. FANUC still lists KAREL as an active controller software product, and it's a requirement for MQTT communication on current controllers.

Vision system plugins, custom socket messaging protocols, and third-party sensor integrations still rely on it in modern robot cells. FANUC Academy training materials, published as recently as mid-2025, still teach KAREL for these use cases.

Program Structure and Core Syntax

KAREL follows a strict, Pascal-style structure. Every program needs these elements in order:

  1. PROGRAM statement: declares the program name
  2. Translator directives: optional settings that control compilation and environment behavior
  3. CONST/TYPE/VAR declarations: define constants, custom types, and variables
  4. ROUTINE declarations: subroutines, which can appear before or after the main block
  5. BEGIN/END executable block: the actual logic

Unlike TP's simpler register-based approach, KAREL is strongly typed. Every variable has a declared type, and the compiler enforces it strictly.

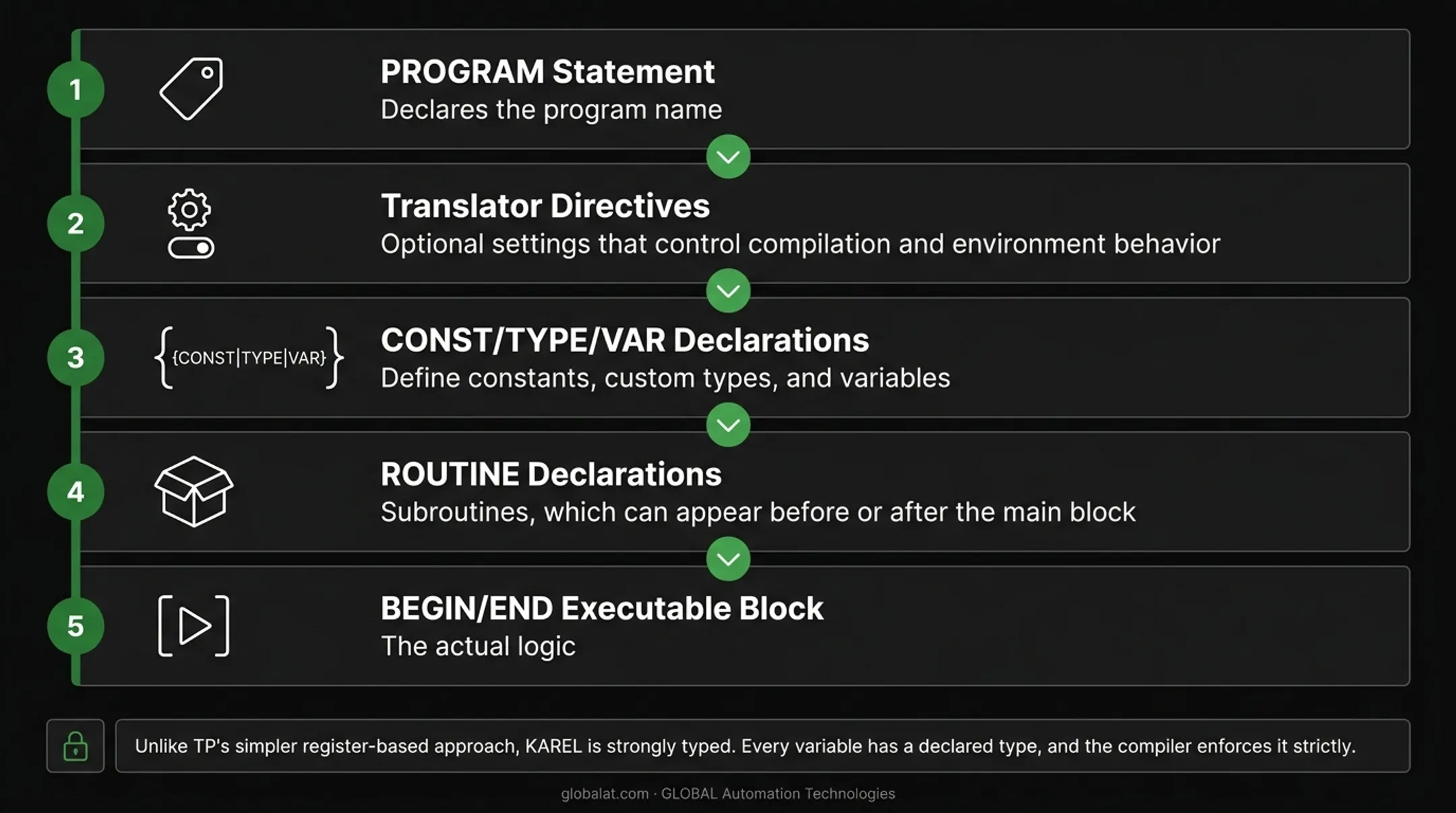

KAREL program structure showing five required sequential elements

Custom Types and Error Handling

Engineers commonly define custom STRUCTURE types to group related data logically. For example, you can bundle X/Y/Z coordinates and a status flag into one object instead of tracking four separate variables.

A common convention: make the last parameter of any routine an INTEGER status variable to catch FANUC error codes. That status value makes it much easier to trace FANUC error codes when a call fails.

Known Limitations

A few constraints trip up newcomers:

  • User-defined identifiers are limited to 12 characters (filenames can go up to 36)
  • Program length has practical constraints on older controllers
  • If a variable's type changes, the old .VR file referencing that type needs to be deleted before the new version will load cleanly

A Hands-On KAREL Example

The classic starting point is a "Hello, World!" program:

PROGRAM helloworld
BEGIN
  WRITE('Hello, World!', CR)
END helloworld

Breaking it down:

  • PROGRAM names the file
  • BEGIN/END bracket the executable code
  • WRITE sends output to the console

Simple, but it shows the required skeleton.

From Source to Controller

Before this can run, translate the .KL source file into .PC p-code. ROBOGUIDE's Advanced Development Tools include the translator—run it from the ROBOGUIDE interface or the KTRANS command utility.

Once compiled, transfer the .PC file to the controller via:

  • FTP (if the Ethernet option is installed)
  • USB memory stick
  • Memory Card or CompactFlash PC card (with an appropriate adapter)

From there, a TP program can CALL the KAREL routine directly.

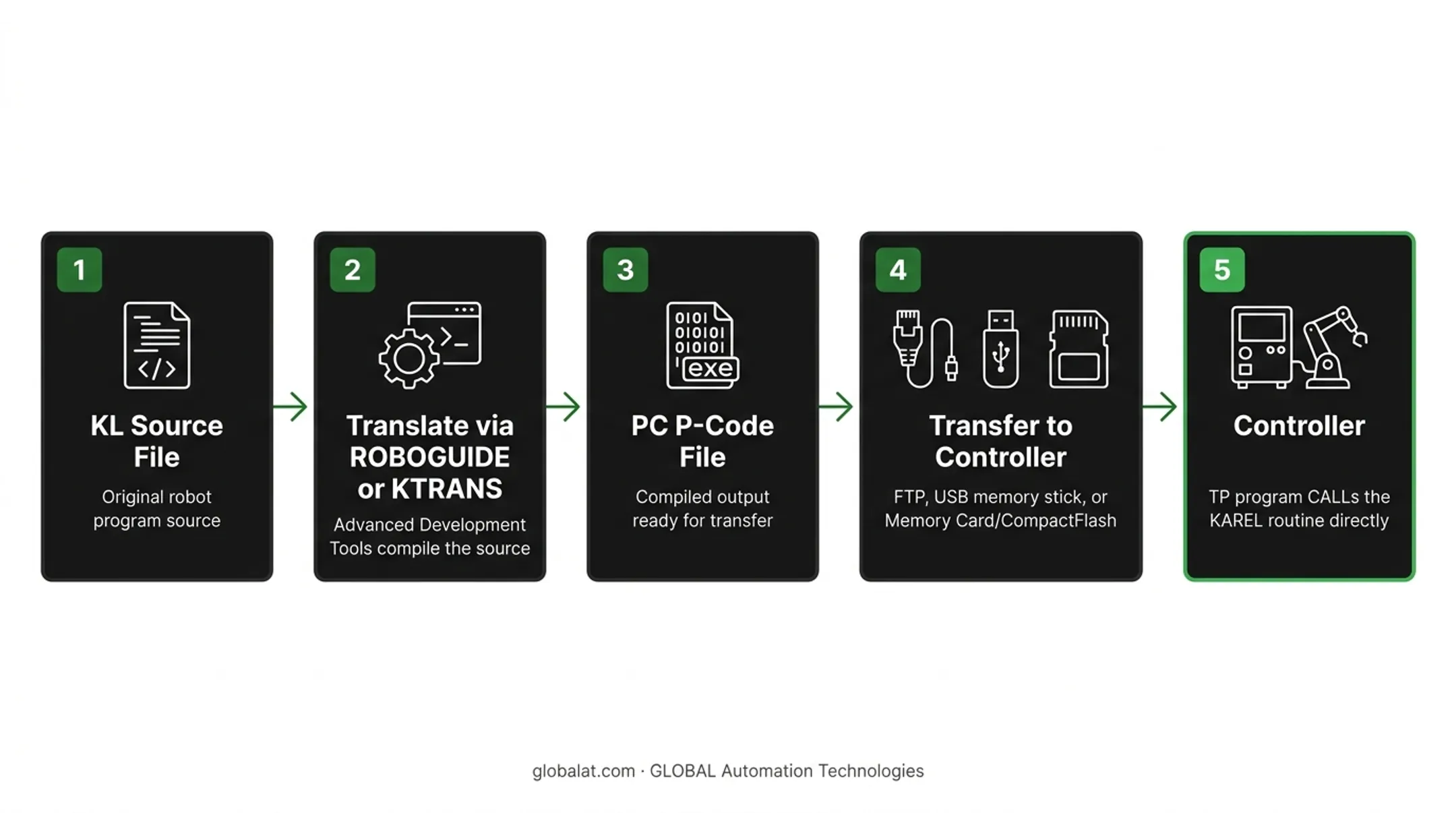

KAREL source code compilation and transfer workflow to robot controller

A More Realistic Example

Real KAREL programs go further. They use ROUTINE declarations, arrays, and control structures like SELECT/CASE to branch on sensor input or part type.

For example, a routine might:

  • Read an incoming part code from a register
  • Use SELECT/CASE to choose the right pick sequence
  • Populate an array of position data for the TP program

One important caveat: compiled .PC files are a black box on the controller. You can't step through them line by line the way you can with TP. Thorough testing before deployment is essential—there's no on-the-fly debugging once it's loaded.

Where KAREL Fits in Real-World Robotic Automation

KAREL's practical value shows up most in tasks TP was never designed to handle:

  • Ethernet/TCP communication with vision systems and PLCs
  • Custom data logging for traceability and quality tracking
  • Advanced positioning logic that combines sensor input with calculated offsets

A documented example from FANUC's own technical library shows KAREL using User Socket Messaging to establish a TCP/IP connection between a robot controller and a PC application. Position data passes into registers that a TP program then executes. Vision integrations follow a similar pattern: KAREL routines configure a communication client, retrieve part coordinates from a camera system, and hand that data off for pick-and-place execution.

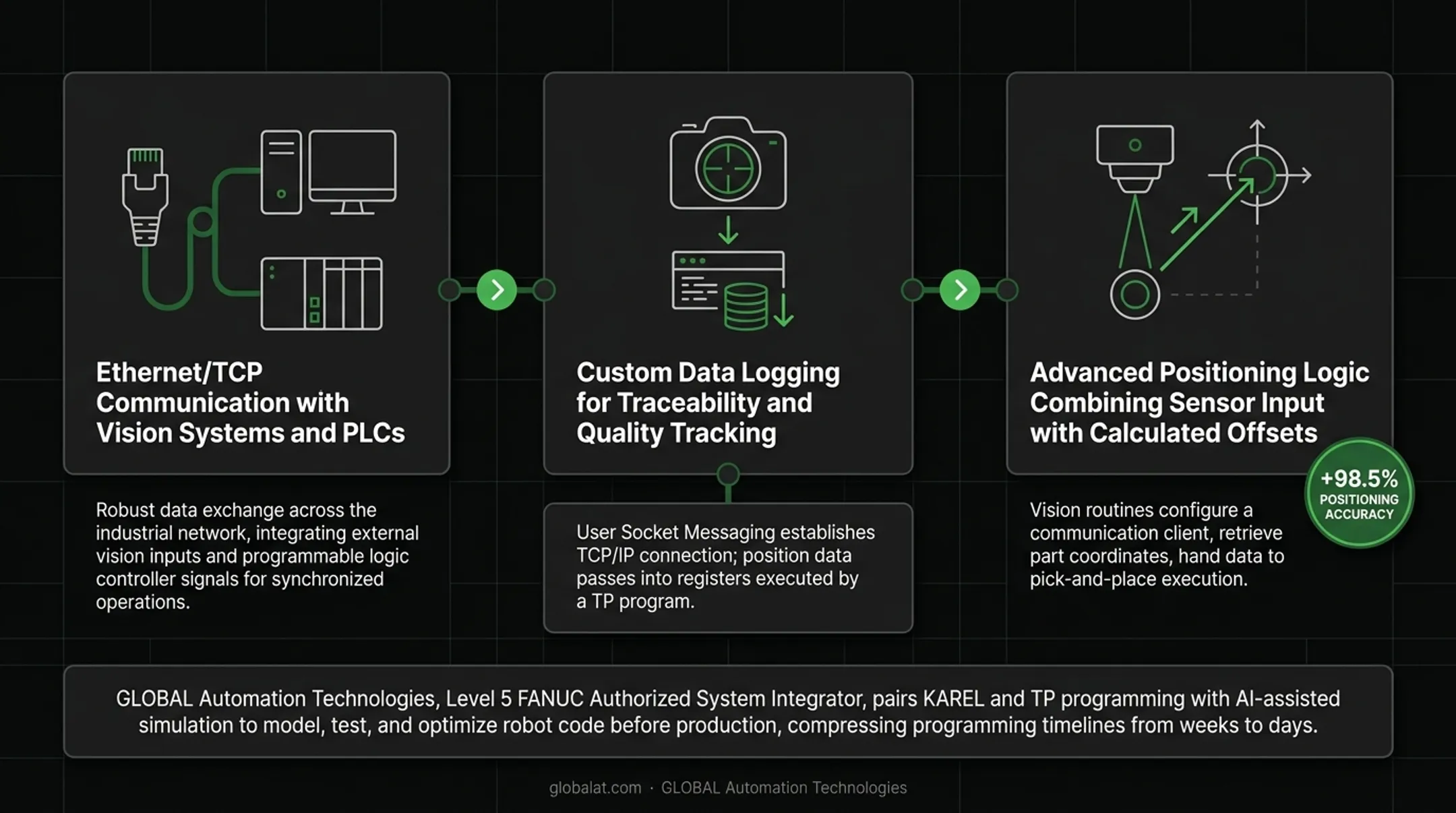

Industrial robot controller connected to vision system and PC via Ethernet

At GLOBAL Automation Technologies, which holds Level 5 status in FANUC’s Authorized System Integrator program, engineers work across both TP and KAREL as part of turnkey integration projects. They pair that programming with AI-assisted simulation to model, test, and optimize robot code before it reaches the production floor. That approach compresses programming timelines from weeks to days and reduces surprises during commissioning.

How well KAREL is integrated with TP, vision systems, and simulation tools often determines how fast a cell moves from design to production launch.

Best Practices and Common Pitfalls

A few habits separate smooth KAREL deployments from painful ones:

  • Build reusable utility ROUTINEs. KAREL's built-in API for string and array handling is sparse compared to modern languages. Writing wrapper routines (custom GET_VAR functions, for example) early saves rework later.
  • Test exhaustively before deployment. Compiled code can't be stepped through on the controller, so catch bugs in simulation or on a test cell, not live production.
  • Budget time for library work. Tasks other languages handle natively need custom code in KAREL. Plan for that overhead instead of discovering it mid-project.
  • Know when to bring in outside help. When KAREL requirements exceed in-house bandwidth, experienced integration engineers or contract talent keep timelines intact.

KAREL expertise isn't evenly distributed across engineering teams. A project can stall waiting on the right skill set, so plan for that gap early.

Frequently Asked Questions

Is KAREL programming still used?

Yes. It remains essential for advanced FANUC applications like vision integration, custom communication protocols, and complex data handling that TP can't support on its own.

What is KAREL in FANUC?

KAREL is a compiled programming language for FANUC robot controllers, used for tasks beyond standard TP capability: custom logic, data structures, and external device communication.

What programming language does FANUC KAREL use?

KAREL's syntax follows a Pascal-style structure, with strongly typed variables, custom type declarations, and a procedural program layout.

Can KAREL pick up objects?

Not directly. KAREL can't control motion. It programs the logic, communication, and positioning data that drive pick-and-place operations, while TP executes the actual movement.

What's the difference between TP and KAREL programming?

TP handles most day-to-day robot tasks through the teach pendant. KAREL is a lower-level, compiled language built for advanced logic, custom protocols, and system integrations outside TP's reach.

Do I need special software to write KAREL programs?

Yes. ROBOGUIDE is required to compile .KL source files into executable .PC p-code before the controller can run them.
