Wiring a VFD to a PLC and HMI looks simple on paper: connect some wires, download a program, done. In practice, results hinge on the communication protocol you pick, how you configure VFD parameters, and how carefully you write the interlock logic. Skip a step, and you'll get a motor that won't respond, runs at the wrong speed, or trips on startup.
This guide walks through the exact steps, the equipment you'll need, the parameters that matter most, and the mistakes that trip up even experienced technicians.
TL;DR
- Control VFDs via digital/analog I/O, Modbus RTU/TCP, keypad, or a mix of these
- Match comms settings, map VFD registers correctly, and interlock PLC/HMI logic
- Most failures stem from register mismatches, wrong baud rates, or missing FWD/REV interlocks
- Best for precise, remote, or automated speed control, not fixed-speed motors
How to Control a VFD Using a PLC and HMI

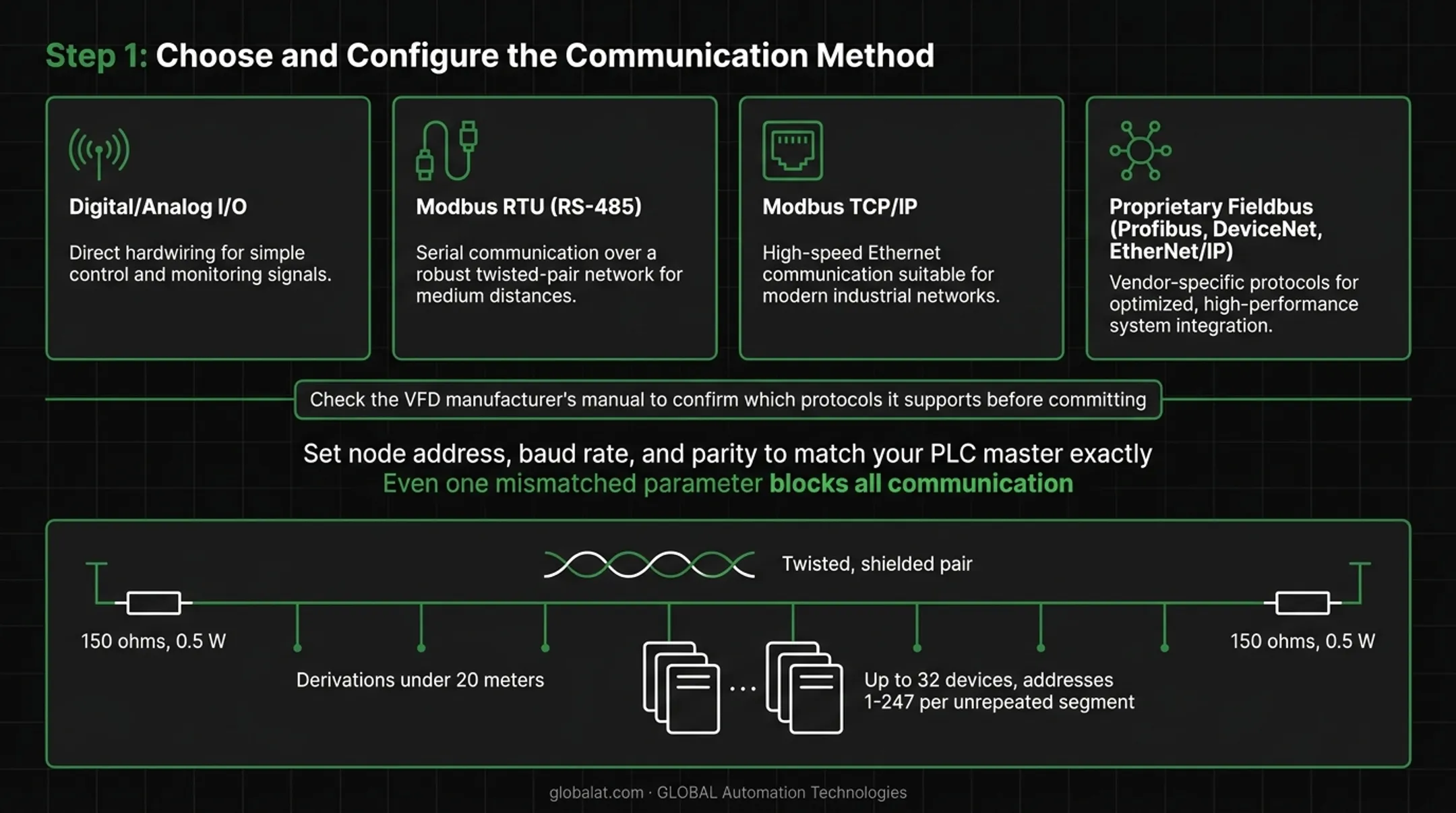

Step 1: Choose and Configure the Communication Method
Your first decision is how the PLC will talk to the VFD. Options include:
- Digital/analog I/O: simple, but limited to basic run/stop and speed signals
- Modbus RTU (RS-485): the most widely supported serial protocol across VFD brands
- Modbus TCP/IP: Ethernet-based, faster, and easier to integrate into larger networks
- Proprietary fieldbus (Profibus, DeviceNet, EtherNet/IP): used on higher-end drives
Check the VFD manufacturer's manual to confirm which protocols it supports before committing. Once chosen, set the node address, baud rate, and parity on the VFD to match your PLC master configuration exactly. Even one mismatched parameter blocks all communication.
If you're using RS-485, wire carefully:
- Twisted, shielded pair for signal wires
- Termination resistors only at the two physical ends of the trunk (a common allowed value is 150 ohms, 0.5 W)
- Derivations off the main trunk kept under 20 meters
- Up to 32 devices per unrepeated RS-485 segment, with addresses ranging from 1-247

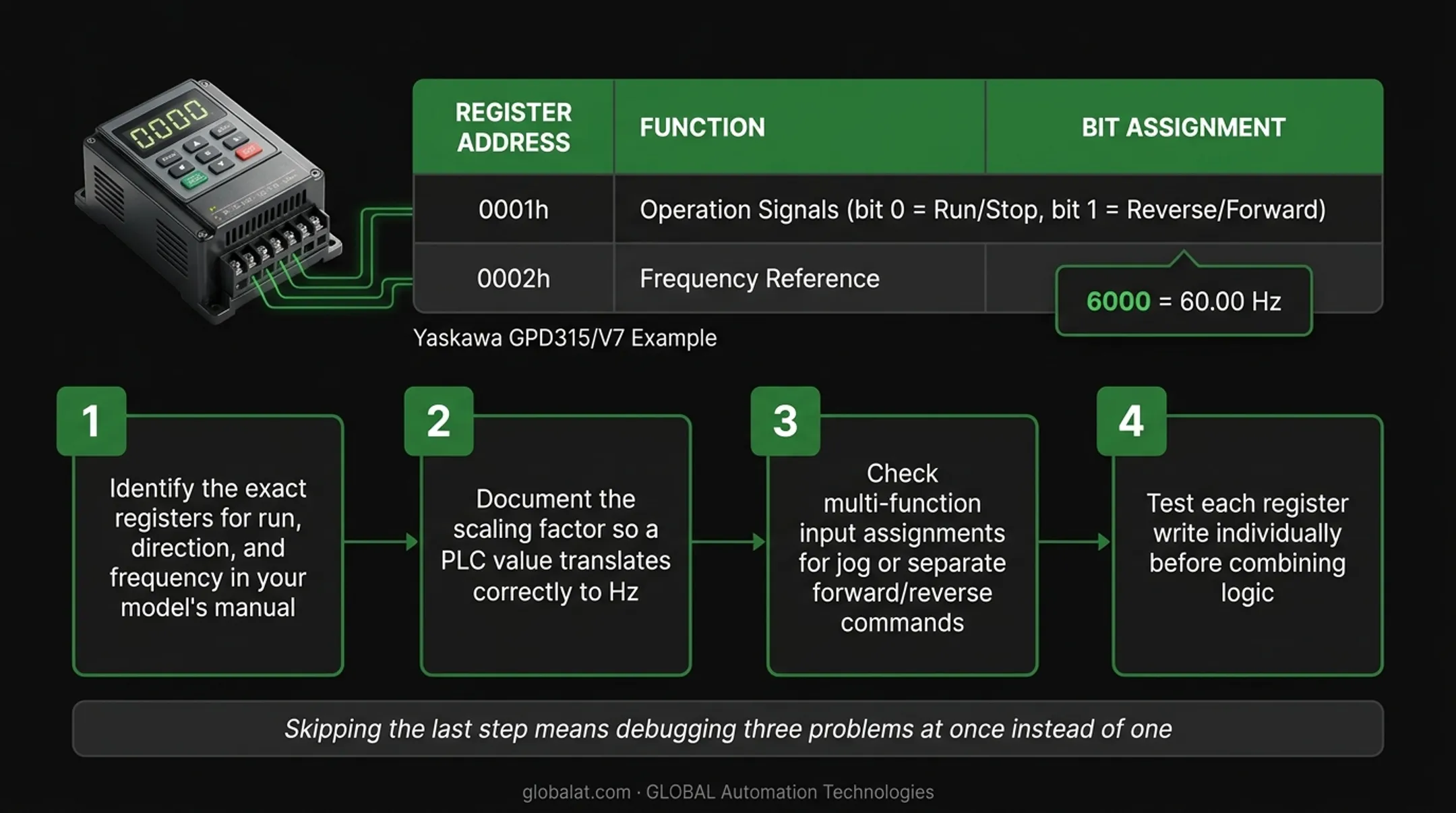

Step 2: Map VFD Registers for Motor Control
Every VFD manual documents which registers control run/stop, direction, and frequency reference. This mapping is drive-specific, so don't assume one manufacturer's layout applies to another.
For example, on a Yaskawa GPD315/V7 drive, register 0001h handles operation signals (bit 0 = Run/Stop, bit 1 = Reverse/Forward), while 0002h holds the frequency reference. Scaling is set by a separate parameter. With the right setting, a register value of 6000 equals 60.00 Hz.
Before combining anything into full logic:
- Identify the exact registers for run, direction, and frequency in your model's manual
- Document the scaling factor so a PLC value translates correctly to Hz
- Check multi-function input assignments if you're using jog or separate forward/reverse commands
- Test each register write individually — write a single value, confirm the VFD responds correctly, then move to the next
Skipping that last step is how technicians end up debugging three problems at once instead of one.
Step 3: Program the PLC Logic
With registers mapped, build the PLC program. Start by setting communication parameters (Ethernet or serial) to match both the HMI and the VFD. All three devices need to agree.
From there:
- Build a communication routine (such as a Modbus master block) that writes run and frequency commands to the correct VFD registers
- Add interlocks so forward and reverse commands can never be active simultaneously. Most drives use a single direction bit rather than separate forward/reverse bits, so derive one mutually exclusive state
- Require Run only after E-stop, fault, communications, and process permissives are satisfied. Don't let an HMI button alone act as the interlock
- Include registers for ramp times, fault codes, and status feedback (Ready, Run, Direction, output frequency) so the PLC reads back what actually happened, not just what it commanded

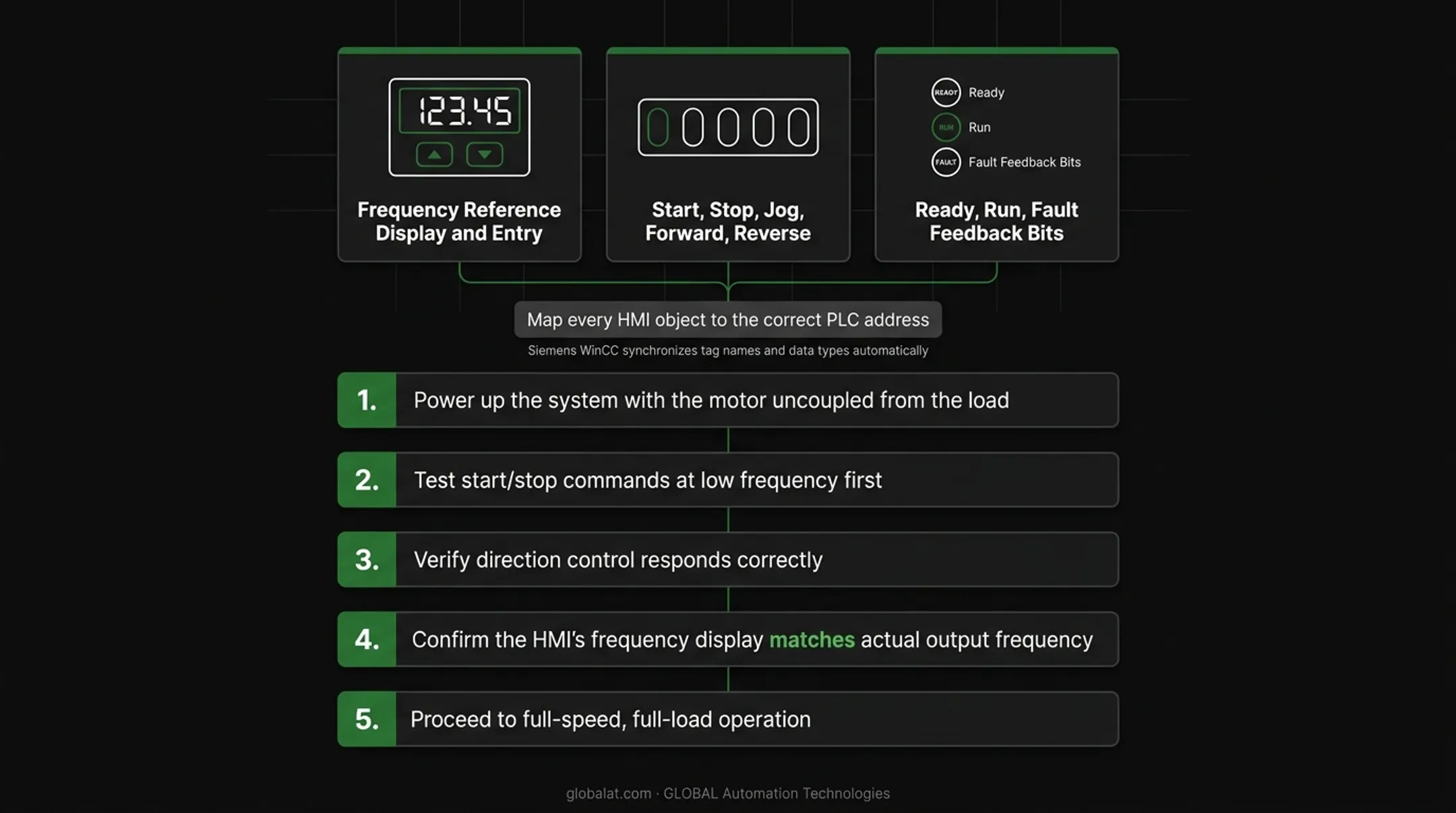

Step 4: Build the HMI Interface and Test the System
The HMI is where operators interact with everything you just programmed. Build:
- Numeric objects for frequency reference display and entry
- Bit-set buttons for start, stop, jog, forward, and reverse
- Status indicators tied to the VFD's Ready, Run, and Fault feedback bits
Map every HMI object to the correct PLC address. Modern platforms like Siemens WinCC can synchronize tag names and data types automatically, reducing mismatch errors.
Once programs are downloaded to both the HMI and PLC and everything's wired:
- Power up the system with the motor uncoupled from the load, if possible
- Test start/stop commands at low frequency first
- Verify direction control responds correctly
- Confirm the HMI's frequency display matches actual output frequency
- Only then proceed to full-speed, full-load operation
When Should You Control a VFD Using a PLC and HMI?
Not every motor needs this level of control. Skip it for simple, fixed-speed applications with no need for dynamic adjustment. A standalone VFD keypad or basic digital I/O handles those fine.
This setup is worth the complexity when you need:
- Conveyor systems needing coordinated speed changes across zones
- Pumps requiring variable flow control integrated with plant-wide monitoring
- Mixers needing repeatable speed/torque profiles across different recipes
- Fans/blowers requiring centralized scheduling, alarms, and interlocks
For very small, single-motor setups, a full PLC/HMI/VFD architecture is often overkill. The sweet spot is multi-drive systems, automated production lines, and plants that need centralized SCADA/HMI monitoring across many drives.
What You Need Before Setting Up VFD, PLC, and HMI Control
Most setup failures come from mismatched settings and missing hardware, not wiring mistakes. Confirm you have everything below before starting.
Equipment:
- A VFD with communication capability (Modbus RTU/TCP or fieldbus)
- A PLC with matching protocol support
- An HMI compatible with the PLC platform
Documentation: The VFD manufacturer's manual with register maps, parameter tables, and wiring diagrams for your exact model and firmware version.
Skills and safety readiness:
- Working knowledge of ladder logic, Modbus addressing, and electrical safety practices
- Lockout/tagout procedures in place before wiring any live circuit
Key Parameters That Affect VFD Control Performance
Correct wiring means nothing if these parameters are wrong.
| Parameter | Why It Matters | Impact if Misconfigured |
|---|---|---|
| Communication settings (baud rate, node address, parity) | PLC and VFD must match exactly to exchange data | Communication timeouts or total failure to control the motor |
| Acceleration/deceleration time | Controls ramp speed to target frequency | Too fast causes mechanical stress or trips; too slow hurts responsiveness |
| Frequency reference scaling | Determines how a register value becomes actual Hz | Motor runs at the wrong speed entirely |
| Run/direction command logic | Prevents simultaneous forward/reverse signals | Conflicting commands trip the drive or damage the motor/load |

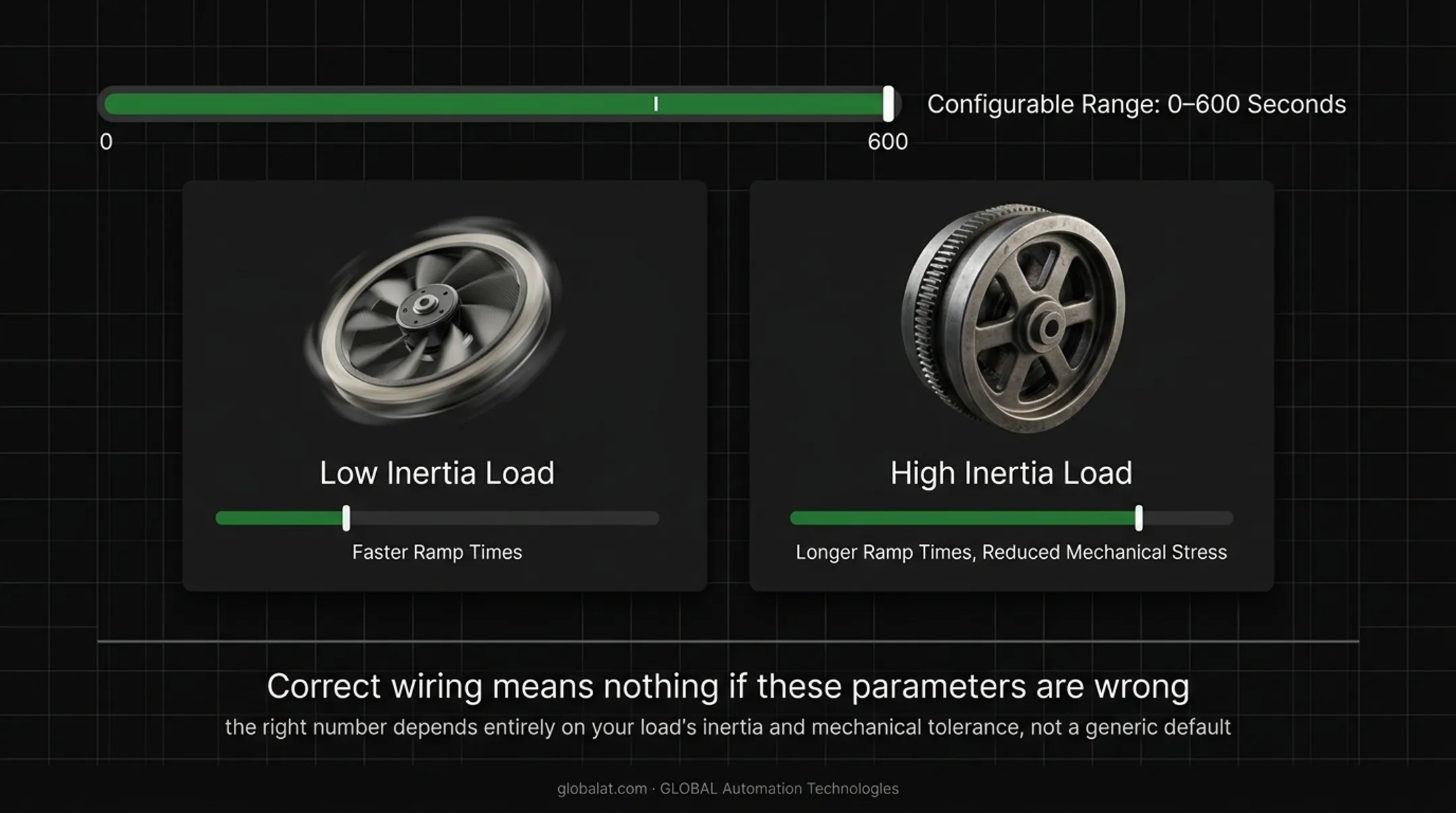

On many drive families, acceleration and deceleration times can be set anywhere from 0 to 600 seconds — but the right number depends entirely on your load's inertia and mechanical tolerance, not a generic default.
Common Mistakes When Controlling a VFD with a PLC and HMI
Most VFD control problems trace back to a short list of avoidable setup and logic errors:
- Using generic communication settings instead of the manufacturer's documented parameter guide
- Miscalculating scaling factors, sending the motor to the wrong frequency
- Skipping forward/reverse interlocks in PLC logic, risking drive trips or motor damage
- Ignoring RS-485 termination, causing intermittent communication faults that are maddening to diagnose later
Troubleshooting Issues While Controlling a VFD
Even well-planned setups run into communication or logic errors. Start with these common failure points.
Motor Doesn't Respond to HMI Commands
- Likely cause: Communication mismatch or incorrect register mapping
- Check: Match baud rate, node address, and register addresses on both the PLC and VFD
Motor Runs at Wrong Speed
- Likely cause: Incorrect frequency scaling in the PLC program
- Check: Recalculate the register value against the VFD's documented Hz conversion
Intermittent Communication Faults
- Likely cause: Missing termination resistor or wiring interference
- Check: Verify DIP switch settings and keep signal wiring separated from power cables
VFD Trips on Start
- Likely cause: Conflicting run commands or missing safety interlocks
- Check: Review ladder logic for simultaneous forward/reverse bit activation
Alternatives to PLC/HMI-Based VFD Control
Not every application needs the full architecture.
Direct Keypad Control
Best for: Single-motor applications with no remote monitoring needs.
Trade-off: No integration with other equipment; adjustments are manual only.
VFD with Embedded Pump/Process Functions
Best for: Simple pumping applications where built-in PID and cascade functions are enough. Some drives include multiple built-in PID controllers and can stage several pumps without a PLC.
Trade-off: Limited to the manufacturer's built-in logic, so less flexible than custom programming.
Turnkey Automation Integration
Best for: Complex, multi-drive production lines that need full engineering support from design through commissioning.
An integrator such as GLOBAL Automation Technologies can deliver controls engineering and on-site technical staffing to design, program, and commission the PLC/HMI/VFD system, drawing on 18+ years in manufacturing automation.
Trade-off: Higher upfront cost, but lower risk of downtime and rework than a self-implemented system.
Conclusion
Controlling a VFD with a PLC and HMI works when communication settings, register mapping, and control logic are configured correctly from day one. Most failures come from skipped documentation review or mismatched parameters between devices that should already agree on protocol, registers, and scale.
Document every register map, verify protocol settings before go-live, and test control logic in a safe state first. That discipline keeps a drive system reliable for years instead of generating support tickets every week.
Frequently Asked Questions
How can I control a VFD with a PLC?
Through digital/analog I/O or a communication protocol like Modbus RTU/TCP, where the PLC sends run and frequency commands directly to VFD registers. The exact method depends on what your VFD model supports.
What is the difference between a PLC and a VFD?
A PLC is a general-purpose programmable controller used to automate entire processes. A VFD is a dedicated device built specifically to control motor speed and torque.
Does a VFD have a PLC?
VFDs have their own onboard control circuitry and some embedded logic functions, like PID control. That's not a full PLC, though, and it can't handle complex, multi-device automation.
What are the three types of VFD control?
The three common methods are:
- V/Hz (scalar) — simplest option; no encoder needed
- Sensorless vector — independent speed and torque control without an encoder, stronger at low speeds
- Field-oriented (closed-loop vector) — encoder feedback for the most precise torque control
What communication protocol is most common for connecting a PLC to a VFD?
Modbus RTU (RS-485) and Modbus TCP/IP are the two most widely supported protocols across VFD manufacturers, which is why most PLC/VFD integrations default to one of them.
Can I control multiple VFDs from one PLC?
Yes. A single RS-485 network can address up to 247 unique node addresses, though only 32 devices are recommended on one unrepeated segment without a repeater.
