PLCs run their own logic. Robots execute pre-programmed routines. ERP systems track inventory in a separate world entirely. Inspection tools generate data that never reaches the machines that could act on it. Each piece works fine in isolation, but the plant as a whole runs slower than it should.
The cost of this disconnection is real. Toyota North America eliminated 240 hours of waste per site, per month, after replacing fragmented digital systems with a unified data architecture connecting PLCs and IT systems across 15 sites, according to Automation World's 2025 coverage of the project. The company also cut asset onboarding time from 33 days to under one day.
That's the promise of integrated manufacturing systems: one coordinated flow of data and control instead of dozens of disconnected islands. This guide covers what IMS actually means, the technology stack behind it, the three maturity stages manufacturers move through, and how to pick a partner who can deliver the whole thing, not just pieces of it.
Key Takeaways
- Integrated systems link design, production, and business software in one loop, cutting manual errors and delays.
- Smart manufacturing is scaling quickly—the global market is projected to nearly triple by 2032.
- Robotic machine tending cells typically pay for themselves in 12 to 18 months.
- Multi-vendor integration, cybersecurity, and talent shortages remain the top three implementation hurdles.
- A turnkey partner that delivers both the system and the engineers avoids the most common integration failures.
What Are Integrated Manufacturing Systems?
Integrated Manufacturing Systems (IMS) connect three distinct layers of a plant into one coordinated system: engineering design tools (CAD/CAE), production execution equipment (CAM, robotics, PLCs), and business systems (ERP). Instead of operating as separate silos, these layers exchange data continuously.
This concept traces back to Computer-Integrated Manufacturing (CIM), which NIST formally documented in 1986 (NIST, 1986). The approach focused on total manufacturing effectiveness and resource utilization across the entire enterprise, not just individual machines.
The core idea hasn't changed in nearly 40 years, even as the technology powering it has transformed completely.
Here's the core principle: machines and software exchange real-time data so production decisions happen faster, with fewer manual touchpoints and fewer opportunities for human error.
This differs from standalone automation. A single automated welding robot performs one task well. An integrated system links that robot with conveyors, sensors, quality inspection tools, and the ERP system tracking the order. Every piece of equipment then coordinates around the same production goal.

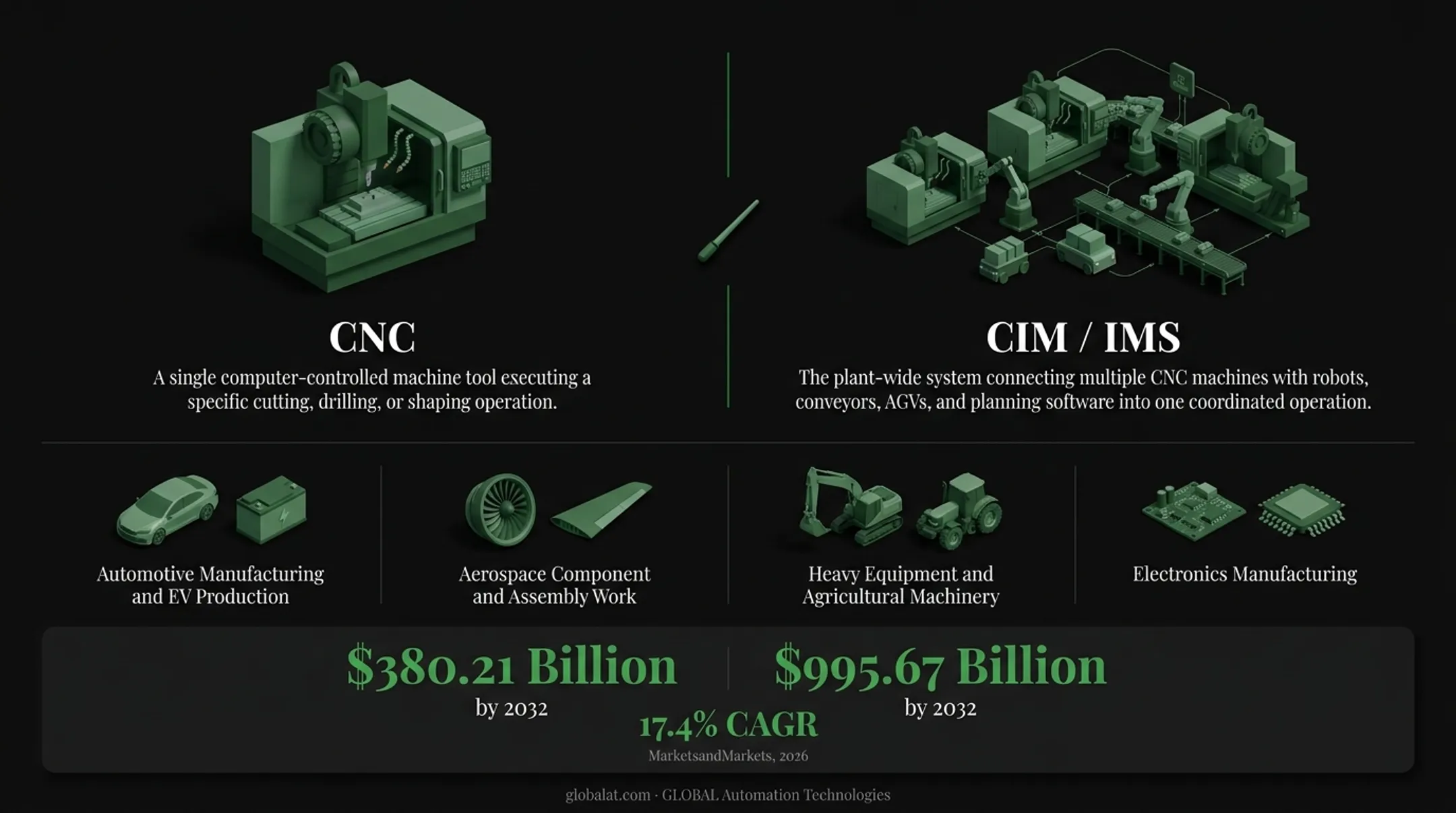

CNC vs. CIM: What's the Difference?
People often use these terms interchangeably, but they describe different scopes entirely.
- CNC (computer numerical control) refers to a single computer-controlled machine tool executing a specific cutting, drilling, or shaping operation.
- CIM/IMS is the plant-wide system connecting multiple CNC machines with robots, conveyors, AGVs, and planning software into one coordinated operation.
Think of CNC as one instrument. CIM is the entire orchestra, with a conductor making sure everyone plays in time.
IMS has become standard practice in industries running high-volume, repetitive production:
- Automotive manufacturing and EV production
- Aerospace component and assembly work
- Heavy equipment and agricultural machinery
- Electronics manufacturing
Market growth reflects why these industries keep investing. MarketsandMarkets valued the global smart manufacturing market at $380.21 billion in 2026, projecting it to reach $995.67 billion by 2032, a compound annual growth rate of 17.4% (MarketsandMarkets, 2026).
That figure spans CAD/PLM software, industrial robots, and digital twins across the full manufacturing stack.
Key Components and Technologies Powering Integrated Manufacturing Systems
An integrated manufacturing system isn't one piece of software or one machine. It's four layers working together.
Engineering and design layer. CAD tools define the product geometry. CAE simulates how it will perform before anything gets built. CAPP translates that design into a manufacturable process plan, evaluating cost and manufacturability before production starts.
Production and control layer. This is where the physical work happens:
- CNC machines executing precision cutting and shaping
- PLCs reading sensors and commanding actuators in real time
- Robots handling welding, painting, dispensing, and assembly
- AGVs moving materials between stations without human drivers
Business and planning layer. ERP and MES systems sit above the plant floor, managing scheduling, inventory, and cost tracking. The ISA-95 standard formally defines this relationship, positioning MES as the operational bridge between plant-floor controls and enterprise business logistics.
Connective layer. None of this works without a common language. Industrial Ethernet protocols like EtherNet/IP, PROFINET, and EtherCAT let controllers, robots, and sensors exchange data with minimal latency, often synchronizing motion and control signals in real time across the entire cell.

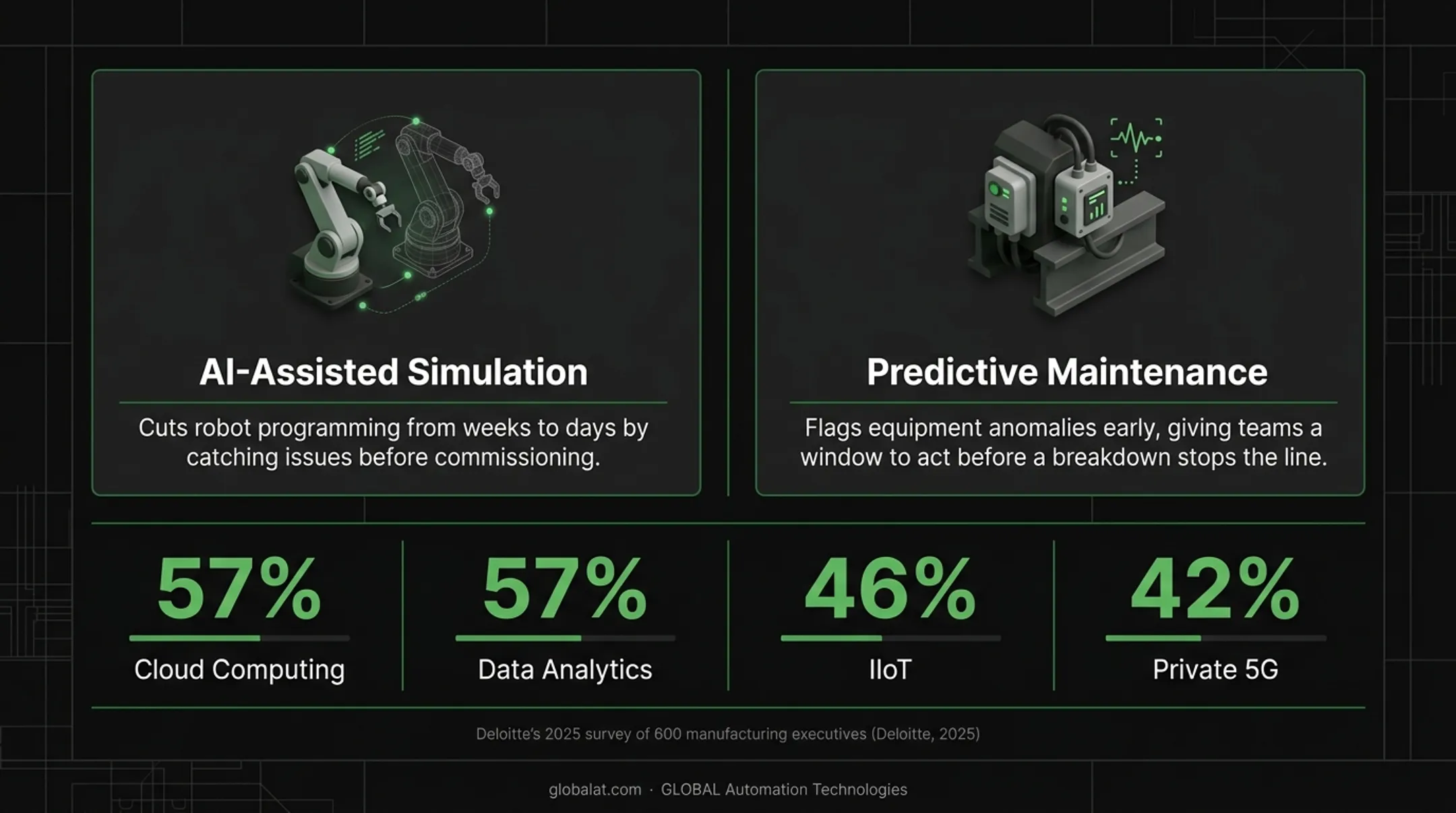

AI Is Reshaping the Stack
AI is now a working tool in this space, and two applications stand out.
AI-assisted simulation lets engineers model, test, and optimize robot programs in a virtual environment before any code runs on the physical floor. At GLOBAL Automation Technologies, this cuts robot programming from weeks to days. Issues get caught and fixed virtually, which means fewer surprises during commissioning.
AI-driven predictive maintenance applies the same logic to equipment health. Instead of waiting for a failure, sensors and health-assessment tools flag anomalies early, giving maintenance teams a window to act before a breakdown stops the line.
Adoption of the broader technology stack is climbing fast. Deloitte's 2025 survey of 600 manufacturing executives found facility-level adoption rates of 57% for cloud computing, 57% for data analytics, 46% for IIoT, and 42% for private 5G (Deloitte, 2025). None of these numbers looked like this five years ago.
The Three Types of Manufacturing Systems
Manufacturers don't jump straight into a fully AI-driven plant. Integration maturity progresses through three distinct stages.
Digital Manufacturing
This is the entry point. Manufacturers model factory layouts, product designs, and machinery digitally instead of on paper. Simulation replaces static charts and manual planning documents. It's the foundation everything else builds on, but the systems here largely operate in isolation from each other.
Digital-Networked Manufacturing
The second stage connects those digital systems over networks. This enables three types of integration:
- Horizontal integration across different companies in a supply chain
- Vertical integration across stages of production within one facility
- Collaborative R&D where design and engineering data flow between partners in real time
This stage is sometimes called "Internet + manufacturing," and it's where most mid-size manufacturers currently sit.
New-Generation Intelligent Manufacturing
The third and most advanced stage integrates AI directly into design, production, and decision-making. Systems at this level can self-optimize processes with minimal human intervention, adjusting production parameters based on real-time conditions rather than fixed programming.
This three-stage framework comes from a 2018 research paper by Zhou Ji and coauthors, published in the journal Engineering. It is an academic strategy model rather than a formal international standard, but it remains one of the clearest ways to map integration maturity.

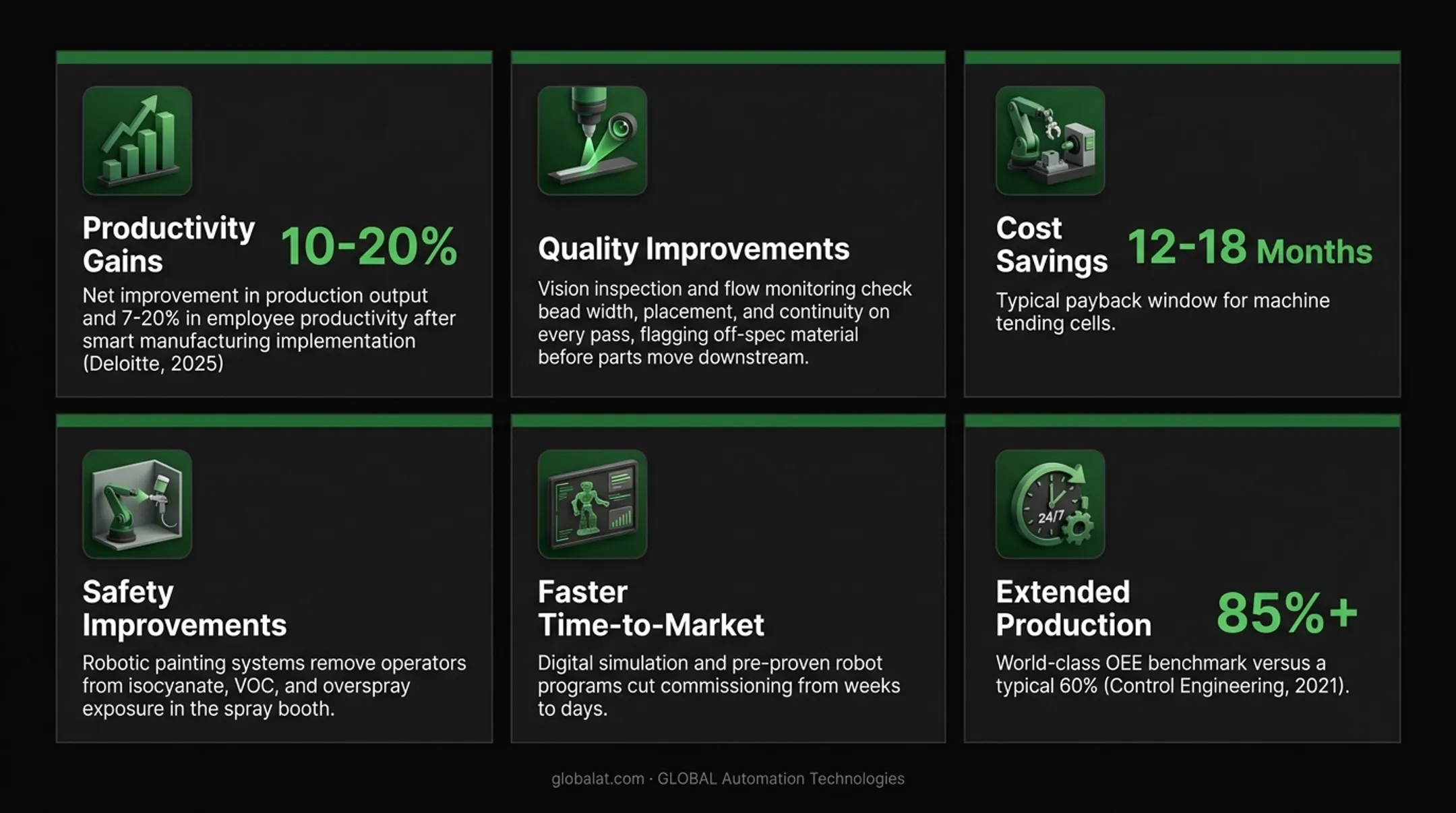

Benefits of Integrated Manufacturing Systems
The case for integration comes down to six measurable outcomes.
Productivity gains. Less manual data entry and better-coordinated scheduling free up time across the whole operation. A 2025 Deloitte survey found manufacturers reported average net improvements of 10-20% in production output and 7-20% in employee productivity after implementing smart manufacturing technology.
Quality improvements. Real-time inspection data feeding directly into process control catches problems before they compound. GLOBAL's dispensing and sealing cells pair vision inspection with flow monitoring during the dispensing cycle, checking bead width, placement, and continuity on every pass. If material is off-spec or a path gets missed, the system flags it before the part moves downstream.
Cost savings. Higher equipment utilization translates directly to dollars. Machine tending cells, which automate part loading, fixture integration, and multi-machine cycling, often pay for themselves in roughly 12 to 18 months—one of the fastest payback windows in industrial automation.
Safety improvements. Removing workers from hazardous tasks is one of the clearest wins in automation. Robotic painting systems eliminate operator exposure to isocyanates, VOCs, and overspray particulates by taking humans out of the spray booth.
Faster time-to-market. Digital simulation shortens the path from design to production. Programming and commissioning that once took weeks can now happen in days when robot programs are proven virtually before touching the plant floor.
Extended production beyond a single shift. Coordinated systems support lights-out running between scheduled maintenance windows and raise overall equipment effectiveness. Control Engineering cites 85% or higher as a world-class OEE benchmark for discrete manufacturing, compared to a typical 60% (Control Engineering, 2021).
Getting there requires machine control, material flow, scheduling, and fault handling to run as one coordinated loop, not as standalone capabilities.
Common Challenges in Implementing Integrated Manufacturing Systems
Integration isn't plug-and-play. Three challenges show up on almost every project.
Multi-vendor interoperability. CNC machines, robots, conveyors, and AGVs from different suppliers often speak different communication protocols. The Industry IoT Consortium notes that pairwise integration across N different technologies can require N(N-1)/2 individual bridges, complexity that scales quickly as equipment is added.
Data integrity and cybersecurity. Every networked device is a potential entry point. NIST's SP 800-82 Rev. 3 guide addresses this directly, noting that operational technology security has to account for performance, reliability, and safety constraints that don't apply to standard IT systems. As more sensors and controllers get connected, the attack surface grows with them.
The talent gap. Running an integrated system requires engineers fluent in both controls and mechanical engineering plus IT and data systems—a hybrid skill set that's hard to find. Deloitte's 2025 survey found 69-72% of manufacturers reported moderate-to-significant hiring difficulty across IT, OT, data science, and cybersecurity roles.
GLOBAL's technical staffing fills that gap by placing controls engineers, robot programmers, and commissioning engineers into client operations on a contract or direct-hire basis.
How to Choose the Right Partner for Your Integrated Manufacturing System
A successful IMS project needs two things: the physical system and the engineering talent to program, run, and maintain it long-term. Most manufacturers underinvest in the second half.
When evaluating potential partners, look for full turnkey capability rather than assembling multiple vendors:
- Process study and offline robot simulation
- In-house mechanical and controls engineering
- Machine vision and SCADA/IoT connectivity
- Physical build and installation
- Commissioning and operator training
- Ongoing technical support after launch
Piecing this together from separate vendors creates real problems. When something breaks at the intersection of two vendors' scope, like a controls issue affecting a vision system, accountability gets murky fast.
No single party has full visibility into the system. Troubleshooting slows down, and simple fixes turn into multi-week investigations.
Before you sign, ask who owns the full system after go-live—and who shows up when a cross-discipline fault hits the floor.
GLOBAL Automation Technologies, a top-tier Level 5 FANUC Authorized System Integrator, built its model around solving exactly this problem. The company combines robotic systems integration with technical staffing under one roof, so manufacturers get the system and the engineers to run it from a single point of contact.
With 18+ years of experience and a proven global base of robotic deployments, GLOBAL's engineering and technical staffing work operate in tandem. The team that designs and builds the system is the same team that keeps it running.
That continuity holds up after launch, when multi-vendor handoffs usually break down under production pressure.
Frequently Asked Questions
What are integrated manufacturing systems?
Integrated manufacturing systems connect design, production, and business software through networked computers and equipment that jointly control the manufacturing process. Instead of operating separately, these systems share real-time data to coordinate decisions across the entire plant.
What is the difference between CNC and CIM?
CNC controls a single machine tool performing one specific task, like cutting or drilling. CIM — and by extension IMS — connects multiple CNC machines, robots, and planning software into one coordinated, plant-wide system.
What are the three types of manufacturing systems?
The three progressive stages are digital manufacturing (digital simulation replacing paper planning), digital-networked manufacturing (internet-connected systems enabling cross-company collaboration), and new-generation intelligent manufacturing (AI-driven systems that self-optimize with minimal human input).
How long does it take to implement an integrated manufacturing system?
Timelines vary widely based on project scope, equipment count, and facility complexity. AI-assisted simulation and pre-deployment optimization shorten those timelines by catching integration issues virtually before physical commissioning begins.
What industries benefit most from integrated manufacturing systems?
Automotive, aerospace, heavy equipment, and electronics manufacturing lead adoption today. Any high-volume, repetitive production environment also benefits from tighter coordination between design, execution, and business systems.
Is integrated manufacturing the same as Industry 4.0?
Not quite. IMS is the operational foundation, connecting design, production, and business systems into one loop. Industry 4.0 and smart manufacturing extend that foundation with IIoT, AI, and connectivity across entire supply chains and enterprises.
