Manual racking systems come with real costs: wasted labor hours spent walking and searching, wide aisles that eat up usable floor space, and safety risks from forklifts sharing tight lanes with foot traffic. Automated racking systems were built to solve exactly these problems.
This article breaks down what an automated racking system actually is, the core components that make it work, the main types available today, and how manufacturers decide which one fits their operation.
Key Takeaways
- Automated racking combines storage structures, robotics, and software to move goods with minimal human handling
- Adoption is still early: only 9% of surveyed operations report fully automated storage
- System types range from ASRS cranes to mobile racking, each suited to different load sizes and throughput needs
- Space savings, labor reduction, and safety gains are the primary drivers behind the investment
- Choosing the right system depends on SKU velocity, load weight, ceiling height, and available footprint
What Is an Automated Racking System?
An automated racking system pairs high-density storage structures with robotic transport and retrieval mechanisms, all directed by control software. Goods move in and out of storage with little to no human involvement.
This shifts operations from person-to-goods, where a worker travels the warehouse to retrieve items, to goods-to-person fulfillment, where the system brings inventory to a fixed workstation.
According to Kardex, conventional person-to-goods work can put as much as 60% of a worker’s time into walking and searching for product. Flip that model and labor on the floor changes: fewer people traveling, more people handling exceptions and quality.
Automated racking means more than a forklift with a robot driver. The rack structure is built to interface with stacker cranes, shuttles, or mobile bases. Racking, retrieval hardware, and software have to operate as one system, not as separate pieces bolted together.
You'll find these systems deployed across:
- E-commerce and distribution warehouses
- Manufacturing facilities needing line-side inventory
- Cold storage and food/beverage cold-chain operations
- Third-party logistics (3PL) providers
Adoption is still relatively niche. A 2024 Modern Materials Handling study of 155 operations found that only 9% reported fully automated storage. In the same study, 44% operated in dedicated warehouses or distribution centers and another 15% ran warehouses supporting manufacturing. That gap between interest and implementation is where system selection matters most.
The robotics and controls behind these systems (AGVs, AMRs, and robotic arms) sit in the same industrial automation category used on manufacturing floors. That overlap is why automation integrators who work in robotic material handling, not only warehouse equipment vendors, show up more often on these deployments.
Types of Automated Racking Systems
There's no single "automated racking system." The right configuration depends on load size, required throughput, and how much vertical or floor space you actually have.
Automated Storage and Retrieval Systems (ASRS)
ASRS covers two main categories:
- Unit-load ASRS: Handles pallets up to ~1,800 kg via stacker cranes; rack heights to 45 meters, ~60 loads/hour
- Mini-load ASRS: Manages bins, totes, and cartons around 50 kg for e-commerce and kitting operations
Both excel at vertical space utilization and near-perfect pick accuracy. The trade-off is upfront cost. Mini-load systems typically start around $750,000, while unit-load and multi-shuttle configurations often run $1 million or more, according to Kardex's published cost breakdowns.
Pallet Shuttle / Radio Shuttle Systems
Battery-powered shuttles run on rails inside deep-lane racking, moving pallets without a forklift ever entering the lane. This setup suits high-volume, low-SKU-diversity storage.
Cold storage is a standout use case here. Cold-chain warehouse automation revenue was projected to exceed $1.3 billion in 2024 and grow past $2 billion by 2030, according to Interact Analysis. Unit-load ASRS and roaming pallet shuttles are the most common technologies in freezer environments.
Vertical Lift Modules (VLMs) and Horizontal Carousels
These enclosed, tray-based systems bring inventory to an ergonomic access point instead of sending a worker to it. Haenel reports its Lean-Lift VLM can deliver up to 85% footprint savings compared to conventional shelving. That figure applies to that specific system, not every VLM on the market. Horizontal carousels tend to fit better where ceiling height is limited.
Mobile Racking Systems
Motorized rack bases slide along floor rails, opening only the aisle actually needed at that moment. SSI Schaefer cites up to 90% more storage capacity and roughly 45% overall space savings versus conventional static racking — a meaningful gain for facilities landlocked by their existing footprint.

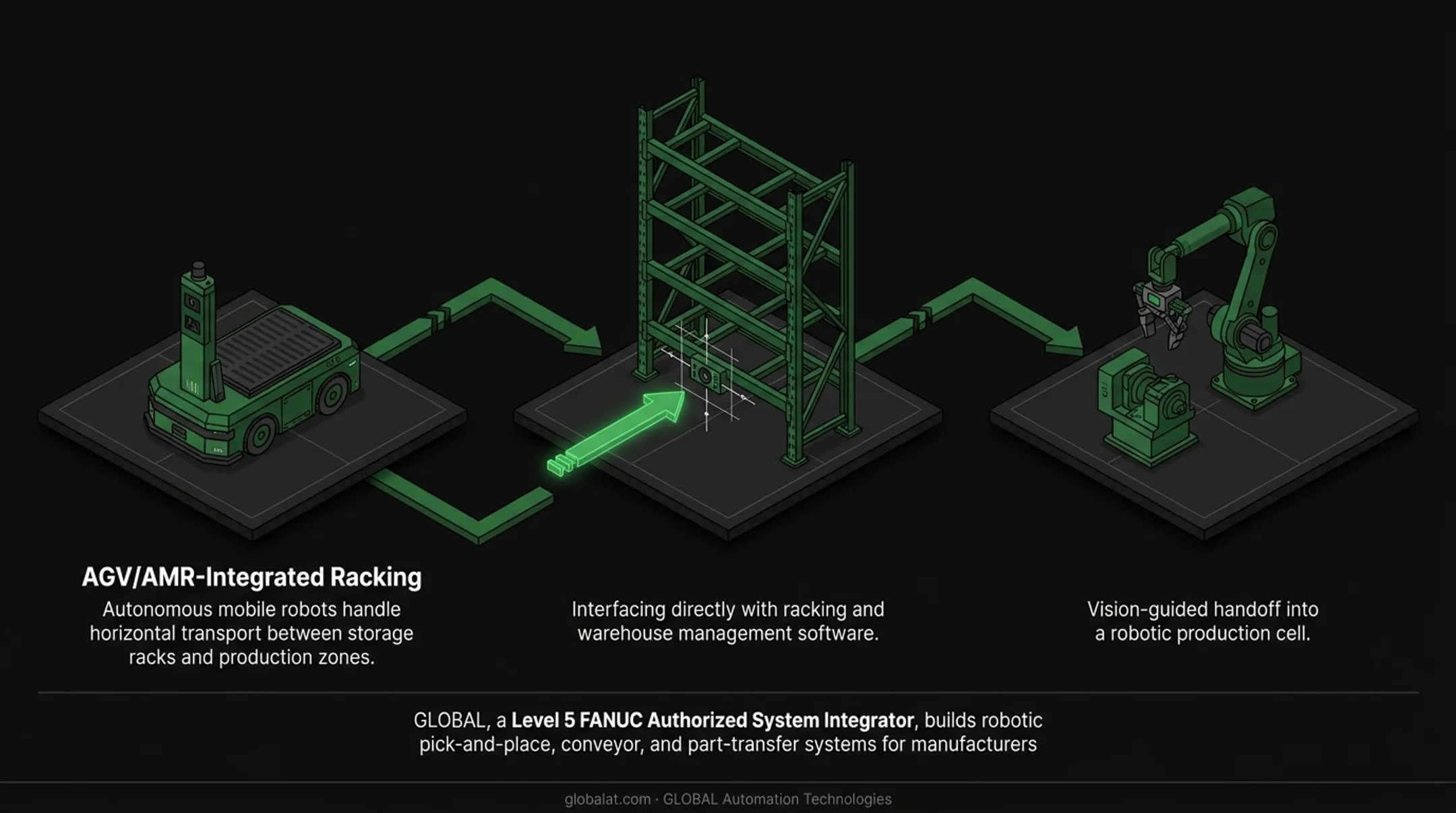

AGV/AMR-Integrated Racking
Autonomous mobile robots (AMRs) and automated guided vehicles (AGVs) handle horizontal transport between storage racks and production or shipping zones, often interfacing directly with the racking and its warehouse management software.
This is where the line between warehouse automation and manufacturing automation starts to blur. Getting AMRs to hand off material to a racking structure and then to a robotic cell takes the same controls engineering, PLC integration, and vision-guided handling used on the plant floor.
That overlap is why automation partners like GLOBAL, a Level 5 FANUC Authorized System Integrator, who build robotic pick-and-place, conveyor, and part-transfer systems for manufacturers, often get pulled into projects where the storage layer needs to talk to a production cell.
How Does an Automated Racking System Work?
An automated racking system follows a repeatable sequence:
- Inbound delivery — Goods arrive and are staged for putaway
- Robotic pickup — A crane, shuttle, or robot picks up the load
- Transport into racking — The item moves to its assigned storage location
- Programmed storage placement — The system places the item based on optimization rules (velocity, weight, expiration date)
- Retrieval on demand — When an order calls for that item, the system retrieves it and delivers it to a pick station or production line
Two software systems coordinate every move:
- Warehouse Management System (WMS): The decision-making layer. It generates storage and retrieval instructions from inventory levels, order priority, and slotting logic.
- Warehouse Control System (WCS): Turns WMS instructions into real-time machine commands for cranes, shuttles, and robots. It bridges business logic and physical hardware.
Sensors, barcode scanning, RFID, and sometimes vision technology confirm item identity and location at each transaction. That closed-loop checking is how these systems hold accuracy transaction after transaction, not only on a good day.
Real installations show the gap. Van Meter's deployment of 18 Kardex Shuttles reportedly increased throughput by 25%, cut labor costs by 21%, and reached 99.99% order accuracy. Treat that as one documented customer result, not a guarantee, but it shows what automated retrieval can deliver versus manual handling.
Key Benefits of Automated Racking Systems
Automated racking pays off in three places operators feel every shift: floor space, labor hours, and injury exposure.
Space Utilization
Eliminating wide forklift aisles and using vertical cube space instead of floor footprint is often the single biggest driver behind the investment. Reported gains vary by system: Haenel cites up to 85% footprint reduction for its VLM, while SSI Schaefer cites up to 45% space savings for mobile racking. Real results depend on SKU mix and building height, but dense vertical storage consistently frees usable floor area.
Labor Optimization
Fewer workers spend their shift walking and searching. That labor moves to supervisory work, quality checks, and exception handling—higher-value tasks than aisle travel. In one documented case, six Kardex horizontal carousels helped a pharmacy distributor achieve 90% faster picking and a 72% labor reduction.
Safety Improvements

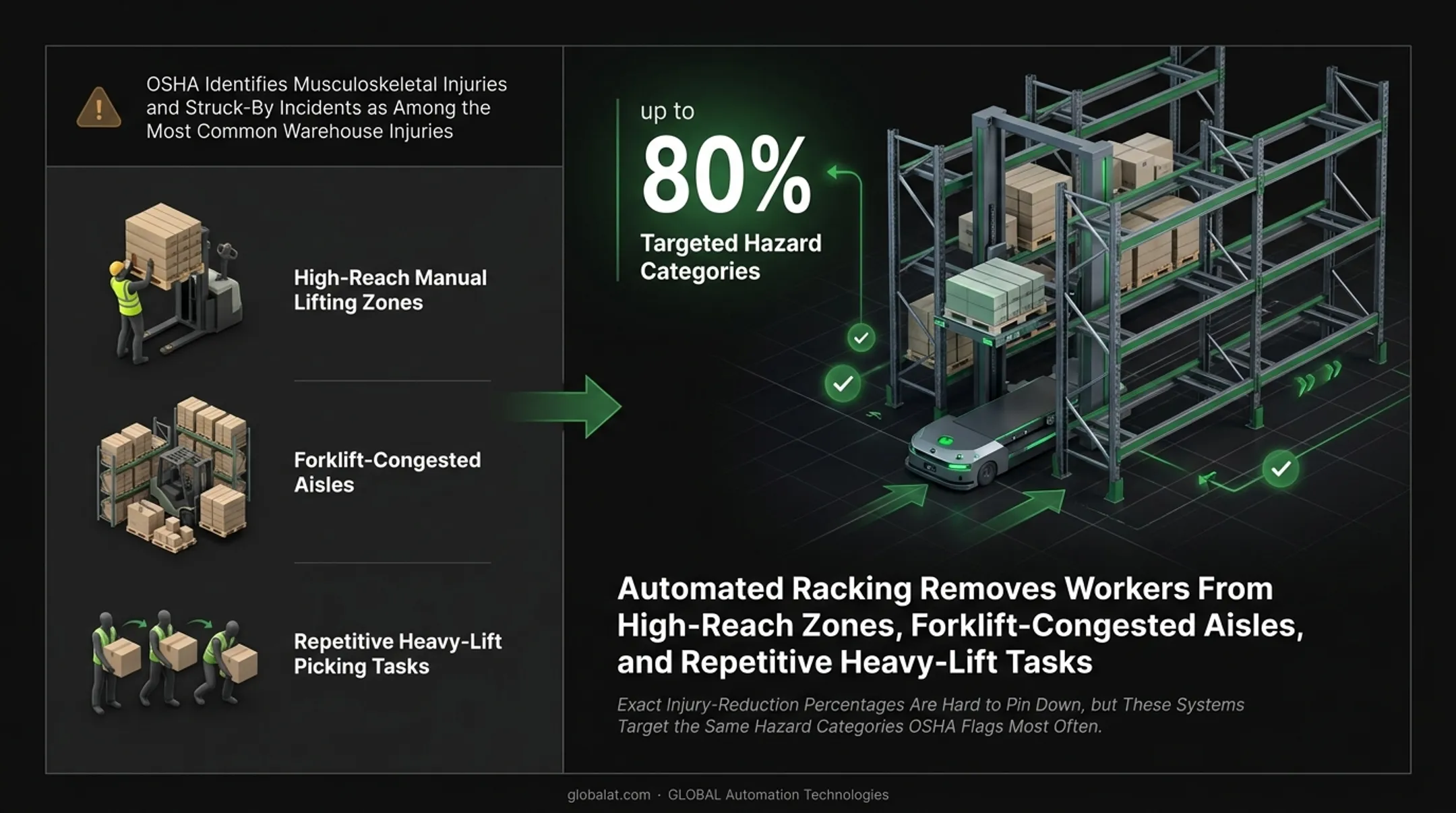

OSHA identifies musculoskeletal injuries from lifting and being struck by powered industrial trucks as among the most common warehouse injuries. Automated racking removes workers from:
- High-reach manual lifting zones
- Forklift-congested aisles
- Repetitive heavy-lift picking tasks
Exact injury-reduction percentages are hard to pin down, but these systems target the same hazard categories OSHA flags most often.
Automated vs. Traditional Racking: Quick Comparison
| Factor | Traditional Racking | Automated Racking |
|---|---|---|
| Storage density | Standard, limited by aisle width | High — up to 45–85% space savings via vertical cube use |
| Labor requirement | Higher — manual travel and picking | Lower — labor shifts to supervision and exceptions |
| Processing speed | No universal benchmark; varies by facility | Goods-to-person shuttles: 500–700 items/hour (MHI example) |
| Initial investment | Lower upfront cost | Higher — about $70,000 (vertical carousels) to $1M+ (unit-load ASRS) |
Traditional racking—standard pallet, drive-in, and narrow-aisle setups—still makes sense for lower-volume operations or tighter budgets. Automation rarely wins on sticker price alone. Payback comes from labor savings, space efficiency, and fewer errors, with some documented cases in 12 to 24 months.
Where Automated Racking Systems Are Used and How to Choose the Right One
Common Applications
- E-commerce fulfillment — high SKU counts, fast pick cycles
- Cold storage — freezer and chilled environments where minimizing human exposure matters
- Distribution centers — high-volume inbound and outbound flow
- Manufacturing line-side delivery — just-in-time (JIT) and just-in-sequence (JIS) material feeding to production
Line-side delivery is where automated racking meets production robotics. When storage must feed a line in sequence, the racking layer has to stay synchronized with the robotic cells doing assembly, welding, or material handling downstream.
That is as much a controls and PLC integration problem as a warehouse layout problem. Conveyor triggers, fault handling, and E-stop logic all need to coordinate between the storage system and the production robot. Integrators that combine systems integration with skilled engineering talent, such as GLOBAL Automation Technologies, handle this multi-system synchronization as part of the broader cell design.

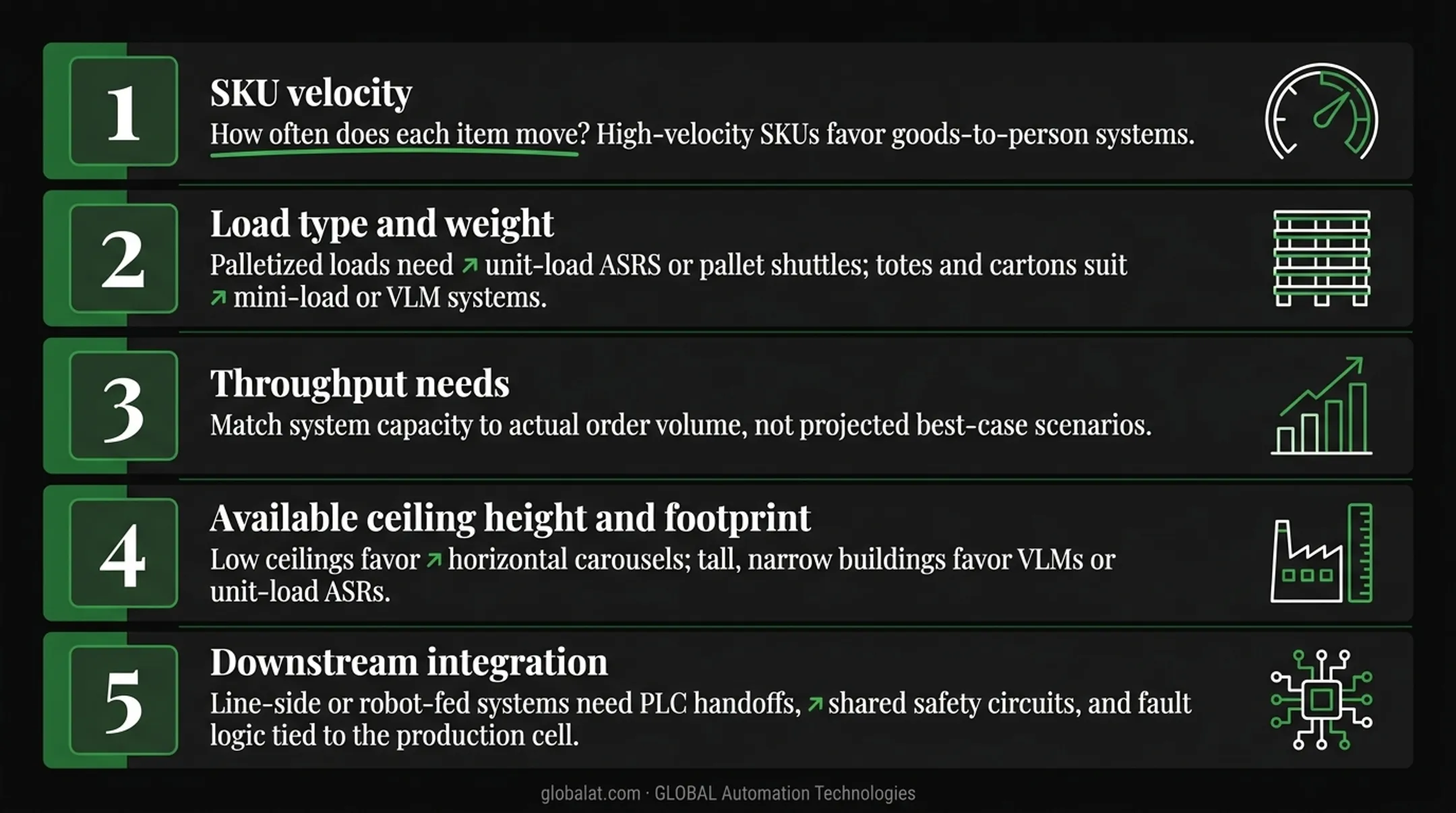

Selection Checklist
Before choosing a system, evaluate:
- SKU velocity — How often does each item move? High-velocity SKUs favor goods-to-person systems.
- Load type and weight — Palletized loads need unit-load ASRS or pallet shuttles; totes and cartons suit mini-load or VLM systems.
- Throughput needs — Match system capacity to actual order volume, not projected best-case scenarios.
- Available ceiling height and footprint — Low ceilings favor horizontal carousels; tall, narrow buildings favor VLMs or unit-load ASRS.
- Downstream integration — Line-side or robot-fed systems need PLC handoffs, shared safety circuits, and fault logic tied to the production cell.
Frequently Asked Questions
What is racking and automation?
Automated racking combines physical storage structures with robotics, sensors, and control software so goods move, store, and retrieve without manual handling. The racking, hardware, and software operate as one coordinated system rather than separate tools.
How much does an automated racking system cost compared to traditional racking?
Automated systems carry a higher upfront investment, ranging from roughly $70,000 for a vertical carousel to $1 million or more for unit-load ASRS. Traditional racking costs less initially, but automated systems typically recover that gap through labor and space savings over time.
Is an automated racking system suitable for every warehouse or facility?
Not necessarily. These systems work best for medium-to-large operations with high throughput or storage-density needs. Smaller operations with lower volume may not see a fast enough return to justify the investment.
Can automated racking systems work in cold storage or hazardous environments?
Yes. Systems operate in ambient, chilled, and freezer conditions, with some mobile racking rated down to -22°F (-30°C). They also cut the time workers spend exposed to extreme temperatures or hazardous zones.
How long does an automated racking system last, and does it require maintenance?
Most automation systems last over a decade, with modular designs that scale as needs change. Regular maintenance of shuttles, cranes, and software is still required. VLMs, for instance, typically need biannual servicing under standard use.
What industries benefit most from automated racking systems?
E-commerce, manufacturing, cold storage, and distribution/logistics lead adoption. Each industry favors different system types based on load size, SKU count, and throughput demands.
