The automotive robotic-welding market alone is projected to grow at a 9.1% CAGR, according to a 2025 Mordor Intelligence report, signaling that manufacturers are leaning harder into automation as production speeds climb.
The problem? Many manufacturers buy laser seam tracking without understanding how the sensor-to-robot feedback loop actually functions. That leads to mismatched systems, underused capability, and frustrated engineers. This guide breaks down the mechanics, not the sales pitch.
Key Takeaways
- Laser seam tracking corrects the weld path in real time; seam finding only locates the joint once
- Optical tracking systems typically scan at 50-100 Hz
- Thin-gauge stock, long or curved seams, and parts that warp under heat benefit most
- Match sensing method to joint type, material thickness, and cycle time goals
What Is Laser Seam Tracking?
Laser seam tracking is a non-contact sensing method that uses a laser (point, line, or profile-based) paired with a camera and controller to locate and follow a weld seam while welding is happening. Fixturing and pre-programmed paths break down the moment part variation, thermal distortion, or long seams enter the picture.

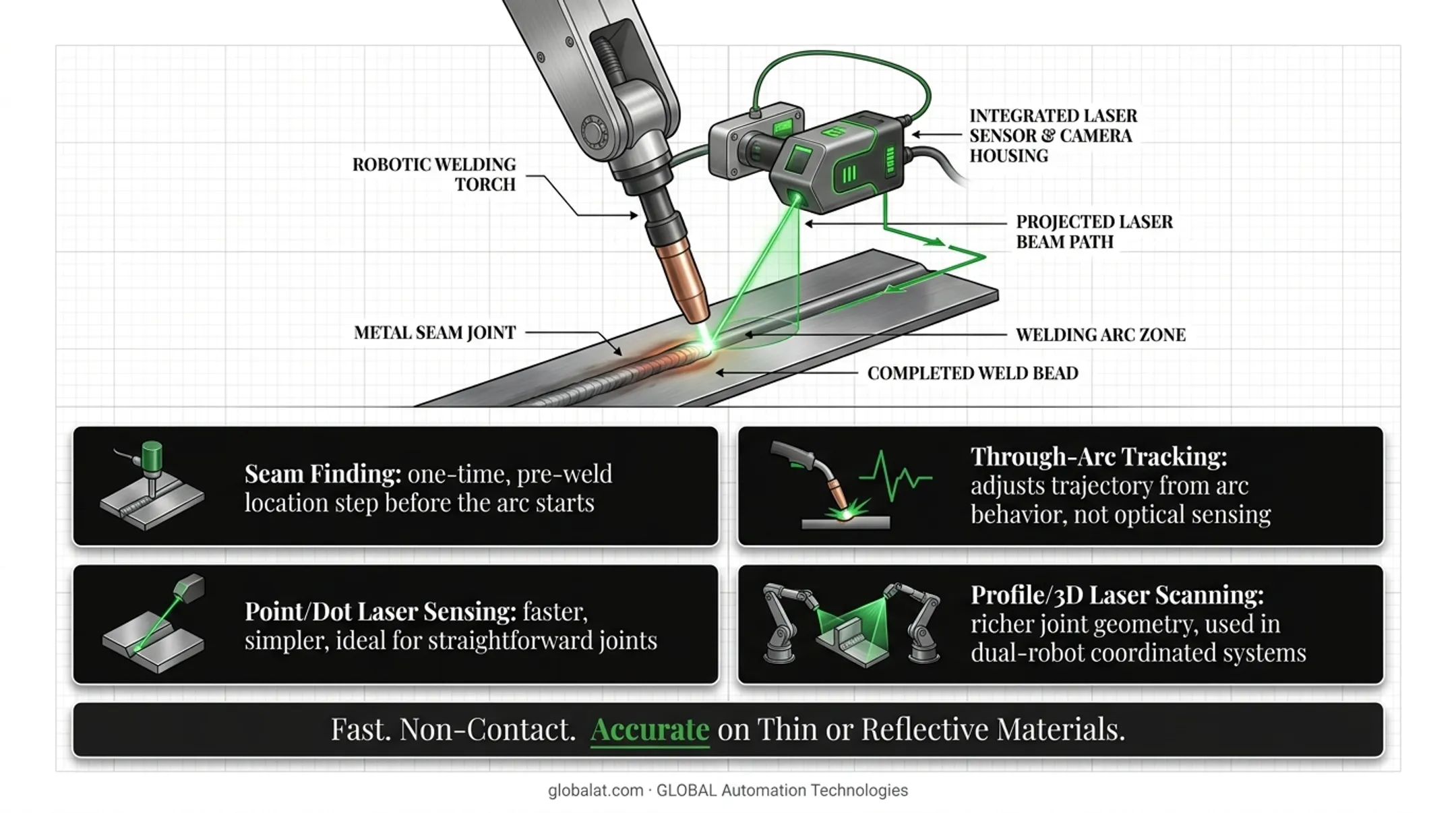

This is not the same as:
- Seam finding — a one-time, pre-weld location step that happens before the arc ever starts, as Servo-Robot's documentation distinguishes it
- Through-arc tracking — a separate technology, like FANUC's Thru-Arc Seam Tracking, that adjusts trajectory based on arc behavior rather than optical sensing
Laser tracking still earns its place over tactile and through-arc options: it's fast, non-contact, and accurate on thin or reflective materials where tactile sensors struggle.
There are two main sensor types:
- Point/dot laser sensing — faster and simpler, good for straightforward joints
- Profile/3D laser scanning — captures richer joint geometry data, often used in dual-robot coordinated systems
How Does Laser Seam Tracking Work?
The system runs as a continuous loop between sensor, controller, and robot arm, split into distinct stages.
Initiation
Before welding starts, a laser scan runs just ahead of the torch to map the joint profile. This initiation step is largely automated once a robot programmer completes an initial calibration or teach step.
One common bottleneck: sensor mounting position and torch access can restrict where the laser physically can scan, especially on tight or complex joint geometries. GLOBAL's engineers account for that constraint during fixture and tooling design when building custom welding cells.
Core Operation
The laser projects a line or dot onto the seam. A camera captures the reflected profile at high frequency, typically in the 50-100 Hz range for optical seam-tracking applications, according to Wenglor's manufacturer guide. The controller compares this scanned profile against the taught path and calculates positional offsets on the fly.
Performance depends on a few tightly linked variables:
- Travel speed relative to scan rate
- Joint gap detection accuracy
- Tolerance thresholds tied to weld quality at higher line speeds

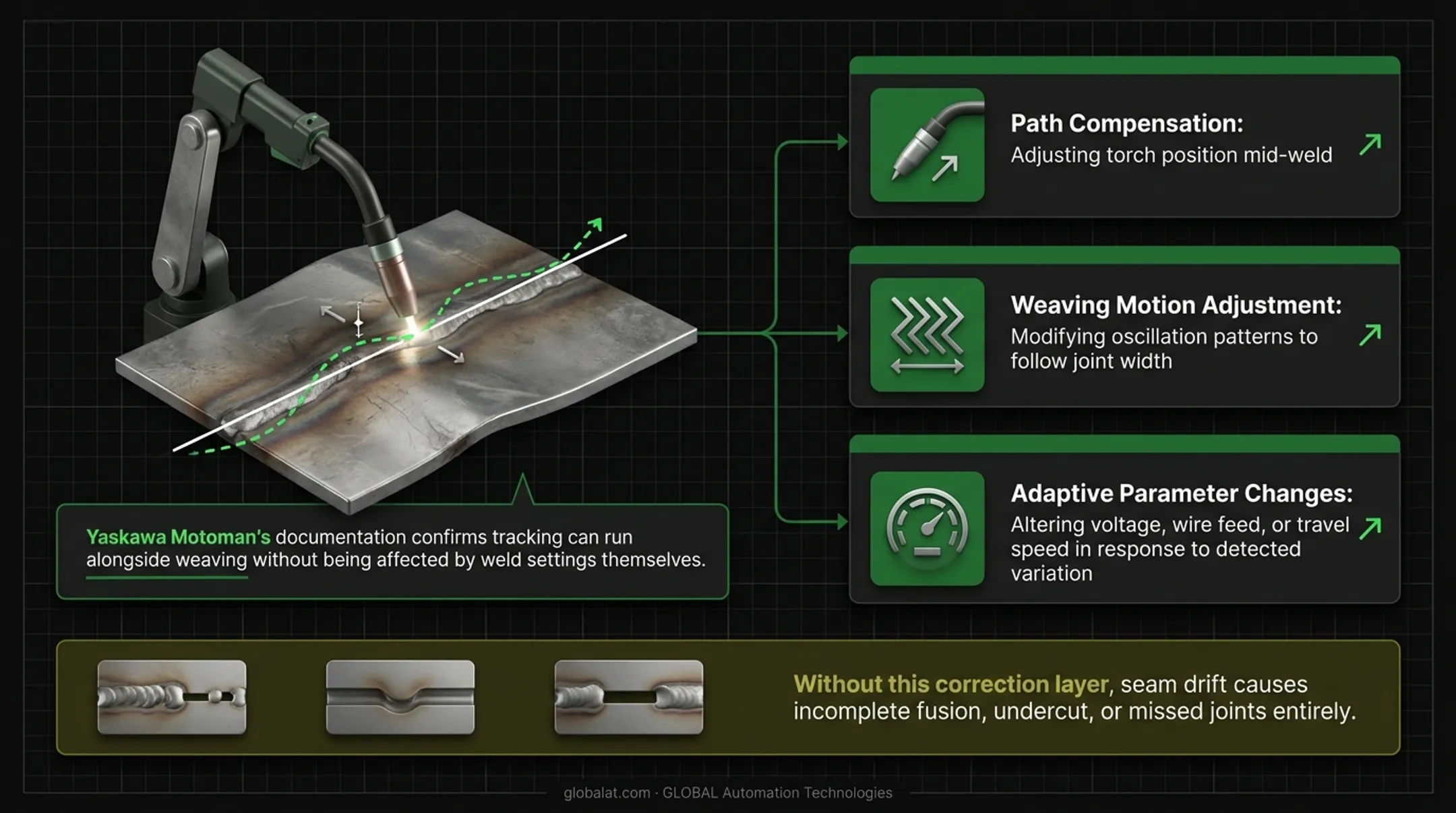

Adaptive Control
Real-world welding isn't static. Parts vary piece to piece. Metal warps under heat. Surfaces reflect light unpredictably. The system compensates through:
- Path compensation: adjusting the torch position mid-weld
- Weaving motion adjustment: modifying oscillation patterns to follow joint width
- Adaptive parameter changes: altering voltage, wire feed, or travel speed in response to detected variation
Yaskawa Motoman's documentation confirms tracking can run alongside weaving without being affected by weld settings themselves. Without this correction layer, seam drift causes incomplete fusion, undercut, or missed joints entirely. Those failures are expensive to catch after the fact.
Output / Result
The process produces two results: a corrected weld path executed in real time, plus positional and quality data logged for that pass. This data can feed into downstream quality control and traceability systems, though the specific format and integration depend heavily on the client's MES or SCADA setup.
Vendor case studies, including Meta Vision's propane-tank manufacturing example, report reduced defects, scrap, and rework from seam tracking adoption — though published figures don't include specific percentages, so treat those claims as directional rather than guaranteed.
Catching deviation before it compounds follows the same logic GLOBAL uses in vision-based flow monitoring for robotic dispensing. Bead width, placement, and continuity are checked in real time so off-spec material gets flagged before the part moves downstream: sense, compare, correct.
Where Laser Seam Tracking Is Used
Laser seam tracking shows up most in robotic arc welding cells for:
- Automotive body and chassis components
- Heavy equipment structures
- Tier 1 automotive assemblies
It performs best under specific conditions:
- Thin-gauge lap joints
- Long or curved seams
- High travel speeds
- Environments with part-to-part variation or thermal distortion
Industry priorities differ by sector. Automotive lines favor speed and cycle time. Heavy equipment and structural fabrication prioritize gap tolerance and dual-robot coordinated tracking on larger parts.
GLOBAL's welding integration work spans automotive, heavy equipment, and agricultural manufacturing. Custom cells pair fixtures, servo positioning, and optional vision so seam location and adaptive correction match each application's geometry and production rate.
Laser Seam Tracking vs. Other Sensing Methods
| Method | How It Works | Best For | Limits |
|---|---|---|---|
| Laser tracking | Non-contact optical triangulation, real-time correction ahead of the weld | Thin material, high travel speeds, non-contact requirements | Higher system complexity and setup cost |
| Tactile sensing | Physical probe contacts the workpiece to locate the joint | Fillet and lap joints, lower-budget applications | Slower, contact-based, more wear over time |
| Through-arc tracking | Uses arc signal behavior to adjust vertical/lateral path | Thicker material, weaving applications | Limited precision compared to laser on thin parts |
Laser tracking justifies its added cost when material is thin, contact isn't an option, or travel speeds need to stay high without sacrificing accuracy.
Choosing the right sensor type comes down to joint type, material thickness, and cycle time targets. That decision is easier with a systems integrator who can evaluate the application as a whole rather than sell a single sensor platform.
As a Level 5 FANUC Authorized System Integrator, GLOBAL designs welding cells around the part and production requirement first, then matches sensing technology to fit.
Conclusion
Laser seam tracking works as a continuous scan-compare-correct loop, not a one-time fix. That's why it succeeds where fixturing alone fails: part variation, thermal drift, and long seams demand ongoing correction, not a single snapshot.
Understanding this loop leads to better decisions before deployment. Match the sensor type to your application, weigh ROI against cycle time impact, and plan for training and support from day one.
Frequently Asked Questions
What is seam tracking welding and how does it work?
Seam tracking uses a laser, touch, or arc-based sensor to detect the weld joint and follow it in real time. The robot controller adjusts the torch path continuously during the weld based on that sensor feedback.
What two metals cannot be welded together?
Metals with highly dissimilar melting points or incompatible metallurgical properties, such as aluminum and steel, generally can't be joined through conventional fusion welding without specialized processes. Standard TIG or MIG welding isn't suited to this combination.
What is the standard for visual inspection of welds?
AWS D1.1 governs how structural steel is welded, qualified, and inspected in buildings, bridges, and infrastructure projects. It's the most commonly referenced benchmark in structural and automotive welding environments.
What are the different types of weld seams?
Common joint types include butt, lap, T-joint, and corner configurations. Fillet and groove refer to the weld type applied to those joints. A V-groove, for example, chamfers both edges before welding.
What is the rule of 33 in TIG welding?
This isn't a documented industry standard. No major welding equipment manufacturer confirms a "rule of 33" as an authoritative TIG guideline.
Does laser seam tracking work with all robot brands and welding power sources?
Most laser seam tracking systems integrate through Ethernet or EtherNet/IP interfaces with major robot controllers. That said, compatibility varies by sensor and robot combination, so confirming this during system design with an integrator is essential.
