Collaborative material handling robots address both problems at once. They work next to people without cages, take over the repetitive lifting, and free up staff for higher-value work.
This guide covers what collaborative robots actually are, how they're controlled, where they get used, what kind of return you can expect, and how to pick a partner who can actually keep one running.
Key Takeaways
- Cobots work safely beside people without cages, using built-in force and speed sensors
- North American cobot orders hit 7,212 units worth $241 million in 2025, nearly 20% of all robot units ordered
- Machine tending cells typically pay back their investment in 12-18 months
- A documented risk assessment is still required before any cobot goes live
- The right integrator delivers both the robot and the engineers who keep it running
What Is Material Handling Robotics?
Material handling robotics covers any robotic system that moves, positions, sorts, or transfers physical goods, from raw stock to finished pallets. Collaborative robots are a subset built specifically to share workspace with humans.
Traditional industrial robots move fast, carry heavy payloads, and stay behind fences for a reason: contact with a person could cause serious injury. Cobots flip that model.
The Safety Technology That Makes This Possible
Cobots rely on four collaborative techniques defined by international safety guidance:
- Safety-rated monitored stop — the robot halts when a person enters its zone
- Hand guiding — operators physically move the arm to teach it a path
- Speed and separation monitoring — sensors slow the robot as people get closer
- Power and force limiting — built-in limits so contact doesn't cause injury
Collaboration describes an application, not a robot type. A cobot-rated arm paired with sharp tooling or a heavy payload can still require guarding. The whole cell — arm, gripper, part, and workspace — has to be assessed together.

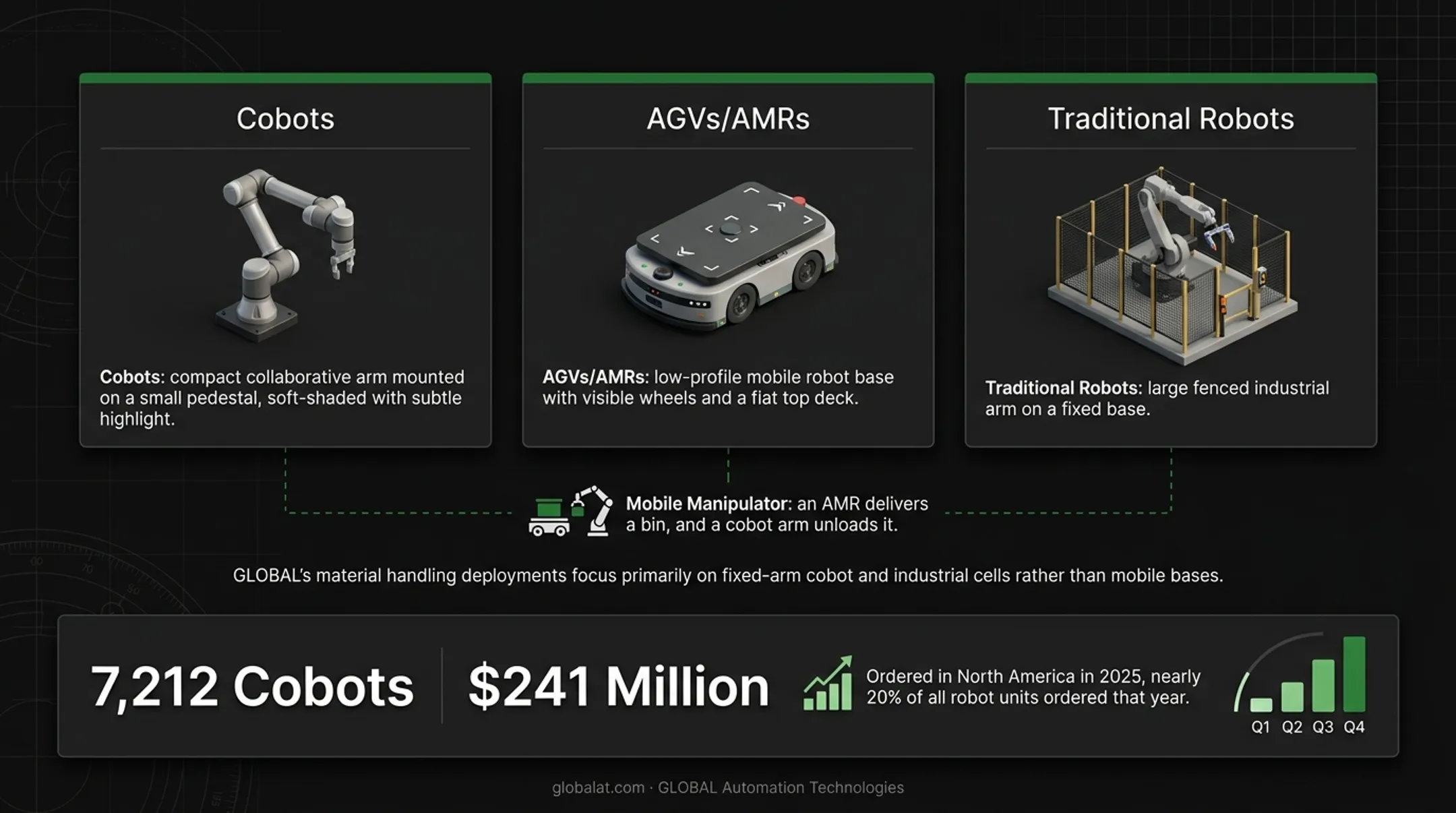

Cobots vs. AGVs/AMRs vs. Traditional Robots
| Type | What it does | Typical use |
|---|---|---|
| Collaborative robot | Manipulates parts near people | Machine tending, palletizing, assembly |
| AGV | Moves along a fixed guide path | Repetitive point-to-point transport |
| AMR | Navigates freely through open space | Flexible material transport |
| Traditional industrial robot | High-speed, high-payload, fenced | Heavy welding, high-volume stamping |
Many facilities blend these: an AMR delivers a bin, and a cobot arm unloads it. That combination is often called a mobile manipulator. GLOBAL's material handling deployments focus primarily on fixed-arm cobot and industrial cells rather than mobile bases.
Adoption is accelerating. A3 counted 7,212 cobots worth $241 million ordered in North America in 2025, representing nearly 20% of all robot units ordered that year. cobot order share climbed each quarter.
How Do You Control a Collaborative Robot?
Cobot programming has moved away from the old teach-pendant-only model, where an engineer walked a robot through every point with a handheld controller. That still exists, but it's no longer the fastest path.
Hand-Guiding and Teach-by-Demonstration
Most cobots let an operator physically grab the arm and move it through the desired motion. The robot records the path. No coding is required for basic tasks. That speed is a big reason cobots reach the floor faster than traditional arms.

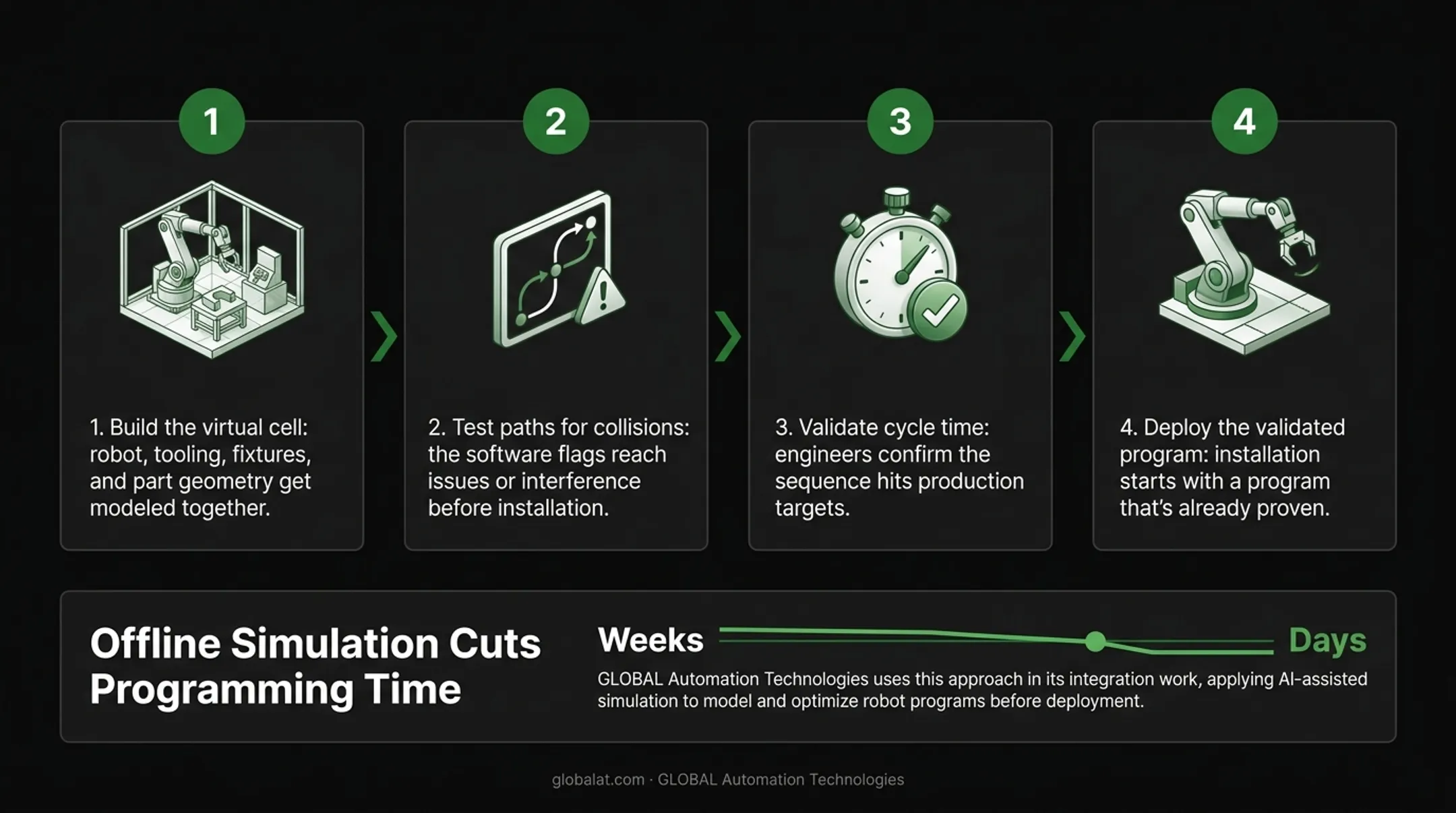

Offline Simulation Cuts Programming Time
Before a robot ever touches the production floor, AI-assisted simulation software models the cell digitally:
- Build the virtual cell: robot, tooling, fixtures, and part geometry get modeled together
- Test paths for collisions: the software flags reach issues or interference before installation
- Validate cycle time: engineers confirm the sequence hits production targets
- Deploy the validated program: installation starts with a program that's already proven
GLOBAL Automation Technologies uses this approach in its integration work, applying AI-assisted simulation to model and optimize robot programs before deployment. That process typically compresses programming from weeks down to days.
The Physical Control Stack
A working cobot cell typically includes:
- Controller: runs the program and manages I/O
- Teach pendant: for manual jogging and fine adjustments
- End-of-arm tooling: grippers sized to the part
- Vision system: locates and orients parts in real time
- PLC integration: synchronizes the robot with machines, conveyors, and safety devices
Vision guidance is often the difference between a stable cell and constant faults. If a part arrives slightly rotated or offset, the system adjusts the pick point on the fly instead of failing the cycle.
Key Applications of Collaborative Material Handling Robots
Machine Tending
Cobots load and unload CNC machines, presses, and injection molding equipment, letting machines run unattended for longer stretches.
Universal Robots reports one customer's EMI cell added 1,200+ production hours per machine annually, reaching 95% efficiency with payback in 12 to 18 months. That timeline lines up with what GLOBAL sees across machine-tending deployments: more parts per shift, less direct labor per part.
Typical machine-tending scopes include:
- CNC loading and unloading across mills, lathes, and machining centers
- Press tending synchronized with stamping and forging equipment
- Injection molding extraction, degating, and inspection
- Multi-machine cells where one robot serves two or three machines with buffering
Palletizing and Packaging

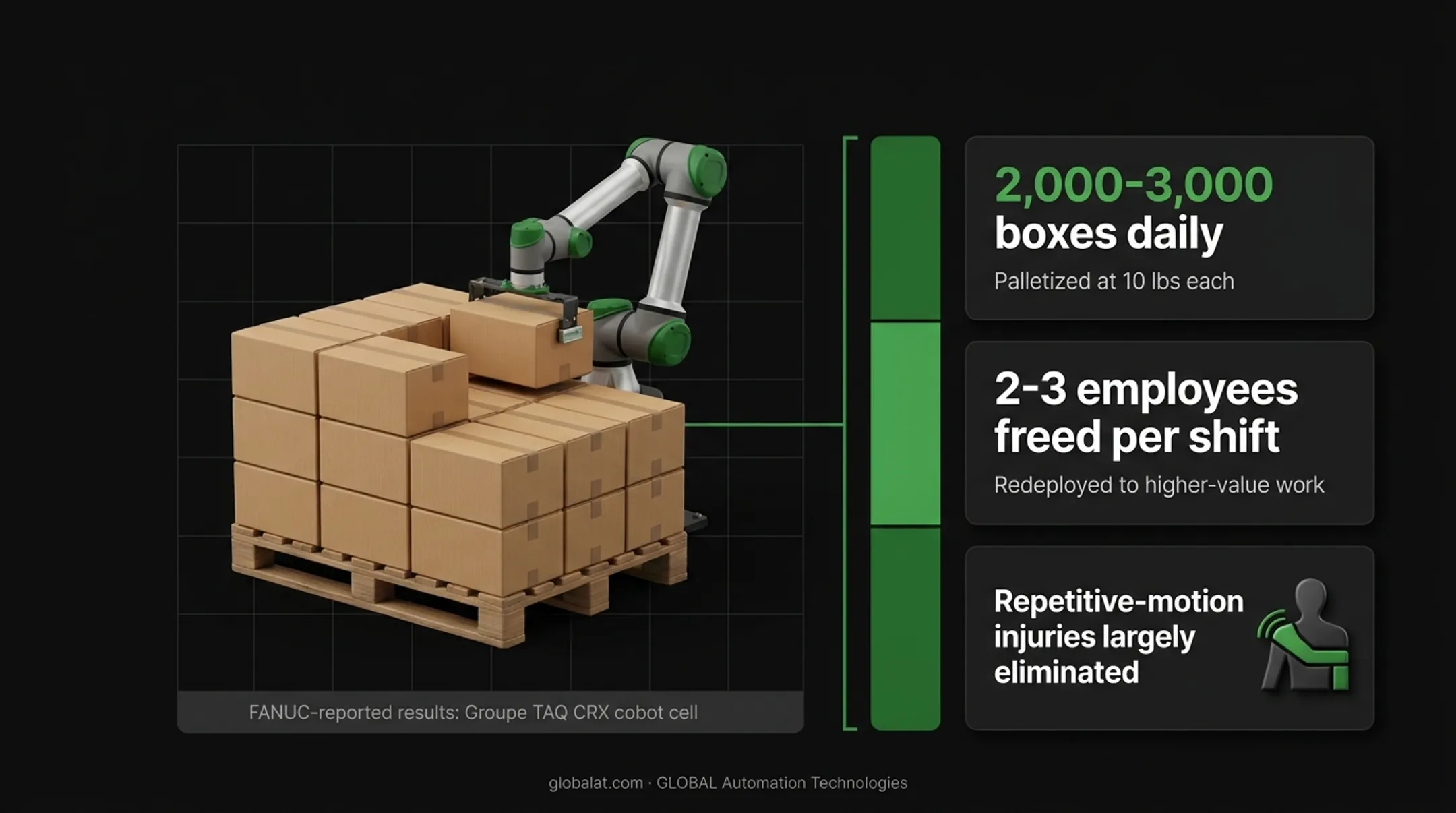

Cobots stack, sort, and box goods with consistent precision from the first box through several thousand. FANUC reports that Groupe TAQ uses a CRX cobot to palletize 2,000-3,000 boxes daily at 10 pounds each.
The cell frees 2-3 employees per shift for higher-value work and, per the manufacturer, largely eliminates the repetitive-motion injuries that came with manual palletizing.
Assembly and Part Transfer
Cobots assist with component insertion, kitting, and moving parts between workstations, especially in automotive and general industrial assembly. These cells use the same building blocks as machine tending: a robot path, a gripper matched to the part, and vision confirming orientation before placement.
Common scopes include:
- Component insertion and light assembly assist
- Kitting and sequenced part presentation at the line
- Station-to-station transfer with orientation checks

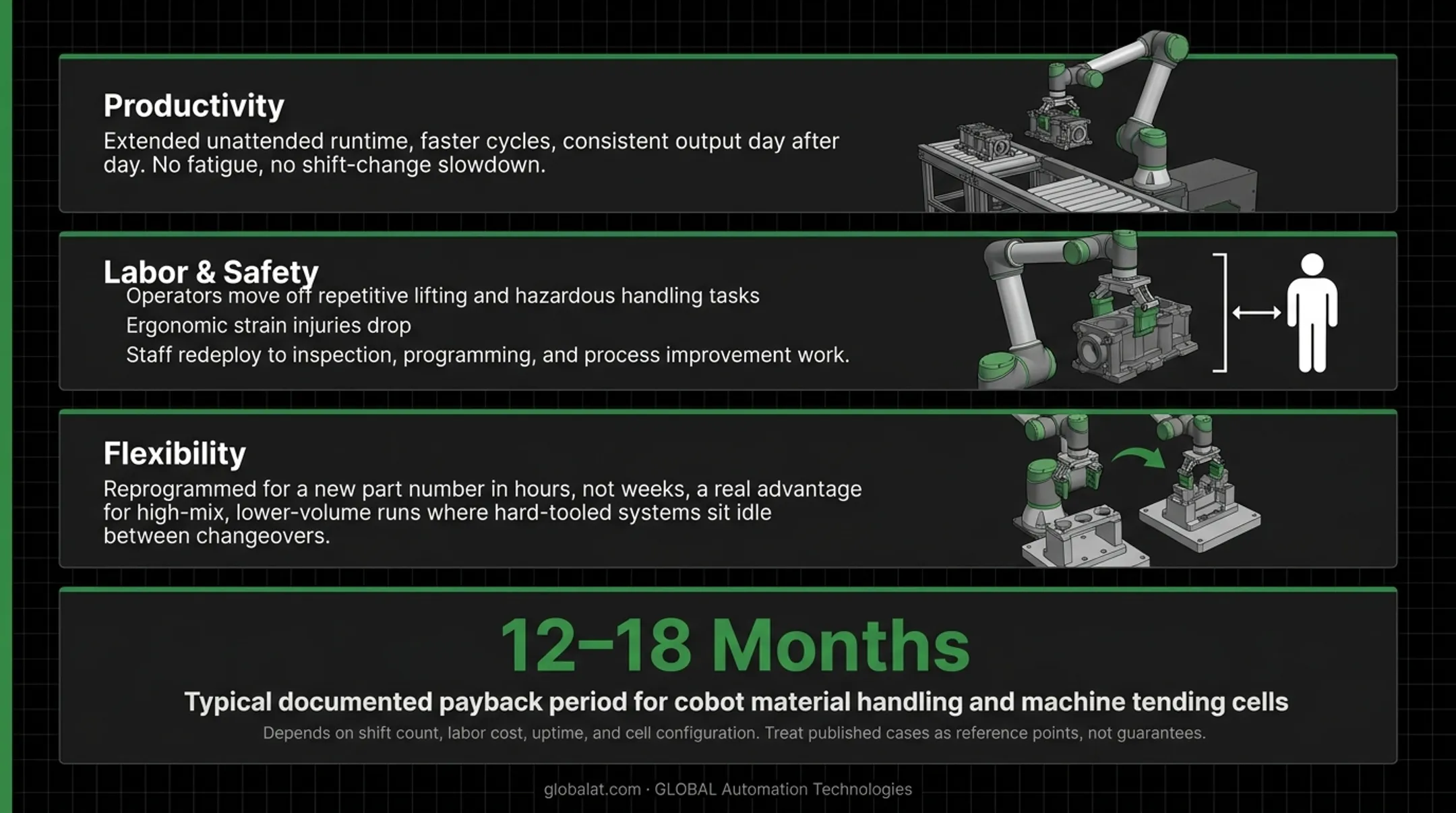

Benefits and ROI of Collaborative Material Handling Robots
Productivity is the most obvious gain. Extended unattended runtime, faster cycles, and consistent output day after day. No fatigue, no shift-change slowdown.
Labor and safety benefits show up fast:
- Operators move off repetitive lifting and hazardous handling tasks
- Ergonomic strain injuries drop when robots handle the heavy, repetitive motion
- Staff redeploy to inspection, programming, and process improvement work
That redeployment only pays off if the cell can change with the work. Flexibility is where cobots pull ahead of fixed automation. A cobot programmed for one part number can be reprogrammed for another in hours, not weeks — a real advantage for high-mix, lower-volume runs where a hard-tooled system would sit idle between changeovers.
None of this replaces a project-specific ROI calculation. Documented payback periods for cobot material handling and machine tending cells often fall in the 12-18 month range, but that figure depends on shift count, labor cost, uptime, and cell configuration. Treat any published case as a reference point, not a guarantee.
Safety Considerations for Collaborative Material Handling Robots
A cobot rating doesn't skip the paperwork. Every deployment still needs a documented risk assessment covering the robot, the end-of-arm tooling, the part being handled, and the surrounding workspace. The standards guiding this are ISO 10218-1 and -2:2025, supplemented by ISO/TS 15066.
Supplemental safety measures are often still necessary, depending on speed, payload, and application:
- Limited fencing around high-payload zones
- Light curtains at entry points
- Area scanners that slow or stop the robot as people approach
A cobot handling light parts at low speed might need none of this. A cobot moving a 20-pound casting at higher speed might need all of it. That's a call an integrator makes after evaluating the specific application, not a default setting on the robot.
Training matters just as much as hardware. OSHA notes that many robot-related incidents happen during programming, setup, or maintenance, not normal operation. Built-in safety features don't substitute for operators who understand how the system behaves.
Choosing the Right Partner for Collaborative Material Handling Automation
A robot arm is only half the equation. The other half is who programs it, validates it, installs it, and shows up when something breaks at 2 a.m. on a Tuesday.
Look for an integrator that can handle the full scope:
- Layout and process study — evaluating part geometry, cycle time, and floor space before anything gets built
- Programming and simulation — validating paths offline before the robot ever runs live
- Installation and commissioning — build, install, train, and launch
- Ongoing support — someone answering the phone six months after go-live, not just at handoff
GLOBAL Automation Technologies built its model around a specific gap in the market: most automation firms do either integration or staffing, rarely both. GLOBAL delivers the robotic system and the engineers who run and maintain it. One call gets you both.
With 18+ years in operation and 630+ robots sold worldwide as a Level 5 FANUC Authorized System Integrator, GLOBAL uses AI-assisted simulation to shorten programming timelines and predictive health assessments to catch equipment issues before they cause downtime.
When evaluating any vendor, ask them to walk through:
- How they handle layout and feasibility studies
- What their simulation and validation process actually looks like
- Who's on-site during commissioning
- What support looks like after the ribbon-cutting
Frequently Asked Questions
What is material handling robotics?
Material handling robotics covers robotic systems that move, sort, or transfer physical goods, from raw stock to finished pallets. Collaborative robots are a subset designed to share workspace safely with human operators.
How do you control a robot?
Robots are controlled with teach pendants for manual jogging, hand-guiding for teach-by-demonstration, or offline simulation software. Most cobot programming today combines hand-guiding with simulation to validate paths before deployment.
Are collaborative robots safe to work next to without fencing?
It depends on the application, not the robot alone. A documented risk assessment determines whether supplemental fencing, light curtains, or area scanners are needed based on speed, payload, and part geometry.
How much does a collaborative material handling robot cost?
Total cell cost depends on the robot, tooling, vision, safety systems, and integration complexity. There's no universal price. Machine tending cells typically pay back their investment in 12-18 months.
What industries use collaborative material handling robots the most?
Life sciences, food and consumer goods, and general industrial manufacturing report strong cobot adoption. Automotive and heavy equipment sectors use both cobots and traditional industrial robots.
Can collaborative robots be reprogrammed for different tasks?
Yes. A cobot programmed for one part number can often be reprogrammed for a different task in hours, making it far more flexible than hard-tooled fixed automation.
