ISA has noted that a typical automation project can involve "literally thousands" of components, and when schedules slip, testing and commissioning are often the first casualties. That's exactly the wrong place to cut corners. Skipped alignment checks, rushed utility hookups, and abbreviated validation are what turn a working line into a source of downtime, safety incidents, and voided warranties months down the road.
This guide walks through the full installation process, from site prep and safety prerequisites through commissioning and first-piece approval, so you know what "done right" looks like before equipment ever hits the floor.
Key Takeaways
- Installation follows five phases: planning, site prep, placement, integration, and validation
- Confirm power, floor loading, and guarding before equipment ships to your facility
- Skilled labor needs scale with automation, from in-house techs to certified integrators
- Skipping first-piece validation is a top cause of failures that surface weeks after go-live
- Most installation problems trace back to planning gaps, not defective equipment
How to Install a Production Line: A Step-by-Step Guide
Installation broadly breaks into four phases: preparation and design, physical placement, systems integration, and validation before full production release. A single-station manual line might be running within days. A multi-station line with robotics, vision, and controls integration can take weeks or months and requires coordination across plant engineering, equipment integrators, electricians, and safety officers.
Prerequisites and Safety Considerations
Before anything gets delivered to your dock, confirm the site can actually support the equipment. That means checking:
- Floor space and loading capacity — heavy machinery, robot bases, and enclosures often exceed standard floor ratings
- Ceiling clearance and layout — enough room for material flow, maintenance access, and ergonomics
- Utility compatibility — power supply, compressed air, ventilation, and network infrastructure matched to equipment specs
- System compatibility — new equipment needs to talk to existing PLCs, conveyors, and MES/ERP connections without conflict
Safety compliance isn't optional. OSHA's machine guarding standard, 1910.212 requires guarding against point-of-operation, nip-point, and rotating-part hazards. Fixed machines must be securely anchored against movement. Lockout/tagout points and e-stops need to be planned into the layout, not bolted on afterward.
Three non-negotiables: don't proceed if electrical infrastructure is unconfirmed, floor loading hasn't been verified for heavy equipment, or guarding isn't already on order.
Tools and Equipment Required
Every installation needs a baseline toolkit:
- Rigging and lifting equipment — slings, hoists, hydraulic gantries for positioning heavy machinery
- Precision alignment tools — levels, laser alignment systems, shim kits
- Electrical and controls hardware — wiring, panels, network switches, PLC I/O modules
- Calibration instruments — torque wrenches, dial indicators, vision calibration targets
Temporary enclosures and mobile diagnostic stations are useful add-ons depending on scope.
Specialized items are a different story. Robot end-of-arm tooling, vision systems, and simulation software typically come from the equipment integrator rather than a generic parts supplier.
On a FANUC-based cell, for example, GLOBAL Automation Technologies engineers grippers and fixturing into the system design and integrates FANUC iRVision so parts can be picked without precise upstream fixturing. Substituting off-the-shelf components here usually creates more integration problems than it solves.

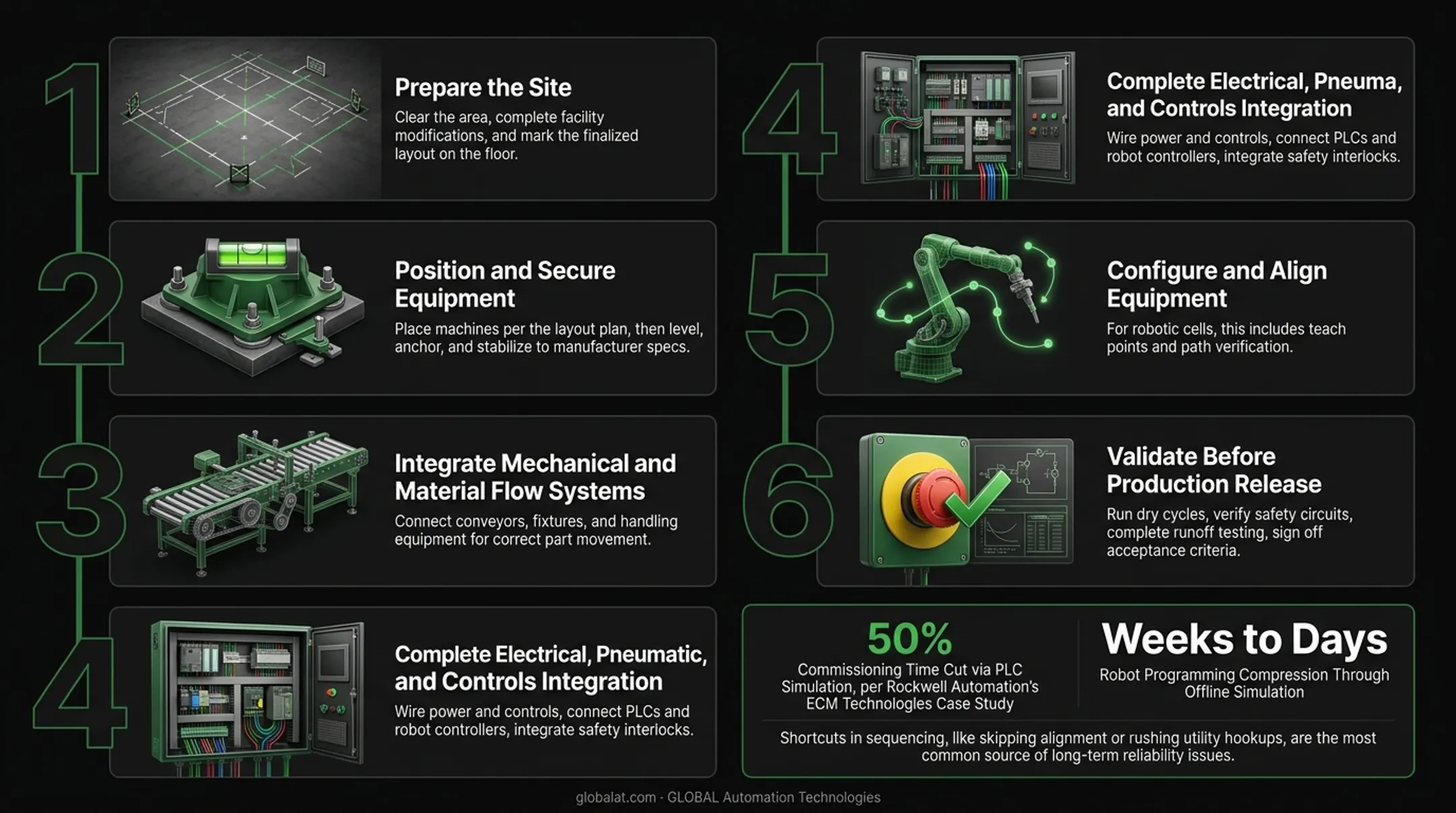

Step-by-Step Installation Process
Shortcuts in sequencing, like skipping alignment or rushing utility hookups, are the most common source of long-term reliability issues. Follow the steps in order:
- Prepare the site. Clear the area, complete facility modifications (power drops, air lines, ventilation), and mark the finalized layout on the floor.
- Position and secure equipment. Place machines per the layout plan, then level, anchor, and stabilize each unit to manufacturer torque and leveling specs.
- Integrate mechanical and material flow systems. Connect conveyors, fixtures, and handling equipment so parts move correctly between stations.
- Complete electrical, pneumatic, and controls integration. Wire power and controls, connect PLCs and robot controllers to the network, and integrate safety interlocks.
- Configure and align equipment. For robotic cells, this includes teach points and path verification.
- Validate before production release. Run dry cycles, verify safety circuits and e-stops, complete runoff testing, and sign off acceptance criteria before full production.
Offline simulation earns its keep before steps five and six hit the floor. Rockwell Automation's case study with ECM Technologies found that simulating PLC code before delivery cut commissioning time by 50%, with estimated savings of up to five months on the full project timeline.
GLOBAL, a Level 5 FANUC Authorized System Integrator, applies a similar approach—modeling and optimizing robot programs before code runs on the actual floor. That routinely compresses programming from weeks to days and cuts startup surprises.
Post-Installation Checks and Validation
Getting equipment placed and wired isn't the finish line. Before any material runs through the line, complete these structural and functional checks:
- Visual and structural checks confirming anchoring, alignment, guarding placement, and cable/hose routing are secure and code-compliant
- Functional or dry-cycle testing without material to confirm motion sequences, safety interlocks, and E-stops respond correctly
- First-piece or pilot-run validation to confirm parts meet spec before scaling to full-volume production
The automotive industry's PPAP framework (production part approval process) formalizes this last step, tying sign-off to parts produced at actual production rates rather than a slow test run.
How do you know if it went well? The table below breaks down the signals.
| Signal | Correct Installation | Unresolved Issue |
|---|---|---|
| Cycle times | Consistent, repeatable | Drifting or inconsistent |
| Tolerances | Within spec run after run | Intermittent out-of-spec parts |
| Motion/vibration | Smooth, quiet operation | Vibration or unusual noise |
| Faults | None or predictable | Intermittent, unexplained faults |
Rushing past this stage to hit a production date is one of the most common causes of failures that surface days or weeks later, once tolerances shift under sustained load.
Common Installation Problems and Fixes
These three issues account for most delays and rework seen during production line startups.
Misalignment or Instability of Equipment
Problem: Equipment vibrates, drifts out of tolerance, or produces inconsistent parts shortly after startup.
Likely cause: Inadequate leveling or anchoring during installation, or overlooked floor loading variances.
Fix: Re-level and re-anchor per manufacturer torque and leveling specs, and verify floor conditions before reinstalling. Skipping the remeasurement step after correction is a common mistake. Always confirm alignment after adjustment, not just before it.
Utility or Controls Integration Failures
Problem: Equipment faults intermittently, loses network connection, or fails to synchronize with adjacent stations.
Likely cause: Incompatible power specs, incorrect PLC or network configuration, or rushed controls wiring.
Fix: Have controls engineers re-verify wiring diagrams and network configuration against OEM specs before retesting. GLOBAL's controls engineers do this when integrating robot controllers with conveyor PLCs: matching speed, trigger signals, fault handling, and e-stop coordination so the line runs as one system.

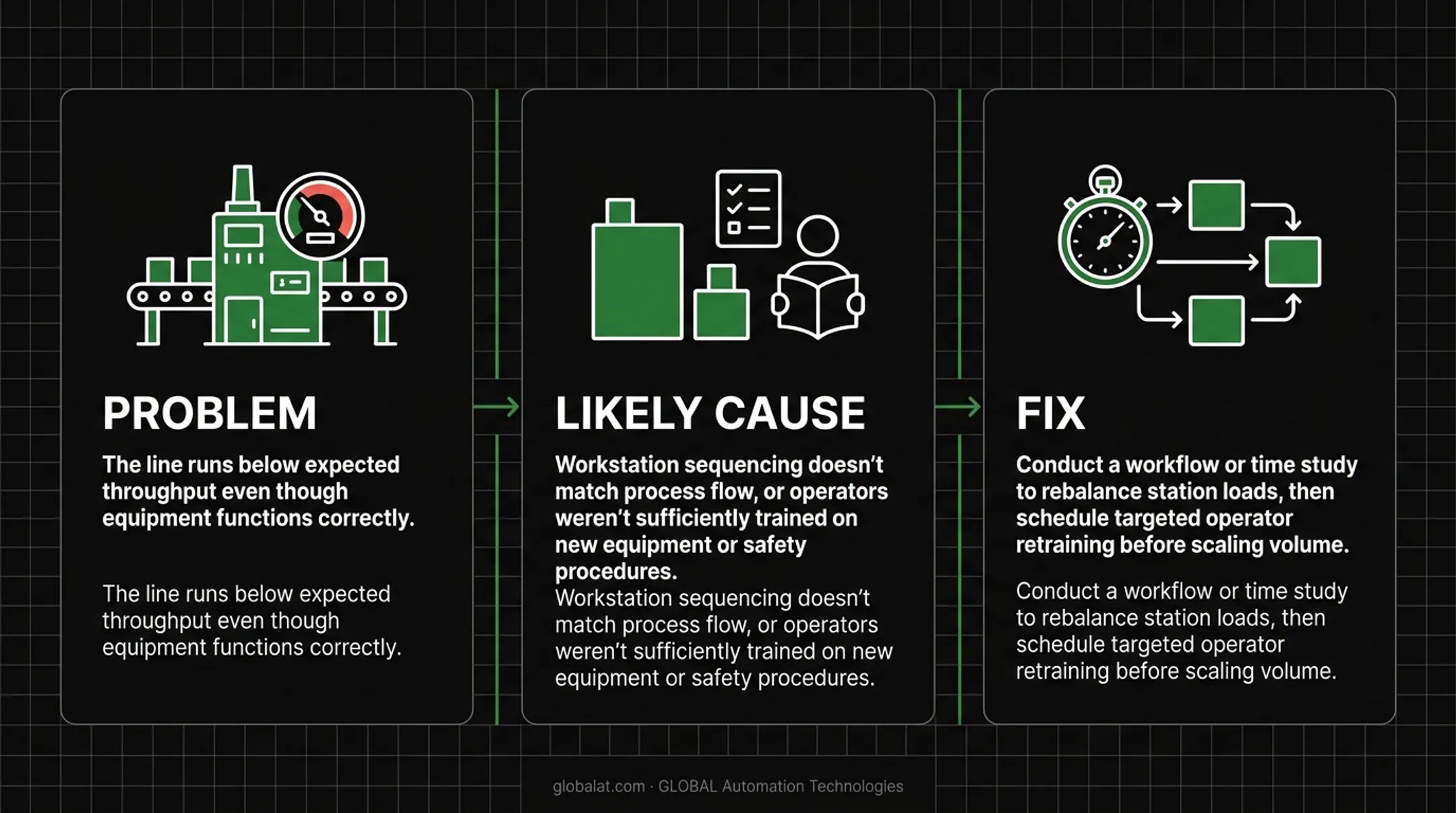

Bottlenecks From Poor Layout or Untrained Operators
Problem: The line runs below expected throughput even though equipment functions correctly.
Likely cause: Workstation sequencing doesn't match process flow, or operators weren't sufficiently trained on new equipment or safety procedures.
Fix: Conduct a workflow or time study to rebalance station loads, then schedule targeted operator retraining before scaling volume.
Pro Tips for Installing a Production Line Effectively
A few habits separate smooth startups from painful ones:
- Sequence heavy work first. Place and anchor heavy equipment before starting fine alignment work, and complete all utility hookups before attempting functional testing.
- Account for environmental factors. Temperature, humidity, and dust affect sensitive equipment like robotic vision systems and precision dispensing tools more than most teams expect.
- Document everything. Torque specs, test results, and sign-offs support warranty compliance, speed future troubleshooting, and make commissioning audits far less painful.
- Know when to bring in a specialist. Complex robotic cells or multi-vendor systems benefit from a partner who delivers both the system design and the engineers to run it. GLOBAL pairs systems integration with technical staffing for exactly that reason.
- Build in predictive maintenance from day one. AI-driven equipment health assessments flag developing issues before they cause downtime, rather than being retrofitted after the first failure.
Conclusion
Installation quality determines the safety, uptime, and output consistency of a production line for years, not just for the first shift after go-live. The line either runs the way it was designed to, or it fights you every day until someone tracks down what got skipped during setup.
Disciplined planning, strict adherence to manufacturer specs, and full validation before scaling production protect that outcome. When automation complexity exceeds what your in-house team can reasonably handle, an experienced integration partner keeps a robotic cell from turning into a six-month troubleshooting project.
Frequently Asked Questions
What is a production line?
A production line is a sequence of workstations or equipment that transforms raw materials into a finished product. Each stage adds value until the part or assembly is complete.
What is an example of a production line?
Common examples include automotive body assembly lines, electronics assembly lines, and robotic machine-tending cells feeding CNC or injection molding equipment. Complexity scales with part mix, cycle-time targets, and how much robotics or controls integration the line needs.
How long does it take to install a production line?
Timelines range from a few days for simple manual or conveyor lines to several weeks or months for automated and robotic lines, depending on scope, equipment count, and integration complexity.
Can an in-house team install a production line, or do I need a specialist integrator?
In-house teams can typically handle simple reconfigurations and manual line changes. Automated or robotic lines usually require certified integrators for programming, safety compliance, and to keep equipment warranties valid.
What's the difference between installation and commissioning?
Installation is physically placing, anchoring, and connecting equipment. Commissioning is the testing and validation phase that confirms the line performs to spec and is certified ready for full production.
How much does it cost to install a production line?
Costs vary widely based on equipment count, automation level, and facility modifications needed. Request a detailed, scope-based quote from an integrator rather than relying on general estimates.
