Introduction
Picture two robots on the same shop floor. One repeats the exact same weld, on the exact same part, in the exact same spot — thousands of times, until a part shifts a few millimeters and the whole cell stops.
The other sees the part, adjusts its path in real time, and keeps moving. That's the shift underway across automotive, heavy industry, and general manufacturing.
Computer vision gives robots the ability to interpret their surroundings instead of only executing fixed motions. On the floor, that means fewer stoppages when parts vary and cells that keep producing.
This article breaks down how computer vision works inside a robotic system, why manufacturers are adopting it, where it delivers results on real production floors, and what comes next.
Key Takeaways
- Vision-guided robots identify, inspect, and adapt to parts without rigid pre-programming
- Machine tending, robotic painting, and bin picking rely on vision-guided precision as standard practice
- Workforce shortages and shifting product mixes drive manufacturers toward flexible vision automation
- Deployment succeeds when robotic hardware and skilled engineers program, validate, and maintain the cell
What Is Computer Vision and How Does It Work in Robotics?
Computer vision is a field of AI that lets robots extract meaning from digital images and video, then act on what they "see." Traditional automation depends on fixed tooling, hard stops, and parts arriving in the exact same position every time. A single misaligned part can shut down the line.

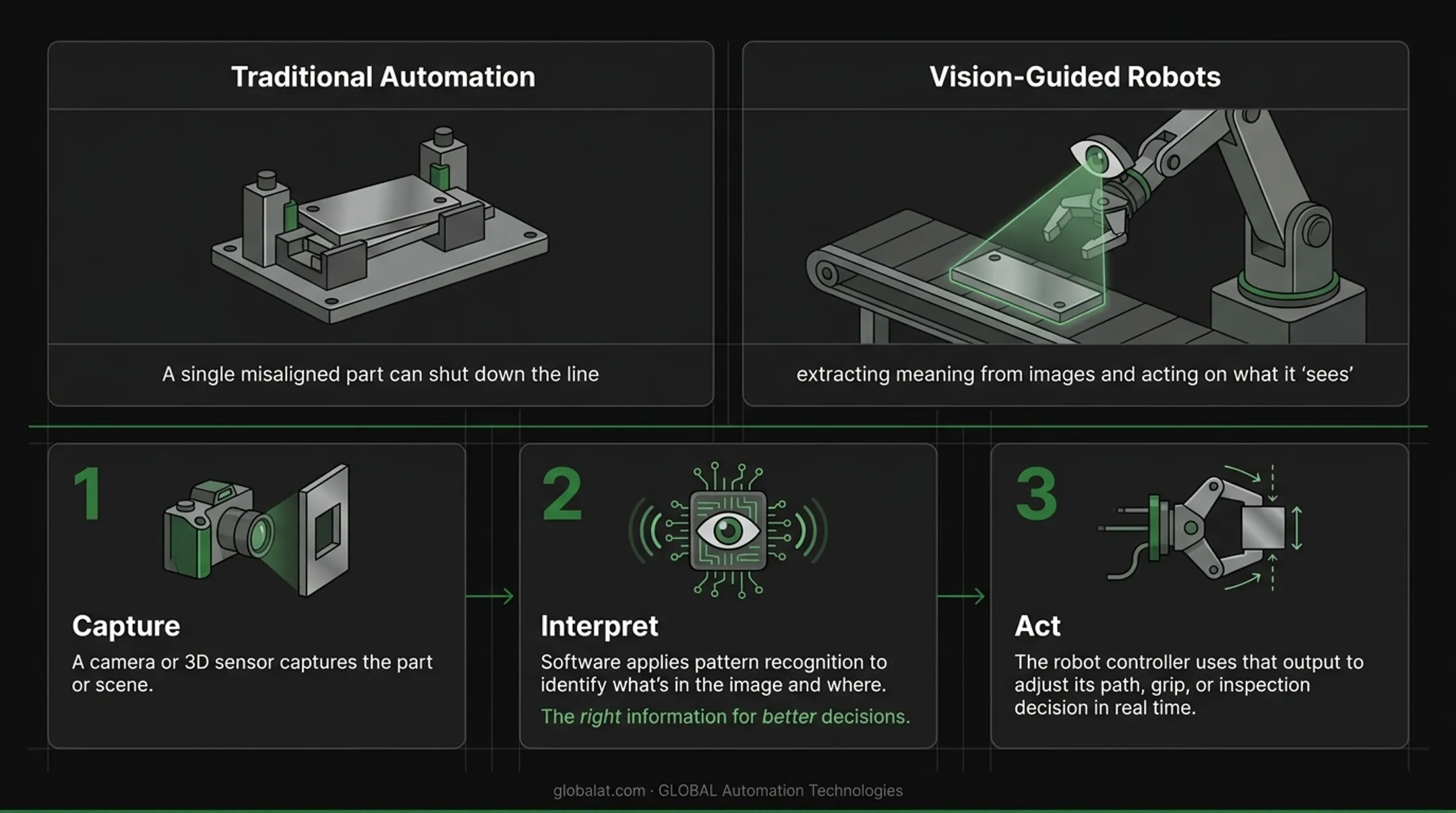

Vision-guided robots skip that dependency. The process breaks down into three steps:
- Capture — a camera or 3D sensor captures the part or scene
- Interpret — software applies pattern recognition to identify what's in the image and where
- Act — the robot controller uses that output to adjust its path, grip, or inspection decision in real time
The Core Technologies Powering Robotic Vision
Two technologies make this possible. The first is deep learning, specifically convolutional neural networks, which break an image into pixel-level features to classify objects without hand-coded rules for every part variation.
Instead of programming "if edge angle equals X, then part is Y," the system learns from example images.
The second is multi-sensor fusion. Many industrial systems combine 2D cameras with 3D depth sensors, structured light, or lidar to determine shape, depth, and orientation. That depth data matters when parts aren't sitting flat and predictable. Mobile robots use a similar approach, blending lidar with stereo vision for navigation across dynamic factory floors.
2D vs. 3D Vision Systems in Industrial Robotics
Not every application needs the same setup:
- 2D vision — best for flat, consistently oriented parts: reading labels, checking presence/absence, or verifying position on a conveyor
- 3D vision — built for randomly oriented parts; dominates bin picking, dispensing, and complex assembly where depth and angle matter
As more plants move from fixed fixturing to these vision-guided cells, investment has followed. The global computer vision market was valued at $23.6 billion in 2025 and is projected to reach $101.5 billion by 2033, growing at a 20.1% CAGR, according to Grand View Research. That growth tracks directly with the factory-floor deployments described above.
Why the Robotics Industry Is Racing to Adopt Computer Vision
The numbers behind robotics adoption tell their own story. Global industrial robot installations reached 4.664 million units in 2024, a 9% increase over 2023, with global demand doubling over the past decade according to the IFR World Robotics 2025 report.
Vision is a major reason that growth keeps accelerating. Traditional robots require fixed environments and custom tooling for every part variant. Vision-guided robots adapt to variation on the fly, a critical advantage as manufacturers deal with:
- Shorter production runs and more frequent product changeovers
- High-mix, low-volume orders replacing long, stable production runs
- Persistent skilled-labor shortages on the plant floor
- Rising quality expectations that manual inspection can't consistently meet

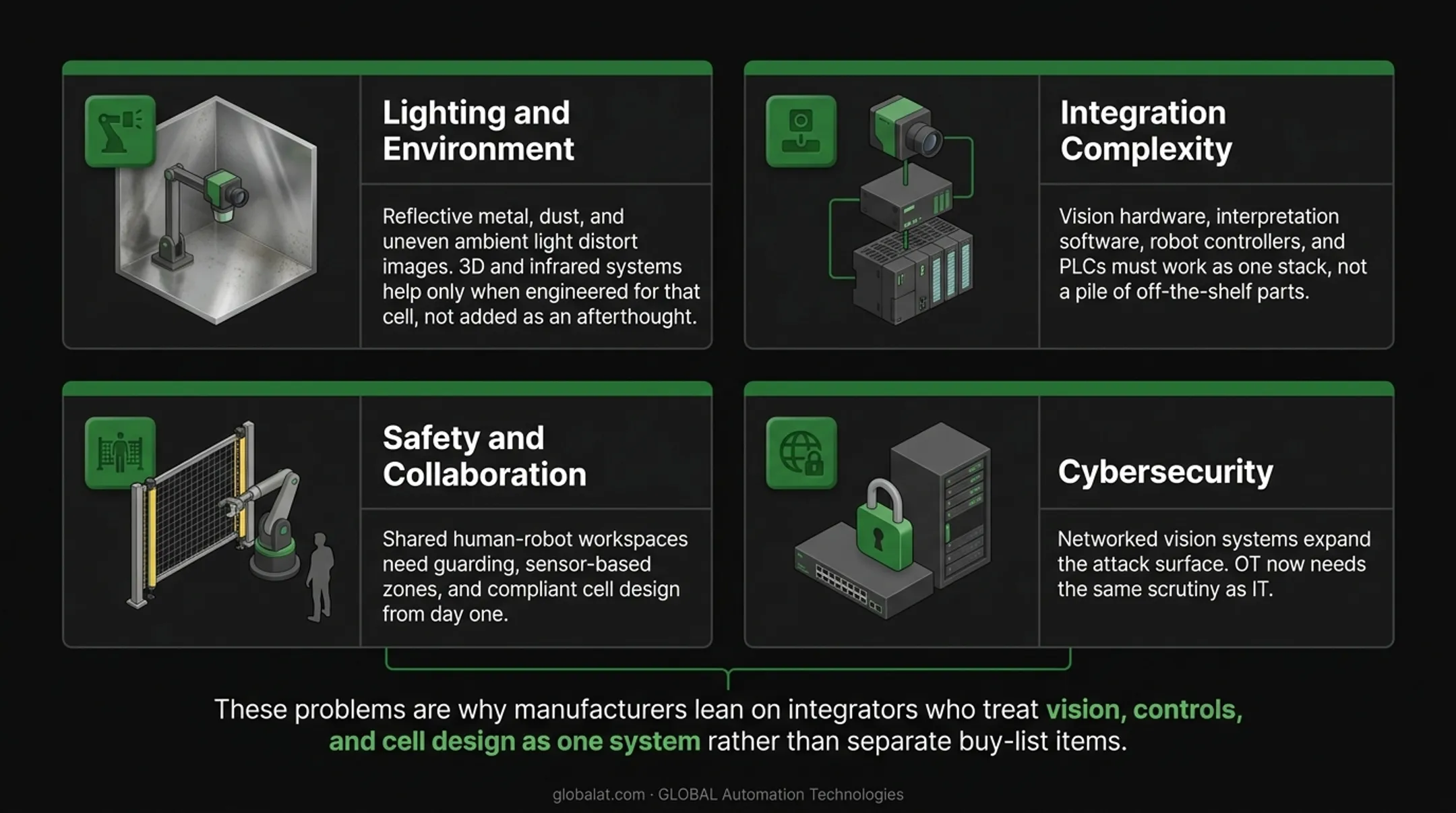

Key Challenges Manufacturers Must Solve
Vision-guided robotics isn't plug-and-play. Manufacturers still have to solve several real engineering problems before a system runs reliably.
- Lighting and environment: Reflective metal, dust, and uneven ambient light distort images. 3D and infrared systems help only when engineered for that cell, not added as an afterthought.
- Integration complexity: Vision hardware, interpretation software, robot controllers, and PLCs must work as one stack—not a pile of off-the-shelf parts.
- Safety and collaboration: Shared human-robot workspaces need guarding, sensor-based zones, and compliant cell design from day one.
- Cybersecurity: Networked vision systems expand the attack surface. OT now needs the same scrutiny as IT.
These problems are why manufacturers lean on integrators who treat vision, controls, and cell design as one system rather than separate buy-list items.
Computer Vision Applications Transforming Manufacturing & Robotics
This is where the technology earns its keep. A handful of applications drive most of the value vision-guided robotics delivers on real production floors:
- Object detection and bin picking — Vision-guided robots identify, localize, and grasp randomly placed parts without pre-programmed positions, so teams skip manual sorting before each pick.
- Visual inspection and quality control — Cameras and algorithms catch weld defects, surface flaws, and dimensional issues faster and more consistently than manual inspectors, in real time instead of after a batch ships.
- Robotic machine tending — Vision detects part presence and orientation for CNC load/unload so cells can keep running beyond a single shift, between scheduled maintenance windows. Machine tending cells typically pay for themselves in 12 to 18 months through more parts per shift and fewer labor hours on repetitive loading.
- Vision-guided painting and dispensing — Real-time dispensing-bead monitoring checks bead width, placement, and continuity as material is applied, while vision guidance locates and orients parts for the programmed paint path. GLOBAL, which holds Level 5 status in FANUC’s Authorized System Integrator program, painting systems follow that same path every cycle, holding film build within specification shift after shift, cutting waste and rework while keeping operators out of hazardous spray environments.
- Autonomous navigation — AMRs pair vision with lidar to move through warehouses and factories, rerouting around obstacles without a human resetting the path.
- Safety and environmental monitoring — Vision supports PPE compliance checks and restricted-zone intrusion alerts at a coverage level manual spot-checks cannot match. These use cases share one pattern: vision turns fixed robot paths into decisions based on what the cell actually sees.
Industries Leading the Computer Vision-Robotics Revolution
Adoption isn't spread evenly. A handful of industries are driving most of the deployment volume.
Automotive OEM and EV manufacturing lead the pack. High-volume lines depend on vision-guided precision for:
- Welding, assembly, and painting at production pace
- Managing constant model and battery-pack variation
- Error-proofing battery assembly before parts move downstream
GLOBAL deploys FANUC robots with iRVision for EV production applications, where camera-guided inspection helps error-proof battery assembly before parts move forward.
Heavy equipment and industrial manufacturing rely on vision systems for material handling and inspection in harsh, dusty, high-variability environments. Fixed automation struggles under those conditions. Flexible vision-guided cells hold up better over time.
Data center infrastructure manufacturing is an emerging adopter. Growing demand for server racks, electrical enclosures, and modular components is pulling vision-guided assembly onto these lines, using the same part-recognition and inspection principles proven in automotive and heavy equipment.
The Future of Computer Vision and Robotics
Vision-guided robotics is still evolving fast, and a few trends are shaping where it goes next.
AI-assisted simulation is cutting robot programming time. ABB reports that automatic path planning through its RobotStudio platform can reduce programming time by up to 80%, according to ABB's 2022 announcement.
GLOBAL's engineers use a similar simulation-first approach: modeling and testing robot programs before a single line of code runs on the floor. What used to take weeks now takes days, and most startup surprises are gone before commissioning.
AI-driven predictive maintenance pairs vision with sensor-based health assessments to flag equipment issues before they cause unplanned downtime. Equipment still fails, but it no longer has to fail without warning.
Edge computing and IoT convergence is pushing vision processing closer to the machine itself, enabling faster, on-device decisions without waiting on cloud latency — a meaningful difference when a robot needs to react in milliseconds.
As vision-guided robotics scales across more industries, the hardware is only half the equation. Manufacturers increasingly need a partner that provides both the robotic systems and the engineers to deploy, program, and maintain them, because a vision system is only as good as the team that keeps it running.
Frequently Asked Questions
How is computer vision being used in automation?
Computer vision powers object detection, quality inspection, robotic guidance, and sorting across manufacturing and logistics. It lets robots identify parts, verify quality, and adjust their actions without needing fixed positioning.
What is the difference between computer vision and traditional machine vision?
Traditional machine vision relies on fixed rules for simple pass/fail checks against known parameters. Computer vision uses AI to interpret and adapt to varied, unstructured scenes, including parts it hasn't seen before.
What industries benefit most from computer vision in robotics?
Automotive, heavy equipment, electronics, and logistics are the leading adopters. These industries face high part variability, quality demands, or labor shortages that vision-guided automation directly addresses.
How much does a computer vision-guided robotic system cost to implement?
Costs vary widely based on application complexity, part variability, and integration scope. Many systems, like machine tending cells, are designed to pay for themselves within 12 to 18 months.
What are the biggest challenges in deploying computer vision for robotics?
Lighting variability, integration complexity across hardware and software layers, and the need for skilled engineering talent top the list. Safety and cybersecurity planning matter too as systems become more connected.
Can computer vision-guided robots operate without extensive pre-programming?
AI-based vision models can recognize and adapt to new or unfamiliar items without full reprogramming. Performance still improves significantly with proper training data, calibration, and application-specific tuning.
