Introduction
Walk any automotive body shop, heavy equipment plant, or data center manufacturing floor today, and you'll see robots doing work humans used to do by hand: welding, painting, tending machines, moving parts. Most people working alongside these systems have no idea how they're actually engineered.
That gap matters. Industrial robot installations hit 542,000 units in 2024, the fourth straight year above the half-million mark. That pushed the global operational stock to 4.66 million machines, up 9% year over year, according to the International Federation of Robotics' World Robotics 2025 report.
Yet because machine design is treated like a black box, manufacturers often can't tell a solid quote from a risky one. That leads to scope creep, blown timelines, and partnerships that don't work out.
This guide breaks down exactly how automated machines get engineered and built, stage by stage. It covers the real engineering process manufacturers use from concept through build.
TL;DR
- Design runs through discovery, mechanical/electrical/controls engineering, simulation, fabrication, and commissioning
- 3D CAD, digital twins, and AI-assisted simulation compress design and programming timelines
- Application type (tending, welding, painting, dispensing, material handling) sets precision, cycle time, and environment needs
- The right partner builds the system and staffs the engineers who run it, cutting long-term risk
What Is Automated Machine Design?
Automated machine design is the engineering discipline behind planning, designing, and building custom machinery or robotic cells that perform manufacturing tasks with minimal human intervention. It's the work that turns a manual, bottlenecked process into a repeatable, low-intervention one.
Most manufacturers turn to it because manual processes create problems that compound over time:
- Throughput ceilings — a person can only load a CNC machine so fast, so many times a shift
- Quality drift — fatigue and inconsistency introduce variation that automated systems don't have
- Labor cost pressure — repetitive roles are hard to staff and expensive to retain
- Safety exposure — tasks involving isocyanates, welding fumes, or repetitive strain carry real risk to workers
Those pressures create demand for custom systems — but the term often gets mixed up with related work. Automated machine design is not:
- Product CAD — designing the part or assembly itself, not the production equipment
- Design for automated manufacturing — making a product easier for machines to build (a separate discipline)
- Off-the-shelf equipment buys — standard cells that solve common problems, not a line-specific process
Standardized equipment has its place, but no two factories are identical. Facility layouts differ, part geometries differ, upstream and downstream equipment differ. That's why custom engineering remains relevant even as packaged automation gets more common.

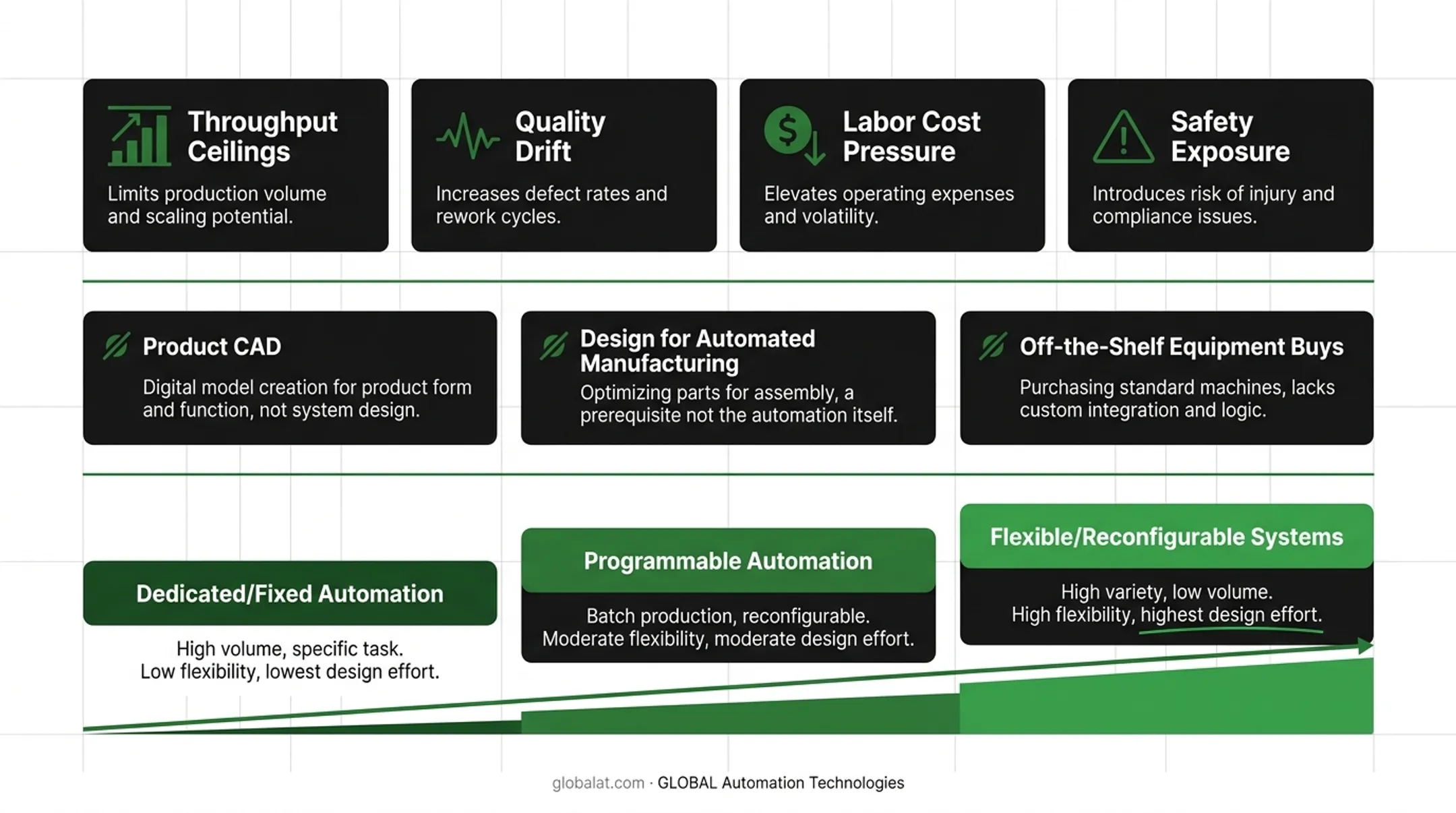

Automated machines generally fall into three categories. Design effort rises as flexibility increases:
- Dedicated/fixed automation — built for one job, running at high volume with minimal changeover
- Programmable automation — reconfigurable, but not without real engineering effort
- Flexible/reconfigurable systems — designed for high product variety and lower-to-medium volume runs
How Automated Machine Design Works
Building an automated machine isn't improvisation. It follows a defined engineering sequence, and each stage feeds directly into how the final system performs and holds up over years of production.
Initiation: Requirements and Discovery
Every project starts with discovery: understanding the product, the current process, the pain points, the facility, and how the new system needs to talk to upstream and downstream equipment.
This stage is entirely manual and collaborative. It's conversations between the manufacturer and integration engineers, not software or algorithms. Typical areas covered include:
- Facility constraints and existing equipment already on the floor
- Current manufacturing process and cycle time bottlenecks
- Production volume and throughput targets
- Controls and PLC integration with existing conveyors or stations
The most common failure point here is unclear or shifting requirements. If throughput targets, quality tolerances, or budget aren't locked down early, they resurface later as expensive redesigns.
Core Operation: Concept and Detailed Engineering
Once requirements are locked, engineers translate them into mechanical layouts, electrical schematics, and controls architecture using 3D CAD and simulation tools. This is where the machine actually takes shape on screen before a single part is fabricated.
Work during this phase typically includes:
- Robot and component selection based on payload, speed, and reach requirements
- Fixture and end-of-arm tooling design tailored to part geometry
- PLC and HMI programming
- Interference checking to confirm the design is actually buildable
Every decision here ties back to performance: cycle time, payload capacity, precision, and how easily the line can handle product changeovers. A gripper designed for one part geometry won't necessarily work for a running change six months later, so engineers have to plan for that upfront.
AI-assisted simulation is changing how fast this phase moves. GLOBAL Automation Technologies, which holds Level 5 status in FANUC’s Authorized System Integrator program, uses AI-assisted simulation to model, test, and optimize robot programs before any code touches the production floor, a workflow that sharply compresses robot programming time ahead of physical build.
Regulation and Control: Simulation, Testing, and Validation
Before hardware exists, engineers validate the design under varying conditions using digital twins and offline programming. FANUC's ROBOGUIDE software, for example, builds and simulates full robotic workcells in 3D, importing CAD data and testing layouts without a physical prototype.
Validation at this stage typically covers:
- Factory acceptance testing (FAT) using actual or representative production parts
- Safety PLC verification to confirm interlocks and e-stop logic function correctly
- Process parameter tuning for speeds, paths, and material flow before install
This stage matters because catching a mechanical interference or a cycle-time shortfall on a digital twin costs almost nothing. Catching it after the machine is bolted to the floor costs weeks of downtime and rework.
Predictive maintenance is increasingly built in here too. AI-driven equipment health assessments can flag potential failure points before they cause unplanned downtime, shifting maintenance from reactive to proactive before the system ever ships.

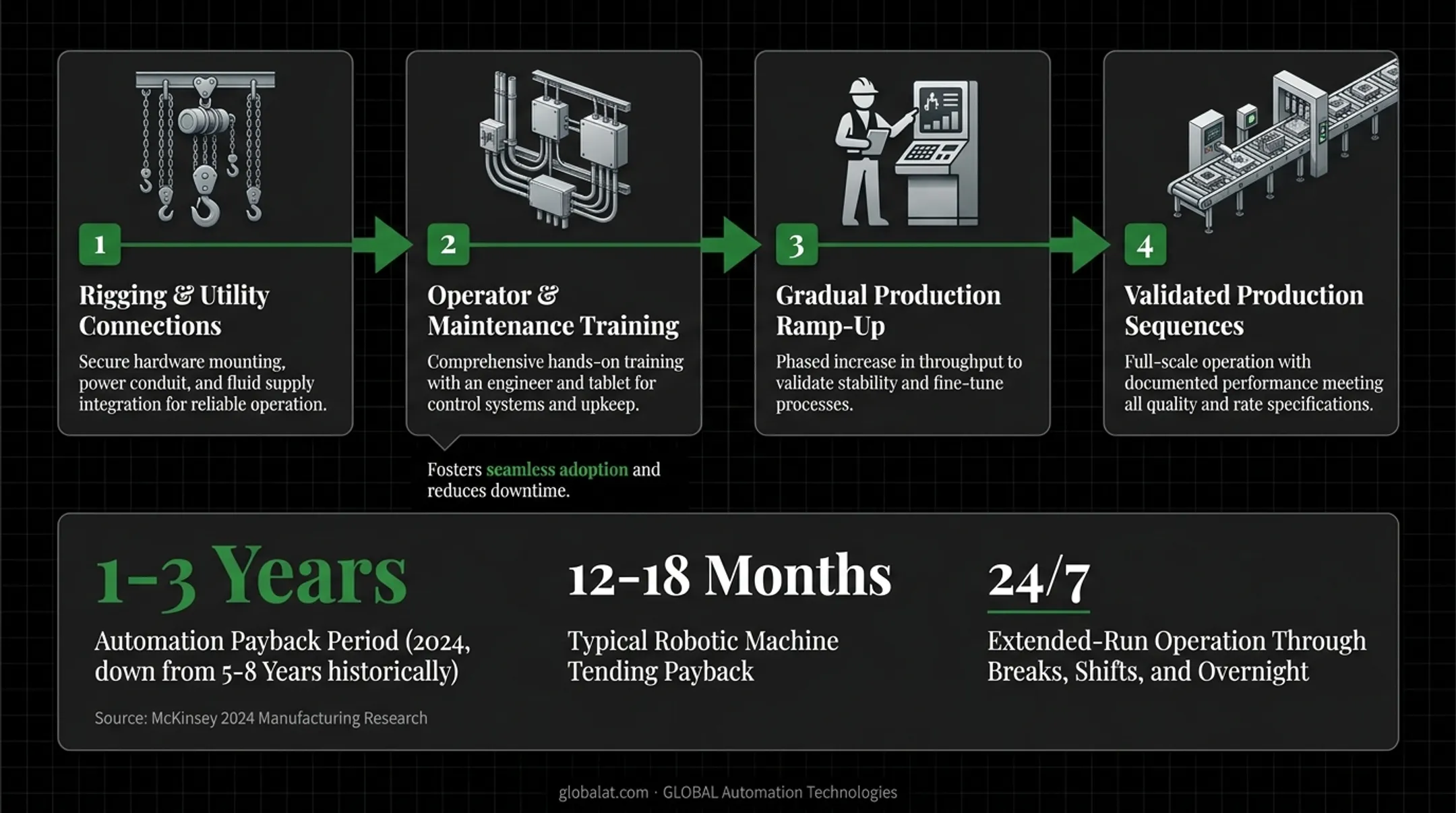

Output: Installation, Commissioning, and Production
The final output is a fully installed, commissioned machine running validated production sequences at the customer's facility. Commissioning covers rigging, utility connections, operator and maintenance training, and a gradual production ramp-up.
Front-loading engineering and simulation work before this stage pays off directly. Fewer surprises on-site means faster startup and less disruption to existing production.
McKinsey's 2024 manufacturing research found automation payback periods have compressed from a historical 5-8 years down to an expected 1-3 years today. McKinsey stresses each business case still needs testing against productivity, quality, safety, and training effects specifically.
In practice, robotic machine tending cells often pay for themselves in 12 to 18 months through higher spindle utilization and extended-run operation: one machine running through breaks, shift changes, and overnight between scheduled maintenance windows instead of sitting idle.
Where Automated Machine Design Is Used
Custom automated machines show up at nearly every stage of a manufacturing workflow: material handling, machine tending, welding, dispensing and painting, assembly, and inspection.
They perform best in three specific conditions:
- High-volume, repetitive tasks where consistency matters more than variability
- Hazardous environments such as paint booths exposed to isocyanates and VOCs
- Precision-critical processes requiring tight, repeatable tolerances operators can't consistently match
OSHA identifies polyurethane painting as a potential isocyanate exposure activity, linked to occupational asthma and respiratory, skin, and eye irritation. That risk is one reason painting cells are often among the first processes manufacturers automate.
Industry shapes the specifics. Automotive OEMs and Tier 1 suppliers typically need high-volume, high-precision cells: robotic dispensing systems that follow complex 3D bead paths across body panels, with vision guidance during application and downstream inspection catching bead defects before parts move on.
Heavy equipment and data center infrastructure manufacturers tend to need larger-format, lower-volume flexible automation built around bigger parts, heavier payloads, and more variation between production runs.
Conclusion
Automated machine design succeeds through a structured, staged process: discovery, engineering, simulation, build, and commissioning. Most failed automation projects trace back to a skipped stage—usually discovery or simulation—rather than a bad robot.
Understanding this sequence changes how manufacturers evaluate potential partners. It's easier to spot a rushed quote or an unrealistic timeline once you know what should happen at each phase. GLOBAL Automation Technologies builds on that same sequence and pairs the engineered system with the technical staff who keep it running. The handoff from build to operation stays covered instead of becoming a gap the customer has to bridge alone.
Frequently Asked Questions
What are some examples of machine design?
Common examples include robotic welding cells, CNC machine tending systems, palletizers, dispensing and sealing systems, robotic paint booths, and vision-guided inspection stations. Each is engineered around the specific part, cycle time, and precision requirements of the application.
What software is best for machine design?
Engineers typically use 3D CAD platforms like SolidWorks or Autodesk Inventor for mechanical design, paired with digital-twin simulation and robot-specific offline programming tools such as FANUC ROBOGUIDE. These let teams build and test a workcell virtually before any hardware exists.
How long does it take to design and build a custom automated machine?
Timelines vary by complexity, but concept design typically takes several weeks, detailed engineering adds more time, and build, test, and install can take additional months. AI-assisted simulation is shortening these timelines by sharply compressing robot programming time.
What's the difference between machine design and design for automated manufacturing?
Machine design builds the automation system itself: the robots, tooling, and controls. Design for automated manufacturing is a separate discipline focused on designing the product so it's easier for automated systems to produce.
How much does a custom automated machine cost?
Costs vary widely based on robot count, tooling complexity, and controls scope, so there's no single benchmark figure. Payback period (often 12-18 months for machine tending applications) is a more useful evaluation metric than upfront price alone.
Do I need an in-house engineering team to run and maintain an automated machine?
Not necessarily. Many manufacturers rely on integration partners that supply both the system and the engineers to run it. GLOBAL Automation Technologies builds and integrates the automation system, and separately its technical staffing places controls, mechanical, and project management engineers into customer roles on a contract, contract-to-hire, or direct-hire basis.
