Introduction
Every automated production line runs on an electrical control system. Whether it's a single motor starter wired to a pump or a full robotic work cell welding car frames, something has to tell that equipment when to start, stop, and change direction.
Get the control system wrong, and the consequences show up fast. Siemens' 2024 industry analysis found that a single unproductive hour costs automotive manufacturers $2.3 million - making mismatched or under-engineered control architecture an expensive mistake.
This article breaks down the major types of electrical control systems, how they differ in complexity and application, and how to figure out which one actually fits your facility.
TL;DR
- Electrical control systems combine sensors, controllers, and actuators to manage equipment and processes
- They range from hardwired relay logic to PLC, SCADA, and DCS, mainly by automation level and intelligence
- Choose by process complexity, scale, and budget—not the most advanced option on the shelf
- Pick wrong and you either overspend on complexity or field a system that can't scale
What Is an Electrical Control System?
An electrical control system is a network of electrical and electronic components (sensors, controllers, actuators, and communication links) that manage, direct, or regulate how machines and processes behave.
The National Institute of Standards and Technology (NIST) frames the idea simply: a control loop uses sensors, actuators, and controllers to manipulate a process. A sensor measures a physical property and feeds that data back to the controller (NIST SP 800-82r3).
In practice, these systems show up everywhere on a plant floor:
- Starting and stopping motors on pumps, fans, and compressors
- Sequencing conveyors so parts arrive at the right station in the right order
- Running robotic work cells through multi-step assembly or welding routines
- Managing HVAC systems and power distribution equipment
Plant engineers, electricians, and maintenance techs work with these systems every shift, most often when something needs troubleshooting.
Why Electrical Control Systems Matter in Manufacturing
Control systems connect directly to the metrics that keep a plant running: uptime, product consistency, worker safety, and throughput. When the control layer is poorly designed or the wrong fit for the process, problems don't stay contained.
What tends to go wrong without proper control:
- Manual switching errors that stop a line or damage equipment
- Unplanned downtime from components that can't be diagnosed quickly
- Exposure to live circuits or hazardous processes during troubleshooting
- Inconsistent part quality from imprecise or manually managed sequencing

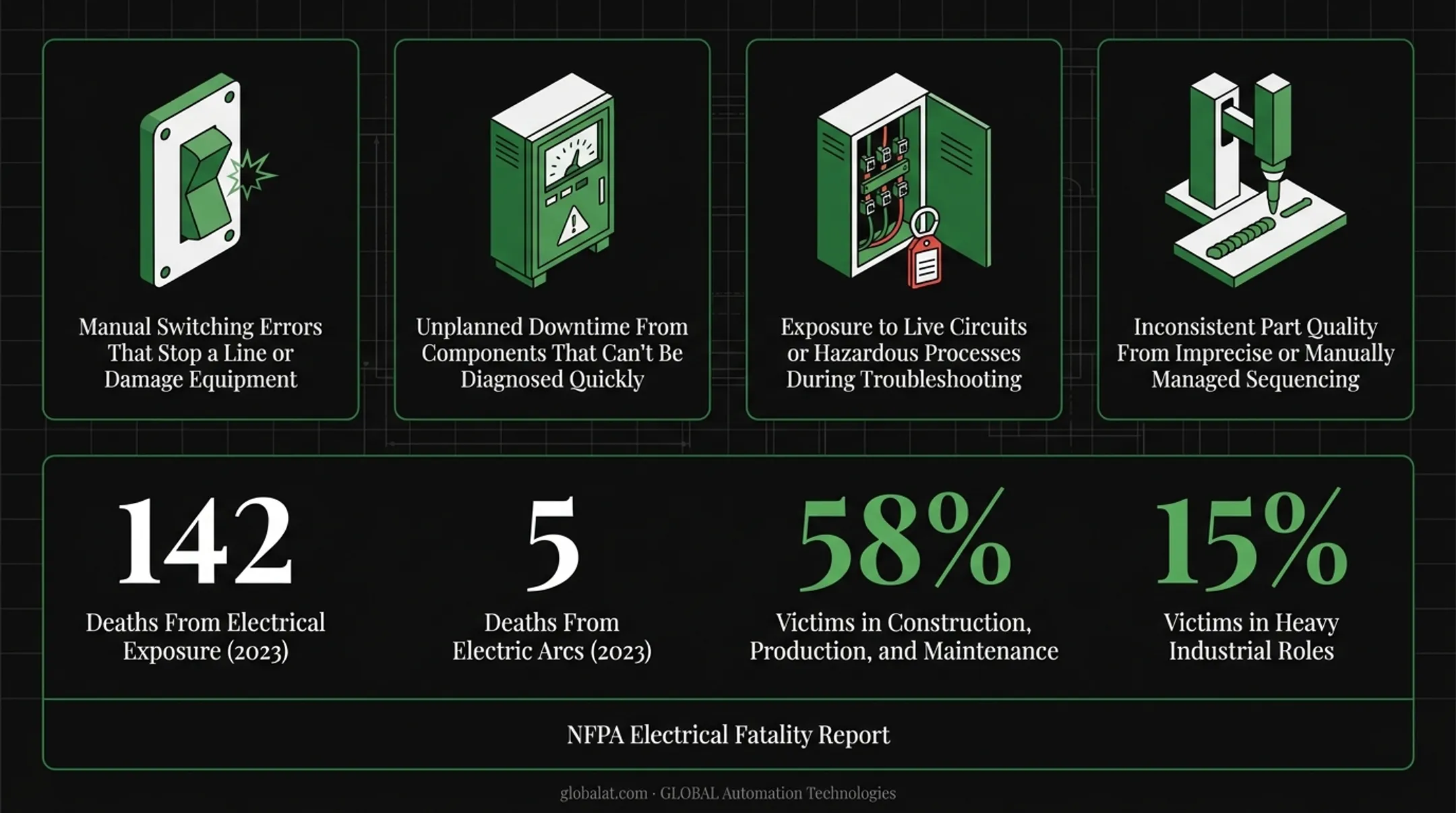

Safety is not a side issue here. NFPA's analysis of U.S. occupational injury data found 142 deaths from electrical exposure plus five deaths from electric arcs in 2023 across all workplaces (NFPA electrical fatality report).
Of those fatalities, 58% (82 victims) worked in construction, production, and maintenance outside heavy industry, and another 15% held heavy industrial roles. NFPA also flags needlessly energized equipment as a recurring factor. Well-designed control systems and lockout procedures are built to prevent that exposure.
As facilities push further into automation and robotics, control-system demands scale with them. Matching the right type to your process is what protects uptime, quality, and the people on the floor.
Types of Electrical Control Systems
Electrical control systems aren't one-size-fits-all. They sit on a spectrum: from basic hardwired logic on one end to plant-wide supervisory intelligence on the other. Where your facility lands on that spectrum depends on how many devices need controlling, how complex the sequencing is, and how much visibility into the data you actually need.
Relay-Based (Electromechanical) Control Systems
Relay-based control is the oldest and simplest approach still in active use. It's control logic built from physical relays, contactors, and timers wired together to switch motors or equipment on and off. Current flows through hardwired circuits and triggers mechanical switching. There's no programmable software layer involved at all.
Logic lives in the wiring itself. Change the sequence, and you're rewiring the panel, not updating a program.
- Best suited for: Simple, single-machine setups and legacy plants needing basic on/off motor control
- Key strengths: Low upfront cost, easy for electricians to troubleshoot, and durable in dirty or vibration-heavy environments
- Trade-offs: Hard to scale or modify, zero built-in data logging, and mechanical contacts that wear down over time
Rockwell notes that electromechanical relays rely on physical contacts, unlike solid-state relays that use semiconductor switching with no moving parts. Switching inductive loads like contactor coils also produces overvoltage that shortens contact life, according to Siemens' technical documentation on relay protection. That maintenance cost adds up quietly over years of operation.
Motor Control Centers (MCC)
An MCC is a centralized panel housing multiple motor starters, overload relays, and circuit breakers, controlling several motors from one location instead of wiring each one separately. Each motor feeder section combines protection and switching, controlled locally or remotely through starter types like direct-on-line (DOL) or star-delta.
Where relay systems handle one machine at a time, an MCC aggregates control of many motors into a single structure. Rockwell's technical documentation on its intelligent MCC platform describes each section housing one or two motor-control devices, all fed from a common power bus.
Where MCCs fit best:
- Water treatment facilities managing dozens of pumps
- HVAC systems with multiple fans and compressors
- General industrial plants running numerous conveyors
Intelligent MCC variants add communication modules. Rockwell's platform, for example, runs on industrial EtherNet/IP cabling with software that gives system-wide and device-level views, letting personnel monitor and diagnose issues without stepping into hazardous areas.
The trade-off? MCCs remain primarily motor-focused. Without a PLC layered on top, they offer limited process-level intelligence, and the panel itself costs considerably more upfront than a simple relay setup.
Programmable Logic Controller (PLC)-Based Control Systems

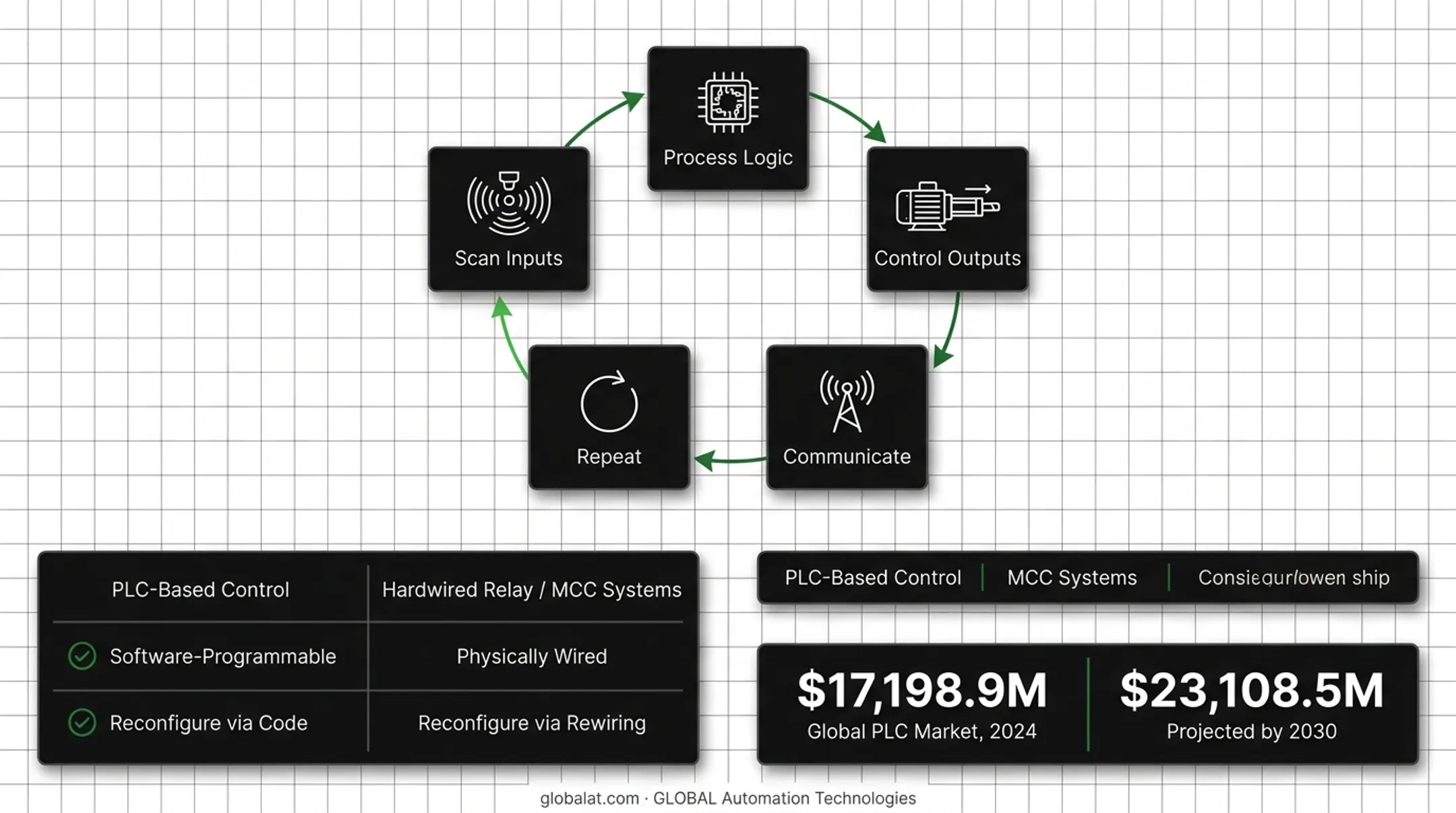

A PLC is an industrial computer that runs stored software logic to control sequences, I/O, and actuators — replacing hardwired relay circuits with programmable code. Sensors feed data into the PLC, which executes its logic and sends output signals to actuators, motors, or robots. Rockwell describes this as a continuous cycle: scan inputs, process logic, control outputs, communicate, repeat.
The difference from relay or MCC systems is fundamental. PLCs are software-programmable, not hardwired. Reconfiguring a sequence means updating code, not pulling wire.
This flexibility is exactly why PLCs have become the backbone of automated production lines and robotic work cells — assembly, welding, dispensing, and painting applications where sequencing changes often and precision matters. FANUC's own documentation describes PLCs issuing robot motion commands through standardized function blocks, with the robot controller executing the resulting instructions in a cyclic handshake.
At GLOBAL Automation Technologies, PLC integration is a standard part of building FANUC-based robotic work cells. Machine tending, material handling, and painting systems all rely on controls engineering to manage the interface between the PLC and the robot controller.
GLOBAL, a top-tier Level 5 FANUC Authorized System Integrator, also applies AI-assisted simulation to model and test robot programs before any code runs on the floor. That approach compresses programming timelines from weeks to days and reduces surprises during startup.
Strengths and trade-offs at a glance:
| Factor | Detail |
|---|---|
| Flexibility | Highly scalable, integrates with HMI/SCADA layers |
| Data | Supports logging for predictive maintenance |
| Cost | Higher upfront engineering investment |
| Skill requirement | Needs trained controls engineers |
| Risk | Networking expansion introduces cybersecurity considerations |
The market reflects this shift toward software-based control. Grand View Research values the global PLC segment at $17,198.9 million in 2024, forecasting growth to $23,108.5 million by 2030.
SCADA and Distributed Control Systems (DCS)
SCADA and DCS operate a level above PLCs and MCCs. Rather than controlling individual machines, they're a supervisory software layer that aggregates data from multiple PLCs and controllers across a plant or across multiple sites. NIST describes this layer as collecting real-time data for centralized monitoring, alarms, historian trending, and coordinated control decisions.
The distinction between the two, per NIST's framework:
- SCADA manages dispersed assets across a facility or multiple locations, where centralized data acquisition matters as much as control itself
- DCS manages production systems within a single location — think chemical processing, automotive plants, or refineries — with supervisory control over multiple integrated local subsystems
This is plant-wide or enterprise-level coordination, not machine-level control like a PLC or MCC.
Best fit: Large multi-line facilities, utilities, or multi-site operations needing centralized visibility across many subsystems at once.
What you gain is enterprise-wide visibility, long-term trend analysis, and remote monitoring that supports predictive maintenance programs.
The cost is real: SCADA and DCS implementations are complex and expensive, and they demand serious network infrastructure. NIST recommends segmenting control networks into zones, using firewalls at boundaries, and placing a demilitarized zone between control centers and enterprise networks. That segmentation is standard practice when so much depends on keeping the supervisory layer secure.
How to Choose the Right Type of Electrical Control System
The "right" system depends on process needs, scale, and long-term goals, not on whatever is most advanced or most familiar.

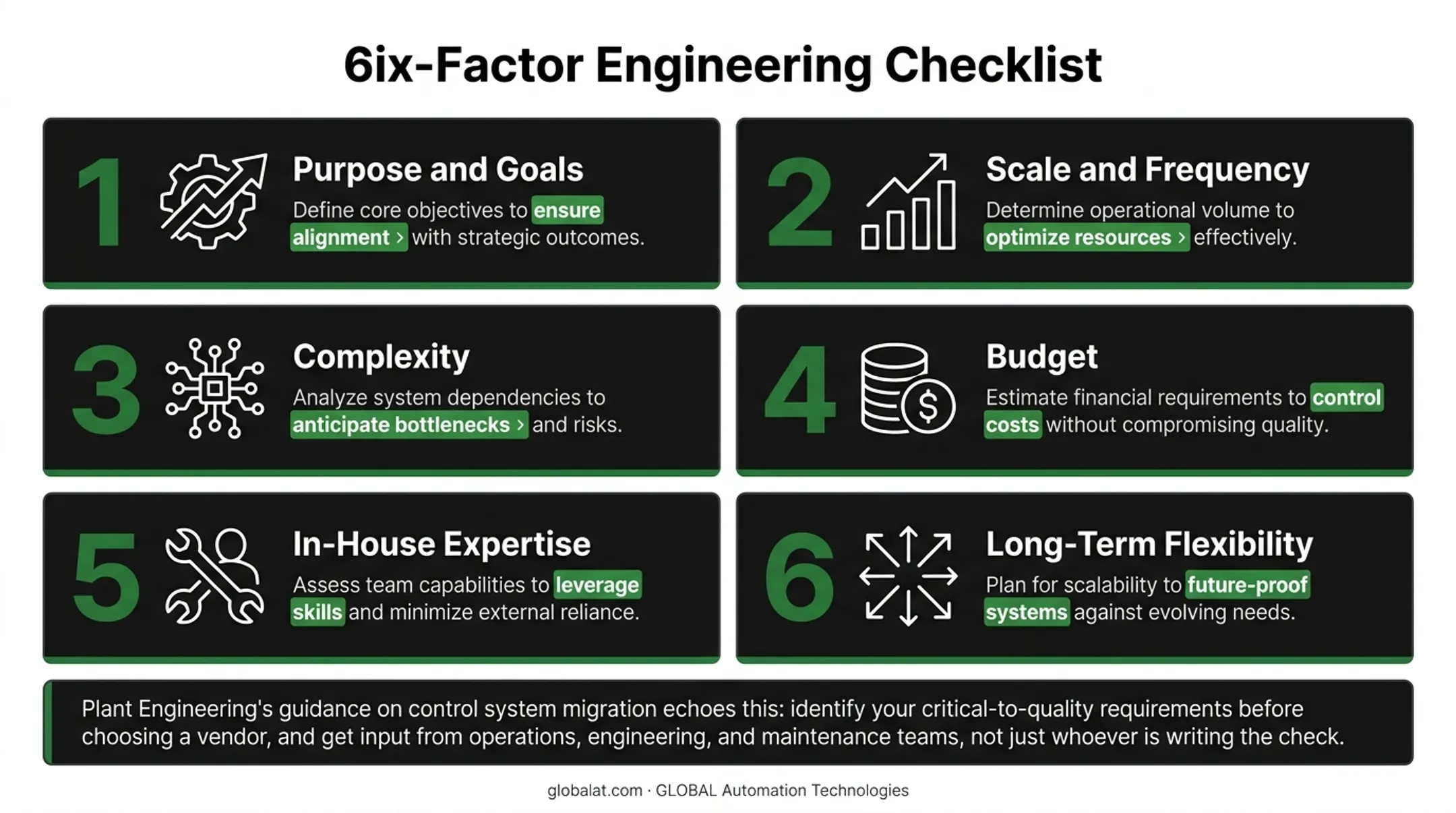

Factors to Consider
- Purpose and goals: Simple motor switching calls for something very different than multi-step automation or robotics
- Scale and frequency: How many motors or devices need control, and how often does the process change?
- Complexity: How much engineering effort is required to program, commission, and maintain the system?
- Budget: Account for both upfront investment and ongoing support costs
- In-house expertise: Can your team operate and troubleshoot what you're installing?
- Long-term flexibility: Will this system scale as you add capacity, robotics, or new lines?
Plant Engineering's guidance on control system migration echoes this: identify your critical-to-quality requirements before choosing a vendor, and get input from operations, engineering, and maintenance teams, not just whoever is writing the check.
Common Mistakes to Avoid
- Over-engineering the solution. Installing a full DCS when a simpler MCC or PLC setup would do the job just fine
- Underestimating labor requirements. A PLC or SCADA system needs skilled engineers to program and maintain, and that cost does not disappear after installation
- Choosing based on familiarity. Sticking with relay-based systems because that is what your team knows, rather than evaluating what the process actually requires
For facilities weighing complex or robotic-integrated control decisions, a turnkey partner helps avoid these mismatches. GLOBAL Automation Technologies delivers both the system design and the engineering talent to run it, so what gets installed matches who can operate and maintain it.
Conclusion
Electrical control systems are the operational backbone of any manufacturing facility. They directly drive uptime, safety, and product quality, and belong in the design conversation from day one.
Different types exist for a reason. Relay-based systems handle simple, single-machine control. MCCs centralize motor management across dozens of devices. PLCs bring programmable flexibility to robotic and multi-step automation. SCADA and DCS layer plant-wide visibility on top of it all.
Understanding these differences, and partnering with an experienced integrator when complexity rises, leads to automation decisions that hold up long after commissioning.
Frequently Asked Questions
What are electrical control systems?
They're networks of sensors, controllers, and actuators that manage, direct, or regulate electrical equipment and processes across industrial and commercial settings. They range from simple relay circuits to plant-wide supervisory platforms.
What are the different types of electrical control devices?
Common devices include relays, contactors, overload relays, circuit breakers, PLCs, and HMIs. Each plays a specific role: relays and contactors switch loads, overload relays and breakers provide protection, and PLCs and HMIs handle programmable logic and operator interaction.
What are the three classifications of electrical control systems?
Systems are commonly grouped by control method: manual, semi-automatic, and fully automatic, reflecting increasing levels of automation and less human intervention. Standards like ISA-95 also classify systems by functional level, from device control up to enterprise planning.
What is the difference between a PLC and a relay-based control system?
Relay-based systems use fixed, hardwired logic. Changing the sequence means rewiring the panel. PLCs run software-programmable logic that can be reconfigured through code updates, without touching the physical wiring.
How do I know if I need a PLC or a SCADA/DCS system for my facility?
Single-line or cell-level automation, like a robotic welding or machine tending cell, typically needs a PLC. Multi-line or multi-site facilities that need centralized visibility across subsystems should look at SCADA or DCS instead.
Can electrical control systems be integrated with robotics and automation?
Yes. PLC-based control systems commonly serve as the backbone for robotic work cells, coordinating sensors, actuators, and robot controllers. Integrators rely on this stack daily for machine tending, painting, welding, and material handling cells.
