Introduction
Industrial automation installation, particularly robotic systems, is technically demanding work. It calls for specialized expertise, tight integration with existing manufacturing systems, and strict safety and compliance discipline.
Unlike consumer technology that arrives ready to plug in, a robot cell needs coordination across mechanical engineers, controls specialists, and production teams. You also have to manage production downtime carefully so the install does not stall the line.
Successful installation isn't just about bolting a robot to the floor. It demands structured pre-installation planning, compatibility checks with legacy equipment, safety system validation, and methodical commissioning that proves the cell works before production starts.
Skip a step or rush testing and you get quality escapes, safety risk, and long troubleshooting cycles. Those problems cost far more than doing the install right the first time.
This guide covers the full automation installation process, from pre-installation planning through post-commissioning validation. The steps reflect practices refined across robotic integrations in automotive, heavy equipment, and general manufacturing.
Key Takeaways
- Successful installs depend on certified specialists, detailed planning, and tight integration with existing manufacturing systems
- Lock in site readiness, safety compliance, system compatibility, and production schedule coordination before install day
- Work moves through five phases: site prep → mechanical install → electrical/controls integration → programming → testing
- Commissioning closes the loop with runoff testing, operator training, documentation handover, and performance validation
- Integration conflicts, safety faults, and programming errors are largely preventable with experienced planning and execution
Installation Guide for Automation Systems

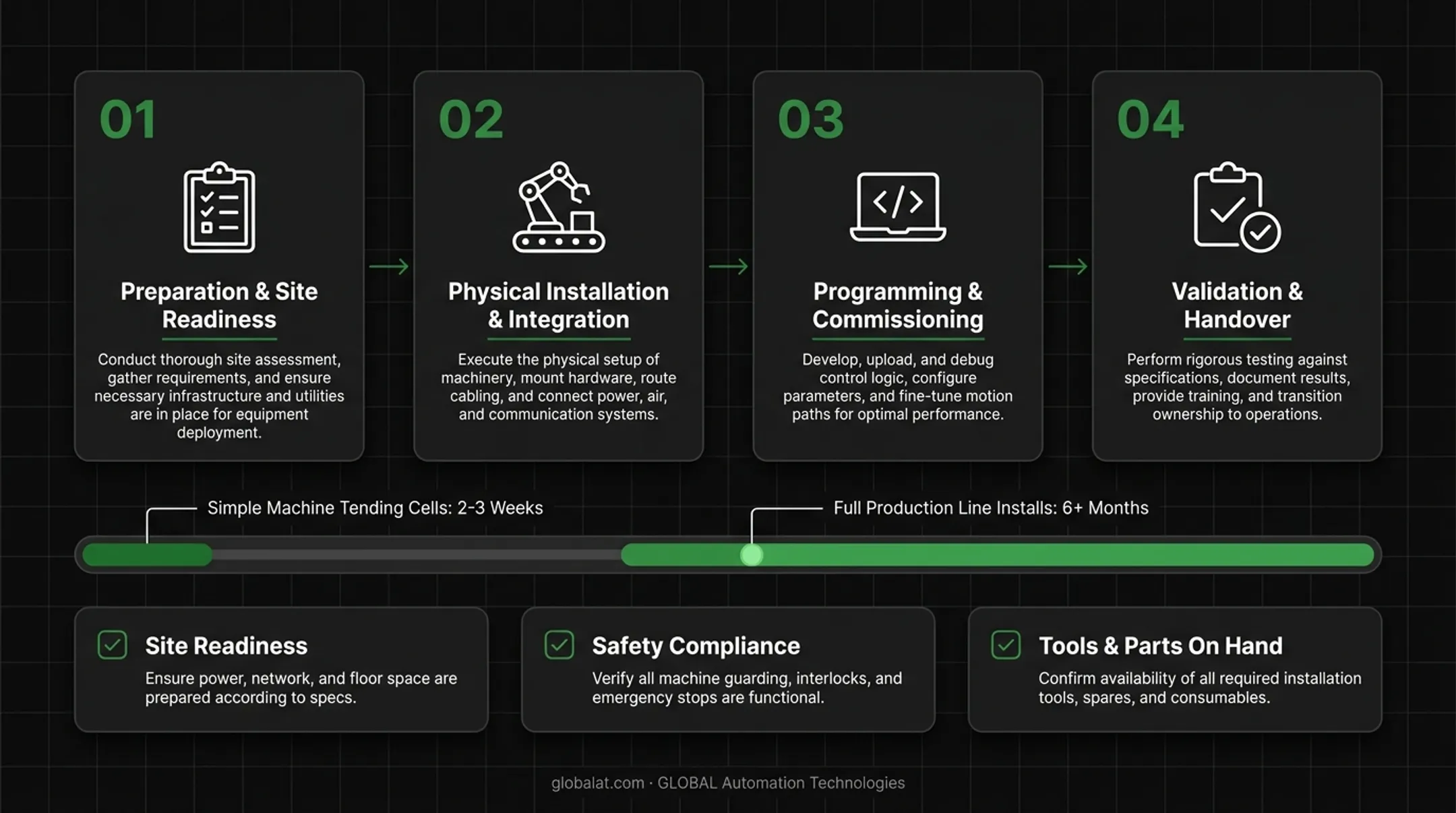

Robotic automation installation consists of four major phases: preparation and site readiness → physical installation and integration → programming and commissioning → validation and handover. Each phase builds on the previous one, and skipping steps creates compounding problems downstream.
Timeline expectations vary significantly based on system complexity. Simple machine tending cells typically need 2-3 weeks from arrival to production release. Full production line installs can run 6+ months, depending on integration scope, equipment lead times, and how little downtime production will allow. This section focuses on what must be true before equipment arrives: site readiness, safety compliance, and the tools and parts both sides need on hand.
Prerequisites and Safety Considerations
Before any equipment arrives on-site, you must verify site and system readiness. Critical requirements include:
- Adequate floor space and structural support for robot bases, safety guarding, and material flow
- Electrical service capacity (typically 480V three-phase for industrial robots; voltage varies by controller model)
- Compressed air for pneumatic grippers and tooling, matched to application pressure, flow, and quality specs
- Network infrastructure for PLC/HMI communication, including proper Ethernet cabling and network configuration
Existing production equipment must be assessed for compatibility. Older machines may lack the necessary I/O interfaces or communication protocols for integration. Attempting to connect a modern robot controller to a 20-year-old CNC machine without proper gateway hardware will fail, period.
Safety compliance is non-negotiable before installation begins. U.S. installations must meet:
- ANSI/A3 R15.06-2025 robot safety standards, which harmonize with ISO 10218-1 and ISO 10218-2
- OSHA 29 CFR 1910.212 machine guarding requirements
- OSHA 29 CFR 1910.147 lockout/tagout procedures
- Documented risk assessments completed before installation work starts
Installation must not proceed if:
- Structural support is inadequate for robot loads and emergency-stop forces
- Safety compliance documentation is missing or incomplete
- Control systems are incompatible with no viable upgrade path
- Electrical capacity is insufficient for the system
- Production schedules don't allow proper testing and validation time
Tools and Parts Required

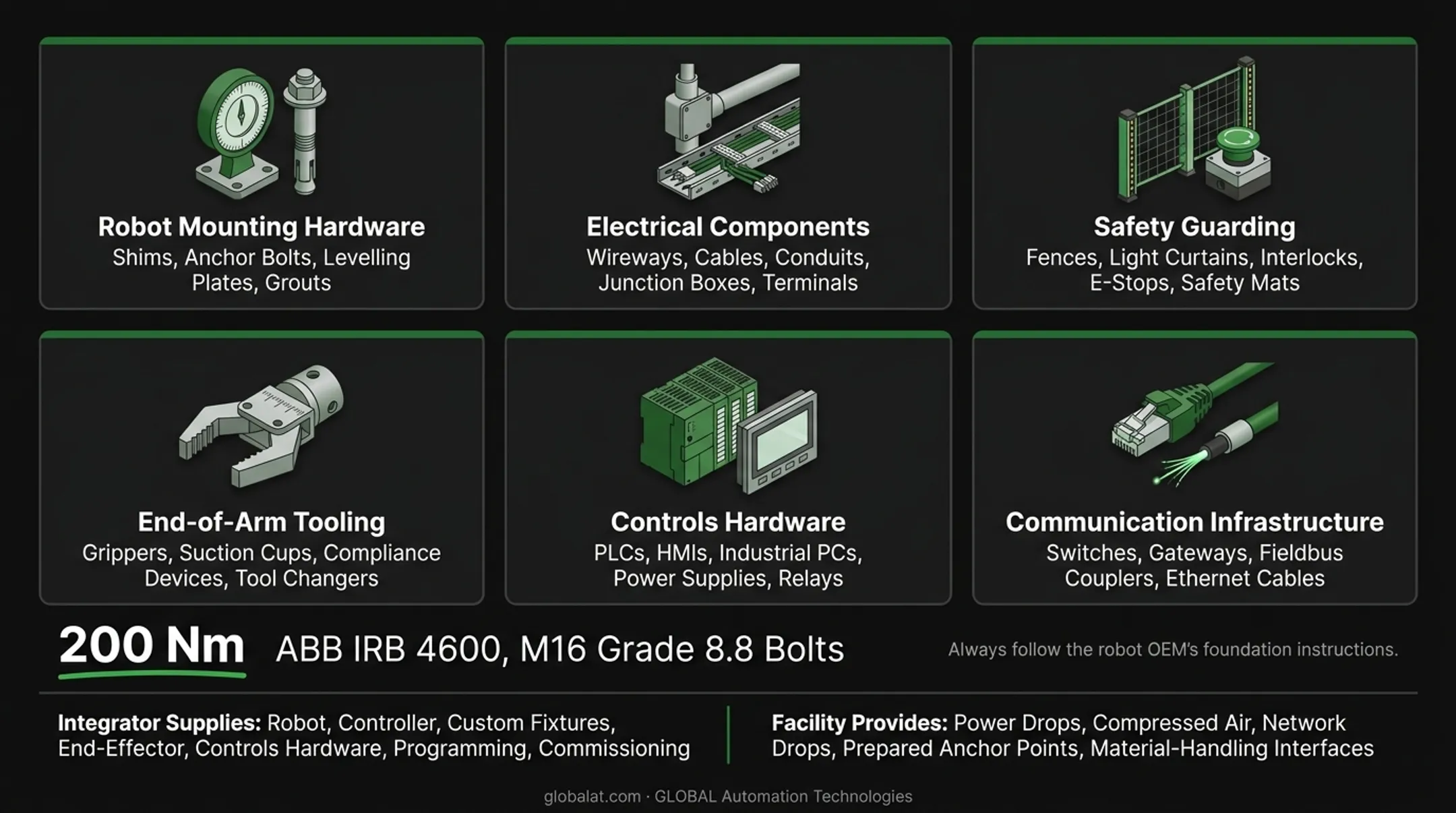

Essential installation equipment and components include:
- Robot mounting hardware: Precision leveling gear, foundation bolts torqued to manufacturer specs, anchor templates
- Electrical components: Industrial cabling, conduit, cable trays, disconnects, motor starters, circuit protection
- Safety guarding: Perimeter fencing, gates, light curtains, area scanners, e-stops, safety relays
- End-of-arm tooling: Grippers, torches, applicators, or nozzles calibrated for mass, CG, and inertia
- Controls hardware: PLCs, I/O modules, gateways, HMI panels, network switches
- Communication infrastructure: Cat 5e or better Ethernet cable, fiber optic links where needed, network configuration hardware
Torque values are model-specific (for example, ABB's IRB 4600 uses M16 grade 8.8 bolts at 200 Nm). Always follow the robot OEM’s foundation instructions.
Integrator typically supplies: Robot, controller, custom fixtures, end-effector, controls hardware, programming, and commissioning.
Facility typically provides: Power drops to spec, compressed air, network drops, prepared anchor points, and material-handling interfaces (conveyors, lifts, part presentation).
How to Install Automation Systems (Step-by-Step)
Automation installation follows a defined sequence designed to minimize production disruption. Skipping steps or rushing commissioning creates quality issues, safety risks, and extended troubleshooting delays that cost far more than the time you thought you saved.
Phase 1: Site Preparation and Mechanical Installation
Robot base positioning and precision leveling is critical for repeatability. Foundation surfaces must be flat, rigid, and meet manufacturer specifications. ABB specifies 0.5 mm flatness and minimum 22 Hz resonance frequency for certain models. Poor leveling creates cumulative positioning errors that degrade quality and accelerate mechanical wear.
Installation tasks include:
- Anchor bolt installation using engineered templates, with torque verification to manufacturer specifications
- Safety guarding and fencing erection, including perimeter barriers, safety gates, and access control
- End-effector and tooling mounting, with load data (mass, center of gravity, inertia) verified against robot capacity
- Fixture installation and part-presentation equipment integration
Phase 2: Electrical and Controls Integration
This phase connects the robot controller to facility power, integrates with PLCs and existing equipment, and establishes all safety circuits.
Critical tasks:
- Power distribution and motor connections, verified against electrical drawings and code requirements
- I/O wiring between robot controller and PLCs, following structured signal lists and interface documentation
- Communication network setup for EtherNet/IP, PROFINET, or other industrial protocols, including IP addressing, subnet configuration, and network testing
- Safety circuit integration (e-stops, light curtains, safety relays, lockout points) wired per ISO 13849
- HMI panel installation, wiring, and initial configuration
Phase 3: Programming and Configuration
With mechanical and electrical systems in place, engineers configure the robot, PLC logic, and system interfaces.
Programming activities include:
- Teach pendant programming of robot positions and motion paths, using proper coordinate frames and avoiding singularities
- PLC logic programming for process sequencing, handshake protocols between robot and equipment, and fault handling
- Vision system calibration if applicable: define the camera-to-robot relationship with calibration grids and known reference points
- Communication handshaking between robot and upstream/downstream equipment, with proper status signals and fault paths
Phase 4: Testing and Commissioning
Commissioning validates that the system meets all functional, safety, and performance requirements before production release.

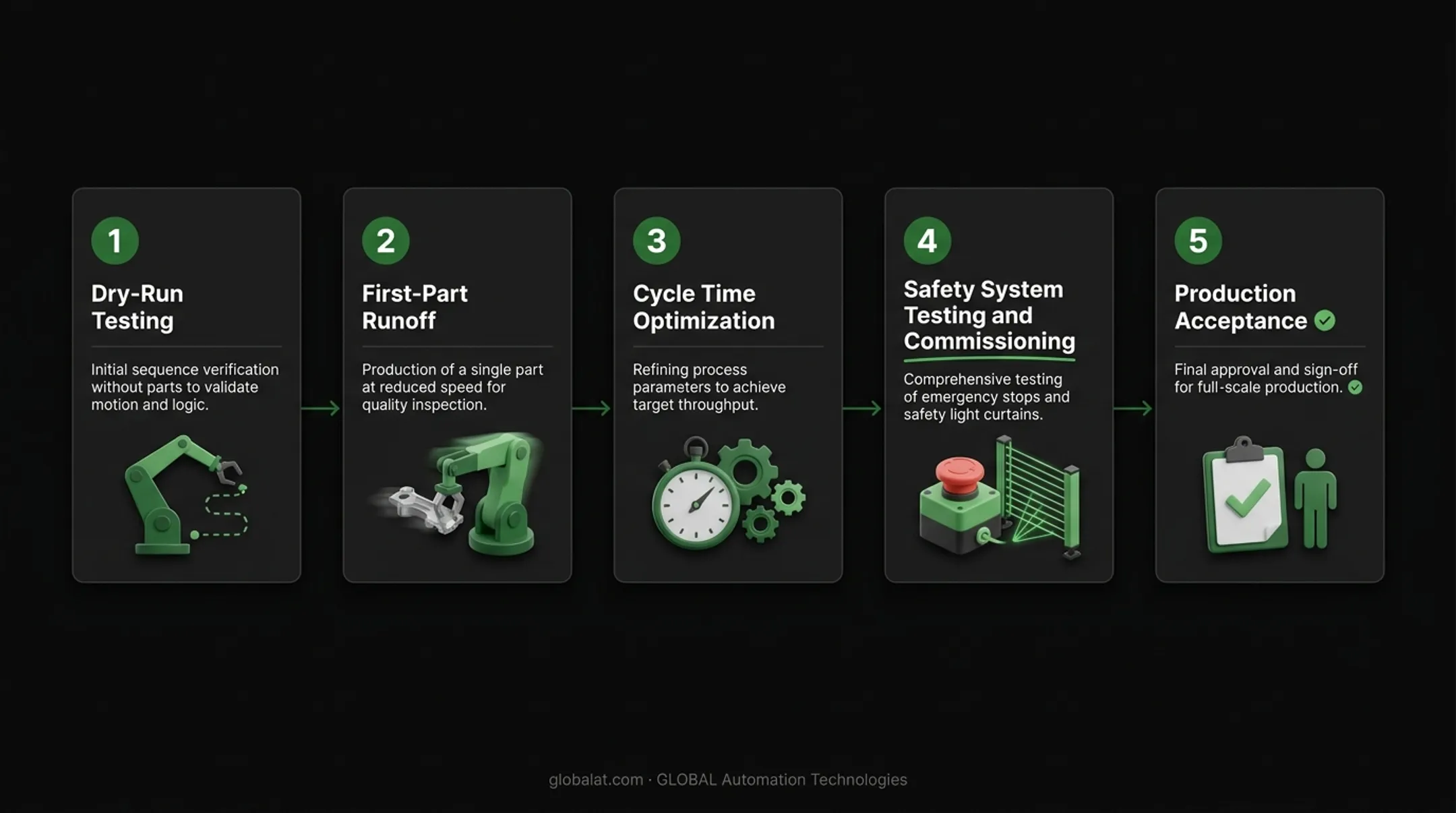

Testing sequence:
- Dry-run testing without production parts: Verify motion paths, sequence logic, safety interlocks, and e-stop response
- First-part runoff with close observation: Run actual production parts at reduced speed, inspecting quality and process behavior
- Cycle time optimization and tuning: Adjust motion parameters, process timing, and handshake sequences to meet target throughput
- Safety system validation: Verify all e-stops, light curtains, safety gates, and interlocks function correctly and meet design specifications
- Production acceptance and handover: Run at full rate, document results, and train operators before releasing the cell to production
Post-Installation Checks and Validation
Validation confirms the system meets all functional, safety, and performance specifications before release to production. Start with a visual inspection of mechanical connections, electrical terminations, and guarding integrity. Loose bolts, unsecured conduit, or gaps in safety fencing are unacceptable.
Functional Testing Requirements
- Run complete production cycles and verify equipment interactions and material flow
- Confirm cycle times fall within ±2-3% of design targets
- Check part quality and process repeatability (weld penetration, paint coverage, dispense bead consistency, assembly torque)
- Confirm data logging covers production counts, fault logs, and quality records
Installation Health Indicators
| Sign of Correct Install | Sign of Problems |
|---|---|
| Smooth motion without hesitation or jerky movement | Erratic motion, frequent stops, or path deviations |
| Cycle times stay within tolerance | Inconsistent cycle times or throughput swings |
| Parts meet quality specs batch after batch | Parts fail checks or show process variation |
| No nuisance faults or unexplained alarms | Safety system false triggers or nuisance trips |

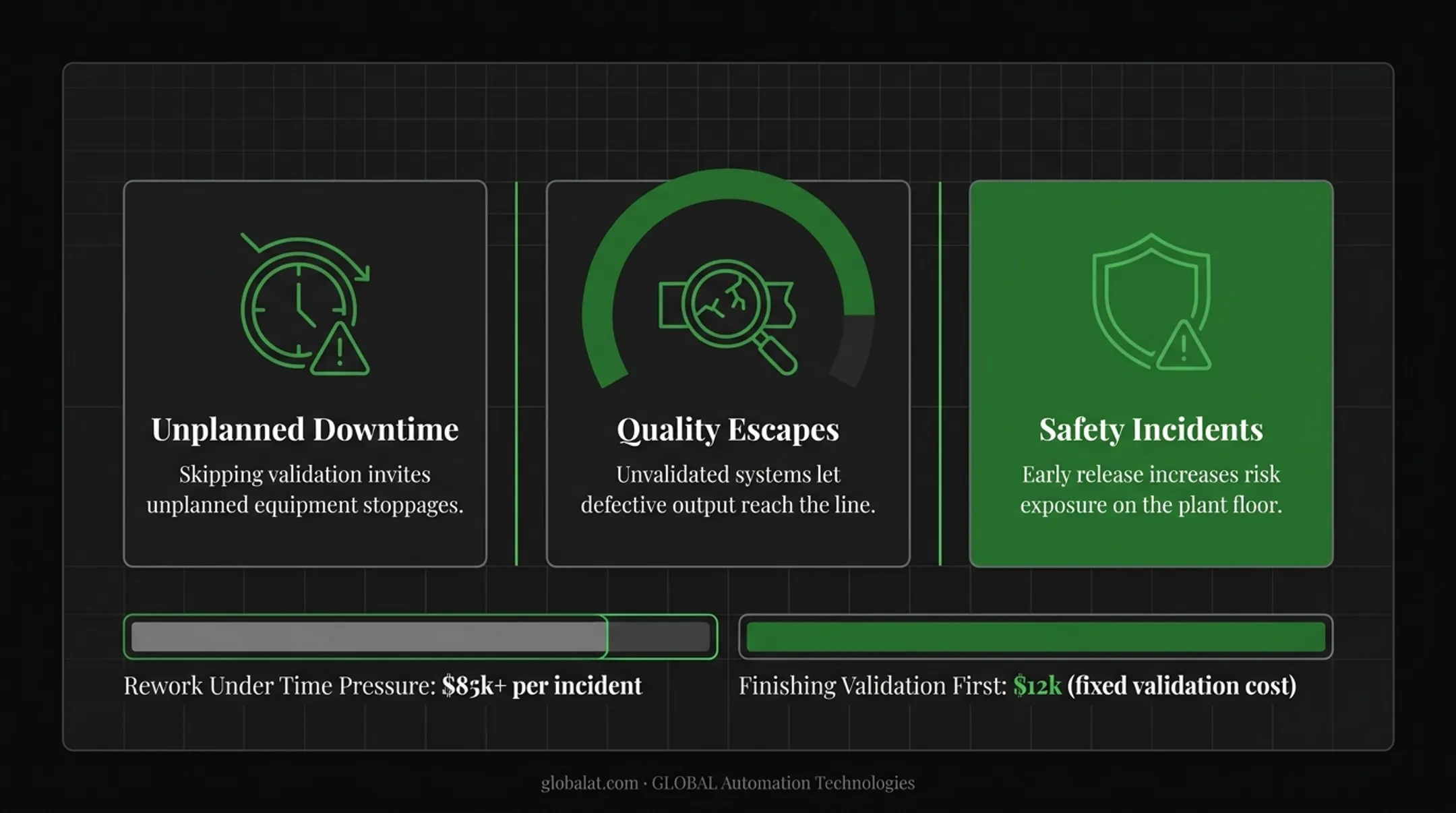

Skipping validation and releasing systems early invites unplanned downtime, quality escapes, and safety incidents. Rework under time pressure costs far more than finishing validation the first time.
Common Installation Problems and Fixes
Most installation issues fall into three categories: integration/communication failures, safety system conflicts, and programming/motion errors. Experienced integrators catch these during commissioning; less experienced teams discover them in production.
Integration and Communication Failures
Problem: Robot and PLC cannot communicate; system shows "communication fault" or "network timeout" errors.
Likely causes:
- Incorrect IP address configuration
- Mismatched communication protocols
- Physical network cable issues
- Firewall or switch configuration blocking traffic
Fix:
- Verify IP addresses and subnet masks match the network plan
- Confirm communication protocol settings on both robot and PLC
- Check physical cable connections and test with known-good cables
- Review network switch configuration for VLAN or port blocking
Safety System Faults and Nuisance Trips
Problem: Safety circuits trigger unexpectedly, stopping production; light curtains or e-stops show faults when no obvious issue exists.
Likely causes:
- Safety relay wiring errors
- Incorrect safety zone configuration
- Environmental interference (welding flash or reflective surfaces affecting light curtains)
- Component compatibility issues
Fix:
- Review safety circuit wiring against design drawings
- Adjust light curtain sensitivity and blanking settings
- Verify all safety relays are compatible and properly powered
- Test each safety device individually to isolate the faulty component
Robot Motion and Programming Errors
Problem: Robot moves to incorrect positions, collides with fixtures, or motion is jerky and imprecise.
Likely causes:
- Incorrect tool center point (TCP) calibration
- Improper payload settings causing motion instability
- Teach points recorded in the wrong reference frame
- Singularity issues in the motion path
Fix:
- Re-calibrate TCP using proper calibration procedures
- Verify payload and center-of-gravity settings match actual tooling
- Re-teach critical positions with the correct coordinate frame
- Modify motion paths to avoid singularities, using joint moves where appropriate
Pro Tips for Installing Automation Systems Effectively
Plan installations during scheduled downtime or production breaks to minimize disruption. Coordinate with production scheduling weeks in advance and communicate the timeline clearly to all stakeholders, including maintenance, engineering, quality, and operations.
Conduct detailed Factory Acceptance Testing (FAT) at the integrator's facility before shipping to site. Research shows that digital simulation and pre-deployment testing can reduce commissioning time by 30%, catching problems in a controlled environment before they reach your plant floor.
Document everything during installation:
- Take photos of wiring, cable routing, and mechanical connections
- Record final teach points and create program backups
- Create as-built drawings reflecting any field changes from original design
- Maintain installation logs with dates, personnel, and issues encountered
Use simulation tools to cut on-site programming time from weeks to days. Offline programming software lets engineers develop and test robot programs before equipment arrives, identifying collisions and optimizing paths in advance. GLOBAL's AI-assisted simulation helps manufacturers lock in those gains before the cell ships.
Budget for operator training and support after go-live. Even the best installation fails without trained operators who know basic troubleshooting, how to handle common faults, and when to call support instead of forcing a fix.
Establish a relationship with an experienced integrator who provides both the system and ongoing engineering support. Keep the install team available for troubleshooting, updates, and future expansions. GLOBAL Automation Technologies, a top-tier Level 5 FANUC Authorized System Integrator, combines robotic systems integration with technical staffing, so you get both the system and the engineers to run it, backed by 18+ years in automotive and industrial environments.
Conclusion
Automation installation quality directly determines system performance, production uptime, worker safety, and return on investment over the system's operational life. The difference between a well-executed installation and a rushed one shows up in cycle times, quality metrics, maintenance costs, and production reliability for years.
Invest in thorough planning. Work with integrators who know the technical and operational realities of manufacturing environments, and prioritize commissioning and validation over rushing to production.
GLOBAL Automation Technologies brings proven installation processes, cross-industry experience, and ongoing support that protect that investment—backed by offices in 4 countries, project work across 22 countries, and 630+ robots integrated worldwide.
A disciplined installation approach pays off in uptime, quality, and lower lifecycle cost for as long as the system runs.
Frequently Asked Questions
What are the four types of installation?
Four main types are common in industrial automation:
- Turnkey — integrator handles design through commissioning
- Retrofit — automation added to existing equipment
- Modular — pre-built cells installed and integrated on-site
- Phased — staged install to minimize production downtime
How long does a typical robotic automation installation take?
Simple machine tending cells can be installed in 2-3 weeks. Complete production line automation typically takes 3-6 months, depending on complexity, integration scope, and available on-site work windows.
What safety standards must automation installations meet?
U.S. installations must meet ANSI/A3 R15.06-2025 for industrial robot safety, OSHA machine guarding requirements, and ISO standards (ISO 10218 for robots, ISO 13849 for safety controls). Every install also needs documented risk assessments and validation.
Should we install automation ourselves or hire an integrator?
Unless your team has certified robotics engineers, controls specialists, and safety experts on staff, hiring an experienced integrator ensures proper installation, meets safety compliance, and typically results in faster commissioning with fewer issues.
What causes most automation installation delays?
The top causes are inadequate site preparation (utilities, floor space, structural support not ready), integration issues with existing equipment that wasn't properly assessed upfront, and scope creep where additional requirements emerge during installation.
How do we minimize production downtime during installation?
You can cut downtime by:
- Completing pre-assembly and Factory Acceptance Testing off-site
- Scheduling work during planned shutdowns or low-production windows
- Running old and new systems in parallel briefly (phased cutover)
- Using experienced installation teams that execute efficiently
