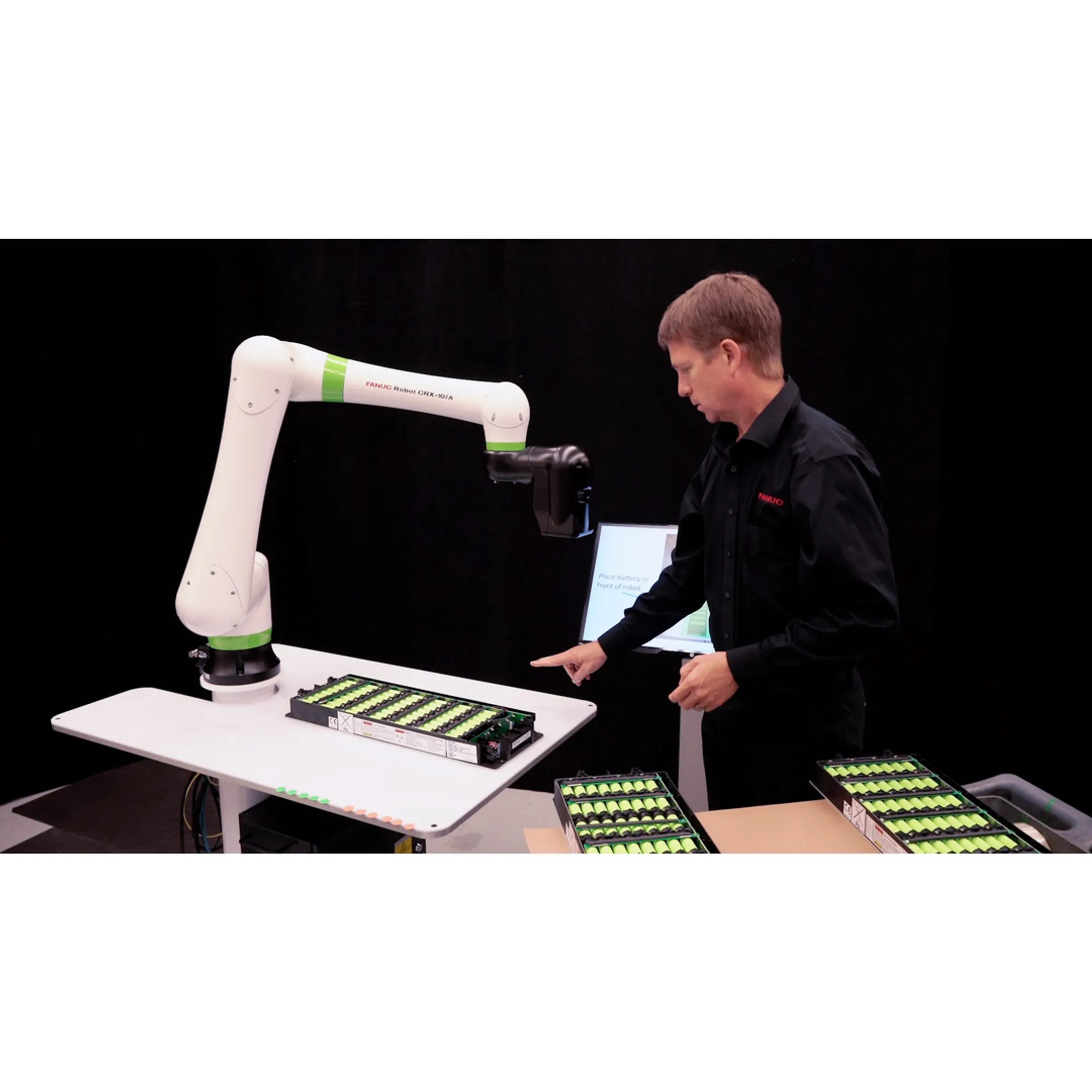

Vision Sorting Machine Cells for Part Identification and Defect Sorting

GLOBAL configures each cell around the criteria that drive your sort: part type or family, orientation, surface defects such as scratches, dents, or contamination, missing features, dimensional or positional variation, and color or marking differences. What is practical depends on the size of the smallest feature that matters, the contrast between conditions, and how repeatably parts present to the camera. GLOBAL reviews representative good parts and defect or reject samples early, because that is the fastest way to confirm what reads reliably versus what needs a different imaging approach.

GLOBAL specifies and integrates the lighting, lenses, and part fixturing or presentation as part of the cell rather than leaving them to chance. Cameras and optics are sized to resolve your smallest feature, illumination is chosen for angle, color, and diffusion so the feature reads consistently across reflective or mixed parts and ambient plant light is shielded out, and how parts are presented, staged, singulated, or picked from a bin, is engineered so the camera sees them repeatably. GLOBAL sources these from the vision-camera vendor and lighting supplier best matched to the parts and engineers how they work together, so sort decisions stay reliable rather than fragile.

Every sort balances two errors: false rejects, where a good part is diverted, and escapes, where the wrong part or a defect passes into the accepted stream. GLOBAL tunes the accept-reject and classification thresholds against representative good and defect sample parts, using stable lighting and consistent presentation to widen the margin between categories. Where an escape carries high risk, uncertain parts can be routed to a review or reject lane rather than guessed, and results are logged so you can monitor performance and adjust over time.

The classification result is passed to your PLC or line controls over the communication your equipment already speaks, and the robot or a divert mechanism, such as a gate, pusher, air jet, or pick-and-place move, routes each part to the correct lane, bin, or reject station. GLOBAL plans this around your existing controls, safety guarding, conveyors, and layout so parts are sorted or rejected reliably at flow. You get a documented interface and reject-handling logic defined during design, not improvised at startup.

GLOBAL engineers the cell around your throughput target, accounting for image acquisition, part spacing and singulation, robot or divert motion, and the time to process and communicate each decision. With part tracking and vision-guided robotics, parts can be identified and sorted on a moving conveyor without stopping the line, even when orientation varies, provided line speed, camera resolution, and lighting are matched during design. Simulation and a run-off help confirm the cell holds throughput before it ships.

Before commissioning, GLOBAL asks for representative good parts and known defect or reject samples across the mix you sort, so imaging, lighting, and thresholds can be dialed in against real conditions rather than assumptions. Lighting and optics are set and locked, part presentation is verified, and the system is validated on those samples during run-off. The more complete the sample set, including borderline cases, the more reliably the cell separates and routes parts at launch.

After commissioning, GLOBAL trains your operators and maintenance team on the vision and robot controls, provides as-built documentation, and advises on spare cameras, lenses, lighting, and cabling so a single failure does not stop the line. Ongoing support is available as parts, product mixes, or requirements change, and GLOBAL controls engineers and robot programmers can support those changes. Planned maintenance windows keep the cell calibrated and running predictably.
