Introduction
Manufacturers can't find enough welders. The American Welding Society projects 320,500 new welding professionals will be needed by 2029, with roughly 80,000 jobs to fill annually between 2025 and 2029 across welding-intensive trades.
That shortage is pushing shops toward automation faster than ever. But "automate the weld" isn't a single decision. It's a fork in the road.
Do you invest in hard automation, fixed tooling built for one repeatable path, or robotic welding, which costs more upfront but flexes with your part mix?
Get it wrong and you've either overspent on flexibility you'll never use, or boxed yourself into equipment that can't handle next year's product line.
This guide breaks down what hard automation welding actually is, where it wins, and when it's time to look at something more flexible.
Key Takeaways
- Hard automation relies on fixed tooling and dedicated motion for repeatable, simple-geometry welds
- Fits long, straight, or rotational welds in high-volume, low-mix production
- Costs less upfront than robotic welding, with far less flexibility for part changes
- Choose based on weld geometry, volume, part mix, and where your product line is headed
What Is Hard Automation Welding?
Hard automation welding is a fixed-position process. The torch or the part moves along one predetermined path on mechanized equipment—turning rolls, welding tractors, or column-and-boom rigs—with little to no reprogramming between parts.
It's sometimes called "fixed" or "mechanized" welding, and it does one job well: the same weld, the same way, thousands of times. That sets it apart from flexible automation (robotic welding), where a programmable torch can reorient to varied part geometries inside its working envelope. Hard automation doesn't reprogram. It repeats.

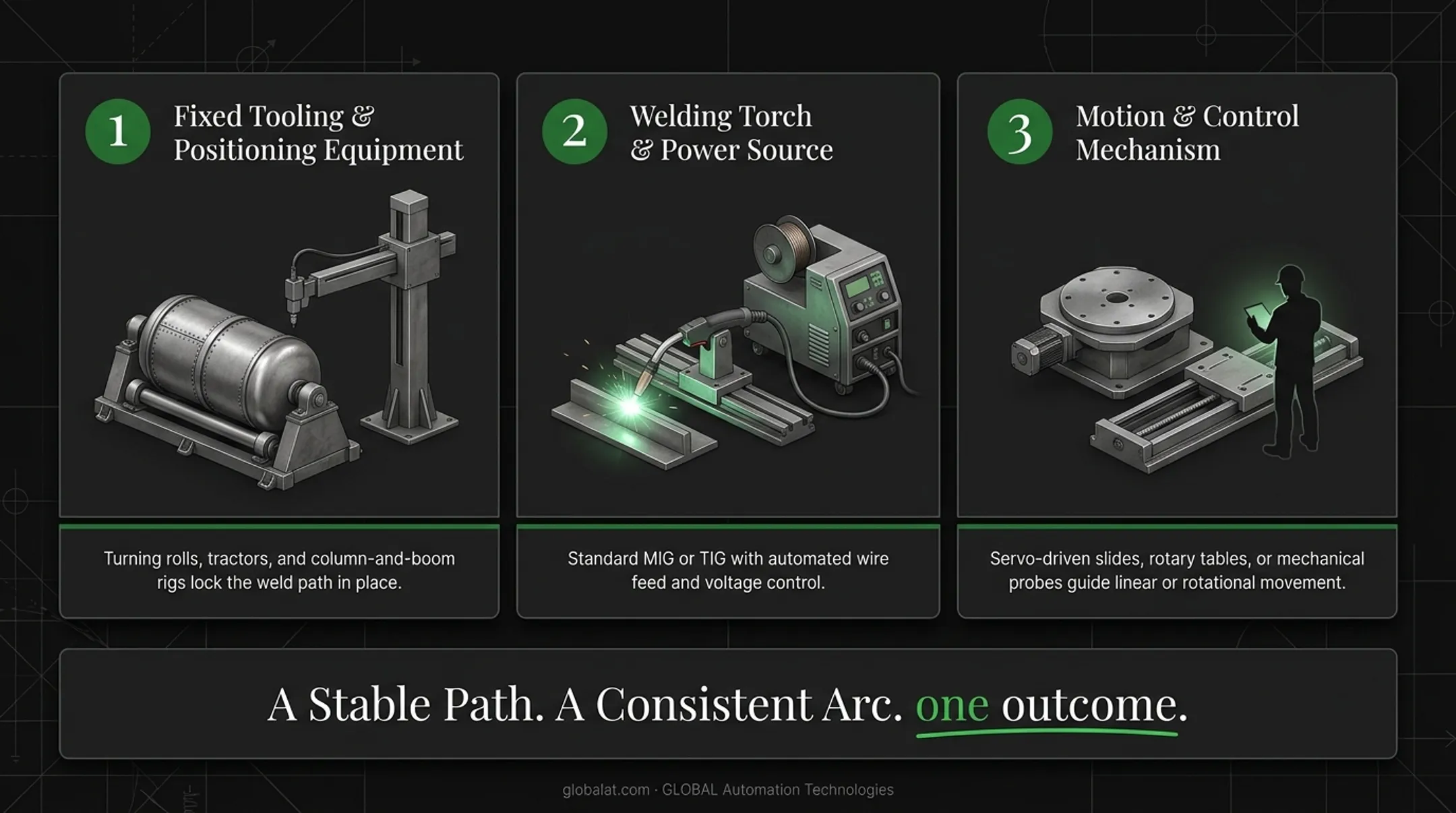

Core Components of Hard Automation Welding Systems
A hard automation welding cell stays simple by design: a few purpose-built parts that hold the path steady and keep the arc consistent.
Fixed tooling and positioning equipment
Turning rolls, tractors, and column-and-boom rigs lock the weld path in place. On a long seam or circumferential joint, that mechanical consistency is the point. It prevents drift, wander, and the small deviations that drive rework on a 40-foot beam or large-diameter pressure vessel.
Welding torch and power source
The torch sits stationary or on a single-axis slide and runs standard MIG or TIG with automated wire feed and voltage control. There is no multi-axis reorientation—only controlled, repeatable arc delivery along one line.
Motion and control mechanism
Servo-driven slides, rotary tables, or mechanical probes guide linear or rotational movement. An operator usually stays nearby, watching the arc and making small real-time adjustments instead of programming a robot.
Together, these components deliver one outcome: a stable path and a consistent arc on high-repeat weld jobs.
Hard Automation vs. Flexible (Robotic) Automation
The structural difference comes down to this: hard automation follows one fixed path. Robotic welding uses programmable, multi-axis motion within the robot's working envelope. It can store multiple programs and switch between part variations without a hardware rebuild.
That flexibility shows up in a few key ways:
| Factor | Hard Automation | Robotic Welding |
|---|---|---|
| Motion | Single fixed path | Reprogrammable, multi-axis |
| Part variation | Limited to one geometry | Handles varied shapes and sizes |
| Upfront cost | Generally lower | Higher (robot, tooling, programming) |
| Changeover | Tooling/hardware changes required | New program only; no rebuild |
| Best fit | Long, repeatable, high-volume runs | Complex joints, mixed production |
Hard automation typically costs less initially since there's no robot arm, teach pendant, or complex programming involved. Robotic systems earn their higher price tag by handling varying part shapes, sizes, and joint types, something a fixed-path tractor simply can't do.
There's also a middle ground worth knowing about. Some operations bolt seam tracking or servo-controlled slides onto hard automation setups, closing part of the gap toward robotic flexibility without a full system replacement. It's not a perfect substitute for a robot cell, but it can extend the life of an existing setup while a company plans its next move.
Benefits of Hard Automation Welding
Hard automation earns its place in a lot of shops, and not just because it's cheaper. Here's where it outperforms flexible systems:
- Lower initial capital investment - no robot arm, teach pendant, or programming layer to buy and support
- Faster deployment and retooling for job shops running similar linear or rotational welds across multiple workpieces
- Better cost efficiency on large parts like long I-beams or pipe sections, where a robot's reach and fixturing costs would be disproportionate to the job
- Simpler operator training since running hard automation requires far less programming knowledge than a robotic system
Hard automation fits a specific kind of job: the weld path never changes, and the volume justifies dedicated equipment.
What to Consider When Choosing Hard Automation for Your Operation
These factors connect your weld geometry and production reality to numbers that actually matter: cost-per-part and cycle time. Skip this evaluation and you risk automating a broken process, particularly if your parts don't have consistent fit-up or tolerances to begin with.
Application Fit: Geometry, Volume, and Part Mix
Hard automation suits straight, circumferential, or otherwise simple repeatable welds. Complex multi-angle joints demand the flexibility only a robotic arm provides. Geometry drives first-pass weld quality and how much you spend on rework and scrap.
Volume matters just as much. Hard automation pays off on long, dedicated runs of similar large parts. High-mix, low-volume work erodes that advantage fast, because every changeover eats into daily arc-on time.
Total Cost of Ownership
Upfront hard automation costs run lower than robotic cells, but factor in tooling retrofits, defect rates, and rework over the full lifecycle. Robotic payback is not always quicker than fixed tooling, but it can be dramatic when the application fits.

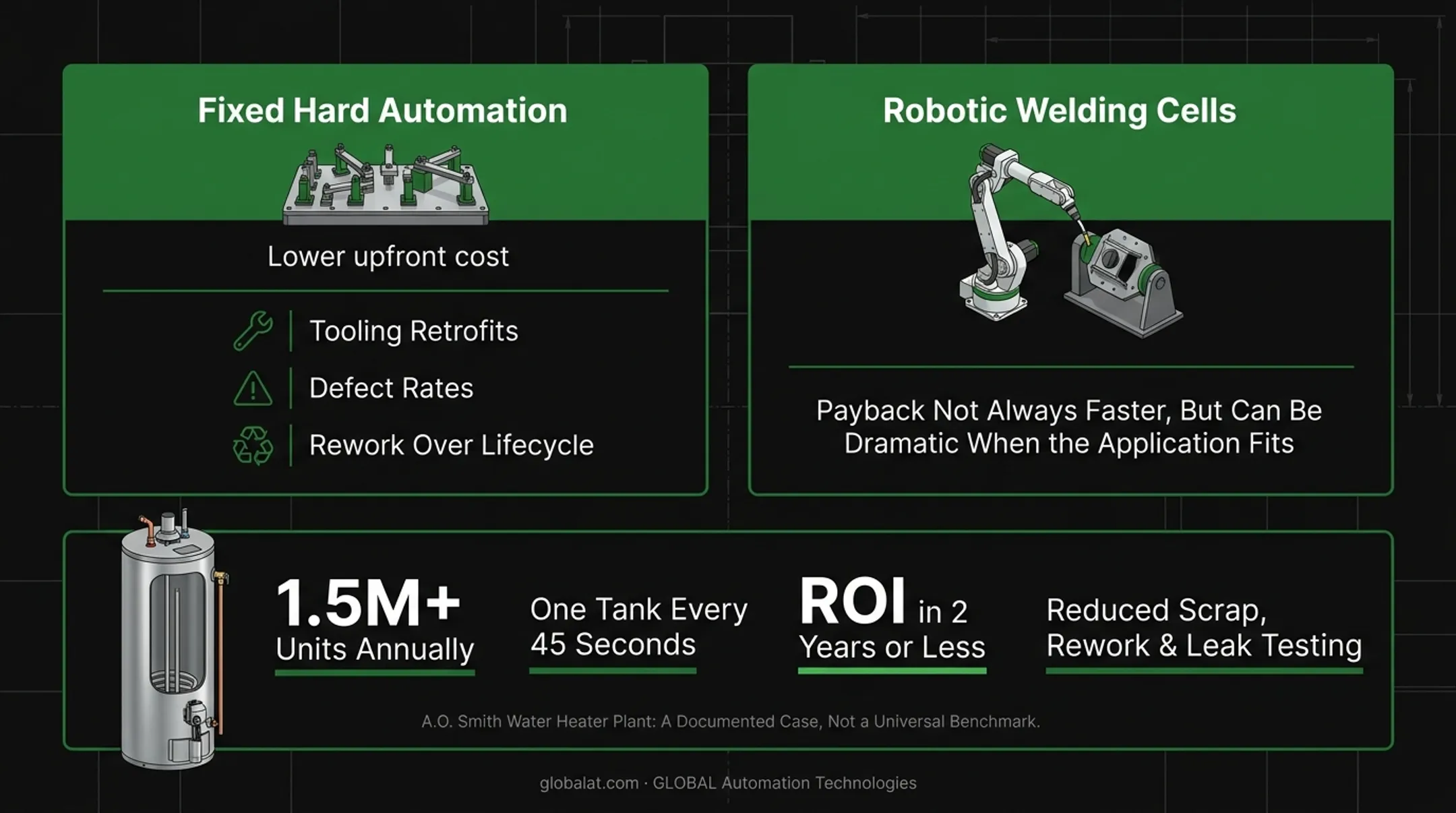

One documented example: A.O. Smith's water heater plant produces over 1.5 million units annually at one tank every 45 seconds. The plant replaced fixed-path operations with robotic welding cells and achieved ROI in two years or less.
Payback came from higher productivity, less scrap and rework, reduced leak testing, and the flexibility to run smaller lots. That is a named case, not a universal benchmark, but it shows what is possible when volume and complexity justify the switch.
Flexibility, Skills, and Long-Term Scalability
If your product lines are expected to diversify, hard automation can turn into a bottleneck. Adding a new part number often means a costly rebuild rather than a simple reprogram. That affects long-term capital planning and how easily you onboard new work without major capex.
Hard automation needs less specialized programming talent, but you still need trained operators monitoring torch position and joint tracking. Staffing costs and technician availability in your region both shape the real operating picture.
How GLOBAL Automation Technologies Can Help
Every manufacturer wants to hear that automation will solve their throughput problem. Not every manufacturer needs the same solution to get there.
GLOBAL Automation Technologies works with manufacturers to figure out whether hard automation, robotic welding, or a hybrid setup actually fits their production goals, rather than pushing a single system regardless of application. With 18+ years of hands-on experience and a proven global base of robotic deployments, GLOBAL has seen fixed setups that still fit—and lines that have already outgrown them.
As a Level 5 FANUC Authorized System Integrator and the largest U.S. purchaser of FANUC robots among integrators in 2025, GLOBAL designs and builds custom robotic welding cells with:
- Fixture design and servo positioning
- Optional vision for seam tracking
- Weld quality verification
Beyond the welding automation system itself, GLOBAL's engineering services and technical staffing supply the talent—via contract, contract-to-hire, or direct hire—to program, run, and maintain it. Turnkey scope includes layout, design, build, programming, validation, installation, and ongoing support.
When production outgrows hard automation, manufacturers get a clear path to robotic welding without switching vendors or losing application knowledge.
AI-assisted simulation is built into GLOBAL's engineering process, compressing robotic programming time. Before a single weld hits steel, the team validates:
- Weld paths and torch angles
- Travel speeds
- Multi-robot coordination
That speed matters most during the jump from a fixed setup to a flexible one—when timelines and downtime are on the line.
Conclusion
The goal was never to find the most "advanced" automation type. It is to match automation to your weld geometry, your volume, and where your product line is headed.
Hard automation remains a smart, cost-effective entry point for long, repeatable welds on large parts. Robotic systems earn their investment when flexibility and complex joints enter the picture. Neither is universally "better." They solve different problems.
Revisit this decision periodically. Production mix, part complexity, and volume shift over time—and the automation choice that made sense three years ago may not be the right one today.
Frequently Asked Questions
What is hard automation?
Hard automation is a fixed-path welding process using mechanized equipment, turning rolls, tractors, or column-and-boom rigs, to run repeatable straight or rotational welds with minimal programming required.
How much does an automated welding machine cost?
Hard automation systems generally cost less upfront than robotic cells, while full turnkey robotic welding cells often run from the low tens of thousands of dollars into the hundreds of thousands of dollars, depending on complexity. Get a tailored quote based on your part size and weld requirements.
What is the difference between hard automation and robotic welding?
Hard automation follows one fixed path with limited flexibility. Robotic welding is fully programmable and can handle varying part geometries within its working envelope.
Can a hard automation welding system later be upgraded to a robotic cell?
Some hybrid upgrades, like adding seam tracking or servo-controlled slides, are possible on existing hard automation. A full transition to robotic welding, though, usually requires new equipment, tooling, and programming.
What industries or applications are best suited to hard automation welding?
Long I-beams, pipe, tanks, and pressure vessels are classic fits. Anywhere long, repeatable welds and large part size matter, dedicated fixed tooling is usually more practical than robotic reach.
Is hard automation welding still relevant with robotic welding becoming more affordable?
Yes. Hard automation stays cost-effective for large, simple, high-volume parts. Robotic systems become the better investment as part variation, joint complexity, and flexibility needs grow.
