Engineers and plant managers often hit a wall here. Remote I/O, peer-to-peer, fieldbus, Ethernet — the terminology piles up fast, and picking wrong means wiring headaches for years. Ethernet-based industrial networks now account for 76% of new industrial-network nodes, up from 71% just a year earlier, according to HMS Networks' 2025 industrial network report. That shift matters for anyone planning a new line or retrofitting an old one.
This guide breaks down what a PLC network actually is, the core architectures you'll encounter, and how to choose the right setup for your facility.
Key Takeaways
- PLC networks connect controllers, I/O, and computers so plant data moves automatically—without manual handoffs
- Remote I/O, peer-to-peer, and host computer/LAN architectures each fit a different scale of operation
- Topology and protocol choice set your ceiling for speed and long-term cost
- Strong network design cuts wiring cost and downtime while making future integration far simpler
What Is a PLC Network?
A PLC network is the communication system connecting programmable logic controllers to each other, to I/O devices, and to supervisory computers. It's the layer that lets a controller on the paint line "talk" to a controller on the conveyor without a person relaying the message.

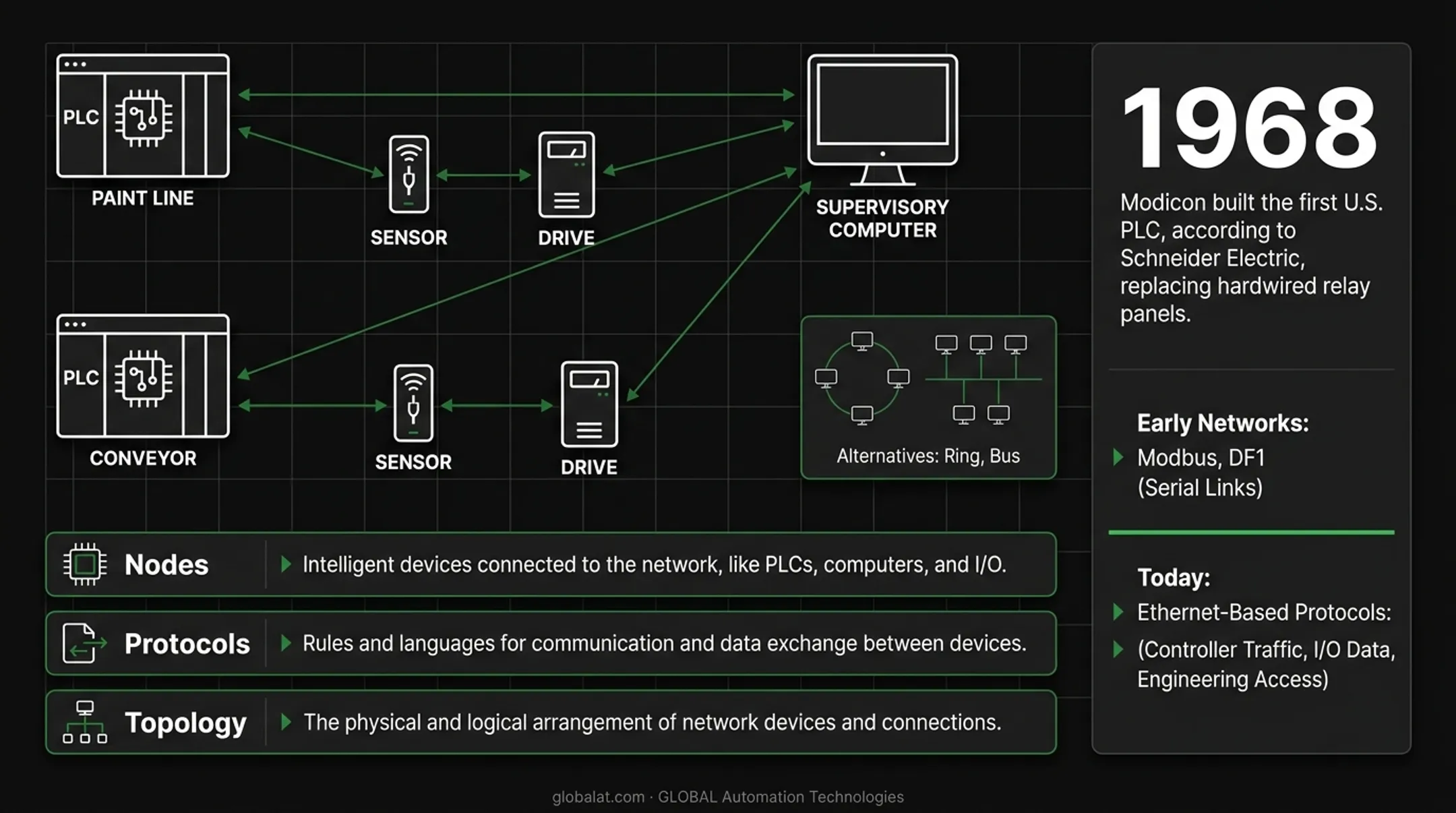

Three things define how that data moves:
- Nodes — the controllers, sensors, drives, and computers on the network
- Protocols — the rules devices use to package and send information
- Topology — the physical or logical layout (star, ring, bus) connecting everything
A PLC is not the same thing as a PLC network. The PLC is the controller itself, running logic and driving outputs. The network is the communication layer that lets multiple PLCs, I/O racks, and host systems exchange that data.
According to Schneider Electric, Modicon built the first U.S. PLC in 1968, replacing hardwired relay panels that were expensive to modify. Early networks relied on simple serial links like Modbus and DF1. Today's plants run on Ethernet-based protocols that handle controller traffic, I/O data, and engineering access on a single backbone.
Core PLC Network Architectures
Three architectures cover most real-world plant floor setups. Which one fits depends on how spread out your I/O is and how much local intelligence each site needs.
Remote I/O Networks
Remote I/O uses a master-slave polling structure. A central PLC (the scanner) polls I/O points scattered across the plant over twisted pair or fiber, and each slave device responds immediately when asked.
This setup makes sense when:
- I/O points sit far from the main control cabinet
- A full controller at every location isn't practical or cost-effective
- You need centralized logic with distributed physical inputs/outputs
Rockwell's DeviceNet documentation describes exactly this pattern: an adapter controlling a drive sends I/O data immediately after a scanner request, while less time-sensitive data moves through separate explicit messages.
Peer-to-Peer Networks

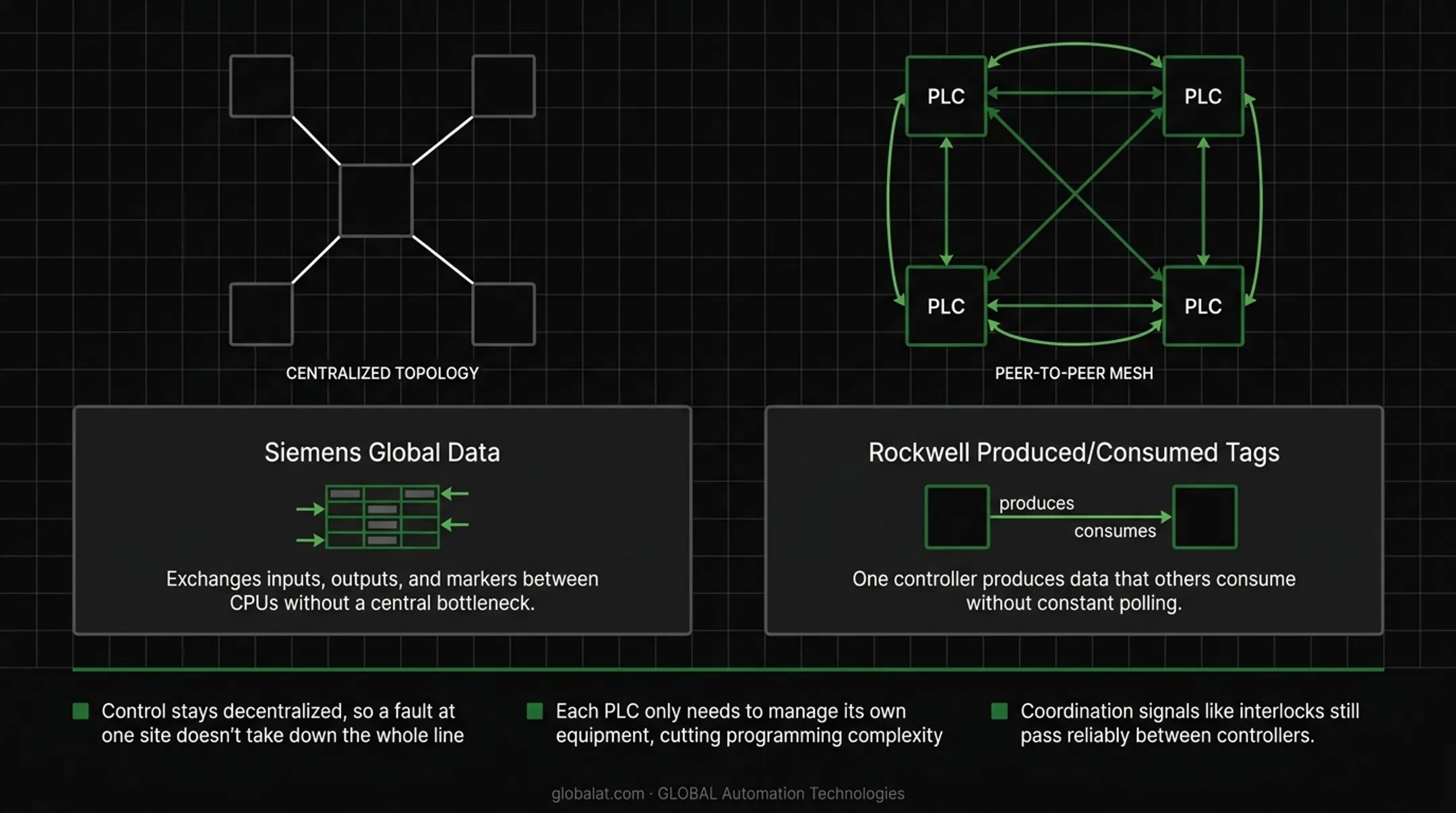

Peer-to-peer flips that model: multiple PLCs share data through a common memory table instead of routing everything through one master. Siemens calls this "Global Data," a way to exchange inputs, outputs, and markers between CPUs without a central bottleneck.
Why manufacturers like this approach:
- Control stays decentralized, so a fault at one site doesn't take down the whole line
- Each PLC only needs to manage its own equipment, cutting programming complexity
- Coordination signals (like interlocks) still pass reliably between controllers
Rockwell's produced/consumed tag structure works the same way: one controller "produces" data that others "consume" without constant polling.
Host Computer / LAN Networks
This is where supervisory control lives. A host computer connects to multiple PLCs via RS232/RS422 or Ethernet, handling data acquisition, remote programming, and plant-wide visibility.
Two factors shape how well this performs:
- Topology: star, bus, or ring layouts each affect cable runs and fault tolerance differently
- Access method: collision detection (common in Ethernet) versus token passing changes how devices share bandwidth under load
On EtherNet/IP networks specifically, UDP handles the real-time I/O traffic while TCP manages non-time-critical work like program uploads and HMI polling. That split keeps the two from competing for bandwidth.
In a robotic cell, that same host-to-PLC layer is what keeps robot and conveyor controllers aligned on speed matching, fault handling, and e-stop signaling. GLOBAL Automation Technologies, a Level 5 FANUC Authorized System Integrator, builds those links into turnkey deployments so the cell behaves as one system, not a set of isolated PLCs.
Types of PLC Network Communication Protocols
Protocols fall into three broad categories, and picking the wrong one for your application is a common, and expensive, mistake.

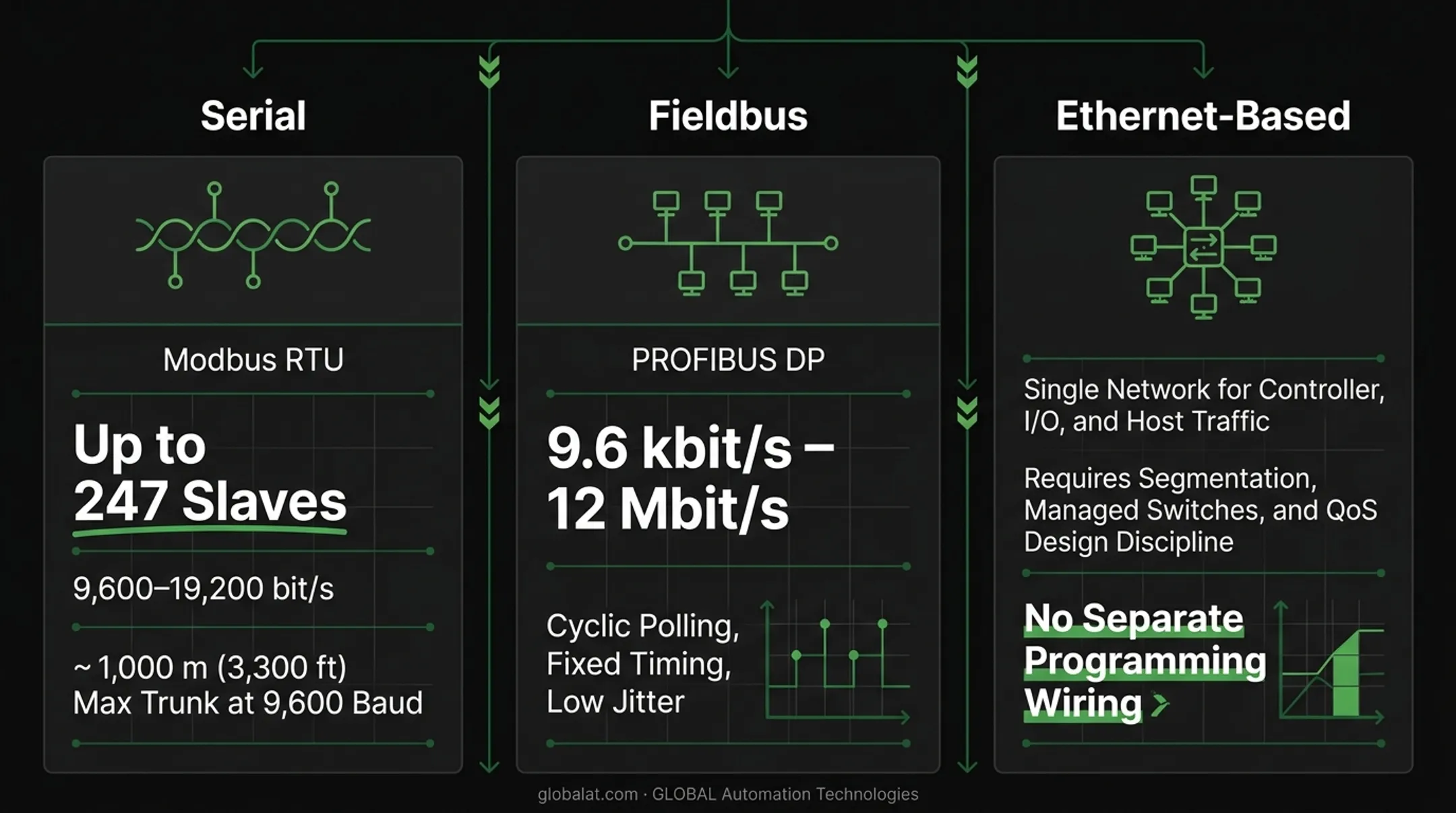

| Category | Examples | Best fit |
|---|---|---|
| Serial | Modbus RTU, DF1 | Small, legacy, cost-sensitive links |
| Fieldbus | PROFIBUS, DeviceNet, CANopen | Deterministic control, distributed I/O diagnostics |
| Ethernet-based | EtherNet/IP, PROFINET, EtherCAT, OPC UA | Plant-wide, high-speed integration |
Serial protocols like Modbus RTU still work fine for simple, low-cost links. The Modbus specification supports up to 247 slaves on one master, running at 9,600–19,200 bit/s with a maximum trunk length around 1,000 meters (~3,300 ft) at 9,600 baud Modbus Organization.
Fieldbus protocols remain valuable because they're predictable. PROFIBUS DP cyclically polls every slave for I/O data, with speeds from 9.6 kbit/s to 12 Mbit/s depending on distance and device count. That fixed cycle timing still wins on lines where jitter is unacceptable.
Ethernet-based protocols dominate new installations because they carry controller, I/O, and host traffic on one physical network, with no separate wiring for programming access. The tradeoff is design discipline: segmentation, managed switches, and QoS matter more than they did on dedicated fieldbus drops.
Transmission Distance Matters More Than You'd Think
Physical medium limits catch a lot of engineers off guard:
- RS-232: typically capped around 25 ft
- RS-422/485: reaches roughly 4,000 ft at moderate baud rates
- Multimode fiber: 100 Mbit/s over 4-5 km, depending on fiber core size
Choosing serial when you need fiber-level reach (or vice versa) means re-cabling later. Plan the physical layer first.
What Are the Four Types of PLCs?
Understanding PLC form factors helps you match hardware to your network architecture.

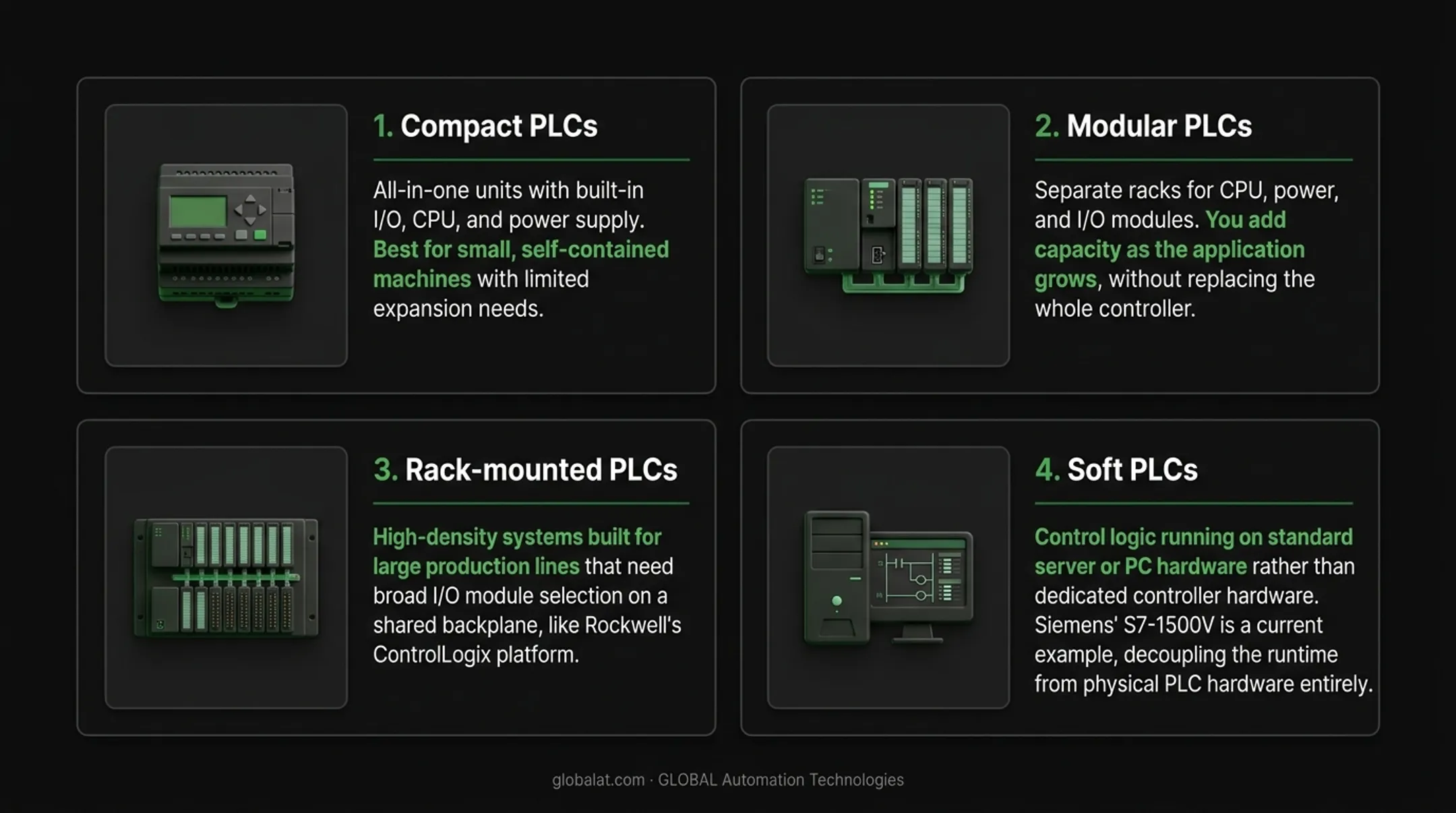

- Compact PLCs: All-in-one units with built-in I/O, CPU, and power supply. Best for small, self-contained machines with limited expansion needs.
- Modular PLCs: Separate racks for CPU, power, and I/O modules. You add capacity as the application grows, without replacing the whole controller.
- Rack-mounted PLCs: High-density systems built for large production lines that need broad I/O module selection on a shared backplane, like Rockwell's ControlLogix platform.
- Soft PLCs: Control logic running on standard server or PC hardware rather than dedicated controller hardware. Siemens' S7-1500V is a current example, decoupling the runtime from physical PLC hardware entirely.
Why PLC Network Design Matters for Manufacturing Performance
A poorly planned network doesn't just cause headaches during startup; it becomes a permanent liability.
Cost and troubleshooting impact:
- Well-designed topologies reduce total cable runs and simplify fault isolation
- When something breaks, a clean architecture means tracing the problem to one segment, not the entire plant
- Clear segmentation cuts commissioning time when new cells join an existing line
Isolation, safety, and cybersecurity: NIST's 2023 OT security guidance recommends segmenting IT and OT networks into zones, using firewalls or data diodes to enforce boundaries, and blocking direct paths between enterprise systems and low-level control devices (NIST SP 800-82 Rev. 3).
That same discipline shows up in uptime numbers. Rockwell's 2025 case study on Hexcel is a clear example: after a modernization that included migrating from ControlNet to EtherNet/IP, unplanned maintenance downtime dropped from 2% to 0.4% (an 80% reduction). Prior encoder-related incidents had cost roughly $70,000 each.
Network design was only one part of that upgrade, yet it shows how much depends on getting the communication layer right. Poor architecture remains a common root cause of unplanned downtime and integration delays, especially when older serial links get bolted onto newer Ethernet-based cells without a plan.
Choosing the Right PLC Network Partner
Protocol and topology decisions shouldn't happen in a vacuum. They need to line up with:
- Your existing PLC hardware and installed base
- Production goals and throughput targets
- Future expansion plans, including new cells, lines, or facilities
GLOBAL Automation Technologies helps you make those calls with one partner for both the system and the people who run it. As a robotic systems integrator, GLOBAL's engineers design and commission the network architecture itself. As a technical staffing provider, GLOBAL supplies the controls engineers who maintain that network long after commissioning.
That dual model matters because a network is only as good as the people running it. GLOBAL supports automotive OEMs and Tier 1 suppliers, heavy industry, EV, aerospace, agriculture, and general manufacturing.
On the engineering side, GLOBAL uses AI-assisted simulation to speed robot programming before deployment and cut startup surprises. AI-driven health assessments flag equipment issues early, which helps keep machines—and the networks connecting them—running with less unplanned downtime.
Frequently Asked Questions
What is a PLC network?
A PLC network is the communication system linking programmable logic controllers, I/O devices, and supervisory computers. It lets automation equipment exchange data automatically.
What are the four types of PLCs?
Compact, modular, rack-mounted, and soft (software-based) PLCs. Each fits a different scale, from small standalone machines to large, expandable production lines.
What is the difference between fieldbus and Ethernet-based PLC networks?
Fieldbus protocols like PROFIBUS and DeviceNet offer deterministic, cyclic device-level control. Ethernet-based protocols like EtherNet/IP support faster, plant-wide integration carrying controller, I/O, and host traffic together.
How do I choose the right network topology for my facility?
Consider distance between devices, total device count, and how much you expect to expand. Star topologies simplify troubleshooting; ring and bus layouts can reduce cable runs in larger facilities.
Can different PLC brands communicate on the same network?
It depends on whether they use open protocols like EtherNet/IP or proprietary ones. Mixed-brand environments often need gateways or ASCII interfaces to translate between systems.
Why is network security important in PLC networks?
Isolating field networks from enterprise IT systems limits how far a breach can spread. NIST recommends zoning control networks and blocking direct paths from top-level enterprise systems to low-level control devices.
