Introduction
A plant manager needs to automate a repetitive, hazardous, or high-volume task. The obvious move is to call an "automation design engineer." But that title creates more confusion than clarity.
Search the term and you'll find overlapping definitions: automation engineering, robotics engineering, even CAD-based design automation software. Most explanations focus on generic career paths or software tools, not what it actually takes to build a physical robotic system on a plant floor.
This article defines automation design engineering in practical terms. You'll see what these engineers do day-to-day, how a project moves from concept to production, and how to evaluate the right partner for your automation project.
Key Takeaways
- Automation design engineering blends mechanical, electrical, controls, and robotics to build physical production systems, not software alone
- Simulation-first design lets engineers test robot motion and cycle time before any hardware exists
- A real project moves through five distinct phases, from feasibility through ongoing optimization
- Machine tending automation cells often pay for themselves in 12 to 18 months
- Partner selection matters as much as engineering quality. Poor upfront planning is a leading cause of stalled projects
What Is Automation Design Engineering?
Automation design engineering is the multidisciplinary practice of designing physical automated production systems: robotic cells, production lines, custom tooling, and integrated safety systems built around a specific manufacturing process.

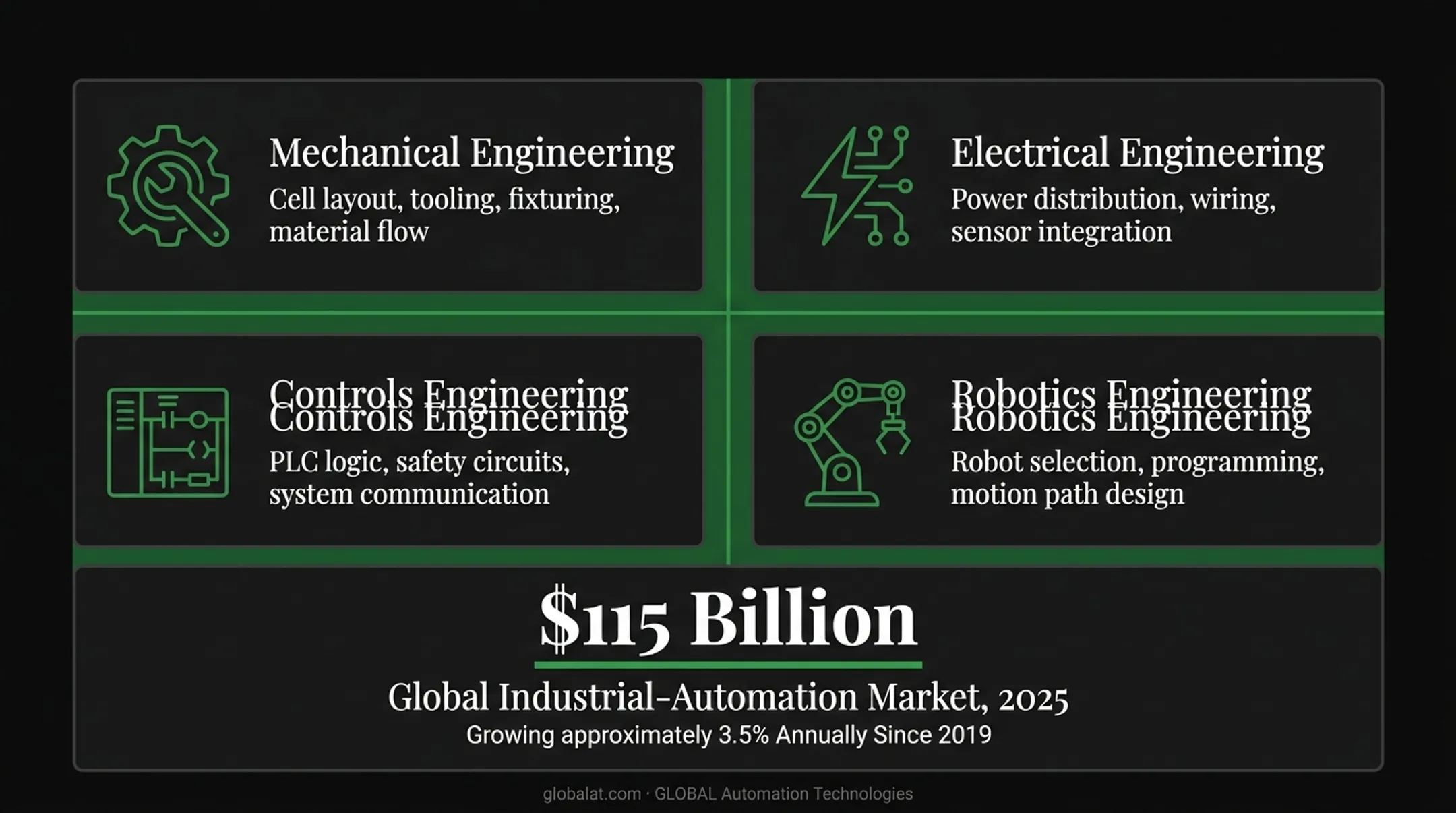

It draws from four engineering disciplines simultaneously:
- Mechanical engineering — cell layout, tooling, fixturing, material flow
- Electrical engineering — power distribution, wiring, sensor integration
- Controls engineering — PLC logic, safety circuits, system communication
- Robotics engineering — robot selection, programming, motion path design
Automation design engineering sits at the intersection of automation engineering (controls, PLCs, and system logic) and design engineering (CAD layout, mechanical design, and tooling). The work is applied physical engineering, with software as one tool among many rather than the whole discipline.
Demand for this skill set is climbing fast. McKinsey estimates the industrial-automation market will reach roughly $115 billion globally in 2025, growing about 3.5% annually since 2019.
That growth is pulling more manufacturers toward robotic cells and away from manual, injury-prone processes.
The Shift Toward Simulation-First Design
The discipline has changed in one major way over the last several years: engineers no longer design blind. Digital twins and AI-assisted simulation now let a team validate a robotic cell's motion, cycle time, and reach entirely on screen before a single component is ordered.
That shift matters because rework on a built cell is expensive and slow. Catching a reach problem in simulation costs a few hours. Catching it after installation costs weeks.
Automation Design Engineering vs. Automation Engineering vs. Design Automation Software
These three terms get used interchangeably online, which is exactly why manufacturers get confused. They are not the same thing.
| Term | What It Actually Means |
|---|---|
| Automation design engineering | Designing and building physical automated production systems — robotic cells, tooling, controls, safety |
| Automation engineering | A broader field, per ISA's definition, spanning IT, process control, and system management beyond just physical cells |
| Design automation software | CAD-based tools like DriveWorks that auto-generate drawings, models, and bills of materials from order rules — no physical system involved |
The confusion is understandable. Design automation software companies use "design automation" to describe document generation. Automation engineering, per ISA's definition, spans everything from cybersecurity to procurement.
Automation design engineering is narrower and more concrete. It's the team that puts a robot on a plant floor and makes it work reliably.
What Does an Automation Design Engineer Do?

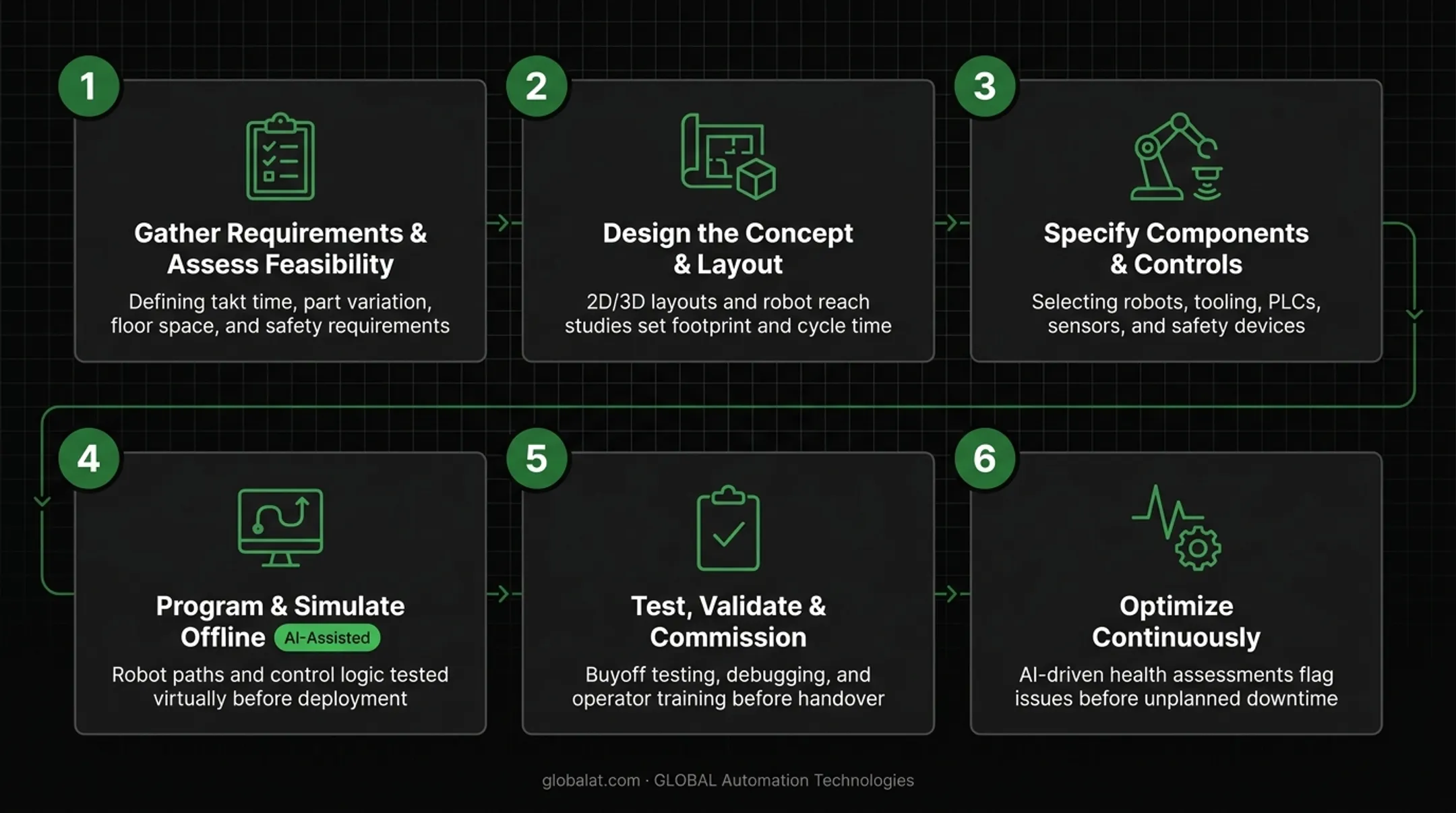

The day-to-day work follows a logical progression, and it starts long before any robot gets ordered.
Gather requirements and assess feasibility. Engineers sit down with plant teams to define takt time, part variation, floor space limits, and safety requirements. Skip this step and everything downstream gets built on bad assumptions.
Design the concept and layout. Engineers build 2D and 3D layouts, along with robot reach studies that set cell footprint, cycle time, and equipment placement.
Specify components and controls. Engineers select the right robot, end-of-arm tooling, PLCs, sensors, and safety devices for the application. A paint booth calls for intrinsically safe robot construction; a high-precision assembly cell calls for something else entirely.
Program and simulate offline. Engineers write robot paths and control logic, then test them virtually first. AI-assisted simulation tools compress what used to take weeks of manual programming into days.
Test, validate, and commission. Engineers run buyoff testing on the floor, debug issues, confirm the cell meets production parameters, and train plant operators before handover.
Optimize continuously. Even a well-built cell benefits from monitoring. AI-driven health assessments can flag equipment issues before they turn into unplanned downtime, protecting maintenance budgets in the process.
The Automation Design Engineering Lifecycle: From Concept to Full Production
A real automation project runs through five phases, each with different priorities and stakeholders. This is where design intent becomes a working production line.
Discovery and Feasibility
Engineers assess the current process, set ROI targets, and determine whether robotic automation actually fits the application. Machine tending, painting, and dispensing all have different feasibility markers. Not every task should be automated, and a good feasibility study says so when that's the honest answer.
Design and Simulation
Layouts, robot programs, and safety systems get modeled and validated virtually before any hardware purchase. This is the phase where simulation pays for itself.
Documented project results include:
- Siemens: virtual commissioning cut design and commissioning time by 50% on a robotic assembly station
- Rockwell Automation: up to an 18% reduction in total project time on a warehouse automation build
These are individual case results, not universal averages, but they show what is possible when simulation replaces guesswork.
Build and Integration
Now the physical cell comes together: robots, tooling, guarding, conveyors, and integration with existing plant systems. This is the phase most people picture when they think "automation project," even though it's built on everything that came before it.
Installation, Commissioning, and Training
On-site installation and live testing against real production parts happen here, followed by operator and maintenance training. A smooth handover depends entirely on how well the earlier phases were executed. Rushed simulation shows up as painful commissioning.
Ongoing Support and Optimization
A well-designed system still needs monitoring after handover. This is where GLOBAL Automation Technologies' turnkey model differs from a typical equipment sale. One engineering team owns the full lifecycle:
- Layout and design
- Build, programming, and validation
- Installation, commissioning, and training
- Ongoing support after handover
Responsibility stays with that team instead of splitting across vendors who step away once the invoice is paid.
Key Skills, Tools, and Technologies Automation Design Engineers Use
The technical foundation has stayed steady in principle, even as the tools modernized.
Core technical skills:
- CAD and simulation software proficiency
- PLC and robot programming languages
- Solid grounding in control theory, electrical systems, and mechanical design
- Robot reach and cycle-time analysis
Emerging tools reshaping the work:
- AI-assisted simulation that accelerates offline programming
- Digital twins that reduce first-run surprises on the plant floor
- Predictive maintenance algorithms that flag equipment health issues early
The soft skill that gets underrated: cross-functional collaboration. A design only succeeds when it fits real plant constraints, not just specs on a drawing:
- Floor space and layout limits
- Staffing patterns and operator skill mix
- Maintenance capability and spare-parts reality
Engineers who can't work with production, quality, and safety teams design cells that look strong on paper and struggle on the floor.
Industries That Rely on Automation Design Engineering
Automation design engineering shows up wherever repetitive, precise, or hazardous tasks meet high production volume.
- Automotive OEMs and EV manufacturers — high-volume welding, assembly, painting, and dispensing lines where quality consistency at speed isn't optional
- Heavy equipment and industrial manufacturers — machine tending and material handling that extends production beyond a single shift and pushes spindle utilization closer to full capacity
- Emerging verticals — data center infrastructure, aerospace, and general industrial lines adopting methods first proven in automotive body shops and paint lines
A welding fix developed for an automotive line can solve a nearly identical problem on an aerospace assembly line. GLOBAL Automation Technologies builds its approach around that transfer: an applications lens first, industry quirks second. Problems get treated as engineering challenges before they get labeled by vertical.
Why the Right Automation Design Engineering Partner Matters
Good engineering design is the difference between a project that delivers ROI and one that underperforms for years.
McKinsey's research on warehouse automation found that a significant share of failed projects trace back to lack of cohesive vision, poor leadership understanding of the technology, and organizational misalignment, not equipment failure.
One example: a consumer goods company invested more than $150 million and planned for a full year, only to see the system underused because of inaccurate demand forecasts. The equipment worked. The planning didn't.
What to look for in an automation design partner:
- Full turnkey capability, from layout through ongoing support, not just equipment sales
- A deep bench of engineering talent that can flex across applications
- A track record with FANUC-certified integration, if robots are central to the build
- Willingness to say "automation isn't right for this task" when that's the honest assessment
GLOBAL Automation Technologies has built its model around exactly this gap. With 18+ years of automation design and integration experience, a proven global base of robotic deployments, and Level 5 FANUC Authorized System Integrator status, the company pairs robotic systems integration with technical staffing.
That combination means manufacturers get both the physical system and the engineers who can run and maintain it, rather than a piece of equipment and a support hotline.
Frequently Asked Questions
What does a design automation engineer do?
They design, program, and validate automated systems, from CAD layouts and controls specification to robot programming and commissioning. The goal is a working production system that streamlines a specific manufacturing process.
What is the difference between automation engineering and design automation?
Automation engineering is a broad field covering controls and process automation across an entire facility. Design automation software refers to CAD tools that auto-generate drawings and files, while automation design engineering bridges both to build physical production systems.
What skills are needed to become an automation design engineer?
You'll need CAD and simulation proficiency, PLC and robot programming knowledge, and a solid grounding in controls theory. Just as important: the ability to collaborate across engineering, quality, and plant floor teams.
How long does it take to design and build a robotic automation system?
Simple machine tending cells can move from concept to production in a few months; complex multi-robot lines often take 6 to 12 months or more. AI-assisted simulation is shortening design and programming phases, and many cells pay for themselves within 12 to 18 months of going live.
What industries hire automation design engineers?
Automotive OEMs, Tier 1 suppliers, and heavy equipment manufacturers hire the most, alongside growing demand from aerospace and data center infrastructure sectors as automation proves out beyond its automotive roots.
Is automation design engineering the same as robotics engineering?
Not quite. Robotics engineering focuses specifically on the robot's hardware and software, while automation design engineering covers the full system — the robot, tooling, controls, safety devices, and how it all integrates into a working production line.
