Modern color inspection technology has transitioned from specialized, high-cost equipment to practical quality tools for mid-size manufacturers. Calibrated cameras, stable LED lighting, and standardized color-space math enable automated color verification at speeds and accuracies that meet automotive, electronics, and packaging line demands. When color defines the defect—not geometry or contrast—machine vision requires RGB data, device-independent measurement, and controlled illumination to deliver reliable results.
Key Takeaways
- Color inspection uses calibrated RGB cameras and controlled lighting to measure color against reference standards
- Use it when the defect is a hue or shade difference—not geometry or edge contrast
- Typical uses: automotive paint checks, PCB components, food ripeness sorting, and packaging labels
- Lighting stability and calibration frequency drive accuracy; diffuse light cuts surface reflections
- Integration needs vision-to-PLC links for part tracking, pass/fail status, and reject control
What Is Color Inspection?
Color inspection is automated vision technology that measures and verifies color accuracy using calibrated cameras, controlled lighting, and device-independent color-space conversion. Unlike grayscale systems that capture single-channel intensity data (256 shades of gray), color cameras capture three channels—red, green, and blue—providing three times more data for evaluation.
How Color Cameras Capture Wavelength Information
Color cameras use RGB sensors with Bayer filter arrays positioned over individual pixels. Each pixel captures one color channel (red, green, or blue), and the full-color image is reconstructed through interpolation. This approach enables compact imaging hardware but reduces effective spatial resolution compared to monochrome sensors of the same pixel count.
Alternatively, three-sensor prism cameras split incoming light into separate red, green, and blue paths, directing each wavelength to a dedicated sensor. This architecture delivers independent RGB values at every pixel without interpolation, which suits precision color metrology where interpolation error is unacceptable.

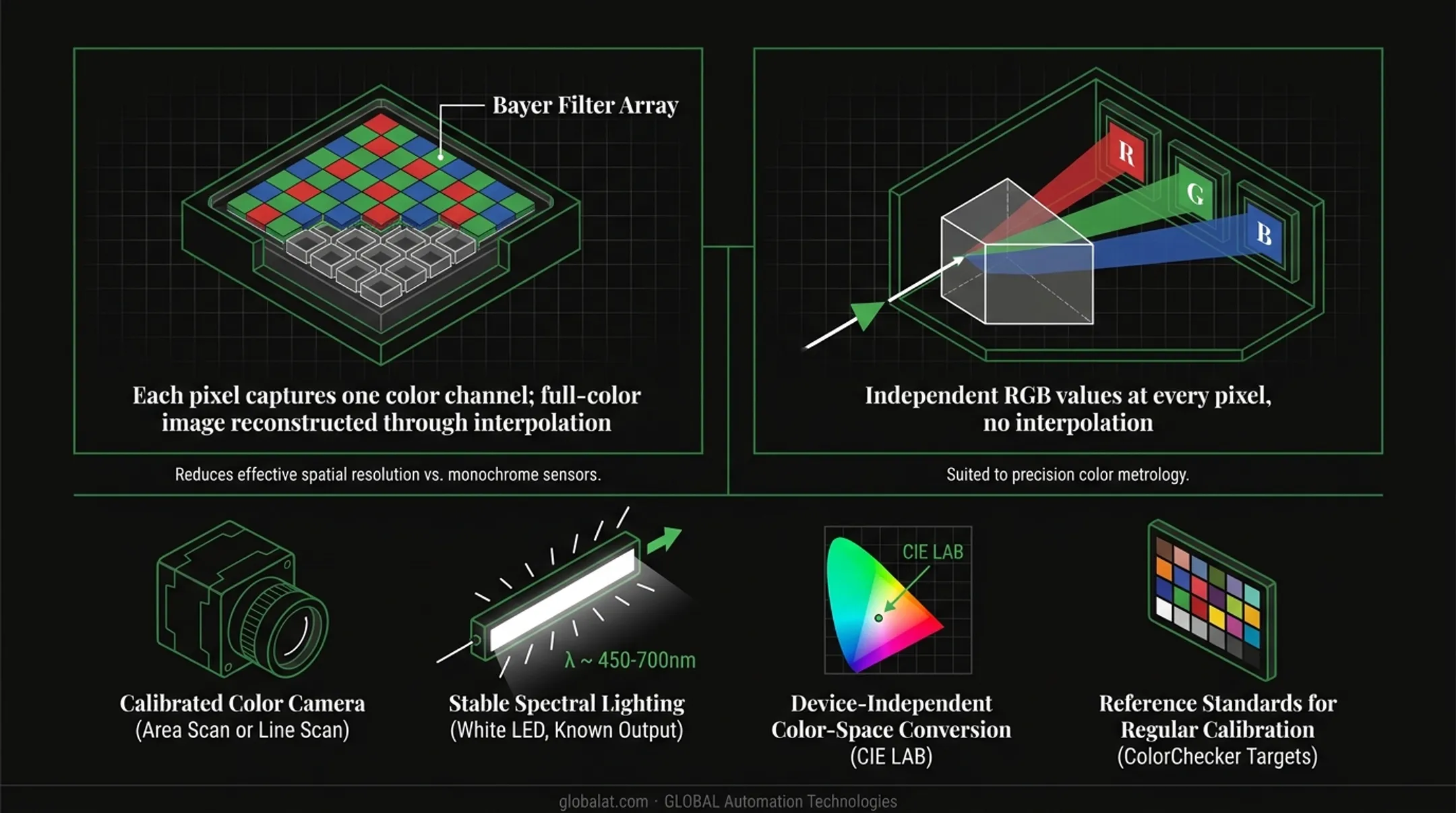

Core components required:
- Calibrated color camera (area scan or line scan)
- Stable spectral lighting (typically white LED with known output)
- Device-independent color-space conversion (CIE LAB)
- Reference standards for regular calibration (such as ColorChecker targets)
CIELAB and Delta-E Measurement
Raw RGB values depend on the camera, lens, and lighting used. To achieve quantitative, device-independent color measurement, systems convert RGB data to CIE LAB color space. ISO/CIE 11664-4 standardizes L*a*b* coordinates, where L* represents lightness, a* represents red-green axis position, and b* represents yellow-blue axis position.
Delta-E (ΔE) quantifies the perceptual difference between two colors as a single number. The CIEDE2000 formula, standardized in ISO/CIE 11664-6, calculates ΔE from L*a*b* values and correlates closely to human-perceived color difference. Lower Delta-E indicates closer color match; values below 1.0 are typically below the threshold of human perception under controlled viewing conditions.
The CMOS Transition
Today’s color inspection systems run almost exclusively on CMOS sensors, which have largely replaced CCD designs in industrial cameras. In 2015, Sony announced it would cease CCD production. Modern CMOS sensors now deliver higher resolution (up to 24.6 megapixels in current industrial camera families), faster frame rates (up to 688 fps in area-scan models), and lower power consumption than earlier CCD designs.
When Color Inspection Is Necessary
Decision Framework
Use color inspection when the defect you need to detect is defined by color difference: hue, shade, or tone variation that indicates a wrong part, wrong material, or quality deviation. Use grayscale when the defect is defined by geometry, presence/absence, edge contrast, or dimensional features.
Monochrome cameras under colored illumination can sometimes solve nominally "color" tasks. A red LED makes a red object appear bright and a blue object appear dark in a grayscale image, converting a color-contrast problem into an intensity-contrast problem.
That approach can deliver sharper images by eliminating lens chromatic effects, and it costs less than a full-color system.

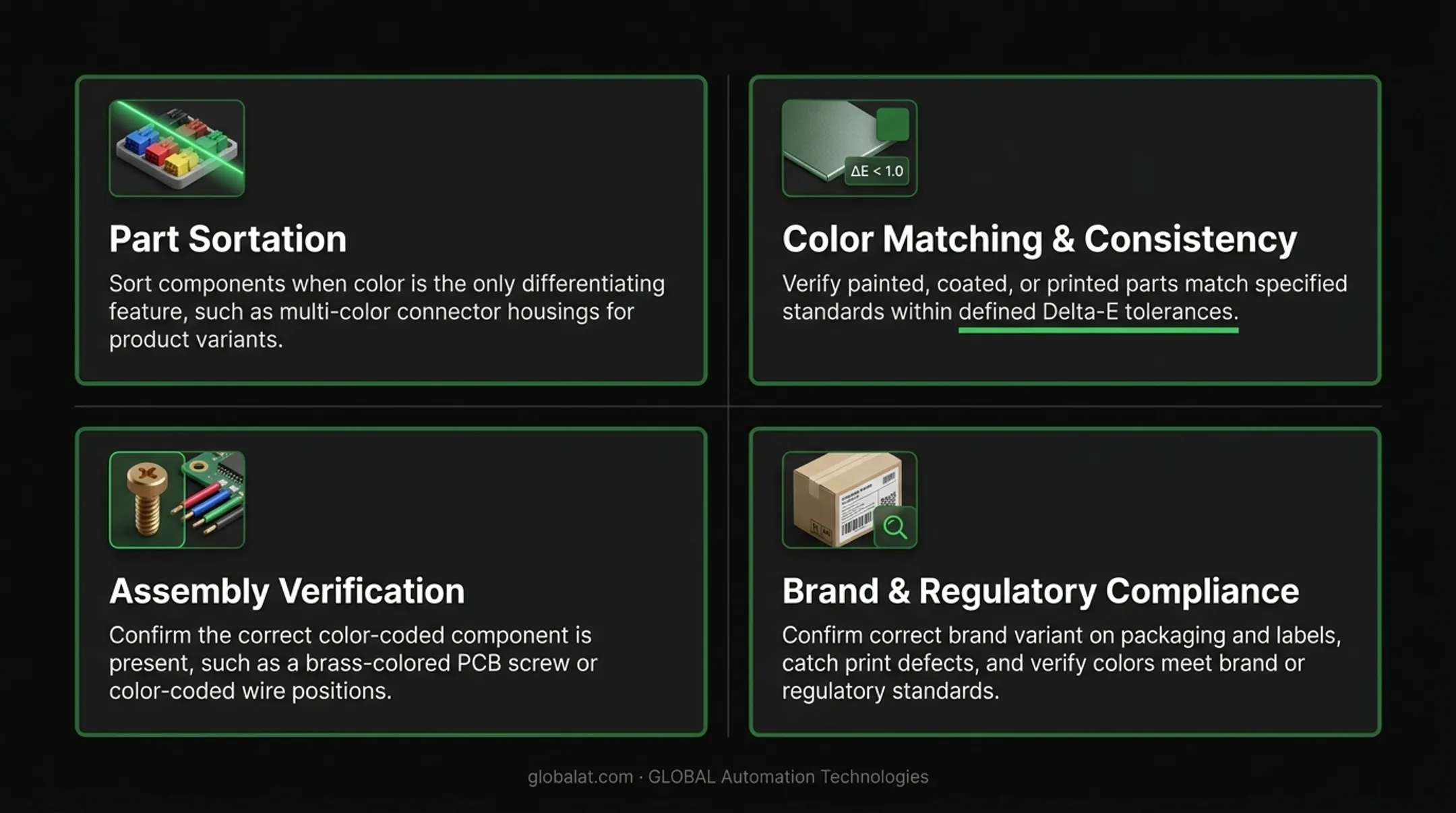

Primary Use Cases
- Part sortation: Sort components when color is the only differentiating feature, such as multi-color connector housings for product variants
- Color matching and consistency: Verify painted, coated, or printed parts match specified standards within defined Delta-E tolerances
- Assembly verification: Confirm the correct color-coded component is present (for example, a brass-colored PCB screw or color-coded wire positions)
- Brand and regulatory compliance: Confirm correct brand variant on packaging and labels, catch print defects, and verify colors meet brand or regulatory standards
When Grayscale Remains the Better Choice
Color inspection adds processing overhead and needs tighter lighting control. Grayscale remains the better choice for:
- Dimensional measurement and feature detection based on edge contrast
- High-speed applications where color-processing overhead would impact throughput
- Applications where lighting cannot be adequately controlled or standardized
- Presence/absence checks that rely on geometry, not hue
Key Applications in Manufacturing
Color inspection shows up wherever shade, hue, or coded color carries quality, brand, or safety meaning. The applications below span automotive, electronics, packaging, and heavy industry.
Automotive Production
Paint and trim color verification: Body panels, bumpers, and interior trim must match specified color within Delta-E tolerances. Premium vehicles often require Delta-E < 1.0 on Class A surfaces.
SAE J1545 covers instrumental color-difference measurement for exterior finishes, textiles, and colored trim. OEMs and supplier agreements set the actual acceptance limits.
Metallic and pearlescent paints change appearance with viewing angle. ASTM E2194 requires three measurement angles to characterize metal-flake materials. Single-camera RGB inspection cannot fully characterize effect finishes—multi-angle measurement or goniospectrophotometry is required.
Wire harness inspection: Color imaging confirms that the correct color-coded wires are present and properly positioned. Grayscale systems cannot reliably tell red, blue, and green insulation apart.
Electronics and Component Assembly

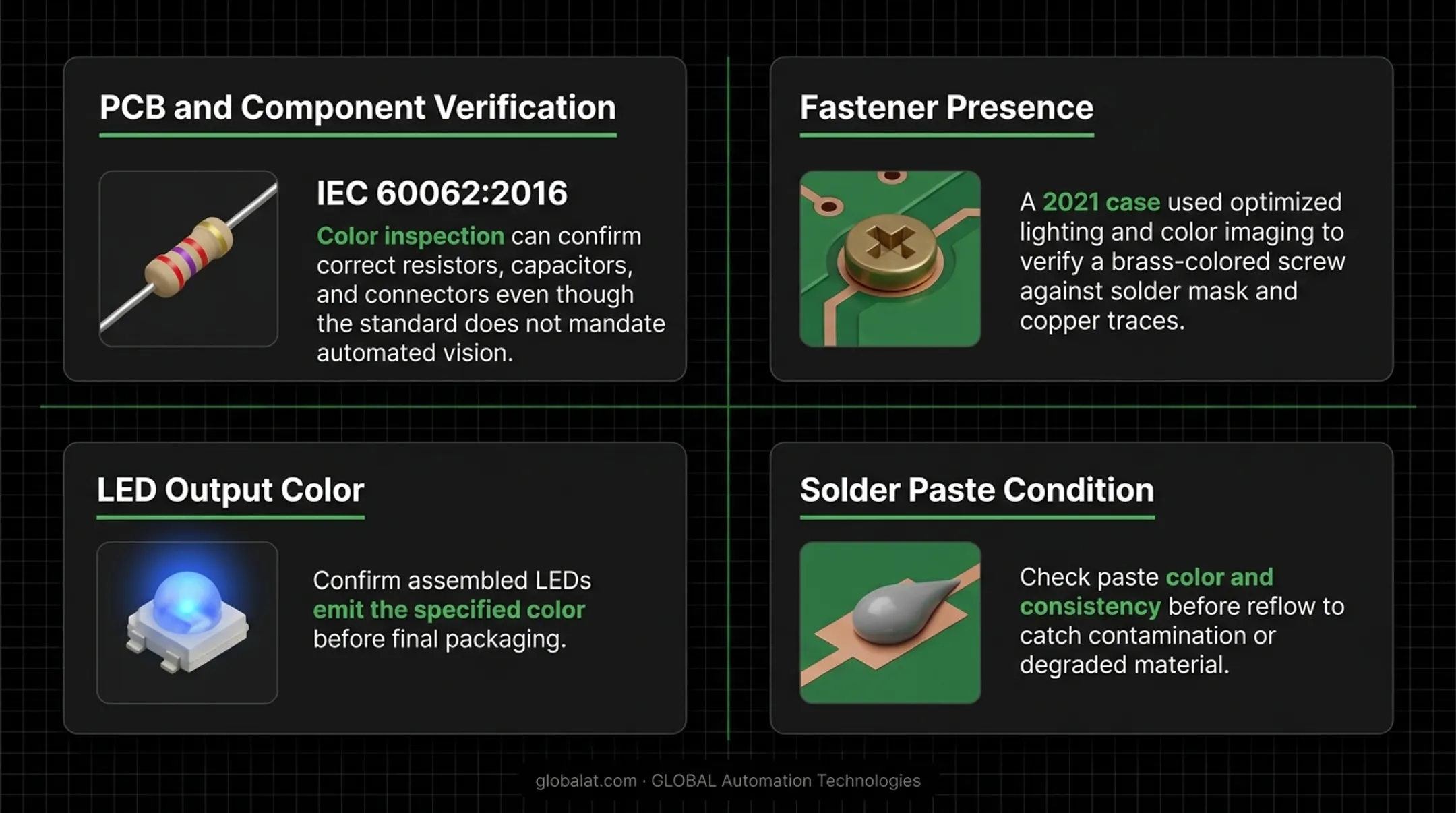

Color vision fills gaps grayscale systems miss on boards and discrete parts:
- PCB and component verification: IEC 60062:2016 defines resistor color-band marking. Color inspection can confirm correct resistors, capacitors, and connectors even though the standard does not mandate automated vision.
- Fastener presence: A 2021 case used optimized lighting and color imaging to verify a brass-colored screw against solder mask and copper traces.
- LED output color: Confirm assembled LEDs emit the specified color before final packaging.
- Solder paste condition: Check paste color and consistency before reflow to catch contamination or degraded material.
Food, Pharmaceutical, and Packaging
Outside discrete assembly, color inspection also runs at line speed on consumables and branded packs.
- High-speed food sorting: Full-color optical sorters classify produce by ripeness and quality at throughputs up to 40 tons per hour. Multi-channel analysis picks up subtle shade shifts from bruising or defects.
- Pharmaceutical packaging: The FDA urges caution with color coding because perception and lighting vary, and generally advises against relying on color alone to prevent medication errors. Color inspection still works as a supplemental check that the correct variant was packed and that label print is clean.
- Label verification: Lines often exceed 200 units per minute. Color cameras confirm brand variant, catch missing or misaligned print, and check label colors against brand standards. Some platforms claim rates up to 5,000 parts per minute; real throughput depends on task, resolution, and processing load.
Heavy Equipment and Industrial Products
On construction and mining equipment, color often signals hazard or function—not just finish quality.
Safety marking verification: OSHA 29 CFR 1910.144 assigns red to fire-protection equipment and emergency-stop bars. OSHA does not require automated vision, but color inspection can confirm that hydraulic lines, electrical wires, and hazard labels show the correct safety colors.
When hydraulic line IDs or wire color codes carry functional meaning, automated verification cuts misassembly risk and supports internal and regulatory compliance.
Critical Implementation Factors
Lighting: The Number One Challenge
Color appearance depends entirely on the spectral characteristics of the illumination. Inconsistent lighting changes how color is represented, and ambient light contamination shifts readings and drives false rejects.
Lighting solution requirements:
- White LEDs with known, stable spectral output
- Regulated LED drivers to prevent intensity drift over time and temperature
- Enclosed inspection zones to block ambient light
- High-intensity strobed lighting with short exposures when full enclosures are impractical
Diffuse lighting reduces reflections and evens illumination across the part surface. Shiny or metallic surfaces can create over- or under-saturated regions under front lighting, so dome or cross-polarized lighting may be necessary.
Surface Finish Complications

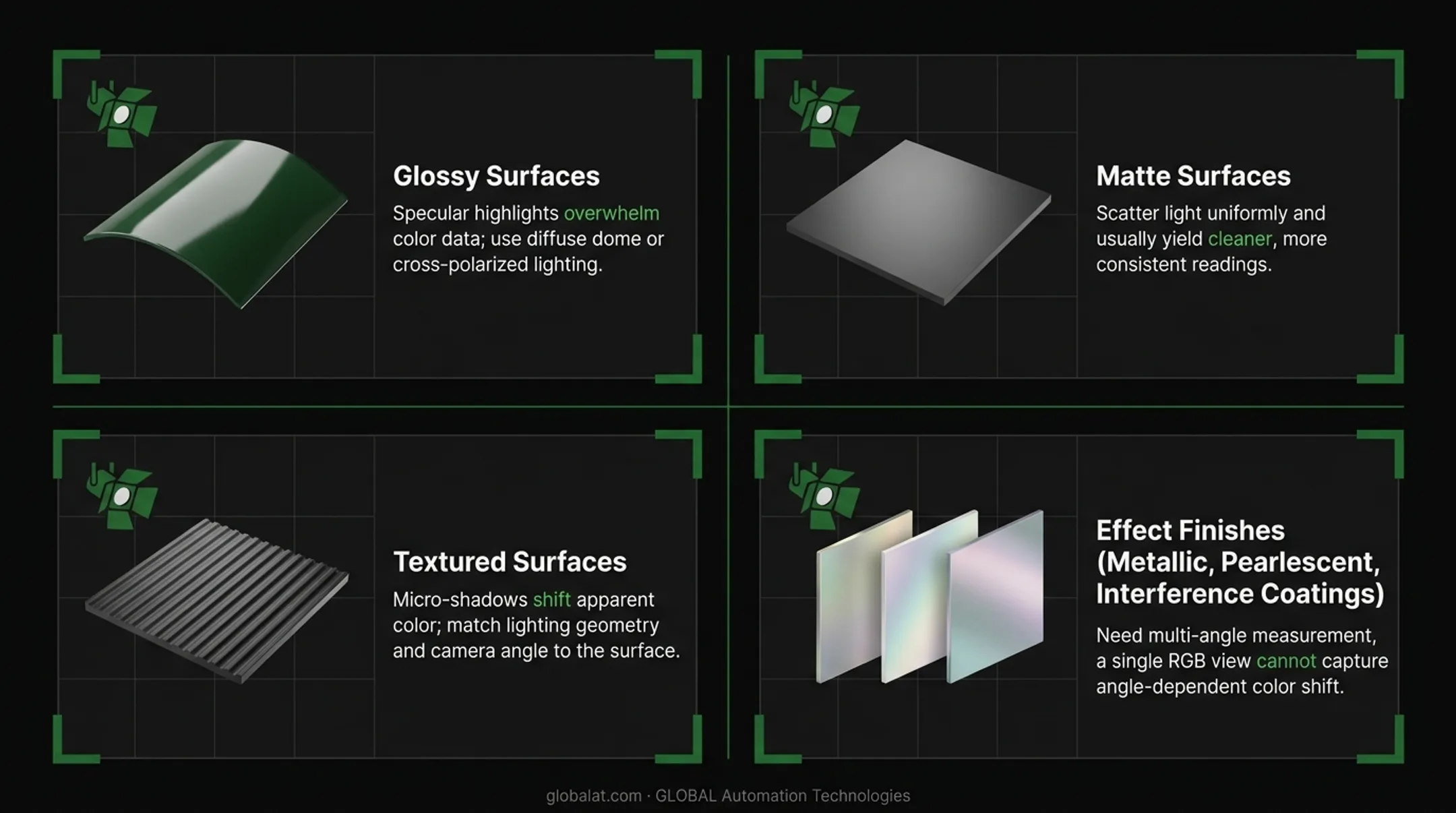

Surface type drives both lighting choice and measurement method:
- Glossy surfaces: Specular highlights overwhelm color data; use diffuse dome or cross-polarized lighting
- Matte surfaces: Scatter light uniformly and usually yield cleaner, more consistent readings
- Textured surfaces: Micro-shadows shift apparent color; match lighting geometry and camera angle to the surface
- Effect finishes (metallic, pearlescent, interference coatings): Need multi-angle measurement—a single RGB view cannot capture angle-dependent color shift
Calibration Requirements
Calibration converts raw camera RGB values into device-independent CIE LAB color space so you can measure color quantitatively. Run it on the full camera-lens-lighting setup, not the camera alone:
- Capture a standardized chart (such as an X-Rite ColorChecker) under actual application lighting
- Compare each patch to its known reference values
- Adjust white balance, color matrix, and gamma to minimize Delta-E error
Recalibrate against certified color reference standards at the start of each shift to hold measurement accuracy.
Resolution and Processing Tradeoffs
Bayer filters cut effective spatial resolution versus equivalent monochrome sensors because each pixel captures only one color channel. Color processing also costs more compute than grayscale.
Typical industrial hardware ceilings:
- Area-scan: 5 to 12 MP at 30 to 100 fps
- Line-scan: Up to 15,000 pixels per line and 250 kHz line rates for continuous web inspection
Those figures are not guaranteed line speed. Real throughput still depends on exposure time, interface bandwidth, image-processing load, and reject-mechanism response time.
Integrating Color Inspection Into Production Systems
Color inspection typically integrates into assembly lines, packaging lines, or final inspection stations. Implementation requires coordination with line-control systems for part tracking, inspection timing, and reject handling.

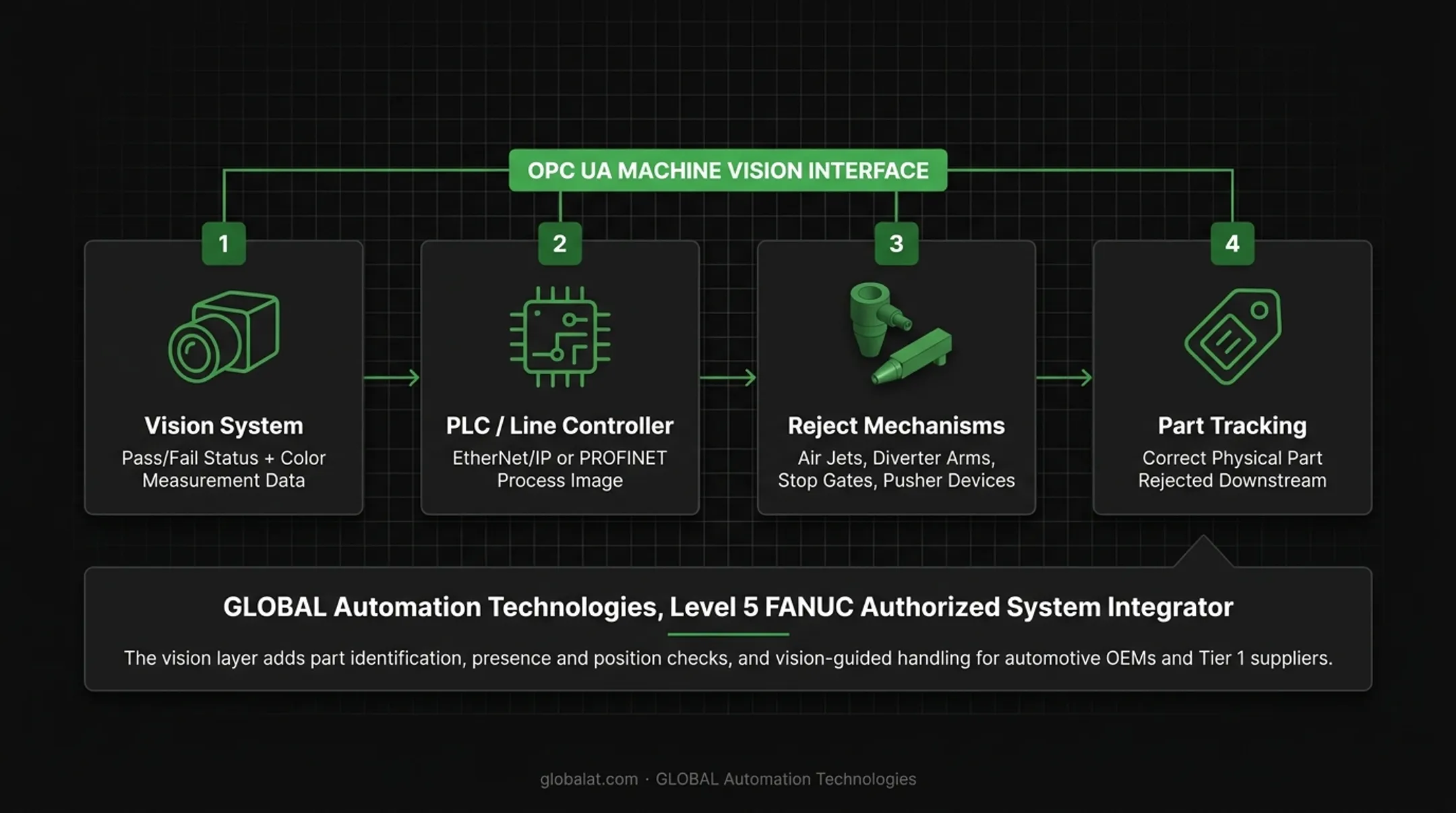

Typical integration architecture:
- Vision system communicates pass/fail status plus color measurement data to PLC or line controller
- Industrial protocols such as EtherNet/IP or PROFINET map vision inputs and outputs into the PLC process image
- Reject mechanisms (air jets, diverter arms, stop gates, or pusher devices) activate based on inspection results
- Part tracking ensures that the correct physical part is rejected when an inspection failure is detected upstream
Beyond hardwired I/O, OPC UA Machine Vision gives vision systems a standard interface to production-control and IT layers. Color measurement data can then move consistently across vendors and platforms without custom middleware for every cell.
GLOBAL Automation Technologies, which holds Level 5 status in FANUC’s Authorized System Integrator program, builds that stack into robotic assembly cells and automated inspection stations, including real-time color inspection. The same vision layer often adds part identification, presence and position checks, and vision-guided handling for automotive OEMs and Tier 1 suppliers.
Frequently Asked Questions
What is color scanning?
Color scanning (also called color inspection or color vision) uses calibrated cameras and controlled lighting to measure color values and compare them against specifications or reference samples, detecting color variations that indicate defects, wrong parts, or quality issues.
How much more expensive is color inspection compared to grayscale?
Color camera hardware now costs approximately the same as equivalent grayscale cameras. Total system cost depends on lighting requirements and calibration needs. Specific pricing varies by resolution, frame rate, interface, and vendor.
What lighting is required for accurate color inspection?
Color inspection requires white LED lighting with stable, known spectral output, regulated power supplies to prevent drift, and enclosed inspection zones to block ambient light contamination. Diffuse or cross-polarized lighting is often necessary for glossy or reflective surfaces.
Can color inspection work on glossy or reflective surfaces?
Glossy surfaces require careful lighting design, typically diffuse dome or cross-polarized lighting, to eliminate specular highlights. Highly reflective surfaces may require specialized lighting geometries or alternative inspection methods. Effect finishes such as metallic paints require multi-angle measurement.
What color accuracy can industrial color inspection achieve?
Properly calibrated systems can measure color to Delta-E values below 1.0, which is below the threshold of human perception under controlled conditions. Accuracy depends on lighting stability, calibration frequency, surface characteristics, and the specific camera and measurement method used.
Is color inspection fast enough for high-speed production lines?
Modern color cameras run at 30 to 100+ frames per second for area-scan models, and line-scan systems exceed 40,000 lines per second. Processing overhead is higher than grayscale, but modern sensors handle most manufacturing speeds. Validate exposure, bandwidth, and reject timing on your actual line before locking a speed target.
