This article explains what PLC programming is, how it works, the five standardized programming languages, real-world applications, and the skills manufacturers need to implement and maintain these systems. Whether you're evaluating automation investments or exploring career opportunities, understanding PLC programming is essential for anyone working in manufacturing, systems integration, or industrial engineering.
Key Takeaways
- Translates control logic into real-time instructions that run industrial machinery without constant operator input
- Five IEC 61131-3 languages cover different needs, from relay-style logic to advanced control algorithms
- Coordinates robots, conveyors, safety systems, and production equipment on the plant floor
- Connects with SCADA, IoT platforms, and AI tools for plant-wide monitoring and predictive maintenance
- Builds career paths in automation engineering, systems integration, and technical staffing
What Is PLC Programming?
PLC programming is the process of creating coded instructions that tell a Programmable Logic Controller how to monitor inputs, execute control logic, and command outputs. A PLC is a ruggedized industrial computer purpose-built to control manufacturing processes and machinery in environments that would destroy standard computers—extreme temperatures, vibration, dust, and electrical noise.
Unlike general-purpose computers, PLCs are designed for real-time control and deterministic operation, meaning they execute programs in predictable, repeating cycles measured in milliseconds. This speed and reliability make them the standard control platform for factories worldwide.
Historical Context: PLC Programming Evolution
Before PLCs, factories relied on relay-based control panels with hardwired logic. Every production change required electricians to physically rewire relay cabinets, a process that took days or weeks and was prone to errors.
In 1968, General Motors challenged Bedford Associates to design an electronic replacement for these inflexible relay systems. The result was the Modicon 084, the first PLC.
PLCs replaced physical rewiring with software changes. Engineers could modify control logic in hours instead of days, which meant faster product changeovers, easier troubleshooting, and reusable programs across similar machines.
The Role of PLC Programming in Modern Automation
PLC programming bridges human intent and machine action. Engineers write logic that translates production requirements such as "weld this seam when the part is present and positioned correctly" into precise machine behaviors.
Programs range from simple on/off control of a single motor to complex sequences coordinating dozens of machines, robots, conveyors, and quality-inspection systems.
In a robotic welding cell, for example, the robot controller handles the weld path. The PLC coordinates everything around it:
- Part flow and fixture clamping
- Robot sequencing and weld initiation
- Quality verification
- Safety interlocks
The PLC acts as the conductor: every device runs in the right order, at the right time.
How PLC Programming Works

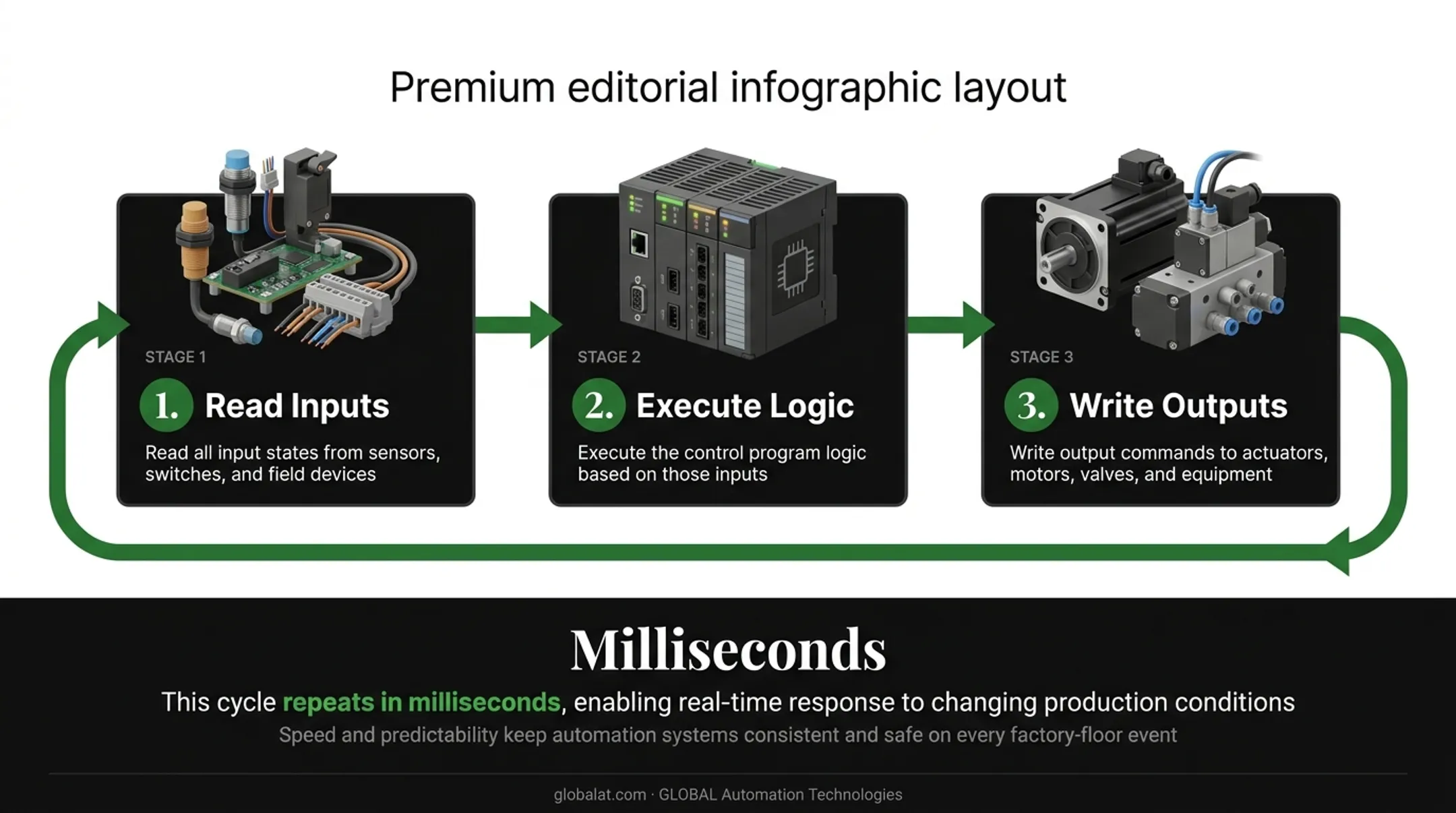

The PLC Scan Cycle Fundamentals
PLCs operate in a continuous three-phase scan cycle:
- Read all input states from sensors, switches, and field devices
- Execute the control program logic based on those inputs
- Write output commands to actuators, motors, valves, and equipment
This cycle repeats in milliseconds, enabling real-time response to changing production conditions. Speed and predictability keep automation systems consistent and safe on every factory-floor event.

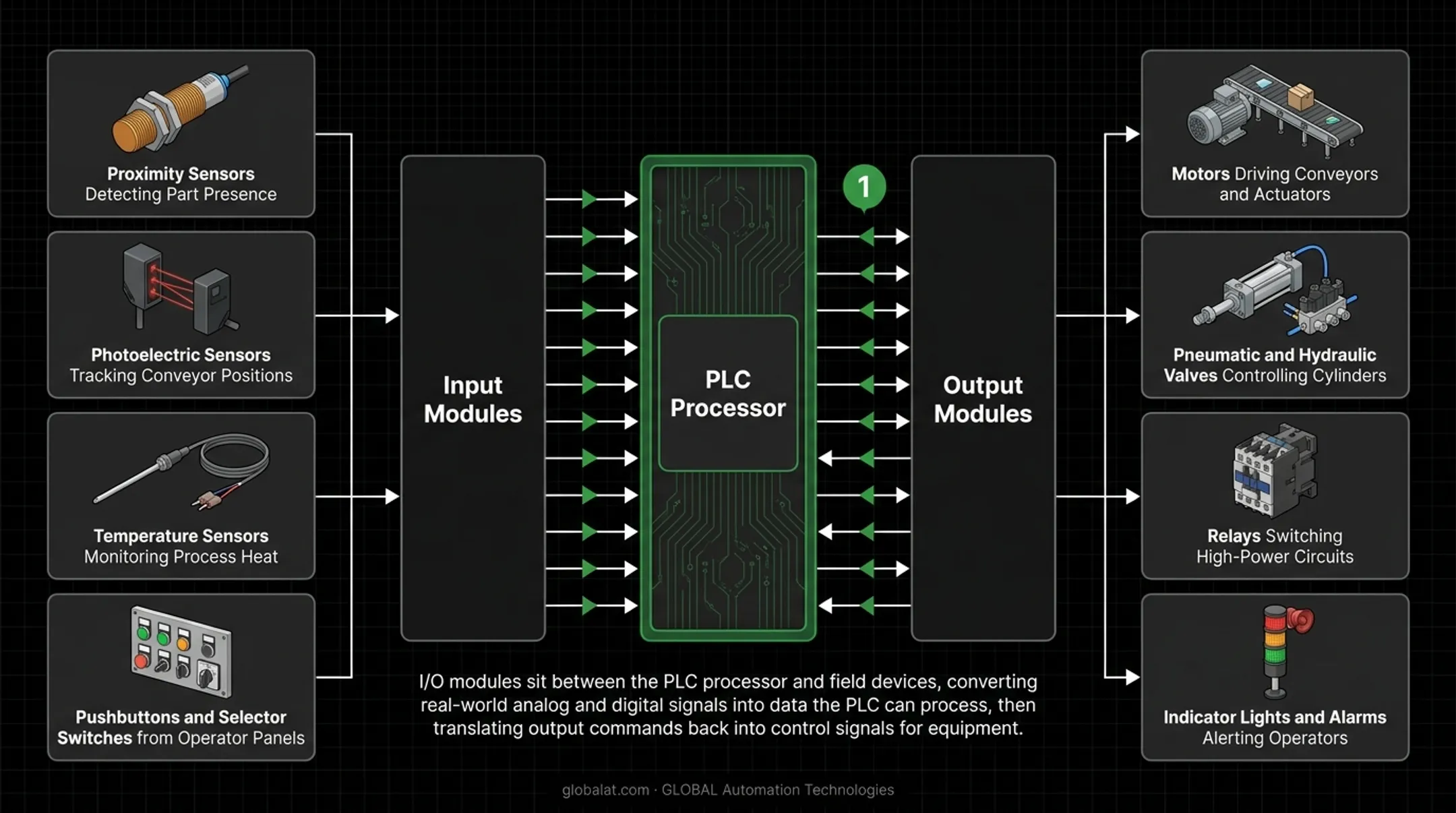

Input/Output (I/O) Architecture
Input devices send signals to the PLC about process conditions:
- Proximity sensors detecting part presence
- Photoelectric sensors tracking conveyor positions
- Temperature sensors monitoring process heat
- Pushbuttons and selector switches from operator panels
Output devices execute commands based on program logic:
- Motors driving conveyors and actuators
- Pneumatic and hydraulic valves controlling cylinders
- Relays switching high-power circuits
- Indicator lights and alarms alerting operators
I/O modules sit between the PLC processor and field devices. They convert real-world analog and digital signals into data the PLC can process, then translate output commands back into control signals for equipment.
Program Logic Execution
PLC programs consist of "rungs" or "networks" of logic that evaluate conditions and determine actions. A simple example:
IF (part sensor detects part) AND (gripper is open) THEN (close gripper and activate conveyor)
Beyond basic conditions, programs commonly add:
- Timers that delay or sequence actions
- Counters that track production quantities
- Math functions for process calculations
- Data handling for quality records
- Communication protocols for talking to other systems
Integration with HMI and SCADA Systems
PLCs rarely operate in isolation. Human-Machine Interfaces (HMIs) provide operators with visual dashboards, touchscreen controls, and alarm displays for monitoring and adjusting production. Supervisory Control and Data Acquisition (SCADA) systems collect data from multiple PLCs for plant-wide monitoring, reporting, and optimization.
Modern PLCs connect to IIoT platforms, cloud analytics, and AI tools that flag potential equipment failures before they cause downtime, helping manufacturers shift from reactive maintenance to predictive strategies.
PLC Programming in Robotic Automation

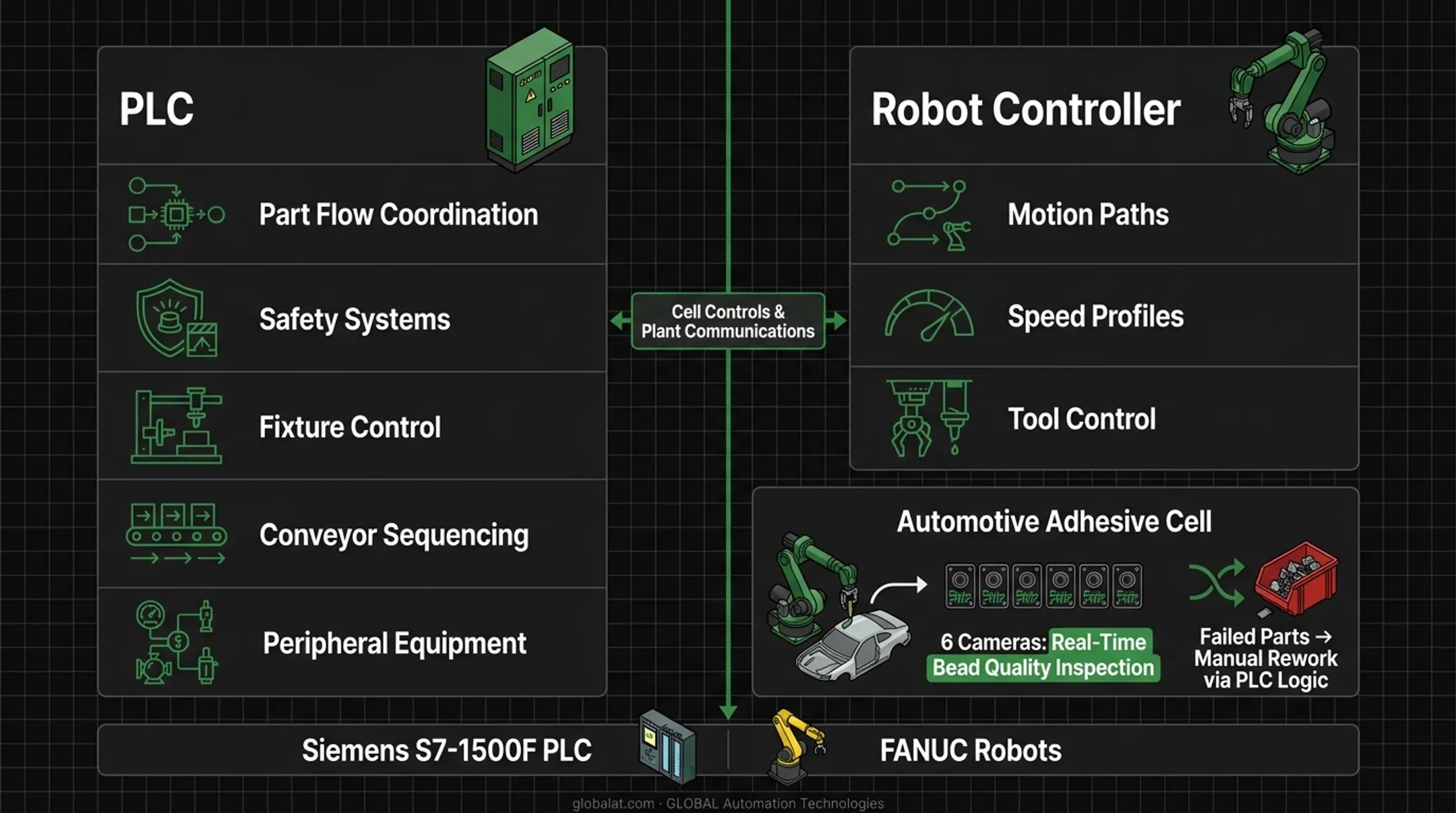

In robotic cells, the PLC and robot controller work as partners. The PLC coordinates part flow, safety systems, fixture control, conveyor sequencing, and peripheral equipment. The robot controller handles motion paths, speed profiles, and tool control.
In one automotive adhesive cell with ABB robots and a Siemens S7-1500F PLC, the PLC managed cell controls and plant communications while the robots applied structural adhesive. Six cameras checked bead quality in real time, and failed parts went to manual rework through PLC logic.
GLOBAL Automation Technologies, a Level 5 FANUC Authorized System Integrator, uses the same split across automotive, heavy industry, and general manufacturing—coordinating PLCs with FANUC robots for welding, painting, dispensing, material handling, and machine tending cells.
The 5 Standard PLC Programming Languages

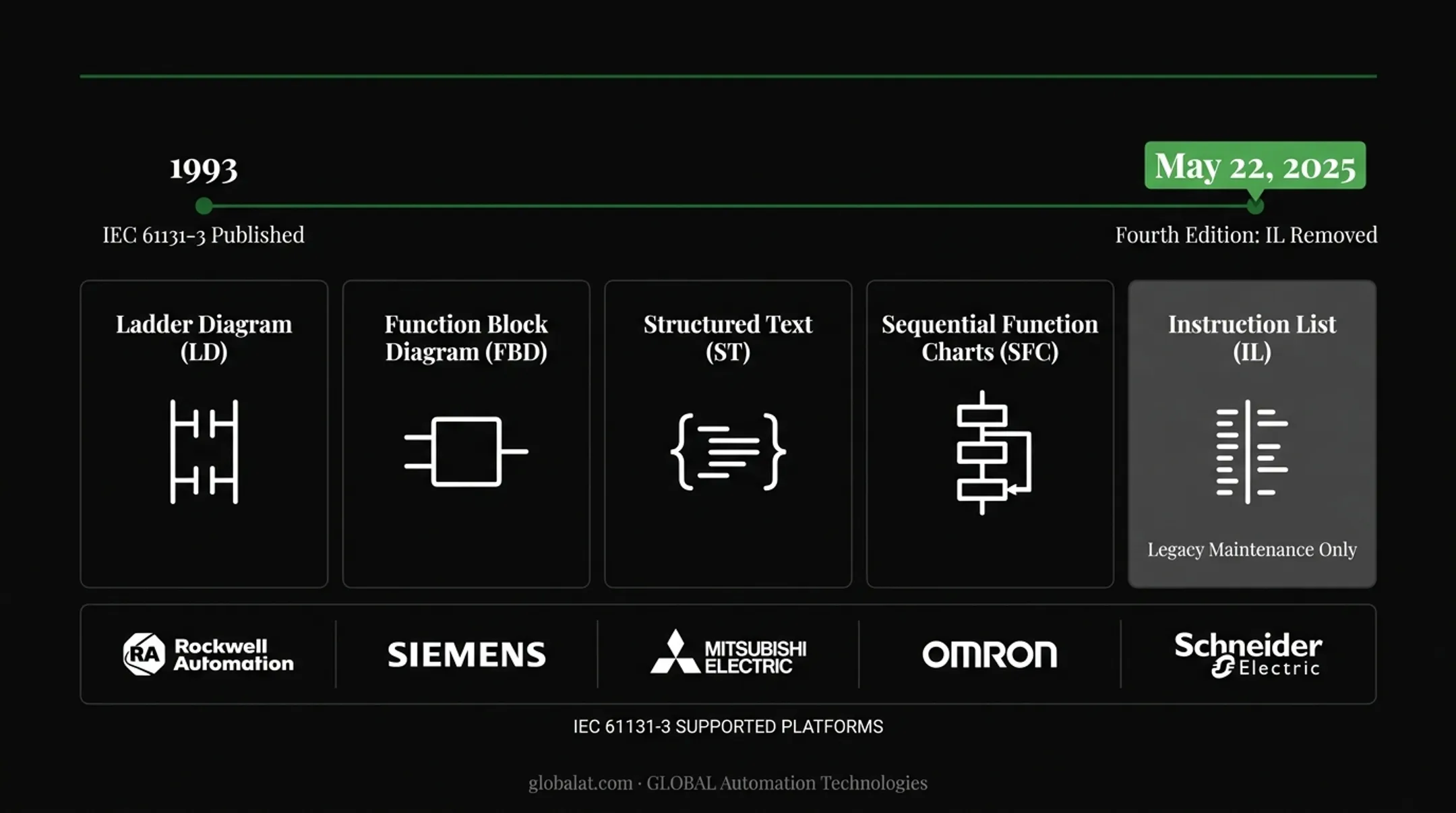

IEC 61131-3: The Universal Standard
In 1993, the International Electrotechnical Commission published IEC 61131-3, defining five standardized programming languages for PLCs. The standard gave engineers a shared set of concepts they could carry across platforms, even when full code portability between vendors stayed limited.
Most major PLC manufacturers support IEC 61131-3 languages, including Rockwell, Siemens, Mitsubishi, Omron, and Schneider.
Important update: The fourth edition, published May 22, 2025, removed Instruction List (IL) from the standard. IL now applies only to legacy system maintenance.
Ladder Logic (LD)
Ladder Logic uses a visual structure that resembles electrical relay diagrams, with horizontal "rungs" containing contacts (inputs) and coils (outputs). Electricians and technicians with relay-logic experience usually recognize the format right away.
Best fit for:
- Discrete control tasks like conveyor systems
- Packaging machines with simple start/stop sequences
- Material handling with basic interlocks
- Applications where Boolean (on/off) logic dominates
It remains the most widely used PLC language because troubleshooting is visual: technicians can see which inputs are active and trace logic flow rung by rung.
Function Block Diagram (FBD)
Function Block Diagram (FBD) shows control functions as interconnected blocks, with data flowing left to right much like an electronic circuit diagram. Each block handles a specific job (timers, counters, math) and passes results downstream.
Best fit for:
- Process control in chemical plants, water treatment, and oil/gas
- Applications that need complex calculations
- Systems where data-flow visibility matters
- Reusable function libraries for standardized control routines
FBD excels when programs involve continuous process variables (temperatures, pressures, flow rates) rather than simple on/off states.
Structured Text (ST)
Structured Text (ST) is a high-level, text-based language in the same family as Pascal or C. It uses IF-THEN statements, FOR loops, variable assignments, and mathematical expressions. Omron notes that some operations take one ST line versus many ladder rungs.
Where it shines:
- Complex mathematical calculations
- Motion control algorithms
- Data manipulation and string handling
- Nested logic and sophisticated decision trees
ST appeals to engineers with software programming backgrounds but requires more training for electricians moving over from relay logic. It's gaining ground as automation systems take on more data processing and advanced algorithms.
Sequential Function Chart (SFC)
Sequential Function Chart (SFC) organizes programs into steps and transitions, closer to a state machine than a single continuous routine. Each step is a stable production state. Transitions define the conditions that advance the process.
Best fit for:
- Batch processing with defined start-to-finish sequences
- Automated assembly lines moving through stations
- Material handling systems with clear operational stages
- Operations where overall process flow needs to be visible during troubleshooting
SFC makes it easy to see which step is running and where a stalled process stopped, which speeds up diagnostics.
Instruction List (IL)
Instruction List (IL) used a text-based, low-level syntax similar to assembly code, with compact line-by-line instructions. Control Design reported in July 2025 that IL was removed from IEC 61131-3 Edition 4. It now matters mainly for legacy maintenance.
As modern PLCs gained memory and processing power, higher-level languages like ST became more practical and IL usage dropped. Engineers supporting older systems may still see IL programs, but new projects rarely start there.
Benefits of PLC Programming in Industrial Automation
Compared with hard-wired relay panels, PLC programming improves how plants change over, stay online, and control lifetime cost.
- Modify control logic in hours instead of the days or weeks needed to rewire relays, so product changeovers, model-year updates, and capacity adjustments cause less downtime
- Run reliably in harsh environments with no moving parts to wear out, plus self-diagnostics that flag issues before failures — Siemens publishes product-specific MTBF values for its controllers (figures vary by model and conditions)
- Lower long-term cost through reduced maintenance, faster troubleshooting, easier modifications, and program reuse across similar machines; Schneider notes PLCs cut the time, effort, and cost of process adjustments versus hard-wired relays
PLC Programming Applications in Modern Manufacturing
Discrete manufacturing applications include robotic welding cells, automated assembly lines, machine tending systems, packaging equipment, and material handling. PLCs coordinate multiple machines and robots for synchronized production. Common control tasks include:
- Part presence detection and fixture clamping
- Robot sequencing and quality inspection
- Safety interlocks across the cell
Process control applications span continuous manufacturing like chemical mixing, food and beverage production, where PLCs hold precise temperatures, pressures, flow rates, and batch sequences. These systems often use Function Block Diagram and Structured Text for complex calculations and process algorithms.
Those same coordination demands show up clearly on the plant floor. In the automotive adhesive application cell mentioned earlier, a Siemens S7-1500F PLC managed cell controls and plant communications while two ABB robots applied structural adhesive.
The PLC coordinated dual dosing pumps, six cameras for quality verification, safety systems, and rework routing across the full cell.
GLOBAL Automation Technologies designs similar systems for automotive body shops, powertrain, and final assembly, as well as heavy equipment and general manufacturing. These turnkey robotic cells cover controls engineering, PLC integration, robot programming, machine vision, installation, commissioning, and ongoing support.
Skills and Career Paths in PLC Programming

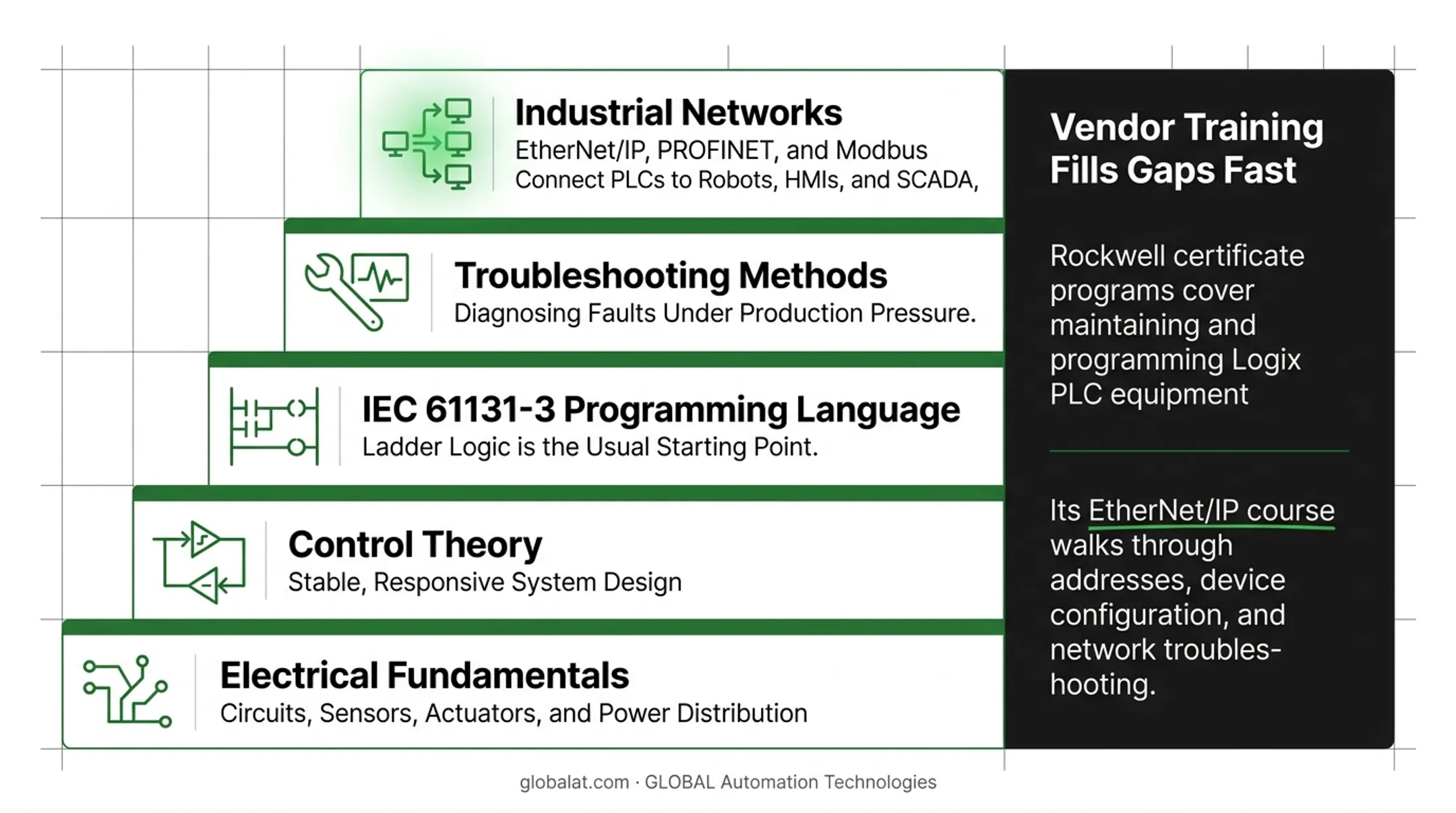

Core Technical Skills Needed
Core skills stack from the plant floor up:
- Electrical fundamentals: circuits, sensors, actuators, and power distribution
- Control theory for stable, responsive system design
- At least one IEC 61131-3 language (Ladder Logic is the usual starting point)
- Troubleshooting methods for diagnosing faults under production pressure
- Industrial networks such as EtherNet/IP, PROFINET, and Modbus so PLCs can talk to robots, HMIs, SCADA, and other equipment
Vendor training fills gaps fast. Rockwell certificate programs cover maintaining and programming Logix PLC equipment, and its EtherNet/IP course walks through addresses, device configuration, and network troubleshooting.
Career Progression
Most careers move through clear stages:
- Entry-level technicians handle basic programming and troubleshooting on existing systems under supervision
- Automation engineers design full control systems, select hardware, write complex programs, and lead commissioning
- Senior roles manage integration projects, lead engineering teams, or specialize in motion control and vision systems
The U.S. Bureau of Labor Statistics reports that electrical and electronics engineers earned a median wage of $111,910 to $127,590 in May 2024, with 7% projected growth from 2024-2034 and about 17,500 annual openings. These figures represent broader engineering roles, not PLC-specific positions, but indicate the career landscape.
Training Duration
Central Georgia Technical College offers a 30-hour, five-week Level 1 course covering basic Ladder Logic. Sinclair offers an 8-10 credit-hour Industrial PLC Programming Technician certificate. These programs provide foundational skills; becoming proficient across multiple languages and complex applications usually takes 1-2 years of combined training and hands-on experience.
Staffing and Consulting Opportunities
GLOBAL Automation Technologies places PLC programmers and automation engineers on contract, contract-to-hire, and direct-hire assignments. Professionals gain project experience across industries and regions, from automotive one month to aerospace the next. Manufacturers get specialized skills for defined projects or peak periods without a long-term headcount commitment.
Frequently Asked Questions
What is PLC in industrial automation?
A PLC is a ruggedized industrial computer that runs control programs to automate manufacturing. It monitors sensor inputs, executes programmed logic, and drives outputs to machinery in real time—even in harsh factory environments.
How are PLCs used in industrial automation?
PLCs read sensor data each scan cycle, run programmed logic, and command actuators such as motors and valves. Uses range from simple conveyor control to multi-robot cells and continuous process systems.
What are the 5 PLC languages?
IEC 61131-3 defined five languages: Ladder Logic (LD), Function Block Diagram (FBD), Structured Text (ST), Sequential Function Chart (SFC), and Instruction List (IL). IL was deprecated in Edition 3 (2013), so four languages plus SFC remain in common use.
Does PLC use C++?
Traditional PLCs use IEC 61131-3 languages, not C++. Some modern PACs and specialized platforms support C/C++ alongside standard PLC languages, but that is uncommon for conventional PLC work.
What industries rely most heavily on PLC programming?
Manufacturing, energy, and food processing are heavy PLC users. Automotive, pharmaceuticals, oil and gas, water treatment, and heavy industry also depend on PLCs for machine and process control.
How long does it take to learn PLC programming?
A beginner Ladder Logic course often runs about 30 hours over five weeks if you have an electrical background. Proficiency across multiple languages and complex applications usually takes 1–2 years of training plus hands-on work.
