A 2024 study from NAM and Deloitte projects the U.S. manufacturing sector could need up to 3.8 million workers through 2033, with 1.9 million of those positions potentially going unfilled. That's the backdrop pushing fabricators, automotive suppliers, and heavy equipment makers toward robotic press brake bending cells.
A robotic press brake cell pairs a CNC press brake with an industrial robot that loads blanks, positions them, and removes finished parts. This article covers how these cells work, why manufacturers are adopting them, where they fit best, what they cost, and how to implement one.
Key Takeaways
- A CNC press brake plus robotic arm automates loading, bending, and part removal end to end
- High-volume repeat parts see the strongest ROI, though modern software now handles high-mix runs too
- ROI comes from labor savings, tighter bend consistency, and safer part handling
- Results hinge on facility readiness, solid programming, and trained operators
How Does a Robotic Press Brake Work?
A robotic press brake pairs a CNC brake with an industrial robot that loads, positions, and unloads parts through each bend. The cell is built around five core components:
- CNC press brake — the machine that forms the bend
- Industrial robot — handles positioning and part transfer
- End-of-arm tooling — grippers that hold the blank
- Safety systems — light curtains, interlocked guards, e-stops
- Part-handling stations — input stacks, staging tables, output pallets

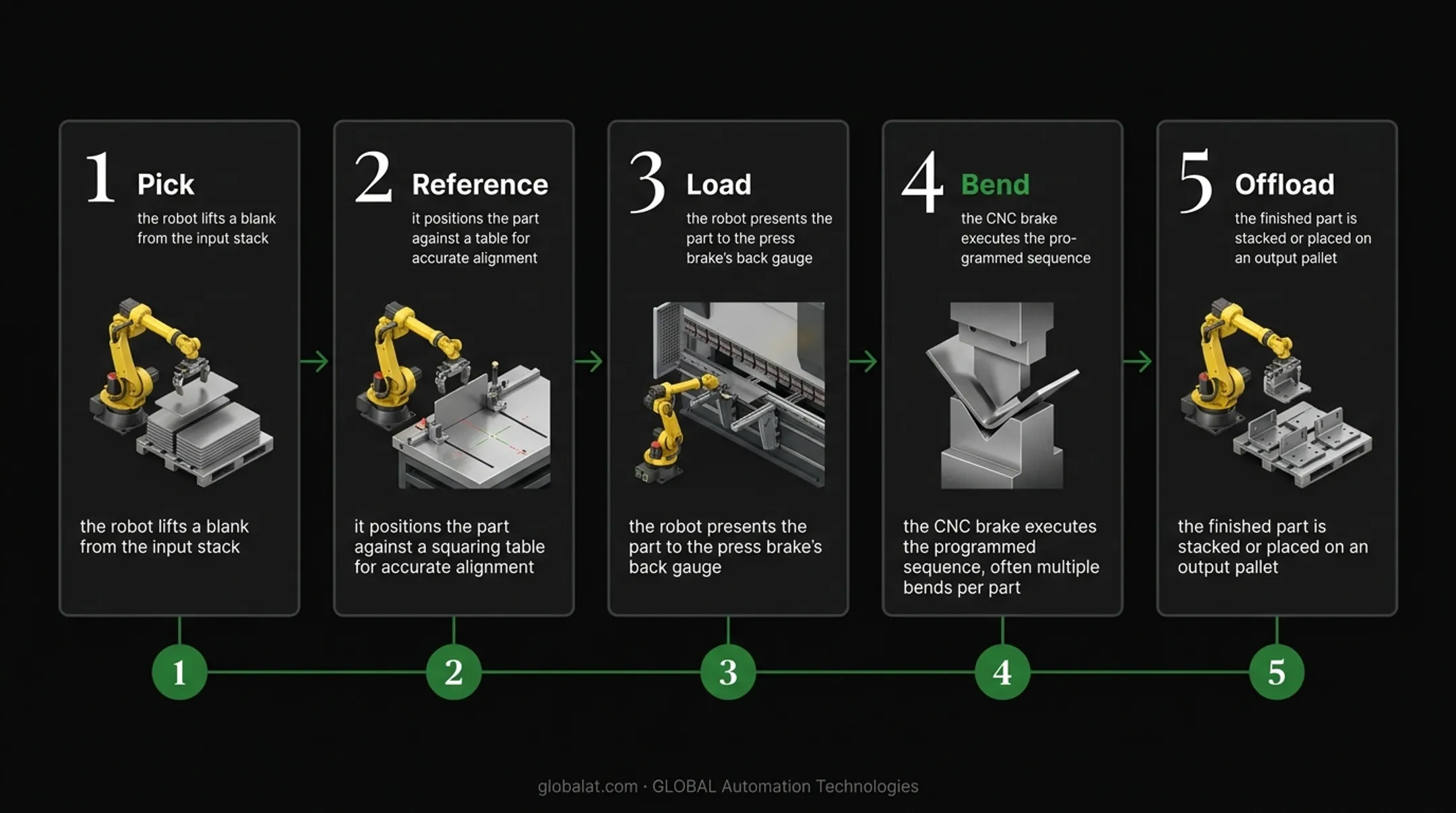

The Bending Cycle, Step by Step
- Pick — the robot lifts a blank from the input stack
- Reference — it positions the part against a squaring table for accurate alignment
- Load — the robot presents the part to the press brake's back gauge
- Bend — the CNC brake executes the programmed sequence, often multiple bends per part
- Offload — the finished part is stacked or placed on an output pallet
Programming Happens Before the Robot Ever Moves
Offline simulation software generates robot paths, calculates gripper positions, and checks for collisions before anything touches the shop floor. AMADA has claimed at least 50% less programming time using its software, while LVD describes a "10-10" workflow: roughly 10 minutes to generate the program and another 10 for setup and first-part validation.
GLOBAL's AI-assisted simulation tools follow this same approach, compressing programming and validation from weeks to days by modeling and testing the robot program offline.
Because those tools calculate gripper positions up front, tooling choice comes early in cell design. Magnetic, vacuum, and mechanical clamp grippers each suit different materials and part geometries—steel and aluminum often need different strategies based on weight, surface finish sensitivity, and part shape.
Why Manufacturers Are Automating Metal Bending
Addressing the Skilled Labor Shortage
Press brake operators require real skill: reading blueprints, calculating bend allowances, dialing in springback by feel. That expertise is scarce, and it's getting scarcer.
Robotic cells reduce dependence on that manual skill pool. Once a part is programmed, the cell can:
- Run additional shifts without adding headcount
- Support unattended "lights-out" production overnight
- Maintain output even during turnover or absences
The Bureau of Labor Statistics projects roughly 87,900 annual openings for metal and plastic machine workers through 2034, mostly to replace retiring workers rather than fill new growth. That gap is structural and long-term.

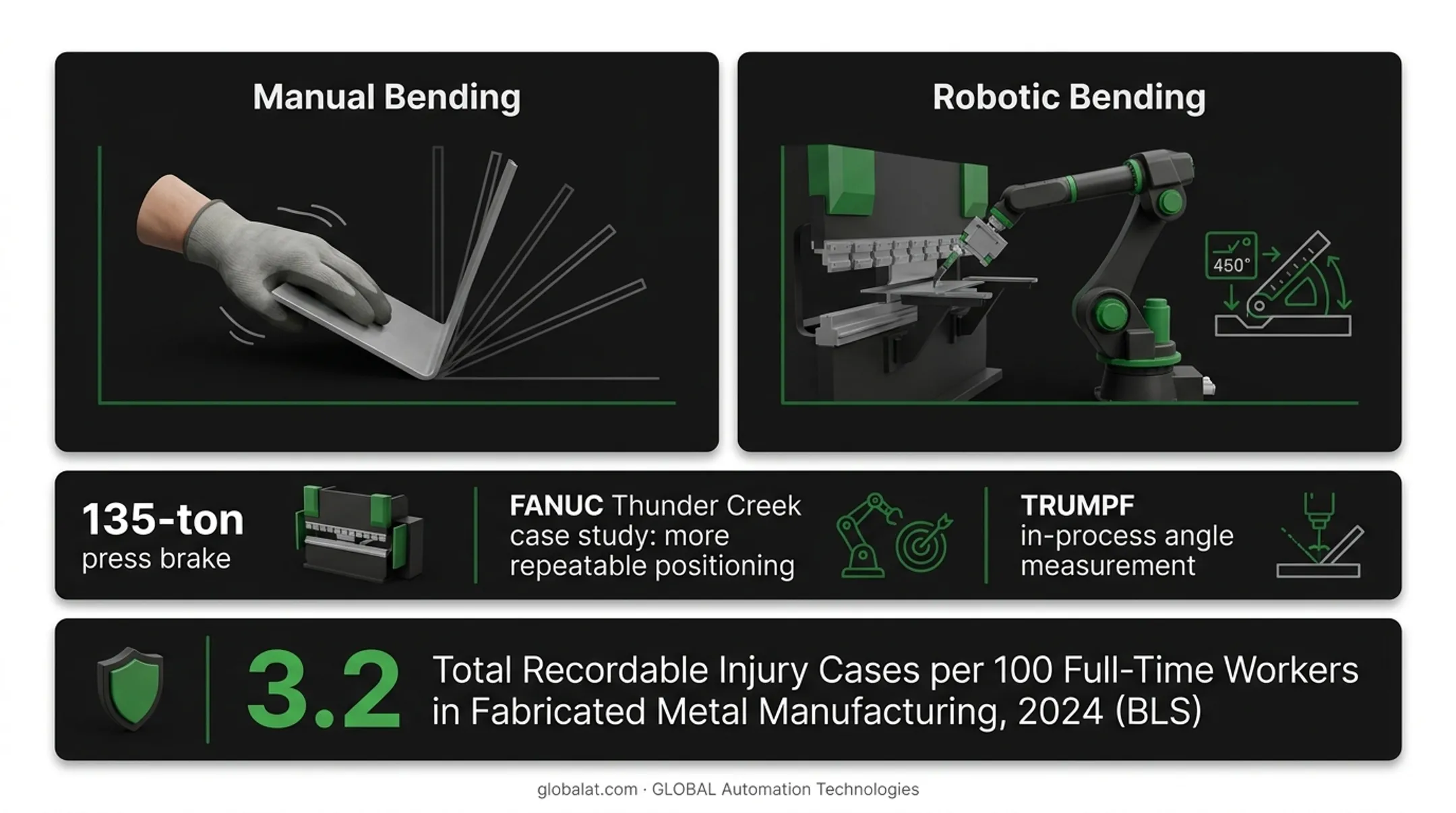

Improving Consistency and Safety
Manual bending introduces variability from fatigue, inconsistent positioning, and human error on repetitive sequences. Robots eliminate that variability by executing the same programmed path every time.
Some OEMs, including TRUMPF, build in-process angle measurement directly into the bending sequence, correcting for springback in real time rather than relying on operator adjustment.
FANUC's Thunder Creek case study reports that a robotic cell pairing a 135-ton press brake with a heavy-payload robot delivered more repeatable positioning. That consistency improved results for downstream robotic welding operations.
Safety and ergonomics gains are equally concrete. Fabricated metal manufacturing recorded 3.2 total recordable injury cases per 100 full-time workers in 2024, according to BLS data. Robotic cells remove operators from repetitive lifting, awkward part positioning, and pinch-point exposure, freeing them for higher-value inspection and setup work instead.

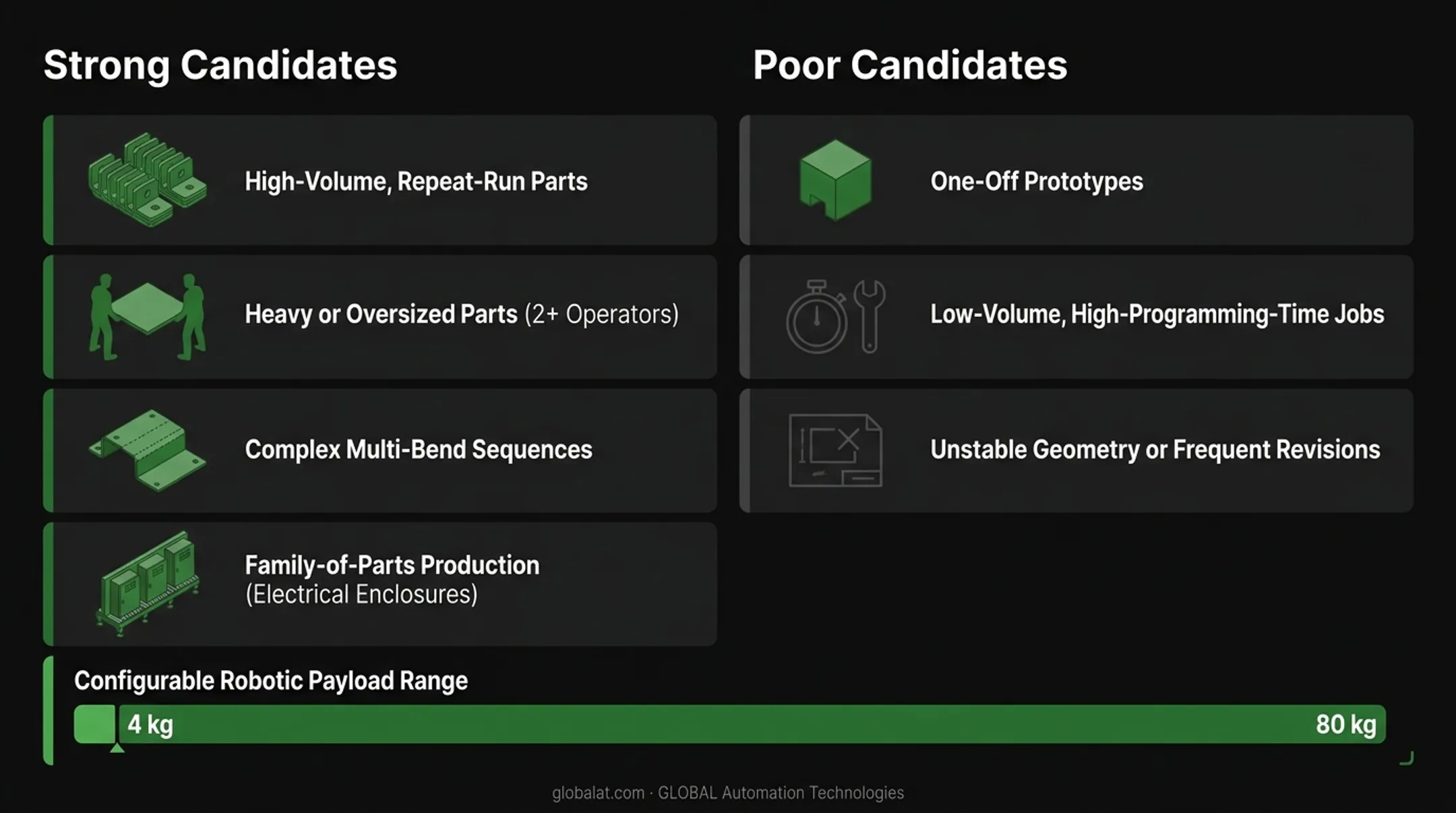

Best Applications for Robotic Press Brake Bending
Not every job belongs in a robotic cell. Here's how to think about fit.
Strong candidates:
- High-volume, repeat-run parts with stable geometry
- Heavy or oversized parts that currently require two or more operators to handle
- Parts with complex, multi-bend sequences prone to sequencing errors
- Family-of-parts production (like electrical enclosures) using automated tool changes
Flexibility has widened that list. Automated tool changers can load complex tooling layouts in minutes. Configurable robotic bending systems also cover a wide payload range, from small brackets under 4 kg up to heavy plate work around 80 kg.
That span makes high-mix, lower-volume production far more viable than it was a decade ago.
Poor candidates:
- One-off prototypes
- Highly custom, very low-volume jobs where programming time exceeds production time
- Parts with unstable geometry or frequent design revisions mid-run
If your shop runs mostly unique, single-piece work, a robotic cell probably isn't your next investment. If you're running recurring families of parts, even in smaller batches, it likely is.
How Much Does a Robotic Press Brake Cost and What's the ROI?
Pricing varies widely based on press brake tonnage, robot payload, tooling complexity, and how many part-handling stations the cell needs. There's no single published number that applies across the board. A cell built for light-gauge brackets looks nothing like one built for heavy structural plate.

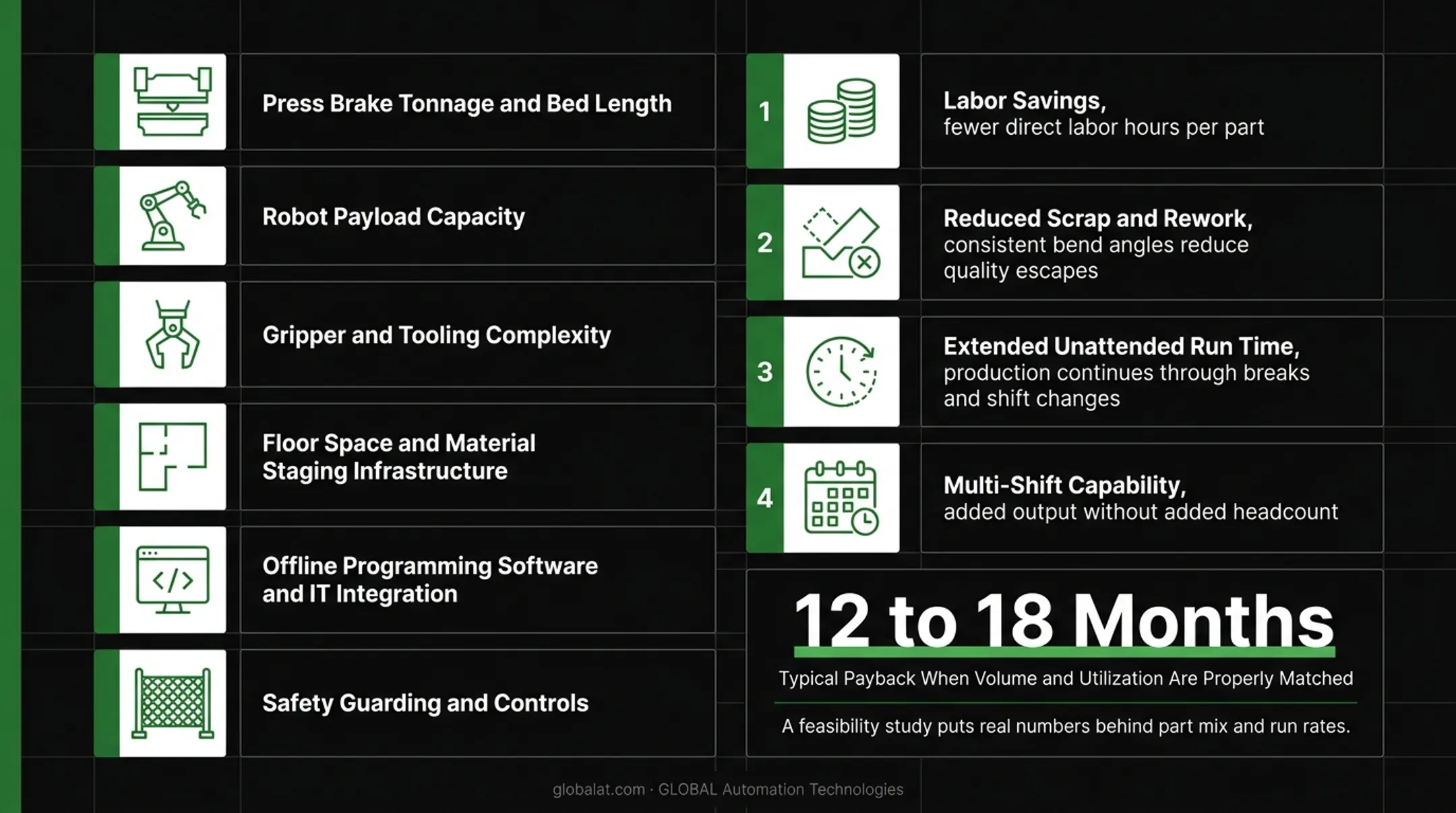

Key cost drivers include:
- Press brake tonnage and bed length
- Robot payload capacity
- Gripper and tooling complexity
- Floor space and material staging infrastructure
- Offline programming software and IT integration
- Safety guarding and controls
ROI typically comes from four places:
- Labor savings — fewer direct labor hours per part
- Reduced scrap and rework — consistent bend angles reduce quality escapes
- Extended unattended run time — production continues through breaks and shift changes
- Multi-shift capability — added output without added headcount
Machine tending cells often pay for themselves within 12 to 18 months when production volume and cell utilization are properly matched.
Your actual payback still depends on part mix and run rates. A feasibility study puts real numbers behind those variables before you commit capital.
Implementing a Robotic Press Brake: Key Steps
Getting from decision to a running cell involves more than just buying equipment.
Confirm Integration Readiness
- Document part specifications, tolerances, and production volumes
- Validate cycle times through 3D simulation before committing to hardware
- Identify which parts justify automation versus which stay manual
Prepare Your Facility
Robotic cells need adequate power, compressed air, floor space, and safety infrastructure. Per ANSI B11.3-2022 and OSHA guarding requirements, that typically means:
- Light curtains or interlocked guards around the robot's operating envelope
- Emergency stops accessible at multiple points
- Lockout/tagout procedures for maintenance access
The robot application itself also falls under ANSI/A3 R15.06-2025, so your integrator should validate the whole cell (brake, robot, and guarding) as one system, not separate components.
Plan for Ongoing Support, Not Just Installation
Programs stall when there's nobody left to troubleshoot controls issues or reprogram for a new part family after the integrator leaves.
GLOBAL's dual-division model closes that gap: one team designs, programs, and commissions the system, while the technical staffing division can place controls engineers, robotics technicians, or programmers at your facility for ongoing support.
Connect Upstream and Downstream Processes
A bending cell doesn't operate in isolation. Integrate it with cutting, welding, and assembly operations so parts flow through the plant without manual handoffs creating bottlenecks elsewhere.
Frequently Asked Questions
How much does a press brake machine cost?
Cost depends on tonnage, bed length, and CNC features, with basic manual brakes costing far less than large-capacity CNC units. Adding robotics increases the upfront investment but improves long-term throughput and reduces labor costs per part.
How does a press brake work?
A press brake clamps sheet metal between a punch and die, then drives the punch downward to bend the material to a specified angle. In air bending, die width determines the part's inside radius while punch penetration controls the final bend angle.
Why do they call it a press brake?
The term traces back to Middle English "breken," meaning to bend or deflect. The first machine of this type was the 1882 cornice brake; powered press brakes appeared in the early 1920s.
What is the rule of 8 on a press brake?
For air bending, choose a V-die opening roughly 8 times the material thickness — so 0.125-inch material calls for about a 1-inch die. Minimum flange length should be roughly 77% of that V-opening width.
Is press brake operator a hard job?
Yes. It demands physical stamina, precise skill, and constant attention to pinch points and heavy material handling. That burden is why many manufacturers move repetitive, high-risk bending work into robotic cells.
Ready to Automate Your Metal Bending Process?
Robotic press brake automation addresses three pressures at once: labor scarcity, quality consistency, and operator safety. For shops running high-volume or repeat-family parts, faster software changeovers and more adaptable grippers make automation a stronger fit every year.
