Advanced Robotic Assembly Cells for Manufacturers

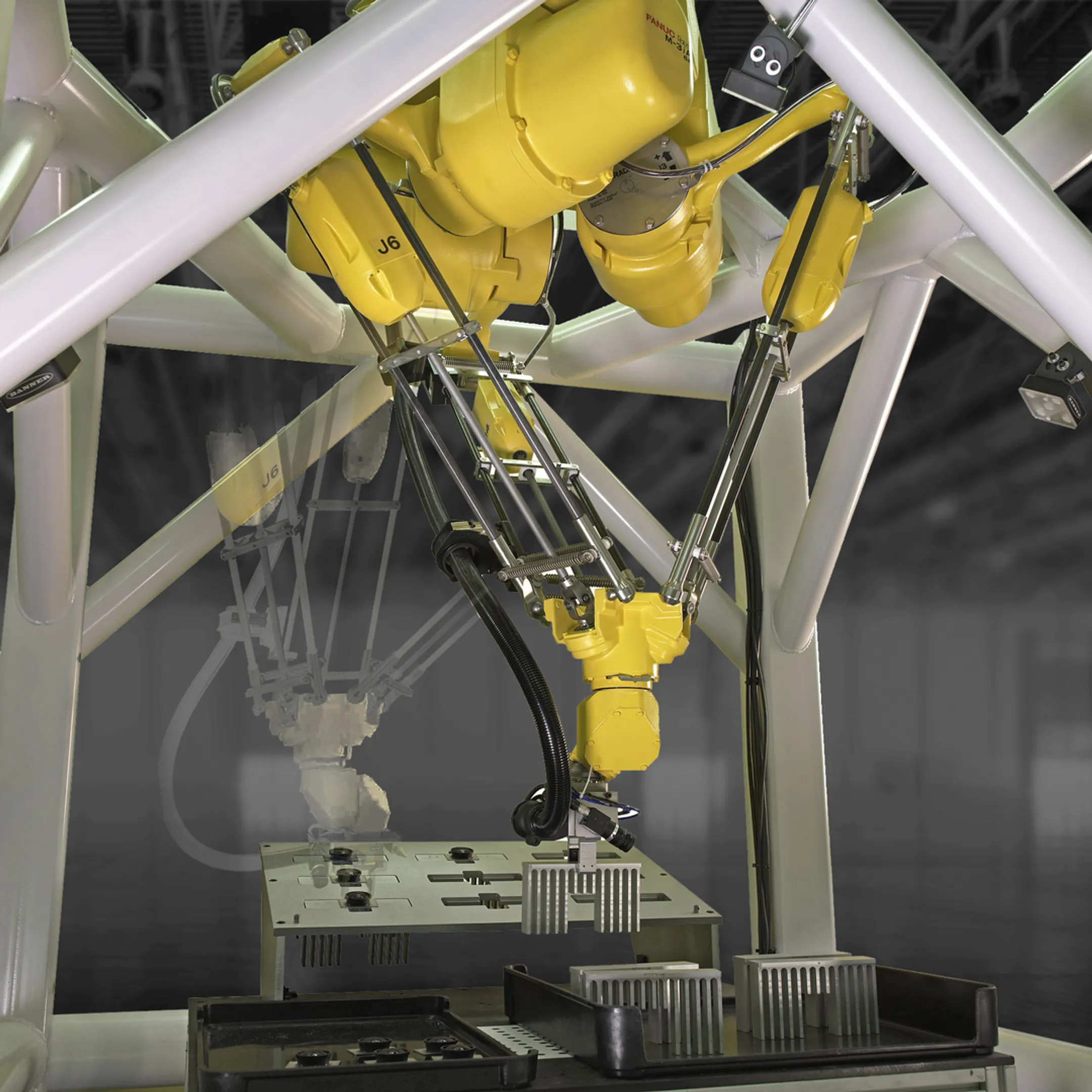

A robotic cell is a defined manufacturing work area where one or more robots, tooling, fixtures, controls, safety equipment, and often inspection technology work together to complete a production task. In assembly, a cell can pick and place components, insert parts, apply material, fasten hardware, test completed assemblies, and record production data. Cells are designed around product geometry, cycle time, quality requirements, and operator safety.

Assembly in robotics uses programmable robots to join components into a finished product or subassembly. Typical tasks include picking parts, orienting and inserting components, tightening bolts, nut running, dispensing adhesives or sealants, press fitting, labeling, testing, and inspection. Robotic assembly improves repeatability because the same programmed motion, force, speed, and process parameters can be applied consistently across production cycles.

Robotic assembly cells can automate component handling, pick-and-place, insertion, press fitting, bolt tightening, nut running, precision fastening, adhesive dispensing, sealing, testing, visual inspection, and part marking. They can also capture torque values, serial numbers, test results, and process parameters for traceability. The best candidates are repetitive tasks with defined quality requirements, measurable cycle times, and sufficient production volume.

Machine vision allows a robot to identify parts, confirm presence, determine orientation, locate features, and inspect completed work in real time. This can reduce the need for highly precise fixtures while helping the cell handle normal variation in incoming parts. Vision can also verify fastener placement, component position, dispense bead integrity, and assembly completeness before a product moves to the next operation.

Design begins with process analysis, including product geometry, task sequence, throughput goals, quality standards, facility constraints, and existing equipment. Engineers then develop the cell layout, robot selection, end-of-arm tooling, fixtures, controls, safety guarding, and inspection approach. Simulation helps validate reach, access, collisions, and cycle time before build. The completed cell is integrated, tested, installed, commissioned, and supported for production launch.

Yes. Robotic assembly cells can collect and store process data such as torque values, fastening results, test outcomes, serial numbers, component identifiers, timestamps, and machine status. Connecting this information to plant controls, SCADA, or other manufacturing systems creates a documented record for each unit. Traceability supports quality investigations, compliance needs, process improvement, and faster identification of recurring production issues.

Cost is influenced by the number and type of robots, tooling complexity, fixtures, safety systems, machine vision, controls integration, testing equipment, traceability requirements, and installation scope. Part variation, required cycle time, and facility modifications also affect project investment. A feasibility study and conceptual design clarify the needed equipment, implementation timeline, capital requirements, and expected return before full integration begins.

Implementation timing depends on cell complexity, equipment lead times, tooling, controls integration, testing requirements, and site readiness. A project generally progresses through process study, concept development, simulation, detailed engineering, build, factory acceptance testing, installation, commissioning, and training. Early evaluation of floor space, utilities, interfaces, and production scheduling helps reduce launch risk and minimizes disruption to existing operations.
