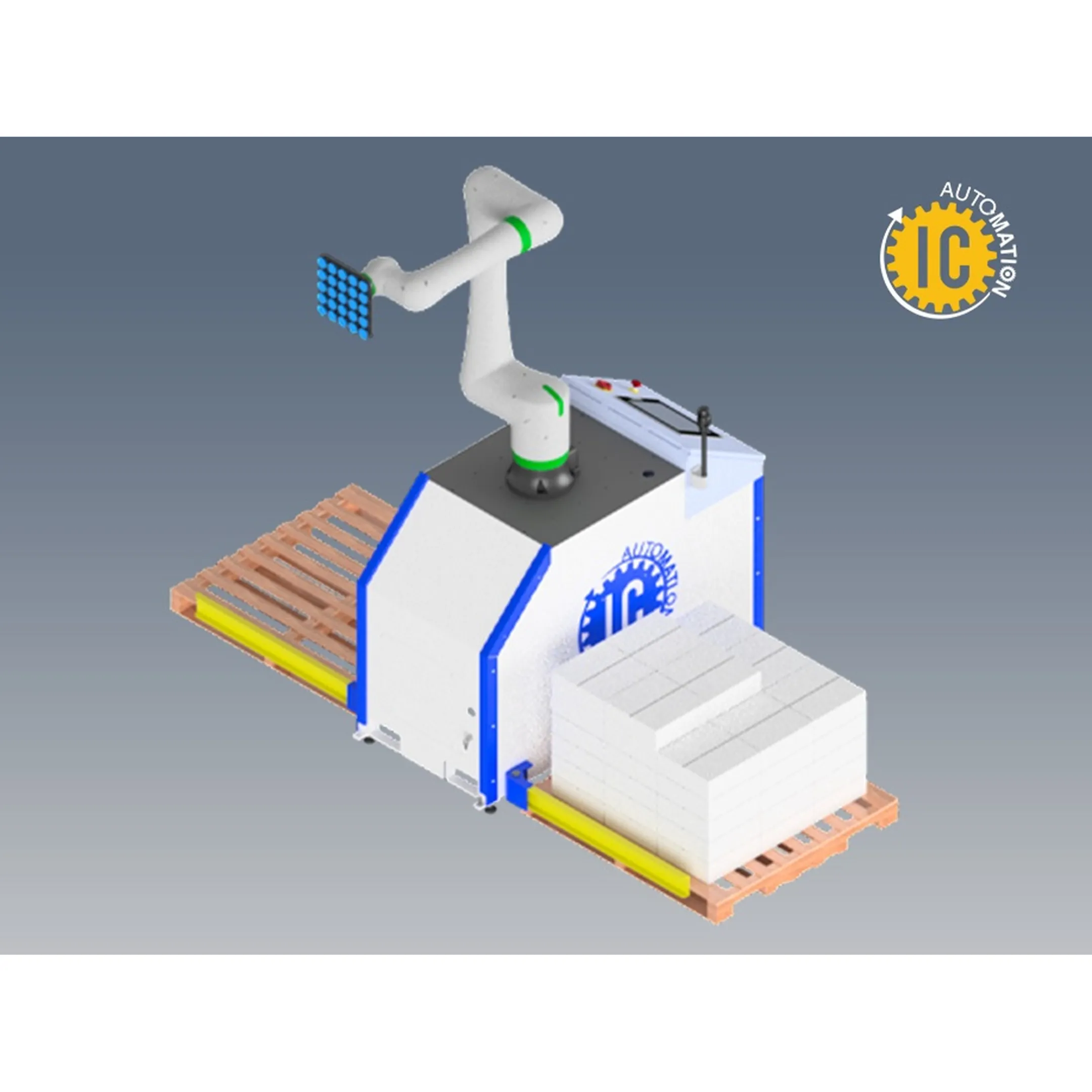

Robot Pallet Stacker Cells for High-Volume End-of-Line Handling

Stacking rate depends on the load being handled, the stack or pallet pattern, how many units are placed per cycle, and robot reach and travel, so the cell is engineered to the rate your line requires rather than a headline number. Product weight and how it presents on the infeed also shape cycle time. GLOBAL uses simulation to validate reach and cycle performance for your patterns before build. A single robot can often serve more than one infeed or build multiple pallets in sequence; whether one cell handles your combined rate or several make more sense is evaluated from your line layout and production targets.

Each product and stack pattern is stored as a recipe in the cell's controls, and an operator selects the matching recipe at changeover; the robot then adjusts its pick, orientation, and placement sequence. Patterns — column stacks, interlocked layers, mixed orientations, and slip- or tier-sheet placement — are configured in palletizing software so loads build stable and shippable. How many formats one cell supports depends on how much product size and weight vary. GLOBAL reviews each expected format during design so patterns can be added or adjusted later.

The end-of-arm tooling is matched to the load — vacuum for smooth-topped cases and cartons, mechanical clamp for heavier or unsealed loads, a bag gripper for filled sacks, or a custom gripper for components and molded parts. GLOBAL designs or specifies the tooling as part of the cell and works with established tooling sources rather than leaving the gripper to the customer. Selection weighs product weight, surface, and rigidity, units picked per cycle, and whether one tool must handle several formats. The aim is secure pickup and accurate placement without damaging product.

A stacking cell can include pallet dispensing, automatic slip- or tier-sheet placement between layers, and a handoff to downstream stretch wrapping or staging. On the infeed side, product is metered and oriented so the robot receives it in a predictable position for picking. GLOBAL plans the conveyor connections, control signals, and pallet flow around your existing equipment so full loads discharge to wrapping or forklift pickup. Where presentation varies upstream, vision guidance can help the robot locate each item reliably.

The cell is enclosed with safety guarding and interlocks so people and the robot stay separated during operation, using perimeter fencing, light curtains, or gated conveyor zones at the points where loads enter and leave. Empty pallets feed in and full loads discharge through guarded access points that let material move without exposing anyone to the robot's work envelope. GLOBAL designs the fencing, access sequence, and safety controls around your floor space and how forklifts or pallet jacks service the cell.

Footprint depends on robot reach, the number of pallet or stack positions, the infeed arrangement, and the guarded perimeter, along with clear forklift and maintenance access. GLOBAL reviews available floor space, traffic flow, and ceiling height, then develops a layout that fits the area while meeting the throughput target. Installation covers setting the cell, connecting conveyors and controls, commissioning, and running the patterns off with your product before handoff. Compact arrangements can be designed where floor space is limited.

Switching products is usually a recipe selection, with a tooling or guide change only when formats differ significantly; GLOBAL plans the changeover approach around how often and how much your products vary. After commissioning, the team provides operator and maintenance training, documentation, and ongoing support for troubleshooting, adjustments, and future pattern additions. Recommended spare parts can be identified for the tooling, robot, and controls to help limit downtime. The cell is built for sustained production, with routine service handled between scheduled maintenance windows.
