Vision Installation Guide

Introduction

When a vision system is installed poorly, the costs hit fast: false rejects, missed defects, drifted robot guidance, and unplanned line stops. Research from Cognex finds that 50–70% of machine vision projects fail to meet expectations because of preventable errors.

Complexity spans a wide range. A simple part-presence check is very different from a 3D measurement cell tied to a six-axis robot in a paint booth, and install difficulty scales with integration depth and the precision your inspection or guidance task needs.

Who can realistically install these systems?

• Automation technicians with machine-vision training
• Specialist systems integrators
• Teams fluent in industrial imaging, robot protocols, and vision–PLC–line handshakes

If you lack that mix in-house, installation is a risk decision, not only a technical one. Poor lighting alone, which Cognex cites as the most common cause of performance failures, can turn a solid design into a liability before the first shift ends.

This guide walks through planning, hardware setup, integration, and validation so your vision install performs on day one—and stays stable on the floor.

Key Takeaways

• Plan lighting, camera placement, software setup, and line handshakes before install day
• Confirm site readiness, hardware compatibility, environmental controls, and lockout procedures first
• Follow the install sequence: preparation → mounting → integration → calibration → validation
• Validate on 100-200+ production parts to prevent defect escapes and line shutdowns
• Engage specialist integrators for robot guidance, 3D measurement, or hazardous environments

Installation Guide for Vision Systems in Manufacturing

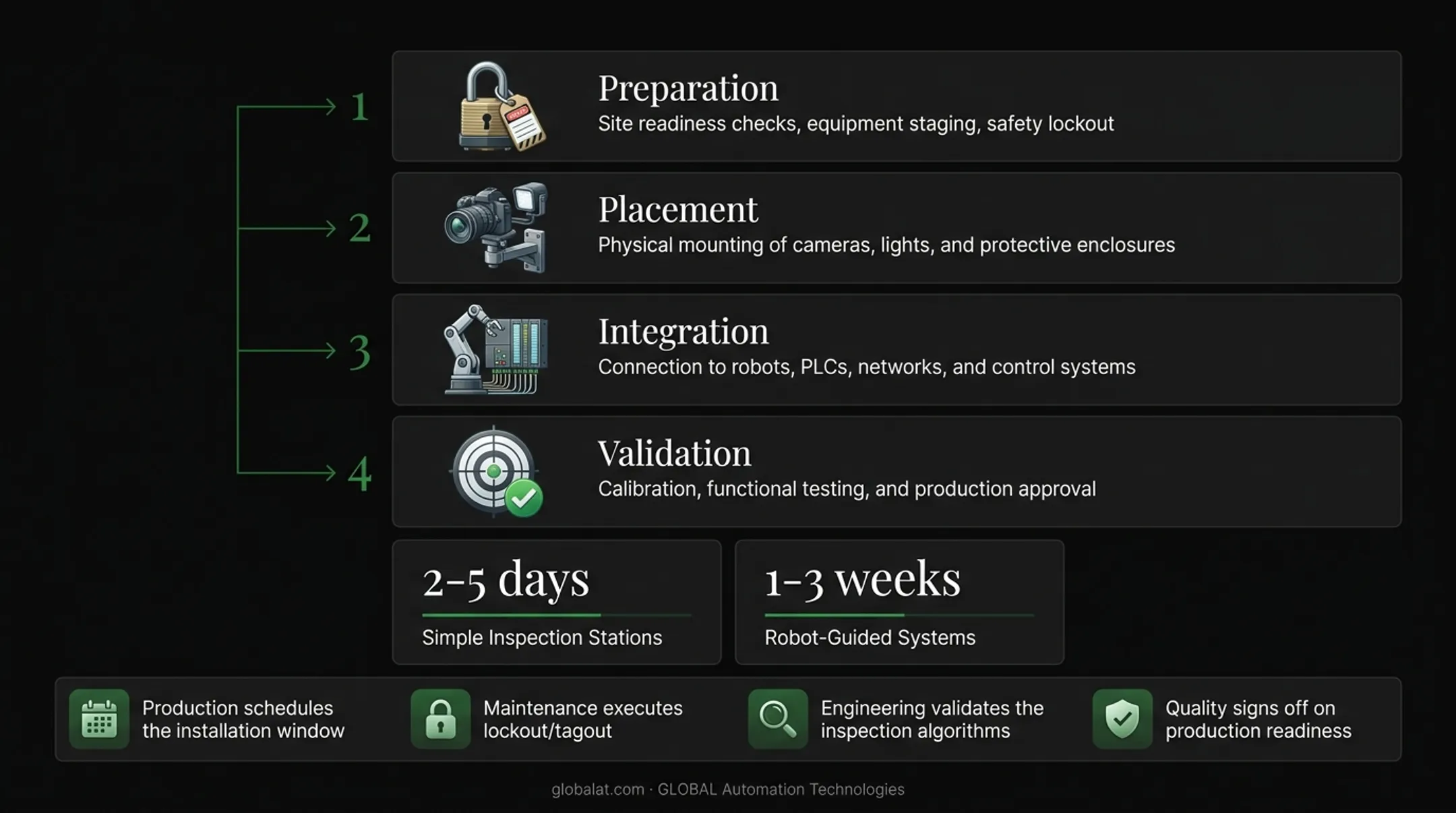

Vision system installation consists of four broad phases that build on one another:

1. Preparation – Site readiness checks, equipment staging, safety lockout
2. Placement – Physical mounting of cameras, lights, and protective enclosures
3. Integration – Connection to robots, PLCs, networks, and control systems
4. Validation – Calibration, functional testing, and production approval

Timelines vary widely. Simple inspection stations (single camera, fixed lighting, Ethernet handshake to a PLC) may take 2-5 days from unpacking to production release.

Robot-guided systems with complex part handling, 3D profiling, and adaptive path correction can require 1-3 weeks. That window covers camera-to-robot calibration, motion testing, and safety validation.

Skill requirements sit between intermediate and advanced automation knowledge. You'll need fluency in:

• Industrial networking
• Exposure control and mounting mechanics
• PLC or robot programming
• Calibration procedures

Cross-functional coordination is critical before you flip the system to automatic mode:

• Production schedules the installation window
• Maintenance executes lockout/tagout
• Engineering validates the inspection algorithms
• Quality signs off on production readiness

Prerequisites and Safety Considerations

Site and System Readiness

Before installation begins, verify the following are in place:

• Mounting structures – Rigid gantries or brackets capable of supporting camera and lens weight without vibration
• Stable power supply – Properly grounded circuits meeting equipment voltage and current specifications
• Network infrastructure – Ethernet switches, cabling, and IP address assignments reserved and documented
• Ambient lighting control – Shielding or enclosures to prevent daylight or overhead lights from washing out the image
• Climate control – Temperature and humidity inside the camera operating range (typically 0–50°C, 20–85% RH non-condensing)

OMRON datasheets show that camera families have different environmental tolerances—some operate to 35°C, others to 50°C; some tolerate higher vibration levels, others do not. Check every component datasheet against your actual installation environment.

Compatibility Checks

Match hardware and controls to the application before you pull cable or mount cameras:

• Hardware match – Cameras, processors, and lighting that meet field of view, resolution, and frame-rate specs
• Robot controller firmware – Support for vision protocols (EtherNet/IP, PROFINET, or proprietary interfaces)
• PLC or HMI software versions – Compatibility with vision messaging and I/O handshake logic
• Part fixturing and conveyors – Consistent part presentation inside the camera's calibrated field of view

Inconsistent part positioning is a leading cause of false rejects. If upstream processes deliver parts at variable angles or heights, either design the vision job for that variation or fix fixturing before install.

Mandatory Safety Requirements

Vision installations near robotic cells or energized equipment require strict safety compliance:

• Lockout/tagout (LOTO) – Follow OSHA 1910.147 during installation near robots or moving machinery
• Electrical work – Meet NFPA 79:2024 or local codes for industrial machinery wiring
• Safety interlocks – Light curtains, safety relays, and e-stop circuits must remain functional during installation and testing
• Machine guarding changes – Any modification to guarding requires risk assessment and approval before production restart

For robot applications, ANSI/A3 R15.06-2025 Part 2 governs industrial robot cells and must be consulted during design and commissioning.

When Installation Should Not Proceed

Do not begin installation if:

• Robot work envelopes are not clearly defined and safeguarded
• Electrical power has not been verified as stable and properly grounded
• Production schedules do not allow adequate testing time with real parts
• Required calibration artifacts or test samples are unavailable

Skipping these prerequisites leads to unsafe conditions, incomplete validation, and rework that costs more than the time you thought you saved.

How to Install a Vision System (Step-by-Step)

Skip steps in camera positioning or lighting setup and you pay for it later: unstable inspections, costly rework, and delayed production validation. Follow this sequence in order.

Step 1 - Preparing the Installation Site

Before mounting hardware:

• Verify physical mounting locations provide rigid, vibration-free camera support
• Confirm lighting power supplies are accessible and properly rated for LED or halogen loads
• Stage all equipment and cabling in advance to minimize downtime
• Coordinate with production to secure the installation window and communicate line-stop duration
• Complete all lockout/tagout procedures and verify zero energy state before beginning work

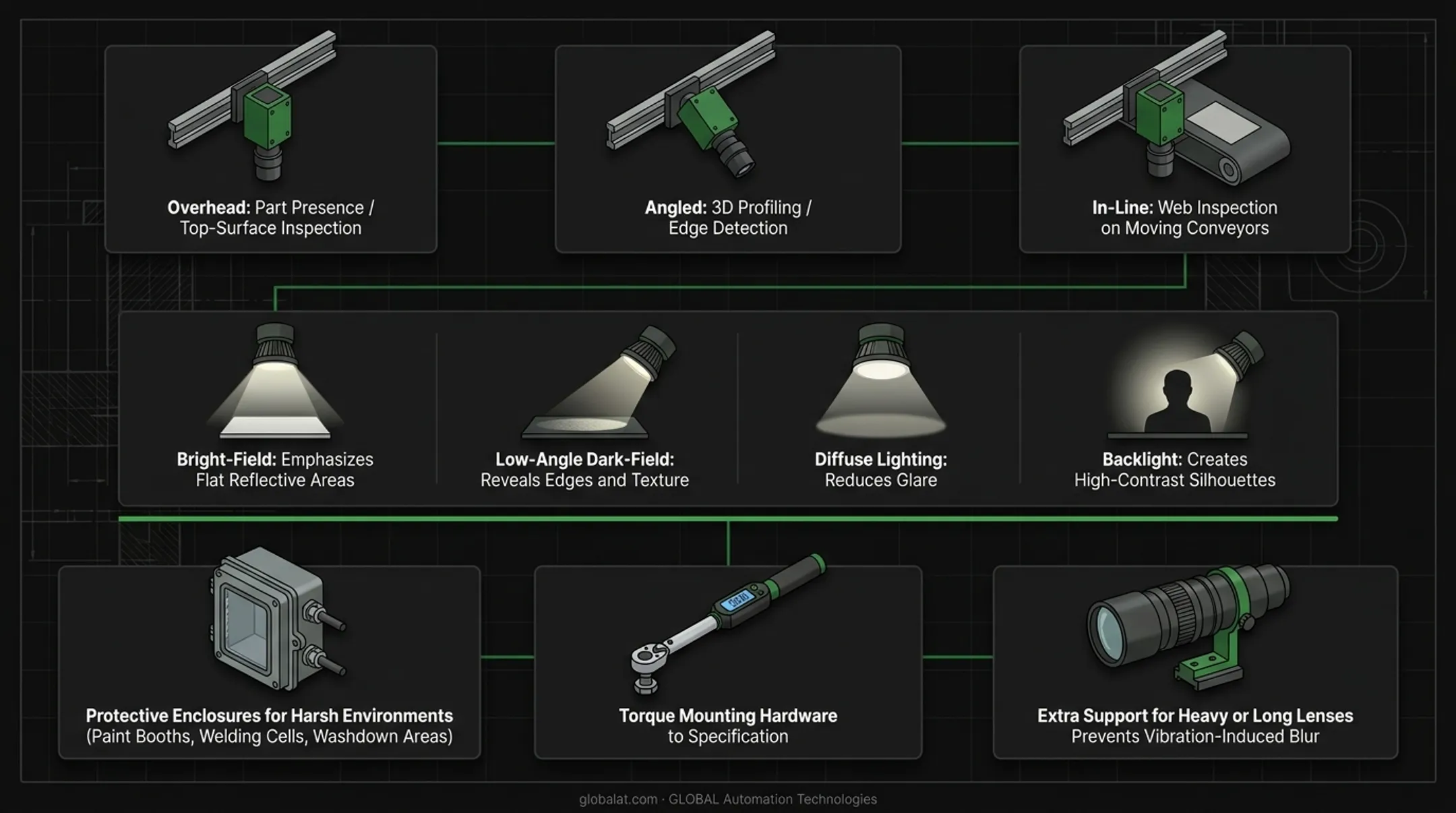

Step 2 - Mounting Cameras, Lighting, and Protective Enclosures

Install cameras at specified distances and angles per application design:

• Overhead mounting for part presence or top-surface inspection
• Angled mounting for 3D profiling or edge detection
• In-line mounting for web inspection on moving conveyors

Mount lighting for uniform illumination without hotspots or shadows. Cognex guidance outlines common techniques:

• Bright-field: emphasizes flat reflective areas
• Low-angle dark-field: reveals edges and texture
• Diffuse lighting: reduces glare
• Backlight: creates high-contrast silhouettes

Install protective enclosures if you operate in harsh environments (paint booths, welding cells, washdown areas). Torque all mounting hardware to specification so cameras do not drift. Basler manuals warn that heavy or long lenses need extra support beyond the camera body to prevent vibration-induced blur.

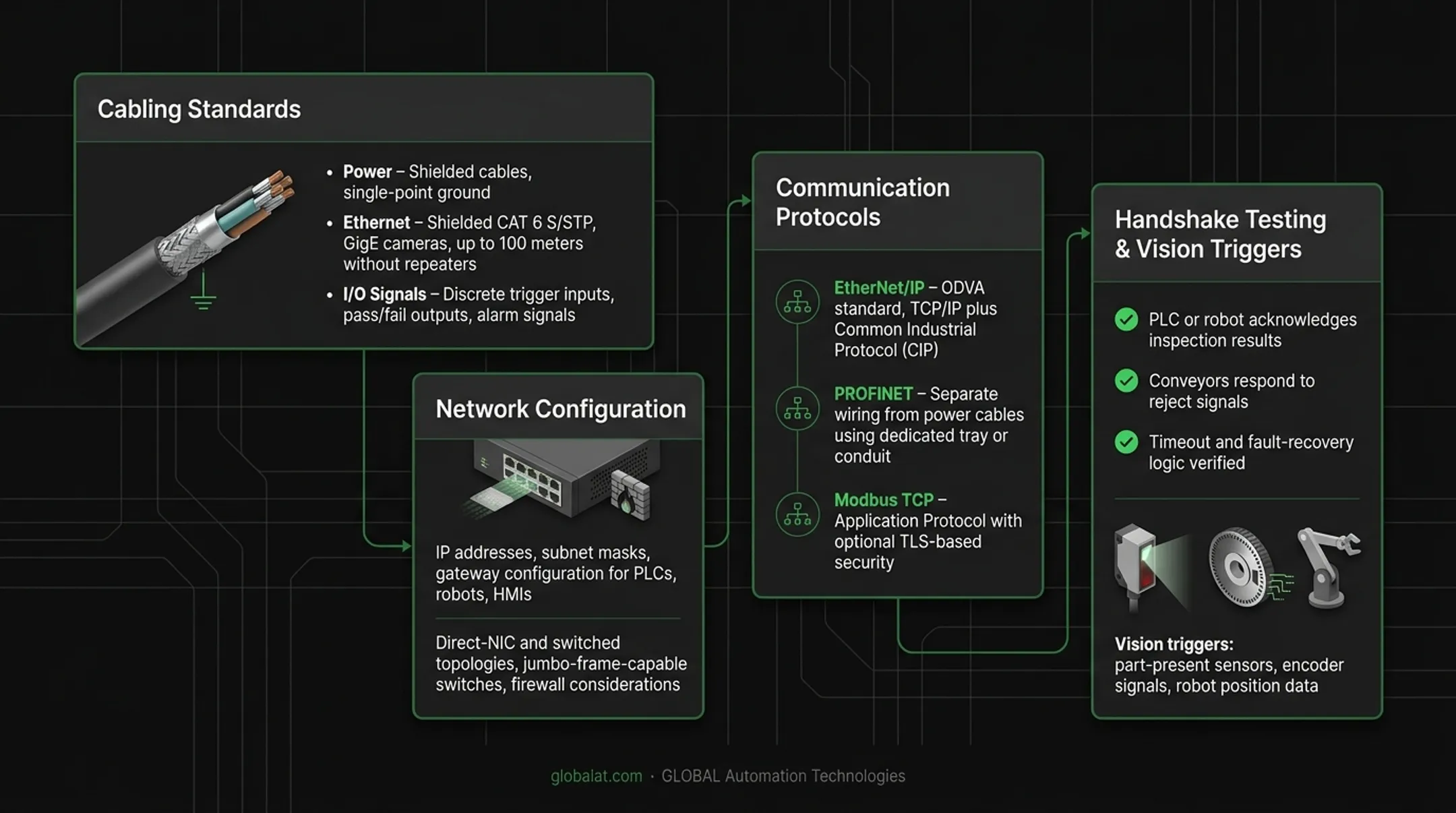

Step 3 - Integrating with Existing Automation Systems

Run and terminate all cabling following industrial wiring standards:

• Power – Use shielded cables, establish single-point ground to prevent ground loops
• Ethernet – Use shielded CAT 6 S/STP for GigE cameras; runs up to 100 meters without repeaters
• I/O signals – Discrete trigger inputs, pass/fail outputs, alarm signals

Configure network settings (IP addresses, subnet masks, gateway) to communicate with PLCs, robots, or HMIs. Basler documentation covers direct-NIC and switched topologies, jumbo-frame-capable switches, and firewall considerations.

Establish communication protocols:

• EtherNet/IP – ODVA standard using TCP/IP plus Common Industrial Protocol (CIP)
• PROFINET – PI guidance recommends separating PROFINET wiring from power cables using separate tray or conduit
• Modbus TCP – Modbus.org specifications cover Application Protocol and optional TLS-based security

Test handshake signals before proceeding:

• PLC or robot acknowledges inspection results
• Conveyors respond to reject signals
• Timeout and fault-recovery logic works as designed

Integrate vision triggers—part-present sensors, encoder signals, robot position data—to coordinate image capture timing with production flow.

Step 4 - Initial Configuration and Calibration

Load vision application software and verify licensing. Import or create inspection programs covering:

• Measurement tools (distance, angle, diameter)
• Pattern matching (locate features regardless of rotation or position)
• Defect detection algorithms (blob analysis, edge detection, surface inspection)

Perform camera calibration using calibration targets or fixtures to establish real-world coordinates. FANUC iRVision documentation describes how camera data, vision parameters, and a calibration grid establish the camera-to-robot relationship for fixed and robot-mounted 2D/3D cameras.

Set lighting intensity and camera exposure times for strong image contrast. KEYENCE guidance recommends selecting reflection mode first, then adjusting light size, shape, and wavelength to control glare.

Configure pass/fail criteria and result outputs: accept/reject signals, data logging to SCADA or MES systems, and alarms for system faults or calibration drift.

Step 5 - Functional Testing with Production Parts

Run production parts through the system in this order:

• Start with known-good samples to verify detection accuracy
• Introduce known-defective parts to confirm reject logic
• Adjust sensitivity and filtering for real part variation (color, surface finish, contamination, dimensional tolerance)

Verify cycle time meets production requirements. Cognex SnAPP documentation notes that trigger delay is included in cycle time and the system cannot process another trigger during delay/acquisition, so test worst-case scenarios.

Document all settings and calibration data for future reference—backup inspection programs, save network configurations, record lens focal length and working distance.

Post-Installation Checks and Validation

Post-installation validation is required before releasing the system to production. Skipping this phase leads to false rejects, missed defects, production delays, and quality escapes that damage customer relationships and trigger containment actions.

Visual and Structural Checks

Complete these checks before power-up:

• Inspect all mounting hardware for tightness and stability
• Route cables clear of robot work envelopes and connector strain
• Confirm enclosure seals are intact in contaminated environments
• Clear tools and debris from the work area
• Restore safety guards and interlocks and confirm they work before energizing

Basic Functional Testing

Verify cameras produce clear, well-lit images with proper focus and field of view. Test communication between vision system and downstream equipment:

• Robots acknowledge inspection results and adjust motion accordingly
• Conveyors respond to reject signals by diverting bad parts
• Data logging and archiving functions write results to the correct database or file share
• Operator interface displays show real-time status, pass/fail counts, and alarm conditions

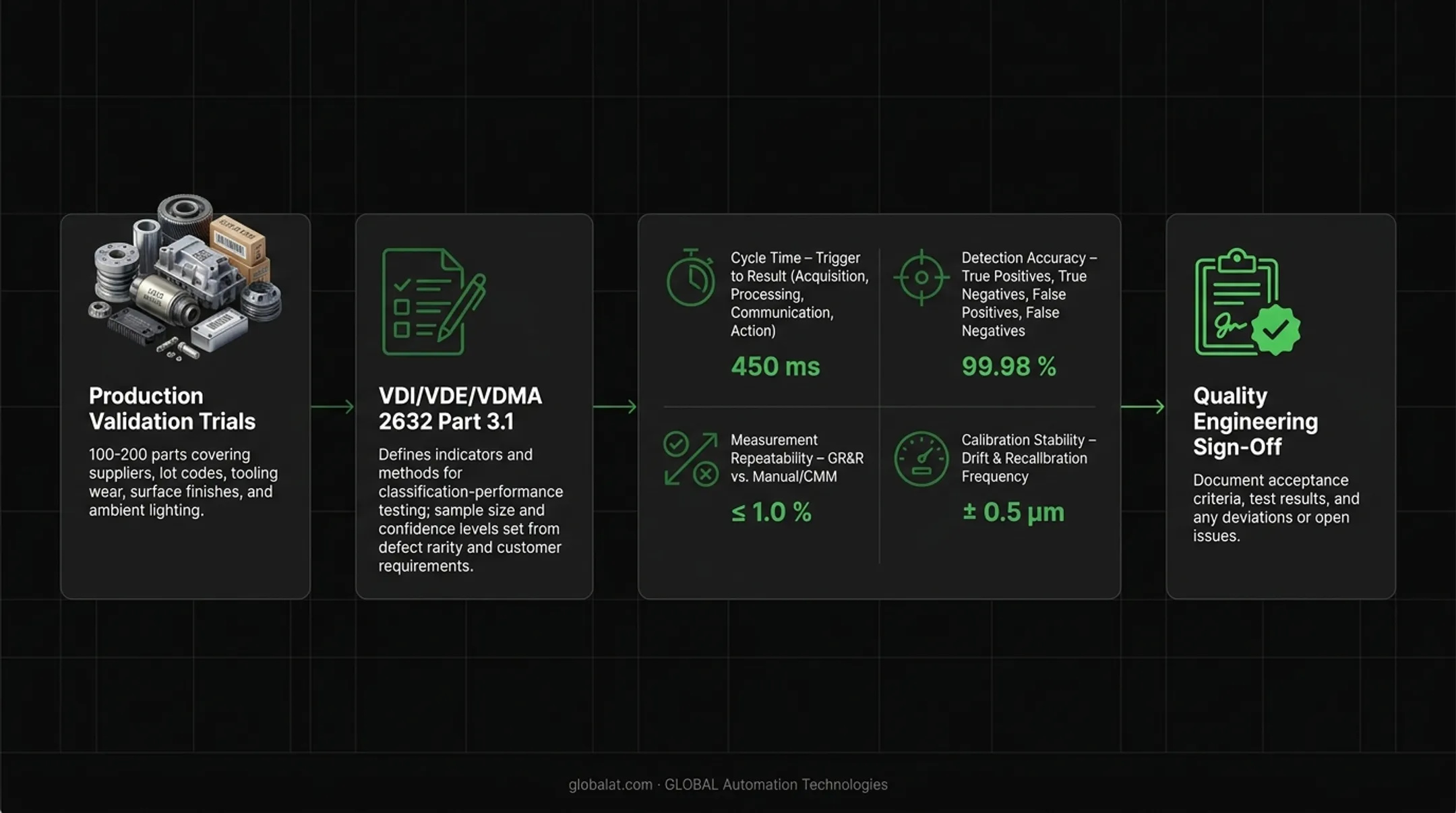

Production Validation Trials

Process at least 100-200 parts that cover normal production variation: different suppliers, lot codes, tooling wear states, surface finishes, and ambient lighting across the day. VDI/VDE/VDMA 2632 Part 3.1 defines indicators and methods for classification-performance testing. Set project-specific sample size and confidence levels from defect rarity and customer requirements.

Measure system performance metrics:

• Cycle time – Trigger to result, including acquisition, processing, communication, and action
• Detection accuracy – True positives, true negatives, false positives, false negatives
• Measurement repeatability – Compare vision results against manual inspection or CMM measurements using GR&R methodology

Obtain sign-off from quality engineering before production release. Document acceptance criteria, test results, and any deviations or open issues.

Indicators of Correct vs. Incorrect Installation

Correct installation shows:

• Consistent image quality across all lighting conditions and part variations
• Stable measurements with minimal variation over multiple shifts
• Reject signals occur only for true defects, with false reject rates within agreed limits
• System operates reliably through full production shifts without recalibration

Incorrect installation shows:

• Intermittent communication errors or timeout faults
• Drift in measurements over time, requiring frequent recalibration
• High false reject rates that stop production or waste good parts
• Inability to detect known defects during validation trials

Common Installation Problems and Fixes

Even solid vision installs hit snags at commissioning. Use the checks below to isolate image, network, and inspection issues fast.

Problem: Inconsistent or Poor Image Quality

Symptoms: Blurry images, excessive glare, shadows obscuring features, low contrast

Likely causes:

• Camera not focused correctly or focus ring not locked
• Lighting positioned too close or at wrong angle, creating hotspots
• Vibration from nearby equipment causing image blur
• Lens contamination from process debris, oil mist, or condensation

Fixes:

• Refocus camera using fine focus adjustment and lock the focus ring
• Reposition lighting to achieve diffuse illumination at 30-45 degree angles
• Add vibration isolation mounts or dampers to camera brackets
• Install protective windows or air purge systems to keep lenses clean
• Adjust camera exposure time to freeze motion if parts are moving during acquisition

Problem: Communication Failures Between Vision System and Robot or PLC

Symptoms: Handshake timeouts, missed triggers, data not updating, stale results

Likely causes:

• Incorrect IP address or subnet configuration
• Network switch not configured for industrial protocols or quality-of-service
• Cable runs exceed maximum length specifications (100 m for GigE Vision)
• I/O wiring reversed, shorted, or terminated incorrectly

Fixes:

• Verify all IP addresses are on same subnet and not conflicting with other devices
• Configure network switch for proper VLAN, jumbo frames, and QoS settings
• Install network repeaters or fiber converters for long cable runs
• Check I/O wiring against terminal diagrams and test continuity with a multimeter
• Use protocol analyzer tools to verify message traffic and identify dropped packets

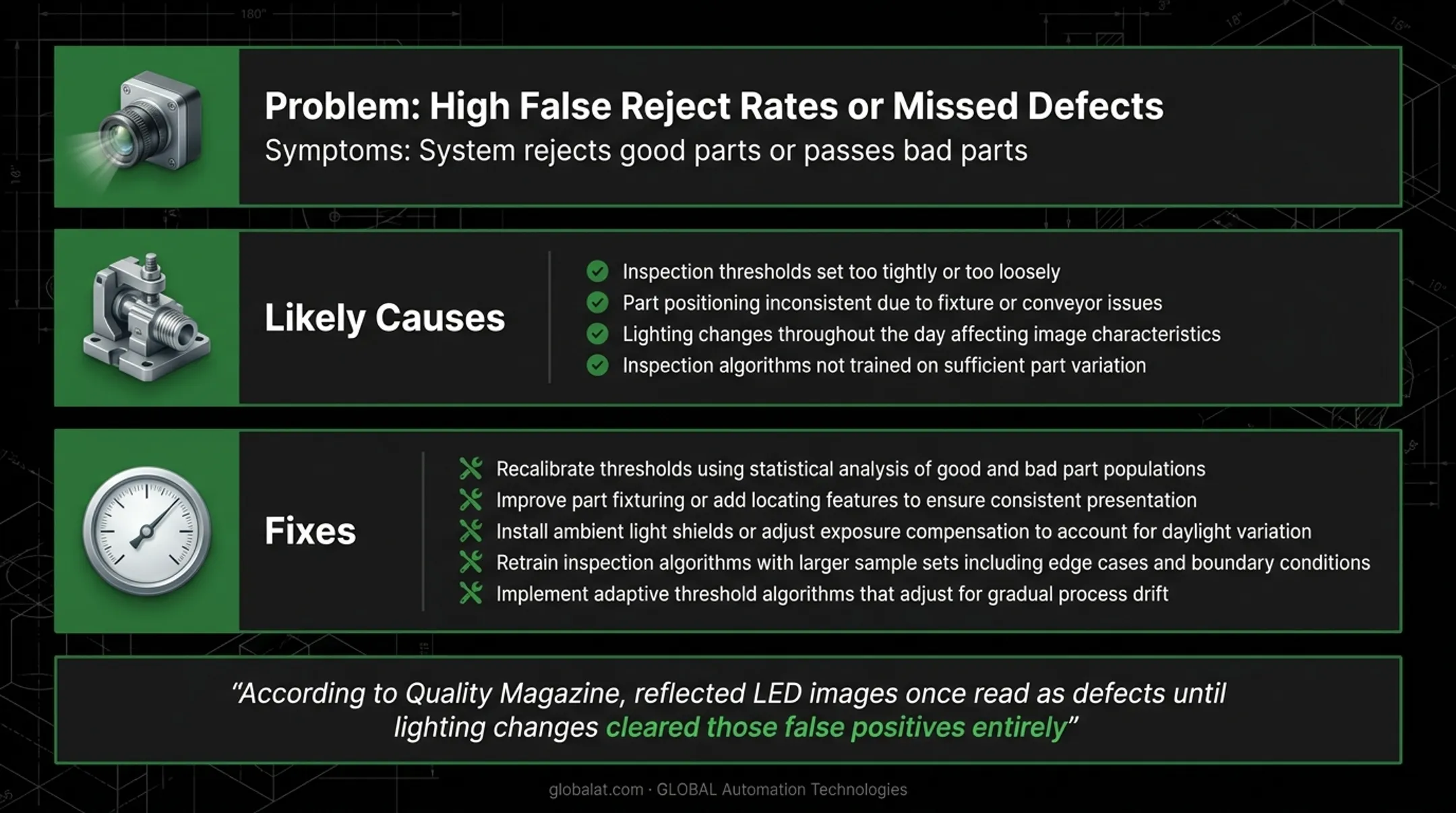

Problem: High False Reject Rates or Missed Defects

Symptoms: System rejects good parts or passes bad parts

Likely causes:

• Inspection thresholds set too tightly or too loosely
• Part positioning inconsistent due to fixture or conveyor issues
• Lighting changes throughout the day affecting image characteristics
• Inspection algorithms not trained on sufficient part variation

Fixes:

• Recalibrate thresholds using statistical analysis of good and bad part populations
• Improve part fixturing or add locating features to ensure consistent presentation
• Install ambient light shields or adjust exposure compensation to account for daylight variation
• Retrain inspection algorithms with larger sample sets including edge cases and boundary conditions
• Implement adaptive threshold algorithms that adjust for gradual process drift

According to Quality Magazine, reflected LED images once read as defects until lighting changes cleared those false positives entirely.

Pro Tips for Installing Vision Systems Effectively

Installation Timing and Sequencing

• Schedule installation during planned downtime or low-production periods to allow adequate testing time
• Stage and pre-configure equipment offline before installation day to minimize downtime
• Coordinate with upstream and downstream processes to ensure material flow continues during testing
• Plan for phased rollout: start in monitoring mode before enabling automatic reject to build operator confidence

Environmental and Handling Considerations

• Protect cameras and lighting from process contamination using sealed enclosures with positive pressure or air purge systems
• Account for thermal expansion in mounting structures when operating in temperature-variable environments
• Install remote monitoring capabilities to track system health metrics (image intensity, focus, cycle time, packet loss, and temperature)
• Maintain spare cameras, lights, and cables on-site to minimize downtime from component failures

Documentation and Sign-Off Best Practices

• Create detailed installation documentation including wiring diagrams, IP address assignments, calibration records, and inspection program backups
• Establish clear acceptance criteria and validation protocols before installation begins
• Involve quality and production teams in validation trials and obtain formal sign-off before automatic operation
• Train operators and maintenance technicians on basic troubleshooting, routine maintenance procedures, and alarm response

When to Hire a Specialist

Engage experienced vision integrators for applications requiring:

• Complex 3D measurement or robot guidance where camera-to-robot calibration and motion coordination are critical
• Installation in hazardous environments requiring explosion-proof equipment and specialized certifications
• Projects where internal teams lack industrial vision experience and timelines are tight
• Turnkey solutions including design, programming, installation, validation, and production support

For those scopes, GLOBAL Automation Technologies, a Level 5 FANUC Authorized System Integrator, delivers end-to-end vision integration backed by 18+ years of robotics experience in demanding manufacturing environments. The team deploys FANUC iRVision and 3D area sensors for bin picking, part identification, quality inspection, and dispense-bead verification as turnkey systems covering engineering, installation, commissioning, training, and ongoing support.

Conclusion

Installation quality directly determines whether a vision system delivers improved quality, reduced defects, and higher productivity. Poor installation leads to ongoing problems, lost confidence in automation, and wasted capital that executives won't soon forget.

Four practices separate installs that hold up from ones that don't:

• Prepare thoroughly: site readiness, compatibility checks, and safety compliance
• Execute the proven sequence without shortcuts that force rework later
• Validate with statistically significant sample sizes so defects don't escape
• Bring in specialist integrators when complexity or timelines need expert support

Treat vision installation as a manufacturing process, not a one-time event. Document everything, validate rigorously, train thoroughly, and plan for the long term. Systems that perform year after year are the ones installed right the first time.

Frequently Asked Questions

How complex is vision system installation compared to other automation equipment?

Complexity ranges from moderate to high by application. Simple inspection stations (part presence or barcode reading) are comparable to sensor installs. Robot-guided or 3D systems need expertise in imaging, lighting design, camera-to-robot calibration, and multi-platform integration.

Can in-house maintenance teams install vision systems, or do we need specialists?

Experienced automation technicians can handle straightforward fixed-camera inspection stations with vendor training and PLC integration. Robot guidance, 3D profiling, or tight measurement tolerances usually need specialist integrators who know both vision technology and plant operations.

What are the most common reasons vision system installations fail?

Common failure modes include inadequate lighting, poor camera position or unstable mounting, thin testing against real part variation, and weak ties to existing automation. Cognex cites poor lighting as the most common cause of machine-vision performance failures.

How long does typical vision system installation take from start to production release?

Simple inspection stations often take 2–5 days; robot-integrated systems typically need 1–3 weeks. Timeline depends on complexity, site readiness, part availability for testing, and whether calibration and safety validation are required.

What validation testing is required before releasing a vision system to production?

Process 100–200+ parts that reflect normal production variation, check detection accuracy against known standards or CMM data, and confirm cycle time. Get formal sign-off from quality and production before automatic operation. Skip this phase and defect escapes become inevitable.

When should we consider outsourcing vision system installation to an integrator?

Bring in a specialist when the job needs robot guidance or 3D measurement, your team lacks vision experience under a tight timeline, or the cell sits in a hazardous environment that needs special certifications. Turnkey scope—design, install, commission, train, and support—also lowers project risk when internal bandwidth is limited.
