Introduction
A six-axis robot can repeat a weld path within fractions of a millimeter, thousands of times in a row. But that precision means nothing if the part it's welding isn't sitting exactly where the program expects it to be.
Many manufacturers upgrade to robotic welding and still see inconsistent beads, unexpected rework, and frustrated operators — and the robot usually isn't the problem. The fixture is.
This guide covers the fixture and positioner types available, the design principles that keep welds repeatable, the mistakes that undermine quality, and what to look for in an integration partner.
Who this is for: production managers, manufacturing engineers, and plant leaders evaluating or troubleshooting robotic welding cells.
Key Takeaways
- Fixtures and positioners determine weld repeatability more than the robot itself
- Poor fixturing causes defects, rework, and safety hazards regardless of robot precision
- Match fixture type to part complexity, volume, and tolerance requirements
- An experienced integrator reduces startup risk and shortens the path to ROI
What Are Robotic Welding Fixtures and Why They Matter
A fixture locates and holds the workpiece in a fixed, known position. A positioner manipulates that workpiece, rotating or tilting it so the robot's torch can reach every joint at the correct angle. In a robotic cell, the two work together: the fixture guarantees the part is where the program expects it, and the positioner presents it for optimal access.
This distinction matters more in robotic welding than in manual welding. A skilled human welder can compensate for a part that's slightly out of position, shifting their stance and adjusting torch angle on the fly. A robot can't.
It follows a fixed, programmed path with no real-time judgment calls. If a fixture lets the part move even slightly, that movement doesn't get corrected—it gets welded—and can turn an otherwise good assembly into a reject, as noted in The Fabricator's guidance on robotic welding fixture design.
The consequences of inadequate fixturing:
- Misaligned welds and poor fit-up
- Increased rework and scrap
- Slower cycle times as operators intervene manually
- Eroded automation ROI from reintroducing manual steps
GLOBAL Automation Technologies, which holds Level 5 status in FANUC’s Authorized System Integrator program, designs fixtures as one integrated piece of a turnkey robotic welding cell. They're engineered alongside layout, servo positioning, robot programming, and process validation—not bolted on afterward as a standalone hardware purchase.
Types of Robotic Welding Fixtures and Positioners
Fixture and positioner selection comes down to two variables: part complexity and production volume. Here's how the main categories stack up.
Fixture Categories by Automation Level
- Layout templates/jigs — Manual clamps on a fixed table. Low cost, flexible, but labor-intensive. Best for R&D, prototypes, and short runs.
- Semi-automatic fixtures — Pneumatic clamps and sliders that speed up load/unload. Suited to medium-volume production where some manual involvement is still acceptable.
- Fully automatic fixtures — Sensor-verified clamping sequences with no manual actuation. Built for high-volume production where consistency and cycle time matter most.

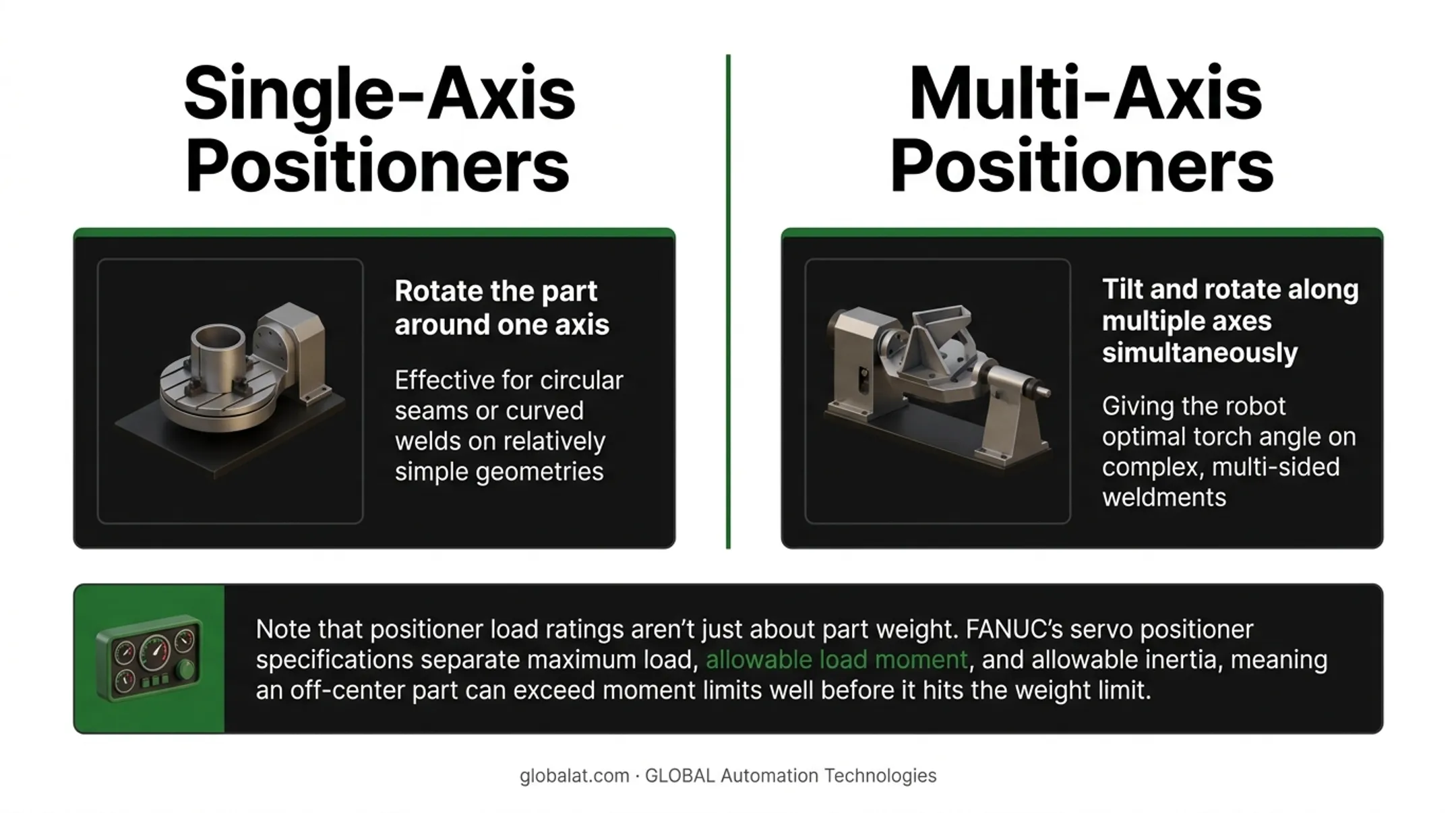

Positioner Categories by Motion
- Single-axis positioners — Rotate the part around one axis. Effective for circular seams or curved welds on relatively simple geometries.
- Multi-axis positioners — Tilt and rotate along multiple axes simultaneously, giving the robot optimal torch angle on complex, multi-sided weldments.
| Fixture/Positioner Type | Best For | Volume |
|---|---|---|
| Layout templates/jigs | Simple parts, prototypes | Low |
| Semi-automatic | Repeat production, moderate complexity | Medium |
| Fully automatic | High-volume, high-repeatability production | High |
| Single-axis positioner | Round or curved seams | Any |
| Multi-axis positioner | Complex, multi-angle weldments | Medium-high |
Note that positioner load ratings aren't just about part weight. FANUC's servo positioner specifications separate maximum load, allowable load moment, and allowable inertia — meaning an off-center part can exceed moment limits well before it hits the weight limit.
Core Design Principles for Reliable Robotic Weld Fixtures
Good fixture design balances several competing demands at once. Get one wrong and the others suffer.
Clamping and Thermal Behavior
Precision clamping needs to hold the part rigidly enough to prevent shifting, but loosely enough to allow fast load/unload without eating into cycle time. Over-clamping thin materials is a common trap: it can prevent the natural movement a part needs during welding.
That's directly tied to thermal distortion. As metal heats, it expands and later contracts as it cools. A fixture with zero flexibility can force that stress into the seam, causing warping after the clamps release.

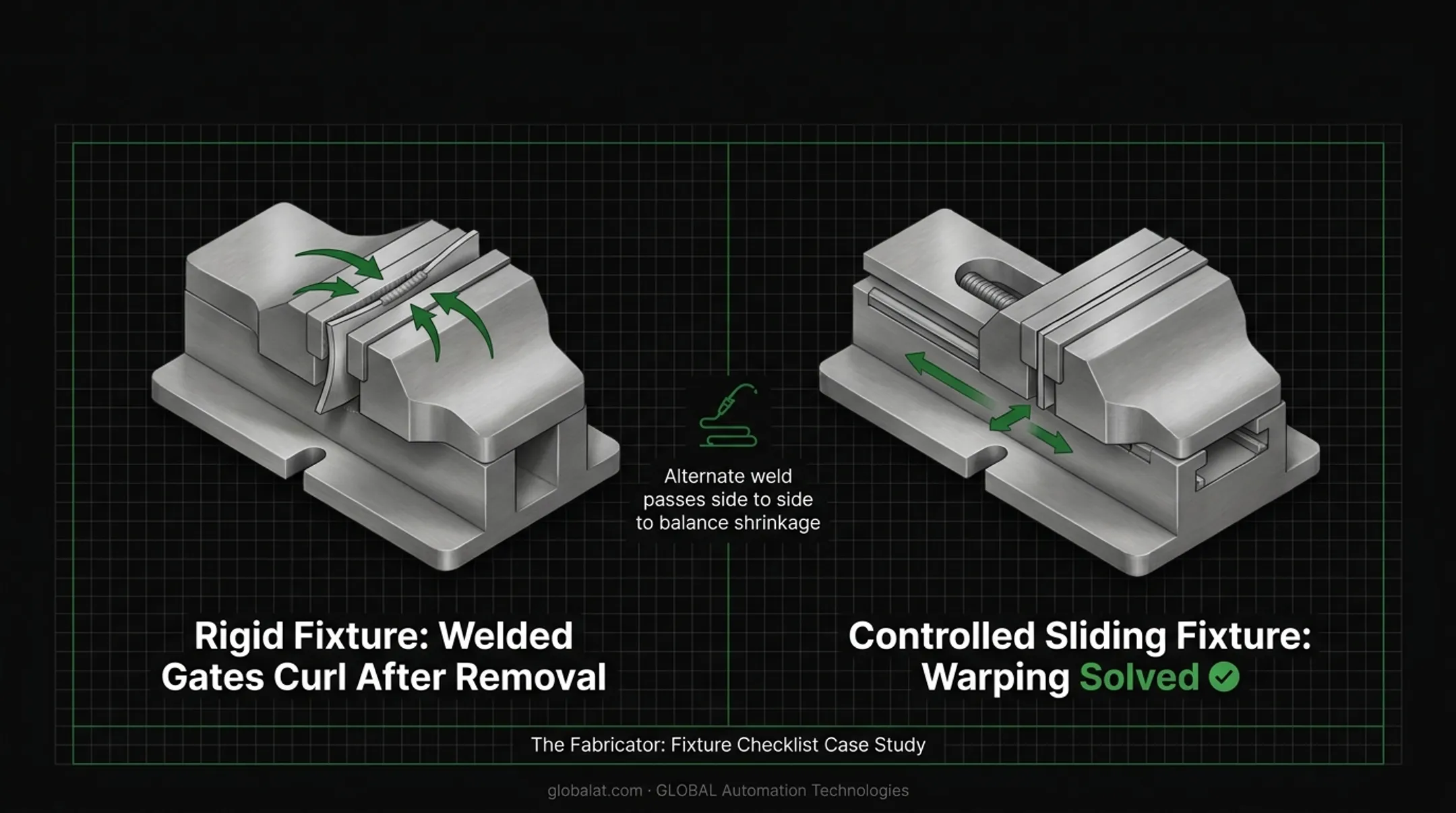

Industry case data on this failure recommends building in a controlled degree of freedom for thermal growth, plus alternating weld passes side to side to balance shrinkage. The Fabricator's fixture checklist documents a case where a rigid, vise-like fixture caused welded gates to curl after removal. Redesigning for controlled sliding instead of full rigidity solved the problem.

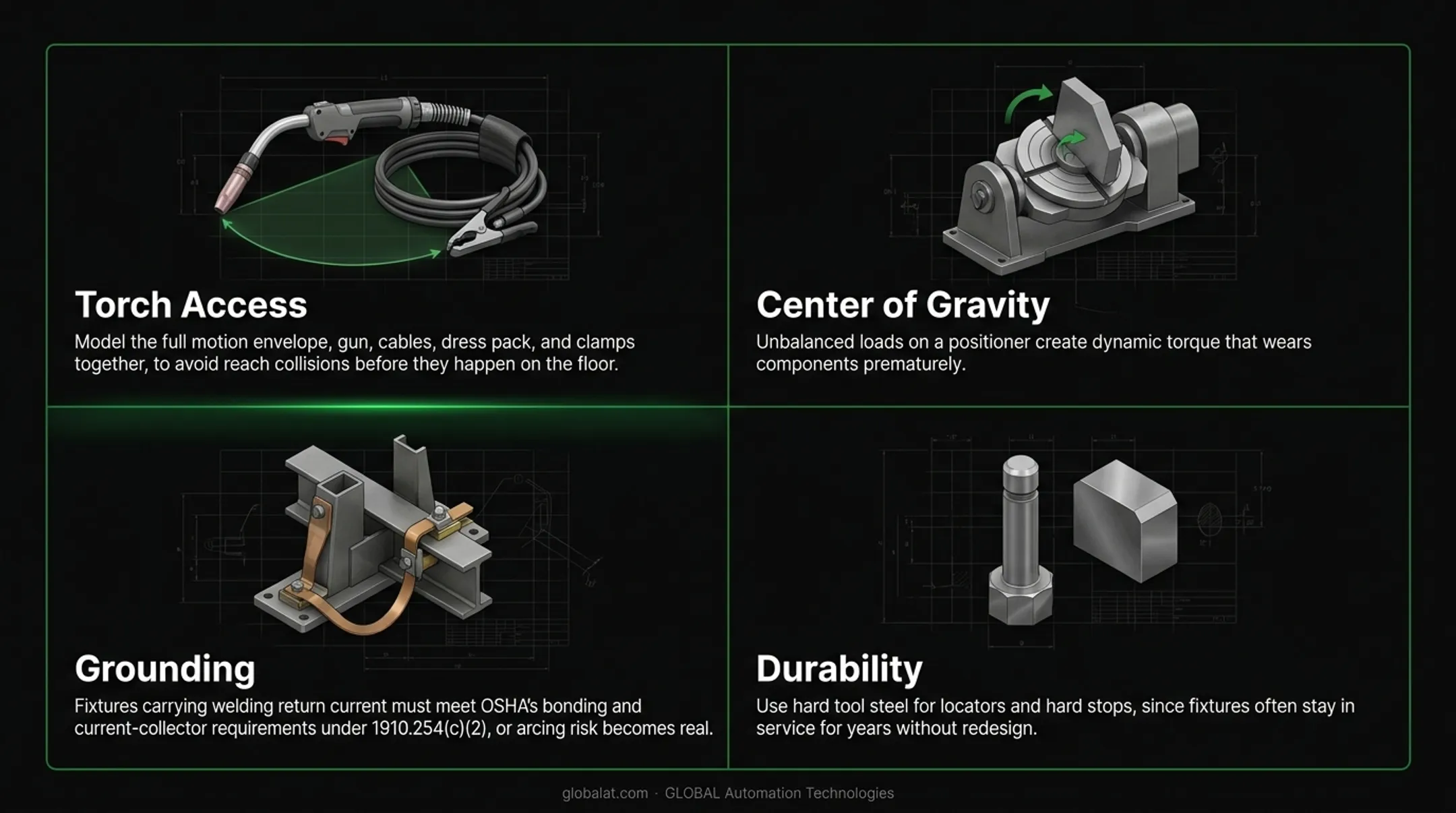

Access, Safety, and Longevity
- Torch access: Model the full motion envelope (gun, cables, dress pack, and clamps together) to avoid reach collisions before they happen on the floor
- Center of gravity: Unbalanced loads on a positioner create dynamic torque that wears components prematurely
- Grounding: Fixtures carrying welding return current must meet OSHA's bonding and current-collector requirements under 1910.254(c)(2), or arcing risk becomes real
- Durability: Use hard tool steel for locators and hard stops, since fixtures often stay in service for years without redesign
Common Fixturing Mistakes That Undermine Weld Quality
Most fixture problems trace back to a handful of repeat offenders:
- Over- or under-clamping thin materials — Too tight and the part can't move naturally under heat; too loose and it shifts mid-weld.
- Ignoring heat effects on geometry — Warped seams and inconsistent fit-up are usually a distortion problem, not a robot problem.
- Retrofitting manual fixtures without redesign — A manual welder compensates for joint variation in real time; a robot converts that same variation into a rejected part. Fillet and lap welds may tolerate a retrofit. Outside-corner and square-butt joints usually need a full redesign for tighter repeatability.
- Overlooking safety design — Pinch points and unguarded load zones are more than a compliance issue. In one documented OSHA case, a worker loading a welding cell was killed when the robot activated without proper lockout. Build fixture and cell safety into the design from day one.
Choosing the Right Fixture Design and Integration Partner
Not every shop needs the same fixture solution, but every shop benefits from working with a partner who treats fixture design as engineering, not an afterthought.
What to evaluate:
- Robotic-specific expertise. A fixture built for manual welding doesn't automatically translate. Look for a track record designing specifically for robotic repeatability.
- Turnkey capability. Layout, fixture design, build, programming, validation, and support under one roof removes the finger-pointing that happens when multiple vendors each own a piece of the cell.
- Cost versus ROI. A cheaper, rushed fixture build often costs more in the long run through rework, downtime, and redesign cycles.
GLOBAL Automation Technologies approaches fixture design as part of a complete welding-cell build, not a separate purchase. The team engineers fixtures, tooling, servo positioning, and part presentation around the actual part geometry and production targets, then validates the entire sequence in simulation before it ever reaches steel.
That AI-assisted simulation work compresses robot programming time from weeks to days and catches interference or access problems before commissioning day. The approach is backed by 18+ years in operation and 630+ robots integrated worldwide.
GLOBAL's dual-division model also means fixture design, commissioning, and ongoing maintenance support aren't limited by whoever happens to be on staff that week. The technical staffing division can supply mechanical designers, controls engineers, and commissioning specialists as projects demand.
Frequently Asked Questions
Which robot is commonly used in welding?
Six-axis industrial robots, commonly from FANUC and similar manufacturers, are the standard for arc and spot welding thanks to their reach and repeatability. Collaborative robots (cobots) are increasingly used for lower-volume or high-mix jobs.
How are robotic welding fixtures different from jigs?
Fixtures are rigid and precise, built for repeatable robotic use where the part must land in the exact same spot every cycle. Jigs are typically looser, manual tools designed to assist a human welder who can compensate for variation.
What is the ROI timeline for investing in custom robotic welding fixtures?
Well-designed fixtures generally pay for themselves through reduced rework, faster cycles, and less downtime. GLOBAL's robotic machine-tending cells typically hit payback in 12 to 18 months, a useful benchmark though welding timelines depend on part complexity and volume.
Can existing manual welding fixtures be reused for robotic welding?
Sometimes, for simple fillet or lap welds where tolerance requirements are forgiving. Outside-corner and square-butt joints usually need significant redesign to meet robotic repeatability standards.
What materials are best for robotic welding fixtures?
Structural steel works well for heavy-duty durability, and tool steel is common for hard stops and locators that resist wear. Copper is often preferred over aluminum for heat-sink and grounding applications, since aluminum's thermal expansion can hurt repeatability.
How do positioners improve robotic welding quality?
Positioners rotate or tilt the part so the robot maintains optimal torch angle throughout the weld. That matters most for multi-sided or angled parts that would otherwise need awkward robot reach or multiple setups.
