The stakes are real. In March 2025, Tesla recalled 46,096 Cybertrucks after the cant rail's stainless panel began delaminating at a structural adhesive joint, according to NHTSA recall 25V-170. The remedy: a new adhesive formulation plus a welded stud and clamping nut as backup.
This article covers the adhesive types automakers use, how bonding stacks up against welding, where robotics fit into consistent application, and what it takes to get bond quality right at scale.
Key Takeaways
- Structural adhesives now cover BIW, battery packs, and closures as EV growth and lightweighting expand demand
- Epoxies, urethanes, and hybrids each fit different joints, substrates, and cure requirements
- Bonded joints spread load over larger areas than spot welds, raising strength and corrosion resistance
- Robotic dispensing with real-time bead validation stops process variation that drives recalls
What Are Automotive Structural Adhesives and How Do They Work
What Are Automotive Structural Adhesives and How Do They Work?
Structural adhesives are load-bearing bonding agents (liquids, pastes, tapes, or films) used to join body panels, chassis components, EV battery housings, and glass. Unlike a rivet or weld, they don't create a single point of connection. They distribute stress across the entire bonded surface.
Two mechanisms make this possible:
- Mechanical interlocking: adhesive flows into surface pores and roughness, physically gripping the substrate
- Chemical bonding: molecular attraction between the adhesive and a clean substrate surface, described by 3M as the strongest adhesion mechanism

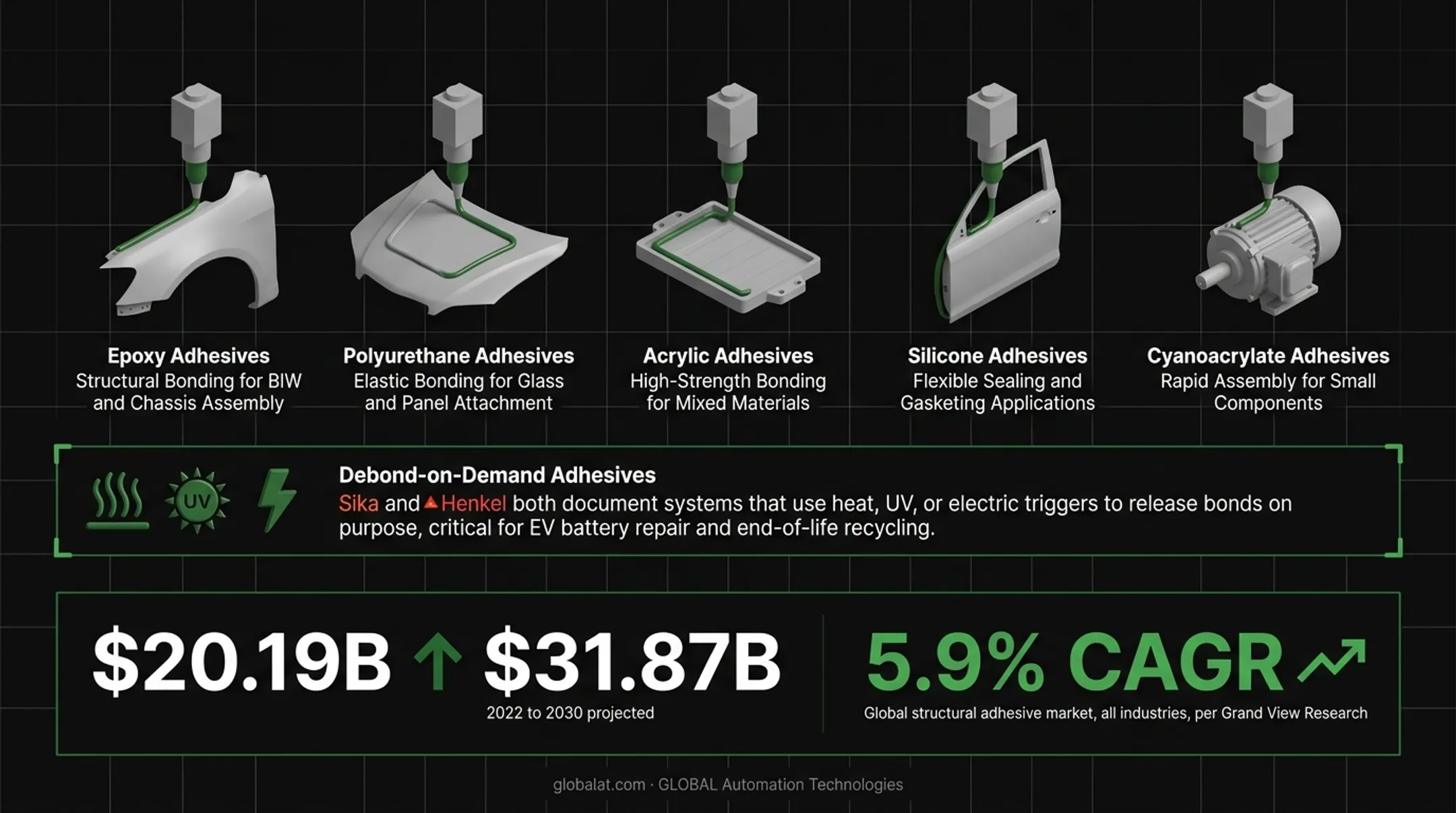

Major Adhesive Chemistries in Automotive
| Chemistry | Best for |
|---|---|
| Epoxies | High strength, stiffness, crash performance (BIW) |
| Urethanes | Elasticity, glass bonding, flexible joints |
| Epoxy-acrylic hybrids | Fast cure, high toughness |
| Cyanoacrylates | Small components, electronics |
Beyond these workhorse chemistries, debond-on-demand adhesives are entering production use. Sika and Henkel both document systems that use heat, UV, or electric triggers to release bonds on purpose—critical for EV battery repair and end-of-life recycling.
The global structural adhesive market was valued at $20.19 billion in 2022 and is projected to hit $31.87 billion by 2030, a 5.9% CAGR, according to Grand View Research. That figure spans all industries, not automotive alone, but it signals where materials science is heading.
Structural Adhesives vs. Welding and Mechanical Fasteners
The core tradeoff comes down to loading direction. Adhesives excel in shear and compression, where stress spreads evenly across the bond area. They perform poorly in peel, where stress concentrates at one edge. Spot welds are built for exactly that peel-loaded scenario.
Why engineers choose adhesives anyway:
- Bond dissimilar materials (aluminum to composite, steel to plastic) that welding can't touch
- Distribute stress evenly, reducing fatigue-prone stress risers
- Cut weight compared with mechanical fasteners
- Seal joints against air, water, and corrosion in one step
- Allow complex geometries that don't accommodate weld access
The tradeoffs:
- Cure time can slow production compared to instant spot welds
- Surface prep adds a process step
- Dispensing cells need floor space
- Assembly teams sometimes resist moving away from familiar welding
Weld Bonding and Rivet Bonding
Those cure-time and fixturing limits are why manufacturers often combine methods. Weld bonding and rivet bonding use a weld or rivet to hold panels while the adhesive cures. The mechanical joint clamps the stack so production can continue without waiting on full adhesive strength. SAE notes that self-piercing rivets clamp panels together during cure — a common approach for aluminum-intensive structures.

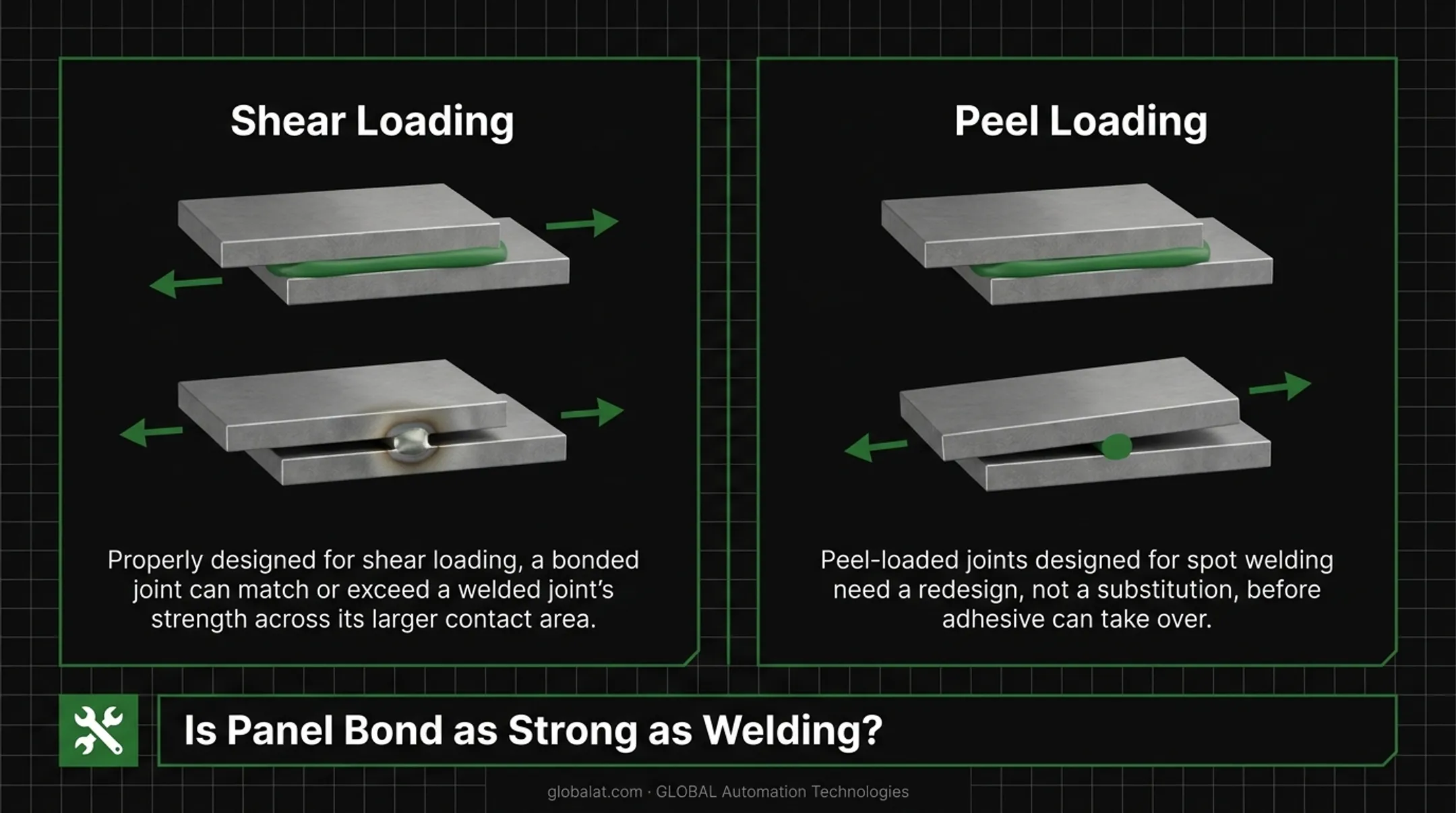

Is Panel Bond as Strong as Welding?
Properly designed for shear loading, a bonded joint can match or exceed a welded joint's strength across its larger contact area. But it's not a drop-in replacement. Peel-loaded joints designed for spot welding need a redesign, not a substitution, before adhesive can take over.

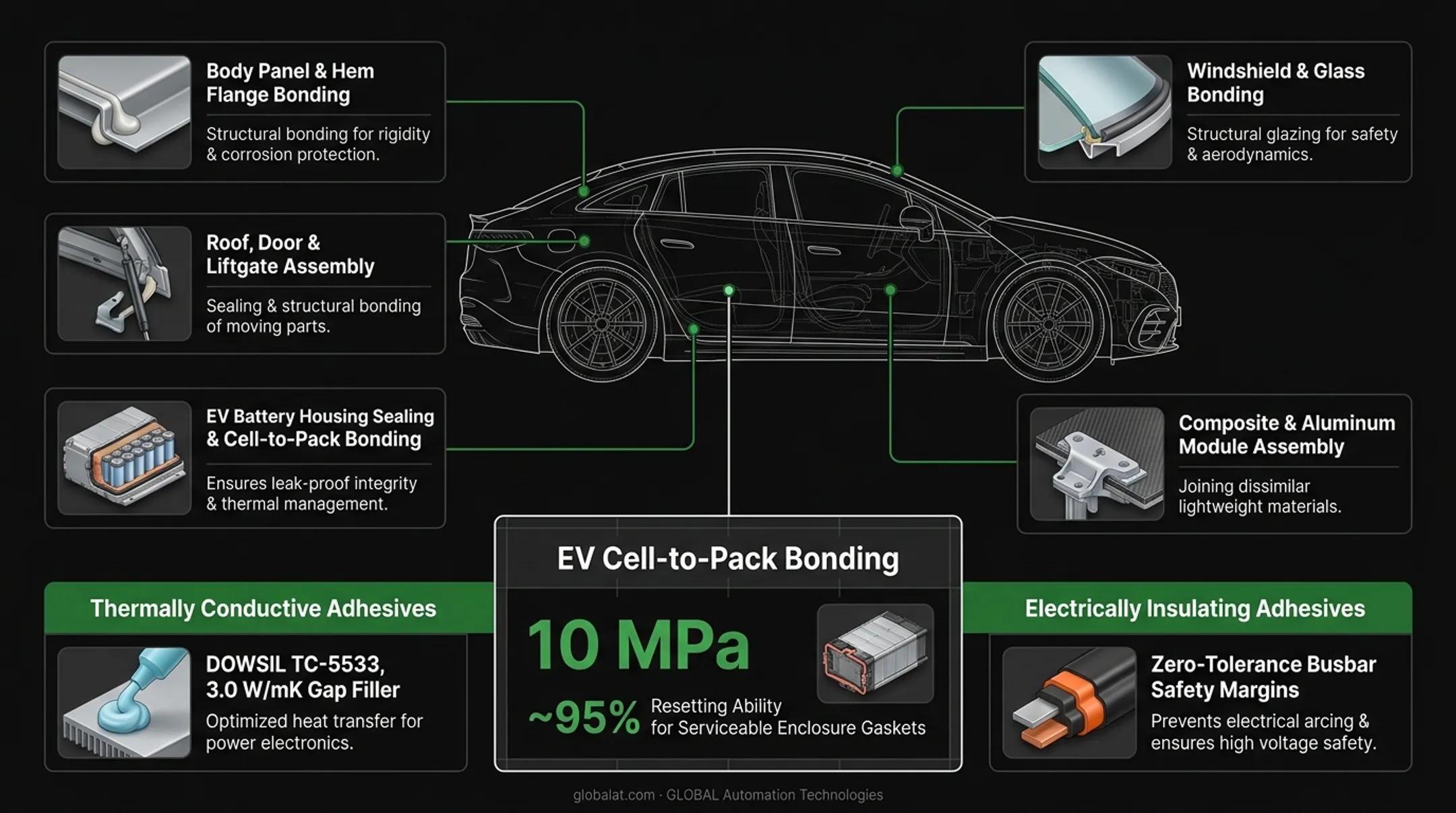

Where Structural Adhesives Are Used in Modern Vehicles
Structural bonding now shows up across nearly every major vehicle body assembly:
- Body panel and hem flange bonding
- Roof, door, and liftgate assembly
- EV battery housing sealing and cell-to-pack bonding
- Windshield and glass bonding
- Composite and aluminum module assembly
EV production has pushed adoption faster than any other segment. Henkel documents cell-to-pack bonding at roughly 10 MPa bond strength, with serviceable enclosure gaskets offering about 95% resetting ability for repair access. That demand profile differs from a body panel: the adhesive must hold structurally and stay serviceable for maintenance.
Two material trends track battery growth:
- Thermally conductive adhesives for heat dissipation, such as Dow's DOWSIL TC-5533 gap filler at 3.0 W/mK
- Electrically insulating adhesives around high-voltage busbars, where safety margins leave no room for error
Those use cases also set different requirements for bead geometry, dispense accuracy, and cure control on the production line.
Why Robotic Application Is Critical for Consistent, High-Strength Bonds
Manual dispensing struggles with the precision structural adhesives demand. Bead geometry, mix ratios, and flow rate all need to stay within tight tolerances across every single part. Operator variability creates missed spots, thin beads, and inconsistent placement: the exact conditions that lead to defects, recalls, and downtime.
Robotic dispensing cells solve this with repeatable path accuracy and controlled flow rates across high-volume lines. Real-time vision inspection and flow monitoring catch problems before parts move downstream, checking three critical bead characteristics:
- Width — flags thin or over-applied beads
- Placement — confirms the bead follows the programmed path
- Continuity — detects missed sections or gaps
GLOBAL Automation Technologies, which holds Level 5 status in FANUC’s Authorized System Integrator program, builds turnkey robotic dispensing systems for automotive OEMs and Tier 1 suppliers. GLOBAL's cells use FANUC robots to run complex 3D paths around panel contours and joint geometries, with mix-ratio validation for two-component adhesives and synchronized control of flow rate, gun parameters, and robot speed.
When the system detects off-spec material or a missed path, it flags the issue inline before the part advances.
GLOBAL's scope covers the full deployment lifecycle:
- Process study, layout, and system design
- Adhesive-process engineering and 3D path programming
- Simulation and build
- Installation, commissioning, and operator training
- Ongoing technical support and maintenance
AI-assisted simulation shortens the path to production. By modeling and testing robot programs before code runs on the floor, GLOBAL cuts programming timelines from weeks to days, reducing startup risk for new adhesive bonding cell deployments.
Best Practices for Implementing Structural Adhesive Bonding
Getting lab-spec bond strength on the factory floor comes down to a few disciplines:
Surface preparation comes first. According to 3M's technical guidance, metals need oil and grease removed even when they look clean, followed by abrasion and solvent cleaning. Bare aluminum needs oxide removal. Skipping this step is the single biggest reason bonds underperform their datasheet values.
Review joint design early. Route loads into shear and tension, not peel and cleavage. That call belongs at the design stage, not after tooling is cut.
Cross-train engineering and assembly teams. Adhesive bonding behaves differently than welding: different fixturing, failure modes, and process sensitivities. Teams that understand why adhesives work adopt the process faster.
Frequently Asked Questions
What is the best adhesive for bonding automotive body panels?
Epoxy-based adhesives dominate body panel bonding thanks to their strength, stiffness, and chemical resistance. Urethanes are preferred for glass and joints that need flexibility rather than rigidity.
Is panel bond as strong as welding?
Properly designed adhesive joints can match or exceed weld strength in shear-loaded applications. They require joint redesign, though, not a direct swap for peel-loaded welds.
What is the strongest automotive adhesive available?
High-temperature toughened epoxies and epoxy-acrylic hybrids offer the highest shear and tensile strengths in most structural applications. Performance still depends on the formulation and substrate combination.
How long does automotive structural adhesive take to cure?
Heat-accelerated cures can finish in minutes; ambient moisture-cure urethanes often need several hours. Manufacturers commonly use rivets or welds to fixture parts until the adhesive reaches full strength.
Can structural adhesives be used with aluminum and composite materials?
Yes. Adhesives are often the preferred joining method for aluminum and composite structures where welding isn't practical, frequently paired with rivet bonding for fixturing during cure.
