Introduction
Every manufacturer eventually faces the same question: catch defects live on the line, or verify quality after parts leave it? Inline and offline inspection are the two pillars of modern quality control, and the choice between them shapes far more than just how a part gets checked.
It affects scrap rates, rework costs, cycle time, and how fast a plant can catch process drift before it becomes a recall. Get it wrong, and a small variance in bead width or paint thickness can travel through five more stations before anyone notices.
The stakes are well documented. The widely cited 1:10:100 rule estimates that a defect caught during prevention costs roughly $1 to fix, $10 if caught before the product ships, and $100 once it reaches the customer — a heuristic from Labovitz, Chang, and Rosansky's Making Quality Work, not a lab-measured constant, but directionally accurate for most production environments.
This article breaks down what inline and offline inspection actually do, where each one wins, and how plants combine both—something GLOBAL Automation Technologies sees often when integrating vision and inspection into robotic cells—for full-process visibility.
Key Takeaways
- Inline inspection catches defects in real time on the line using vision systems and sensors.
- Offline inspection pulls samples for lab-grade, high-precision analysis and certification.
- High-volume lines favor inline; low-volume, high-precision parts favor offline.
- Combining both delivers continuous process control plus final certification confidence.
Inline vs Offline Inspection: Quick Comparison
The two methods solve different problems, and the differences show up fast once you compare them side by side.
| Factor | Inline Inspection | Offline Inspection |
|---|---|---|
| Cost structure | Higher upfront integration (cameras, sensors, robotic tooling); lower cost per part at scale | Lower setup cost; higher labor and cycle-time cost since parts must be pulled and transported |
| Speed & timing | Real-time, checks near 100% of parts without stopping the line | Batch or sample-based, performed after a stage or at end of line |
| Detection strength | Surface, dimensional, and process-variation defects visible in motion | Micron-level precision, internal flaws, destructive/lab-grade testing |
| Integration complexity | Requires line-speed sync, robotics, lighting, MES/PLC tie-in | Needs dedicated space, fixtures, trained metrology staff |
| Best fit | High-volume automotive, Tier 1, heavy industry lines | Precision components, regulatory audits, root-cause work |

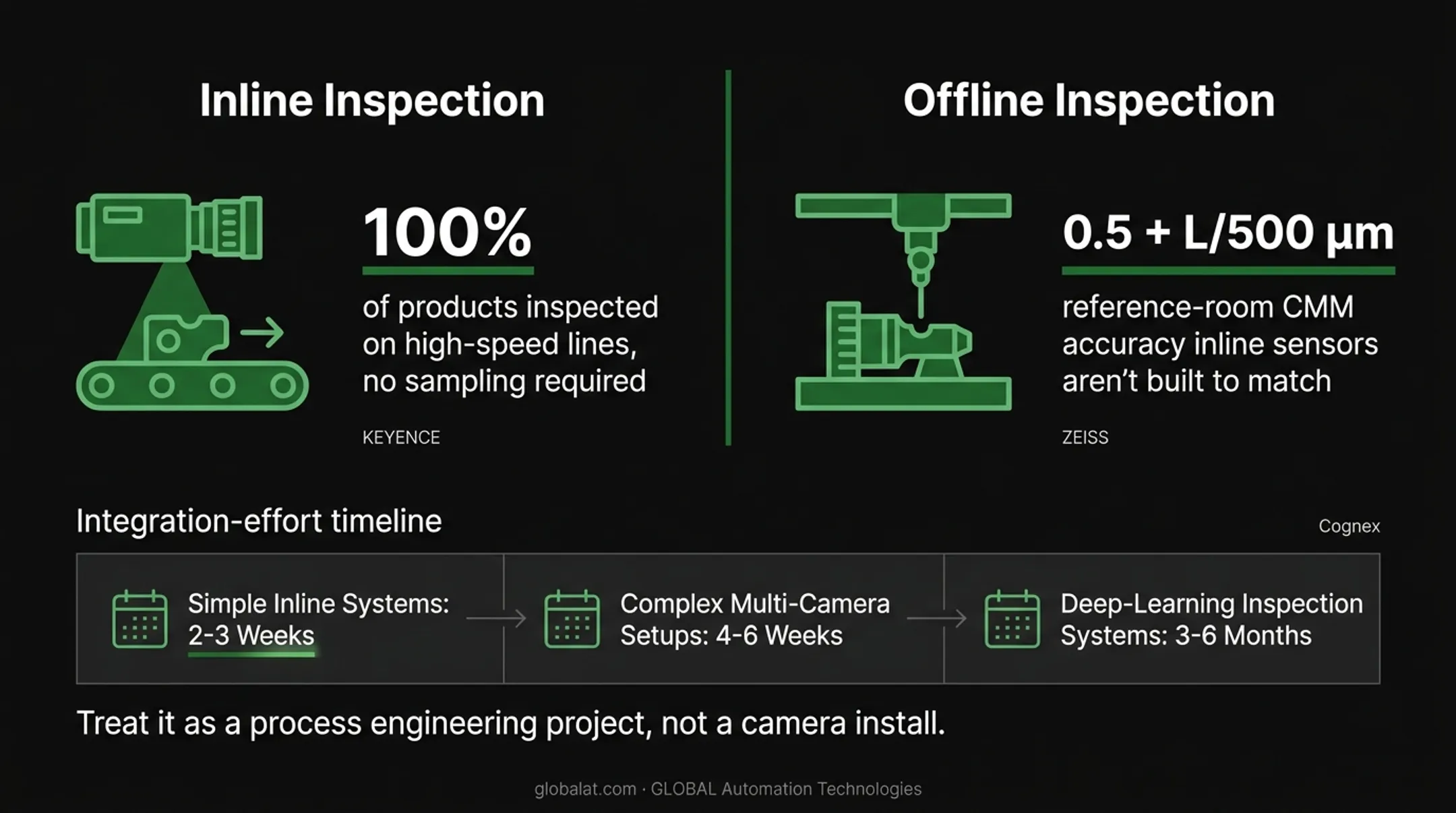

KEYENCE reports that modern vision systems can inspect 100% of products on high-speed lines, with no sampling required. Offline precision metrology is a different class of tool: a ZEISS reference-room CMM can measure to within 0.5 + L/500 micrometers, accuracy inline sensors aren't built to match.
Integration effort also differs sharply. Cognex estimates simple inline systems take 2-3 weeks to deploy, complex multi-camera setups take 4-6 weeks, and deep-learning inspection systems can take 3-6 months. Treat it as a process engineering project, not a camera install.
What Is Inline Inspection?
Inline inspection is quality control performed directly within the production process. Machine vision, sensors, or robotic tooling sit at critical stages and analyze parts in motion or immediately after processing: no pulling parts, no waiting for a batch.
The operational payoff is straightforward:
- Catches defects at the source, so fewer parts get scrapped five stations later
- Gives operators and engineers feedback the moment a problem appears
- Corrects process drift before it compounds, raising first-pass yield
Inline systems also generate continuous data tied to specific production stages. That data supports root-cause analysis and predictive maintenance in a way a once-a-shift sample check simply can't.
Common Inline Inspection Technologies
Inline inspection covers a family of tools matched to the application:
- 2D and 3D machine vision cameras
- Laser and optical sensors
- Robotic-mounted inspection cameras
- In-process gauging
Robotic-integrated inspection is a strong fit for high-mix cells. GLOBAL Automation Technologies, a top-tier Level 5 FANUC Authorized System Integrator, builds vision inspection directly into robotic dispensing cells, verifying bead width, placement, and continuity on every dispensing cycle. In painting cells, vision guides the robot to locate and orient parts; full coverage and finish inspection, with robotic spot repair, happens downstream rather than live in the booth.
If material runs off-spec or a path gets missed, the system catches it before the part moves downstream, not after three more process steps bury the defect.
Use Cases of Inline Inspection
Inline inspection fits naturally into welding, dispensing, painting, and machine tending cells on high-volume lines. It shows up most often in:
- Automotive OEMs and Tier 1 suppliers running body-in-white, seam sealing, and structural adhesive applications
- EV battery assembly lines needing zero-touch inspection at speed
- Heavy equipment manufacturing with continuous weld and coating operations
- Data center infrastructure production, where throughput demands leave no room for manual sampling
The results back this up. Kimball Electronics deployed inline 3D laser inspection of solder-paste deposits before reflow and raised first-pass yield from 97.5% to 99.5% within several weeks. Without inline detection, as many as 160 additional boards could be populated before a defect was caught. That's the core argument for inline: it shrinks the window between a defect occurring and someone noticing.
What Is Offline Inspection?
Offline inspection happens away from the active line: in a metrology lab, CMM room, or dedicated end-of-line station. Parts are pulled as samples or checked as completed batches, then measured or tested using methods too slow or too destructive for a moving line.
Its value shows up in different places than inline inspection:
- Supports regulatory compliance and dimensional certification for audited processes
- Catches systemic issues that inline sensors aren't built to see
- Enables slower, high-precision analysis (CMM, tensile testing, cross-sectioning) where speed constraints don't apply
Offline Inspection Methods
Offline inspection covers a range of methods depending on what's being verified:
- Coordinate measuring machines (CMM)
- Manual gauge stations
- Sample-based AQL audits
- Lab-based material and chemical testing
Some of these methods are inherently destructive. Tensile testing, for instance, pulls a specimen to failure, so it can never inspect every saleable part—only a representative sample.
Use Cases of Offline Inspection
Offline inspection dominates wherever certification, precision, or documentation outweighs speed:
- Final part certification and new-supplier qualification
- First-article inspection (FAI), required under standards like AS9102
- Periodic audits supporting PPAP or ISO documentation
- Aerospace-grade components and safety-critical welds requiring destructive testing
AS9102 first-article inspection is a clear example of what offline verification buys a manufacturer. It's a documented, independent process confirming the process produced a conforming part, triggered by a first run, a design change, or even a production gap of two or more years.
You can't point to one recall it prevented. What it delivers is the paper trail regulators and OEM customers expect before signing off on a new part number.
Inline vs Offline Inspection: Which Is Better?
Neither wins outright. The right answer depends on a handful of variables:
- Production volume: thousands of parts a day favor inline; small batches tolerate offline delay
- Part complexity and tolerance requirements: micron-level tolerances often need offline metrology
- Cost of a missed defect: safety-critical or high-value parts justify slower, more thorough checks
- Existing automation infrastructure: retrofitting vision into a robotic cell is easier if the cell is already automated
Rule of thumb: Choose inline for high-volume, repetitive production needing real-time process control (welding, dispensing, painting cells). Choose offline for precision certification, low-volume complex parts, or regulatory sign-off.
Most resilient quality strategies don't pick one. They use inline for continuous process control and offline for final validation, sampling audits, or dispute resolution.
Real-World Example: Robotic Inline Inspection in a Dispensing Application
A common scenario in body-in-white production: inconsistent bead application (thin sections, missed path segments, voids in structural adhesive) goes unnoticed until parts reach end-of-line inspection. By then, rework means disassembly, reapplication, and delayed shipments.
GLOBAL Automation Technologies addresses this by building real-time vision inspection and flow monitoring directly into the robotic dispensing cell rather than relying solely on downstream checks. The system verifies bead width, placement, and continuity on every cycle as the robot follows the programmed 3D path along panel contours and joint geometries.
If material runs off-spec, the system flags it immediately, before the part advances. For applications like PurFoam cavity fill, where too little material leaves voids and too much damages the part, that real-time check replaces guesswork with verified data on every unit, not just the ones pulled for a sample audit.
For high-volume dispensing, welding, or painting operations, inline inspection catches defects before they propagate. Offline checks still earn their place for periodic certification and root-cause investigations, but they shouldn't be the first line of defense on a fast-moving cell.
If you're weighing whether your dispensing, welding, or painting cell needs inline vision capability built in, talk to GLOBAL Automation Technologies about integrating it directly into your robotic system.
Conclusion
Neither inline nor offline inspection is inherently better. The right choice depends on production volume, tolerance requirements, and how quickly a defect needs to be caught before it cascades into scrap, rework, or a compliance headache.
The goal is reduced scrap, faster throughput, and stronger compliance. Manufacturers get the strongest quality results by combining both approaches, as GLOBAL Automation Technologies does when integrating vision inspection into robotic dispensing, painting, and welding systems. That hybrid model avoids a forced tradeoff between speed and precision.
Frequently Asked Questions
What is inline inspection?
Inline inspection is quality control performed directly in the production process. Vision systems, sensors, or robotic tooling catch defects in real time as parts move or are processed.
What are the different types of manufacturing inspections?
The main categories are pre-production, in-process/inline, end-of-line/offline, and audit-based inspections. Each serves a different point in the production timeline, from first-article checks to final certification.
What is ITP in manufacturing?
An Inspection and Test Plan (ITP) is a structured document outlining what inspections and tests occur at each production stage, who performs them, and the acceptance criteria used to pass or reject a part.
What is offline inspection in manufacturing?
Offline inspection refers to quality checks performed away from the active line, typically in a lab or dedicated station, using pulled samples or completed parts for detailed, often destructive, analysis.
Which is more cost-effective: inline or offline inspection?
Inline inspection carries higher upfront integration cost but lower per-part cost at scale. Offline inspection has lower setup cost but accumulates higher labor and delay costs over time.
Can inline and offline inspection be used together?
Yes. Most mature manufacturing operations combine inline checks for continuous process control with offline checks for final certification, audits, or root-cause investigation.
