Introduction
A missed defect doesn't just cost a scrapped part. It costs warranty claims, customer complaints, and sometimes a recall. Scrap and rework alone can drain up to 2.2% of a manufacturer's annual revenue, and that number climbs once you add the cost of defects customers find first.
Meanwhile, parts keep getting more complex. Tolerances keep getting tighter. Manual tools like calipers, micrometers, and go/no-go gauges simply can't keep pace.
They're slow. They depend on the operator holding the gauge. And they can't check every part at production speed.
Machine vision closes that gap. This guide breaks down what inspection and measurement systems actually are, how resolution and accuracy really work, the three main system types, and where plants deploy them on the floor.
Key Takeaways
- Machine vision replaces manual gauging with cameras, lighting, and software that measure parts at line speed—no contact required
- Resolution ≠ accuracy: calibration sets real-world accuracy, not pixel count alone
- 1D, 2D, and 3D systems solve different geometry problems—from height checks to full surface profiling
- Vision now runs inside robotic cells, catching defects inline instead of offline sampling
What Is Machine Vision for Inspection and Measurement?
Machine vision for inspection and measurement captures images of a part, then converts pixel data into a pass/fail decision or a precise physical measurement. No human eyes or manual gauges are required. The setup is a camera, software, and tolerances programmed in advance.

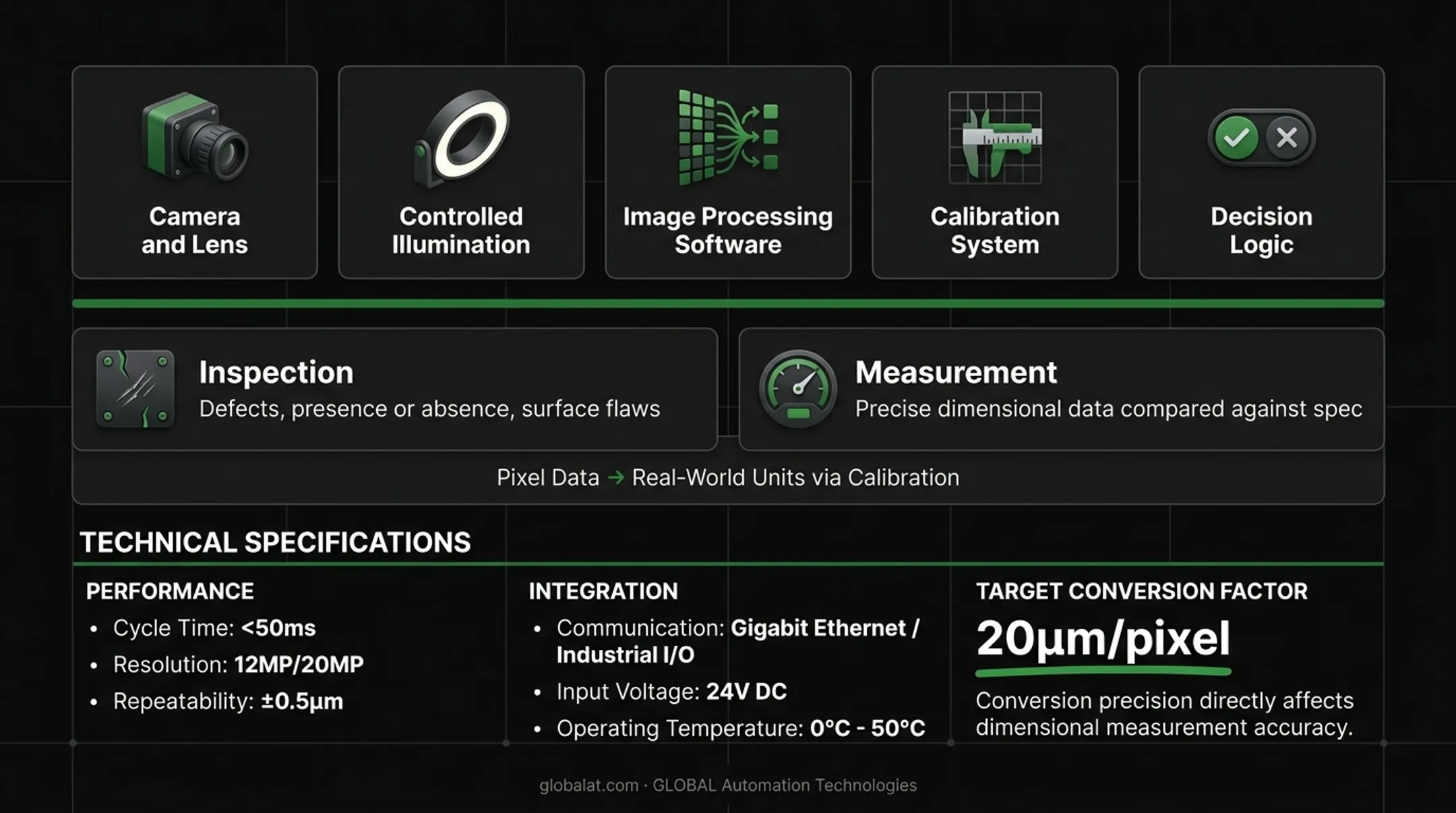

Every system relies on five core components:
- Camera and lens — captures the raw image of the part
- Controlled illumination — lighting engineered to highlight the specific feature being checked
- Image processing software — analyzes pixels and extracts data
- Calibration system — converts pixel measurements into real-world units
- Decision logic — compares results against tolerances and triggers a pass, fail, or alert
Inspection and measurement aren't the same task, even though they run on the same hardware. Inspection detects defects, presence or absence, and surface flaws: a scratch, a missing rivet, a wrong-colored wire. Measurement extracts precise dimensional data, such as a bore diameter or a gap width, and compares it against a spec.
Raw pixel data means nothing on its own. The system has to convert that pixel grid into millimeters or microns through calibration. That need for fast, repeatable, real-world accuracy is a big reason manufacturers are moving off manual checks.
Why Manufacturers Are Adopting Machine Vision
Demand for machine vision is climbing fast. The global machine vision camera market alone is projected to grow from $6.28 billion in 2024 to $10.19 billion by 2030, an 8.6% compound annual growth rate, driven largely by manufacturers replacing manual checks with automated ones.
Three forces show up most often on the plant floor:
- Industry 4.0 initiatives demand connected, data-generating quality systems rather than paper checklists
- 100% inline inspection is replacing manual sampling, since checking one part in fifty no longer catches enough defects
- Non-contact measurement protects delicate, coated, or thin-film parts that a caliper could scratch or deform just by touching them
How Machine Vision Measurement Works: Resolution, Accuracy, and Calibration
Resolution is the smallest change a system can detect. It's driven by how many pixels cover your field of view. A camera imaging a 30 mm part with 480 pixels across that span gives you roughly 0.063 mm per pixel. Swap in a 1,200-pixel sensor over the same field, and resolution tightens to 0.025 mm per pixel.
Measuring an object across many pixels, rather than a single edge-to-edge span, statistically improves that figure.
Resolution is not accuracy.
A system can report measurements in tiny increments and still be inaccurate if it isn't properly calibrated. Real-world accuracy depends on compensating for:
- Perspective and camera angle
- Lens distortion
- Lighting and contrast shifts
- Distance from the target
- Temperature drift and vibration
Calibration: Turning Pixels Into Physical Units
Calibration involves imaging a known reference (a dot grid, checkerboard, or precision-machined block) to establish the pixel-to-physical-unit conversion and correct lens distortion. Skip this step, and even a high-resolution camera produces unreliable numbers.
Metrology has a long-standing rule of thumb: your instrument's accuracy and repeatability should be at least 10 times tighter than the tolerance you're measuring. Some tighter-tolerance applications use a 4:1 ratio instead. Either way, don't spec a vision system that barely clears the tolerance band. It needs real margin.

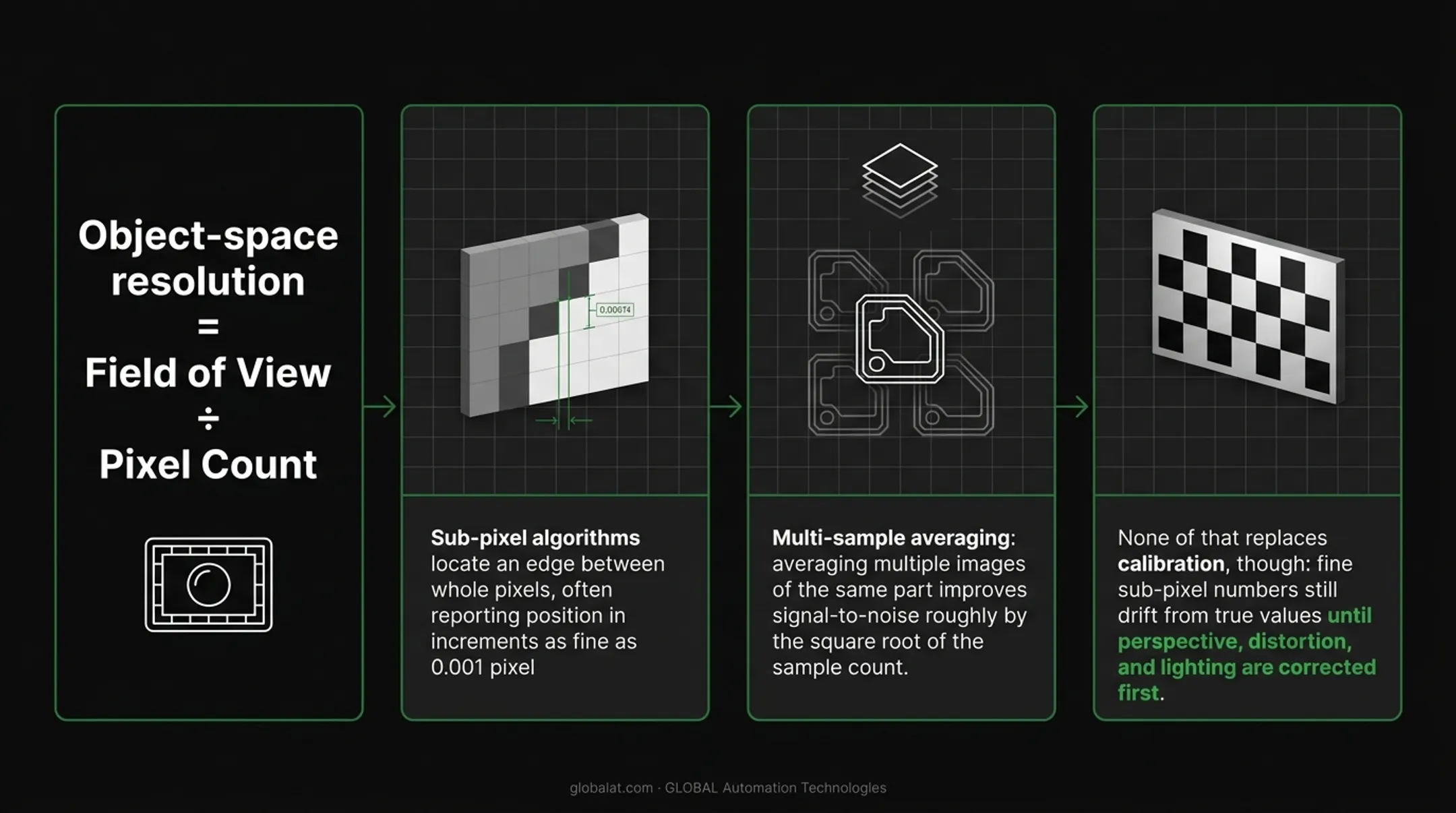

How Resolution Is Calculated
The basic formula is straightforward:
Object-space resolution = Field of View ÷ Pixel Count
That's the starting point, not the final answer. Sub-pixel algorithms locate an edge between whole pixels, often reporting position in increments as fine as 0.001 pixel. Multi-sample averaging pushes effective resolution further: averaging multiple images of the same part improves signal-to-noise roughly by the square root of the sample count. None of that replaces calibration, though—fine sub-pixel numbers still drift from true values until perspective, distortion, and lighting are corrected first.
Types of Machine Vision Systems for Inspection and Measurement
Not every part needs the same measurement approach. System choice depends on the geometry you're checking and the tolerance you need to hit.
| System Type | Measures | Best Fit | Typical Accuracy |
|---|---|---|---|
| 1D | Single axis (height, gap, thickness) | Conveyor-line height gauging, thickness profiling | Application-dependent, high repeatability |
| 2D | X/Y plane: width, diameter, position, angle | Silhouette gauging, presence/absence checks | Fractions of a millimeter with calibration |
| 3D | X/Y/Z: full surface geometry | Flatness, weld bead profile, volume | Sub-millimeter, application-dependent |
1D Systems: Linear Distance Measurement
1D systems measure a single axis using line or point sensors. They're the simplest and often the fastest option, well suited to height gauging, gap checks, or thickness profiling as parts move along a conveyor. If you only need one number, a 1D sensor avoids the cost and complexity of a full imaging system.
2D Systems: Planar Measurement
2D systems capture a full image frame, then use sub-pixel edge detection to measure width, diameter, position, and angle within the X/Y plane.
With proper calibration, industrial 2D systems commonly achieve sub-pixel accuracy in the range of 0.05 to 0.10 pixel, or fractions of a millimeter depending on field of view. This is the workhorse category for gauging stamped parts, checking hole positions, and verifying assembly features.
3D Systems: Full Spatial Geometry
3D systems add the Z axis using structured light, laser triangulation, or stereo cameras. That extra dimension lets them measure height variation, flatness, weld bead profile, or cavity volume—none of which a 1D or 2D system can capture on its own.
Laser triangulation, for instance, builds a surface profile line by line as a part moves past on a conveyor, making it a strong fit for inline weld and battery inspection.
Common Applications of Machine Vision Inspection and Measurement
Machine vision measurement now shows up across nearly every stage of manufacturing:
- Part gauging: checking hole diameter, bore position, and flatness on stamped or machined components
- Assembly verification: confirming fasteners, inserts, and components are present and correctly seated
- Weld and bead quality checks: profiling weld beads or sealant lines for width, height, and continuity
Rather than treating inspection as a separate offline step, more manufacturers are building it directly into robotic automation cells. That shift means quality validation happens in real time, on every part, instead of relying on periodic sampling after the fact.
At GLOBAL Automation Technologies, a Level 5 FANUC Authorized System Integrator, real-time vision inspection and flow monitoring are engineered directly into robotic dispensing and sealing cells, covering seam sealer, structural adhesives, PurFoam, cavity wax, and underbody material applications.
The system checks bead width, placement, and continuity on every cycle, catching off-spec material or a missed dispensing path before the part moves downstream. For a zero-tolerance process like structural adhesive bonding, that inline check is the difference between a sealed joint and a warranty claim two years later.
Machine Vision vs. Manual Inspection Methods
Manual inspection has a fatigue problem. A human checking the same feature for eight hours doesn't measure it the same way at hour one as at hour seven. Machine vision doesn't get tired. It applies identical criteria at 2 a.m. as it does at 9 a.m.
On the floor, the gap usually shows up in four places:
- Consistency — same pass/fail rules every shift, with no fatigue drift
- Non-contact checks — no risk of marring coated, soft, or polished parts
- Throughput — hundreds of measurements at line speed
- Catch rate — higher detection when lighting, optics, and validation are done right
Non-contact measurement matters more than it sounds. For delicate, coated, or thin-film parts, a caliper or physical gauge can cause the very defect it's supposed to catch: a scratch on a Class A painted surface, a dent in soft foam, a mark on a polished chrome part.
Older trade research put human visual detection at roughly 85% effective, against far higher detection rates for vision systems checking the same defect types. Treat that gap as directional rather than a guarantee.
Actual performance always depends on lighting, optics, and how well the system was validated. Still, the direction is consistent across the industry: vision systems catch more, at higher speed, with no shift-to-shift variation.
Some published cells illustrate the throughput gap directly. One stamped-terminal inspection system checks up to 250 measurements across more than 50 strip types while keeping pace with production running at 1,200 parts per minute. No manual station could sustain that rate with calipers and a clipboard.
Frequently Asked Questions
What is a machine vision measurement system used for?
Machine vision measurement systems handle dimensional gauging, defect detection, and pass/fail or grading decisions across manufacturing. Common applications include automotive body panels, electronic connectors, and heavy equipment welds.
How accurate is machine vision measurement?
Accuracy depends on calibration, lens quality, and how well the system compensates for lighting, distance, and vibration. Well-calibrated systems typically achieve fractions of a millimeter down to sub-micron precision.
How is machine vision measurement resolution calculated?
Resolution equals field of view divided by pixel count in the measured axis. Sub-pixel processing and multi-sample averaging then push effective resolution well beyond that raw pixel figure.
How much does a machine vision measurement system cost?
Cost varies widely based on system type (1D, 2D, or 3D), camera and lens quality, and whether the system integrates into an existing robotic cell or is built new. An integrator can scope accurate pricing for your specific application.
What is the difference between resolution and accuracy in machine vision?
Resolution is the smallest detectable change a system can register. Accuracy is how closely those measurements match true, real-world values after calibration and compensation for environmental factors.
Can machine vision replace manual inspection tools like calipers and micrometers?
In most production settings, machine vision matches or exceeds manual accuracy at far higher speed and consistency. Highly variable or one-off parts may still call for supplemental manual checks.
