Labor shortages make this worse. NIST projects that up to 2.1 million U.S. manufacturing jobs could go unfilled by 2030, leaving fewer skilled hands available for inspection-heavy roles.
Intelligent vision systems fill that gap. These are AI-powered "eyes" for automated equipment that go beyond simply capturing images. They interpret what they see and trigger real-time decisions across quality control, robotic guidance, and safety.
This article covers what these systems are, how they work, the types available, real manufacturing applications, and what they typically cost.
Key Takeaways
- Combine cameras, lighting, and AI to inspect parts and drive real-time production decisions
- Learn from data instead of fixed rules, so they adapt where traditional machine vision stalls
- Support quality control, robotic guidance, assembly verification, and traceability on the line
- Start at a few thousand dollars for smart cameras; custom PC-based systems cost more
What Is an Intelligent Vision System?
An intelligent vision system pairs cameras or sensors, lighting, and AI or deep learning software to capture, interpret, and act on visual data in real time. It doesn't just record images. It makes decisions.
That's the critical difference from traditional machine vision. Older systems rely on fixed, programmed thresholds: if a measurement falls outside a set range, the part fails. Intelligent systems instead use machine learning to:
- Adapt to lighting shifts or part-to-part variation
- Learn from labeled reference images rather than rigid rules
- Improve accuracy as more data feeds into the model
This closes the loop between inspection and action. Results feed directly into robots or PLCs. A defect can trigger a reject, a path adjustment, or a process change immediately—instead of waiting for a human to review it later.

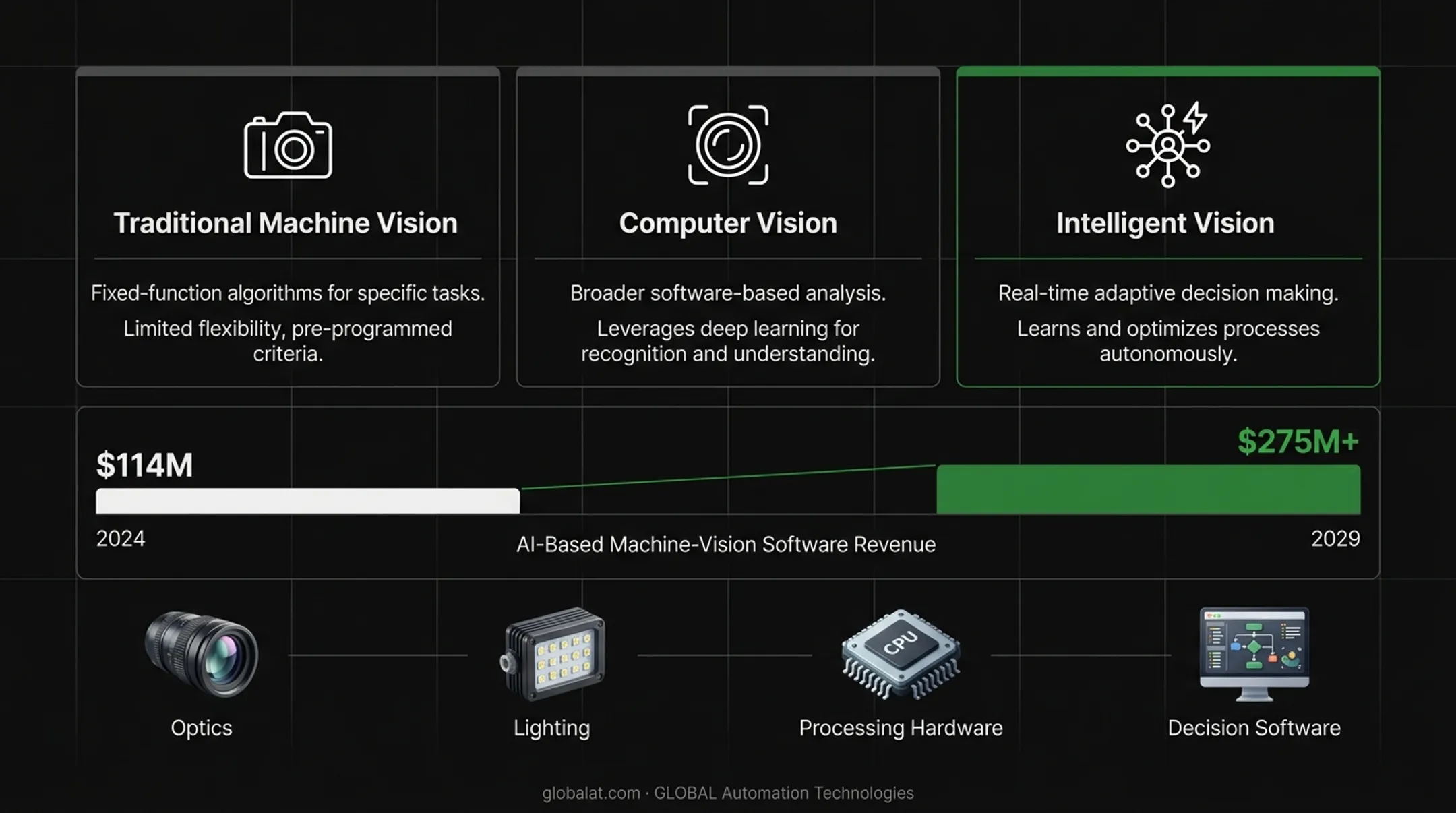

Intelligent Vision vs. Traditional Machine Vision vs. Computer Vision
Manufacturers often use these three terms interchangeably, but they describe different things.
| Term | What It Is | Typical Use |
|---|---|---|
| Computer vision | The broad AI field for processing and analyzing images | Research, consumer apps, foundational technology |
| Traditional machine vision | Rule-based industrial inspection using programmed thresholds | Consistent parts, position checks, presence/absence |
| Intelligent/AI vision | Adaptive, learning-based inspection | Complex defects, cosmetic variation, unpredictable conditions |
The market is shifting toward the AI end of that spectrum. Interact Analysis projects that AI-based machine-vision software revenue will grow from roughly $114 million in 2024 to more than $275 million by 2029 — a signal that manufacturers are moving past static, rule-based inspection.
One common misconception: a "vision system" is not just a camera. It's an integrated stack of optics, lighting, processing hardware, and decision software, all working together. Swap out any one piece and performance changes.
How Intelligent Vision Systems Work
Every intelligent vision system runs on the same basic architecture and follows the same operational loop.
Core Components
- Camera or sensor — captures the raw image of the part or scene
- Lighting — controls how features and defects appear in the image
- Lens/optics — focuses the image onto the sensor at the right resolution
- Processing unit — runs the AI or neural network models that interpret the image
- Software — houses the decision logic, whether rule-based, edge-learning, or deep learning
- Communication/actuator interfaces — connect results to robots, PLCs, or reject mechanisms
Lighting is the most underrated component here. Poor or inconsistent lighting makes defects invisible or creates false positives, no matter how good the AI model is. Engineers often spend more time tuning lighting than any other part of the setup.

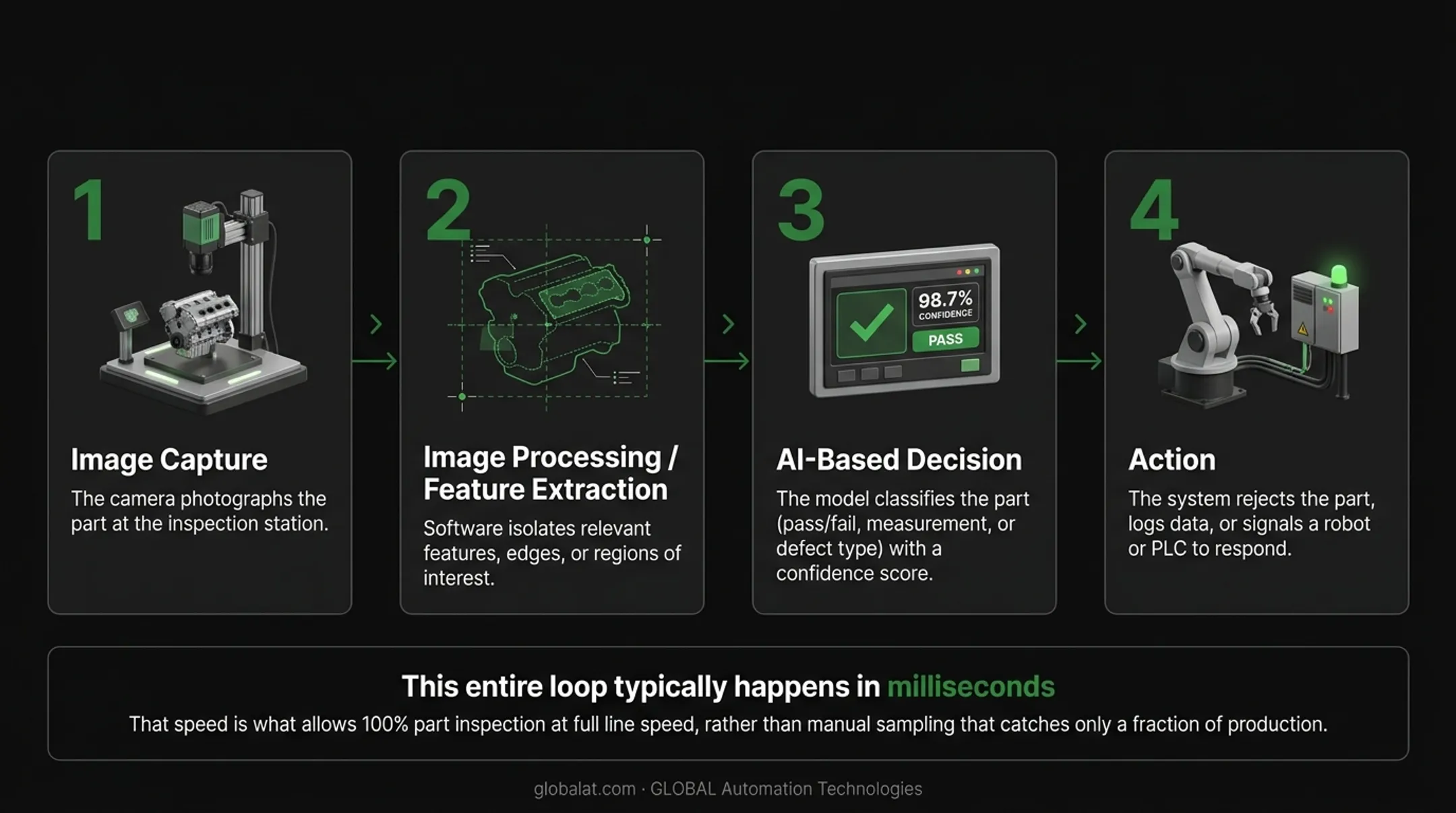

The Vision Process, Step by Step
The vision loop runs in four stages:
- Image capture — the camera photographs the part at the inspection station
- Image processing/feature extraction — software isolates relevant features, edges, or regions of interest
- AI-based decision — the model classifies the part (pass/fail, measurement, or defect type) with a confidence score
- Action — the system rejects the part, logs data, or signals a robot or PLC to respond
This entire loop typically happens in milliseconds. That speed is what allows 100% part inspection at full line speed, rather than manual sampling that catches only a fraction of production.
Types of Intelligent Vision Systems
Not every application needs the same hardware. The right architecture depends on part complexity, camera count, and processing demands.
Two common hardware approaches:
- Smart cameras: Imager, processor, and software in one compact unit. Faster to configure and generally cheaper to deploy, but limited to a single imaging socket per unit
- PC-based systems: Multiple cameras on an industrial computer. More processing power and flexibility for high-resolution or multi-camera setups, with added engineering complexity
Dimensionality matters too:
- 2D systems handle most inspection, reading, and measurement tasks when a flat image is enough
- 3D systems add depth data for volume checks, warpage detection, and part-seating verification
Edge AI runs inference on the device instead of in the cloud. That cuts latency, keeps production data on-site, and triggers corrective action the moment a defect is detected—not after a round trip to a remote server.
Applications in Manufacturing and Industrial Automation
Intelligent vision systems are now standard across the modern plant floor.
- Quality control and defect detection: Catch cosmetic and structural flaws—scratches, cracks, weld defects—across 100% of parts, not just a sample. AI-based systems handle unpredictable variation that fixed thresholds miss.
- Vision-guided robotics: Cameras let robots locate, pick, and align parts without fixed positioning, cutting the upstream tooling traditional automation depends on.
- Assembly verification and OCR: Confirm part presence and placement, and read barcodes, lot codes, or labels for downstream traceability.
At GLOBAL, which holds Level 5 status in FANUC’s Authorized System Integrator program, this shows up directly in robotic dispensing and painting cells. Vision inspection and flow monitoring validate bead width, placement, and continuity as material is applied, catching off-spec beads or missed paths before parts move downstream. In robotic painting, the same programmed-path discipline holds film build within specification shift after shift, where consistency isn't optional; full paint inspection and any spot repair happen downstream, not live in the booth.
The same foundation scales across industries. Automotive weld and paint inspection, heavy equipment fabrication, data center component manufacturing, and aerospace assembly all rely on these capabilities.
Schneider Electric's Chasseneuil plant shows the upside: after expanding AI inspection from 5 critical areas to 17, the facility reported doubled production yield and 70 times fewer false rejects, plus 30% faster integration of new inspection tasks.
Key Benefits of Intelligent Vision Systems
For automotive, heavy equipment, and industrial manufacturers, intelligent vision systems pay off in three areas:
- Catch micro-defects human inspectors miss over long shifts when fatigue sets in, and keep people out of hazardous zones near hot welds or spray booths
- Flag defects in real time before a batch moves downstream, supporting lights-out running between scheduled maintenance windows and preventing costly rework or recalls
- Retrain on new part variants or defect types from data rather than fixed rules, without replacing hardware, so the automation investment stays useful as products change

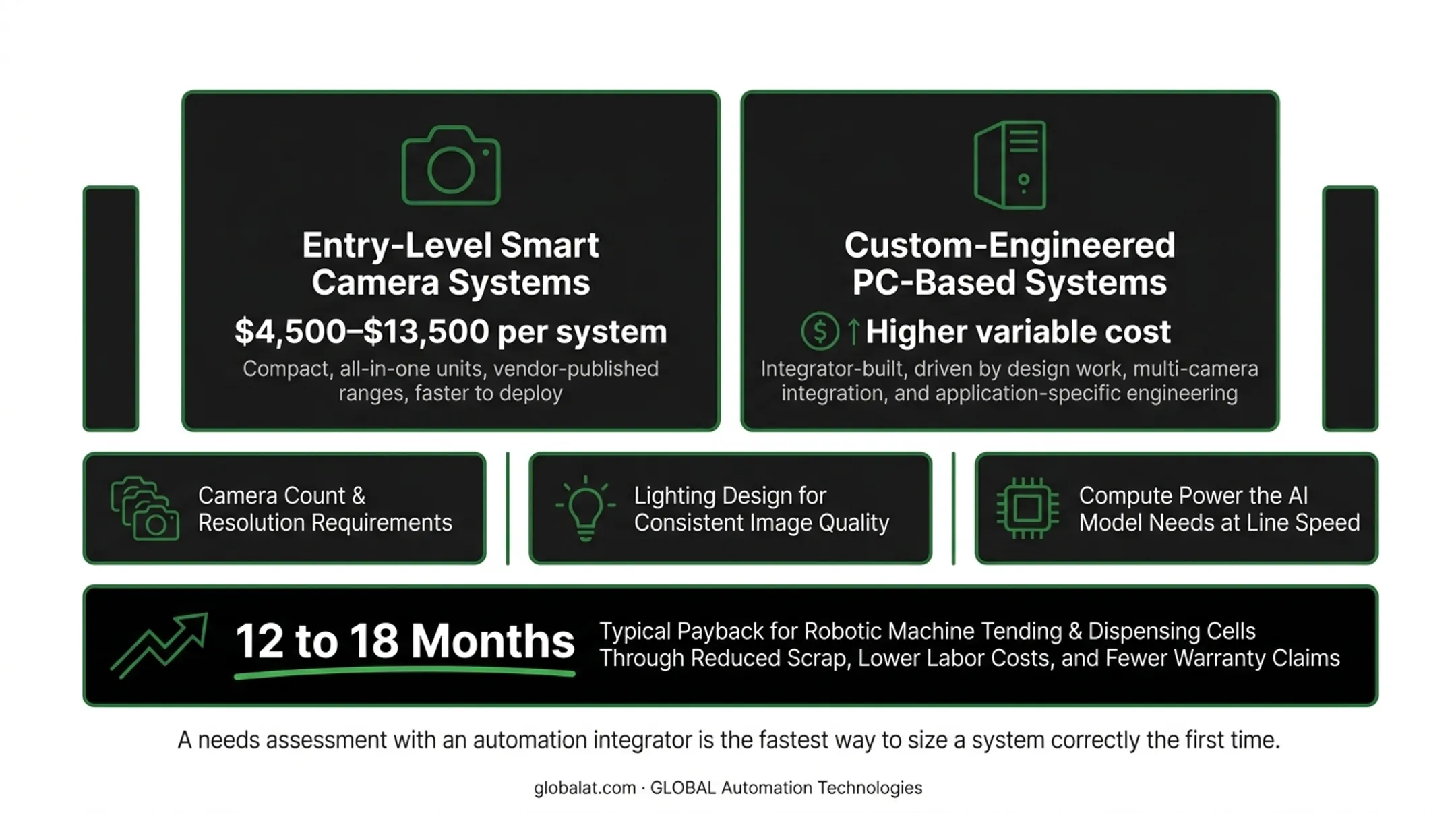

What Does an Intelligent Vision System Cost?
Cost depends heavily on architecture.
- Entry-level smart camera systems are lower cost and faster to deploy, with vendor-published ranges as low as $4,500 to $13,500 per system for compact, all-in-one units
- Custom-engineered, integrator-built PC-based systems cost more, driven by design work, multi-camera integration, and application-specific engineering
That cost gap reflects real engineering effort across several factors:
- Camera count and resolution requirements
- Lighting design for consistent image quality
- Compute power the AI model needs at line speed
ROI typically comes from reduced scrap, lower labor costs, and fewer warranty claims. As a benchmark, robotic machine tending and dispensing cells often pay for themselves in 12 to 18 months through more parts per shift and fewer direct labor hours. That timeline is a useful reference point for integrated automation payback more broadly.
Because every application differs in defect type, part variation, and production volume, a needs assessment with an automation integrator is the fastest way to size a system correctly the first time.
Frequently Asked Questions
What is an intelligent vision system?
It's an AI-powered system of cameras, sensors, and software that captures and interprets visual data to make automated decisions in real time. It goes beyond simple imaging to trigger actions on the line.
What is the purpose of an intelligent vision system?
They automate visual inspection, guide robotic equipment, and trigger real-time corrective actions. That improves quality and throughput compared to manual or rule-based inspection alone.
How much does an intelligent vision system cost?
Costs vary widely by architecture, from a few thousand dollars for entry-level smart cameras to significantly more for custom PC-based integrator solutions. Request a tailored quote for an accurate figure.
How is AI different from traditional machine vision?
Traditional systems use fixed, programmed rules and work best on consistent, predictable parts. AI-based systems learn from labeled data, adapting to part variation and cosmetic defects that fixed thresholds can't catch.
What industries use intelligent vision systems?
Automotive, heavy equipment, electronics, data center manufacturing, and aerospace are common adopters. Any high-volume production environment with quality or traceability requirements is a candidate.
Can intelligent vision systems be integrated with existing robots or production lines?
Yes. Most modern vision systems connect via standard protocols to existing robots and PLCs. Integrators like GLOBAL handle this turnkey integration, from controls engineering to commissioning.
