Introduction
Manufacturing faces two converging pressures: rising quality standards and a shrinking pool of skilled welders. The American Welding Society projects a shortfall of 320,500 new welding professionals by 2029, with more than 157,000 experienced welders approaching retirement.
At the same time, automotive, heavy equipment, and industrial fabrication demand tighter tolerances, faster cycle times, and zero-defect quality on complex assemblies.
Robotic plasma arc welding addresses both challenges. Combining a focused, high-temperature plasma arc with six-axis robotic precision, manufacturers get repeatable, high-quality welds at speeds manual processes can't match.
It holds precision on material as thin as 0.020 inches and the consistency high-volume production needs, without adding headcount. This guide covers how robotic plasma arc welding works, where it fits on the floor, and what to evaluate before you invest.
Key Takeaways
- Up to 20% faster soft-plasma cycle times than TIG, with higher precision and less heat distortion
- Small heat-affected zone enables precision welds on thin materials and cuts part warping
- Offline programming cuts setup from weeks to days—viable for smaller batch runs
- Fits existing lines and reprograms quickly when jobs change
- Turnkey cells multiply output per skilled welder and keep operators out of hazardous arc zones
What Is Robotic Plasma Arc Welding?
Robotic plasma arc welding is an automated arc welding process where a six-axis industrial robot manipulates a plasma torch to join metal components. The robot positions the torch with sub-millimeter repeatability, executing pre-programmed paths that deliver consistent heat input, travel speed, and torch angle across every weld.
The Plasma Welding Process
Plasma welding uses a tungsten electrode suspended inside a water-cooled constricting nozzle. An electric arc ionizes shielding gas (typically argon), creating a concentrated plasma column with higher power density than standard TIG welding. This constricted arc focuses heat into a smaller area, enabling faster travel speeds and deeper penetration at lower amperages.
The process operates in two main modes:
- Soft plasma: For materials 3-8 mm thick in steel and 3-10 mm in stainless steel, delivering up to 20% faster travel speeds than conventional TIG
- Keyhole plasma: For thicker sections 3-9 mm, providing single-pass full penetration at travel speeds up to 100% faster than TIG

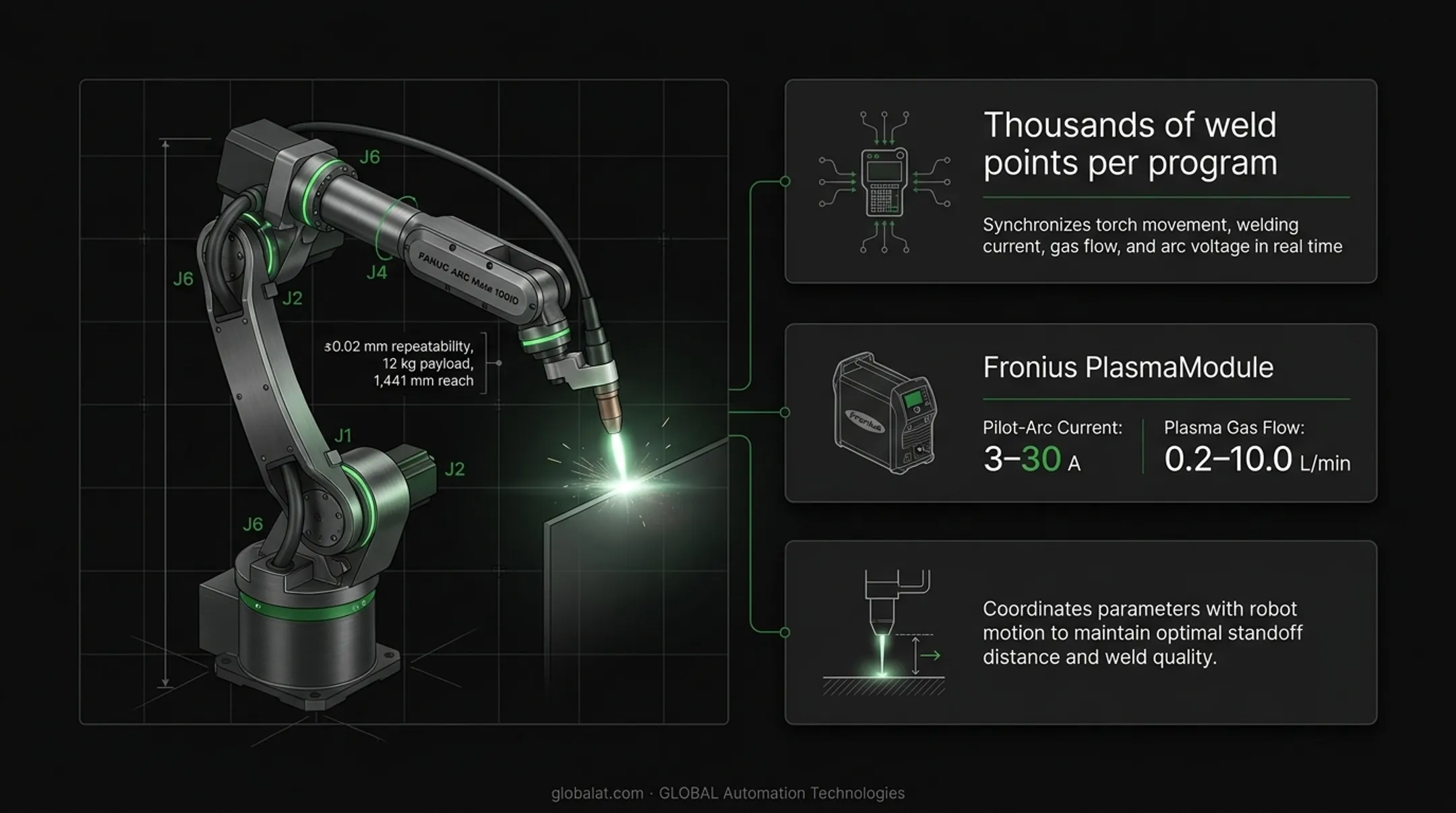

How Robots Execute Plasma Welding
A six-axis articulated robot, commonly a FANUC ARC Mate, ABB, or Yaskawa model, holds and precisely positions the plasma torch. High-end models like the FANUC ARC Mate 100iD achieve ±0.02 mm repeatability with a 12 kg payload and 1,441 mm reach.
The robot controller synchronizes torch movement, welding current, gas flow, and arc voltage in real time, executing programs with thousands of precisely positioned weld points.
Integration between the robot controller, plasma power source, and torch positioning system is critical. Modern plasma power sources like the Fronius PlasmaModule digitally control pilot-arc current from 3-30 A and regulate plasma gas flow from 0.2-10.0 L/min, coordinating these parameters with robot motion commands to maintain optimal standoff distance and weld quality.
Why Plasma Arc Welding Is Suited for Robotic Automation
Plasma welding's tight process-control requirements match what robots do well. The process demands:
- Precise standoff distance (typically 3-10 mm)
- Controlled travel speed within narrow windows
- Consistent arc voltage throughout the weld
Robots deliver that repeatability at scale. With travel speeds of 50-500 mm/min (depending on material and thickness) and single-pass capability across a range of thicknesses, plasma-plus-robot cells raise throughput without giving up weld consistency.
Key Benefits and Advantages of Robotic Plasma Arc Welding
Precision and Weld Quality
Robots maintain exact torch positioning and travel speed throughout every weld, producing uniform bead geometry, minimal spatter, and clean, non-porous welds. The concentrated plasma arc creates a smaller heat-affected zone than TIG or MIG processes, which limits part distortion. That control supports precision welds on components as thin as 0.020 inches. This tight heat control is critical for aerospace, EV battery enclosures, and thin-wall pressure vessels where warping is unacceptable.
Faster Production Cycles
According to Fronius process data, robotic plasma welding in soft-plasma mode operates up to 20% faster than TIG welding, while keyhole mode can double travel speeds on thicker materials. Robots eliminate setup time between welds and cut rework from human error. They can also run continuously in lights-out environments, delivering 24/7 throughput without shift breaks or fatigue-related defects.
Enhanced Worker Safety
Robotic plasma welding removes workers from environments involving:
- High-frequency electrical arcs and arc flash
- Intense UV radiation exceeding safe exposure thresholds
- Welding fumes containing metal oxides and particulates
- Extreme heat from plasma temperatures
OSHA identifies welding metal fumes, UV radiation, burns, eye damage, and electrical shock as primary welding hazards. Operators can oversee the process from a safe distance while the robot handles direct welding operations inside a safeguarded cell.
Consistent Quality Across High Volumes
Robots reproduce the exact same weld path, current settings, and travel parameters for every part, eliminating cycle-to-cycle variation inherent in manual welding. Advanced power supplies monitor arc voltage in real time and automatically adjust torch height to maintain optimal standoff distance, even compensating for minor part geometry variations. This closed-loop control ensures that part 1,000 receives the same weld quality as part 1.
Manufacturing Flexibility and Reprogrammability
Modern offline programming allows engineers to create new weld programs in days rather than weeks. Engineers import 3D CAD files, automatically generate toolpaths, detect collisions, and validate programs before deploying them to the robot, all without interrupting production. This makes robotic plasma welding economically viable for batch sizes as small as 50-100 parts. Engineers can reprogram the same robot for different part families, or switch it between plasma cutting and welding applications.

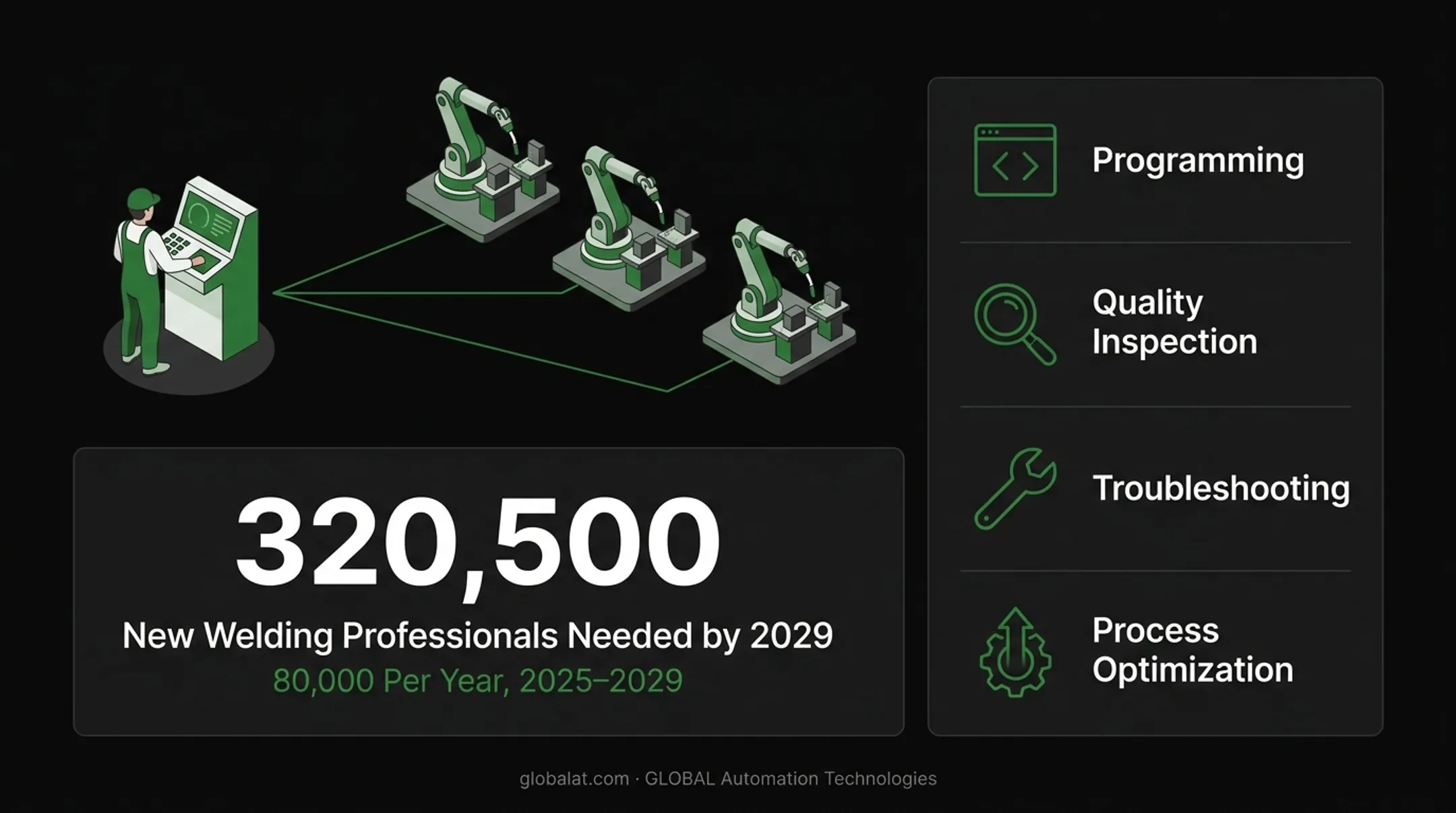

Better Utilization of Skilled Welding Talent
Robotic systems allow a single skilled welder or technician to oversee multiple robot cells, multiplying their productivity. The American Welding Society projects a need for 320,500 new welding professionals by 2029, or 80,000 per year during 2025-2029. Automation helps manufacturers scale production without a matching increase in headcount. Skilled personnel focus on programming, quality inspection, troubleshooting, and process optimization rather than manual torch manipulation.
System Components and Requirements
Industrial Robot Selection
Robotic plasma welding typically uses six-axis articulated robots with:
- Payloads: 6-20 kg (torch, cables, cooling lines)
- Reach: 1,400-2,000 mm
- Repeatability: ±0.02-0.1 mm
- Protection rating: IP65-IP67 for welding environments
Popular models include:
- FANUC ARC Mate 100iD: 12 kg payload, 1,441 mm reach, ±0.02 mm repeatability
- ABB IRB 2600: up to 20 kg payload, 1,850 mm reach, IP67 standard
Also confirm wrist articulation supports bevel access on your joint designs, not only straight butt welds.
Plasma Welding Power Source and Torch
Modern plasma power sources feature digital control of pilot arc current, main arc current, and gas flow. The Fronius PlasmaModule, for example, controls 3-30 A pilot arc and 0.2-10.0 L/min plasma gas flow, coordinating these parameters with robot motion.
Torch considerations include:
- Water-cooled vs. air-cooled: Water cooling extends consumable life and supports higher duty cycles
- Consumable design: Match electrode and nozzle choices to duty cycle and planned replacement intervals
- Tapered nozzle geometry: Enables angled torch approaches for bevel and fillet welds
- TCP (Tool Center Point) preservation: Ensures accurate robot positioning after consumable changes

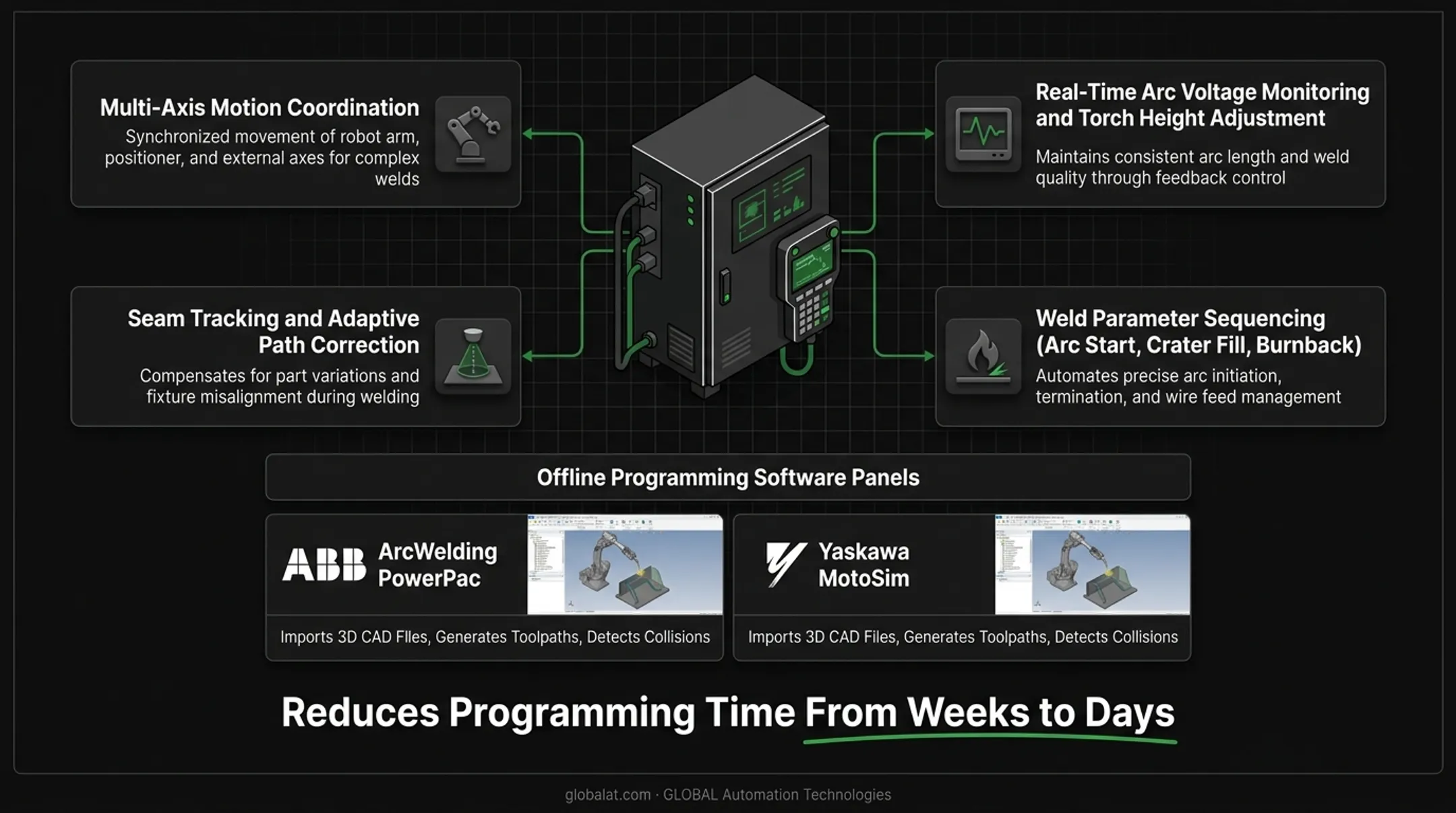

Robot Controller and Programming Interface
The robot controller coordinates torch movement with welding parameters, executing programs containing thousands of weld points and synchronized input/output commands. Controllers manage:
- Multi-axis motion coordination
- Real-time arc voltage monitoring and torch height adjustment
- Seam tracking and adaptive path correction
- Weld parameter sequencing (arc start, crater fill, burnback)
Offline programming and simulation software—such as ABB's ArcWelding PowerPac and Yaskawa's MotoSim—imports 3D CAD files, automatically generates toolpaths, detects collisions, and validates programs before deployment. This approach reduces programming time from weeks to days.
Fixturing and Positioning Equipment
Precision fixturing maintains repeatable part location within the robot's welding envelope:
- Hard stops and locating pins: Ensure consistent part placement
- Quick-change clamps: Enable fast part changeover
- Modular mounting plates: Support multiple part families on common bases
Servo-driven positioners and rotary tables rotate or tilt parts during welding, expanding robot reach and enabling optimal torch angles for complex geometries. Multi-axis positioners can present complex assemblies while the robot maintains ideal torch orientation.
Safety Systems and Cell Integration
Compliant robotic plasma welding cells incorporate safeguarding systems per the new ANSI/A3 R15.06-2025 standard, which adopts ISO 10218 Parts 1 and 2 for the US market.
Required safety components include:
- Fixed perimeter guards and interlocked gates
- Light curtains or safety-rated scanners
- Emergency-stop systems accessible from all operational zones
- Safeguarded entry protocols that bring the robot to a safe state
Integration with upstream and downstream processes typically includes:
- Part loading and unloading systems
- Vision inspection
- Post-weld deburring or cleaning
- Conveyor coordination for full production-cell automation
Applications Across Industries
Robotic plasma arc welding shows up wherever plants need fast, controlled fusion on steel, aluminum, and alloys—from high-volume vehicle lines to heavy fab shops.
Automotive and Electric Vehicle Manufacturing
Robotic plasma welding delivers the speed and weld quality high-volume automotive production demands:
- Battery enclosures: Hermetic seals on thin aluminum or steel with minimal heat input
- Structural frame joining: High-strength welds with controlled heat-affected zones
- Exhaust system fabrication: Stainless steel joining with clean, spatter-free results
- EV component assembly: Precision welds on power electronics housings and motor casings
Heavy Equipment and Commercial Vehicle Fabrication
Builders of construction, agricultural, and mining equipment rely on plasma welding for deep penetration and fast cycle times:
- Agricultural equipment frames: Structural welds on medium-thickness steel
- Construction machinery components: Boom assemblies, chassis, and attachment points
- Mining equipment structures: Heavy-section joining with consistent quality
- Commercial truck chassis: Frame rails and cross-members requiring high-strength welds
General Industrial Manufacturing
Outside automotive and heavy equipment, fabricators still gain consistent quality and flexible cell setups:
- Pressure vessel fabrication: Code-compliant welds on stainless steel and alloy materials
- HVAC ductwork: High-speed joining of thin-gauge galvanized or stainless steel
- Industrial enclosures: Electrical cabinets, control panels, and data center infrastructure
- Metal furniture: Precision welds with a clean cosmetic finish
Implementation Considerations and Best Practices
Offline Programming Reduces Setup Time
Offline programming and simulation software lets engineers develop and validate weld programs without stopping production. Teams build fixture and tooling libraries, set reference coordinate systems, then use touch-sensing or laser probes to map virtual programs to real cell geometry.
Best practices include:
- Import part geometry from CAD and auto-generate weld paths
- Validate robot motion with collision checks before deployment
- Confirm the robot can reach every weld joint in its envelope
- Cut non-productive motion and coordinate multi-robot cycles
This approach reduces programming time from weeks to days, making robotic plasma welding viable for batch sizes as small as 50-100 parts.
Electrical Grounding and EMI Protection
Proper electrical grounding is critical. High-frequency arc starting can damage sensitive robot electronics if grounding schemes are inadequate. Follow manufacturer-recommended grounding and EMI shielding practices:
- Use separate external tool grounds instead of the robot arm
- Apply EMI mitigation for nearby equipment and power supplies
- Run shielded cables with proper termination
- Isolate control circuits for welding power sources
Torch Positioning and Singularity Avoidance
Position the torch zero point close to the workpiece so robot joints stay in optimal operating ranges. Avoid poses near 180 degrees from zero, where joint limits can stop the path.
Robot singularities are poses where the controller cannot calculate the next move. Fixture design, part orientation, and workpiece placement keep paths clear of those limits during execution.
Integration Support and Workforce Training
Turnkey integration partners handle system design, installation, programming, commissioning, and operator training for robotic plasma welding cells. GLOBAL Automation Technologies pairs that scope with a dual-division model: the robotic system and the engineers who program, operate, and maintain it.
GLOBAL's integration services cover:
- Process study and feasibility analysis
- Offline simulation and program development
- Controls engineering and safety integration
- Installation, commissioning, and validation
- Operator and technician training
- Ongoing technical support and health assessments
That full scope, from feasibility through training and health assessments, is what keeps cells stable after startup.
Comparison: Robotic Plasma Arc Welding vs. Other Welding Methods
Plasma Welding vs. TIG Welding
Both processes use tungsten electrodes and produce high-quality welds, but plasma welding's constricted arc delivers:
- Up to 20% faster travel speeds in soft-plasma mode (according to Fronius process data)
- Up to 100% faster in keyhole mode for thicker sections
- Lower amperages for the same penetration depth
- Smaller heat-affected zones with reduced distortion
Plasma keeps the electrode inside the torch body, so it lasts longer than TIG electrodes that can touch the workpiece.

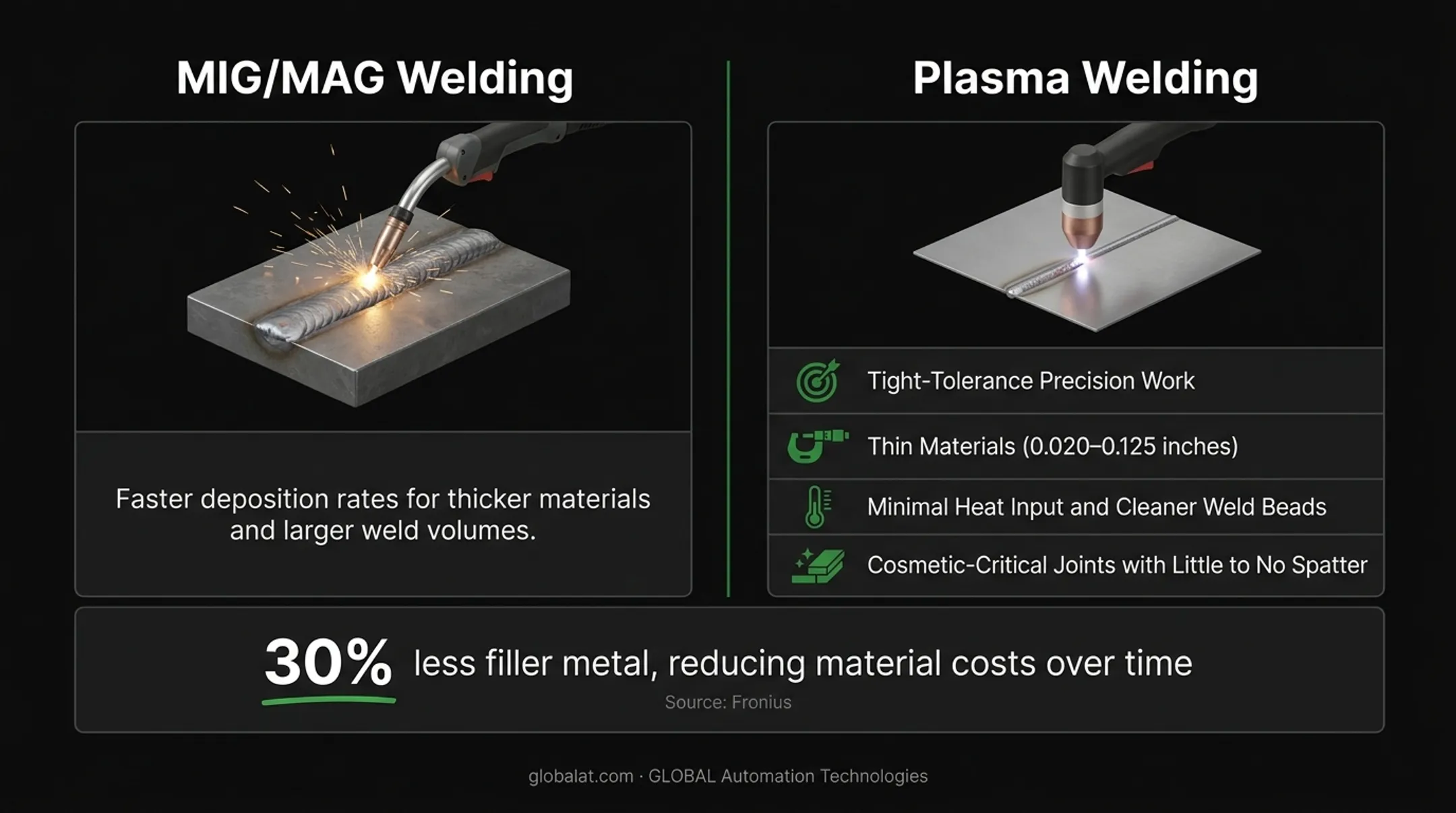

Plasma Welding vs. MIG/MAG Welding
MIG/MAG welding typically offers faster deposition rates for thicker materials and larger weld volumes. Plasma welding is the better fit for:
- Tight-tolerance precision work
- Thin materials (0.020-0.125 inches)
- Minimal heat input and cleaner weld beads
- Cosmetic-critical joints with little to no spatter
Fronius reports that plasma welding uses up to 30% less filler metal, reducing material costs over time.
When to Choose Robotic Plasma Arc Welding
Choose robotic plasma arc welding when you need:
- Precision welds on thin to medium stock (0.020-0.5 inches)
- Low distortion from a small heat-affected zone
- Near-finished cosmetic quality with little post-weld cleanup
- One cell that handles both welding and cutting
- Repeatable quality across production volumes
- Fast cycles on stainless steel, aluminum, and specialty alloys
Frequently Asked Questions
How much faster is a robotic plasma welder than a human welder?
Robotic plasma welding runs about 20% faster than robotic TIG in soft-plasma mode, and faster still than manual welding thanks to steady travel speed and continuous operation. Keyhole mode can reach up to 100% faster travel speeds on thicker material, though gains depend on joint geometry and thickness.
What material thicknesses can robotic plasma arc welding handle?
Robotic plasma welding joins material from about 0.020 inches up to roughly 0.5 inches in a single pass. Soft-plasma mode typically covers 3–8 mm steel and 3–10 mm stainless; keyhole mode supports about 3–9 mm with full penetration, depending on material and power source.
How long does it take to program a robotic plasma welding system for a new part?
Offline programming has cut setup from weeks to days. Simple joints can be programmed in hours; complex parts with multiple welds, bevels, and torch angles usually take 1–3 days including simulation and validation before they hit the floor.
What is the typical ROI timeline for a robotic plasma welding system?
Payback depends on volume, labor cost, and how efficient your current process is. Most shops justify systems through higher throughput, less scrap and rework, and lower labor cost per part. Welding ranks as a top automation priority for 29% of manufacturers (Q2 2025)—your ROI still hinges on arc-on time, yield, and changeover frequency.
Can the same robot be used for both plasma cutting and plasma welding?
Yes. Many cells switch between plasma cutting and welding by loading different programs on the same torch. Cutting uses higher travel speeds and different gas mixes; welding prioritizes heat input and bead formation, so one robot can cover both jobs and raise utilization.
What level of operator skill is required to run a robotic plasma welding system?
Programming needs robotics and welding expertise; day-to-day running usually takes 1–2 weeks of basic robot training. Skilled welders then focus on programs, quality, and optimization—often overseeing several cells at once, which helps address the projected need for 320,500 new welding professionals by 2029.
