The problem is manual execution. Operators eyeball stud placement, fight to keep the gun perpendicular, and fatigue sets in over a shift. That inconsistency shows up as angled studs, weak welds, and marks bleeding through to the visible side of the panel.
Automation, whether through a robotic arm or a CNC gantry, turns stud welding into a repeatable, high-speed process. But results vary a lot based on system selection, setup, and parameter control. This guide walks through the process step by step: when automation makes sense, what you need before you start, the parameters that actually determine weld quality, and the mistakes that trip up first-time projects.
Key Takeaways
- Automated cells replace manual gun handling—CNC systems can place up to 60 studs per minute
- Motion system choice (6-axis robot vs. Cartesian gantry) should match part geometry, not just budget
- Current, time, plunge speed, and positioning accuracy separate a reliable cell from a costly failure
- Labor savings, less rework, and higher throughput typically deliver fast ROI
- Pairing equipment with engineering talent to run it cuts startup risk significantly
How to Improve Stud Welding Using Automation
Getting from manual welding to a validated automated cell follows a predictable sequence. Skip a step here and you'll pay for it later in scrap or downtime.
Step 1: Audit the Current Process and Define Automation Goals
Before you spec any equipment, map what's actually happening on the floor today.
- Identify bottlenecks — positioning errors, feeder delays, inconsistent penetration, or reverse-side marking that fails inspection
- Baseline your numbers — current cycle time, reject/rework rate, and labor hours per shift, so you can measure ROI against something real
- Confirm volume and part mix — stud count per part, diameters, and sheet thickness, since these drive every decision that follows
A CaptiveAire case documented by Assembly Magazine shows why the audit matters. Their manual CD stud-welding operation on stainless-steel oven hoods relied on operators eyeballing locations, and studs frequently landed at an angle.
That kind of variability is exactly what an audit should surface before you automate it away.
Step 2: Select the Right Motion System and Weld Head
This is where most projects succeed or fail.
- Multi-axis robotic arm — best for complex 3D components where stud angles and surfaces vary across the part
- Cartesian/CNC gantry — better suited to flat, repetitive, high-speed work on a table or fixture
- Weld head and power source — match capacitor discharge (CD) or drawn arc to your material thickness and stud diameter, not the other way around
- Stud feeder — sized and typed to your part mix and cycle time target
Working with an integrator like GLOBAL that runs AI-assisted simulation before the build starts lets you validate robot reach, cycle time, and collision paths on screen instead of on the shop floor. That single step catches costly design errors before steel and studs are involved.
Step 3: Integrate the Weld Controller, Feeder, and Programming
Once the hardware is selected, the controls layer ties it all together.
- Connect the programmable weld controller to manage current, time, lift distance, and plunge speed per cycle, with data logging for traceability
- Set up automatic stud feeding — vibratory bowl, linear track, or pneumatic delivery — to eliminate manual loading and cut index time
- Sequence the cell using robot or CNC programming software: positioning, feeder signals, and weld firing commands, saved as part-specific programs for fast changeover

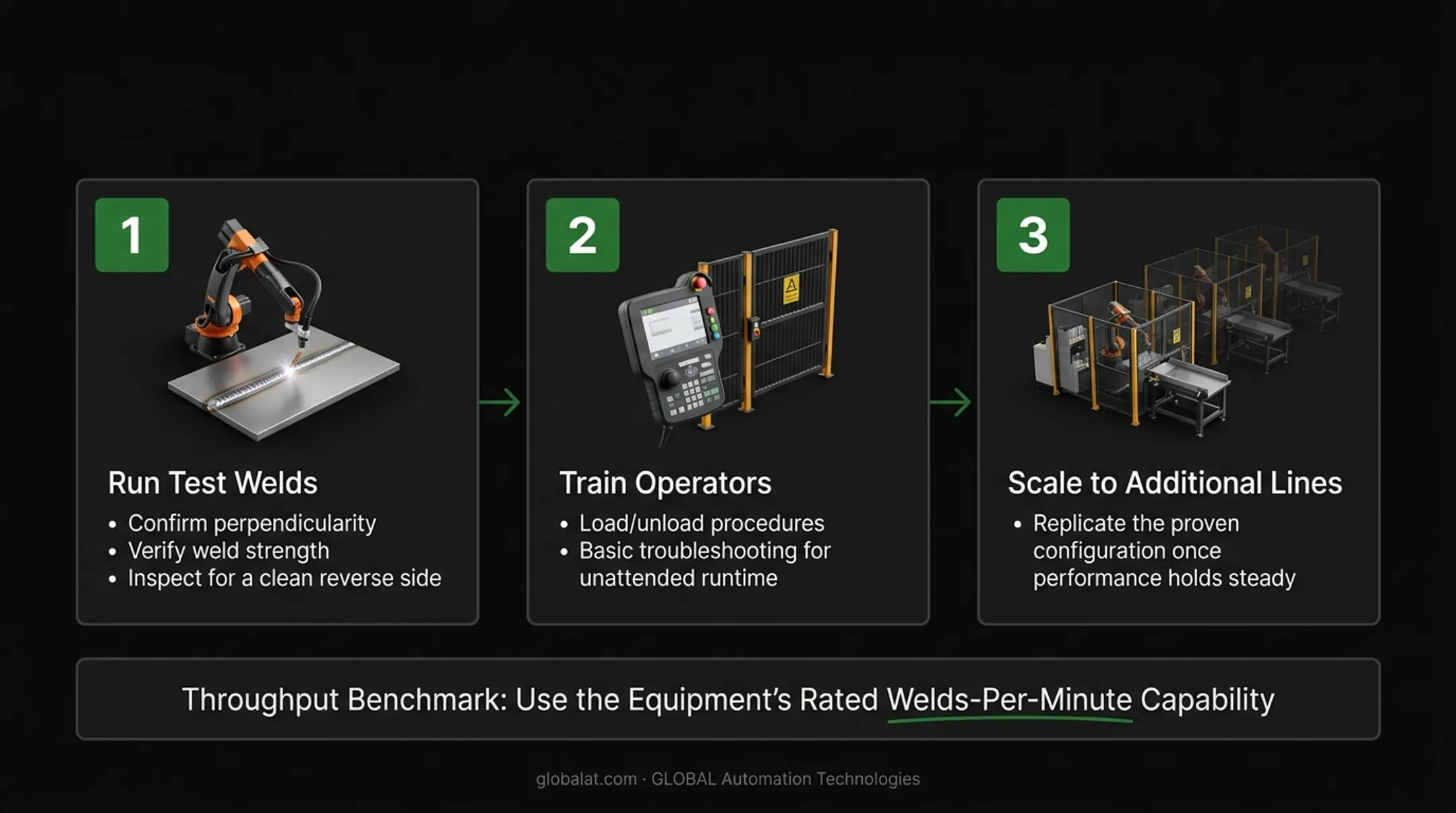

Step 4: Install, Validate, and Scale to Full Production
Don't skip first-article testing. Validate the cell before you commit to full production:
- Run test welds confirming perpendicularity, weld strength, and a clean reverse side
- Train operators on load/unload procedures and basic troubleshooting so the cell can run largely unattended
- Scale the proven configuration to additional lines once performance holds steady
Use the equipment's rated welds-per-minute capability as your throughput benchmark.
When Should You Automate Your Stud Welding Process?
Automation isn't automatic ROI. It depends on volume, part complexity, and how critical positioning accuracy is to the finished product.
The strongest business case shows up when:
- Annual stud volume hits the tens of thousands (many integrators start the conversation around 50,000 units/year)
- Positioning accuracy and repeatability are mission-critical, as in automotive, aerospace, or food-grade equipment
- Reverse-side quality is inspected and manual variation is causing rejects
For low-volume, highly variable, or one-off jobs, a handheld automatic gun may still beat a full CNC or robotic cell on cost and flexibility. A process that runs twice a quarter rarely justifies full automation.
Expected Payback
GLOBAL Automation Technologies, a Level 5 FANUC Authorized System Integrator, sees machine tending cells typically pay for themselves within 12 to 18 months through labor savings and higher spindle utilization. Stud welding automation follows similar logic: fewer labor hours, less rework, and faster cycles.
What You Need Before Automating & Key Parameters That Affect Weld Quality
Equipment and System Requirements
Your motion system needs to hold its tolerance under real production conditions.
- Confirm positional repeatability tight enough to keep every stud inside the weld zone: commonly ±0.05 to 0.2 mm
- Verify sufficient I/O to control feeders, weld heads, and safety interlocks, including multi-head support when parts use different stud types
- Confirm the weld controller can store and recall parameter sets per stud type so changeovers stay consistent
Material and Input Requirements
Match the process to the material, not the other way around.
- CD welding: thin sheet metal (typically 0.7 mm and up) where minimal reverse marking matters
- Drawn arc: thicker structural material (generally 2 mm and above) that tolerates surface imperfections better
- Standardize compatible weld studs where possible to control cost
- Validate custom stud geometries with test welds before production release
Skill and Safety Readiness
Confirm operators are trained on load/unload procedures, e-stop protocols, and basic fault diagnosis before going live. Many manufacturers don't have in-house robotics engineers to commission and maintain a new cell.
That gap is why some pair the equipment purchase with contract or contract-to-hire automation talent. GLOBAL Automation Technologies combines systems integration with technical staffing under one roof, so the cell and the people to run it come from one partner.

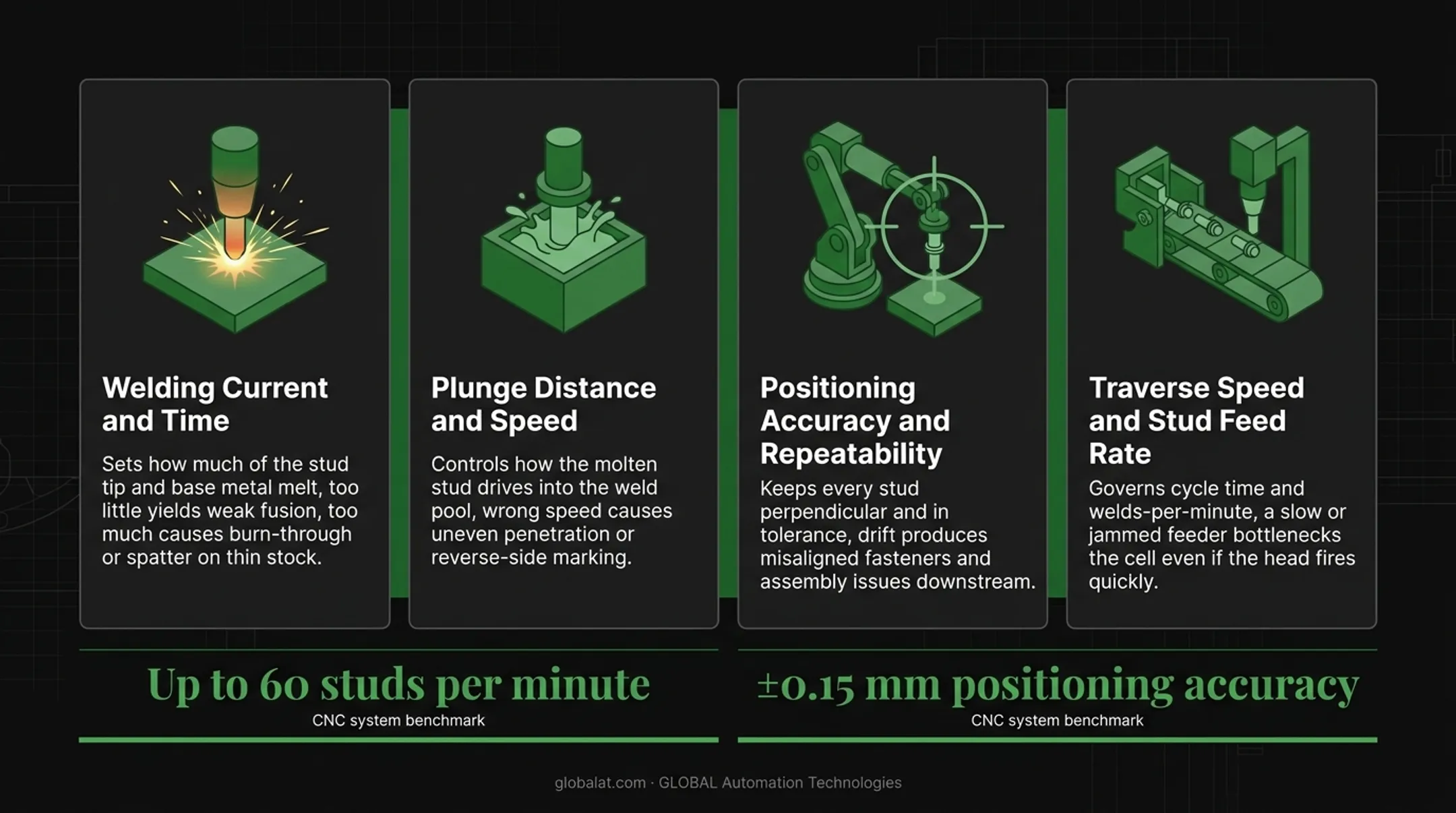

Key Parameters That Affect Results
Four variables determine whether your automated cell produces consistent welds or expensive scrap:
- Welding current and time: sets how much of the stud tip and base metal melt—too little yields weak fusion; too much causes burn-through or spatter on thin stock.
- Plunge distance and speed: controls how the molten stud drives into the weld pool; wrong speed causes uneven penetration or reverse-side marking.
- Positioning accuracy and repeatability: keeps every stud perpendicular and in tolerance; drift produces misaligned fasteners and assembly issues downstream.
- Traverse speed and stud feed rate: governs cycle time and welds-per-minute; a slow or jammed feeder bottlenecks the cell even if the head fires quickly.
Taylor Studwelding's CNC systems are rated for up to 60 studs per minute with positioning accuracy around ±0.15 mm, a useful benchmark for a well-tuned cell.
Common Mistakes and Troubleshooting When Automating Stud Welding
Most quality problems in automated stud welding trace back to a handful of avoidable mistakes:
- Skipping first-article validation and jumping straight to full production, letting positioning or parameter errors go undetected until scrap piles up
- Choosing a motion system on price alone, without confirming payload, reach, and repeatability actually match the part mix
- Ignoring feeder maintenance, which causes jams and unplanned downtime as vibratory bowls and tracks wear over time
When things go wrong, the fix usually comes down to one of two problems:
Inconsistent weld penetration
- Likely cause: incorrect current/time settings or worn electrode contacts
- What to check: verify controller settings against the material and stud spec sheet, and inspect contact tips for wear
Studs landing off-perpendicular
- Likely cause: fixture wear, incorrect Z-axis calibration, or a workpiece that isn't fully seated in the downholder
- What to check: recalibrate the axis, inspect fixturing, and confirm clamp pressure is consistent across the cycle
Capacitor discharge (CD) and drawn arc each behave differently under stress. Taylor Stud Welding's comparison of drawn arc versus CD and short-cycle welding is a useful reference when diagnosing which process is producing the fault.
Conclusion
Automated stud welding delivers its biggest gains when the motion system, weld head, and parameters are matched to your part geometry and production volume. There's no universal setup that works for every application.
Most quality issues that show up after installation trace back to inadequate validation, loose parameter control, or under-trained operators, not the equipment itself. That's a fixable problem, but only if it's caught early.
Manufacturers evaluating their first automation project benefit from an integrator that delivers both the turnkey robotic system and the engineering talent to run and maintain it. Pairing turnkey robotic integration with technical staffing is how GLOBAL Automation Technologies works, so the cell and the people to run it come from one partner.
Frequently Asked Questions
How much does it cost to automate a stud welding line?
Cost depends on scope: a handheld automatic gun, a CNC bench system, or a full robotic cell. Labor savings, less rework, and higher throughput usually matter more than upfront price when you model payback.
What's the difference between robotic and CNC gantry stud welding automation?
Robotic arms suit complex 3D parts requiring multi-axis movement. CNC gantry systems are better suited to high-speed, repetitive flat-surface welding where the part geometry doesn't change.
How long does it take to implement automated stud welding?
Timelines depend on system complexity. AI-assisted simulation can cut commissioning from weeks to days by catching design and reach issues before the build starts.
Can automation work with both CD and drawn arc stud welding?
Yes. Both capacitor discharge and drawn arc processes can be automated, with the choice driven by material thickness and stud diameter rather than the motion system itself.
Do I need a full robot, or can I automate with a simpler CNC system?
Start with a CNC gantry if parts are flat, volumes are steady, and weld locations stay fixed. Choose a robot when you need multi-face access, frequent changeovers, or room to add processes later in the same cell.
What ROI or payback period can I expect from automating stud welding?
Stud welding automation projects commonly pay back within 12 to 18 months through labor savings, reduced rework, and higher throughput.
