Together, these two disciplines protect quality control, catch defects before they compound into downstream line stoppages, and keep production running at uptime targets. They also support safety compliance in industries where a missed defect isn't just expensive — it's dangerous.
The stakes are real. A 2015 Sandia National Laboratories study found that manual inspectors detect an average of 85% of defective parts, while incorrectly rejecting 35% of parts that were actually good. That gap is exactly why more manufacturers are rethinking how inspection gets done.
This guide breaks down what visual and dimensional inspection involve, why they matter, and how the process plays out step by step — from a machine shop floor to a full assembly line.
TL;DR
- Visual inspection checks appearance and surface condition; dimensional inspection measures geometry against tolerances
- Both catch nonconformance before it becomes scrap, rework, a recall, or a safety incident
- A six-step loop covers requirements, calibration, visual checks, dimensional measurement, acceptance, and documentation
- Robotic vision and CMM integration are replacing manual-only inspection for speed and consistency
- GLOBAL Automation Technologies, a top-tier Level 5 FANUC Authorized System Integrator, builds automated inspection into production lines and staffs the engineers who run them
What Is Visual and Dimensional Inspection?
Visual and dimensional inspection is a two-part quality process: visual inspection checks a part's physical appearance, and dimensional inspection checks its measurable geometry against design specifications. One answers "does it look right?" The other answers "does it measure right?"
The Scope of Visual Inspection
Visual inspection covers what a trained eye or a camera can catch on a part's surface:
- Surface condition, including scratches, cracks, dents, and foreign-object debris
- Coating and finish quality, such as color, gloss, or texture inconsistencies
- Markings and traceability labels
- Assembly alignment and fit
- Presence or absence of components, fasteners, or hardware
The Scope of Dimensional Inspection
Dimensional inspection quantifies a part's geometry and compares it against drawing tolerances. That typically includes:
- Length, diameter, and angle measurements
- Hole position and depth
- GD&T characteristics like flatness, true position, and concentricity
Common tools range from calipers, micrometers, and height gauges to CMMs, vision systems, and laser scanners.
Both types of inspection show up at three points in a typical production flow: incoming/receiving inspection, in-process or first-article inspection, and final QC before shipment. That pattern holds across automotive, aerospace, and heavy industry lines alike.

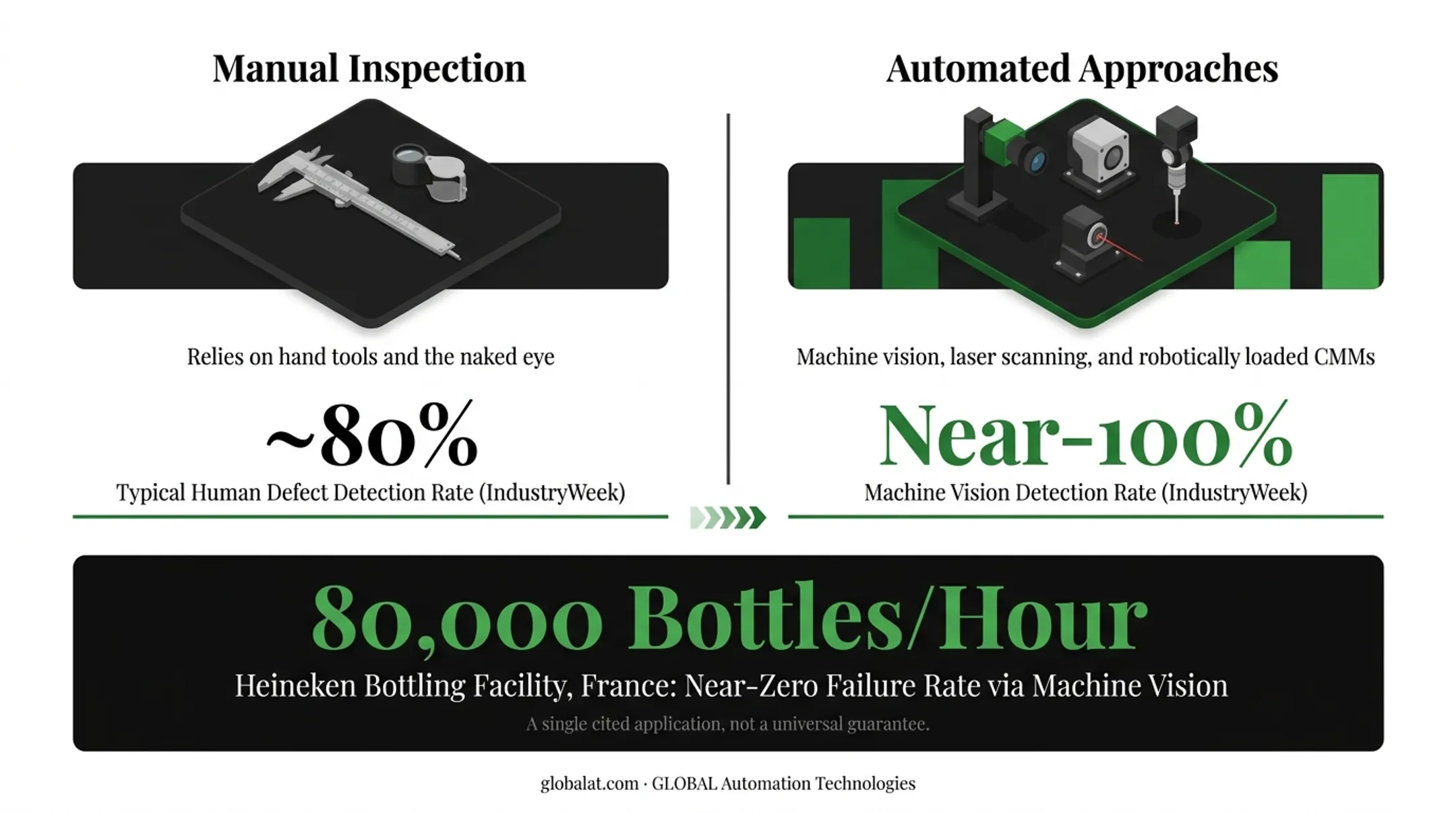

Manual vs. Automated Approaches
Manual inspection relies on hand tools and the naked eye. It's flexible and low-cost to set up, but it doesn't scale well at production speed, and results vary with operator skill and fatigue. Automated approaches such as machine vision, laser scanning, and robotically loaded CMMs trade setup complexity for consistency.
IndustryWeek reported that human inspectors typically identify around 80% of manufacturing defects, compared with machine vision systems described as approaching near-100% detection. In one cited example, a Heineken bottling facility in France used machine vision to inspect 80,000 bottles per hour with a failure rate approaching zero. That figure is a single application, not a universal guarantee, but it shows what throughput and consistency can look like at scale.
Why Visual and Dimensional Inspection Is Critical in Manufacturing
Rigorous inspection reduces risk, lowers the cost of quality, and improves overall operational performance. Skipping or rushing either type of check is one of the most common root causes behind downstream line stoppages and warranty claims. The damage rarely shows up until a batch is already out the door.
Here's what disciplined inspection actually protects:
- Prevents scrap and rework by catching defects before more time and material are invested in the part
- Ensures compliance with standards like IATF 16949, AS9100, and ISO 9001, plus customer PPAP requirements
- Protects worker and end-user safety in high-stakes assemblies where a missed defect can mean a failed component in the field
- Builds traceability and documentation that strengthens customer trust and audit readiness
- Supports root cause analysis when defects recur across batches
- Enables near-100% inline inspection at production speed when automated, instead of relying on spot checks
Standards bodies back this up. IATF guidance defines layout inspection as complete measurement of all product dimensions shown on the design record.
GM's customer-specific requirements go further: annual measurement of every dimension on the current design record across at least five parts, covering every cavity and tool, with results retained for the life of the program. That's not a suggestion. It's a documented, auditable expectation.
How Visual and Dimensional Inspection Works – Step by Step
Here is the practical sequence that plays out on a shop floor every day. The oversights that cause the most scrap and rework are predictable:
- Skipping the document review before any check begins
- Using uncalibrated tools
- Rushing measurements
- Failing to close the loop with corrective action
Step 1 – Define Requirements & Standards
Review drawings, tolerances, and applicable standards (ASME Y14.5, ISO, customer specs) before any physical check begins. Clear acceptance criteria here keep inspection aligned with engineering intent.
Step 2 – Prepare the Area, Tools & Calibration
Stage parts in a clean, well-lit area. Verify that calipers, micrometers, gauges, and any vision or CMM equipment are within calibration. Skip this, and every downstream measurement becomes questionable. Calibration status sets the floor for reliability and repeatability.
Step 3 – Conduct the Visual Inspection
Systematically check surfaces, edges, coatings, and markings. Capture defects with notes and photos so the detection record stays complete and traceable.
Step 4 – Perform the Dimensional Measurement
Measure critical dimensions using the appropriate contact or non-contact method. Take multiple readings per feature; one reading alone leaves too much room for error and slows trustworthy throughput.
Step 5 – Interpret Results & Apply Acceptance Criteria
Compare findings against tolerance limits or an AQL sampling plan. Classify defects as critical, major, or minor. Get this wrong and you either pass bad parts or reject good ones. Both outcomes cost money.

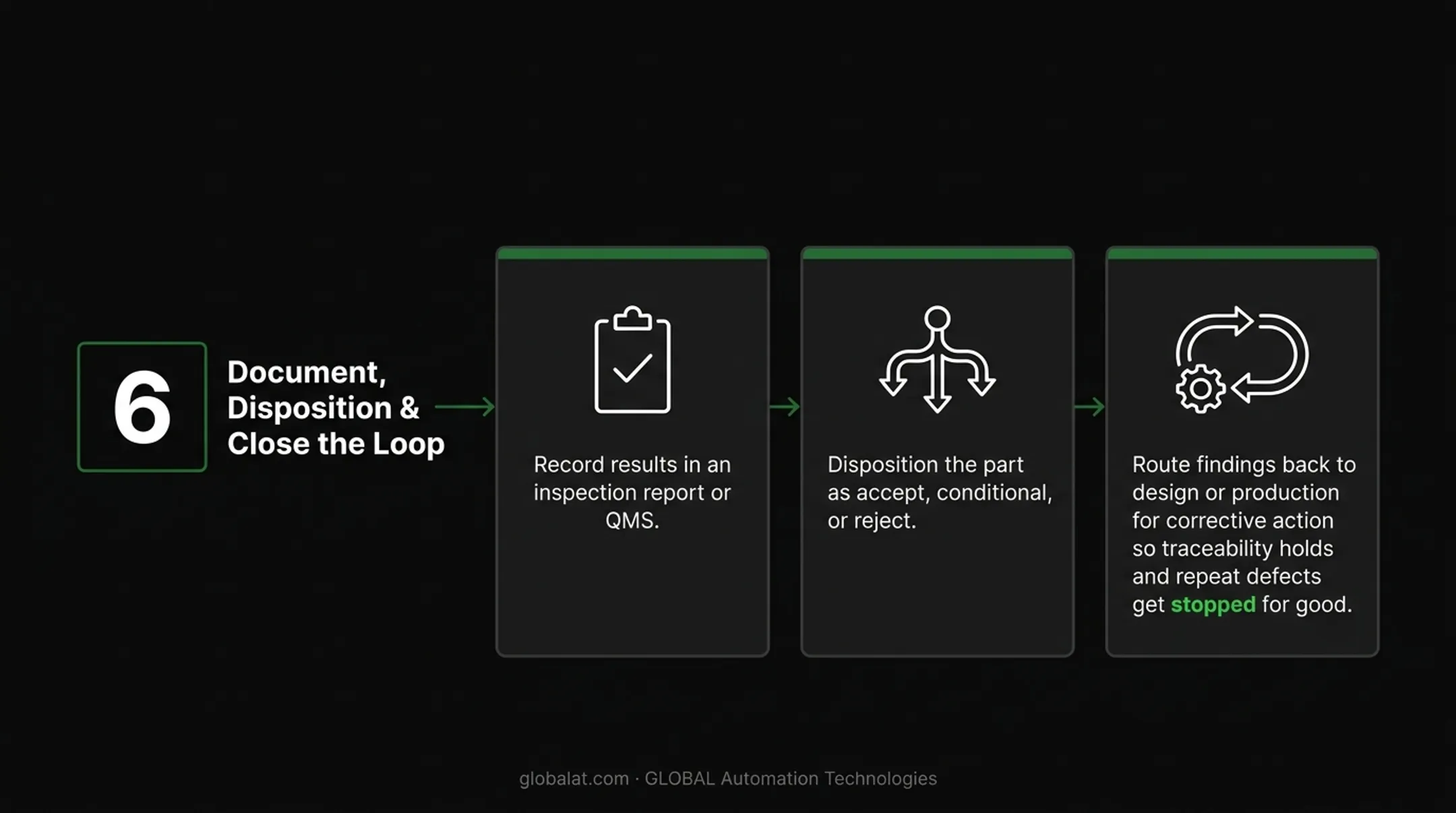

Step 6 – Document, Disposition & Close the Loop
Record results in an inspection report or QMS. Disposition the part as accept, conditional, or reject. Route findings back to design or production for corrective action so traceability holds and repeat defects get stopped for good.
Example Case Walkthrough
Take a machined mounting bracket: a simple part that shows the process clearly across almost any industry.
The inspector starts by reviewing the drawing and tolerance callouts, then confirms the caliper and height gauge are within calibration. That's Step 1 and Step 2, done before touching a single part.
The visual check comes next. Most of the batch looks clean, but one bracket shows a tooling burr near a mounting hole and gets flagged and set aside.
Then the dimensional check. Hole position and diameter measurements come back fine on most parts, but one bracket reads outside the GD&T true-position tolerance on the first pass.
The inspector nearly accepted the part after that single reading, but took a second, confirming measurement instead. The deviation held.
That single decision changed the outcome:
- The bracket is tagged with a nonconformance report (NCR)
- The deviation is traced back to worn tooling
- The machining process is adjusted before the next batch runs
One confirming measurement prevented a much larger scrap event down the line. That's the entire discipline in miniature, and it's why rushing Step 4 is one of the costliest shortcuts on a shop floor.
How GLOBAL Automation Technologies Can Help
Manual SOPs and standalone inspection software solve part of the problem. They don't solve the harder question: who actually runs this day to day? GLOBAL Automation Technologies builds visual and dimensional inspection into automated production lines — pairing robotic systems integration with the talent to operate and maintain them.
Automated Inspection Integration
GLOBAL builds real-time vision inspection directly into dispensing, painting, and assembly cells as part of the process:
- Dispensing and sealing cells check bead width, placement, and continuity every cycle, catching off-spec beads before parts move downstream
- Painting and coating systems combine FANUC paint robots with tuned spray programming to hold film build within specification across every part and every shift
- Assembly cells capture torque and process data in real time, flagging fastening errors or missing components at the cell instead of end-of-line
Technical Staffing for Quality & Metrology Roles
Building the system is only half the equation. GLOBAL's technical staffing places quality engineers, CMM operators, and vision system technicians on a contract, contract-to-hire, or direct-hire basis. Manufacturers get on-demand access to the people who run these programs without a long internal hiring cycle.
GLOBAL backs all of this with full turnkey capability: layout, design, programming, validation, installation, and ongoing support, built on 18+ years of experience and a proven global base of robotic deployments.
Pairing visual and dimensional inspection with automation and the right engineering talent cuts escapes and rework before they hit the bottom line. As volumes and part complexity rise, GLOBAL helps manufacturers scale the system and the staff together.
Frequently Asked Questions
What does dimensional inspection mean?
Dimensional inspection is the process of measuring a part's physical geometry (length, diameter, angles, hole position, and GD&T characteristics) against design tolerances. Tools range from calipers and micrometers to CMMs and vision or laser systems.
What does a visual inspection include?
Visual inspection covers surface condition, coatings and finish, markings, and assembly or alignment checks. It's done visually or with imaging aids such as cameras and machine vision systems.
What are the 4 types of quality inspection?
The four main inspection points are incoming/receiving inspection, in-process inspection, first-article inspection, and final/outgoing inspection. Each catches different categories of nonconformance at different stages of production.
What is the visual and dimensional inspection procedure?
It follows a prepare-inspect-measure-document flow: define requirements, calibrate tools, conduct the visual check, perform dimensional measurement, apply acceptance criteria, then document and disposition the part.
Who performs dimensional inspections?
Quality engineers, CMM operators, and metrology technicians traditionally handle dimensional inspection. Increasingly, automated vision and robotic systems perform the measurement itself, overseen by trained technical staff.
What tools are commonly used for dimensional inspection?
Common tools include calipers, micrometers, height gauges, CMMs, laser scanners, and machine vision systems. Calibration is essential for every one of them: an uncalibrated tool makes every downstream measurement unreliable.
