PROFINET configuration issues are among the most common culprits behind delayed commissioning. A mismatched device name, wrong GSDML file, or reversed byte count can stall a startup for days, even when the robot program itself is flawless.
This guide walks through PROFINET architecture for FANUC controllers, the hardware and software you need before you start, step-by-step configuration in TIA Portal and on the teach pendant, and how to fix the errors that show up most often. It applies specifically to R-30iB and R-30iB Plus controllers with PROFINET boards paired with Siemens S7-1200/1500 PLCs.
Key Takeaways
- PROFINET needs a dedicated FANUC board (e.g., A05B-2600-S523) and a matching GSDML file in TIA Portal
- Run the robot as an I/O Device, I/O Controller, or both, based on your network layout
- Match device names, IPs, and rack/slot assignments exactly between TIA Portal and the teach pendant
- Trace most "no communication" errors to device-name or GSDML version mismatches—not hardware failure
Understanding PROFINET Communication for FANUC Robots
PROFINET runs on standard IEEE 802.3 Ethernet, which is why it's become the default choice on Siemens-driven lines across automotive and electronics manufacturing. It comes in two flavors:
- RT (Real-Time): Bypasses standard TCP/IP for cyclic traffic, reducing latency to cycle times from 512 ms down to 250 µs depending on network design (PI North America RT vs IRT)
- IRT (Isochronous Real-Time): An optional, tighter-synchronized mode capable of cycles as fast as 31.25 µs with 1 µs jitter
The FANUC PROFINET Board

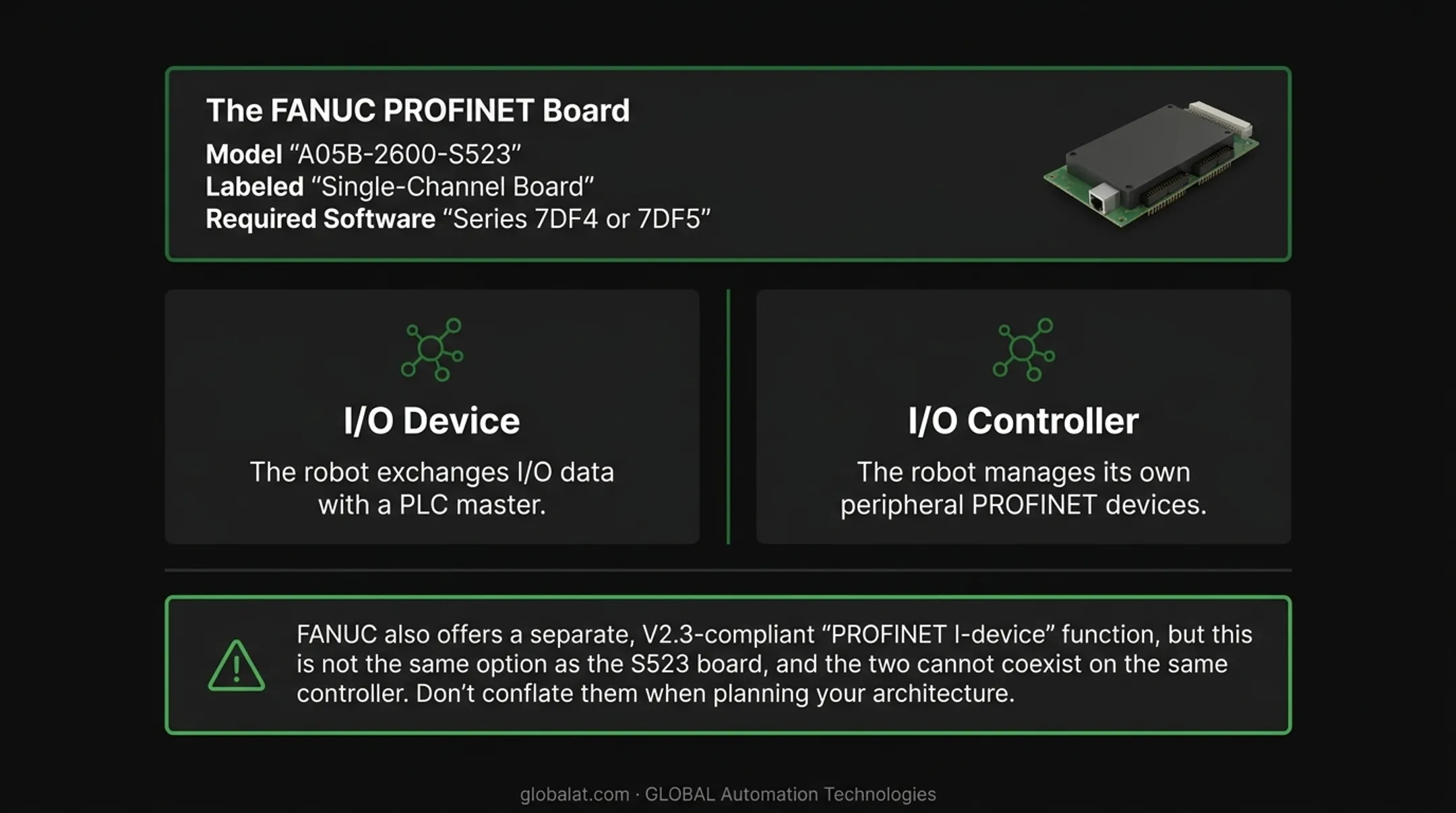

FANUC's single-channel board, the A05B-2600-S523, requires software series 7DF4 or 7DF5. Role terminology matters on this board:
- I/O Device: The robot exchanges I/O data with a PLC master
- I/O Controller: The robot manages its own peripheral PROFINET devices
FANUC also offers a separate, V2.3-compliant "PROFINET I-device" function — but this is not the same option as the S523 board, and the two cannot coexist on the same controller. Don't conflate them when planning your architecture.
UOP Signals: The Standard Handshake
UOP (User Operator Panel) signals give the robot and PLC a standardized way to exchange status and command bits. When UOP auto-assignment is enabled, the first 18 digital inputs and 20 digital outputs map automatically: UI[1-18] and UO[1-20], covering signals like IMSTP, HOLD, CYCLE START, and fault reset.
Why Protocol Choice Matters
FANUC controllers support PROFINET, EtherNet/IP, PROFIBUS, and other industrial protocols. Picking the one that matches your existing PLC platform directly affects engineering time.
If your plant already runs Siemens S7-1500 PLCs on PROFINET elsewhere, standardizing on PROFINET for the new robot cell means:
- Reusing existing network infrastructure and switches
- Using in-house Siemens programming knowledge
- Avoiding protocol converters or gateway hardware
Mixing protocols across a plant floor adds complexity nobody asked for.
Prerequisites and Required Files
Before touching TIA Portal, confirm you have:
- FANUC controller with a PROFINET board installed (for example, A05B-2600-S523)
- Siemens S7-1200, S7-1500, or S7-1500SP PLC
- TIA Portal version that supports your board’s GSDML schema
- Standard industrial Ethernet cabling
V17 supports schema V2.4; V18 supports V2.42. Confirm compatibility before you assume the project will import cleanly.
The FR:\pnfb Folder
Three files in this folder control PROFINET behavior:
| File | Function |
|---|---|
device1.zip |
Configuration for I/O Device communication, loaded to the PROFINET board at startup |
tic.zip |
Configuration for I/O Controller communication |
dev_config.dt |
Device information for I/O Controller mode, including device name and station ID |
Don't hand-edit or swap these files. They're generated through the robot's configuration process, and manual changes tend to break communication in ways that are hard to trace.
Matching Your GSDML File
The GSDML filename encodes several things at once. A real example:
GSDML-V2.41-Fanuc-A05B2600S523V940P4P-20210921.xml
That breaks down to schema version (V2.41), board (S523), robot software (V940P), and release date.
Get the GSDML from FANUC's support portal or your WinOLPC installation, not a generic download. A schema mismatch with your TIA Portal version can cause import failures or silent I/O mapping errors.
Step-by-Step PROFINET Configuration
TIA Portal Setup

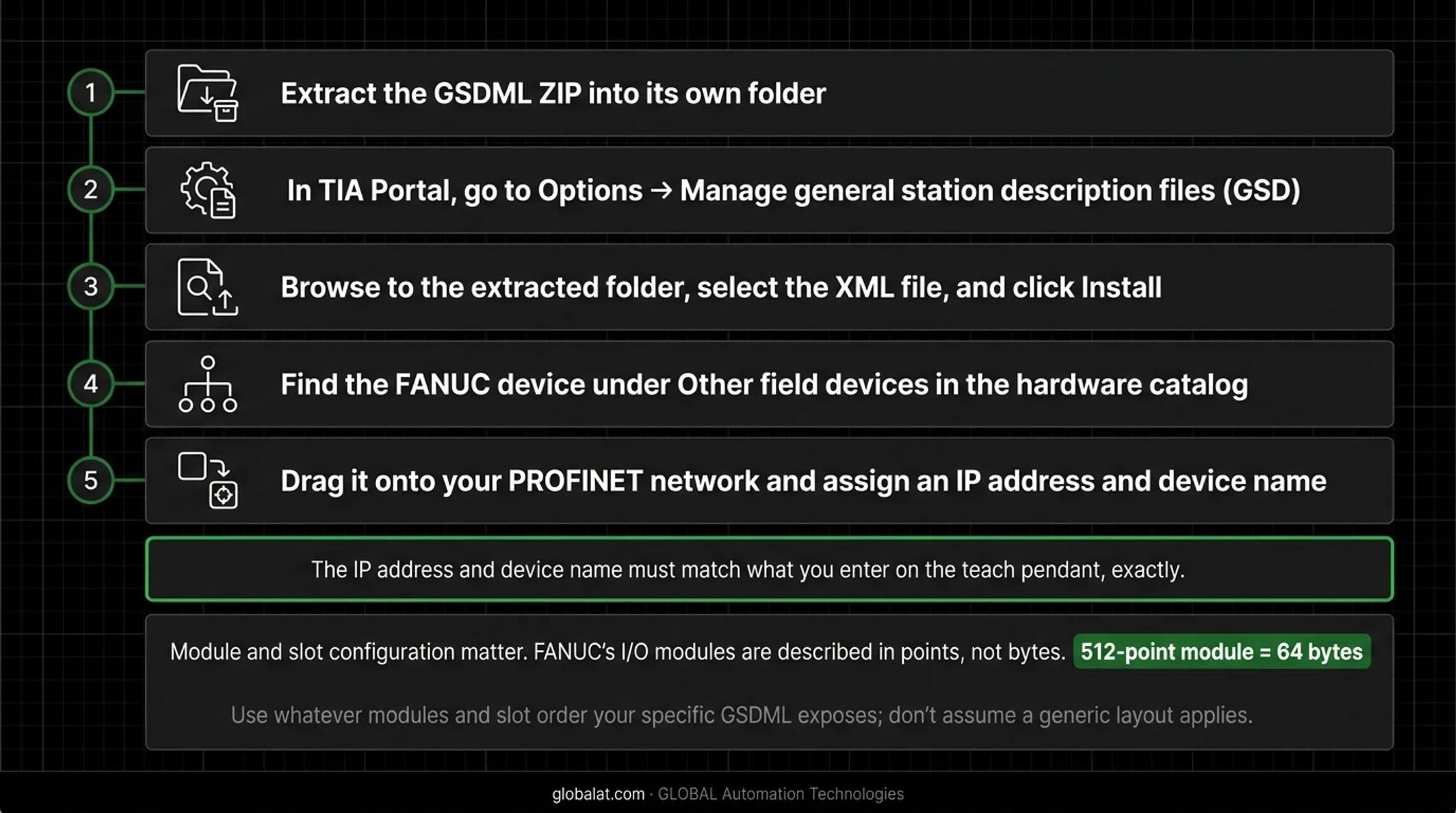

- Extract the GSDML ZIP into its own folder
- In TIA Portal, go to Options → Manage general station description files (GSD)
- Browse to the extracted folder, select the XML file, and click Install
- Find the FANUC device under Other field devices in the hardware catalog
- Drag it onto your PROFINET network and assign an IP address and device name
The IP address and device name must match what you enter on the teach pendant, exactly.
Module and slot configuration matter. FANUC's I/O modules are described in points, not bytes. A "512-point" module equals 64 bytes. Use whatever modules and slot order your specific GSDML exposes; don't assume a generic layout applies.
Teach Pendant Setup
On the robot side:
- Navigate to MENUS → I/O → F1 [TYPE] → PROFINET(M) to configure I/O Device or I/O Controller settings
- At controlled start, open the PROFINET download screen under MENU → NEXT → NEXT → PROFINET
I/O Mapping: Racks and Slots
FANUC uses fixed rack assignments depending on the role:
- Rack 99, Slot 1 — I/O Controller
- Rack 100, Slot 1 — I/O Device
As an I/O Device, remember the naming runs from the robot's perspective: DI/AI map to PROFINET Output Data, and DO/AO map to PROFINET Input Data. This trips up more engineers than it should.
Verifying the Connection

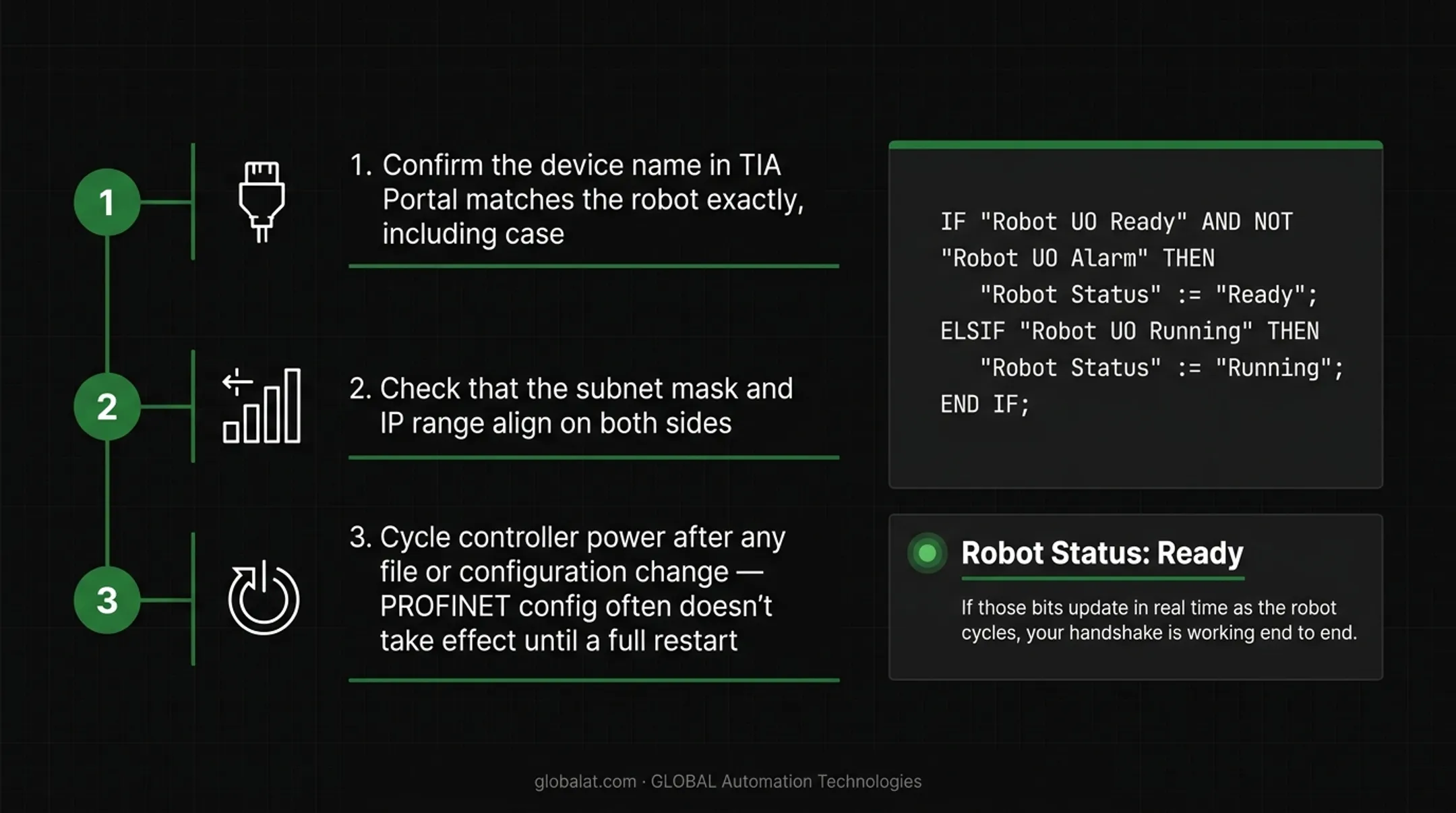

- Confirm the device name in TIA Portal matches the robot exactly, including case
- Check that the subnet mask and IP range align on both sides
- Cycle controller power after any file or configuration change — PROFINET config often doesn't take effect until a full restart
Once connected, a simple PLC-side check confirms signal flow. A structured text snippet reading robot status might look like:
IF "Robot_UO_Ready" AND NOT "Robot_UO_Alarm" THEN
"Robot_Status" := "Ready";
ELSIF "Robot_UO_Running" THEN
"Robot_Status" := "Running";
END_IF;
If those bits update in real time as the robot cycles, your handshake is working end to end.
Troubleshooting Common PROFINET Issues
Most "no communication established" problems come down to one of three things:
- Device name mismatch — even a trailing space breaks the match
- GSDML/firmware version mismatch — an outdated GSDML won't align with a newer controller software build
- Subnet errors — robot and PLC sitting on different subnets despite being on the same physical switch
Known Error Codes
| Code | Meaning | Fix |
|---|---|---|
| PRIO-603 | System error | Contact FANUC support with the exact error message |
| PRIO-608 | Slot/subslot mismatch with downloaded project | Check the setup-module-detail screen against your TIA Portal project |

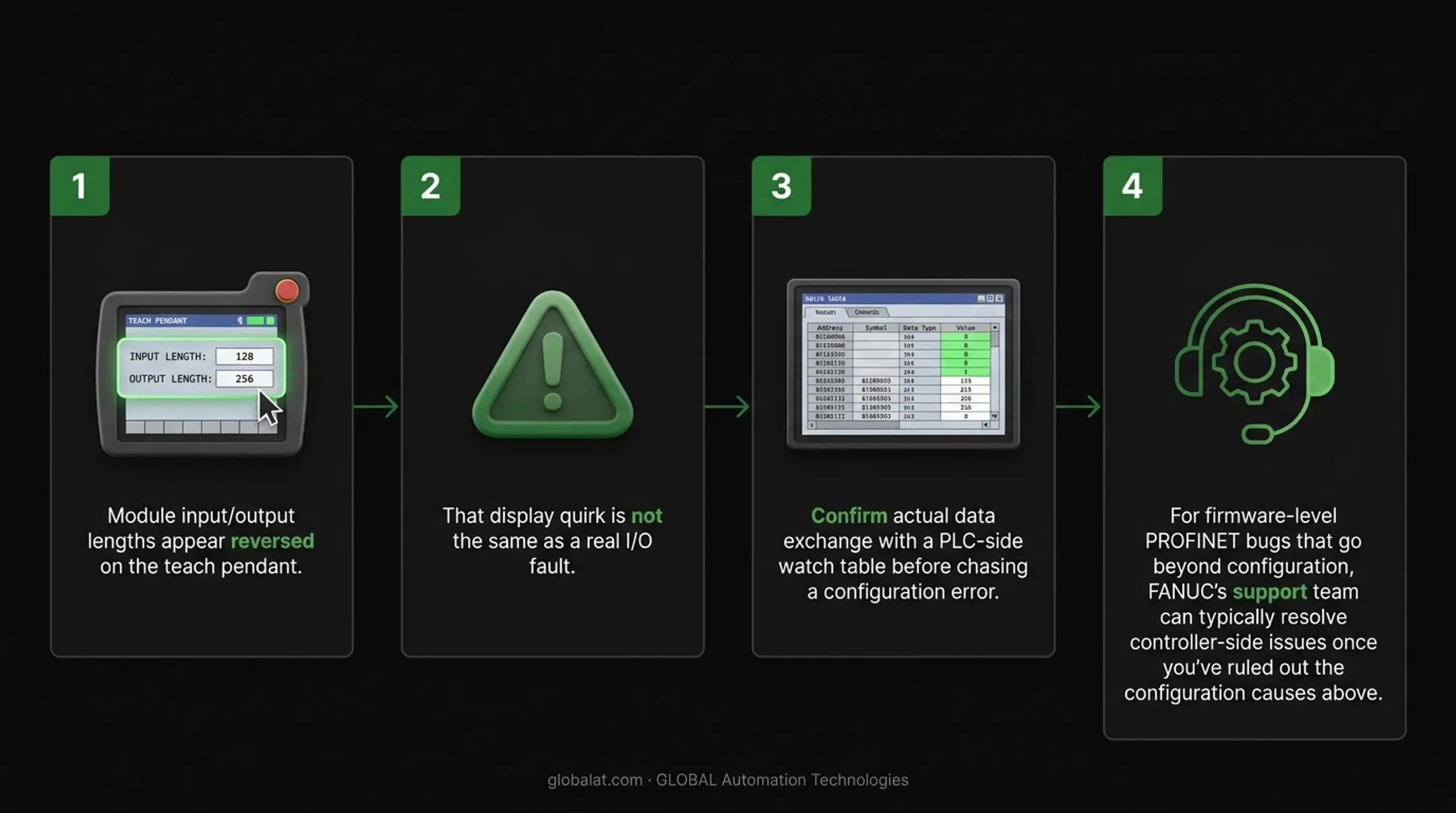

On some controller versions, module input/output lengths appear reversed on the teach pendant. That display quirk is not the same as a real I/O fault.
If you see it, confirm actual data exchange with a PLC-side watch table before chasing a configuration error.
For firmware-level PROFINET bugs that go beyond configuration, FANUC's support team can typically resolve controller-side issues once you've ruled out the configuration causes above.
When to Bring in a Systems Integration Partner
PROFINET and PROFIsafe configuration errors can stall commissioning for days when the team doesn't have hands-on network troubleshooting experience specific to FANUC-Siemens pairings. A device name typo is a five-minute fix if you know where to look. Bring in a partner when GSDML, device-name, or PROFIsafe mapping failures keep burning schedule, or when no one on the floor owns FANUC-Siemens network diagnostics.
GLOBAL Automation Technologies is a Level 5 FANUC Authorized System Integrator with 18+ years in business and 630+ robots integrated worldwide. GLOBAL's turnkey process covers:
- Controls engineering and PLC integration
- Robot simulation and programming
- Installation and commissioning
- Documentation and operator training
- Ongoing production support
