Introduction
In 1967, General Motors installed the first two spot-welding robots at its Norwood, Ohio facility. That milestone marked the start of automation in automotive joining. Two years later, GM's 1969 Lordstown rebuild put Unimate spot-welding robots across the body shop.
Today, manufacturers depend on robotic welding for a simple reason: a single vehicle needs 2,000 to 6,000 spot welds. Human operators cannot match that volume with the speed, precision, and consistency modern lines demand.
Robotic welding anchors automotive production because it handles what manual processes cannot. Robots run 24/7 without fatigue, hold tight weld tolerances, keep operators out of fumes and extreme heat, and repeat quality across millions of cycles.
As designs grow more complex—especially with EVs and mixed-material structures—that precision and adaptability are non-negotiable.
This article covers the robotic welding types used in automotive production, the benefits manufacturers gain, common applications from body-in-white to EV battery assembly, and the practical factors that drive a successful implementation.
Key Takeaways
- Robotic welding entered auto plants in 1967 when GM ran the first spot-welding robots at Norwood, Ohio
- Resistance spot welding still dominates body assembly—each vehicle needs 2,000–6,000 welds
- Modern cells pair vision-guided seams, adaptive path correction, and real-time quality checks
- Base go/no-go decisions on capital cost, programming load, maintenance capacity, and material-specific parameters
What is Automotive Robotic Welding?
Robotic welding uses programmable industrial robots to automate joining processes in high-volume automotive manufacturing. Per ISO 8373, these robots are automatically controlled, reprogrammable, multipurpose manipulators with three or more axes.
They execute repetitive welding tasks with precision and consistency that manual operations cannot sustain across multi-shift production schedules.

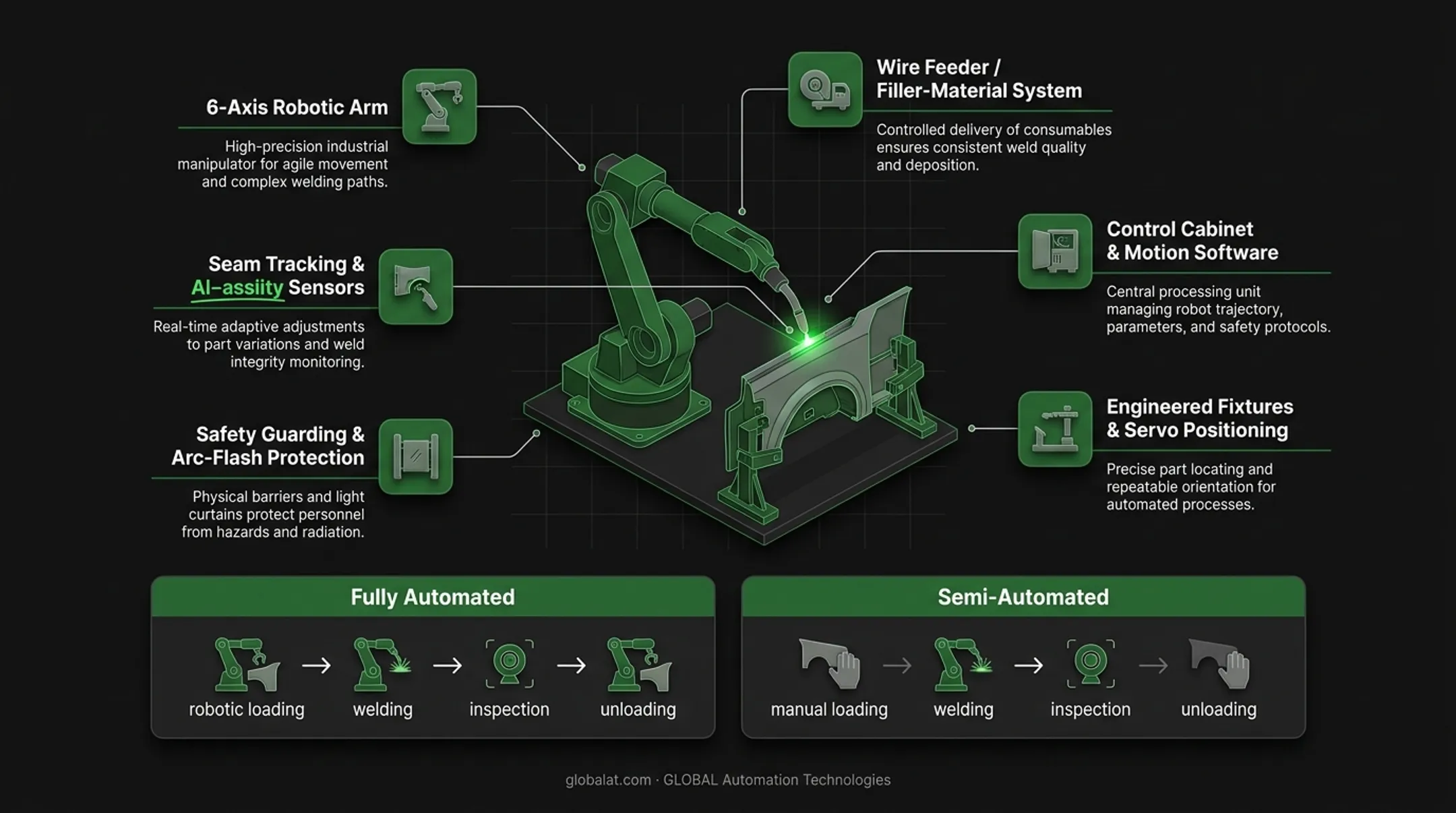

A robotic welding system includes:
- 6-axis robotic arm with welding torch or electrode gun
- Wire feeder or filler-material delivery system
- Control cabinet and motion programming software
- Sensors for seam tracking and quality monitoring
- Safety guarding, interlocks, and arc-flash protection
- Engineered fixtures and servo positioning for controlled part presentation
Robots are programmed using teach pendants, offline simulation software, or AI-assisted modeling tools that generate weld paths based on CAD geometry. Once programmed, the robot executes the same weld sequence thousands of times per shift with minimal variation.
Fully automated vs. semi-automated systems:
- Fully automated cells handle part loading, clamping, welding, inspection, and unloading via robotic material handling or conveyorized transfer
- Semi-automated systems require manual part loading or fixturing but execute the weld cycle robotically
Human operators supervise production, monitor quality data, adjust programs for new parts, perform preventive maintenance, and troubleshoot when faults occur. As automotive lines shift between model years or production variants, operators reprogram tooling and weld parameters to accommodate design changes.
Types of Robotic Welding in Automotive Manufacturing
Resistance Spot Welding

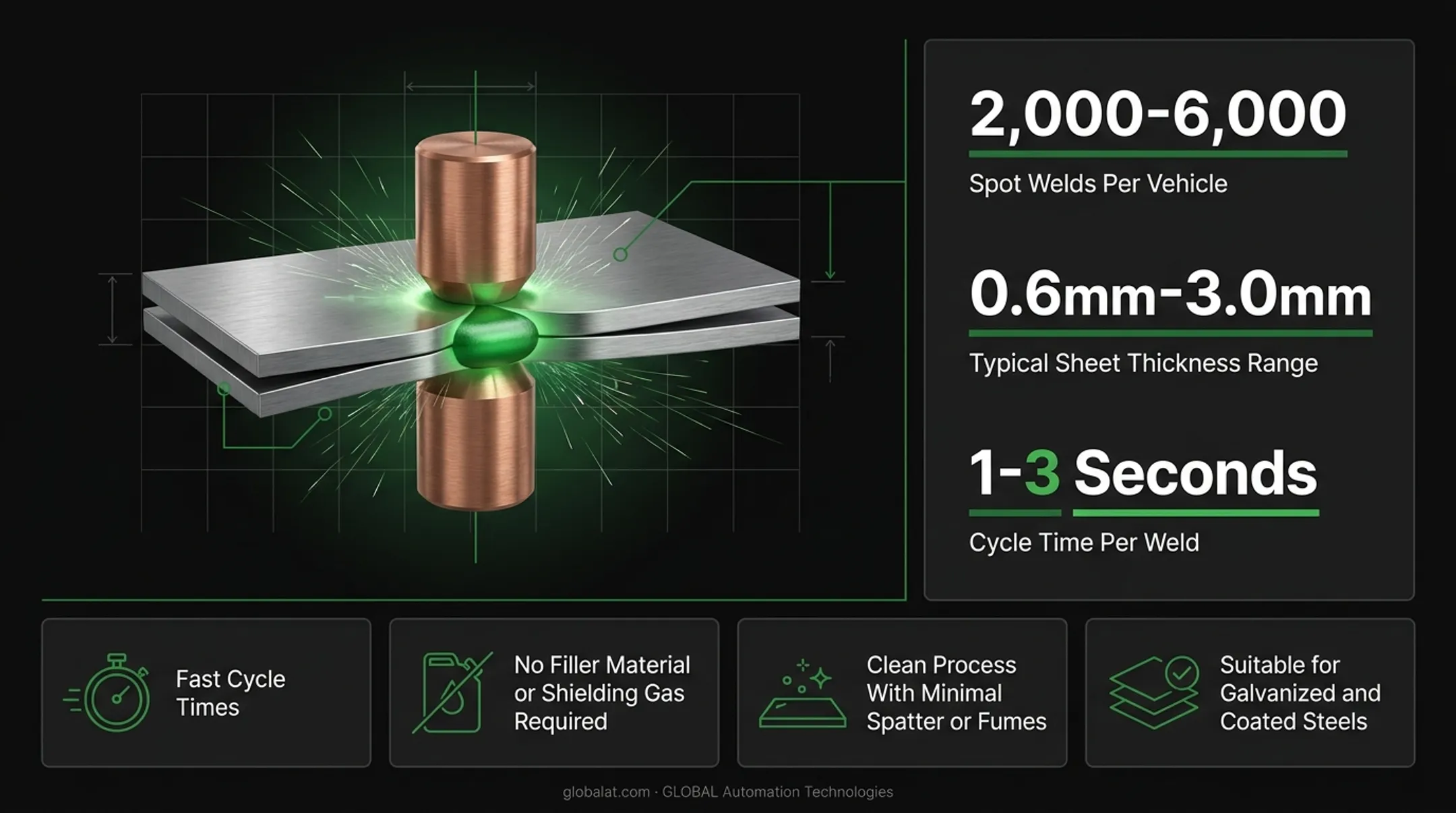

Resistance spot welding (RSW) uses electrical current and pressure to join two or more metal sheets at specific points. Electrodes clamp the sheets together, pass high current through the contact area, and generate localized heat that fuses the materials without creating a visible seam on the exterior surface.
RSW is the most common joining process in automotive body-in-white assembly, with roughly 2,000-6,000 spot welds per vehicle depending on the design. This process is ideal for thin sheet metal—typically 0.6mm to 3.0mm—because it creates strong structural joints without adding weight or requiring edge preparation.
Why RSW dominates automotive body assembly:
- Fast cycle times (1-3 seconds per weld)
- No filler material or shielding gas required
- Clean process with minimal spatter or fumes
- Suitable for galvanized and coated steels used in corrosion protection
Arc Welding (MIG/MAG)

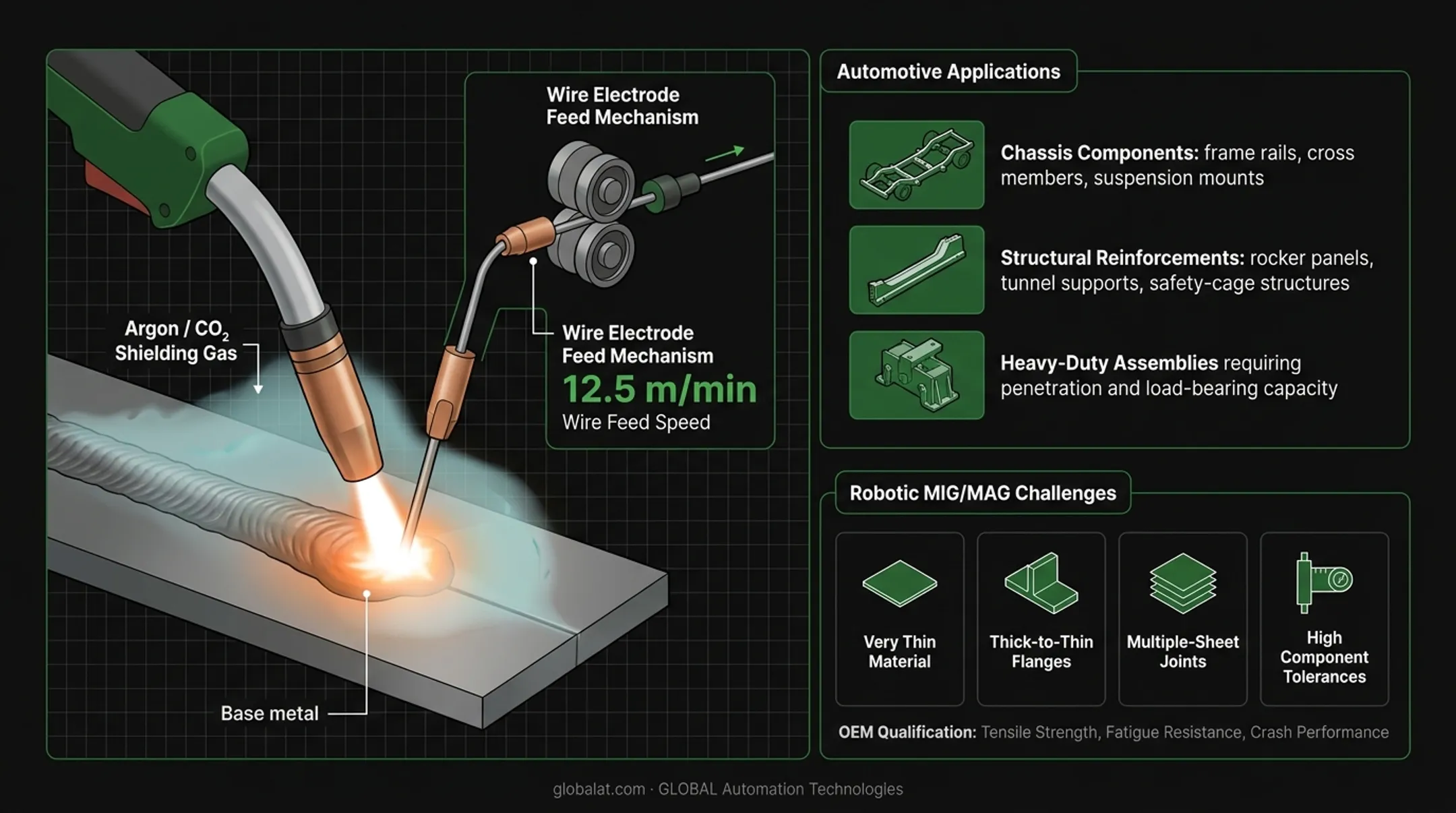

Metal Inert Gas (MIG) and Metal Active Gas (MAG) welding use an electric arc between a consumable wire electrode and the base material. The arc melts both the wire and the base metal, creating a weld pool that solidifies into a continuous seam. Shielding gas—argon or CO₂—protects the molten metal from atmospheric contamination.
Typical automotive applications include:
- Chassis components: frame rails, cross members, suspension mounts
- Structural reinforcements: rocker panels, tunnel supports, safety-cage structures
- Heavy-duty assemblies requiring penetration and load-bearing capacity
Fronius outlines key automotive robotic MIG/MAG challenges, including very thin material, thick-to-thin flanges, multiple-sheet joints, and high component tolerances. Because chassis parts are safety-critical, weld quality must meet OEM qualification standards for tensile strength, fatigue resistance, and crash performance.
MIG/MAG excels on thicker materials and longer seams where spot welding cannot provide sufficient joint strength.
Laser Welding
Laser welding focuses a high-powered laser beam onto the joint, creating a narrow, deep weld with minimal heat-affected zone. The non-contact process allows precise control over heat input, making it ideal for thin materials, dissimilar metals, and complex geometries.
A 2023 review of laser welding in EV battery systems highlights high energy density, controlled heat input, and easy automation as key advantages. Laser welding is increasingly used for:
- EV battery enclosures: aluminum and steel tray structures requiring leak-tight seals
- Aluminum body panels: lightweight closures and structural components
- Precision assemblies: sensor housings, electronics enclosures, thin-wall brackets
The process delivers clean, narrow welds with minimal distortion, critical when joining materials sensitive to heat input or when maintaining tight dimensional tolerances.
TIG (Tungsten Inert Gas) Welding
TIG welding uses a non-consumable tungsten electrode to create an arc while feeding filler material separately into the weld pool. Inert gas—typically argon—shields the weld zone. This process offers superior control and weld quality but operates at slower speeds than MIG or spot welding.
TIG is preferred for specialty materials and jobs that need exceptional finish quality. In automotive work, it shows up most often in prototype development, repair, and low-volume specialty vehicle assembly rather than high-volume body lines.
Plasma Welding
Plasma welding focuses an electric arc through a constricted nozzle, creating a high-velocity plasma jet with a narrow heat-affected zone. It suits thin-gauge and precision joints, but it is far less common than RSW, MIG/MAG, or laser on high-volume automotive body lines. Most plants reserve it for specialized or low-volume precision assemblies.
Resistance Welding Beyond Spot
Resistance welding covers more than spot welds alone:
- Seam welding: Rotating electrode wheels create continuous, leak-tight joints—common on fuel tanks and fluid reservoirs
- Projection welding: Raised embossments concentrate current so brackets, fasteners, and electrical components can be attached to body structures
Key Benefits of Robotic Welding for Automotive Manufacturers

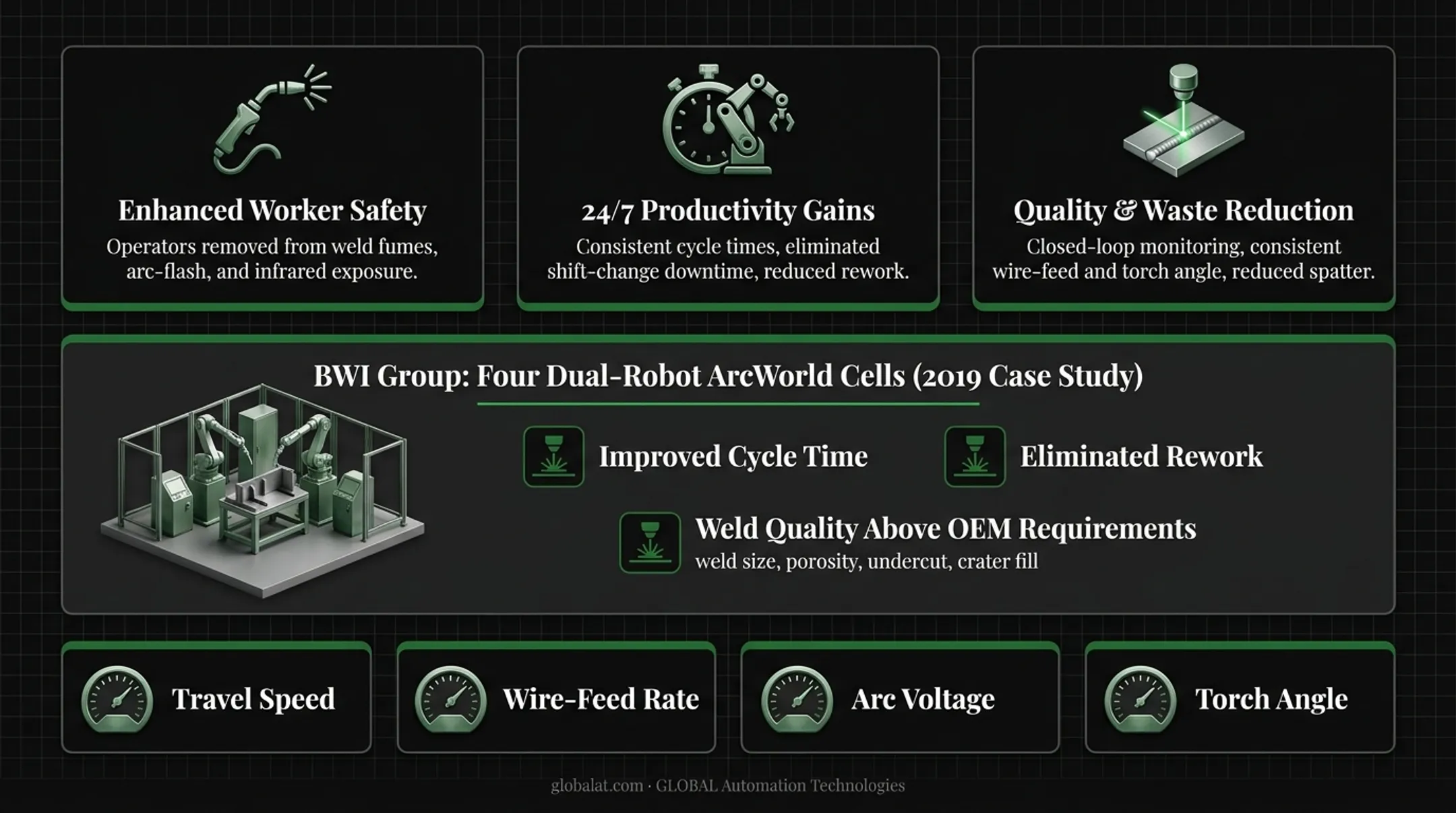

Enhanced worker safety starts with removing operators from hazardous weld environments. Robots keep people away from welding fumes, gases, and infrared radiation that pose direct health risks.
OSHA also flags arc-flash, shock, and fire hazards around robot systems. During normal operation, automation keeps production personnel outside the active weld zone.
Productivity gains through 24/7 operation show up in cycle time and uptime:
- Execute consistent cycle times without fatigue
- Eliminate downtime for operator breaks or shift changes
- Reduce rework by holding weld parameters within specification
- Enable faster model changeovers through programmable tooling
A 2019 case study of BWI Group's suspension-component welding using four dual-robot ArcWorld cells reported improved overall cycle time, eliminated rework, and weld quality above OEM requirements. The system paired two 6-axis robots with inline laser inspection for weld size, porosity, undercut, and crater fill.
Quality improvements come from repeatable motion control and closed-loop process monitoring. Robots hold consistent travel speed, wire-feed rate, arc voltage, and torch angle across thousands of welds. Optional vision systems locate seams, compensate for part-position variation, and verify weld quality before parts move downstream.
Those same controls cut material waste. Robots optimize filler-wire usage, reduce spatter, and run the same proven weld path every cycle, so defect rates drop without the variability of manual technique.
Common Automotive Applications
Body-in-White Assembly
Body-in-white (BIW) assembly joins body panels, floor pans, roof structures, door frames, and pillars into the vehicle's structural shell before painting. Resistance spot welding dominates this application, with 2,000-6,000 spots per vehicle executed by multi-robot cells coordinated across dozens of stations.
Robots position spot-welding guns with precision, ensuring each weld meets location, penetration, and strength requirements. The process still has to handle real production variables:
- Part-position variation at the fixture
- Electrode tip wear and dressing cycles
- Weld parameters for single-, double-, or triple-layer material stacks
Chassis and Structural Component Welding
Chassis welding uses arc processes to join frame rails, cross members, suspension components, and safety-cage structures. These welds carry mechanical loads, absorb crash energy, and must meet strict fatigue and tensile-strength requirements.
Fronius highlights that chassis parts are safety-critical, requiring consistent penetration, controlled heat input, and qualification to OEM specifications. Robotic GMAW (Gas Metal Arc Welding) ensures repeatable weld quality on thin-wall suspension parts, struts, and shock absorbers.
EV-Specific Applications
Electric vehicle manufacturing introduces new welding challenges. BENTELER identifies battery-tray requirements that drive joint design:
- Mechanical load capacity
- Package space optimization
- Thermal management
- Sealing integrity
- Crash safety
KUKA documents robot-assisted friction stir welding (FSW) for sealing EV and hybrid battery housings. FSW delivers leak-tight joints without the porosity risks of fusion welding.
A 2025 case study from E&E Manufacturing describes a 24-robot cell using KUKA KR QUANTEC robots to spot-weld aluminum underbody skid plates.
The system uses RoboSpin technology to reduce electrode tip sticking and extend tip life. That matters on aluminum, which rapidly degrades electrode surfaces.
EV battery welding also demands:
- Controlled heat input so cells are not damaged
- Precise joint alignment for thermal-path management
- Leak-tight seals for coolant and environmental protection
Implementation Considerations and Challenges
High Initial Capital Investment
Robotic welding requires significant upfront capital. Investment drivers include:
- Robot purchase and welding-process package
- Engineered fixtures, tooling, and servo positioning
- Material-handling equipment and part-transfer conveyors
- Inline inspection systems (laser scanners, vision cameras)
- Offline programming and simulation software
- Safety guarding, interlocks, and facility modifications
ROI should factor in labor savings, quality gains, less rework, higher throughput, and safer operations. Feasibility studies help manufacturers model cycle times, capital needs, facility constraints, and expected payback before full integration.
Programming and Integration Complexity
Robotic welding cells require specialized programming, offline simulation, testing, and validation before production deployment. Engineers model robot motion, fixture design, and weld sequences in simulation environments to identify collisions, reach limitations, and cycle-time bottlenecks.
AI-assisted simulation tools accelerate this process by automating path generation, optimizing robot motions, and validating programs before deploying to the factory floor. KUKA.Sim supports offline simulation and robot-sequence creation, reducing programming effort and enabling faster changeovers.
Integration complexity increases with multi-robot coordination, vision-guided seam tracking, adaptive welding parameters, and inline quality inspection. Each added capability improves performance but extends engineering effort and commissioning time.
Maintenance Requirements

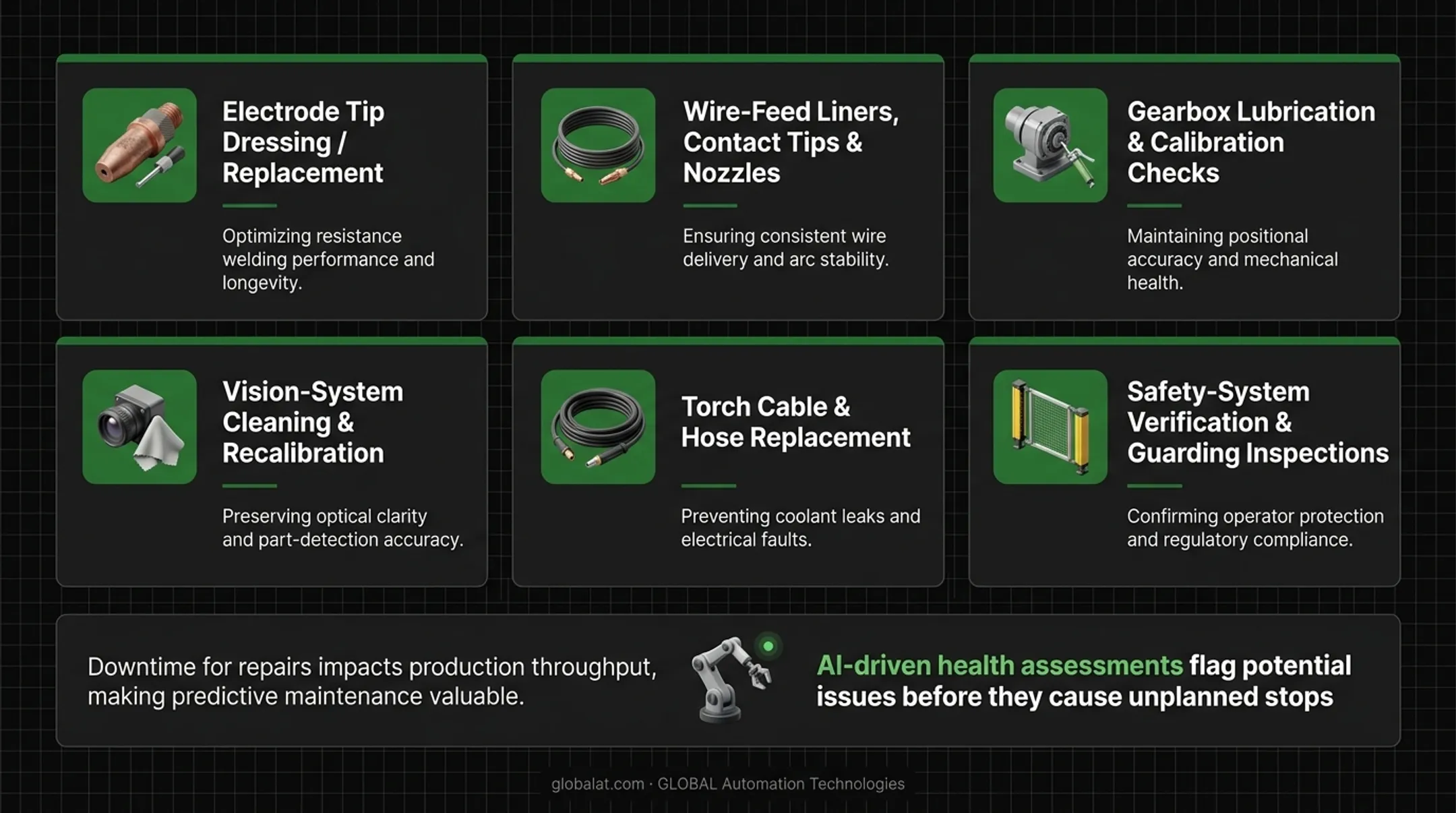

Robotic welding systems require preventive maintenance, consumable replacement, and skilled technicians. Maintenance scope includes:
- Electrode tip dressing or replacement (spot welding)
- Wire-feed liners, contact tips, and nozzles (arc welding)
- Robot gearbox lubrication and calibration checks
- Vision-system cleaning and recalibration
- Torch cable and hose replacement
- Safety-system verification and guarding inspections
Downtime for repairs impacts production throughput, making predictive maintenance valuable. AI-driven health assessments can monitor system performance and flag potential issues before they cause unplanned stops.
Choosing Integration Partners
Successful robotic welding implementation depends on partners who deliver both the robotic systems and the engineering talent to run them. That mix shortens deployment, strengthens training, and supports the cell across its full lifecycle.
GLOBAL Automation Technologies is built around this dual-division model. As a Level 5 FANUC Authorized System Integrator and the largest U.S. purchaser of FANUC robots among integrators in 2025, GLOBAL pairs systems integration with technical staffing.
The team delivers turnkey welding cells from concept and simulation through commissioning and production launch. It also places contract and direct-hire controls engineers, robotics technicians, and project managers for ongoing operations.
With 110+ team members, offices in 4 countries, and 630+ robots integrated worldwide, GLOBAL brings 18+ years of automotive experience to OEMs and Tier 1 suppliers. AI-assisted simulation tools cut robot programming time from weeks to days, so startups move faster with fewer surprises on the plant floor.
Material-Specific Challenges
Different materials require different welding parameters. WorldAutoSteel notes the increased need to join magnesium alloys to high-strength steels in lightweight multi-material bodies. Advanced high-strength steels (AHSS) demand careful control of heat input, electrode force, and weld time to achieve required strength and ductility.
Aluminum welding introduces unique challenges:
- Rapid electrode tip degradation and sticking
- Oxide layer removal before welding
- Higher thermal conductivity requiring adjusted parameters
- Porosity risks from hydrogen absorption
The E&E Manufacturing case demonstrates aluminum-specific solutions through RoboSpin technology, which extends tip life and reduces sticking. Steel-to-aluminum joining requires specialized processes such as laser welding, friction stir welding, or adhesive bonding, depending on joint design and performance requirements.
Beyond body structures, EV battery assembly adds thermal-management constraints, leak-tightness requirements, and strict limits on heat input near cells and busbars.
Frequently Asked Questions
What type of welding is best for automotive?
The best process depends on the joint and production area. Resistance spot welding dominates body-in-white panel assembly; MIG/MAG covers chassis and structural work; laser welding fits precision joints and EV battery enclosures. Most plants run more than one process.
How long does it take to implement robotic welding in an automotive facility?
Timelines vary with cell complexity, facility readiness, and part requirements. A full project typically runs through design, simulation, integration, programming, training, and commissioning. A feasibility study sets a realistic schedule before deployment.
What is the typical ROI timeline for automotive robotic welding systems?
ROI depends on volume, labor cost, quality gains, and throughput—not a single industry average. Model payback in a feasibility study using capital cost, labor savings, less rework, faster cycles, and higher uptime.
Can robotic welding systems handle both steel and aluminum in automotive manufacturing?
Yes—with different processes and parameters. Aluminum needs lower heat input, faster travel speeds, and specialized electrodes. Laser and TIG work well on aluminum; resistance spot welding needs tip-management methods such as RoboSpin to limit electrode wear.
What training do operators need to work with robotic welding systems?
Training should cover robot operation, safety, welding basics, program adjustments, fixture setup, troubleshooting, and preventive maintenance. Depth depends on the role: running production, minor program changes, or full reprogramming and maintenance.
How is AI being used in automotive robotic welding?
AI speeds offline programming and simulation by automating path generation and collision avoidance. It also powers predictive maintenance and real-time quality checks that flag issues early and adjust parameters when material conditions change.
