Many manufacturers struggle with conveyors that were sized for yesterday's throughput, not tomorrow's. Others discover mid-installation that their conveyor can't talk to their robot cell. Both problems are expensive to fix after the fact.
This guide walks through the actual design process: how to define requirements, choose a conveyor type, engineer belt systems, and integrate everything with robotics and controls.
Key Takeaways
- Start with load, throughput, and material specs — not conveyor type
- Belt, roller, chain, and modular conveyors each fit different jobs
- Robot integration demands precise indexing and a defined controls handshake
- An experienced integrator prevents costly mid-project redesigns
How Do I Design a Conveyor System? A Step-by-Step Process
Designing a conveyor system is a sequence of decisions, not one equipment choice. Work through these six steps before you commit to hardware.
Step 1: Define Your Objectives
Before anything else, document what you're actually moving. This means:
- Product dimensions, weight, and fragility
- Total live load and impact loading at peak volume
- Required throughput rate (units/hour) and line speed
- Starts per minute and duty cycle
- Future growth: will volume double in three years?
Hytrol's quote-request checklist asks for exactly these inputs before any conveyor recommendation is made: type selection comes last, not first.
Step 2: Analyze the Operational Environment
A conveyor built for a dry assembly floor will fail fast in a washdown environment. Document:
- Temperature extremes and humidity
- Dust, debris, or chemical exposure
- Washdown or sanitation requirements
- Hazardous area classifications
Step 3: Choose Conveyor Type
Match the conveyor to the product and environment (see the types breakdown below). A stable, boxed product moves well on a belt. Pallets, hot parts, or abrasive loads usually need chain or slat. Accumulation, inclines, and transfers often push you toward roller or specialty designs.
Step 4: Design the Layout
Map material flow from infeed to discharge. Account for:
- Floor space and column/structure conflicts
- Maintenance access points
- Operator ergonomics at load/unload stations
- Curves, inclines, and transfer points
Step 5: Select Drive System and Components
Match motors, gearboxes, VFDs, and sensors to your load and speed targets. Plan robot integration at this stage too, not after the conveyor is bolted down.

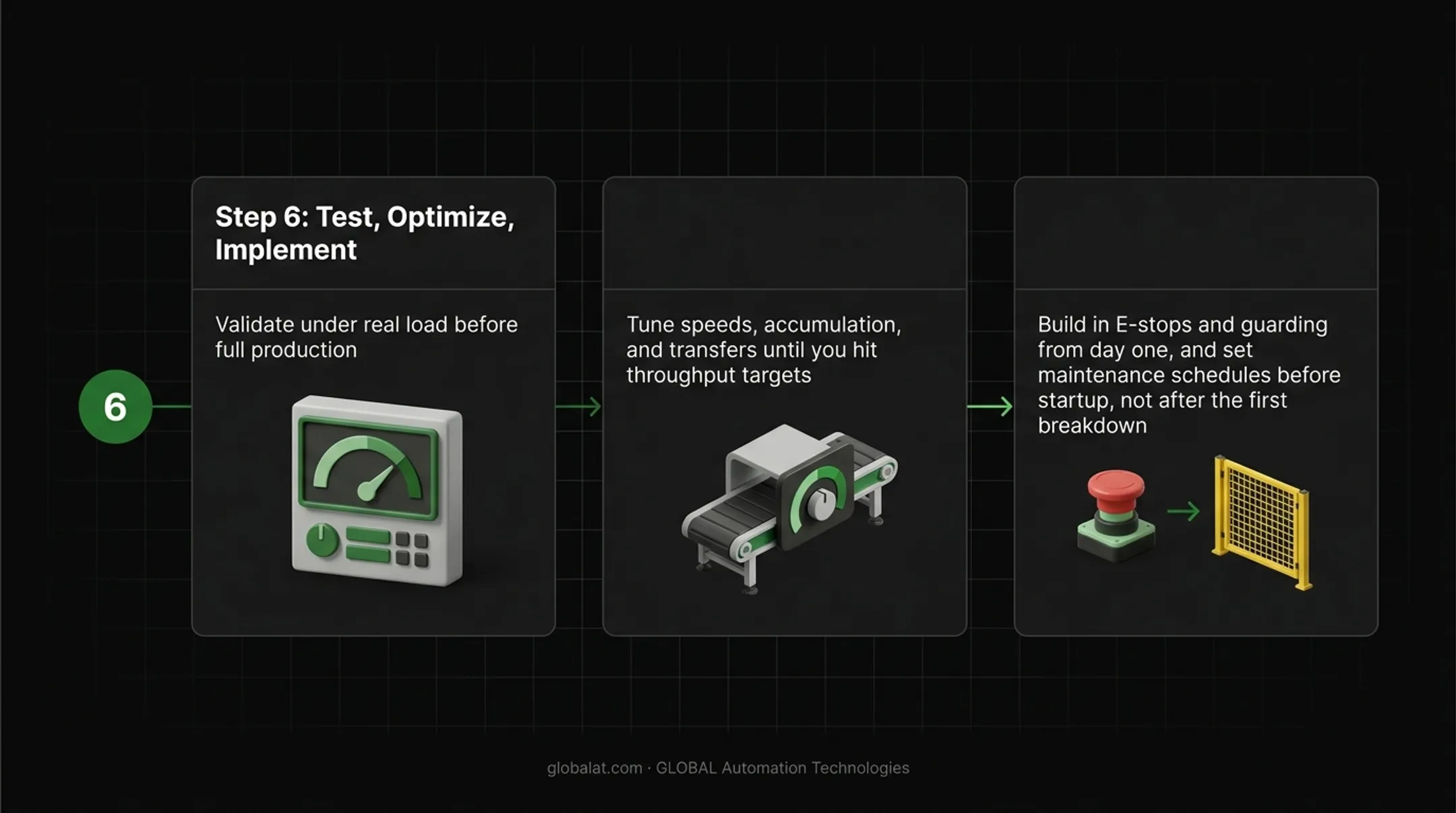

Step 6: Test, Optimize, Implement
Validate under real load before full production. Tune speeds, accumulation, and transfers until you hit throughput targets. Build in E-stops and guarding from day one, and set maintenance schedules before startup, not after the first breakdown.
What Are the Types of Conveyor Systems?
| Type | Best For |
|---|---|
| Belt | General-purpose transport of packaged or bulk goods over long distances |
| Roller | Heavier loads with flat, stable bottoms; accumulation applications |
| Chain/slat | Heavy-duty, high-temperature, or pallet-handling environments |
| Modular plastic | Washdown, food, and sanitary environments needing easy cleaning |
| Specialty (magnetic, incline, curved) | Ferrous parts, elevation changes, or tight-footprint routing |

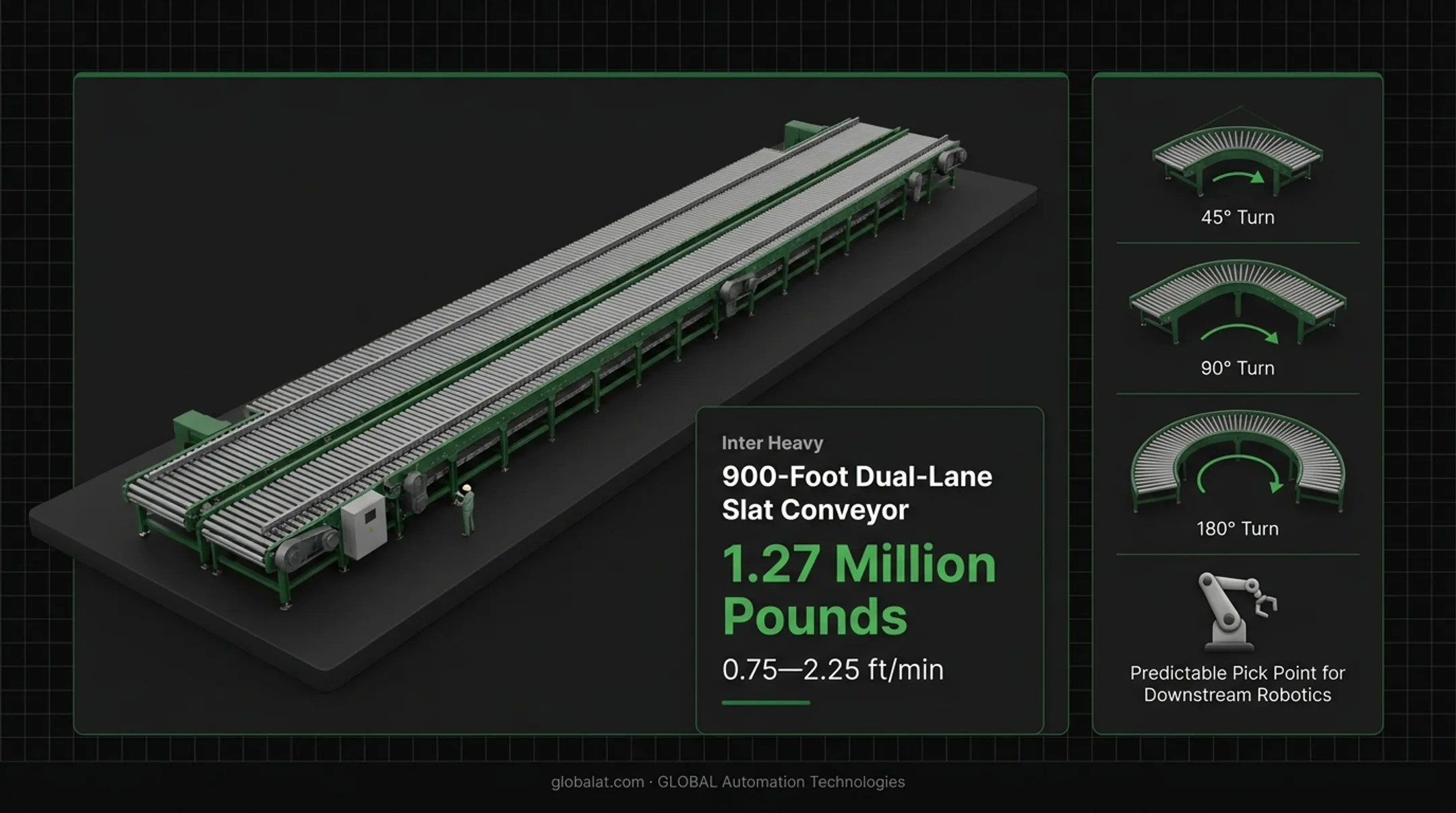

A documented vehicle-manufacturing case used a 900-foot dual-lane slat conveyor to move 1.27 million pounds at just 0.75–2.25 ft/min. Extreme load requirements like that can drive every other design choice.
Curved conveyors handle 45-, 90-, or 180-degree direction changes while keeping delicate or small parts in position. That stability is critical when a robot downstream needs a predictable pick point.
How to Design a Belt Conveyor: Core Engineering Considerations
Load Capacity and Drive Sizing
Belt capacity depends on more than raw weight. Manufacturers apply correction factors for temperature and start/stop frequency on top of the base load rating. Motor selection follows from your target belt speed, not the reverse.
There's no single industry-standard speed range; it's model-specific. As one reference point, Dorner's AquaGard LP line runs up to 246 ft/min (75 m/min), with a worked example landing around 82 ft/min (25 m/min) for a typical configuration.
Drive Configuration
The drive pulley should be positioned so it pulls the belt, not pushes it. Placing it at the wrong end can cause slip under load or premature belt stretch. Common configurations include:
- Bottom or side-mounted 90-degree gearmotors
- Bottom-mounted parallel-shaft gearmotors
- Fixed or variable-speed timing-belt/chain packages
Take-Up Systems
Screw take-ups adjust the tail pulley to manage stretch. Both screws need to move evenly, or the belt tracks off-center. For conveyors 60 feet or longer, an underside take-up is usually the better choice.
Belt and Frame Materials
Match belt and frame materials to the application, not just the label:
- Rubber/fabric belts: general industrial use, with PVC or TPU covers for washdown
- Modular plastic belts: open surfaces for draining, cooling, and frequent cleanup
- Stainless frames: food and sanitary lines, per 3-A guidelines
One caution here: "food-grade" isn't a complete spec. FDA and USDA rules govern cleanable, inspectable equipment construction, but they don't certify a finished belt as a system. Verify actual formulation and cleaning method against your specific use case.

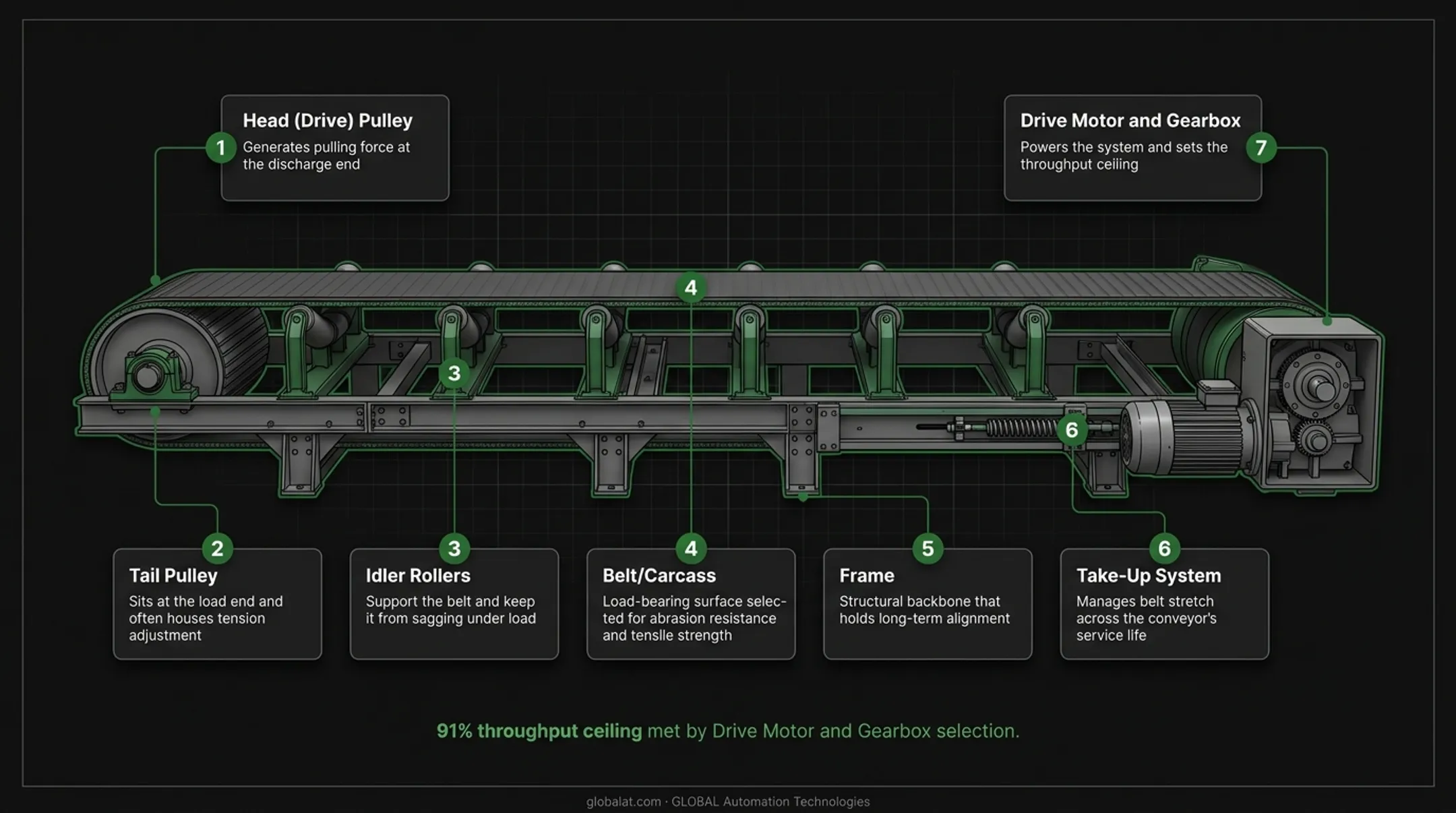

What Are the 7 Key Parts of a Conveyor Belt?
Every belt conveyor depends on the same core components working as one system. Spec each part correctly and you protect throughput, alignment, and belt life.
- Head (drive) pulley: Generates pulling force at the discharge end
- Tail pulley: Sits at the load end and often houses tension adjustment
- Idler rollers: Support the belt and keep it from sagging under load
- Belt/carcass: Load-bearing surface selected for abrasion resistance and tensile strength
- Frame: Structural backbone that holds long-term alignment
- Take-up system: Manages belt stretch across the conveyor’s service life
- Drive motor and gearbox: Powers the system and sets the throughput ceiling
Integrating Conveyors With Robotics and Smart Automation
This is where a lot of otherwise solid conveyor designs fall apart. A conveyor that runs perfectly on its own can still create chaos once a robot has to pick from it.
Precision Indexing and Controls Handshake
Robotic pick-and-place needs the conveyor to communicate part position and timing consistently. That means defining trigger signals, speed matching, and fault states, not just wiring a motor and calling it done.
Industrial protocols like EtherNet/IP, PROFINET, and Modbus each handle this differently:
- EtherNet/IP layers CIP over standard Ethernet for control, safety, and motion data
- PROFINET RT supports both simple I/O and high-performance motion needs
- Modbus defines a lighter framework of function codes, often over TCP or serial
Whichever you choose, the protocol name alone isn't a spec. You need defined states (ready, running, blocked, faulted, safety-active) mapped out before commissioning starts.
AI-Assisted Simulation Cuts Startup Risk
At GLOBAL Automation Technologies, a top-tier Level 5 FANUC Authorized System Integrator, engineers use AI-assisted simulation to model and test robot programs before a single line of code runs on the production floor. This has cut robot programming time from weeks to days on integration projects, catching layout and timing conflicts before they become expensive floor-level surprises.
In conveyor-fed machine tending cells, GLOBAL integrates FANUC robots directly with the conveyor PLC. The cell tracks moving parts, matches speeds, manages trigger signals, and coordinates emergency stops so material keeps flowing without stoppages.
Predictive Maintenance on Conveyor Drives
Once the cell is running, keeping drives healthy is the next design problem. NIST found that manufacturers relying more heavily on predictive maintenance saw 15% less downtime and 87% fewer defects than peers. Apply the same logic to conveyors: sensors on drive components that flag wear before failure protect throughput better than waiting for a breakdown.
Common Conveyor Design Mistakes and How to Avoid Them
Most conveyor problems trace back to decisions made too early—or skipped entirely—during design. Watch for these four:
- Designing only for today's volume, which forces a costly redesign when production scales
- Layouts that create congestion, safety hazards, or block maintenance access
- Belt, chain, or frame materials that wear out early or fail sanitary requirements
- Conveyor specs locked before robot reach, payload, and pick points are defined
Treat the conveyor and the automation cell as one project from day one. Size for projected throughput, map clear access paths, match materials to the product and environment, and confirm robot interfaces before anyone cuts steel.
Frequently Asked Questions
How do I design a conveyor system?
Start by defining your objectives: materials, throughput, and environment. Then analyze operating conditions, select a conveyor type, design the layout, and choose matched drive components.
How do I design a belt conveyor?
Focus on load capacity, drive configuration, belt speed and tension, and the take-up system. Then select a belt material that meets your industry's compliance needs.
What are the types of conveyor systems?
Belt, roller, chain/slat, modular plastic, and specialty conveyors (magnetic, incline, curved) each suit different products and environments. Match the type to your load, material, and layout.
What are belt conveyor systems?
A belt conveyor uses a continuous loop of material around two or more pulleys to transport products. They're common for packaged goods and general-purpose material handling.
What are the three types of conveyor belts?
Common categories include flat/general-purpose belts, modular plastic belts, and cleated incline belts. Each serves a different combination of product type and elevation need.
What are the 7 key parts of a conveyor belt?
Head pulley, tail pulley, idler rollers, the belt itself, frame, take-up system, and drive motor/gearbox. Together they determine capacity, durability, and maintenance needs.
