Introduction
Manufacturers implementing robotic automation quickly learn that selecting the right technology is only half the battle. The harder part is turning that technology into a production system that hits cycle times, quality standards, and ROI targets.
According to the Association for Advancing Automation (A3), a robotic system integrator bridges robot manufacturers and end users—handling design, installation, programming, and long-term support.
This article covers what robotic integrators do, the services they provide, and how to evaluate and choose the right partner.
Key Takeaways:
- Integrators deliver complete turnkey cells spanning tooling, safety, controls, and software
- A3 Certified Robot Integrators undergo audits, risk assessments, and practical personnel evaluations every two years
- Application specialization matters—welding, palletizing, and other processes demand different technical depth
- Most integration projects span feasibility analysis through commissioning, training, and ongoing support
- Choose integrators based on verified certifications, comparable application experience, and documented technical capabilities
What Is a Robotic System Integrator?
A robotic system integrator is a specialized company that designs, implements, programs, and supports customized robotic automation solutions for manufacturers. The Association for Advancing Automation (A3) defines integrators as firms that research, select, design, specify, build, install, program, train, and maintain manufacturing systems, not just supply robots.
Integrators bridge robot manufacturers (FANUC, ABB, KUKA, Yaskawa) and end users. Manufacturers build the robot; integrators deliver complete turnkey systems that add end effectors, sensors, controls, safety equipment, conveyors, fixtures, and process equipment.
ISO 10218-2 assigns responsibility for robot applications and cells to integrators, while Part 1 covers robot-level requirements. Evaluate the cell provider separately from the robot manufacturer.
Key differences from robot manufacturers:
- Robot manufacturers supply the robot arm and controller
- Integrators engineer validated production applications around that robot
Integrator scope typically covers end-of-arm tooling design, PLC integration, machine interfaces, safety guarding, risk assessment, and site acceptance testing.

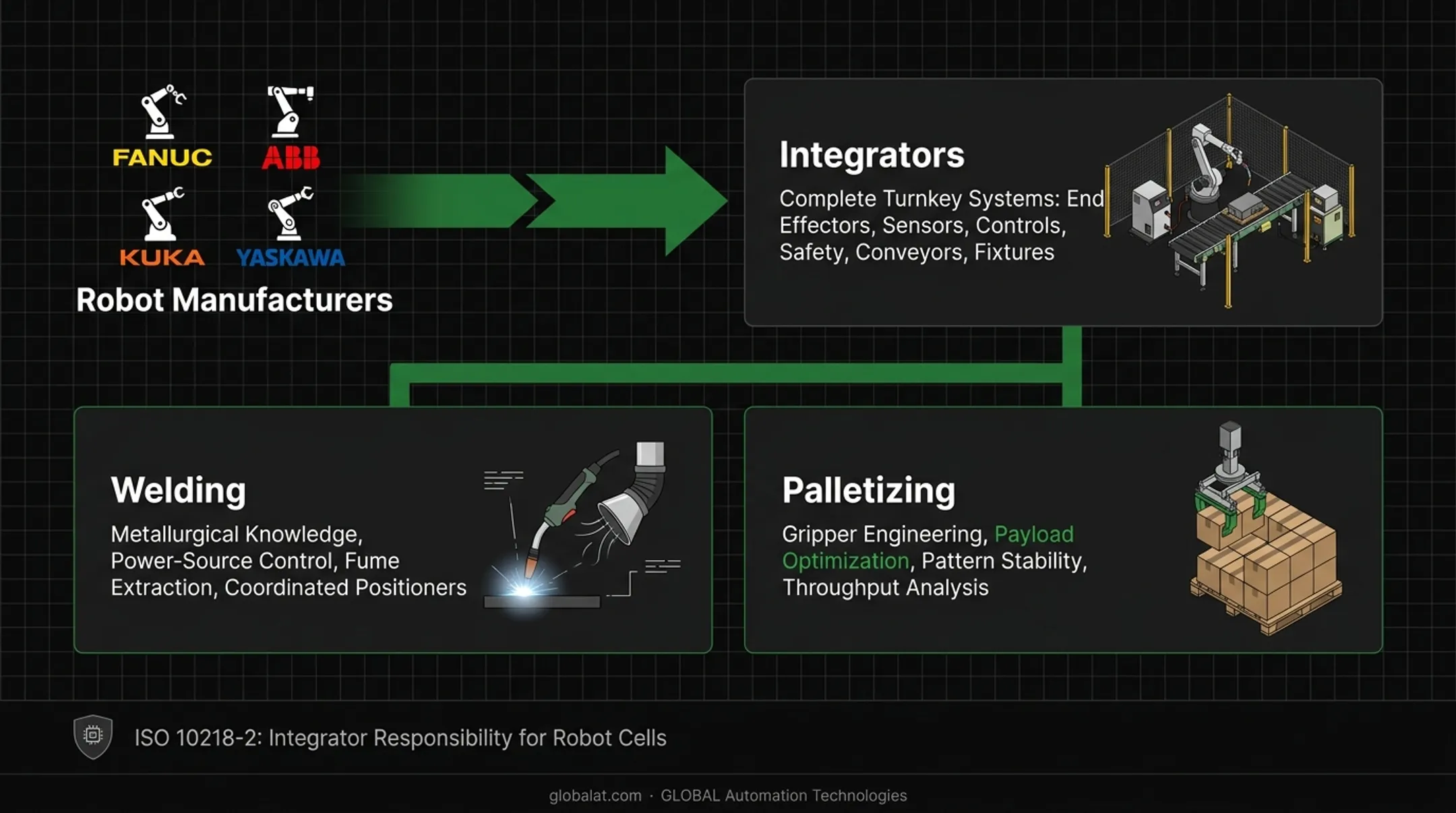

Application specialization is the norm. Most integrators focus on specific processes such as welding, palletizing, machine tending, or painting rather than acting as generalists.
- Welding: metallurgical knowledge, power-source control, fume extraction, and coordinated positioners
- Palletizing: gripper engineering, payload optimization, pattern stability, and throughput analysis
Comparable process experience matters more than generic robot familiarity.
Some integrators go beyond traditional cell build. GLOBAL Automation Technologies, for example, pairs turnkey robotic systems integration with technical staffing—so manufacturers can source the automation system and the controls engineers, PLC programmers, and project managers to run it from one partner.
What Services Do Robotic Integrators Provide?
Consultation and Feasibility Analysis
Integrators begin by evaluating your current process, identifying automation opportunities, and determining whether robotics is the right solution. This phase includes:
- Manufacturing workflow and cycle-time analysis
- ROI calculation and business-case development
- Application selection based on technical feasibility and risk
- Written user-requirements specifications
A3's ROI Robot System Value Calculator compares manual labor costs with 20-year robot-system ownership, factoring in purchase price, electricity, and maintenance. The calculator uses project-specific inputs (application type, labor rate, shifts, and operating days), not a universal payback benchmark. Require integrators to provide ROI models that show their assumptions and reflect your actual production conditions.
System Design and Engineering
Once feasibility is confirmed, integrators design the complete robotic cell:
- Robot selection based on payload, reach, speed, and application requirements
- End-of-arm tooling design including grippers, welding torches, paint applicators, or dispensing nozzles
- Safety system specification with guarding, interlocks, emergency stops, and documented risk assessments
- Simulation and digital twin creation to test designs, optimize cycle times, and validate programs before physical build
Advanced integrators use simulation tools to model robot paths, identify interference issues, and verify throughput targets virtually. GLOBAL Automation Technologies reports that AI-assisted simulation can reduce robot programming time from weeks to days, helping catch problems before commissioning.
Equipment Procurement and Installation
Integrators source and integrate all system components beyond the robot itself. A3 describes a completed application as combining the robot with end effectors, sensors, controls, communications, safeguarding, conveyors, fixtures, and process equipment. This turnkey scope includes:
- Welding power sources, wire feeders, and touch-sensing systems
- Conveyor systems with speed matching and PLC coordination
- Vision systems for part identification, inspection, and tracking
- Machine interfaces and I/O integration
- Physical installation, utilities connection, and site acceptance
Compare proposals on total-cell scope, not robot price alone.
Programming and Commissioning
Integrators program robots for specific tasks and integrate them with existing equipment:
- Custom robot programming for welding paths, spray patterns, dispense trajectories, or pick sequences
- PLC integration for synchronized machine operation, fault handling, and emergency stops
- SCADA and IoT connectivity for production data collection
- Testing protocols and performance validation against specifications
- Factory acceptance testing (FAT) before shipment and site acceptance testing (SAT) before handover
OSHA recommends documented risk assessment throughout design, integration, and operation, followed by site acceptance before startup. Make these contractual deliverables.
Training and Ongoing Support
After commissioning, integrators provide:
- Operator training on system operation and basic troubleshooting
- Maintenance training on preventative procedures and spare parts replacement
- Technical documentation including electrical schematics, PLC code, and robot programs
- Spare parts support and inventory management
- Preventative maintenance programs and health assessments
- Long-term technical support via phone, remote access, or on-site service
No industry-wide response-time benchmarks exist. Treat response hours, remote support availability, escalation procedures, and uptime guarantees as bid-specific contract terms.

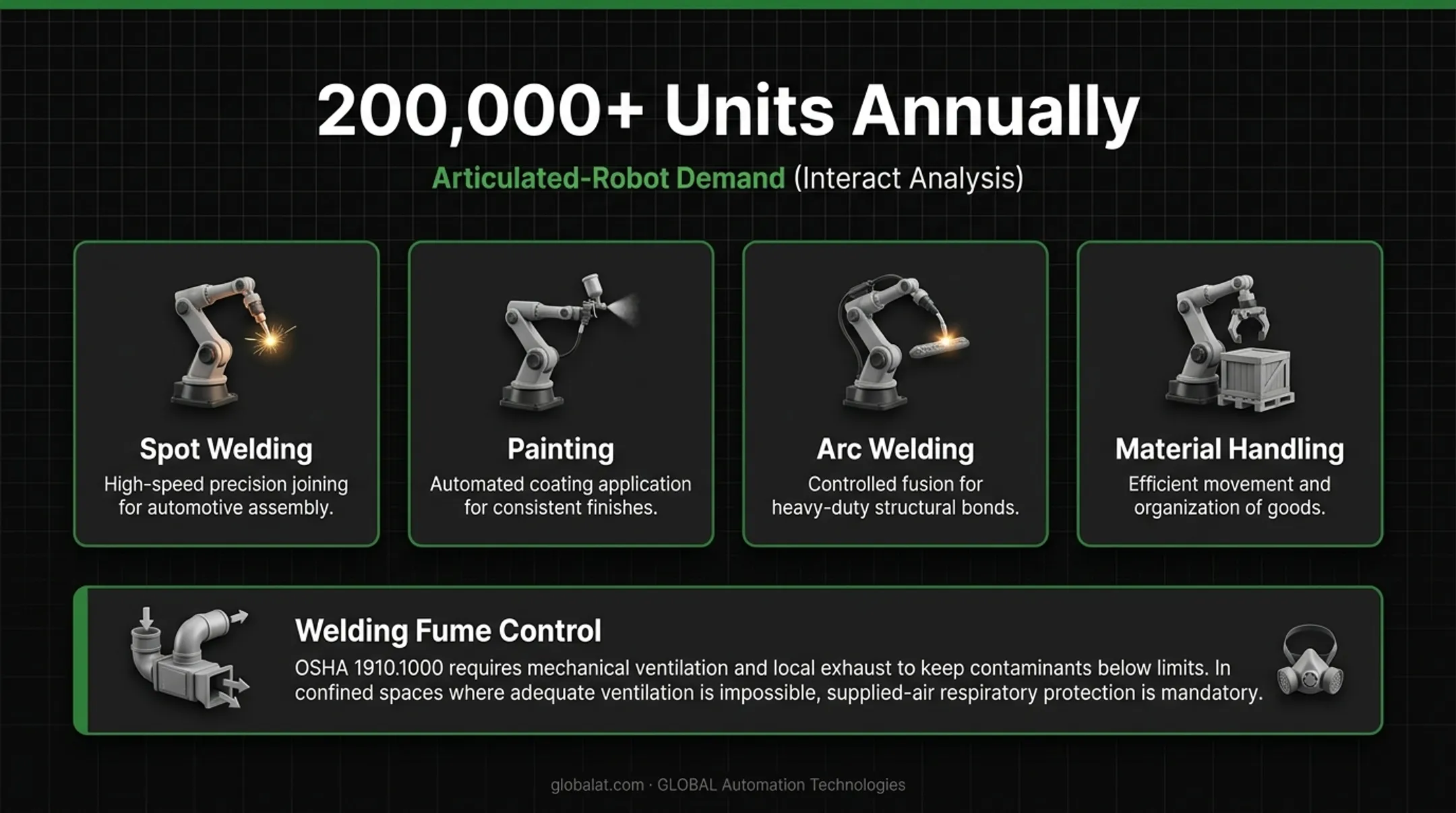

Common Robotic Integration Applications
Applications differ sharply in tooling, safety rules, and process control. Integrators who specialize in a given process design cells that match those constraints:
| Application | Integration Requirements | Why Specialization Matters |
|---|---|---|
| Material Handling & Machine Tending | Gripper design, part staging, safety guarding, machine interfaces, cycle synchronization | Requires throughput optimization, multi-machine sequencing, and spindle utilization analysis |
| Welding (Arc & Spot) | Power sources, wire feeders, torch tooling, positioners, fume extraction, seam tracking | Demands metallurgical knowledge, weld-parameter control, and OSHA ventilation compliance under 1910.252 |
| Palletizing & Depalletizing | Payload analysis, gripper suitability (vacuum vs. pneumatic), pattern optimization, conveyor integration | Package condition, throughput, and load stability drive gripper choice and pattern-to-robot coordinate mapping |
| Painting & Coating | Booth layout, intrinsically safe robots, spray-path programming, film-build control, color-change systems | Film thickness consistency (±1 micron for Class A finishes), transfer efficiency, and hazardous-environment operation |
| Dispensing (Adhesives, Sealants) | Bead-path programming, flow control, material-delivery systems, vision validation | Sub-millimeter accuracy, flow monitoring, and real-time bead inspection prevent downstream defects |
| Assembly Operations | Fixturing, fastening tools, torque control, inspection, traceability | Requires precise part presentation, force control, and data collection for quality records |
| Inspection & Quality Control | Vision systems, measurement tools, part tracking, data integration | Demands calibration, lighting control, and real-time defect detection without stopping production |
Interact Analysis reports that articulated-robot demand exceeds 200,000 units annually, with spot welding, painting, arc welding, and material handling among the primary application types.
Those volumes still hide how different the cell-design work is from one process to the next. Welding makes the point clearly.
Welding fume control example: OSHA requires mechanical ventilation under specified conditions and local exhaust to keep contaminants below limits in 1910.1000. In confined spaces where adequate ventilation is impossible, supplied-air respiratory protection is mandatory. These controls are cell-design responsibilities, not robot features, so welding-specific integrator expertise is essential.
Key Benefits of Working with a Robotic Integrator
Expertise and Reduced Risk
Integrators bring specialized knowledge that reduces project risk, avoids costly mistakes, and ensures systems meet safety standards. A 2025 Manufacturing Technology Centre (MTC) report found that SMEs often lack specification knowledge, project-management capability, and operating/maintenance skills—gaps that integrators fill.
A3's Certified Robot Integrator program benchmarks technical and robot-safety acumen through pre-qualification, on-site audits, practical assessment of key personnel, robot-safety risk assessments, and exams.
Faster Time to Production
Experienced integrators accelerate deployment through proven design patterns, pre-tested solutions, and simulation tools. Offline programming and digital-twin validation reduce commissioning surprises. At GLOBAL Automation Technologies, AI-assisted simulation cuts robot programming time from weeks to days, so lines start up faster with fewer commissioning delays.
Optimized System Performance
Integrators design for maximum efficiency, uptime, and ROI through:
- Proper component selection matched to application requirements
- Cycle-time optimization via path planning, coordinated motion, and multi-machine sequencing
- Integration with existing operations to eliminate bottlenecks
- Throughput analysis and buffer management
For machine tending, one robot can serve multiple CNC machines using intelligent scheduling and part tracking, driving spindle utilization toward 100%. For dispensing, sub-millimeter bead accuracy and real-time vision inspection reduce defects and rework.
Comprehensive Support and Scalability
Integrators extend value well past go-live with:
- Remote diagnostics and troubleshooting
- Spare parts stocking and replacement
- Software updates and process improvements
- Capacity expansions as production needs grow
GLOBAL uses AI-driven health assessments to monitor equipment and flag potential issues before they cause unplanned downtime, supporting predictive maintenance and protecting uptime.
Access to Latest Technology
Integrators stay current with emerging technologies and bring innovations to customer projects:
- AI-assisted programming that accelerates offline simulation and code generation
- Machine vision for part identification, inspection, and adaptive path correction
- Collaborative robots for flexible, low-volume production
- Predictive maintenance tools that analyze equipment health and forecast failures
Used together, they shorten programming cycles, catch quality issues earlier, and keep equipment productive longer.
How to Choose the Right Robotic System Integrator
Verify Industry Certifications and Partnerships

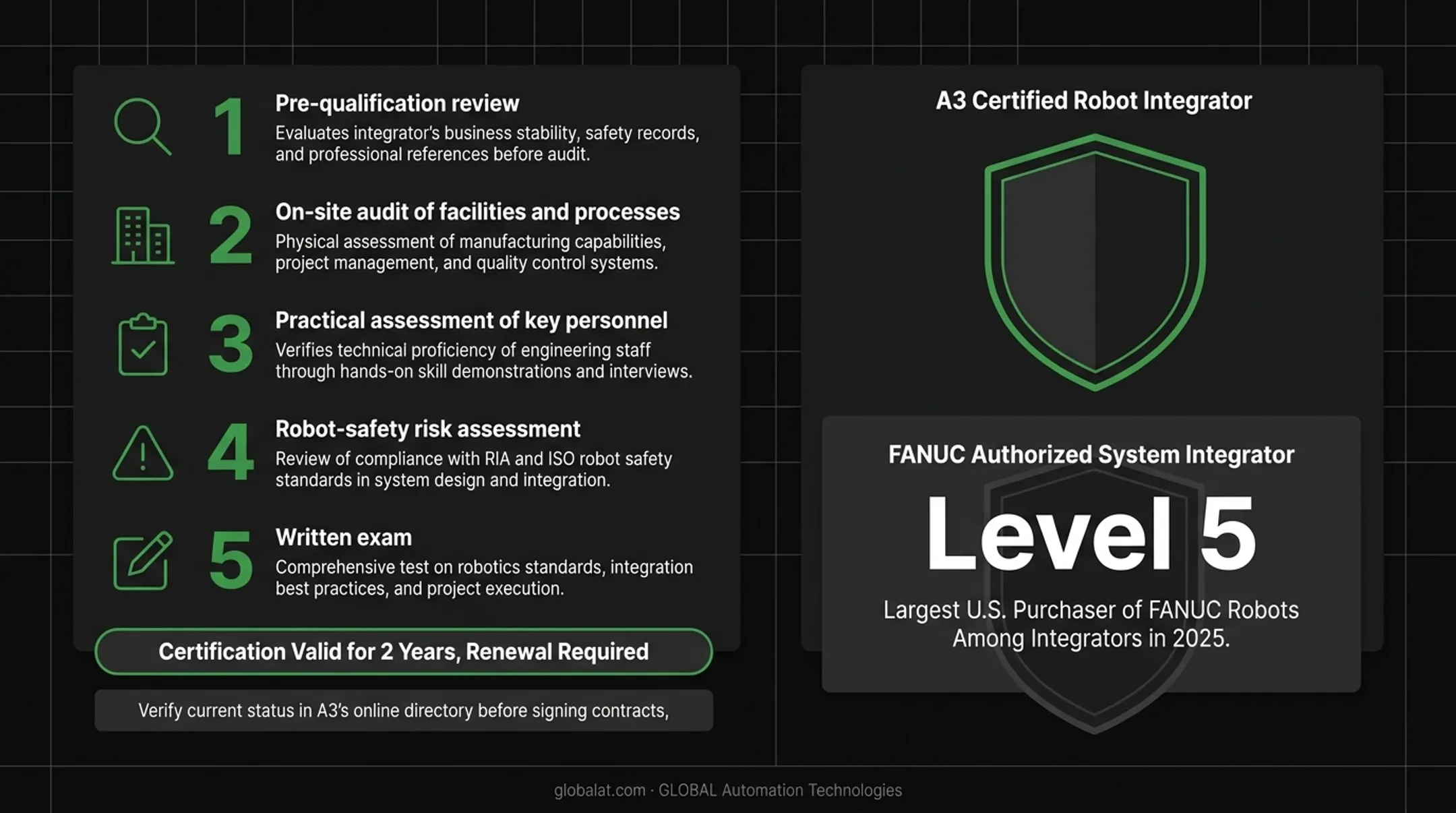

A3 Certified Robot Integrator certification confirms baseline organizational competence. A3's certification program includes:
- Pre-qualification review
- On-site audit of facilities and processes
- Practical assessment of key personnel
- Robot-safety risk assessment
- Written exam
Certification is valid for two years and must be renewed to stay current. Verify current status in A3's online directory before signing contracts.
Robot manufacturer authorized integrator programs verify platform-specific expertise:
| Program | What It Confirms | Limitations |
|---|---|---|
| FANUC Authorized System Integrator (ASI) | FANUC lists ASIs as a capable, trusted network; every directory entry is authorized | Public criteria do not disclose audit depth, renewal frequency, or performance thresholds |
| ABB Robotics Value Provider | Channel partners are selected, trained, and qualified with deeper product expertise | Audit method, renewal period, and numeric benchmarks not publicly disclosed |
| KUKA System Partner | Partners have industry/application experience and receive qualification development, training, and support | Entry audit, renewal, and quantitative performance criteria not public |
GLOBAL Automation Technologies is a Level 5 FANUC Authorized System Integrator and the largest U.S. purchaser of FANUC robots among integrators in 2025.
Assess Application Expertise and Track Record
Request evidence of comparable application experience:
- Case studies with cycle-time data and acceptance evidence
- Customer references in your industry with similar production requirements
- Facility tours to see installed systems operating
- Project portfolios demonstrating process knowledge
Dig into process-specific credentials:
- Welding: Experience with your process (MIG, TIG, resistance), materials, and quality standards
- Painting: Class A automotive finish capability when required
- Dispensing: Bead validation and flow-monitoring methods
Evaluate Technical Capabilities and Innovation
Look beyond robot installation to full engineering capabilities:
- In-house engineering including mechanical design, electrical controls, and software development
- Simulation and digital-twin tools for virtual commissioning, cycle validation, and shorter programming cycles
- Advanced technologies including machine vision for inspection and quality control, AI tools, and predictive maintenance monitoring
- Customization ability versus reliance on standard solutions

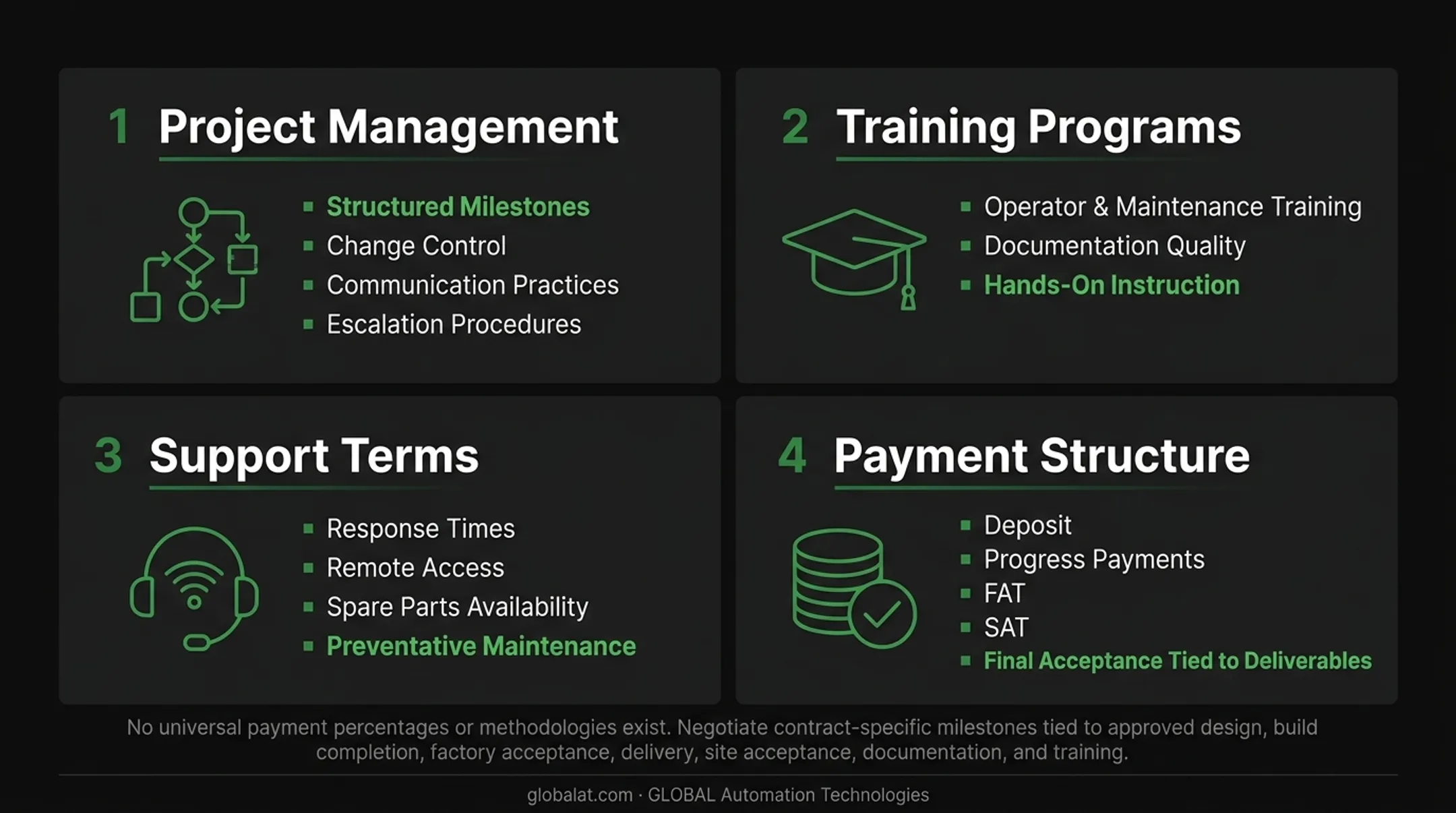

Understand Project Approach and Support Model
Evaluate the integrator's project-management methodology and long-term partnership commitment:
- Project management: Structured milestones, change control, communication practices, and escalation procedures
- Training programs: Operator and maintenance training, documentation quality, and hands-on instruction
- Support terms: Response times, remote access, spare parts availability, and preventative maintenance
- Payment structure: Deposit, progress payments, FAT, SAT, and final acceptance tied to deliverables
No universal payment percentages or methodologies exist. Negotiate contract-specific milestones tied to approved design, build completion, factory acceptance, delivery, site acceptance, documentation, and training.
Frequently Asked Questions
What is system integration in robotics?
System integration in robotics is the process of combining robots with other manufacturing equipment, software, and processes to create a complete, functional automation solution tailored to specific production requirements. Integrators handle design, programming, installation, and validation of the entire cell.
Can you give me an example of system integration?
A robotic palletizing system integrates an industrial robot, custom gripper tooling, conveyor systems, vision inspection, stretch wrapper, and warehouse management software into a single automated end-of-line solution. The integrator programs the robot to pick products from the conveyor, build stable pallet patterns, and communicate with upstream and downstream equipment.
How much does robotic system integration cost?
Integration costs vary widely by complexity, application, and system size. Major drivers include robot payload and reach, custom tooling, vision and safety hardware, conveyors, process equipment, controls, and training. Require a transparent cost breakdown from each integrator and compare options with a project-specific ROI model.
What is the typical timeline for a robotic integration project?
Timelines depend on application maturity, how complete the requirements are, custom tooling, component lead times, and commissioning complexity. Typical phases run from feasibility and design through build, acceptance testing, installation, training, and production launch. AI-assisted simulation can cut programming from weeks to days, but total duration still varies by scope.
What is the difference between a robot manufacturer and a robot integrator?
Robot manufacturers build the robots themselves: the arm, controller, and core software. Integrators design and build complete turnkey cells that add tooling, conveyors, safety systems, controls, vision, programming, and fit-up to existing operations. ISO 10218-1 covers robot-level requirements; Part 2 assigns application and cell requirements to integrators.
Do I need an integrator or can I implement robots in-house?
In-house work fits when your team can specify requirements, design the cell, program robots, integrate interfaces, complete risk assessment and safety validation, run acceptance testing, and support the system long term. As custom tooling, process expertise, vision, multi-robot coordination, or throughput guarantees grow, an integrator becomes essential. Decide based on internal capability, not robot simplicity alone.
