Introduction
Every automated production line depends on its conveyor system. It's the connective tissue between machines, robots, and people, and the decisions made during design ripple straight into throughput, safety, and total cost of ownership.
Yet conveyors are too often treated as an afterthought. Engineers finalize the robotic workcell, then bolt on a conveyor to move parts between stations. The result: bottlenecked lines, starved robotic cells, and expensive retrofits once production ramps up.
This guide lays out the full blueprint: the design process, how to select conveyor type, drive systems, and materials, and how to engineer conveyors that stay in sync with robotic automation. Get the design right up front and you protect throughput—and skip the retrofit cycle later.
Key Takeaways
- Start conveyor design with load, throughput, and environment analysis, not an equipment catalog.
- Drive system and belting choices directly determine long-term maintenance costs and uptime.
- Precision indexing and communication protocols decide whether conveyors and robots act as one system.
- Choose an integrator who understands material flow and robotic cell design to cut startup risk.
Understanding Conveyor System Fundamentals
At its simplest, a conveyor system uses a motor and drive unit to turn pulleys, rollers, or chain. That motion moves a belt, roller bed, or platform carrying product along a fixed path. That's the whole concept. Everything else is refinement.

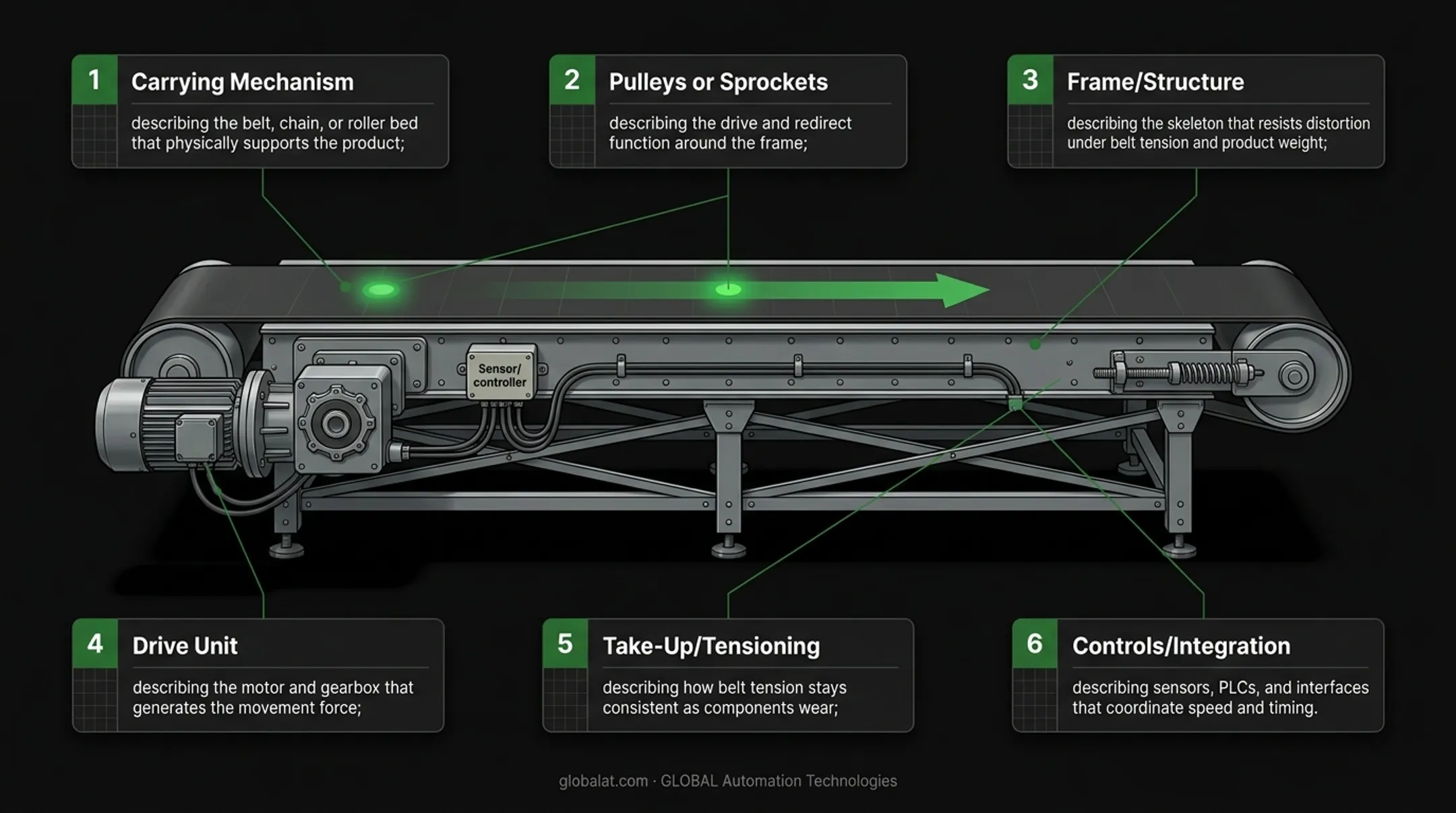

Six structural components make up nearly every industrial conveyor:
- Carrying mechanism — the belt, chain, or roller bed that physically supports the product
- Pulleys or sprockets — drive and redirect the carrying mechanism around the frame
- Frame/structure — the skeleton that resists distortion under belt tension and product weight
- Drive unit — motor and gearbox that generates the movement force
- Take-up/tensioning — keeps belt tension consistent as components wear
- Controls/integration — sensors, PLCs, and interfaces that coordinate speed and timing
Why Automated Handling Beats Manual Transport
Manual material movement introduces inconsistency: uneven speeds, product damage, and repetitive strain injuries. Conveyors eliminate those variables by moving product at a fixed, controlled rate (FlexLink, 2026).
In one ABB case study on tomato-handling equipment, encoder-linked variable-speed conveyor drives coordinated with wrapping machinery lifted output from 60 packs per minute to 70–80 packs per minute. That gain came purely from better drive synchronization (ABB, 2015).
The Conveyor System Design Process: A Step-by-Step Blueprint
Before anyone opens an equipment catalog, four questions need answers: What are we trying to achieve? What are we moving? How fast? And along what path? Skip any one of these, and you're guessing at hardware instead of engineering a system.
Step 1: Define Objectives and Analyze the Operational Environment
Every facility has constraints that shape material and component choices long before you pick a belt style.
- Food-grade environments need equipment that stays sanitary, with food-contact surfaces designed to prevent allergen cross-contact and contamination under 21 CFR Part 117.
- Washdown areas need corrosion-resistant, nontoxic surfaces that hold up to cleaning chemicals and sanitizing agents.
- Combustible dust environments fall under NFPA fire and explosion prevention standards for particulate solids.
- High-temperature applications may need specialized belting, such as silicone, rated for elevated heat.
Get this step wrong, and every downstream material choice becomes a compliance liability.
Step 2: Analyze the Load and Material Characteristics
Weight, size, shape, texture, and fragility dictate belt type, roller spacing, and structural rigidity.
Load product with low impact, in the running direction, near belt speed, and centered on the belt. Lateral loading creates high stress that shortens component life.
Common failure points show up quickly: dirt and debris on belts cause tracking and drive problems, and skewed rollers often drive premature belt wear. A structure that flexes under uneven floor loading will chase tracking issues for the life of the system.
Step 3: Determine Throughput and Line Speed Requirements
Throughput is the metric that dictates line speed, conveyor width, and motor sizing — get it wrong, and everything downstream suffers. Underestimated throughput creates bottlenecks that ripple through adjacent operations, forcing lines to run at the pace of their slowest link.
Accumulation conveyors solve part of this problem. They create buffers that prevent full line stoppages when adjacent operations run at different rates, absorbing minor speed mismatches without halting production (Dorner, 2025).

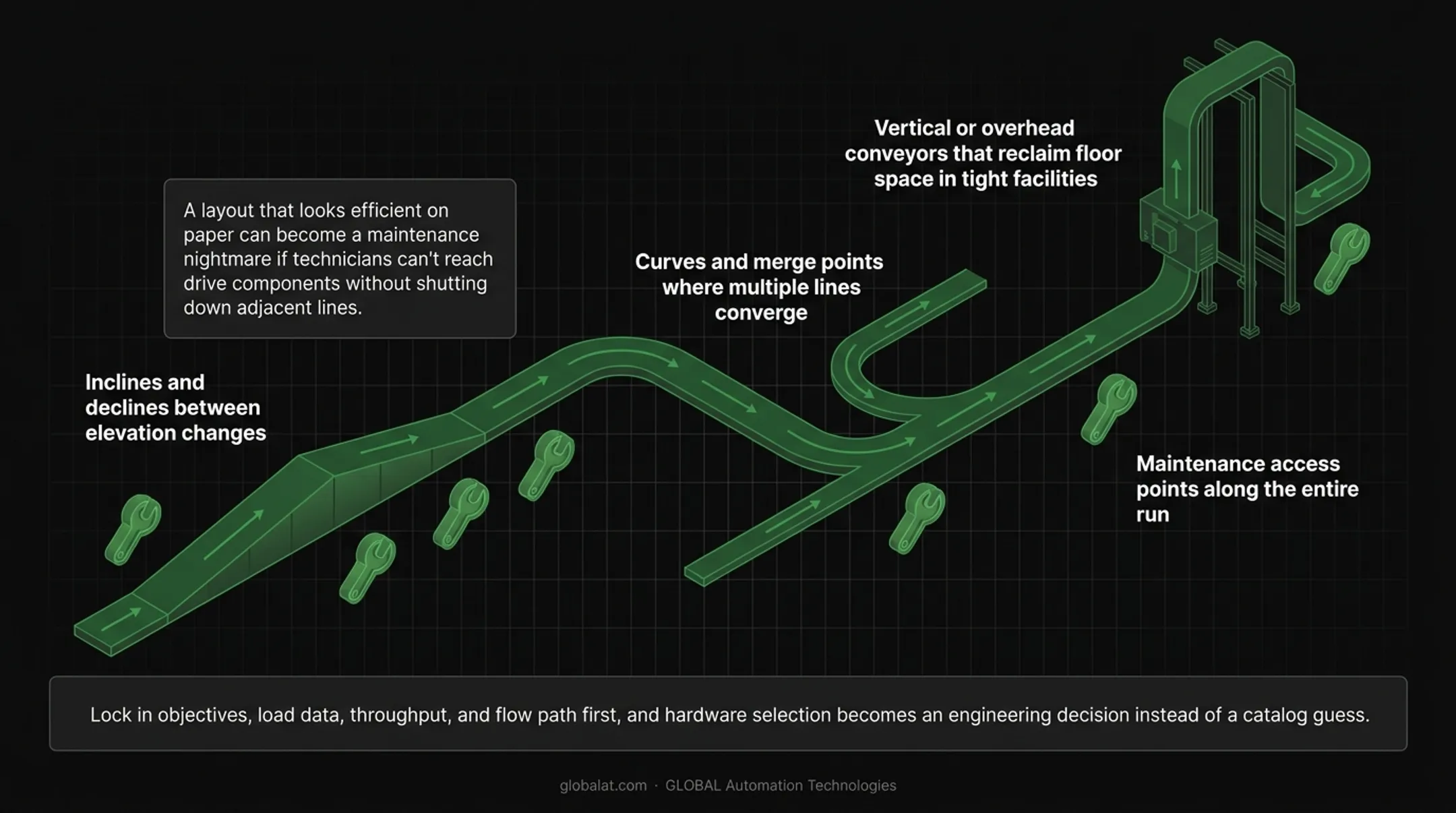

Step 4: Design the Layout and Material Flow Path
Mapping the physical route through the facility means accounting for:
- Inclines and declines between elevation changes
- Curves and merge points where multiple lines converge
- Vertical or overhead conveyors that reclaim floor space in tight facilities
- Maintenance access points along the entire run
A layout that looks efficient on paper can become a maintenance nightmare if technicians can't reach drive components without shutting down adjacent lines. Lock in objectives, load data, throughput, and flow path first—and hardware selection becomes an engineering decision instead of a catalog guess.
Choosing the Right Conveyor Type, Drive System, and Materials
With objectives, load, throughput, and layout defined, it's time to translate those requirements into hardware.
Matching Conveyor Type to the Application
| Conveyor Type | Best-Fit Application |
|---|---|
| Belt | General piece-goods transport with no special orientation requirements |
| Roller | Boxes, containers, and pallets; strong fit for accumulation and buffering |
| Chain | Heavy loads at moderate speeds with low-maintenance, cycled transport |
| Modular plastic belt | Wear-resistant duty across a broad range of transport tasks |
Selecting the Right Drive System
Direct drive, chain drive, and belt drive configurations each trade off simplicity, torque handling, and maintenance demand:
- Direct drives offer the cleanest mechanical path with fewer wear points
- Chain drives handle heavier torque loads
- Belt drives cost less but wear faster under high loads
The real engineering lever is the variable frequency drive (VFD). Reducing conveyor speed from 100% to 80% with a VFD saves roughly 20% energy on constant-torque applications (ABB, 2015).
Beyond energy savings, VFD soft-start control reduces peak starting loads and cuts shock loading on belts and gearboxes. That avoided downtime is often worth more than the energy savings themselves.
Material Selection for Durability and Compliance
Food-contact conveyor surfaces must be corrosion-resistant, nontoxic, and able to withstand cleaning chemicals, with seams that don't trap organic matter. That's a performance standard, not a specific grade mandate. Stainless steel selection still needs validation against your actual chemical exposure, temperature range, and cleaning regimen.
For heavy industry and automotive applications, coated frames and rollers extend equipment life against oil, weld spatter, and abrasive debris that would otherwise chew through standard finishes.
Designing for Automation and Robotic Integration
Conveyors rarely operate as standalone equipment anymore. In modern manufacturing, they interface directly with robotic work cells handling machine tending, dispensing, painting, and welding, and that interface has to be precise.
Precision indexing and repeatability matter for pick-and-place and machine tending applications. Positive-drive toothed belts lock belt position to end rollers, enabling the accurate positioning that robotic picking, assembly, and machine interfacing demand. Get indexing wrong, and spindle utilization drops along with run time between operator interventions.
Real-time coordination depends on established communication protocols:
- EtherNet/IP: widely used for line controller-to-motor communication
- PROFINET: common in European-influenced plant architectures
- Modbus TCP: a reliable standard for controller-level communication
Smart sensors add another layer of protection. Condition-monitoring systems track real-time conveyor health and trend analysis, flagging wear before it causes a failure. Simulation plays a similar preventive role. Digital twins support virtual commissioning and production optimization, with reported development-time reductions of 25-30%, and some cases claiming as much as 50% (Automate.org, 2024).
This is where GLOBAL Automation Technologies works. As a Level 5 FANUC Authorized System Integrator, GLOBAL engineers the robotic side of this equation: machine tending, painting, and dispensing cells built on FANUC platforms. The team treats the conveyor and robot as one unified system rather than two disconnected pieces of equipment.
That means:
- Speed matching between conveyor velocity and robot motion profiles
- Trigger signal engineering for handoff timing at the correct indexing position
- Moving-part tracking so robots work on parts in motion without forcing line stops
- Fault and E-stop coordination across both the robot cell and conveyor controls
GLOBAL's engineers use AI-assisted simulation to validate robot programs before any code reaches the production floor. That practice has cut programming time from weeks to days on past projects and reduced commissioning surprises. If your line pairs conveyor infrastructure with robotic automation, reaching out to GLOBAL's engineering team early in layout planning tends to save far more than it costs.
Avoiding Common Conveyor Design Mistakes
Three mistakes show up again and again on conveyor projects, and all three are avoidable with better upfront planning.
Underestimating future throughput. Designing for today's volume without margin for growth forces costly mid-life retrofits. What looks like a well-sized system at launch becomes the bottleneck two years later when production scales.
Neglecting maintenance accessibility. Conveyors placed without service clearance create safety hazards and operator strain. Technicians end up working in awkward positions near moving equipment. Unplanned downtime stretches longer than it should because nobody can reach the drive unit quickly.
Skipping the testing and optimization phase. Pairing a conveyor with robotics or other automated equipment without pre-deployment validation often leads to integration failures. Virtual commissioning tests interlocks, handshake signals, cycle time, and event sequences in simulation. That process catches mechanical interference and programming issues before they become expensive construction-phase problems.
Frequently Asked Questions
How does a conveyor system work?
A motor and drive unit turns pulleys, rollers, or chain, which moves a belt or product carrier along a fixed path. Controls and sensors coordinate timing and speed.
What factors should I consider when designing a conveyor system?
Load characteristics, required throughput, the operational environment (washdown, food-grade, high-temperature), and the physical layout of your facility. These four inputs should drive hardware selection, not the reverse.
What's the difference between belt, roller, and chain conveyors?
Belt conveyors suit general piece-goods transport. Roller conveyors handle boxes and pallets well, especially for accumulation. Chain conveyors move heavy loads at moderate speeds with minimal maintenance.
How do I calculate the right conveyor speed for my production line?
Speed is derived from required throughput, product spacing or pitch, and any indexing accuracy needs for downstream equipment. Manufacturer-specific pulley and drive geometry ultimately determines the exact speed chart.
How do conveyor systems integrate with robotic automation?
Integration depends on precision indexing, industrial communication protocols like EtherNet/IP or PROFINET, and cycle-time synchronization so the robot and conveyor operate on the same timing. GLOBAL's controls engineers manage this full integration layer on FANUC-based projects.
How often should a conveyor system be maintained?
Maintenance frequency depends on usage intensity and environment, but monthly checks are a reasonable baseline for high-demand systems, with weekly drive-component checks in heavier-duty applications.
