Introduction
Walk onto any factory floor and you'll notice something: there's no GPS signal in sight. And that's fine, because industrial robots were never meant to use one.
Steel roofs, thick concrete walls, and dense machinery block satellite signals before they ever reach a receiver.
Standalone GPS accuracy already drops to roughly 4.9 meters (16 feet) under open sky, according to GPS.gov, and that's the best-case scenario. Indoors, it's essentially unusable.
Manufacturers don't need GPS to position robots precisely. They need something better: technologies built for indoor environments.
This article covers two approaches: stationary robot tracks that add a seventh axis of motion, and mobile navigation systems that guide AGVs and AMRs across plant floors—all without a satellite signal.
Key Takeaways
- Indoor GPS fails from signal blockage, multipath interference, and costly correction infrastructure
- Robot positioning tracks (7th axis) extend reach with closed-loop servo feedback—no satellites needed
- AGVs and AMRs hit reliable indoor accuracy via fixed-path guidance or SLAM-based natural navigation
- Choose non-GPS tech by accuracy needs, route flexibility, and floor-level conditions

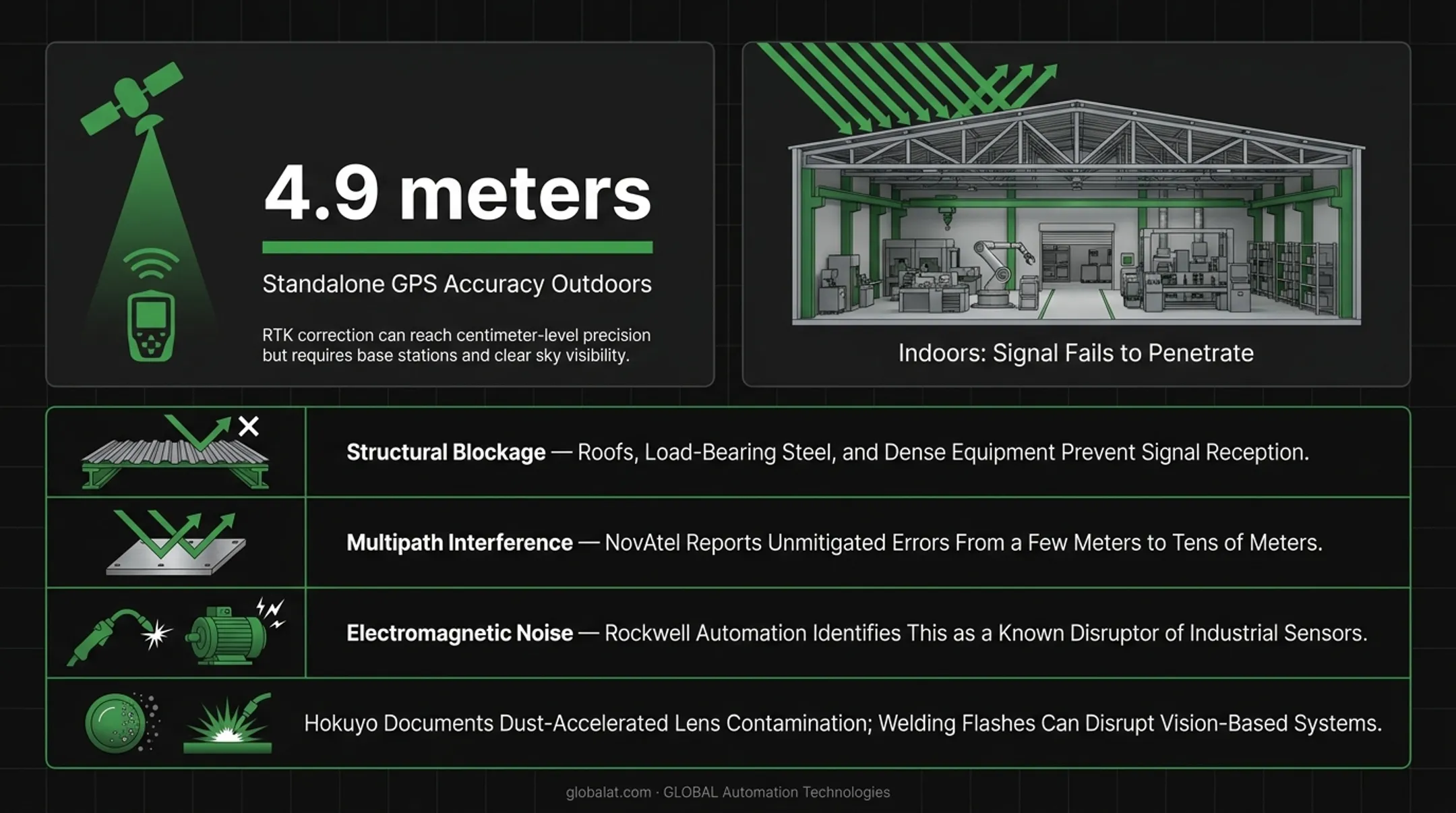

Why GPS Falls Short Inside a Manufacturing Facility
GPS was engineered for open sky, not steel and concrete. Even outdoors, standalone accuracy sits around 4.9 meters. Correction technologies like RTK can tighten that to centimeter-level precision, but they require base stations, clear satellite visibility, and infrastructure that simply doesn't translate to a factory floor.
Indoors, the problem compounds fast:
- Structural blockage — roofs, load-bearing steel, and dense equipment layouts prevent satellite signals from reaching a receiver at all
- Multipath interference — metallic surfaces reflect satellite signals; NovAtel reports unmitigated multipath errors from a few meters to tens of meters
- Electromagnetic noise — motors, welders, and high-power wiring generate electrical interference that Rockwell Automation identifies as a known disruptor of industrial sensors
Plant conditions hit non-GPS sensors too. Hokuyo has documented how dust accelerates lens contamination on optical sensors, and welding flashes can temporarily disrupt vision-based systems.
That doesn't make GPS-free positioning unworkable indoors. It means you need the right localized technology for your specific environment.
Robot Positioning Systems: Giving Stationary Robots a 7th Axis Without GPS
A robot positioning system, sometimes called a robot transfer unit, is a linear track that a six-axis industrial robot mounts to. Instead of standing bolted to one spot, the robot now travels back and forth along that track, gaining a seventh axis of motion.
None of this relies on satellite input. Position is tracked through closed-loop servo and encoder feedback, the same principle used in CNC machining. The robot's controller always knows exactly where it sits on the rail, down to fractions of a millimeter, because the feedback loop never stops confirming position.
Applications That Benefit From Track-Based Positioning
A single track-mounted robot can service multiple stations that would otherwise need separate, standalone robots. Common uses include:
- Machine tending across multiple CNC machines, presses, or injection molding cells
- Material handling between racks, conveyors, and staging areas
- Welding long parts or multiple fixtures without repositioning the robot base
- Painting and dispensing where one robot needs to cover a wide work envelope
Machine tending cells built around a positioning system earn back their investment through two levers: higher spindle utilization and longer run time between scheduled maintenance windows. In industrial automation generally, machine tending cells like these often pay back in roughly 12 to 18 months — more parts per shift, with fewer labor hours tied up in load-and-unload cycles.

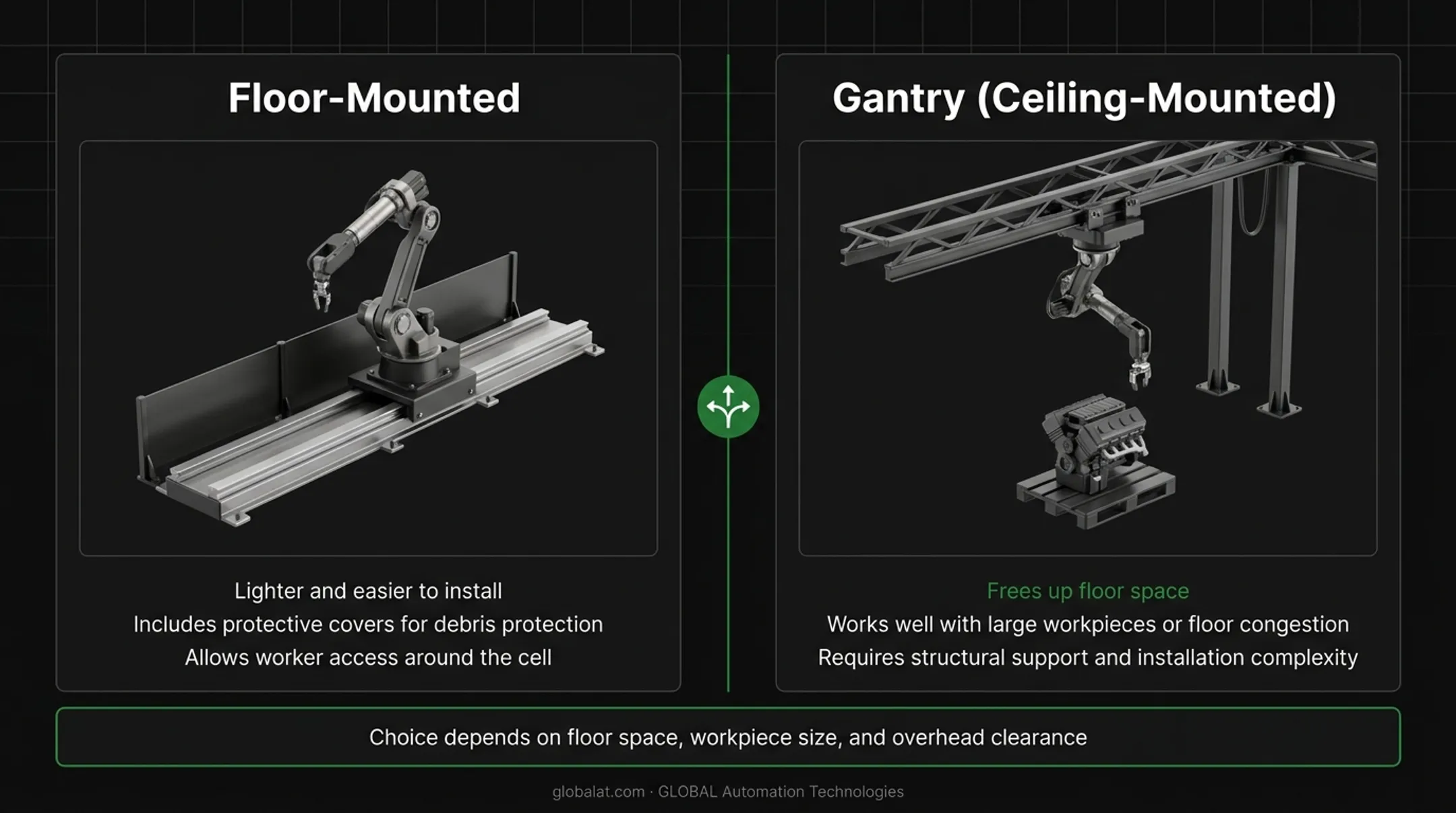

Floor-Mounted vs. Gantry (Ceiling-Mounted) Track Systems
Floor-mounted tracks are the more common choice. They're generally lighter, easier to install, and can include protective covers to guard against debris and allow worker access around the cell.
Gantry, or ceiling-mounted, systems flip that layout. The robot travels overhead instead of along the floor, which frees up floor space and works well when workpieces below are large or floor congestion is already a problem.
The tradeoff is installation complexity and structural support. Most integrators choose based on available floor space, workpiece size, and whether the plant has the overhead clearance and structural capacity for a suspended rail.
GPS-Free Navigation for Mobile Robots: AGV and AMR Positioning Technologies
Stationary tracks solve one problem. Mobile robots solve a different one entirely: how does a vehicle find its way across an entire facility without a fixed rail to follow? The answer splits into two approaches, fixed-path guidance and natural navigation, and neither one touches GPS.
Fixed-Path Guidance for AGVs
Automated Guided Vehicles typically follow a physically defined route. According to research from MHI, the material handling industry association, common methods include:
- Magnetic tape or inductive wire embedded in or applied to the floor, read by an underside sensor
- Optical line tracking using a painted or taped strip the vehicle's camera follows
- RFID tags or QR codes placed at fixed reference points, combined with wheel encoders and gyroscopes for position calculation
These methods are inexpensive and dependable for repetitive, unchanging routes. Some AGV platforms report tight precision with them; KUKA's KMP 3000P mobile platform, for instance, specifies up to ±5 mm accuracy in QR-guided mode.
The catch is flexibility. Change your production layout, and you're re-taping floors or repositioning tags. MHI notes floor-based systems deploy quickly in static environments but stay vulnerable to floor damage and layout changes.

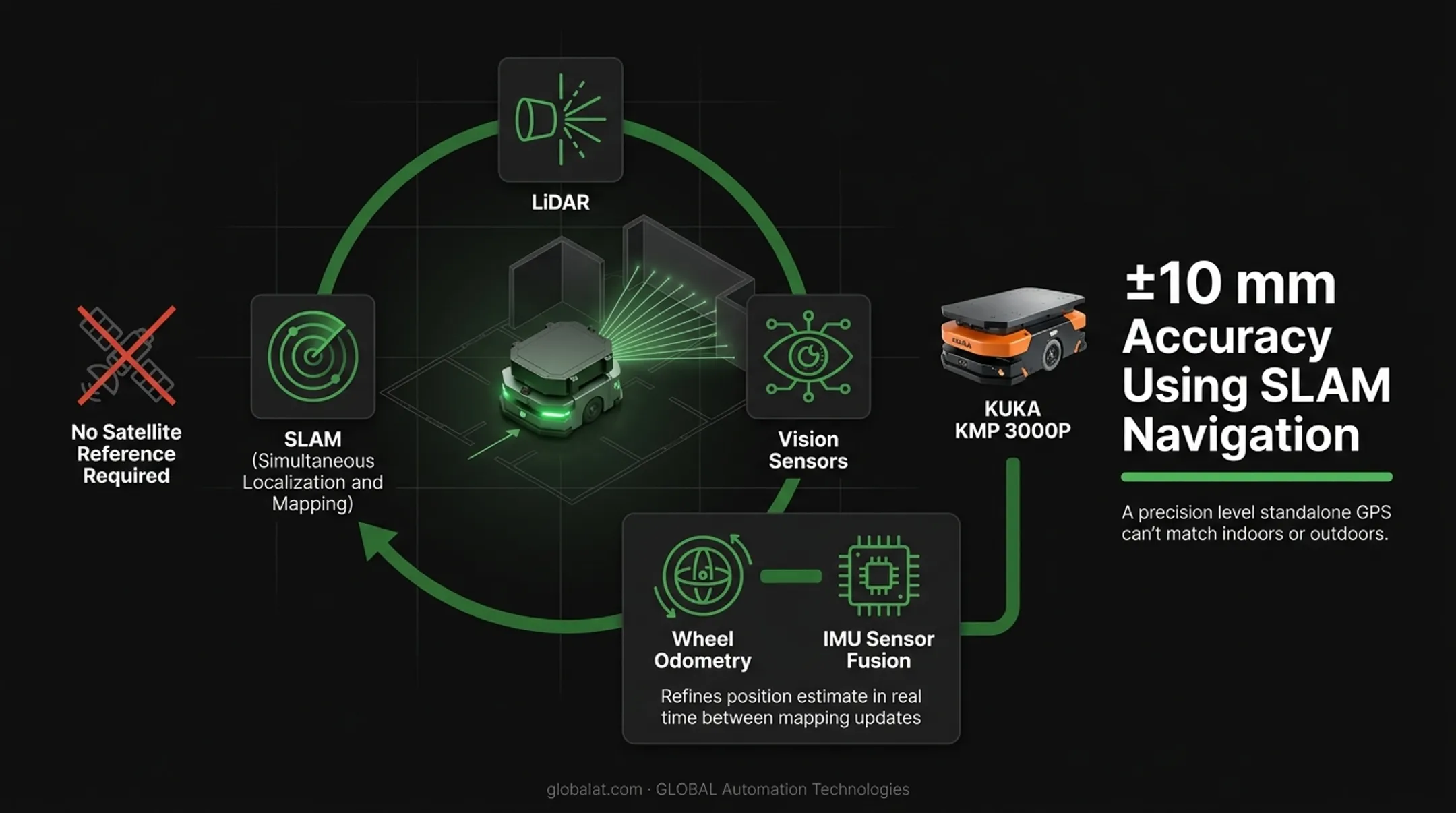

Natural Navigation for AMRs
Autonomous Mobile Robots work differently. Rather than following a marked path, they build and reference a live map of their surroundings using SLAM (Simultaneous Localization and Mapping), LiDAR, and vision sensors.
Between mapping updates, wheel odometry and IMU sensor fusion refine the position estimate in real time, even in the gaps between fresh scans. The entire process runs on local sensing—no satellite reference required.
The accuracy numbers back this up. KUKA's KMP 3000P platform specifies up to ±10 mm accuracy using SLAM navigation, a precision level that standalone GPS can't come close to matching indoors or out. Manufacturers design around that gap: positioning systems built from sensors and maps already inside the building, not satellites outside it.
Choosing the Right GPS-Free Positioning Technology for Your Application
Not every application calls for the same solution. Three questions narrow the decision fast:
- Is the robot stationary or mobile? A fixed arm that needs extended reach points to a track/7th-axis system. Parts moving between departments point to an AGV or AMR.
- How much accuracy do you actually need? Precision welding or dispensing needs tighter tolerances than hauling raw material between staging areas.
- How often will routes or layouts change? Fixed-path AGVs suit stable, repetitive routes. AMRs absorb layout changes without a re-install.
Environmental conditions matter as much as the application. Paint booths and dusty machining areas wear down optical and vision-based sensors over time; magnetic and radio-based methods usually hold up better under contamination.
Facilities with heavy welding or high-EMI equipment should factor that into sensor selection before install—not after.
Use this comparison to shortlist the right fit:
| System | Typical Accuracy | Best Fit | Key Limitation |
|---|---|---|---|
| Track / 7th-axis | Sub-millimeter, closed-loop servo feedback | Fixed workcells, multi-station tending, welding | Requires floor or overhead structural planning |
| Fixed-path AGV | Up to ±5 mm (QR-guided systems) | Stable, repetitive routes | Costly to reroute if layout changes |
| Natural-navigation AMR | Up to ±10 mm (SLAM-based) | Dynamic layouts, flexible routing | Higher upfront cost, sensitive to dust/glare |
How GLOBAL Delivers Reliable, GPS-Free Robot Positioning
GLOBAL Automation Technologies designs, builds, programs, and validates robotic systems that never depend on GPS infrastructure. Indoor manufacturing environments were never built for satellite positioning in the first place.
As a Level 5 FANUC Authorized System Integrator and the largest U.S. purchaser of FANUC robots among integrators in 2025, GLOBAL builds its positioning solutions around robots engineered for continuous industrial use.
Before a single track is bolted down or a robot path is programmed, GLOBAL's engineering team runs AI-assisted simulation to test layouts and motion paths virtually. That step surfaces interference points, cycle-time bottlenecks, and reach limits before they turn into expensive surprises on the production floor. Robot programming that once took weeks now takes days.
Reliable positioning also depends on who stands behind the cell after install. GLOBAL brings together three distinct offerings:
- Automation systems — turnkey delivery from concept through commissioning for machine tending, material handling, welding, and painting
- Engineering services — GLOBAL's own controls, mechanical, and project engineers placed on customer contracts
- Technical staffing — controls engineers, robotics technicians, and project managers recruited into customer roles on contract, contract-to-hire, or direct-hire terms
Clients are not left with a finished system and no one to run it. GLOBAL builds the positioning solution and supplies the engineers who commission it, troubleshoot it, and keep it running long after installation day. Factories don't stop, and neither does the support behind them.
Frequently Asked Questions
Which robot is used for pick-and-place tasks?
Six-axis articulated robots, including FANUC models, are the standard for pick-and-place thanks to their reach and repeatability. For wider work envelopes, they are often paired with a positioning track.
What is the difference between an AMR and an AGV?
AGVs follow a fixed, physically marked path using magnetic tape, wires, or painted lines. AMRs use natural navigation, including SLAM and LiDAR, to map their surroundings and adjust routes dynamically without fixed infrastructure.
Can industrial robots operate reliably indoors without any GPS at all?
Yes. Indoor robots rely on track encoders, wheel odometry, LiDAR, and vision-based sensing instead of satellites. These local methods are typically more accurate indoors than GPS can achieve in that same space.
What is a robot positioning system or 7th axis?
It's a linear track that extends a six-axis robot's reach, letting one robot service multiple stations or machines. Position is tracked through servo and encoder feedback rather than any satellite-based system.
How accurate is non-GPS robot positioning compared to GPS?
Track-based systems and sensor-fusion methods like SLAM and LiDAR often achieve millimeter-to-centimeter accuracy. That exceeds standalone GPS performance and rivals even RTK-corrected GPS, without needing open sky.
Is GPS ever used in industrial robotics at all?
Rarely indoors. GPS shows up mainly outdoors—agricultural field robots, last-mile delivery—where satellite visibility isn't an issue. Indoor manufacturing robots use localized positioning instead.
