Introduction
Walk any modern production line and you'll see cameras doing work no human eye can match. They catch a hairline scratch on polished metal, guide a robot arm to a part buried in a bin, and verify a weld bead in the half-second before the part moves downstream.
Many manufacturers assume buying a good camera solves their inspection problem. It doesn't. A camera sitting by itself on a bracket is just a camera.
The value shows up when that camera talks to a robot controller, a PLC, and the software running the line, triggering real decisions in real time. This article breaks down what integrated vision systems actually are, how they work, the main types available, and where they deliver the most value on a manufacturing floor.
Key Takeaways
- Integrated vision systems link cameras, lighting, and software to robots, PLCs, and conveyors for real-time production decisions
- True integration covers operator interfaces and communication protocols, not only cameras and lenses
- Platform, motion type, and imaging technology determine which system fits each production need
- Typical uses include dimensional measurement, defect detection, robot guidance, and dispensing quality checks
- Select based on precision needs, environment, throughput, and fit with existing infrastructure
What Are Integrated Vision Systems?
On a production line, a camera that only captures pictures still leaves defects free to move downstream. An integrated vision system wires cameras, lighting, and processing directly into production equipment, robots, PLCs, and conveyors so results trigger real actions.
Basler describes this as coordinated hardware and software that gives machines and robots the visual information they need to act. A vision system's components typically include a camera and lens, a lighting source, a vision processor or controller, machine vision software, and a communication interface linking it to the rest of the automation cell.
Integration means more than hardware selection. It includes designing:
- The operator interface that lets floor personnel monitor and adjust the system
- The equipment interfaces that let vision talk to robot controllers and PLCs
- The testing protocols that confirm every handoff actually works
A Practical Example: One Camera Isn't Always Enough
Picture a robot picking parts from a tray. A single camera might locate the part before pickup, but that's rarely the full story.
GLOBAL Automation Technologies, which holds Level 5 status in FANUC’s Authorized System Integrator program, builds robotic material handling cells using FANUC iRVision and 3D area sensors to locate and orient parts arriving in random positions. In many of these cells, a second check after pickup confirms the part didn't shift in the gripper before it reaches the next station.
The robot or piece of equipment usually gets selected first, based on payload, reach, and task suitability. The vision engineer's job is making the vision system's interface work with that equipment, not the other way around.
How Integrated Vision Systems Work
Every integrated vision system follows a similar pipeline. The Association for Advancing Automation frames the complete factory automation sequence as positioning, capturing, processing, deciding, and acting, then sending results to other factory systems. On the plant floor, that pipeline typically runs through four steps:
| Step | What Happens |
|---|---|
| 1. Image Acquisition | Camera captures a 2D or 3D image using configured triggering, exposure, and lighting geometry |
| 2. Feature Extraction | Software isolates edges, regions of interest, shapes, or textures from the image |
| 3. Detection and Decision | Extracted features are compared against tolerances to classify, verify, or measure |
| 4. Communication and Action | Results go to a PLC or robot controller, triggering a reject, path adjustment, or data log |
Why Testing Order Matters
Building this pipeline is iterative, not linear in practice. Validate camera and lens selection first. Lighting comes next. Tune software logic last, against real parts under real conditions.
Skip a validation step and the fix gets more expensive the further downstream you catch it. A lighting problem discovered after the software is written means reopening the whole configuration, not just tweaking a threshold.
Types of Integrated Vision Systems
Vision systems break down by platform, motion, imaging technology, and function—each with real trade-offs on the line.
By Platform
| Platform | Best Fit |
|---|---|
| Smart camera | Compact, self-contained, simpler setup and maintenance |
| PC-based | Higher computing power for complex, multi-camera lines |
| Compact vision system | More power than a smart camera without a full PC stack |
Smart cameras combine acquisition and processing in one unit, which keeps footprint small. PC-based systems separate the camera from a more powerful processor when production rates demand it. Compact systems sit between the two when you need extra horsepower without standing up a full PC-based stack.
By Motion
Fixed-mounted systems stay stationary, delivering high stability for repetitive tasks. Robot-mounted systems move the camera with the arm itself.
A single 6-axis robot carrying a camera can inspect multiple surfaces and angles, sometimes replacing several fixed cameras.
By Imaging Technology and Application
- 2D vision: most common, cost-effective for flat or planar inspection
- 3D vision: necessary for bin picking, volumetric measurement, and complex geometries
- Specialized imaging: thermal or X-ray for niche cases like subsurface voids or weld faults

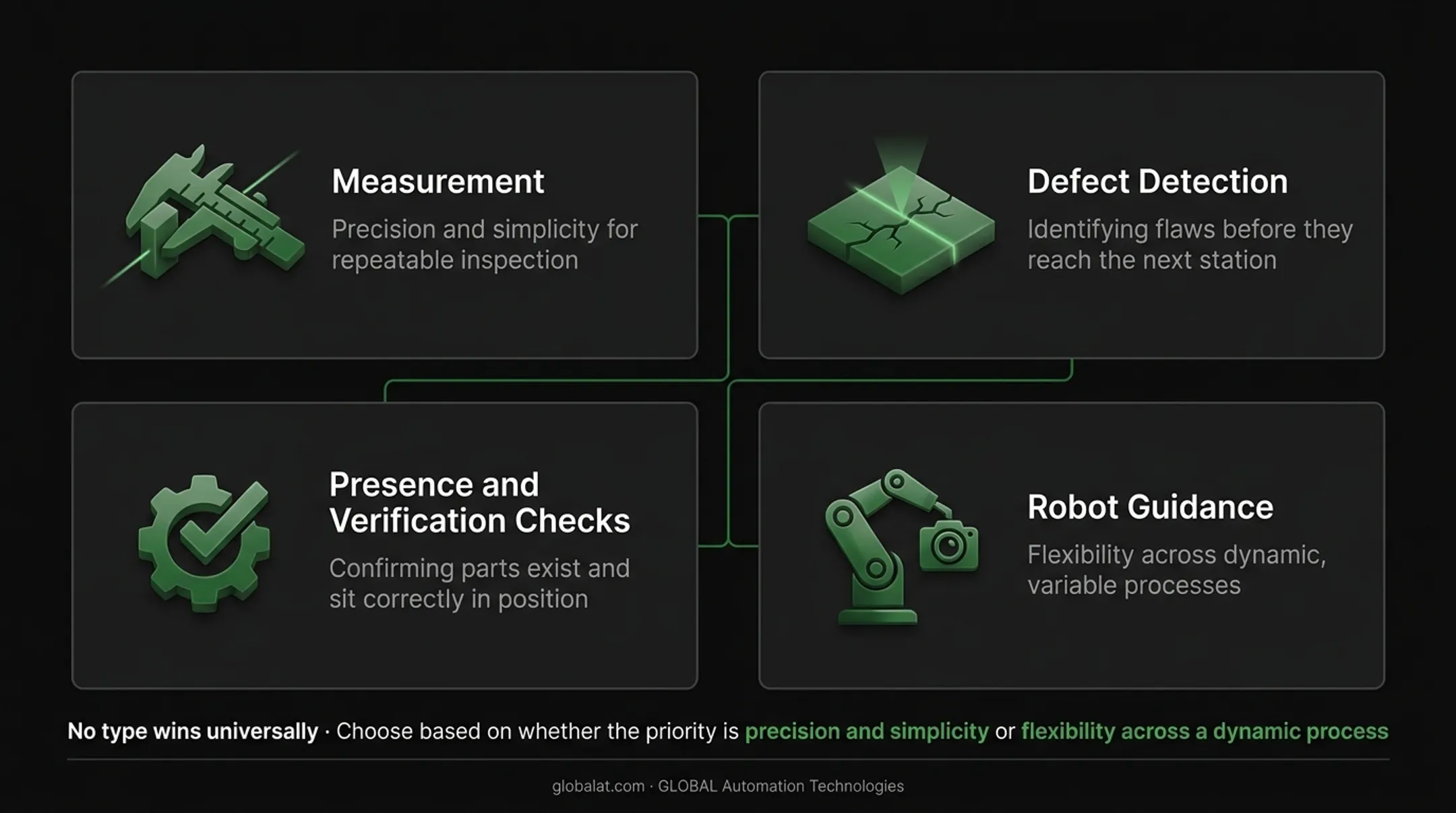

By Function
Systems also split by the job they perform:
- Measurement
- Defect detection
- Presence and verification checks
- Robot guidance
No type wins universally. Choose based on whether the priority is precision and simplicity or flexibility across a dynamic process.
Applications and Benefits in Manufacturing
Integrated vision shows up everywhere on a modern floor:
- Dimensional measurement for tight-tolerance parts
- Surface and defect inspection for scratches, voids, or contamination
- Robot guidance for pick-and-place and assembly
- Code reading for traceability
- Dispensing and weld quality checks before parts move downstream
The core benefit is consistency. A camera doesn't get tired on hour ten of a shift. In one documented case, an EV components manufacturer automated inspection that previously needed up to five people. The vision system caught every identified defect on the Park-Lock assembly and freed those employees for higher-value work.
Vision Inspection in Dispensing and Painting
GLOBAL integrates real-time vision inspection directly into its robotic dispensing and sealing cells, checking bead width, placement, and continuity as the material is applied—not after the fact. If a bead runs thin or a programmed path gets missed, the system flags it before the part advances.
The same discipline applies to GLOBAL's robotic painting systems, which follow the same programmed path every cycle to hold film build within specification shift after shift, instead of drifting with operator technique and fatigue. Full paint inspection and any robotic spot repair happen downstream, not live in the booth. A manual spray operator cannot match that repeatability across a long production run.
One Fix, Multiple Industries
GLOBAL describes its approach directly: solving problems through an applications lens, not an industry lens. A vision-guided bead validation method built for automotive dispensing is platform-agnostic. The same inspection logic verifies material placement in real time against programmed tolerances. It applies just as well on an aerospace assembly line or a heavy equipment welding cell.
Choosing and Implementing the Right System

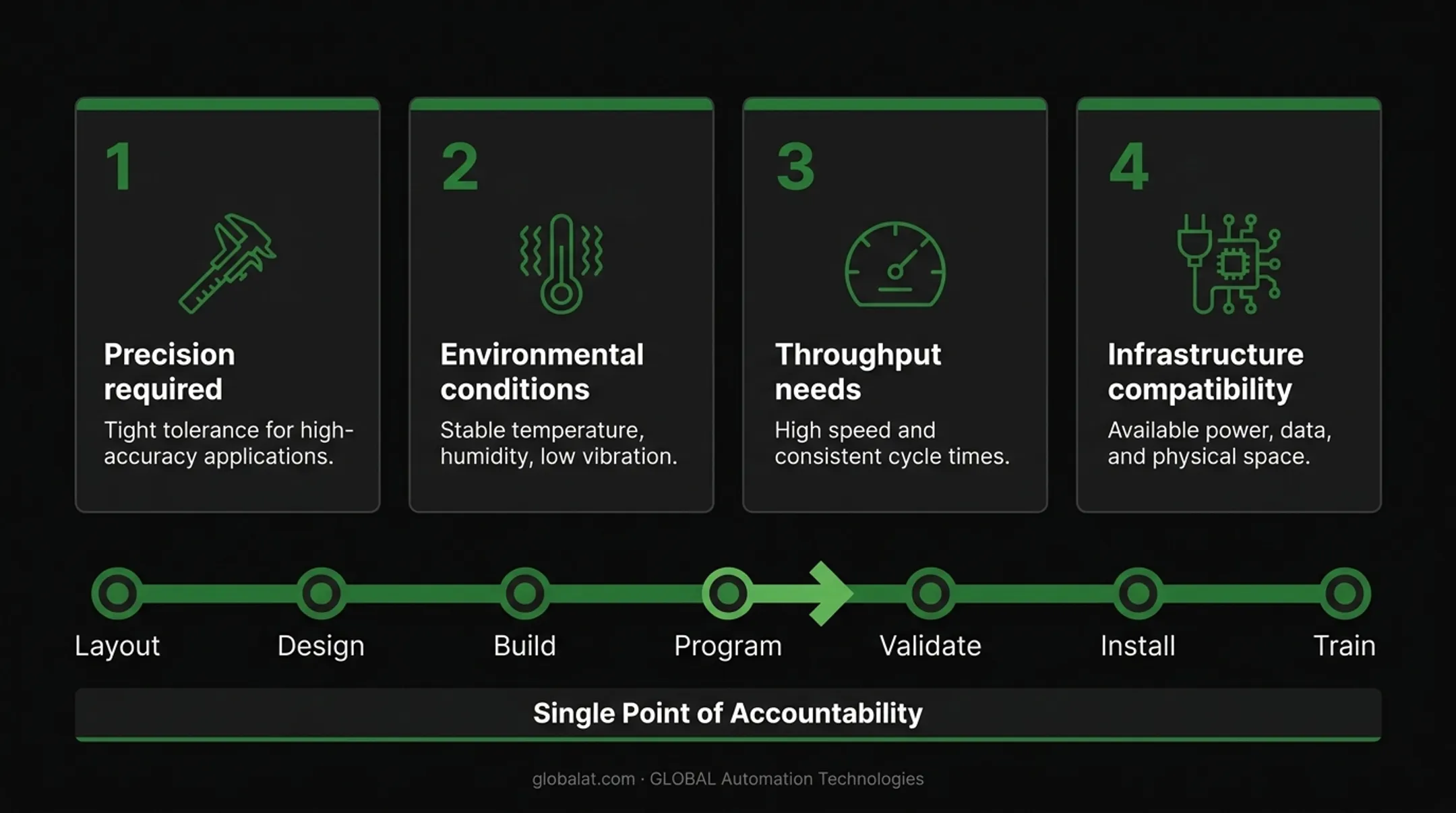

Picking a vision system starts with a handful of hard questions:
- Precision required - what tolerance actually matters for this part?
- Environmental conditions - how much lighting variation, vibration, and temperature swing will the system face?
- Throughput needs - can the system keep pace without slowing the line?
- Infrastructure compatibility - does it talk to your existing PLC, robot, or MES?
A clear requirements document and acceptance test procedure, built collaboratively between the end user and integrator, prevents scope confusion later. Testing against representative sample parts, not idealized ones, catches problems before they reach the floor.
Operator interface design matters just as much as the hardware. A system that requires an engineering degree to run day-to-day will get bypassed or misused by floor staff who don't have the training time to master it.
This is where a turnkey partner earns its keep. GLOBAL handles layout, design, build, programming, validation, installation, and training as one continuous project rather than a chain of vendor handoffs.
When the same team that designs the cell also programs the robot and vision logic, there's no translation gap between what the camera sees and what the robot does about it. That single point of accountability is often the difference between a smooth commissioning and weeks of finger-pointing between separate vendors.
Frequently Asked Questions
What is an embedded vision system?
An embedded vision system is a compact, self-contained unit where the camera, processor, and image analysis run on a single board or module. Common in cost-sensitive or space-constrained applications.
What are the different types of vision systems?
Vision systems vary by platform (PC-based, smart camera, or compact), motion (fixed vs. robot-mounted), and imaging type (2D, 3D, or specialized options like thermal). Each combination suits different precision and flexibility needs.
What is the difference between integrated and standalone vision systems?
A standalone system operates independently for a single inspection task. An integrated system is networked with robots, PLCs, or line controllers so it can trigger automated actions in real time.
How much does an integrated vision system cost?
Costs depend on camera count, software complexity, and integration scope. Simple setups start in the tens of thousands of dollars; complex multi-camera cells can exceed $100,000. ROI typically comes from reduced scrap and reallocated labor.
Can vision systems be integrated with robots and PLCs?
Yes. Most modern industrial vision systems use standard communication protocols specifically designed to interface with robot controllers and PLCs for real-time coordination.
What industries use integrated vision systems the most?
Automotive, electronics, medical device, and heavy equipment manufacturing lead adoption, relying on vision for assembly verification, defect detection, and robot guidance across high-volume production.
