Advanced Loading Automation for Modern Manufacturing

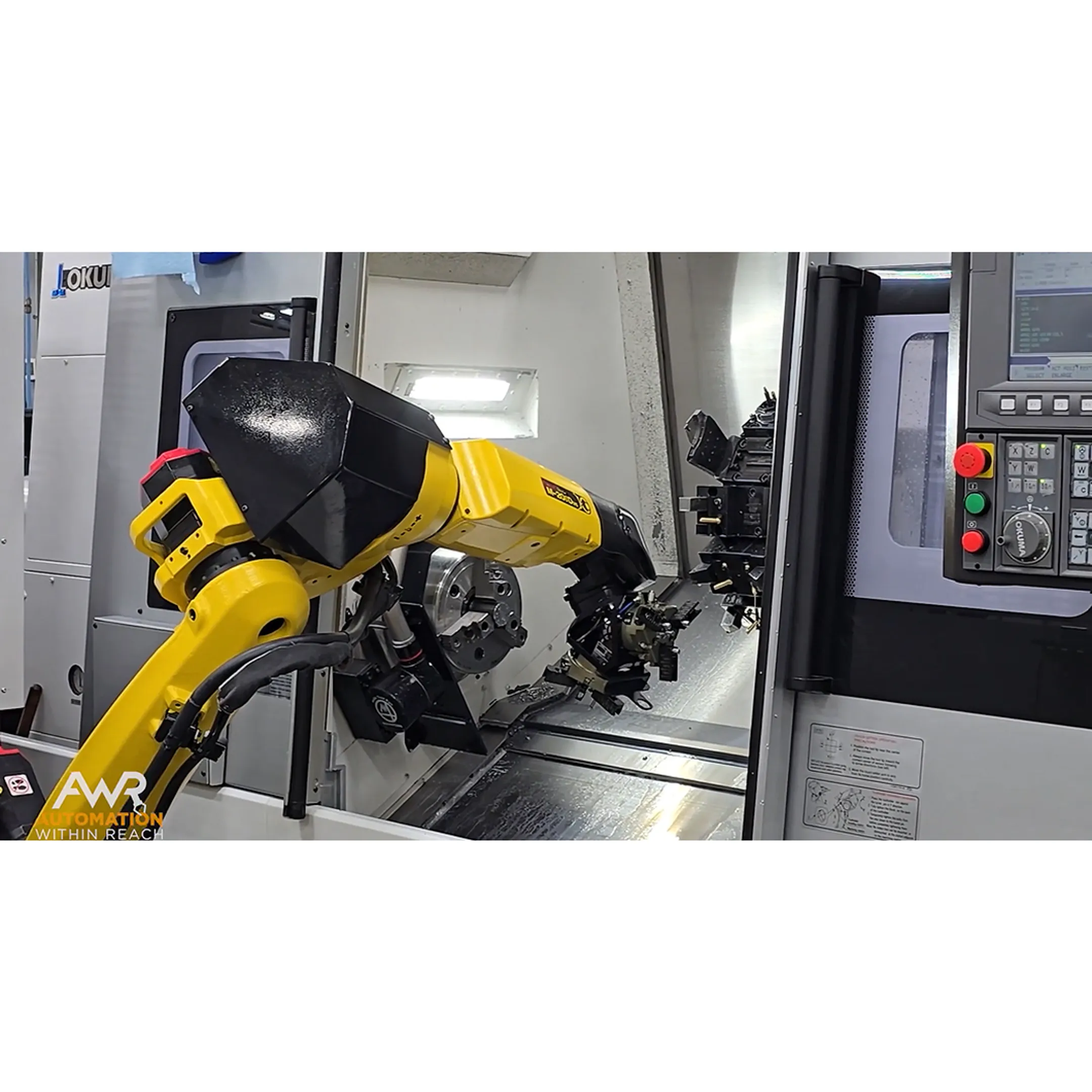

An automated loading and unloading system uses robots, conveyors, tooling, sensors, and controls to move parts into, through, or out of production equipment without relying on constant manual handling. In a machine-tending application, for example, a robot can open a machine door, load a part, start the cycle, remove the completed part, and repeat the sequence. Vision can add part identification and orientation verification.

Loading automation can support CNC machines, presses, injection molding machines, assembly stations, weld cells, test equipment, packaging lines, pallets, racks, and conveyors. The system is designed around the specific equipment interface, part size and geometry, cycle time, required orientation, and handling conditions. A single robot may tend one machine, several machines, or a complete connected manufacturing cell.

Robotic loading reduces the time equipment waits for an operator to present, remove, or transfer parts. A properly designed cell coordinates robot motion, gripper actions, machine signals, and conveyor flow to keep each cycle moving consistently. This can support extended unattended operation, improve spindle utilization in CNC environments, and free operators to focus on inspection, setup, maintenance, or other higher-value work.

Yes. Multi-part loading systems can be designed with adaptable grippers, quick-change tooling, programmable recipes, fixtures, and machine vision. Vision-guided robots can identify a part’s position or orientation before picking it, which is especially useful for mixed production or random bin picking. During planning, GLOBAL evaluates each part family, changeover frequency, weight, surface sensitivity, and required presentation accuracy.

Machine vision is not required for every application. Structured parts arriving in a consistent fixture or on a controlled conveyor may be handled reliably with conventional sensors and robot programming. Vision becomes valuable when parts arrive randomly oriented, vary in position, need presence verification, or require quality inspection. GLOBAL selects vision based on the process challenge rather than adding unnecessary complexity.

A productive design begins with part drawings or samples, weights, materials, production volumes, target cycle times, machine details, current workflow, available floor space, and safety requirements. It is also important to understand upstream and downstream processes, changeover needs, quality checkpoints, and the desired level of unattended operation. GLOBAL uses this information for process analysis, conceptual design, simulation, and ROI evaluation.

Implementation timing depends on the application’s complexity, including robot count, custom tooling, vision requirements, machine interfaces, safety systems, controls scope, and site installation conditions. GLOBAL begins with feasibility and process evaluation to define scope, then progresses through engineering, build, integration, validation, installation, commissioning, and training. Early simulation and coordinated project management help identify issues before production launch.

Yes. GLOBAL supports automation retrofits and manufacturing-line upgrades for existing manual operations, legacy robotic cells, new product launches, model-year changeovers, and capacity expansions. The team evaluates current equipment and constraints before recommending practical changes, such as adding robot loading, new tooling, vision guidance, conveyor integration, or updated controls. The goal is to improve performance while minimizing downtime and capital disruption.
