UOP, or User Operator Panel, is the signal interface between your PLC (or another external control system) and the FANUC robot controller. It's how a PLC tells a robot to start, hold, or reset a fault, without anyone touching the teach pendant.
This guide breaks down UOP inputs and outputs, configuration steps, common faults, and what a solid 2026 setup looks like for automotive and industrial cells.
Key Takeaways
- UOP signals (UI/UO) let a PLC start, hold, and monitor a FANUC robot without teach pendant access
- IMSTP, HOLD, and SFSPD must stay HIGH for Remote/AUTO mode
- Never permanently jumper those signals around real safety circuits
- Wrong rack/slot mapping and forced signals drive most "lost signal" and SYST-series alarms
- Solid UOP setup needs controls engineers, integrators, and safety personnel aligned
What Is FANUC UOP and Why It Matters in 2026
UOP is FANUC's standardized digital I/O interface for external control. According to the FANUC R-30iB Operator's Manual, peripheral I/O signals (UI/UO) have system-assigned functions that connect the robot controller to remote devices like PLCs. That link lets a PLC command Start, Hold, Abort, and Fault Reset without pendant interaction — the baseline for unattended cells in 2026.
Physically, UOP can run through hardwired racks (like Rack 0 for process I/O boards) or over a network. Rack 89 handles EtherNet/IP.
Industrial Ethernet now accounts for 68% of new industrial network nodes, up from 66% in 2022, while fieldbus protocols have dropped to 24%, according to Automation World's 2023 industrial network report.
That shift is showing up on plant floors. More 2026 cells configure UOP over networked connections rather than hardwired panels.
Local vs. Remote Mode
This is where most configuration confusion starts:
- Local mode: The robot runs whatever program is selected via the SOP (Standard Operator Panel) buttons on the controller itself
- Remote mode: The robot follows the Program Select and Production Start methods configured for PLC/UOP control
GLOBAL's engineers configure UOP as a standard part of turnkey robotic cell commissioning. They validate the PLC-to-robot handshake before the line ever hands off to production. That step matters more than most integrators admit: a UOP signal that looks correctly wired on paper can still fail in practice.
Understanding UOP Input Signals (UI)
The FANUC R-30iB manual defines specific run-permissive inputs that must be HIGH for normal remote operation:
| Signal | Purpose | Required HIGH for Remote Mode |
|---|---|---|
| UI[1] IMSTP | Immediate stop (software-level) | Yes |
| UI[2] HOLD | Decelerate and pause program | Yes |
| UI[3] SFSPD | Safety fence/speed restriction | Yes |
| UI[5] RESET | Clears active alarms | Pulsed, not held |
| UI[6] START | Starts/continues program | Pulsed, not held |
| UI[8] ENBL | Enables motion and program execution | Yes |

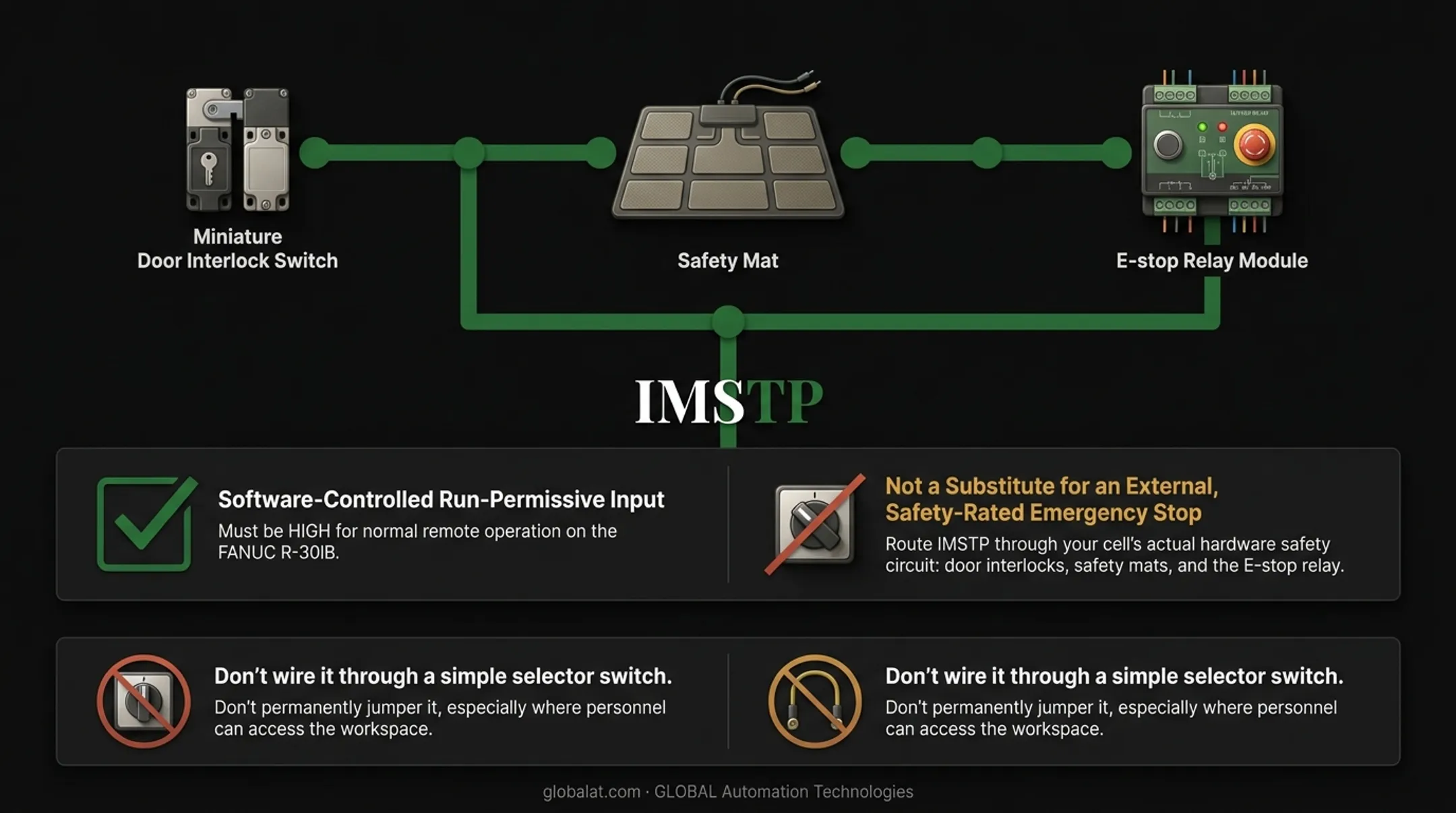

IMSTP is software-controlled. FANUC's own documentation is explicit that it's not a substitute for an external, safety-rated emergency stop. Route IMSTP through your cell's actual hardware safety circuit: door interlocks, safety mats, and the E-stop relay.
Don't wire it through a simple selector switch, and don't permanently jumper it, especially in any cell where personnel can access the workspace.
Minimal Wiring for Standalone Robots
For a standalone robot without full PLC integration, a common minimal approach wires IMSTP, HOLD, and SFSPD in parallel to a 24VDC source or selector switch, then adds a single start signal. It works.
But it only belongs in cells with no door interlocks and no personnel access. The moment there's a fence or gate involved, IMSTP needs to route through real safety hardware.
Startup sequence for remote operation:
- Bring UI[1], UI[2], UI[3], and UI[8] HIGH
- Pulse UI[5] RESET HIGH then LOW to clear any faults
- Confirm UO[1] CMDENBL is HIGH
- Pulse UI[6] START HIGH for at least 100ms, then LOW. The robot starts on the falling edge
HOLD and SFSPD aren't optional extras. Dropping HOLD decelerates the robot and halts the program; dropping SFSPD does the same while also restricting feed-rate override. Both are directly tied to safe operating behavior, not just convenience signals.
UOP Output Signals & Program Select Methods

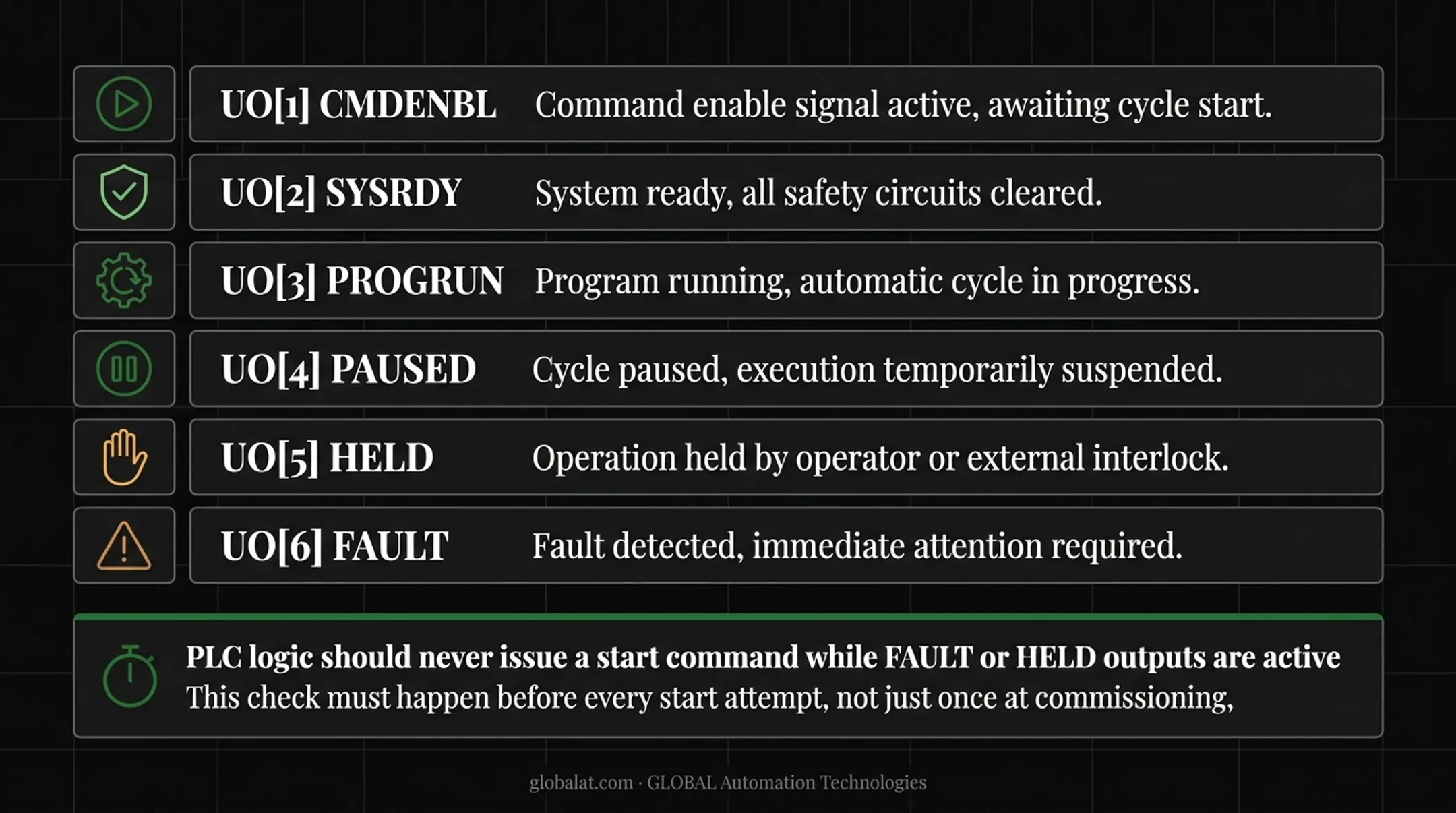

UOP outputs report robot status to the PLC so it can issue commands safely. Key signals include:
- UO[1] CMDENBL — remote conditions are met; a program can be started
- UO[2] SYSRDY — servo power is on and the robot is ready
- UO[3] PROGRUN — a program is actively executing
- UO[4] PAUSED — a program is stopped, waiting for restart
- UO[5] HELD — hold is active (teach pendant or external hold)
- UO[6] FAULT — an active system alarm exists
PLC logic should never issue a start command while FAULT or HELD outputs are active. That check has to happen before every start attempt, not just once at commissioning.
Choosing a Program Select Method
FANUC supports four methods: RSR, PNS, STYLE, and OTHER. RSR and PNS are well-documented for external PLC control, but for most new 2026 integrations, OTHER is the simplest to maintain.
OTHER selects the program named in a system variable and starts it with UI[6] START or UI[18] PROD_START. You avoid PNS binary encoding and RSR strobe timing.
Configuring and Mapping UOP Signals Correctly
UOP mapping happens under MENU > I/O > UOP > CONFIG, where you assign physical or network I/O points to logical UI/UO signal numbers using RANGE, RACK, SLOT, and START fields.
A common mistake: double-mapping regular DI/DO points to the same rack/slot/start values already used by UOP signals. UOP signals are digital I/O under the hood, so overlapping assignments create conflicts that are hard to trace after the fact.
A few mapping fundamentals worth locking in:
- Rack 0 is the process I/O board / I/O Link connection, not a dedicated "simulation" rack (simulation uses a separate per-point SIM flag)
- Rack 89 handles EtherNet/IP connections
- Rack changes without full hardware validation risk signal loss or, worse, an unintended safety bypass
Before touching any UOP setting, back up the robot configuration and log the change (what was modified, why, and by whom) in a controlled change record. It sounds like paperwork until you're the one trying to figure out why a signal moved.
GLOBAL's engineering teams use AI-assisted simulation to model and test robot programs before deployment, which cuts programming time from weeks to days. Running UOP logic through a virtual environment before it touches physical hardware means fewer surprises during commissioning, and fewer late nights chasing a mapping error on the plant floor.
Troubleshooting Common UOP Faults and Alarms
Two alarms account for a large share of UOP-related service calls.

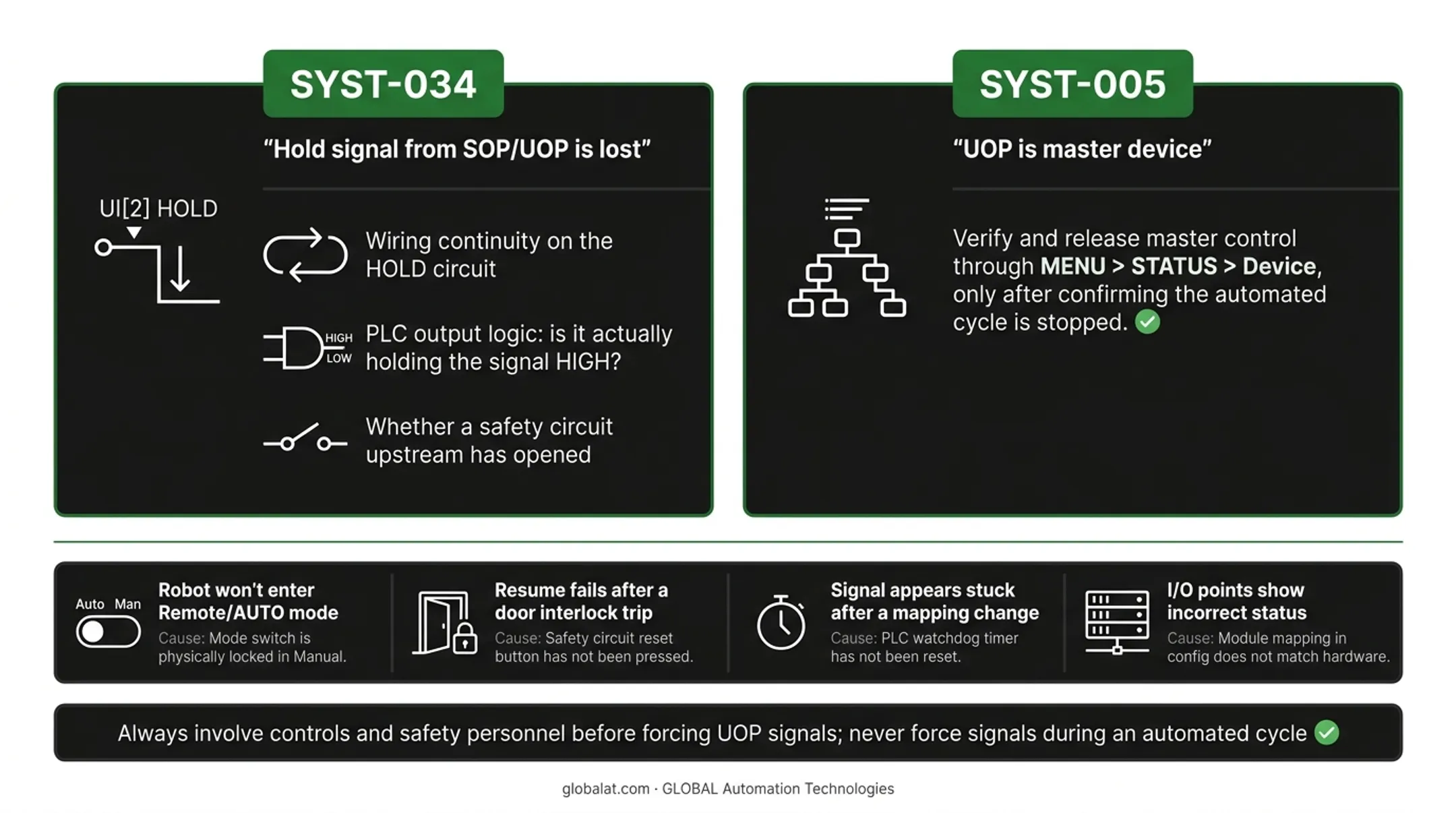

SYST-034: "Hold signal from SOP/UOP is lost" points to a dropped HOLD input. Since UI[2] HOLD must stay HIGH during normal operation, a LOW state decelerates and halts the program. Start by checking:
- Wiring continuity on the HOLD circuit
- PLC output logic (is it actually holding the signal HIGH?)
- Whether a safety circuit somewhere upstream has opened
SYST-005: "UOP is master device" blocks teach pendant operations because UOP currently holds master control. Verify and release master control through MENU > STATUS > Device, but only after confirming the automated cycle is stopped and it's safe to do so.
Other frequent symptoms:
- Robot won't enter Remote/AUTO mode: usually traces back to ENBL not being HIGH, an open fence circuit, or the teach pendant still enabled
- Resume fails after a door interlock trip: often a timing issue between the safety circuit clearing and the PLC re-asserting SFSPD/HOLD
- Signal appears "stuck" after a mapping change: frequently a leftover rack/slot conflict from an earlier reconfiguration
Always involve controls and safety personnel before forcing UOP signals to diagnose a fault, and never force signals during an automated cycle. A forced signal that clears one alarm can mask a real safety fault underneath.
Best Practices for Safe, Reliable UOP Setups
A few habits separate clean UOP commissioning from a year of nuisance alarms:
- Coordinate every change with PLC/controls engineers before touching a rack value or signal mapping — a change that makes sense in isolation can break the handshake on the other end
- Keep Rack 0 for simulation and testing only, and verify signal logic and timing there before switching to physical I/O in production
- Document changes as you make them, not after the fact, so the next engineer isn't reverse-engineering your wiring
Even with solid habits, many manufacturers lack the in-house bandwidth to fully validate PLC-to-robot handshakes and safety chains. That's a staffing problem as much as a technical one. GLOBAL, which holds Level 5 status in FANUC’s Authorized System Integrator program, pairs its systems integration division with on-demand contract or contract-to-hire automation engineers, so manufacturers get commissioning and troubleshooting support without carrying that specialized headcount year-round.
Frequently Asked Questions
What does "SYST-034 Hold signal from SOP/UOP is lost" mean?
It means the robot lost its HOLD input from the SOP/UOP source, usually from a wiring fault, a PLC output drop, or an open safety interlock. Check wiring continuity, PLC logic, and the safety circuit first.
What is UOP in a FANUC robot?
UOP stands for User Operator Panel. It's the signal interface that external devices like PLCs use to control robot functions such as start, hold, and fault reset.
What's the difference between Local and Remote mode on a FANUC robot?
Local mode runs whichever program is selected via the SOP buttons on the controller. Remote mode follows the Program Select and Production Start methods configured for PLC/UOP control.
Can I permanently wire IMSTP, HOLD, and SFSPD high to skip full UOP wiring?
Yes, on standalone robots without full PLC integration. IMSTP should still route through real safety devices—not a permanent jumper—for any cell with door interlocks or personnel access.
Why won't my robot enter Remote/AUTO mode even with UOP wired correctly?
Usually one of these: ENBL is not HIGH, the fence circuit is open, the teach pendant is still enabled, or an existing fault is blocking the mode transition.
What is the SYST-005 "UOP is the master device" alarm and how do I fix it?
It means UOP currently holds master control, which blocks teach pendant operations. Check Master Device status under MENU > STATUS > Device, and only release control once the automated cycle is safely stopped.
