A gantry robot is an industrial robot mounted on an overhead rail or frame, moving along X, Y, and Z linear axes rather than swinging from a fixed base. Because the whole system rides above the work area, it frees up valuable floor space while covering a large, rectangular work envelope — exactly what high-volume pick and place operations need.
This article breaks down what gantry robots are, the types available, where they fit best, their real benefits and limitations, and how to choose the right system and integration partner.
Key Takeaways
- Gantry robots deliver high-precision, repeatable pick and place on overhead X, Y, and Z rails
- Overhead design frees floor space and handles heavier, larger loads than many articulated arms
- Match payload, speed, workspace, and integrator turnkey experience to your application
- An experienced integrator like GLOBAL shortens startup time and lowers downtime risk
What Is a Gantry Robot?
A gantry robot, also called a Cartesian robot, is built with three prismatic (straight-line) joints whose axes form a right-angle coordinate system, per the official ISO definition. In practice, the robot's arm rides along an overhead rail or frame, moving in straight lines rather than rotating through joints.
Core components include:
- Gantry structure: the overhead frame or rail system that carries the robot
- Robot arm/carriage: moves along the X, Y, and sometimes Z axes
- End effector: the gripper or tooling that actually picks up the part
- Drive system: motors and linear actuators that move the carriage
- Control system: coordinates motion, timing, and integration with PLCs or vision systems

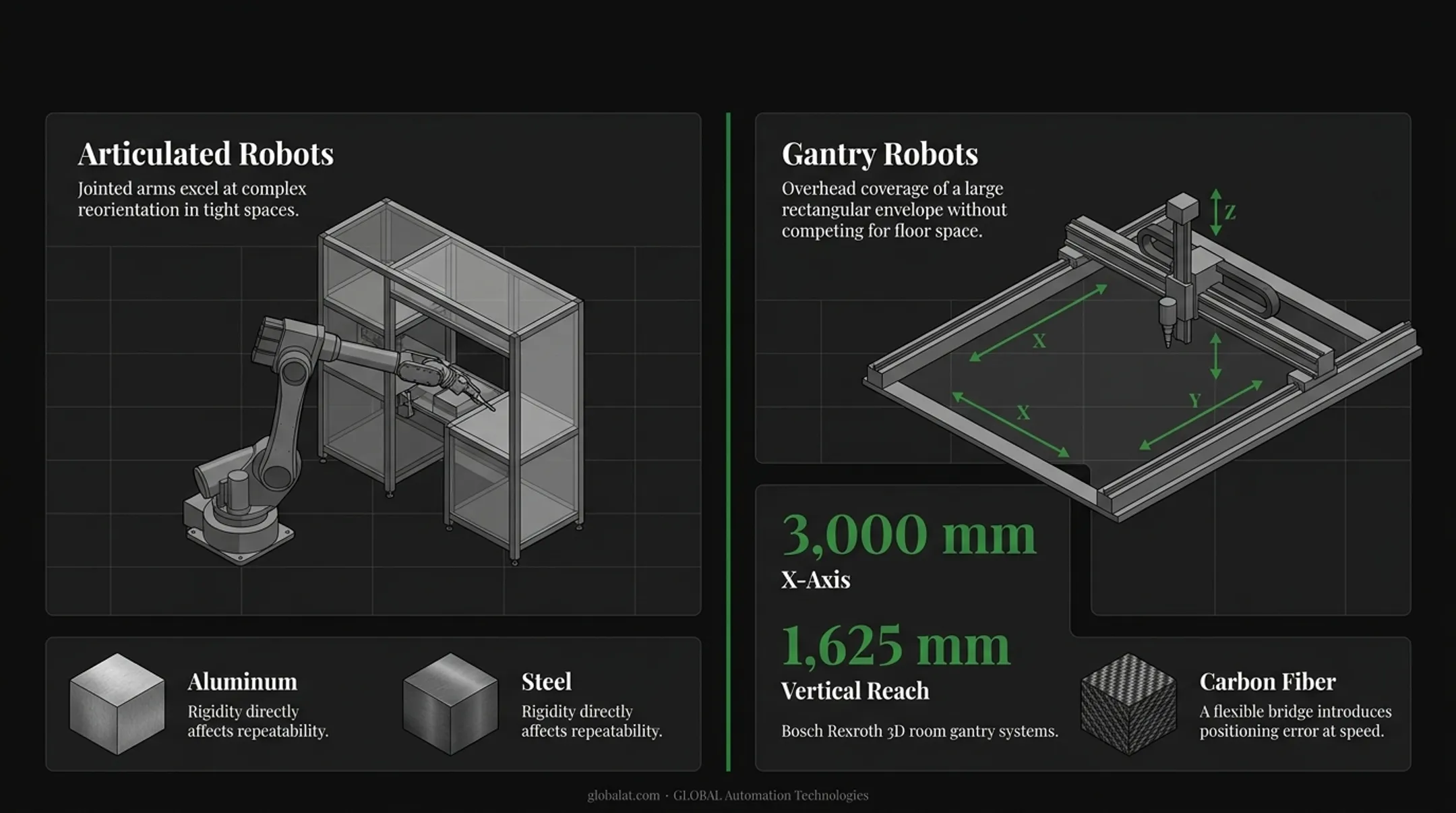

Gantry vs. Articulated Robots
Articulated robots use jointed arms and excel at complex reorientation in tight spaces. Gantry robots sit overhead and cover a large rectangular envelope without competing for floor space. Bosch Rexroth notes its 3D room gantry systems can reach up to 3,000 mm in the X-axis and 1,625 mm vertically, a footprint that would be difficult to match with a floor-standing arm covering the same area.
Frame materials affect that precision. Aluminum, steel, and carbon fiber are all used in gantry construction, and rigidity directly affects repeatability: a flexible bridge introduces positioning error at speed.
What Is Pick and Place Automation?
Pick and place automation uses robotics to pick up a part or material and place it at a target location with speed and accuracy. It's one of the highest-volume robotic applications in manufacturing, spanning automotive, packaging, and general industrial production.
Why does it matter so much right now? North American companies ordered 36,766 robots worth $2.25 billion in 2025, a 6.6% jump in units and 10.1% in revenue year over year. A meaningful share of that growth is material handling and packaging work — tasks gantry systems are naturally suited for.
Gantry configurations fit pick and place particularly well because:
- Overhead access keeps the work envelope clear for fixtures, conveyors, and operators
- Large rectangular travel ranges let one gantry service multiple stations
- Straight-line motion supports high repeatability at speed

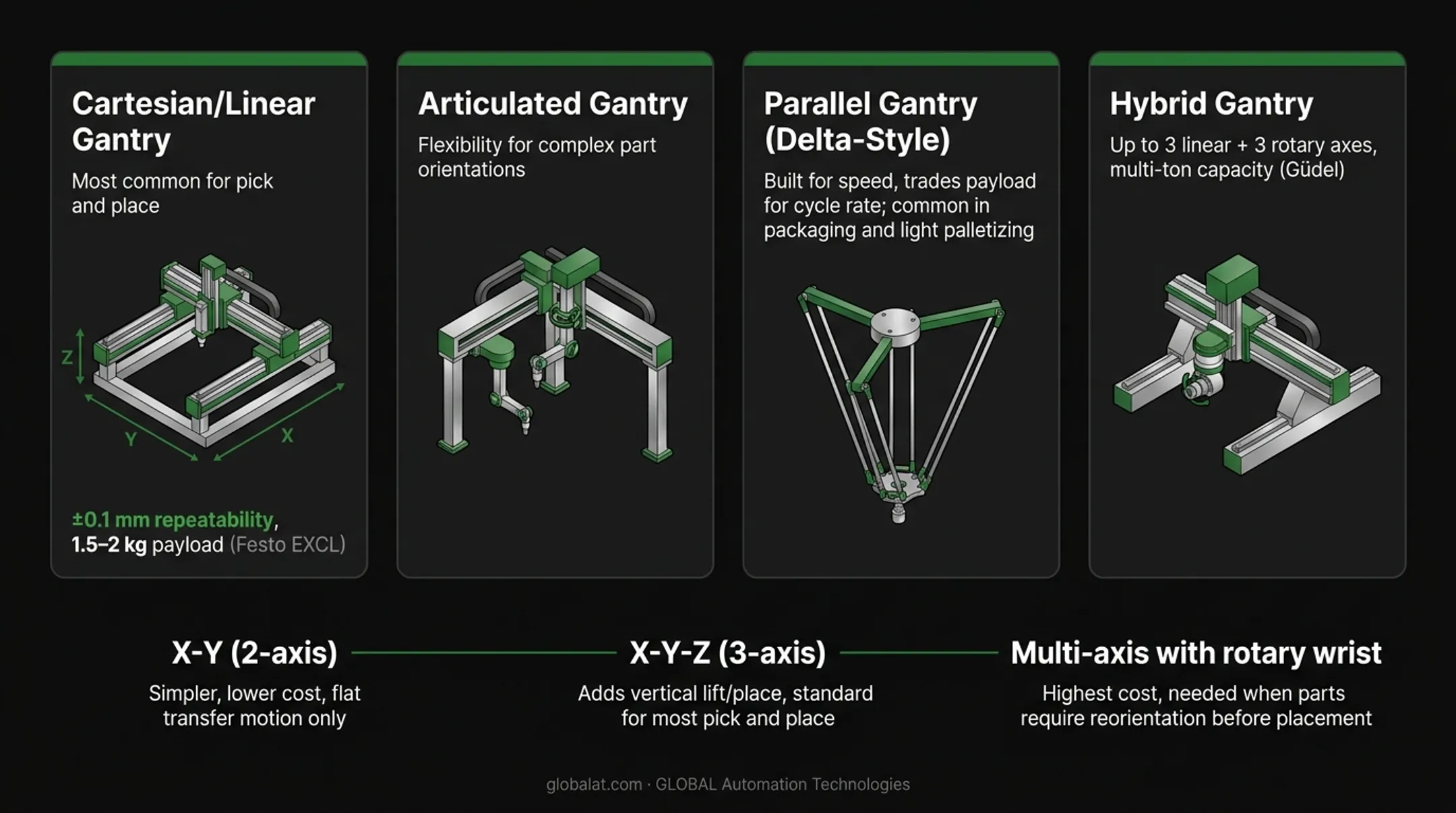

Types of Gantry Robots for Pick and Place
Gantry robots come in several configurations. Motion style, payload, and speed each shift which setup fits a pick and place cell.
Cartesian/linear gantry: The most common type for pick and place. Motion stays strictly along the X, Y, and Z axes. Festo's EXCL model, for example, is rated at ±0.1 mm repetition accuracy with a 1.5–2 kg payload depending on axis configuration.
Articulated gantry: Adds jointed segments to the overhead structure, adding flexibility for complex part orientations that pure linear motion can't handle.
Parallel gantry (delta-style): Built for speed. These systems trade payload capacity for cycle rate, so they show up often in packaging and light palletizing where throughput matters more than raw lifting power.
Hybrid gantry: Combines linear travel with rotary wrist axes. Güdel's hybrid systems support up to three linear axes plus three optional rotary axes, with components that handle loads of several tons.
Axis count further affects reach and cost:
- X-Y (2-axis): Simpler and lower cost, but limited to flat transfer motion
- X-Y-Z (3-axis): Adds vertical lift/place capability, the standard for most pick and place
- Multi-axis with rotary wrist: Highest cost; needed when parts require reorientation before placement
Key Applications of Gantry Robots in Pick and Place
Material Handling and Machine Tending
Gantry robots load and unload parts between conveyors, pallets, and machines with minimal floor footprint. That same overhead access makes them a strong fit for machine tending, feeding CNC machines and presses continuously.
At GLOBAL, machine tending cells typically pay for themselves in 12 to 18 months, driven by more parts per shift and fewer direct labor hours:
- Runs through breaks, shift changes, and overnight periods
- Extends unattended production windows
- Frees operators for inspection and process improvement instead of repetitive loading
Packaging and Palletizing

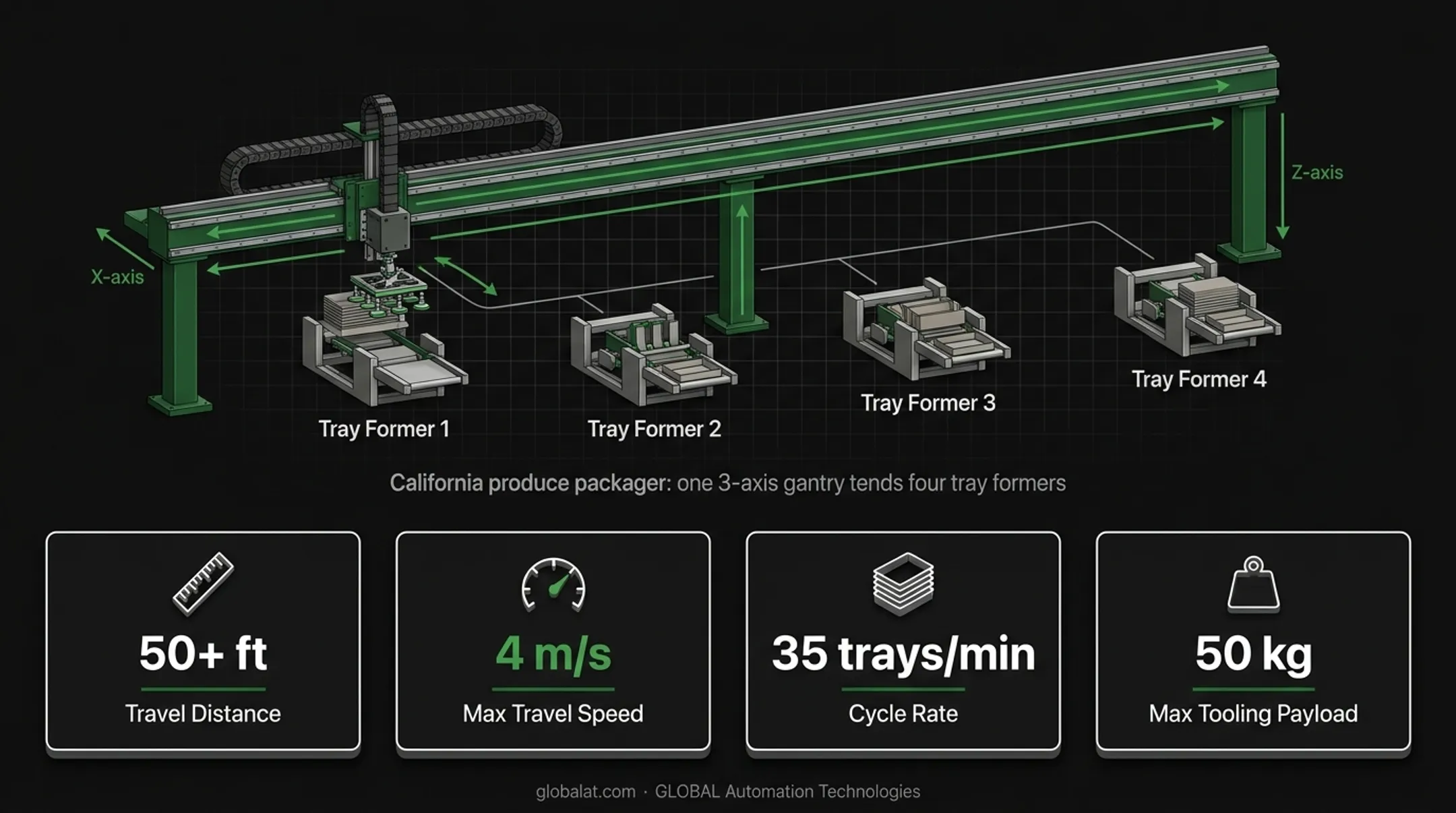

High-speed stacking and depalletizing are classic gantry territory. One documented example: a California produce packager uses 3-axis gantries where each unit tends four tray formers. The system covers 50+ feet of travel at up to 4 m/s and 35 trays per minute, with tooling payloads up to 50 kg.
Assembly and Inspection
Gantries also handle precise component placement paired with vision-based quality checks. That pairing fits anywhere a part must land in an exact position before fastening, sealing, or the next process step.
Benefits and Limitations of Gantry Robots
Benefits
- Overhead mounting frees floor space for other equipment and personnel
- High precision and repeatability, especially on straight-line motion paths
- Scales well: one gantry can service multiple machines across a large envelope
- Handles heavier and oversized loads better than many comparably priced articulated arms
- Removes workers from repetitive or hazardous manual handling tasks
Limitations
- Higher upfront structural and integration cost
- Programming complexity, especially for multi-axis or hybrid systems
- Requires overhead clearance and structural support that not every facility has
- Long bridges can flex, and dual-side drives can rack out of alignment if not engineered properly
That programming complexity is shrinking in practice. GLOBAL's engineers use AI-assisted simulation to model, test, and optimize robot programs before code runs on the plant floor, cutting programming time from weeks to days and reducing surprises during commissioning.
How to Select the Right Gantry Robot System
Choosing a gantry system comes down to four practical questions:
- What's the payload, speed, and precision requirement? Published gantry payloads range from under 2 kg on compact systems to several tons on heavy-duty frames. There's no universal number, so size to your actual part and tooling weight.
- Does your facility have the space? Map both floor and overhead clearance, plus service access for maintenance.
- What's the total cost of ownership? Purchase price is only one line item. Factor in integration, training, and ongoing maintenance.
- Who's installing it? A full turnkey partner should cover layout, programming, installation, and ongoing service, not just equipment delivery.
GLOBAL's process for material-handling and pick and place systems follows four stages:
- Process study and layout — evaluating part geometry, cycle time, floor space, and developing the conceptual design
- Simulation and programming — AI-assisted simulation models and optimizes the program before deployment
- Build and installation — system integration, on-site installation, and commissioning
- Training and service — operator training, documentation, and ongoing support
With 18+ years in turnkey automation and 630+ robots integrated worldwide, GLOBAL is a Level 5 FANUC Authorized System Integrator. That full-scope experience reduces the guesswork that often comes with a first gantry deployment.
Frequently Asked Questions
What is a gantry robot?
A gantry robot is an industrial robot mounted on an overhead rail or frame system, moving along X, Y, and Z linear axes. It's built for precision tasks like pick and place, palletizing, and machine tending.
What are the different types of gantry robots?
The main types are Cartesian/linear (most common), articulated gantries (added flexibility), parallel/delta-style (high speed), and hybrid systems combining linear and rotary motion. Each trades off payload, speed, and complexity differently.
What is pick and place automation?
Pick and place automation uses robots to pick up parts or materials and place them at a target location quickly and accurately. It's one of the most widely used robotic applications in manufacturing.
What are pick and place robots used for?
Common uses include packaging, palletizing, machine tending, assembly, and general material handling. They're especially valuable wherever consistent, repetitive part transfer is needed at volume.
How much weight can a gantry robot lift?
It varies widely by design — some compact systems handle just a few kilograms, while heavy-duty industrial gantries lift several tons. Payload always depends on the specific model and axis configuration.
How do I know if my facility needs a gantry robot vs. an articulated robot?
If you have limited floor space, need to cover a large rectangular area, or handle heavy/oversized parts, a gantry robot usually makes more sense. If your process requires complex reorientation or reaching around obstructions, an articulated arm may be the better fit.
