High-Speed Robotic Seam Welding

Introduction

Manufacturing demands are rising, lead times are shrinking, and manual welding can't keep pace with modern automotive, heavy equipment, and metal fabrication throughput.

The labor gap makes it worse. The American Welding Society projects the United States will need 320,500 new welding professionals by 2029, with 80,000 jobs to fill each year through 2029. Equipment backlogs keep growing too: John Deere alone reported $7.9 billion in Production and Precision Agriculture backlogs in October 2023.

High-speed robotic seam welding hits this bottleneck head-on. Accelerated travel speeds, precision motion control, and adaptive technologies deliver continuous welds 40-67% faster than manual or standard robotic processes, without sacrificing weld integrity.

For shops where profitability hinges on cycle time, moving from 20 inches per minute to 60 IPM changes capacity, not just pace.

Key Takeaways:

  • Reaches 40-100+ IPM and cuts cycle time by up to 67% versus standard robotic speeds
  • Holds heat input, wire feed, and travel speed steady across full seams to cut rework
  • Fits high-volume, repeatable runs in automotive, heavy equipment, and fabrication
  • Needs consistent parts and solid fixturing; adaptive tracking is optional when tolerances are tight
  • Pays back through faster cycles, lower labor per unit, better asset use, and lights-out shifts

What Is High-Speed Robotic Seam Welding?

High-speed robotic seam welding is an automated process where industrial robots run continuous weld seams at accelerated travel speeds, typically 30-100+ inches per minute, while holding weld quality and penetration.

Unlike spot welding, which creates discrete weld points, seam welding produces continuous welds along joints. Common applications include automotive body panels, fuel tanks, HVAC ducts, structural frames, and heavy equipment fabrication.

Speed and Process Differences

High-speed systems differ from standard robotic seam welding in more than travel rate. They optimize several variables at once:

  • Travel speed: 40-100+ IPM versus 15-30 IPM for standard systems
  • Wire feed rates: Synchronized to match accelerated travel without underfeeding or overheating
  • Heat input: Controlled to prevent porosity, undercut, or lack of fusion at higher speeds
  • Motion control: Precise torch angle, standoff distance, and path following throughout the seam

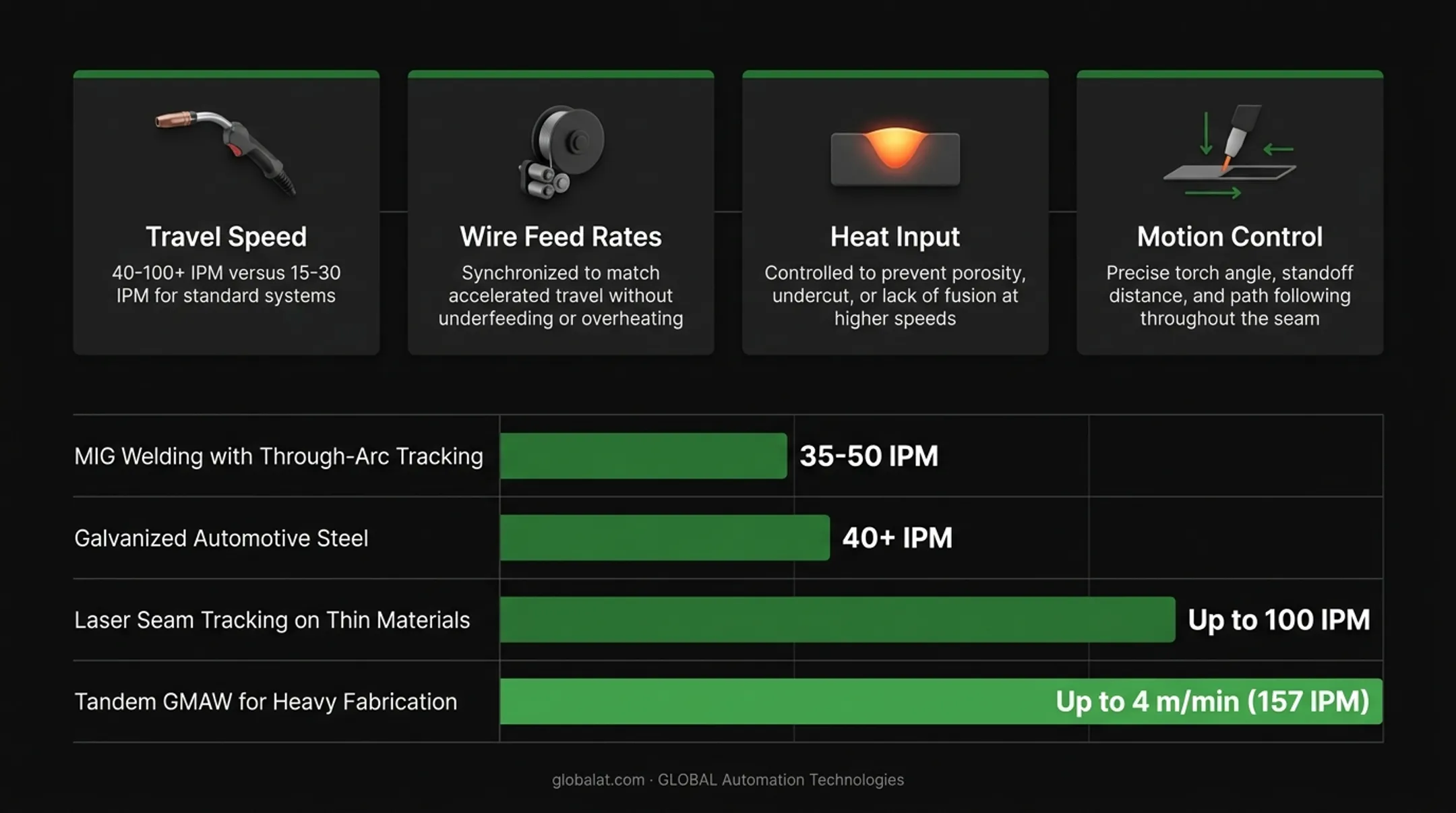

Process-specific speed benchmarks:

High-speed robotic welding process speed comparison across four welding technologies

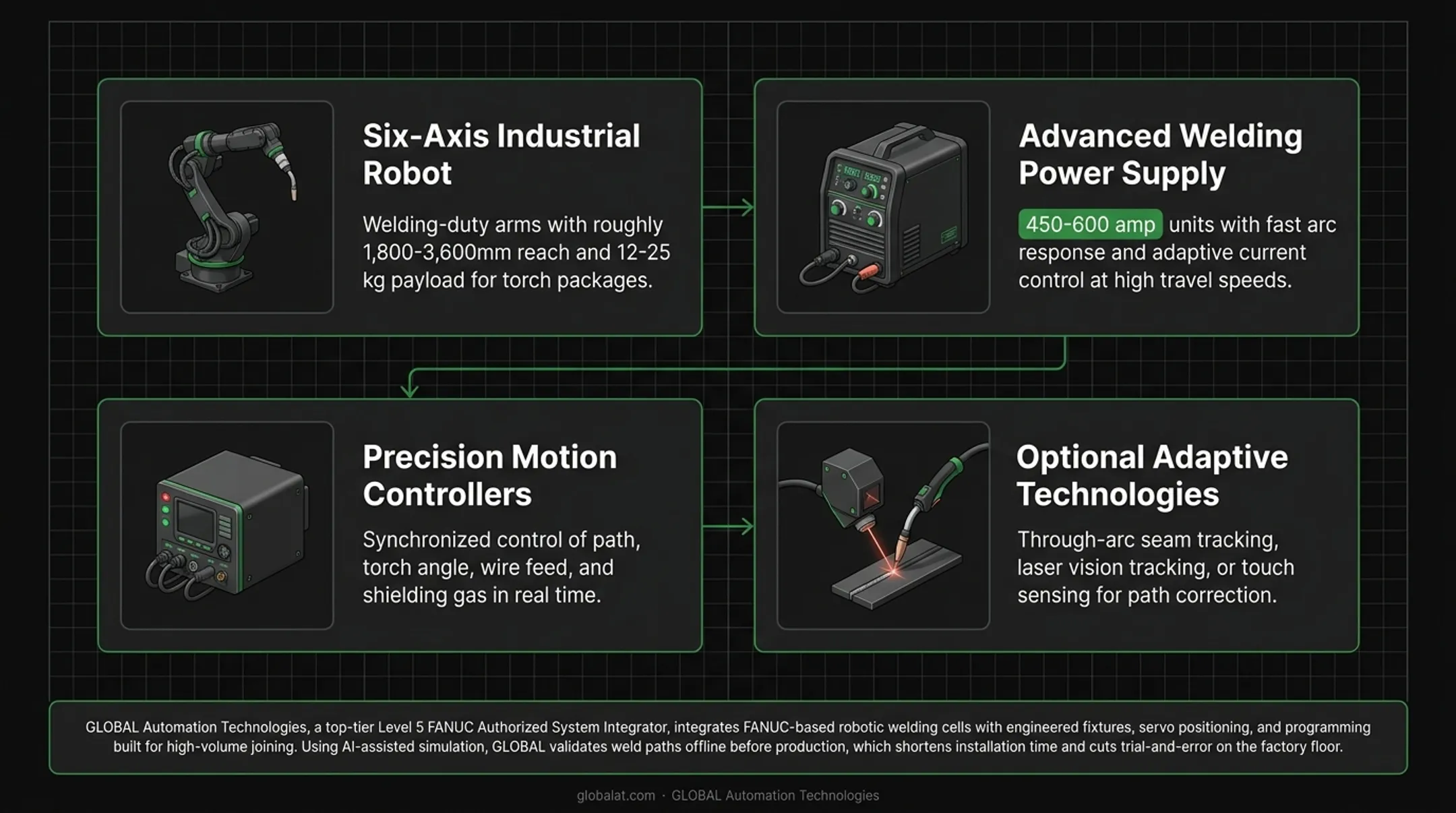

Core System Components

A high-speed robotic seam welding system typically includes:

  • Six-axis industrial robot: Welding-duty arms (FANUC, Yaskawa, or ABB) with roughly 1,800-3,600mm reach and 12-25 kg payload for torch packages
  • Advanced welding power supply: 450-600 amp units with fast arc response and adaptive current control at high travel speeds
  • Precision motion controllers: Synchronized control of path, torch angle, wire feed, and shielding gas in real time
  • Optional adaptive technologies: Through-arc seam tracking, laser vision tracking, or touch sensing for path correction

Six-axis industrial welding robot with torch assembly performing automated seam weld

GLOBAL Automation Technologies, a top-tier Level 5 FANUC Authorized System Integrator, integrates FANUC-based robotic welding cells with engineered fixtures, servo positioning, and programming built for high-volume joining. Using AI-assisted simulation, GLOBAL validates weld paths offline before production, which shortens installation time and cuts trial-and-error on the factory floor.

Speed Advantages and Cycle Time Benefits

The primary business case for high-speed robotic seam welding is simple. Large cycle-time cuts let manufacturers raise throughput without adding shifts, expanding floor space, or hiring more welders.

Cycle Time Comparison

Consider a 60-inch continuous seam:

  • Standard robotic welding at 20 IPM: 3 minutes per part
  • High-speed robotic welding at 60 IPM: 1 minute per part
  • Result: 67% cycle time reduction, enabling 3x more parts per shift

Fronius reports that its TPS/i TWIN tandem welding system delivers 75% higher welding speed at the same weld size compared to single-wire processes, with over 30% more penetration.

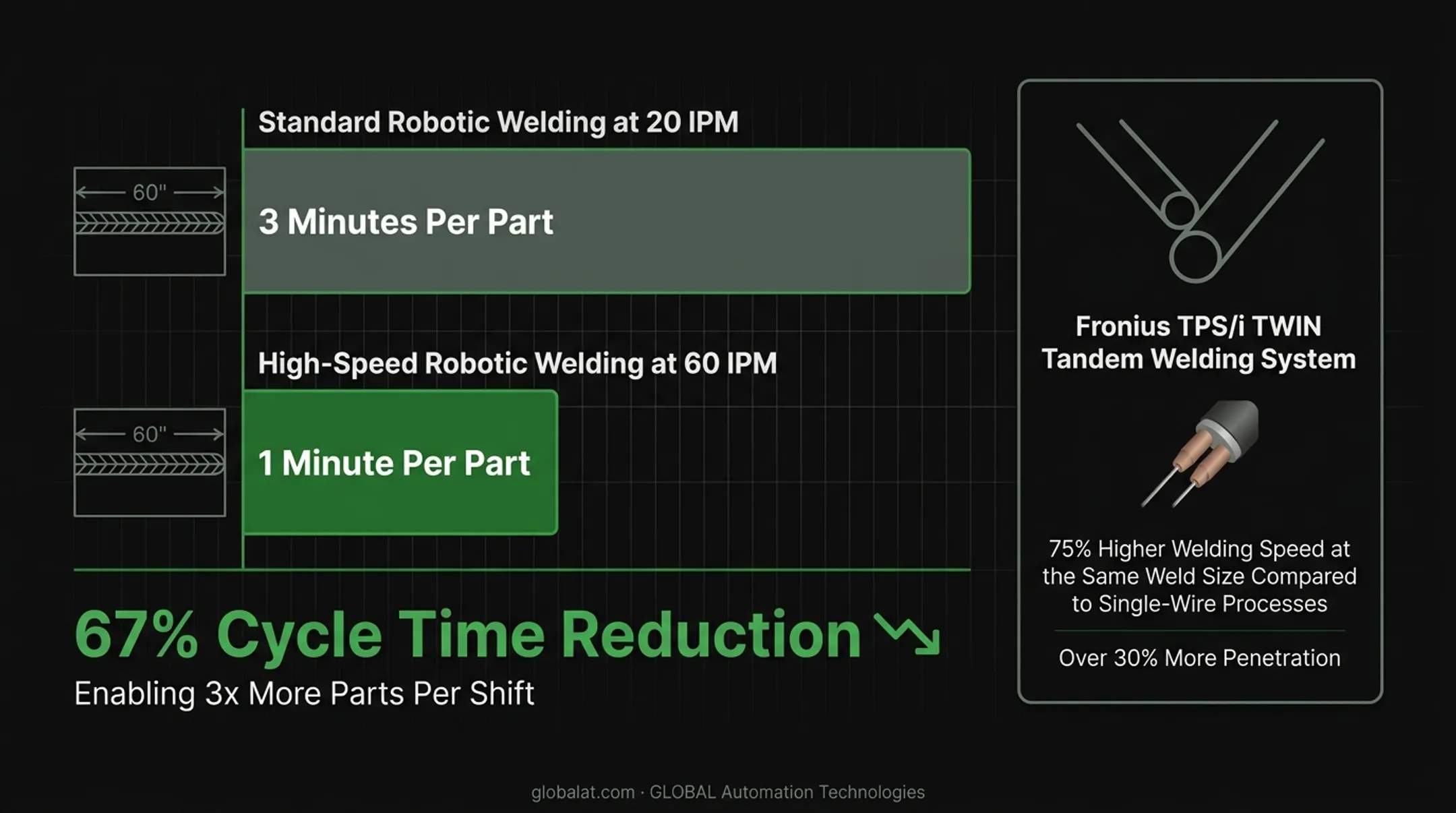

Cycle time reduction comparison showing standard versus high-speed robotic welding efficiency gains

Cost Per Part Impact

Faster cycle times translate directly into lower cost per part:

  • Reduced labor cost per unit: Same operator overhead spread across more parts
  • Lower energy consumption per weld: Less arc-on time per part reduces electricity and shielding gas usage
  • Improved asset utilization: Robots operate at higher capacity, maximizing return on capital investment
  • Decreased rework rates: Consistent speed, heat input, and wire feed eliminate the variability inherent in manual welding

Consistency and Quality

High-speed robotic systems maintain precise control throughout the entire seam. Unlike human welders who may vary speed, angle, or wire feed (especially over long seams or multiple shifts), robots execute identical welds part after part. That consistency cuts porosity, undercut, and lack-of-fusion defects that drive rework and scrap.

Lights-Out Manufacturing Potential

High-speed robotic welding also supports unmanned shifts. Once programmed and validated, robots can run overnight or through weekends without added labor cost. Throughput gains then stack: higher speed per hour, plus more production hours per week.

Key Technologies Enabling High-Speed Seam Welding

High-speed robotic seam welding isn't just about moving the torch faster. Several technologies work together to maintain weld quality at accelerated speeds.

Advanced Welding Power Supplies

Modern power supplies deliver rapid arc response and adaptive current control that prevent defects at high travel speeds. Lincoln's Power Wave R450, for example, provides 5-550A output range with 450A at 100% duty cycle, while Fronius TPS/i robotic units reach 600A capacity.

These systems adjust current in real time to prevent porosity, undercut, or incomplete fusion as the robot accelerates through curves or changes elevation.

High-Performance Motion Controllers

Precision motion controllers synchronize robot movement, torch angle, wire feed, and gas flow in real time. The robot's path-planning algorithms maintain consistent standoff distance and torch orientation throughout the seam, even at speeds exceeding 60 IPM. This coordination is critical. If wire feed lags travel speed or torch angle drifts, weld quality suffers immediately.

Adaptive Seam Tracking Technologies

Three primary adaptive technologies help robots compensate for part variation:

Through-Arc Seam Tracking (TAST):

Touch Sensing:

  • Automatically locates part features and adjusts robot path before welding begins
  • Adds 3-5 seconds per joint for pre-weld probing
  • Best for detecting part displacement when fixtures are less repeatable

Laser Vision Tracking:

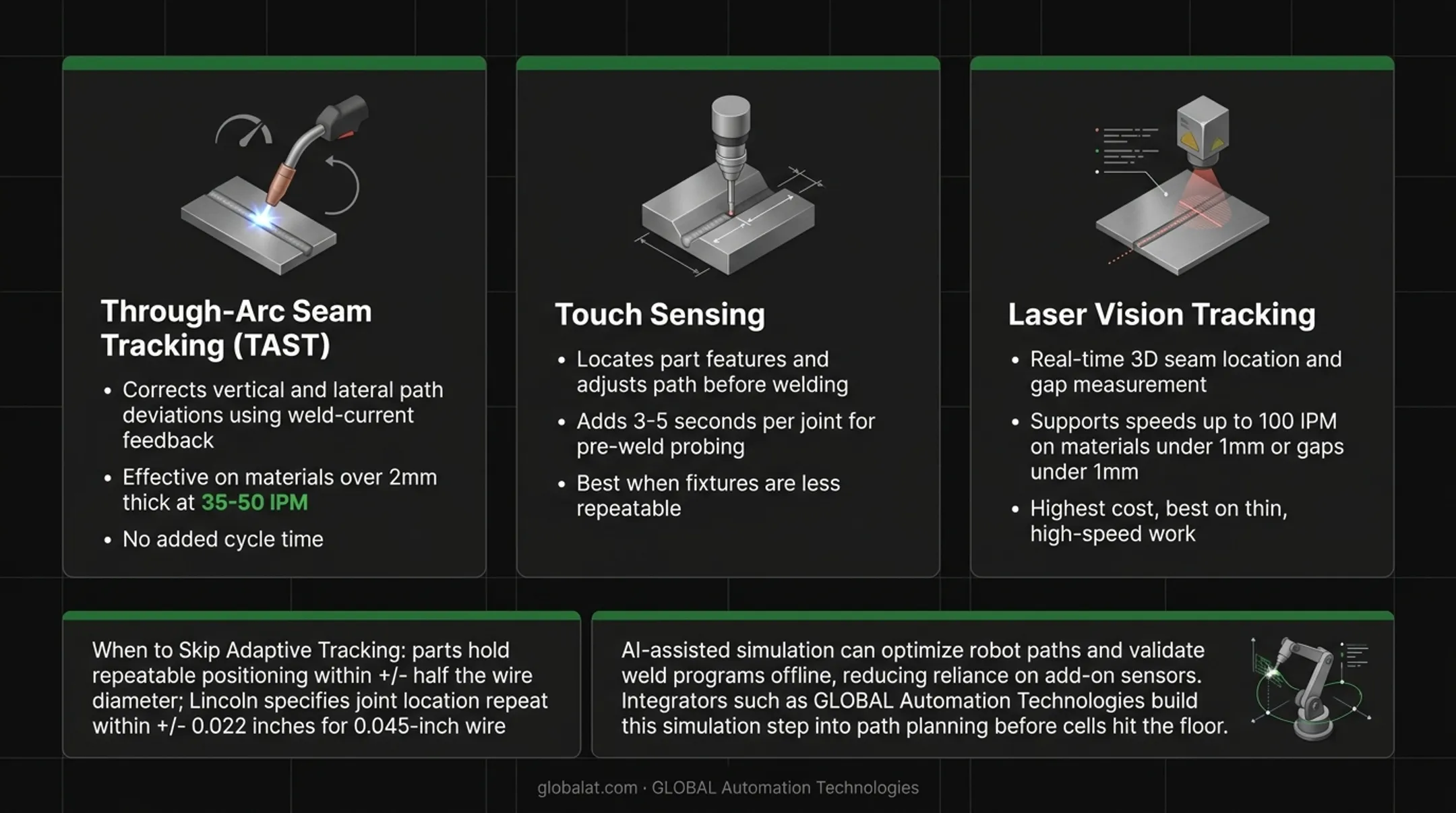

Three adaptive seam tracking technologies comparison with speed capabilities and applications

When to skip adaptive tracking:
If parts are dimensionally consistent and fixtures hold repeatable positioning within +/- half the wire diameter, adaptive technologies may be unnecessary. Lincoln specifies that joint location should repeat within +/- 0.022 inches for 0.045-inch wire.

When upstream processes stay controlled, AI-assisted simulation can optimize robot paths and validate weld programs offline—cutting reliance on costly add-on sensors. Integrators such as GLOBAL Automation Technologies build that simulation step into path planning and program validation before cells hit the floor.

When High-Speed Robotic Seam Welding Makes Sense

Not every welding application benefits from high-speed automation. Matching system speed to real production requirements prevents costly mismatches between the technology and the job.

Ideal Applications

High-speed robotic seam welding delivers maximum value in:

High-volume production runs with repeatable parts:

  • Automotive body panels and subframes with consistent geometry
  • Fuel tanks and battery enclosures requiring leak-tight seams
  • Trailer frames and truck beds with long, continuous welds
  • HVAC enclosures and ductwork with thin-gauge materials

Where cycle time directly impacts line throughput:

  • Takt time-driven assembly lines where welding is the bottleneck operation
  • Just-in-time manufacturing with tight delivery windows
  • Multi-shift operations where robot uptime determines daily output

When Standard-Speed Welding Is Sufficient

High-speed systems may not justify their cost or complexity for:

  • Low-volume, high-mix job shops: Frequent changeovers and programming time offset speed gains
  • Thick-section welds requiring multiple passes: Controlled heat input and interpass temperature may limit practical travel speed
  • Stringent quality requirements: X-ray inspection, pressure vessel certification, or structural code work often needs slower, more conservative parameters

The Role of Part and Fixture Consistency

High-speed systems perform best when parts arrive within tight tolerances and fixtures position them repeatably. Poor fit-up can require 125-200% more weld metal, negating speed advantages and introducing defects. Inconsistent parts force manufacturers to add adaptive tracking systems that raise capital cost and can add cycle time.

Decision rule:
Fix your parts and fixtures before buying speed. If dimensional variation exceeds what your chosen wire diameter and weld process can tolerate, address upstream stamping, machining, or fixturing processes first.

Implementation: Getting Started with High-Speed Robotic Seam Welding

Successful high-speed robotic seam welding deployment follows a structured implementation path that reduces risk and accelerates payback.

1. Start with Production Analysis

Calculate your current state:

  • Weld inches per part and total arc-on time
  • Current cycle time including load, weld, and unload
  • Bottleneck operations that limit overall throughput
  • Target throughput to meet demand or reduce backlog
  • Welder headcount and shifts, plus fully burdened labor cost

This baseline justifies investment and establishes clear ROI targets.

2. Evaluate Part Consistency and Fixture Design

Before selecting equipment, validate that:

  • Parts arrive within dimensional tolerances (ideally +/- 0.5mm for critical features)
  • Fixtures provide repeatable positioning within +/- half the wire diameter
  • Joint gaps are consistent and within welding procedure limits
  • Thermal distortion during welding won't pull the seam out of tolerance

If parts are inconsistent, upstream process improvements or adaptive tracking systems may be required—both add cost and complexity.

3. Select the Right Robot and Welding Equipment

Choose equipment matched to your application:

Robot selection criteria:

  • Reach sufficient to access all weld seams without fixture interference
  • Payload capacity for torch assembly, cables, and optional tracking sensors
  • Speed ratings that support target travel speeds (joint speed ≠ weld speed; verify axis speeds)
  • Purpose-built for welding environments (sealed motors, protected cabling)

Welding power supply requirements:

  • Output range and duty cycle matched to material thickness and process
  • Fast arc response to maintain stability at high travel speeds
  • Integration capability with robot controller and adaptive tracking systems

GLOBAL Automation Technologies primarily deploys FANUC robots for welding, matched to part geometry, weld requirements, rate, and quality standards. Cells typically include engineered fixtures, servo positioning, and optional vision-based seam location and weld verification.

4. Leverage Simulation and Pre-Deployment Optimization

Use offline programming and AI-assisted simulation to:

  • Program and validate robot paths in a virtual environment
  • Optimize torch angle, travel speed, and wire feed before installation
  • Identify reach limitations, singularities, or collision risks
  • Reduce installation time and minimize costly trial-and-error on the production floor

GLOBAL's integration approach includes simulation-driven deployment to accelerate robot startups and reduce downtime. By validating processes before a weld hits steel, manufacturers avoid the delays and rework common with traditional teach-pendant programming.

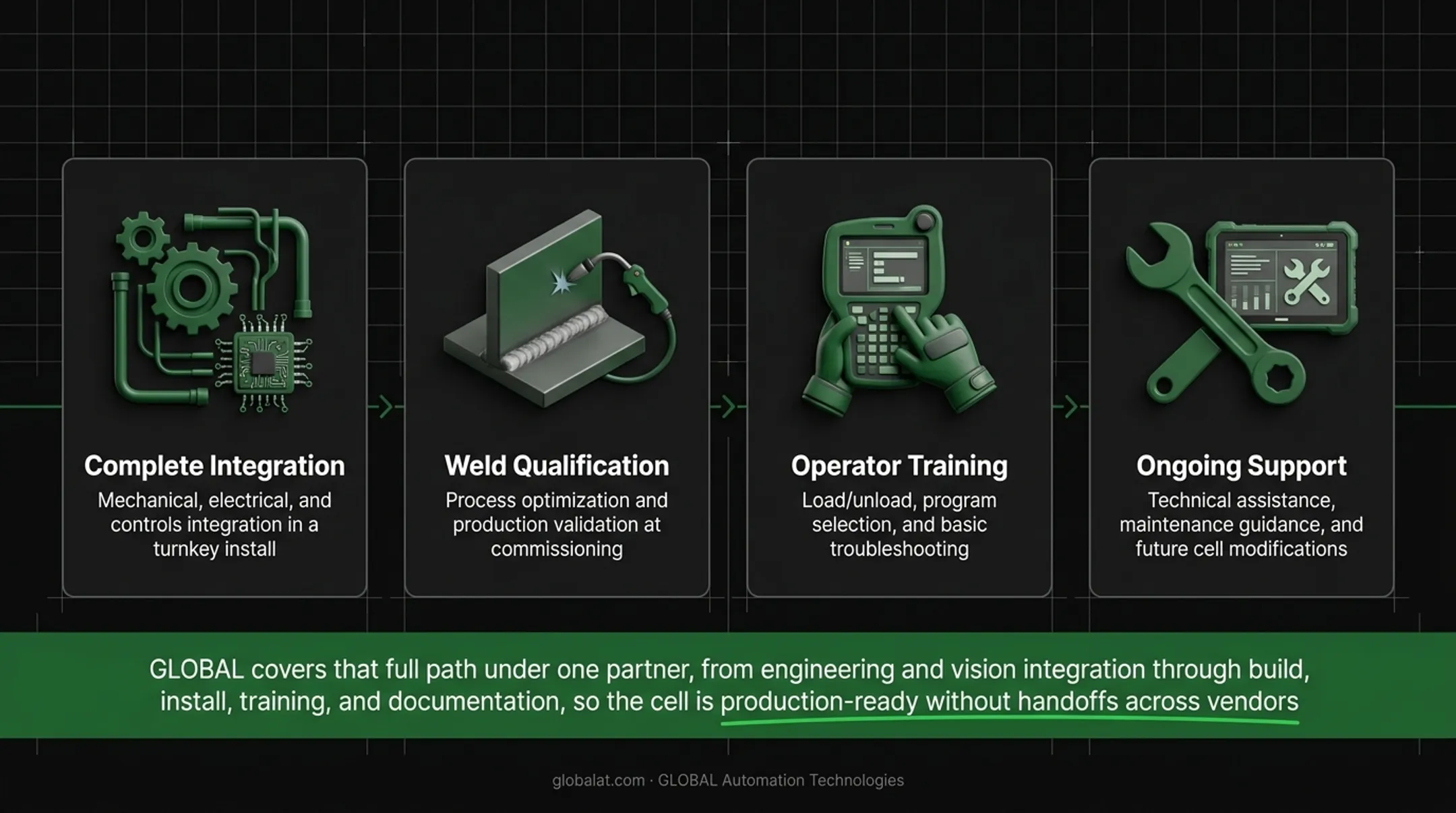

5. Plan for Integration and Training

Work with experienced systems integrators who provide:

  • Complete mechanical, electrical, and controls integration in a turnkey install
  • Weld procedure qualification, process optimization, and production validation at commissioning
  • Hands-on operator training for load/unload, program selection, and basic troubleshooting
  • Ongoing technical assistance, maintenance guidance, and future cell modifications

GLOBAL covers that full path under one partner—from engineering and vision integration through build, install, training, and documentation—so the cell is production-ready without handoffs across vendors.

Five-step high-speed robotic welding implementation process from analysis to production

Industries and Applications for High-Speed Robotic Seam Welding

High-speed robotic seam welding serves multiple manufacturing sectors, each with distinct requirements and throughput drivers.

Automotive and EV Manufacturing

Applications:

  • Body-in-white assembly and subframe welding
  • Battery enclosures and EV structural components
  • Fuel tanks and exhaust systems
  • Chassis and suspension components

Drivers:
Just-in-time production schedules, tight takt times, and global car production volumes of 75.5 million units in 2024 create relentless pressure to minimize cycle time. Fronius demonstrates 40+ IPM on galvanized automotive steel with minimal porosity and spatter, supporting high-volume body panel production.

Heavy Equipment and Commercial Vehicles

Applications:

  • Trailer frames and truck beds
  • Construction and agricultural equipment
  • Axles, rims, and bogie frames
  • Hydraulic cylinders and structural beams

Drivers:
Long continuous seams on heavy-gauge materials benefit from accelerated travel speeds. Fronius TWIN tandem welding systems reach up to 4 m/min (~157 IPM) on mobile crane booms, containers, and steel beams. That speed cuts cycle time on large fabrications.

HVAC and Metal Fabrication

Applications:

  • Ductwork and enclosures
  • Thin-gauge sheet metal assemblies
  • Tanks and pressure vessels
  • Structural frames

Drivers:
Continuous seams on thin materials suit high-speed MIG or laser welding processes. Consistent bead quality cuts rework on parts where appearance and leak-tightness matter.

Frequently Asked Questions

How much does robotic seam welding equipment cost?

Turnkey systems typically range from mid-five figures for a basic single-robot MIG cell to several hundred thousand dollars for multi-robot cells with laser tracking and vision. Cost depends on robot size, fixtures, tracking technology, and integration scope, so request a configured quote for your part geometry and volume.

Is robotic seam welding worth the investment?

ROI hinges on production volume, labor cost, and rework rates. High-volume shops often cut cycle time 40-67% and see payback in 18-36 months when welding is a bottleneck. GLOBAL Automation Technologies runs feasibility studies with cycle-time analysis and ROI projections tailored to your application.
