But here's the problem. Many plant managers assume hitting that number requires a specialized, single-purpose robot or a trade-off between speed and accuracy. Neither is true. A properly engineered system, built from the right combination of robot, vision, and tooling, can hit 182 PPM reliably, shift after shift.
This article breaks down what 182 PPM actually means in engineering terms, the technology stack required to sustain it, and where that speed pays off fastest for manufacturers evaluating a high-speed automation investment.
Key Takeaways
- 182 PPM is ~0.33 sec/cycle; sustaining it every shift is harder than a demo
- Speed is a system-level outcome: robot, vision, tooling, and motion control must sync
- Achievable PPM depends on part weight, size, and travel; verify vendor test conditions
- GLOBAL Automation Technologies pairs FANUC robotics with AI-assisted simulation to cut startup surprises
What Does 182 Parts Per Minute Actually Mean for Your Production Line?
The math is simple: 60 seconds divided by 182 parts equals 0.3297 seconds per cycle. That single cycle has to include five distinct motions — approach, grasp, transfer, place, and return — all inside a window shorter than a blink.
Only part of that fraction of a second is spent moving. The rest goes to:
- Acceleration and deceleration ramps at each end of the path
- Dwell time while the gripper opens or closes
- Waits for vision confirmation
On a well-tuned cell, dwell time is the piece engineers fight hardest to shrink.
Where 182 PPM Sits in the Speed Hierarchy
There's no universal, cross-vendor standard defining "standard" versus "high-speed" pick-and-place rates. But the reference points that do exist are telling:
- ASSEMBLY Magazine notes that delta robots start delivering a real performance advantage above 60 cycles per minute
- Some manufacturers classify robots rated up to 200 picks per minute as "high-speed"
- FANUC has demonstrated its M-2iA delta robot picking and placing breather caps at 182 parts per minute
That places 182 PPM squarely in the upper tier of published high-speed benchmarks — fast enough to matter, but not so exotic that it requires a one-off robot design.
The catch: a quoted PPM figure only means something in context. Before trusting any vendor number, ask:
- What payload was used in the test?
- What was the pick-to-place travel distance?
- Was the part geometry simple (a cap) or complex (an irregular bracket)?

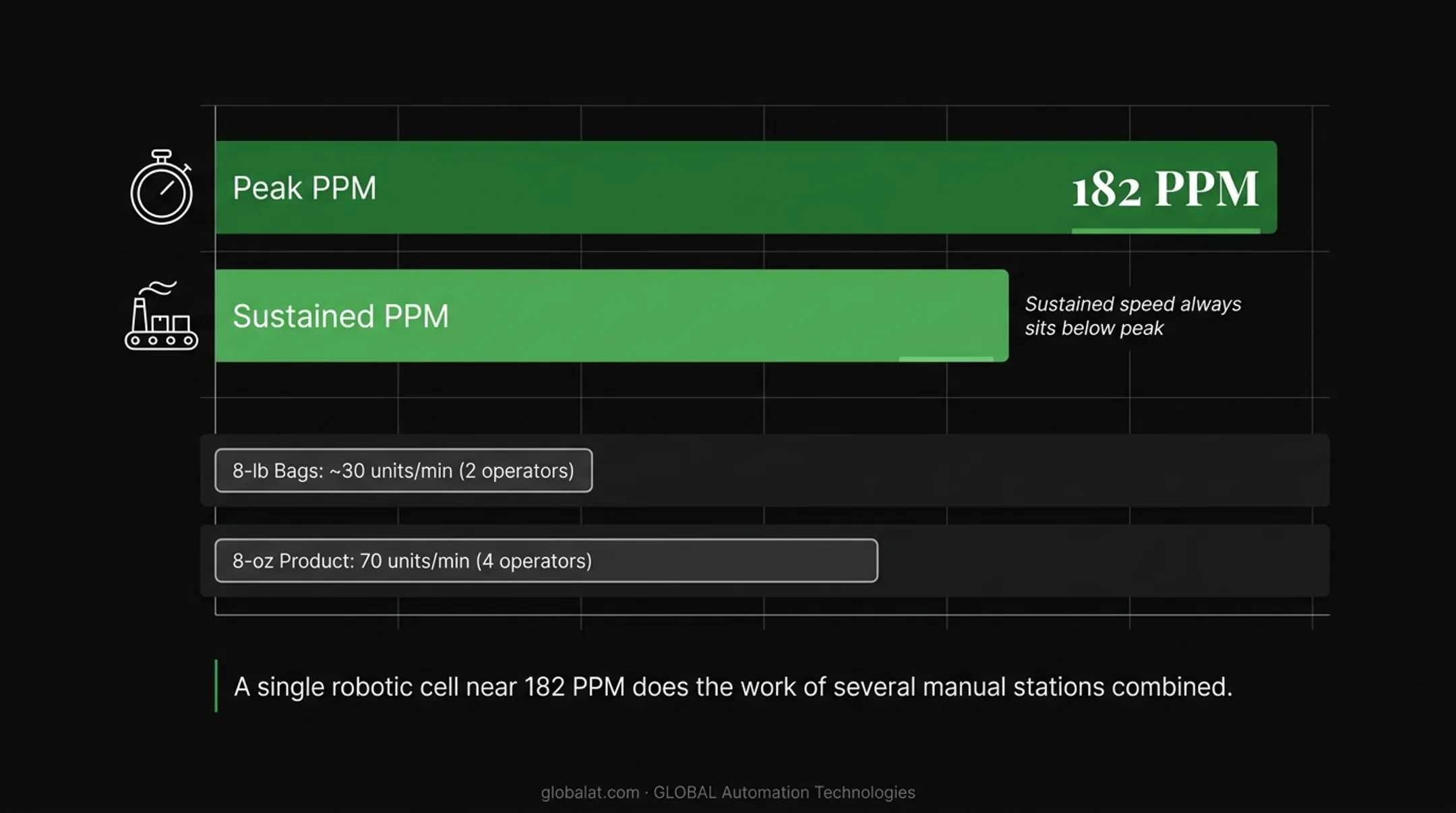

Peak Speed vs. Sustained Speed
A demo cell running for 90 seconds under ideal lighting and a single part type is not the same as a line running three shifts with part variability, quality checks, and normal wear. Sustained PPM always sits below peak PPM. The gap depends on how well the system was engineered up front.
That gap still leaves robotics far ahead of manual labor. Manual pick rates in packaging typically run much lower than a tuned cell. One packaging case documented workers packing 8-lb bags at roughly 30 units per minute with two operators, and 8-oz product at 70 per minute with four operators.
A single robotic cell near 182 PPM does the work of several manual stations combined.
The Engineering Stack Behind 182 PPM Performance
Hitting 182 PPM depends on four subsystems working in lockstep. Miss any one, and the whole cell slows down to match its weakest link.
Robot Selection: Delta, SCARA, or 6-Axis?
Robot kinematics set the ceiling on achievable speed, but the right choice depends on the part, not just the target number.
- Delta robots excel with light parts and short travel distances. Motors stay mounted overhead, keeping arm mass low and acceleration high
- SCARA robots balance speed with precision, often preferred when orientation control matters as much as raw cycle time
- 6-axis robots handle heavier payloads or complex geometries where a part needs to rotate or flip mid-transfer
182 PPM is achievable across more than one robot class when the tooling and programming are tuned correctly. GLOBAL, a top-tier Level 5 FANUC Authorized System Integrator, primarily deploys FANUC robots across its integration projects, chosen for their combination of high-speed motion and repeatable precision in demanding manufacturing environments.
Vision-Guided Part Detection
Machine vision locates part position and orientation in milliseconds, so the robot never wastes cycle time searching or double-checking a grasp. That sounds straightforward, but vision-processing latency and conveyor tracking speed have to stay well under the cycle-time budget. Otherwise the camera system becomes the bottleneck, not the robot arm.
This is a detail vendors rarely volunteer. A robot rated for 0.3-second cycles is meaningless if the vision system needs 150 milliseconds just to confirm a part's location before the robot can move.
End-of-Arm Tooling (EOAT) Design
Gripper open/close speed and grasp reliability are typically the limiting factor in a high-speed cell, ahead of the robot's rated top speed.
- Multi-pick tooling that grabs two or three parts per cycle multiplies effective throughput without adding cycle time
- Mismatched tooling (wrong vacuum cup size or gripper type) causes dropped parts and forces engineers to derate the entire line
- Custom EOAT built around part geometry and the cycle-time target beats anything pulled off a shelf
Custom EOAT design is a core deliverable on every pick-and-place project GLOBAL engineers run.
Motion Control and AI-Assisted Programming
Modern motion controllers synchronize acceleration and deceleration profiles across the entire path, shaving dwell time between individual picks. This is where a lot of the "hidden" speed comes from: smarter paths, not simply a faster robot.
GLOBAL uses AI-assisted simulation to pre-optimize robot paths and cycle timing before a single line of code runs on the plant floor. Building and testing the program in a virtual environment first means less on-floor tuning after installation and a faster climb to target throughput.
Where This Speed Delivers the Most Value: Industries & ROI
Not every application needs 182 PPM. It matters most where volume and part uniformity line up:
- Automotive and EV small-component assembly — fasteners, connectors, and sub-assemblies moving at high volume
- Electronics and PCB placement — small, lightweight parts with tight tolerance requirements
- High-volume packaging — continuous-shift lines for Tier 1 suppliers and heavy industry manufacturers
The ROI Logic
The math manufacturers actually care about is straightforward: throughput gained per shift versus the labor cost of equivalent manual operators.
A documented packaging case shows the scale. A robotic case-packing system running up to 120 packs per minute freed up five operators for other line work and was expected to pay for itself within 18 months purely from labor savings.
That timeline tracks with typical automation economics. Machine tending applications, for instance, often pay for themselves in 12 to 18 months. Pick-and-place ROI will vary by application, but the same logic applies: more parts moved per labor hour, on every shift.
Common Mistakes That Keep Manufacturers From Hitting Target Speeds
Most cells that fail to hit their PPM target don't fail because of the robot. They fail because of decisions made before the robot ever arrived on site.
- Wrong payload or reach class. Oversizing the robot wastes capital on unused capacity. Undersizing it creates a slowdown that no amount of programming can fix later.
- Skipped vision calibration. A vision system that isn't properly tuned produces inconsistent cycle times (some picks fast, some slow) instead of the steady rate a PPM target requires.
- Underestimated tooling engineering. Weak grippers or the wrong vacuum cup lead to dropped parts, product damage, or engineers quietly derating the line to compensate.
Each of these is preventable with proper application engineering before installation, not after.
Why Partner with GLOBAL Automation Technologies for High-Speed Pick and Place
A high-speed cell without people who understand it quickly becomes a liability. GLOBAL pairs robotic systems integration with technical staffing under one roof — meaning a cell doesn't just get installed and left. It gets supported by engineers who know how to keep it running.
GLOBAL's turnkey scope covers the full project lifecycle:
- Layout and design
- Build and programming
- Validation and installation
- Commissioning and training
- Ongoing support
That full-lifecycle approach is backed by a proven global base of robotic deployments and 18+ years working directly with automotive OEMs and Tier 1 suppliers who don't have room for downtime. When the target is 182 parts per minute, that experience is what turns a demo rate into sustained production.
Frequently Asked Questions
What is considered a "high-speed" pick-and-place rate in manufacturing?
Most industry sources treat anything above roughly 100 to 150 picks per minute as high-speed. At 182 PPM, you're operating in the upper tier of that range.
How is picks-per-minute (PPM) calculated for a pick-and-place robot?
Divide 60 seconds by the cycle time in seconds. Any quoted PPM figure should specify part weight and travel distance, since both directly affect achievable speed.
What robot type is best for high-speed pick and place?
Delta robots often lead on very light parts and short travel distances. SCARA and 6-axis robots can also reach high-speed targets, depending on payload requirements and precision needs.
How much does a high-speed pick-and-place robotic cell cost?
Costs vary significantly by application complexity, part geometry, and vision requirements. The robot itself is often only about one-third of the total turnkey installation cost. The rest covers tooling, guarding, controls, and integration.
Can a high-speed pick-and-place system handle different part sizes or SKUs?
Vision-guided systems and reprogrammable tooling allow flexibility across multiple part types. That said, handling multiple SKUs on one cell can affect achievable cycle time, so it's worth engineering for upfront.
How long does it take to see ROI from a high-speed pick-and-place system?
Well-matched applications often see payback in the 12 to 18-month range, similar to what's typical for machine tending cells. The exact timeline depends on labor savings, shift structure, and how closely the application matches the robot's design envelope.
