But picking the wrong one has real consequences. It affects throughput, floor space, changeover time, and years of operating costs, especially with labor shortages still squeezing plant staffing. The global robotic-palletizer market alone is projected to grow from $1.4 billion in 2024 to $1.9 billion by 2029, a 5.9% CAGR, according to MarketsandMarkets. That growth tells you manufacturers are actively rethinking how they palletize. This guide breaks down where each system wins, and how to decide.
Key Takeaways
- Conventional palletizers lead on raw speed and consistency for single-SKU, high-volume lines.
- Flexibility favors robotic palletizers for mixed SKUs, irregular loads, and tight floor space.
- Conventional systems cost more in ongoing energy and mechanical maintenance; robotic costs scale with grippers and programming.
- No universal winner—choose by product mix, volume, floor space, and where your operation is headed.
Robotic vs. Conventional Palletizers: Quick Comparison
Here's the side-by-side breakdown:
| Factor | Conventional | Robotic |
|---|---|---|
| Upfront cost | Medium to high | Medium to high |
| Ongoing cost | Higher energy and mechanical upkeep | Tooling and software support |
| Speed (single SKU) | Faster | Slightly slower per pick |
| SKU flexibility | Low, needs mechanical changeover | High, via tooling swaps |
| Footprint | Larger | Compact |
| Maintenance | Frequent mechanical service | Fewer parts, specialized skills needed |
Cost
Conventional systems rely on multiple gear motors and mechanical linkages to bump, turn, and push product into layers. That complexity translates to more preventive maintenance and higher energy draw over the equipment's life, according to PASCO's palletizing comparison.
Robotic cells concentrate motion in the arm and end-of-arm tooling (EOAT). Energy use usually runs lower, but costs shift toward:
- Programming and integration
- Application-specific gripper design
- Ongoing controller and software support
Speed & Throughput
For a single product running nonstop, mechanical layer formers are hard to beat. High-level conventional units can hit up to 6,000 bags per hour for robust products like cement or fertilizer, per BEUMER's paletpac specifications.
Robotic arms move slower per individual pick, generally topping out around 28 picks per minute on comparable systems. But a single cell can often build multiple pallets simultaneously, closing part of that gap.
Flexibility & SKU Handling
Conventional machines are built around one product and one pattern. Switching SKUs usually means a mechanical changeover.
Robotic systems handle this differently:
- Interchangeable EOAT swaps between bags, cases, pails, and drums
- Software-driven pattern changes, no mechanical rework
- Vision guidance for size and orientation variance
Floor Space & Footprint
Conventional palletizers need room for layer-forming cages, squaring plates, and supporting conveyors. Robotic cells use a rotating arm within a fenced perimeter, which generally requires less floor space, according to Packaging World.

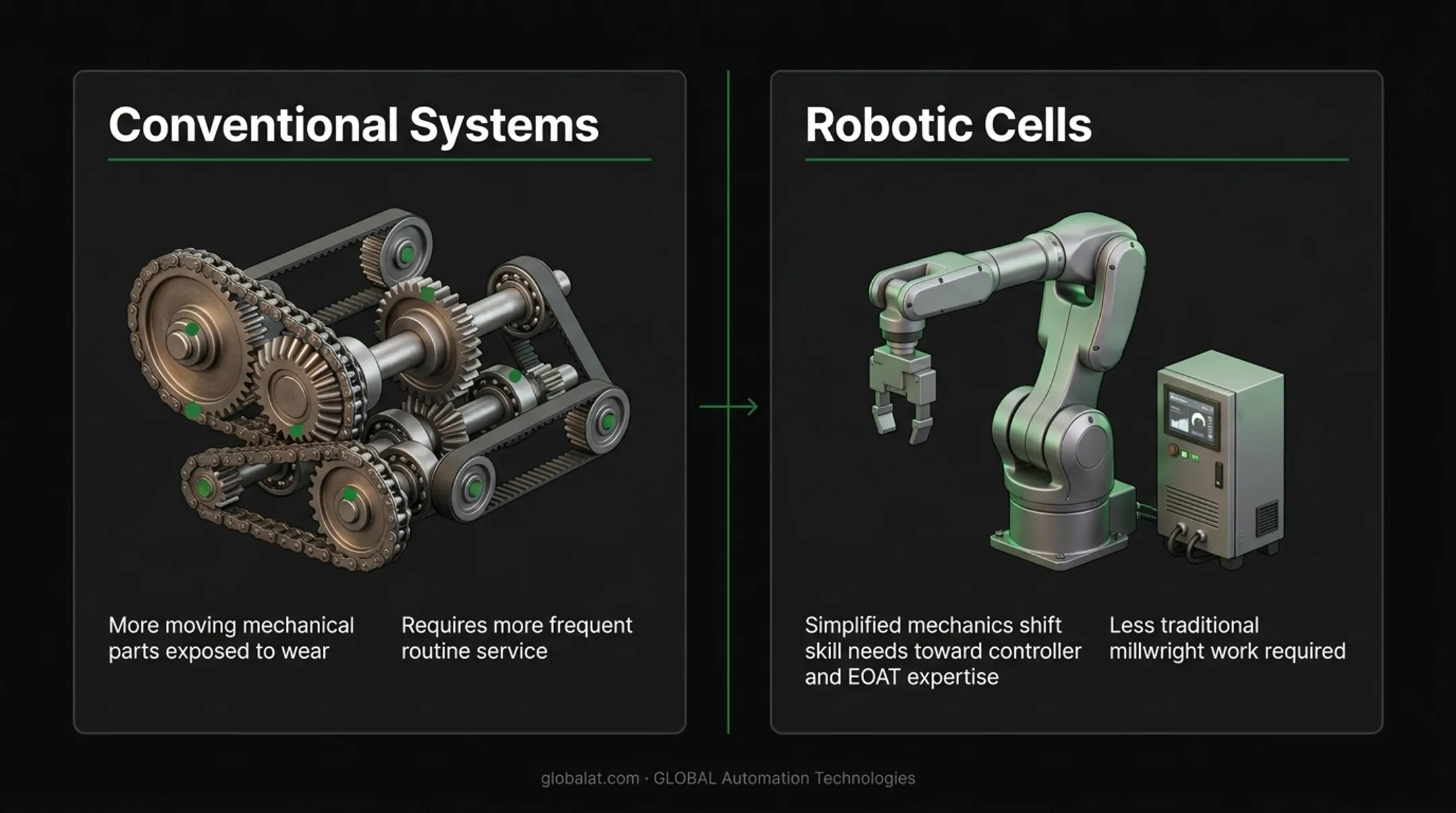

Maintenance & Downtime
Conventional systems have more moving mechanical parts exposed to wear, so they need more frequent routine service. Robotic cells simplify the mechanics but shift the skill requirement toward controller and EOAT expertise, not traditional millwright work.
What Is a Conventional Palletizer?
A conventional palletizer forms rows, then full layers, then complete loads. Product gets bumped, turned, and pushed into position on a squaring plate rather than lifted. Once a layer is complete, it drops onto the pallet as one unit.
That mechanical simplicity is why these systems run so consistently. Benefits include:
- Line-speed synchronization with upstream packaging equipment
- High Overall Equipment Effectiveness (OEE) on stable, repeat runs
- Precise bag or case positioning that reduces unstable, lopsided pallets
There are two main configurations:
- High-level: Infeed sits above the pallet stack, delivering higher throughput.
- Low-level: Infeed sits near floor level, offering simpler construction and a smaller footprint at moderate speed.
Use Cases of Conventional Palletizers
Conventional systems fit best where volume is high and the product never changes mid-shift. Typical fits include bagging, bottling, or canning lines that need continuous, uninterrupted flow.
Industries that lean conventional:
- Food and beverage bottling/canning
- Agriculture (bagged fertilizer, seed, feed)
- Chemical and building materials packaging
As noted earlier, BEUMER's paletpac line demonstrates this throughput advantage, supporting up to 6,000 bags per hour for robust products in patterns of 3 to 10 bag units. Matching that rate with a robotic arm is hard to justify unless you're running dozens of SKUs through the same line.
What Is a Robotic Palletizer?
A robotic palletizer uses an articulated arm fitted with interchangeable end-of-arm tooling, grippers, clamps, or vacuum cups, to lift product off a conveyor and place it on a pallet. Unlike conventional systems, nothing gets pushed or dropped; every placement is a controlled pick-and-place motion.
That mechanism unlocks a different set of advantages:
- Flexibility across bags, boxes, drums, and pails without retooling the whole line
- Smaller footprint, well suited to space-constrained plants
- Fewer changeovers between production runs
- Easier integration with WMS/ERP systems and upstream automation
Two common variations:
- Cobot palletizers: collaborative arms suited to lower-volume, space-constrained lines, often without full guarding.
- Hybrid-robotic systems: combine a squaring cage with a robotic arm for higher-speed, high-quality stacking that splits the difference between the two architectures.
Use Cases of Robotic Palletizers
Robotic palletizing fits multi-SKU distribution centers, mixed-case pallet building, and any operation with frequent product changeovers or irregular load shapes.
Where this matters most:
- Automotive and Tier 1 supplier plants running varied component packaging
- Heavy equipment manufacturers with mixed part sizes and weights
- Data center component producers handling everything from server racks to modular enclosures
GLOBAL Automation Technologies, which holds Level 5 status in FANUC’s Authorized System Integrator program, builds robotic material handling cells on FANUC platforms for exactly these high-mix environments. The team programs pallet patterns for each SKU mix and integrates the full line from conveyor infeed through stretch wrap.
The clearest third-party evidence of flexibility ROI comes from a coffee co-packer, not automotive, but the lesson transfers directly. Cascade Coffee replaced manual palletizing across 400 SKUs with six cobot cells. Turnover in manual palletizing roles had exceeded 60% before the switch.
The first cell reportedly achieved payback in nine months, according to Packaging World's coverage of the project. Any high-mix manufacturer facing similar turnover and SKU sprawl faces the same math.
Robotic vs. Conventional: Which One Is Right for You?
There's no universal winner here. The right call comes down to several factors:
- Production volume: Consistent, high-volume runs favor conventional.
- SKU variety: Frequent changeovers favor robotic.
- Available floor space: Tight plants favor robotic's compact footprint.
- Budget structure: Weigh upfront cost against long-term energy and tooling costs.
- Integration requirements: Robotic cells connect more easily with WMS/ERP systems.
- Workforce and maintenance capability: Conventional needs mechanical PM skills; robotic needs controls expertise.
Quick guidance:
- Choose conventional for single-SKU, high-volume, uninterrupted packaging lines.
- Choose robotic for mixed SKUs, irregular loads, or space-constrained facilities.
- Consider a hybrid system if you need both speed and flexibility without picking a side.
Capital equipment decisions like this deserve more than a spec sheet comparison. Run the numbers with an experienced automation integrator before you commit budget. That conversation usually saves far more than it costs.

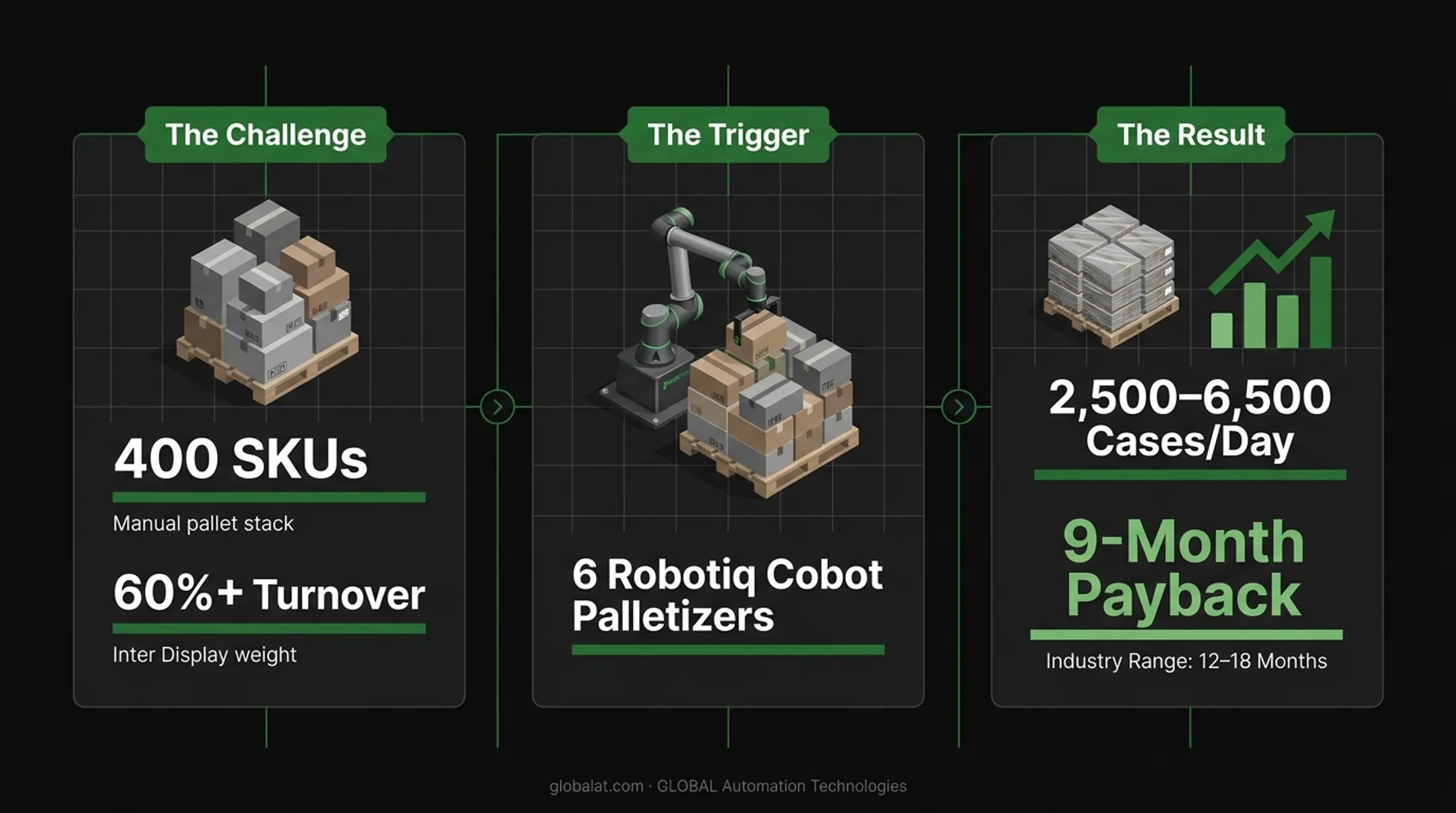

Real-World Example: Solving a Flexibility Challenge with Robotic Palletizing
Cascade Coffee's situation illustrates a problem that shows up across industries, not just food and beverage: high product mix, high manual turnover, and a conventional system that simply can't keep pace with changeover demands.
The challenge: Cascade was running manual palletizing across roughly 400 SKUs and dozens of pallet configurations. Turnover in those roles topped 60%, a constant drain on training time and line consistency.
The trigger: Rather than adding more conventional infrastructure, which would've meant mechanical changeovers every time a SKU shifted, Cascade installed six Robotiq cobot palletizers built for flexible, mixed-load stacking.
The result: Lines now run between 2,500 and 6,500 cases per day depending on the shift, switching among 400 SKUs without mechanical rework. The first cell paid for itself in nine months.
That payback window is consistent with robotic material handling cells more broadly, which often reach a 12- to 18-month payback driven by reduced manual labor hours and fewer changeover delays — the range GLOBAL Automation Technologies scopes its material handling projects around.
For a Tier 1 supplier or heavy equipment manufacturer facing similar SKU sprawl and labor turnover, the takeaway holds: robotic flexibility solves a problem conventional systems structurally can't address at that scale.
If your team is weighing this decision, GLOBAL pairs the robotic cell with the engineers who commission it, program it, and keep it running long after installation — robotic systems integration alongside technical staffing.
Frequently Asked Questions
What is the main difference between robotic and conventional palletizers?
Conventional systems mechanically form and drop full layers for speed and consistency on a single product. Robotic systems use an arm and interchangeable tooling to place cases or bags one at a time, which makes them better suited to mixed SKUs and varied load patterns.
Are robotic palletizers more expensive than conventional palletizers?
Upfront costs are often comparable between the two. Lifetime cost depends more on energy use, how often you change tooling, and whether you need robot programmers or conventional mechanical maintenance support.
Which palletizer type is faster for high-volume production?
Conventional palletizers win on raw speed for single-SKU, high-volume runs. High-level units can reach thousands of bags or cases per hour.
Can robotic palletizers handle multiple product types on one pallet?
Yes. Robotic systems build mixed-SKU pallets using interchangeable end-of-arm tooling combined with vision-guided placement for varying shapes and sizes.
How much floor space do I need for each type of palletizer?
Robotic systems typically need less floor space than conventional units, which require layer-forming cages, squaring plates, and supporting conveyors around the machine.
What industries benefit most from robotic palletizing?
Automotive, Tier 1 suppliers, heavy equipment, and other high-mix manufacturers benefit most when they need flexible handling across varied SKUs and load shapes.
