Introduction
Every plant manager has lived this moment: one station stalls for three minutes, and suddenly the entire line is standing still. Operators wait. Product piles up in the wrong places. A short stop turns into a costly gap in the shift report.
Buffer conveyor systems exist to prevent exactly that. They decouple machines running at different speeds or reliability levels, so a hiccup at one station doesn't force the whole line to stop.
The stakes are real. Siemens reports that unplanned downtime costs automotive manufacturers $2.3 million per hour, while small and mid-sized manufacturers can lose up to $150,000 per hour at the high end (Siemens, 2024).
This guide covers what a buffer conveyor is, the main types available, and why they matter for throughput and quality. You'll also learn how to size one correctly and where buffers fit inside modern robotic work cells.
Key Takeaways
- Buffer conveyors store and regulate flow to absorb speed mismatches and unplanned stops between processes.
- Main types—linear, ZPA, rotary/loop, and vertical (alpine)—fit different space and product needs.
- Size buffers from real downtime data, not guesswork, to avoid starving or blocking the line.
- Buffers are now standard components inside robotic machine tending and material handling cells.
What Is a Buffer Conveyor System?
A buffer conveyor is a conveyor section engineered to temporarily hold, meter, and release product between two pieces of equipment running at different speeds or availability levels. Think of it as a shock absorber built into your line.
When a downstream station stops for maintenance or a jam, the buffer keeps absorbing output from the upstream machine. When an upstream station falters, the buffer keeps feeding the downstream process from its reserve. Neither side has to stop just because the other did.
In industry terms, buffer conveyors are a form of accumulation conveyor. They store product between machines with mismatched cycle times so the line keeps moving while a station is repaired or adjusted (FlexLink).
You'll typically find buffers wherever cycle time mismatches or maintenance-prone equipment show up:
- Between filling and capping stations
- Between robotic cells and CNC machines
- Between inspection stations and packaging lines
FIFO vs. LIFO: Why Sequence Matters
FIFO (first-in-first-out) buffers preserve part order as they move through the queue. That sequence-preserving handling is critical wherever traceability matters, such as automotive assembly or medical device manufacturing.
LIFO (last-in-first-out) buffers are mechanically simpler but come with a real tradeoff. Because the most recently added part exits first, older parts can sit undetected at the back of the queue. That's a risk if a defective batch needs to be caught quickly, which is why LIFO shows up less often on quality-critical lines.

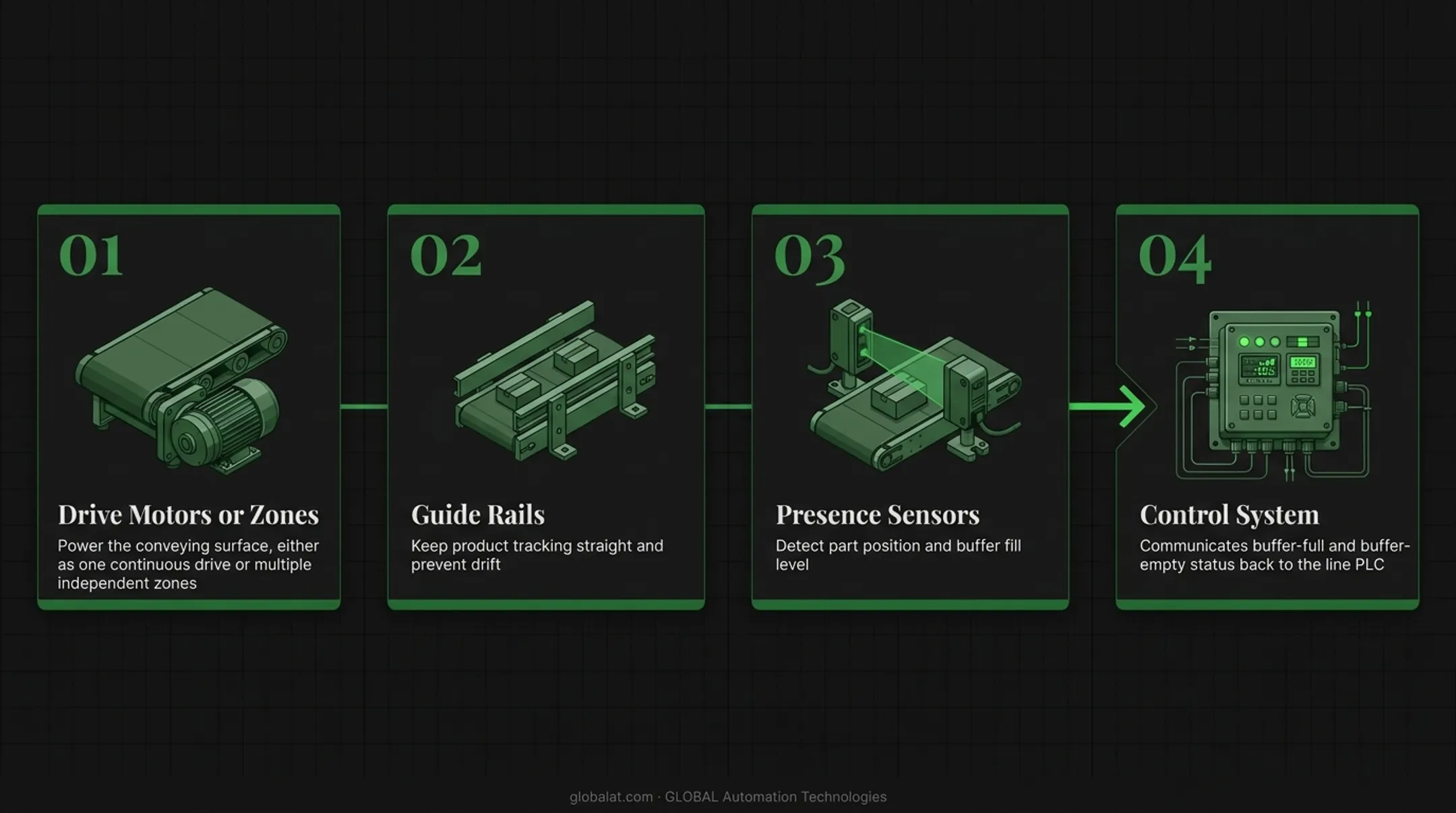

Key Components of a Buffer Conveyor
Every buffer, regardless of type, relies on the same basic building blocks:
- Drive motors or zones — power the conveying surface, either as one continuous drive or multiple independent zones
- Guide rails — keep product tracking straight and prevent drift
- Presence sensors — detect part position and buffer fill level
- Control system — communicates buffer-full and buffer-empty status back to the line PLC
Types of Buffer Conveyor Systems
Not every buffer looks the same, and the right choice depends heavily on floor space, product fragility, and how much accumulation time you need.
Linear (Inline) Buffer Conveyors
This is the simplest form: a straight conveyor section that extends transit time between two stations. It's a good fit for facilities with available floor space and only modest cycle time variation. There's little to engineer here beyond length and speed, which keeps cost and complexity low.
Zero-Pressure Accumulation (ZPA) Conveyors
ZPA divides the conveyor into individually driven, sensor-controlled zones. When a downstream zone is occupied, it stops the zone behind it, so parts queue up without ever pushing against each other (Interroll, 2025).
This matters for:
- Finished or high-value parts prone to scuffing
- Contamination-sensitive products like food or pharmaceuticals
- Any line where surface damage translates directly into scrap cost
ZPA costs more per foot than a simple gravity or flat-belt accumulator, but for sensitive parts, it's usually the right call.
Rotary, Loop & Serpentine Buffers
Circular or looping paths (carousels, serpentine wheelbends, or recirculating conveyors moving in opposite directions) pack more buffer length into a tight footprint. One recirculating design, for example, moves small parts on two opposing conveyors until the next process is ready. This approach works well in space-constrained plants that still need substantial buffering capacity.
Vertical (Alpine/Spiral) & Multi-Layer Buffers
When floor space runs out, vertical buffers trade horizontal footprint for height. Spiral accumulation systems can add cooling or drying dwell time along the way, or simply extend residence distance without eating up the plant floor.
Across these layouts, a strong design pairs buffer type to the product and the downtime you need to absorb: size a serpentine or ZPA section to a station's average repair time, match zone control to part fragility and format, and feed real-time fill-level data to an operator HMI. Operators then see a buffer trending empty or full in time to act.

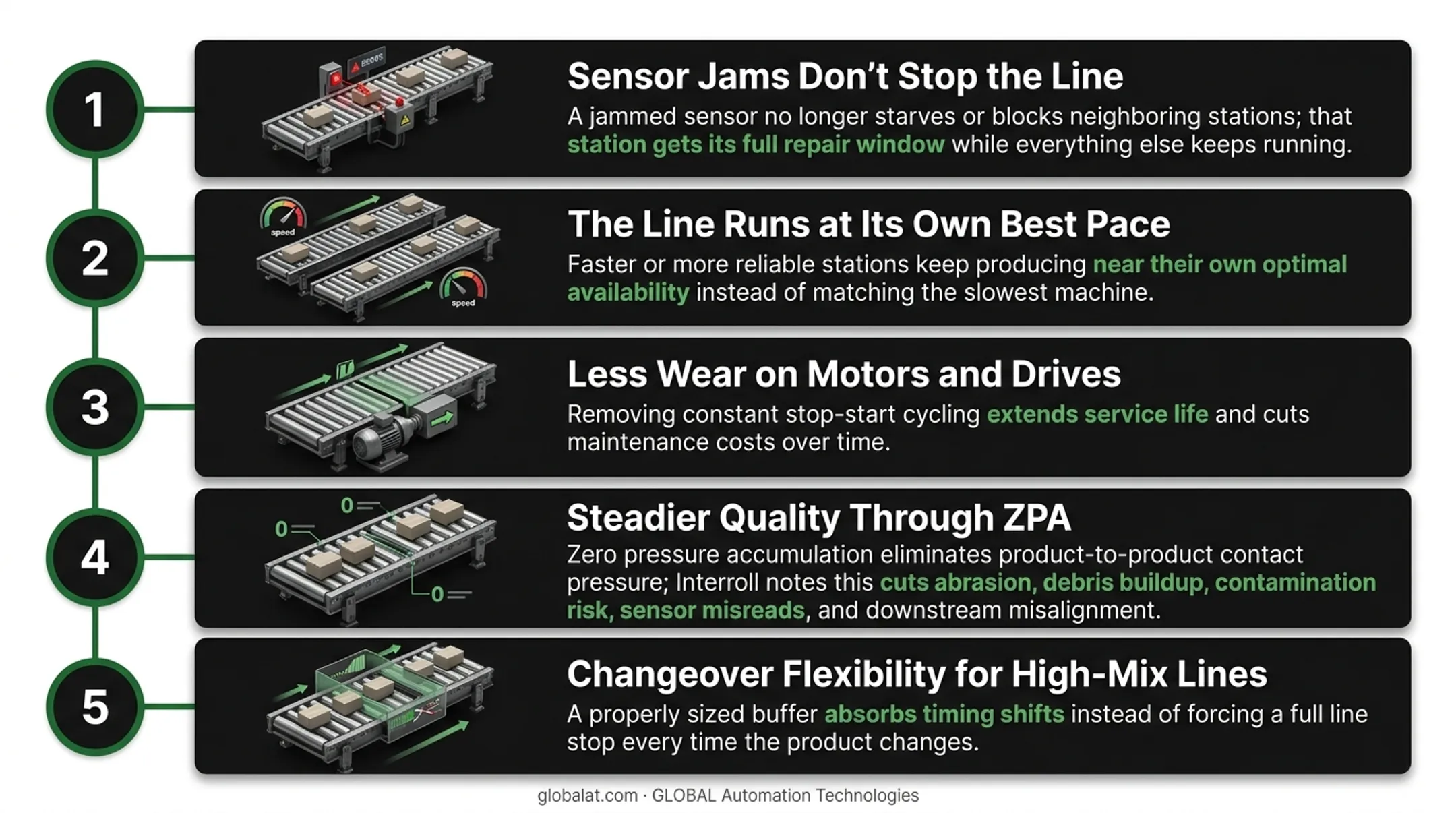

Why Buffer Conveyor Systems Matter: Key Benefits
Buffers do more than fill dead time. They change how the whole line behaves.
Here's where that shows up on the floor:
- A jammed sensor no longer starves or blocks neighboring stations. With a buffer, that station can take its full repair window while everything else keeps running.
- The line no longer runs at the speed of its least reliable machine. Faster or more reliable stations keep producing near their own optimal availability.
- Constant stop-start cycling wears motors, drives, and mechanical linkages. Removing that cycling extends service life and cuts maintenance costs over time.
- Quality holds steadier because ZPA eliminates product-to-product contact pressure. Interroll notes this cuts abrasion, debris buildup, contamination risk, sensor misreads, and downstream misalignment.
- High-mix lines gain changeover flexibility. A properly sized buffer absorbs timing shifts instead of forcing a full line stop every time the product changes.
How to Choose and Size the Right Buffer Conveyor
Buffer type should match your product, not just your budget.
Match Buffer Type to the Product
- Rigid containers (bottles, cartons, metal parts): tolerate accumulation and ZPA designs well
- Soft or irregular packages: need gentler linear or rotary handling to avoid crushing or tipping
- Unstable or tip-prone items: favor controlled spacing over dense accumulation so product stays upright
Sizing: Start With Real Downtime, Not Averages
A Packaging World example makes the numbers plain: a 150-bottle-per-minute line with five minutes of downtime needs downstream buffer capacity for 750 bottles to absorb that single event.
Survival is not enough. The same source recommends 20% to 40% extra downstream speed and capacity so the line can catch up after the stoppage.
In practice, a solid sizing approach factors in:
- Line running rate: how fast product moves during normal operation
- Realistic downtime exposure: based on actual repair history, not best-case assumptions
- Recovery speed: how much faster downstream equipment can run to burn off the queue
- Product dimensions and pitch: how much conveyor length equals how much buffered time
Common Mistakes to Avoid
- Sizing to average downtime instead of worst-case downtime: a buffer built for a "typical" five-minute stop won't help during the fifteen-minute one
- Skipping buffers to save floor space: a cheap decision that gets expensive the first time a station goes down
- Poor maintenance access: zone drives and sensors buried behind guarding or hard-to-reach panels slow repairs and defeat the buffer's purpose
Buffer Conveyors in Robotic Automation Cells
Modern robotic cells, especially machine tending applications, lean on buffer and staging conveyors just as heavily as traditional production lines. In a typical CNC tending setup:
- An infeed conveyor or staging table holds unfinished parts for the robot to pick
- An outfeed conveyor receives finished parts after the cycle
- Staging inventory keeps the robot feeding the machine through short stoppages instead of sitting idle
At GLOBAL Automation Technologies, which holds Level 5 status in FANUC’s Authorized System Integrator program, buffer and staging logic isn't an add-on bolted onto a finished cell design. It's engineered directly into the layout from the start. In multi-machine cells, where a single robot serves two or more CNC machines simultaneously, buffer stations and part tracking work together to keep every spindle cutting instead of waiting on the robot.
For CNC loading applications, part staging is a core deliverable alongside the robot, tooling, fixturing, and safety guarding—not something figured out during commissioning. Upfront planning uses AI-assisted simulation to model the cell and validate cycle timing before build, which cuts down on surprises once the system goes live.
That front-loaded engineering is part of why well-designed machine tending cells typically pay for themselves within 12 to 18 months. Higher spindle utilization and less idle time between load cycles add up fast.
Manufacturers evaluating a new robotic line or a retrofit can work with an integrator like GLOBAL to size buffer requirements as part of the overall cell layout. A feasibility study reviews part geometry, cycle times, and floor space constraints.
Frequently Asked Questions
What is a buffer conveyor system?
A buffer conveyor system is a conveyor section that temporarily stores and regulates product flow between two processes. It absorbs speed or timing differences so one station's stoppage doesn't stop the entire line.
What is an example of a good buffer conveyor system?
A common strong example is a zero-pressure accumulation or serpentine buffer sized to a station’s typical repair time and matched to the product. Sensors feed real-time fill-level data to an HMI, and zone drives stay easy to reach for maintenance.
What is the difference between a buffer conveyor and an accumulation conveyor?
Accumulation conveyors are a specific category of buffer conveyor. They're engineered to let parts stack or queue without applying contact pressure against each other, which protects finished surfaces and prevents jams.
How do you size a buffer conveyor for a production line?
Start with the line’s running rate and realistic downtime at the adjacent station. Then add recovery capacity, often 20% to 40% extra downstream speed, so the line can catch up after a stop.
What industries use buffer conveyor systems the most?
Food and beverage, pharmaceutical, electronics assembly, and automotive lines all rely heavily on buffer conveyors, largely due to traceability requirements and high-speed production demands where any stoppage is costly.
How much does a buffer conveyor system cost to install?
Cost varies widely by type. ZPA systems cost more per foot than gravity or flat-belt accumulation because of sensors, motorized zones, and control integration. Final price depends on product handling needs, buffer length, zone count, and how deeply the buffer ties into line controls.
