Robotic Welding Vision Systems for Manufacturers

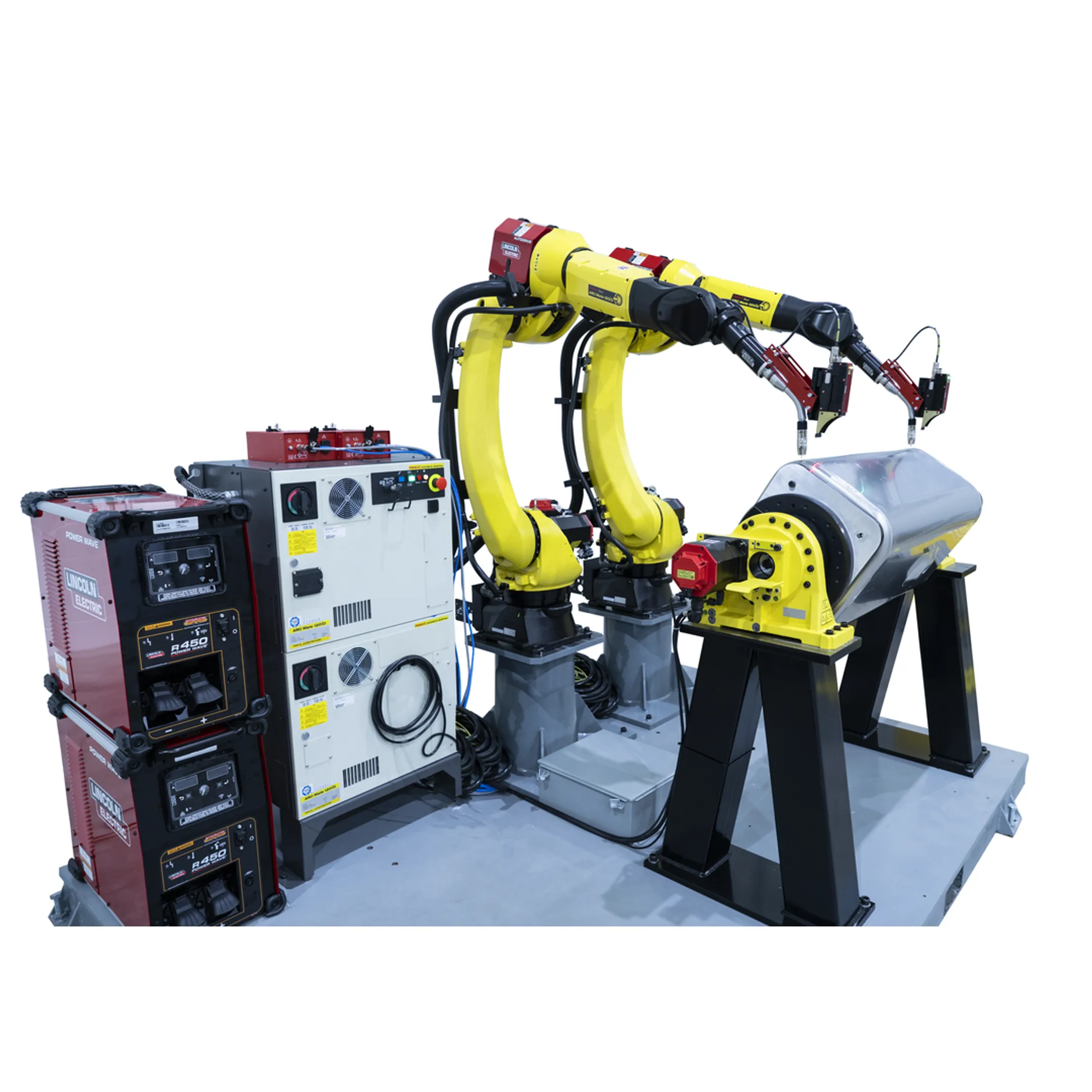

A robotic welding vision system combines an industrial robot, cameras, vision software, welding equipment, fixtures, and controls. The camera system identifies a part’s position and orientation, locates seams or features, and supplies data that helps the robot execute the correct weld path. It is particularly valuable when incoming parts vary slightly or when rigid, highly precise fixturing is impractical.

Machine vision helps verify that the correct part is present, positioned properly, and ready for welding. It can locate weld seams and enable adaptive path correction when actual part placement differs from the nominal program. By catching positioning issues before or during the process, vision guidance can reduce missed welds, rework, scrap, and quality variation while supporting more consistent production performance.

Yes. Vision-guided welding is designed to address variation in part location, orientation, and presentation. Cameras capture the actual position of the component or seam, then the system uses that information to guide robot motion or adjust the programmed path. The viable range of variation depends on the camera setup, part features, weld requirements, cycle-time target, and cell design.

Robotic welding vision systems are used across automotive, electric vehicle, heavy equipment, agriculture, aerospace, and general industrial manufacturing. They are well suited to high-volume joining operations and complex fabricated assemblies where repeatability, traceability, throughput, or safety are priorities. GLOBAL engineers systems around each manufacturer’s part geometry, production targets, quality standards, and facility constraints.

A turnkey cell can include robot selection, welding equipment integration, end-of-arm tooling, fixtures, servo positioning, safety guarding, controls and PLC integration, machine vision, simulation, programming, installation, commissioning, training, and technical documentation. GLOBAL also supports process validation and production launch. The final scope is engineered around your parts, weld specifications, available floor space, cycle time, and quality requirements.

Yes. GLOBAL supports modernization projects involving robot retrofits, new equipment integration, control-system updates, vision additions, manual-to-automated process conversions, and capacity improvements. The engineering team evaluates existing equipment, production workflow, and facility constraints before defining a practical upgrade path. The goal is to improve performance for new product launches, model-year changeovers, or evolving production requirements while minimizing disruption.

A feasibility study starts with process analysis, workflow review, cycle-time evaluation, part and weld requirement assessment, and an examination of existing equipment and facility constraints. GLOBAL then develops a conceptual system design and ROI assessment to clarify project scope, capital needs, implementation timing, and expected operating benefits. This approach helps manufacturers make informed decisions before committing to full integration.

GLOBAL’s turnkey integration scope includes commissioning, operator and maintenance training, technical documentation, and ongoing support. Because GLOBAL also provides automation staffing and placement, manufacturers can access controls engineers, PLC programmers, robotics technicians, commissioning engineers, and robot programmers when additional technical resources are needed. This combined capability supports both initial launch activities and longer-term production needs.
