Introduction
Manufacturing precision matters most when inconsistency creates waste, rework, or safety hazards. Manual application of adhesives, sealants, paints, and coatings introduces operator variability—uneven bead widths, missed coverage zones, inconsistent film builds, and exposure to hazardous chemicals.
For automotive OEMs, Tier 1 suppliers, heavy equipment manufacturers, and electronics assemblers, these issues translate directly into scrap, warranty claims, and production bottlenecks.
This article focuses on automated dispensing systems for manufacturing and industrial applications, not pharmaceutical or healthcare dispensing cabinets. We'll cover what these systems are, how they work, the types available, proven benefits including ROI benchmarks, and key considerations when evaluating automation for your production environment.
Key Takeaways
- Replace manual adhesive, sealant, paint, and coating application with robotic precision on the production floor
- Eliminate operator variability—some platforms hit ±4 μm repeatability and sub-millimeter path accuracy
- Scale from standalone batch cells to integrated lines with real-time vision and bead-quality validation
- Raise throughput, cut material waste, lock in consistent quality, and pull operators out of hazardous spray booths
What Are Automated Dispensing Systems in Manufacturing?
Automated dispensing systems are robotic or computer-controlled equipment that precisely apply adhesives, sealants, paints, lubricants, coatings, and other fluids in manufacturing. They replace spray guns, brushes, and manual applicators with programmed paths, controlled flow rates, and real-time monitoring.
That shift cuts cycle-to-cycle variation and pulls operators out of high-exposure application work.

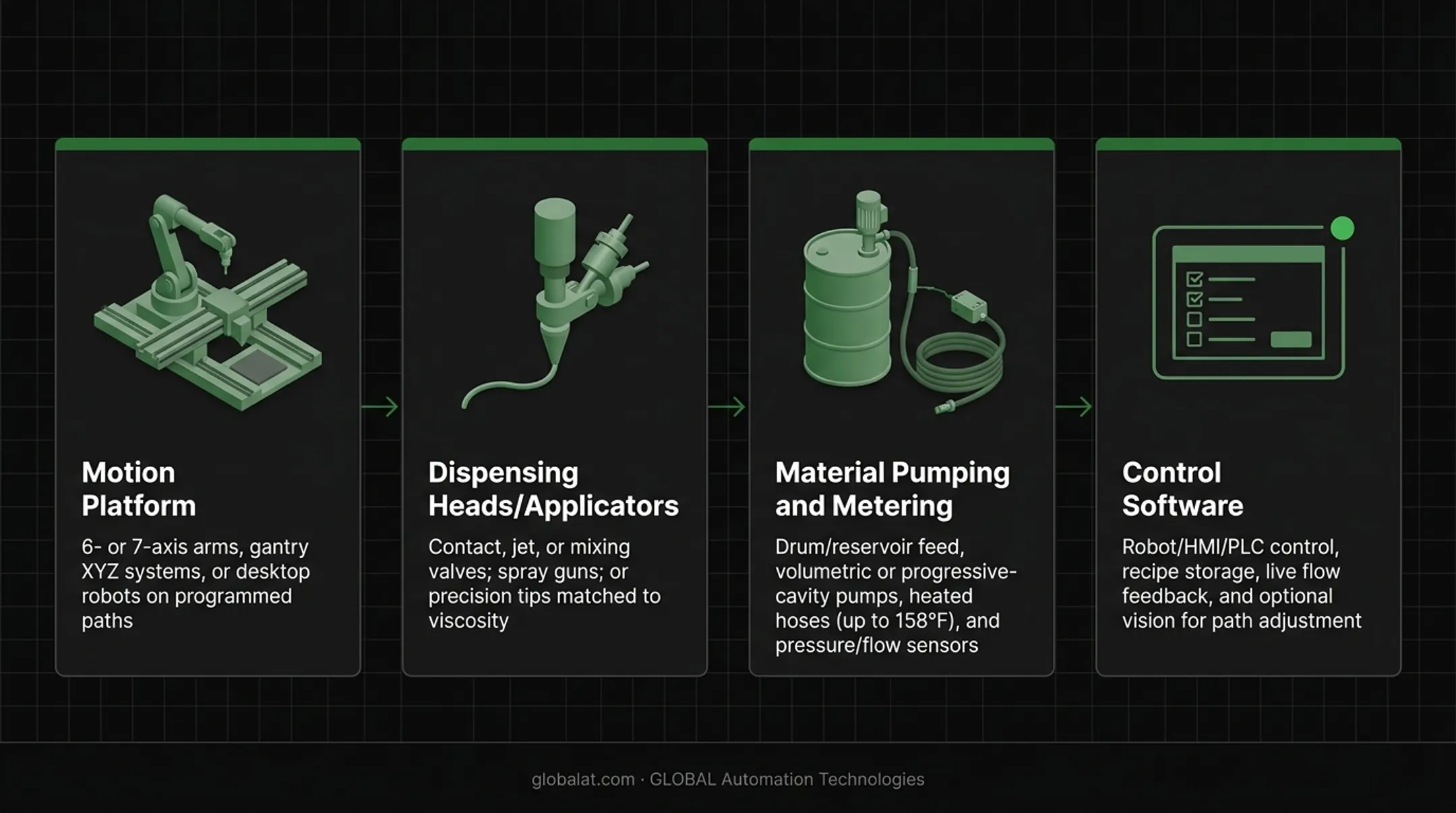

Core Components
A typical automated dispensing system integrates four elements:
- Motion platform: 6- or 7-axis arms, gantry XYZ systems, or desktop robots on programmed paths
- Dispensing heads/applicators: Contact, jet, or mixing valves; spray guns; or precision tips matched to viscosity
- Material pumping and metering: Drum/reservoir feed, volumetric or progressive-cavity pumps, heated hoses (up to 158°F), and pressure/flow sensors
- Control software: Robot/HMI/PLC control, recipe storage, live flow feedback, and optional vision for path adjustment

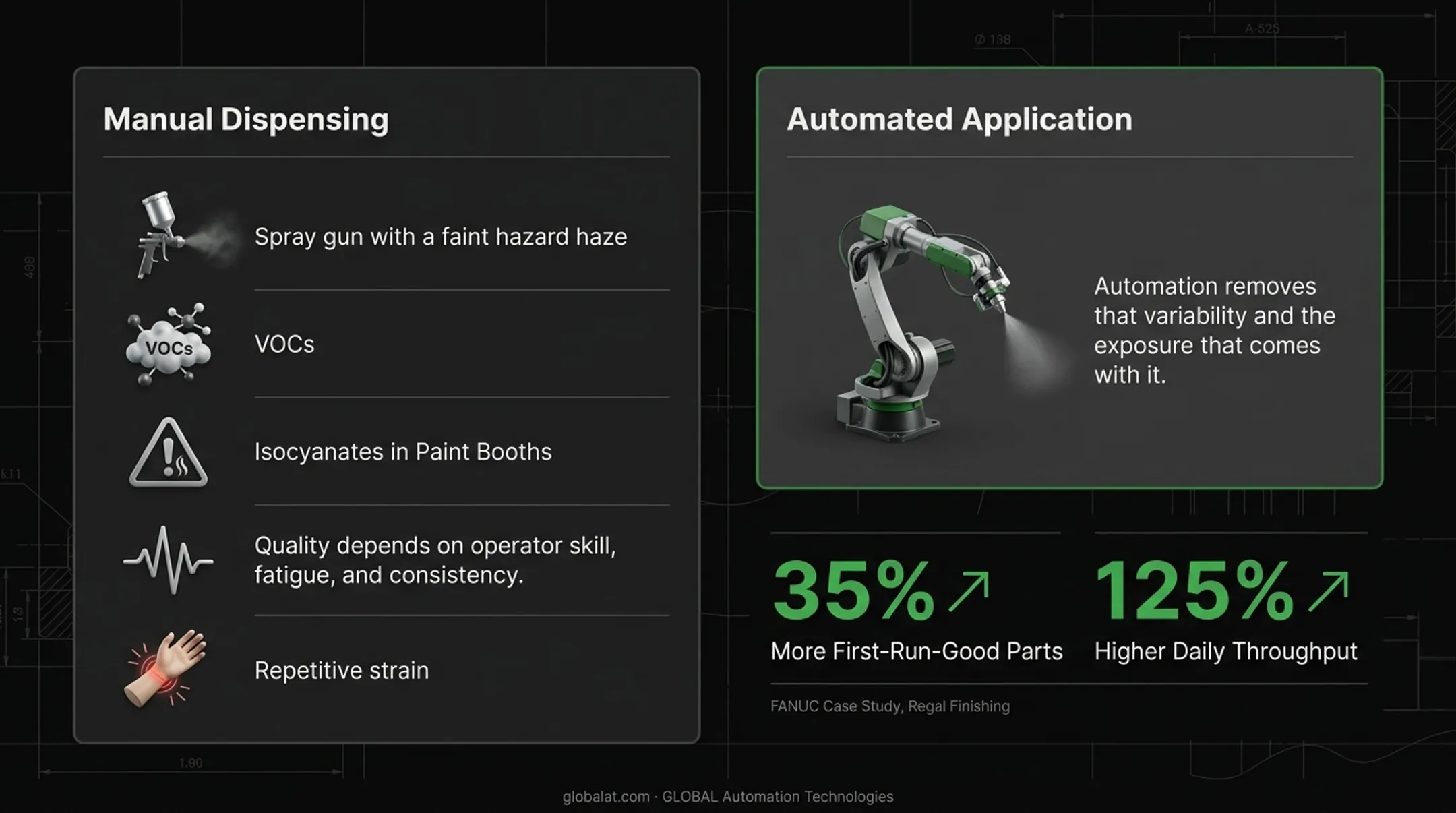

Manual vs. Automated Application
Manual dispensing methods expose operators to repetitive strain injuries, VOCs, isocyanates in paint booths, and adhesive fumes. Quality depends on operator skill, fatigue, and consistency. Automation removes that variability and the exposure that comes with it. A FANUC case study at Regal Finishing reported about 35% more first-run-good parts and 125% higher daily throughput after moving from manual spray guns to robotic application.
Common Materials Dispensed
Industrial dispensing systems handle:
- Two-part structural adhesives (epoxies, urethanes, acrylics) for composite bonding and mixed-material assemblies
- Automotive seam sealers for body-in-white panel flanges and underbody corrosion protection
- Paints and topcoats (solvent-based, water-based, powder) for automotive, heavy equipment, and appliance finishing
- Polyurethane foam for cavity filling and NVH reduction
- Thermal interface materials for electronics cooling
- Gaskets, cavity wax, and protective coatings
Market Growth
The adhesive dispensing system market was valued at $6.24 billion in 2025 and is forecast to reach $8.66 billion by 2031, a 4.85% CAGR, according to Mordor Intelligence. Asia-Pacific held 39.12% of the market in 2025 and is expected to grow at 7.98% CAGR through 2031.
Automotive, aerospace, electronics, and heavy equipment plants are adopting faster where bead consistency, labor constraints, and operator exposure drive the business case.
Types of Automated Dispensing Systems for Industrial Applications
Industrial plants pick a dispensing architecture based on part size, volume, mix, and placement tolerance. The setups below cover the configurations most often used on factory floors.
Standalone Robotic Dispensing Cells
Desktop 3-axis or 4-axis robots, cobots, and compact 6-axis cells handle batch work, high-mix runs, and tight floor space. Parts are usually loaded by hand or moved station to station.
Typical cell elements:
- Part fixtures and recipe management for multiple SKUs
- Teach-pendant or guided-path programming
- Potting, filling, sealing, coating, and bonding on smaller assemblies
Inline Dispensing Systems
Inline cells sit on moving lines for continuous, high-volume output. Robots track conveyors or rotary tables and dispense as parts pass through.
Common capabilities:
- Real-time dispense-data monitoring
- Vision for part tracking and path correction
- Automatic reject gates when beads fall out of spec
You’ll see these in automotive final assembly, PCB coating, and appliance lines.
Gantry-Based Dispensing Systems
Large-format XYZ gantries serve parts that are too big or heavy for articulated arms. Working envelopes often land in the 400–800 mm range (for example, Nordson GV series), with effectively unlimited workpiece payload on the fixture or conveyor.
What gantries deliver:
- ±0.01 to ±0.02 mm deposit-placement repeatability
- Conveyor or rotary-table integration for oversized work
- Coverage for wind-turbine components, aircraft fuselage sealing, and heavy-equipment panels
Robotic Coating and Spray-Dispense Systems
Six- and seven-axis robots built for hazardous spray zones use hollow-wrist routing, intrinsically safe designs, and explosion-proof enclosures. They apply primers, protective finishes, powder, gelcoat, and other spray-dispense materials with controlled film build.
Integrators such as GLOBAL Automation Technologies, a Level 5 FANUC Authorized System Integrator, deploy FANUC-based coating cells for automotive OEMs and Tier 1 suppliers when spray pattern, color change, and consistent film build have to hold at line rate.

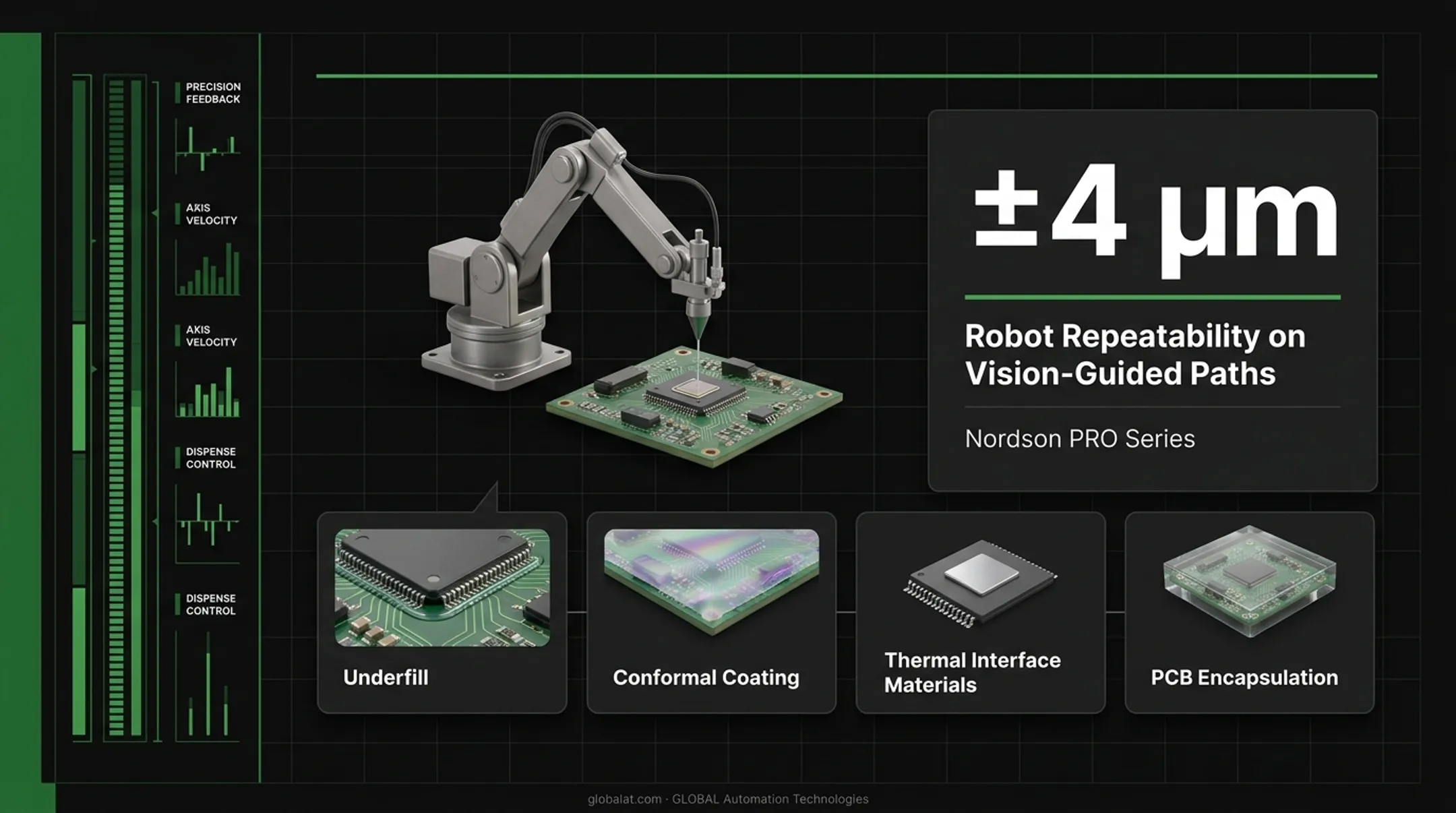

Precision Micro-Dispensing Systems
Electronics, medical devices, and semiconductor packaging need micron-scale deposits. These systems support noncontact jetting and microliter accuracy for underfill, conformal coating, thermal interface materials, and PCB encapsulation.
Nordson’s PRO Series, for example, reaches ±4 µm robot repeatability on vision-guided paths where placement error shows up immediately in yield.
How Automated Dispensing Systems Work
Programming and Path Planning
Modern dispensing systems support multiple programming methods:
- CAD-based offline programming — Import STEP, CATIA, SolidWorks, or other 3D models to generate paths in simulation. Tools such as KUKA iiQWorks.Sim and ABB Painting PowerPac add collision detection, multi-robot coordination, and cycle-time checks before deployment.
- Teach pendant programming — Engineers jog the robot to key positions and record waypoints. It suits simple linear paths or small-batch work.
- Manual guidance — FANUC Easy Teach lets operators hand-guide a cobot along the path; the system records and replays the motion.
- AI-assisted simulation — GLOBAL Automation Technologies uses AI-driven simulation to model, test, and optimize programs before deployment, cutting programming time from weeks to days and catching issues before commissioning.

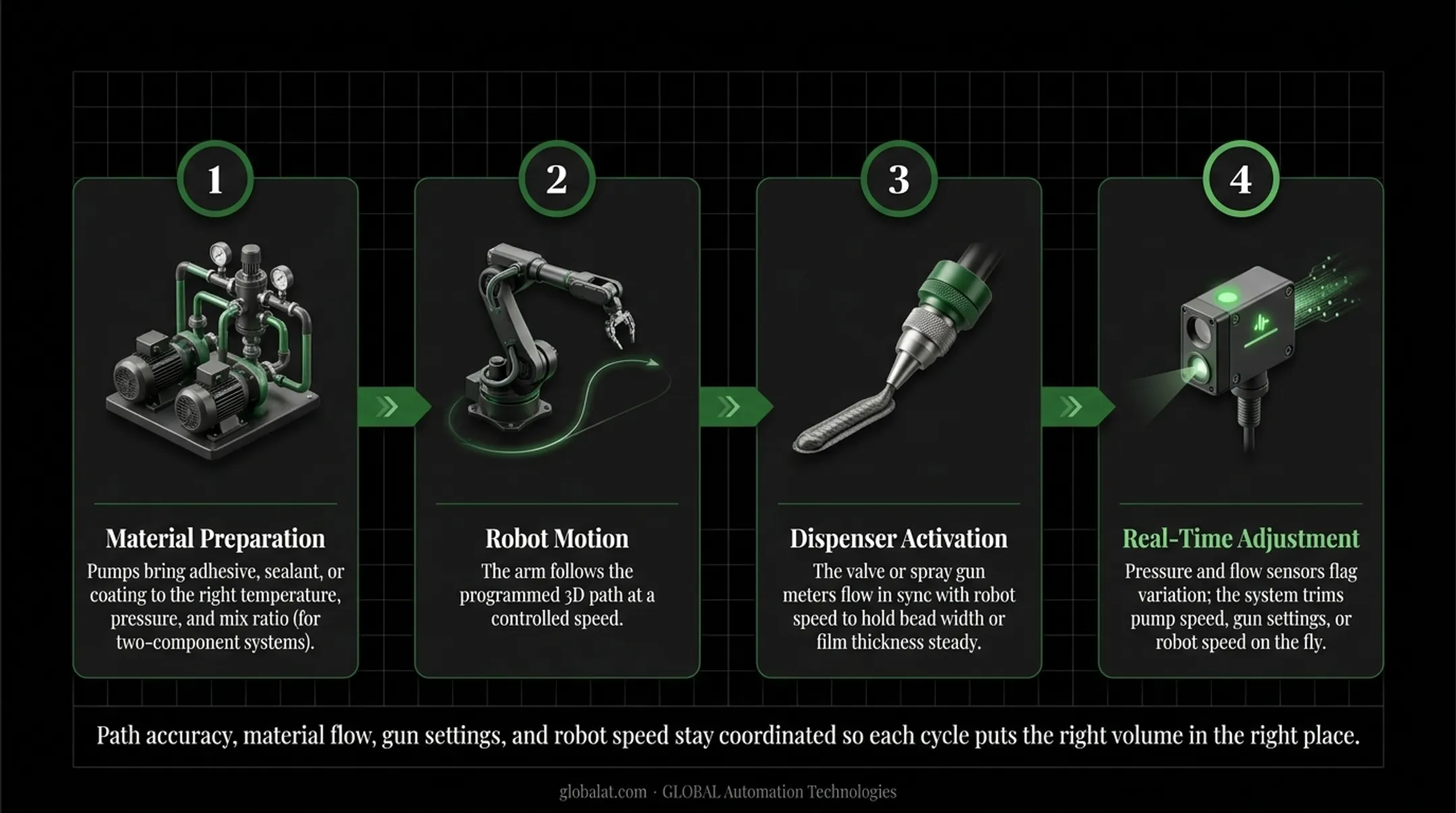

Dispensing Process Execution
Once programmed, the robot runs this sequence:
- Material preparation — Pumps bring adhesive, sealant, or coating to the right temperature, pressure, and mix ratio (for two-component systems).
- Robot motion — The arm follows the programmed 3D path at a controlled speed.
- Dispenser activation — The valve or spray gun meters flow in sync with robot speed to hold bead width or film thickness steady.
- Real-time adjustment — Pressure and flow sensors flag variation; the system trims pump speed, gun settings, or robot speed on the fly.
Path accuracy, material flow, gun settings, and robot speed stay coordinated so each cycle puts the right volume in the right place.
Quality Control Integration
Advanced systems inspect application quality without stopping production:
- Vision systems — Cameras and sensors (for example, Coherix 3D at 400 scans per second per sensor) check bead width, height, volume, and location for gaps or neck-downs.
- Flow monitoring — Sensors track delivery in real time and flag low flow, blockages, or out-of-spec viscosity before bad parts move on.
- Automatic rejection — On a missed path, thin bead, or material defect, the cell can pause, alert operators, or reject the part.

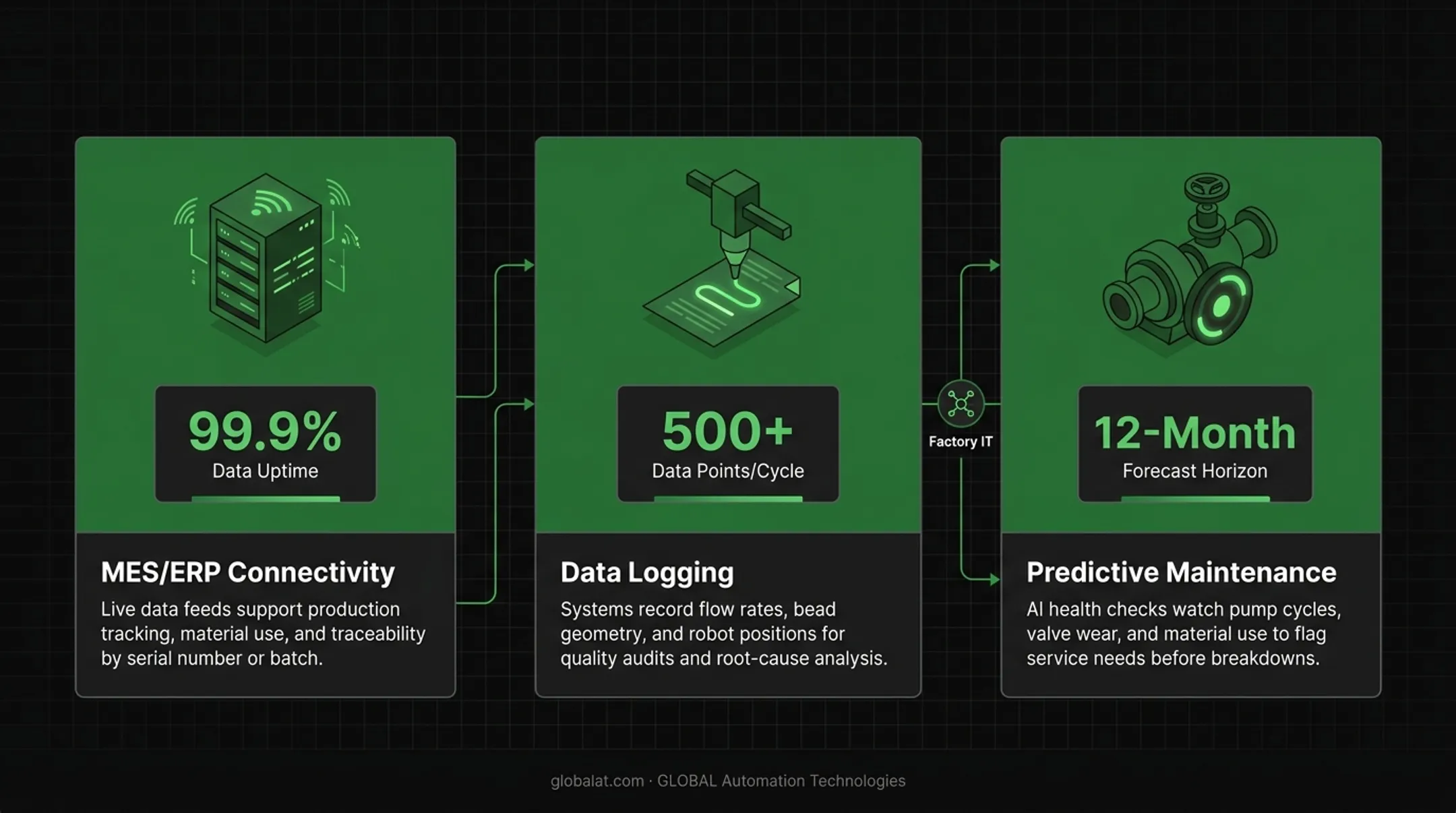

System Integration with Factory IT
Dispensing systems connect to broader manufacturing infrastructure:
- MES/ERP connectivity — Live data feeds support production tracking, material use, and traceability by serial number or batch.
- Data logging — Systems record flow rates, bead geometry, and robot positions for quality audits and root-cause analysis.
- Predictive maintenance — AI health checks watch pump cycles, valve wear, and material use to flag service needs before breakdowns.
Benefits of Automated Dispensing Systems in Manufacturing
Improved Worker Safety
Robotic dispensing removes operators from hazardous adhesive, sealer, and coating environments—including isocyanate- and VOC-bearing materials and high-voltage spray zones. OSHA identifies occupational asthma, lung problems, and eye, nose, throat, and skin irritation as principal isocyanate-exposure effects.
Automation cuts direct chemical exposure and lowers repetitive-strain risk from manual gun work on long seams and repetitive bead paths.
Material Cost Savings Through Precise Metering
Automated systems meter only the required material along programmed paths, cutting over-application, drips, and gaps. Typical gains include:
- Controlled flow rates that hold sealant and adhesive bead volume on-spec
- Less wasted material from starts, stops, and manual “insurance” over-dispense
- In-process inspection that flags bead defects before scrap multiplies downstream
Those same metering disciplines show up in related finishing automation: Regal Finishing reported 10%–15% material cost savings after FANUC robotic application, and A3 industry benchmarks commonly cite 15%–30% material savings for robotic systems.
Consistent Quality and Reduced Rework
Nordson PRO Series vision-guided systems achieve ±4 micrometer robot repeatability, and gantry systems deliver ±0.01 to ±0.02 mm placement repeatability. On a dispensing line, that precision shows up as:
- Uniform bead width and placement across thousands of parts
- Stable adhesive and sealer volume from part one through end of shift
- Fewer warranty claims from bond failures or corrosion tied to missed sealer beads
- Higher first-run yield when bead path, height, and continuity stay inside tolerance

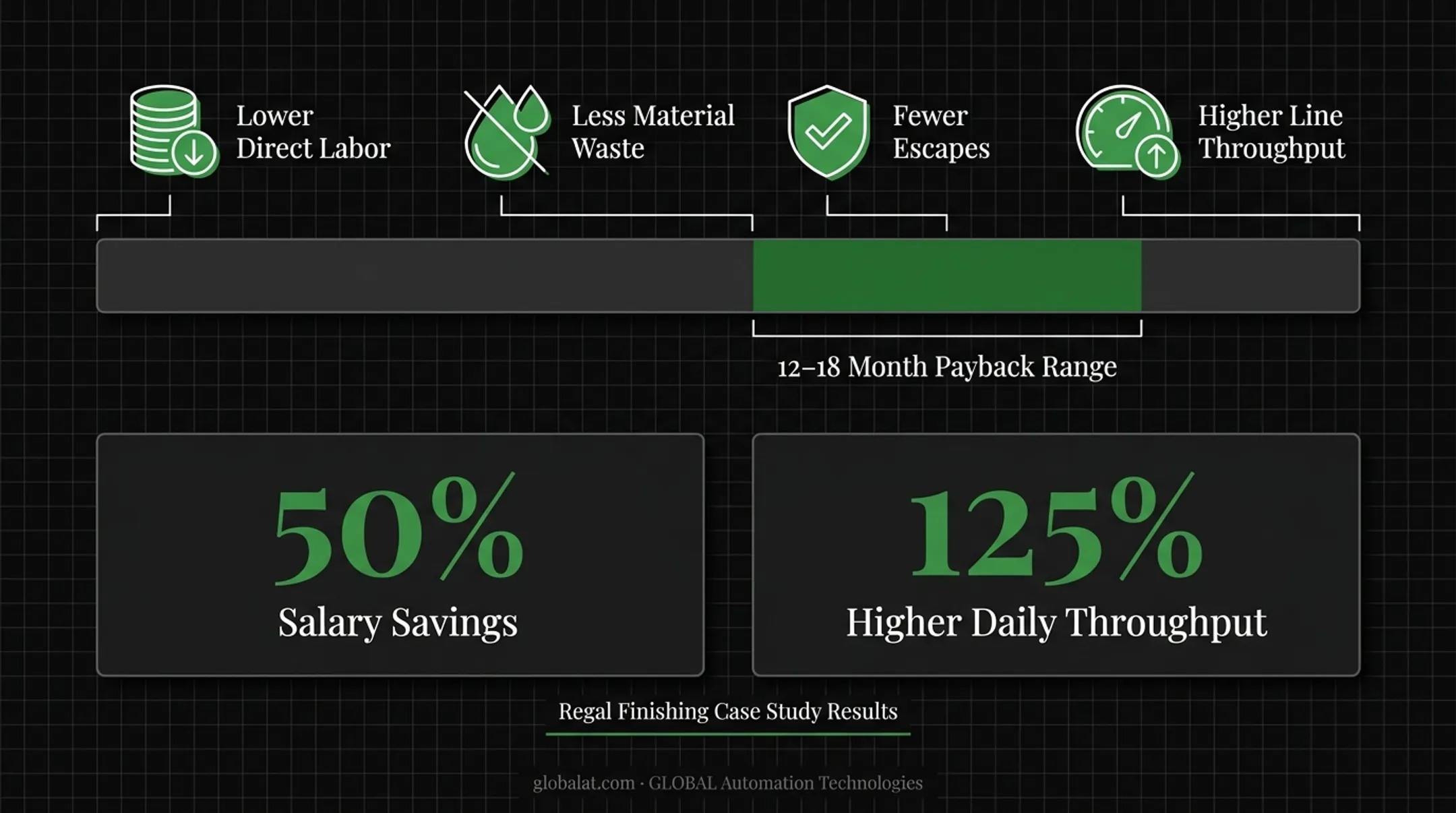

Measured ROI
Dispensing automation usually pays back through lower direct labor, less material waste, fewer escapes, and higher line throughput. Comparable robotic cells often land in a 12- to 18-month payback range when those drivers stack together.
Documented results track the same levers: the Regal Finishing case showed 50% salary savings and 125% higher daily throughput alongside the material and quality gains noted above—outcomes buyers also target on sealer and adhesive cells.
Key Considerations When Choosing an Automated Dispensing System
Match the system to your material, part geometry, throughput targets, and floor constraints before you compare equipment. The best cell is the one that fits the process—not the one with the longest feature list.
Application Requirements
Define your technical specifications before evaluating equipment:
- Material characteristics: Viscosity, single- or two-component chemistry, abrasiveness, cure behavior, mix ratio, and temperature conditioning
- Part size and geometry: Envelope, weight, access angles, and whether the robot must reach inside cavities or around complex contours
- Cycle time: Required throughput, takt time, and whether inline or batch processing fits your production model
- Quality tolerances: Acceptable bead-width variation, film-thickness control, and whether vision inspection or flow monitoring is required
Integration Complexity
Assess how the system fits your existing facility:
- Production line compatibility: Conveyors, part-transfer systems, and upstream/downstream process handoffs
- Facility layout constraints: Available floor space, ceiling height for gantries or overhead rail systems, and proximity to material supply
- Material supply infrastructure: Pumps, heated hoses, temperature control, mixing equipment, and whether your facility can support the required utilities (compressed air, power, ventilation)
Integration scope often drives timeline and risk more than the robot itself. Map utilities, safety, and line handoffs early so commissioning does not stall at install.
Total Cost of Ownership
Price the full project, not just the robot:
- Capital: Robot, dispensing equipment, fixtures, vision systems, and controls
- Installation and commissioning: Integration labor, programming, validation, and production launch support
- Training: Operator and maintenance training time
- Ongoing costs: Preventive maintenance, consumables (nozzles, mixers, valves), spare parts, and downtime
- Savings: Material waste reduction, labor redeployment, scrap elimination, and throughput gains
Cost ranges vary widely by system complexity, part size, and integration scope. Standalone desktop cells may start around $50,000, while fully integrated production-line systems with vision, conveyors, and safety guarding can exceed $500,000. Build ROI from your waste, labor, and scrap baselines, and have an integrator scope the full cell—not hardware alone—before you compare proposals.
Frequently Asked Questions
What are automated dispensing systems in the context of manufacturing?
Automated dispensing systems are robotic or computer-controlled platforms that apply adhesives, sealants, paints, and coatings with programmed paths and controlled flow rates. They replace manual application to deliver repeatable quality and safer working conditions.
What are the different types of automated dispensing systems for industrial use?
Primary types include standalone robotic cells, inline systems synced with conveyors, large-format gantries for oversized parts, paint robots for hazardous spray work, and precision micro-dispensing systems for electronics.
How much does an automated dispensing system cost for a manufacturing facility?
Costs depend on complexity, part size, and integration scope. Standalone cells may start around $50,000, while fully integrated line systems with vision, conveyors, and safety enclosures often run $200,000 to over $500,000.
What ROI can manufacturers expect from automated dispensing systems?
Dispensing automation often pays back in 12 to 18 months through labor savings, less material waste, higher throughput, and better quality. Documented cases show up to 35% more first-run-good parts and 10%–15% material cost savings.
What industries benefit most from automated dispensing systems?
Automotive OEMs and Tier 1 suppliers lead adoption for body sealing, structural bonding, underbody coating, and paint. Aerospace, heavy equipment, electronics, and other high-volume lines with repetitive adhesive or coating work also benefit.
Can automated dispensing systems be integrated with existing production lines?
Yes. Integrators like GLOBAL Automation Technologies can retrofit dispensing into existing lines with conveyor sync, PLC integration, and part tracking. Greenfield installs offer more layout flexibility, but retrofits are common with a solid feasibility study.
