Conveyor choice isn't a back-office detail. It directly shapes film build consistency, throughput, paint waste, worker VOC exposure, and how often your line goes down unplanned. In one documented case, an automotive plant traced a mysterious dip in coating quality and unplanned downtime back to a single failing conveyor component that had gone undetected for weeks, according to a Mighty Lube case study on conveyor monitoring. Small mechanical drift, big production consequences.
This guide breaks down what a paint line conveyor actually does, the core components worth understanding, and the six factors that should drive your selection — so the system matches your parts, not the other way around.
Key Takeaways
- Conveyors set part movement, spacing, and positioning through spray, flash-off, and cure; finish quality fails first when conveyance is wrong.
- Three families dominate: chain-on-edge (COE), overhead (monorail/power & free), and floor-mounted specialty—each fits different part shapes.
- Six decision drivers: part geometry, volume, process fit, durability, automation integration, and safety compliance.
- GLOBAL Automation Technologies integrates conveyors into full robotic paint lines synced with FANUC spray automation.
What is a Paint Line Conveyor System?
A paint line conveyor is the mechanical transport system that moves parts through pretreatment, spray application, flash-off, and cure at a controlled, repeatable speed. It sets the pace for every downstream process, from flash-off dwell time to how evenly a robot can lay down coating.
Three broad categories cover most paint line applications:
- Overhead conveyors (monorail and power & free) for large or suspended parts
- Chain-on-edge (COE) systems for small-to-medium, rotationally symmetric parts
- Floor-mounted/specialty conveyors for unusual geometries that don't fit standard formats

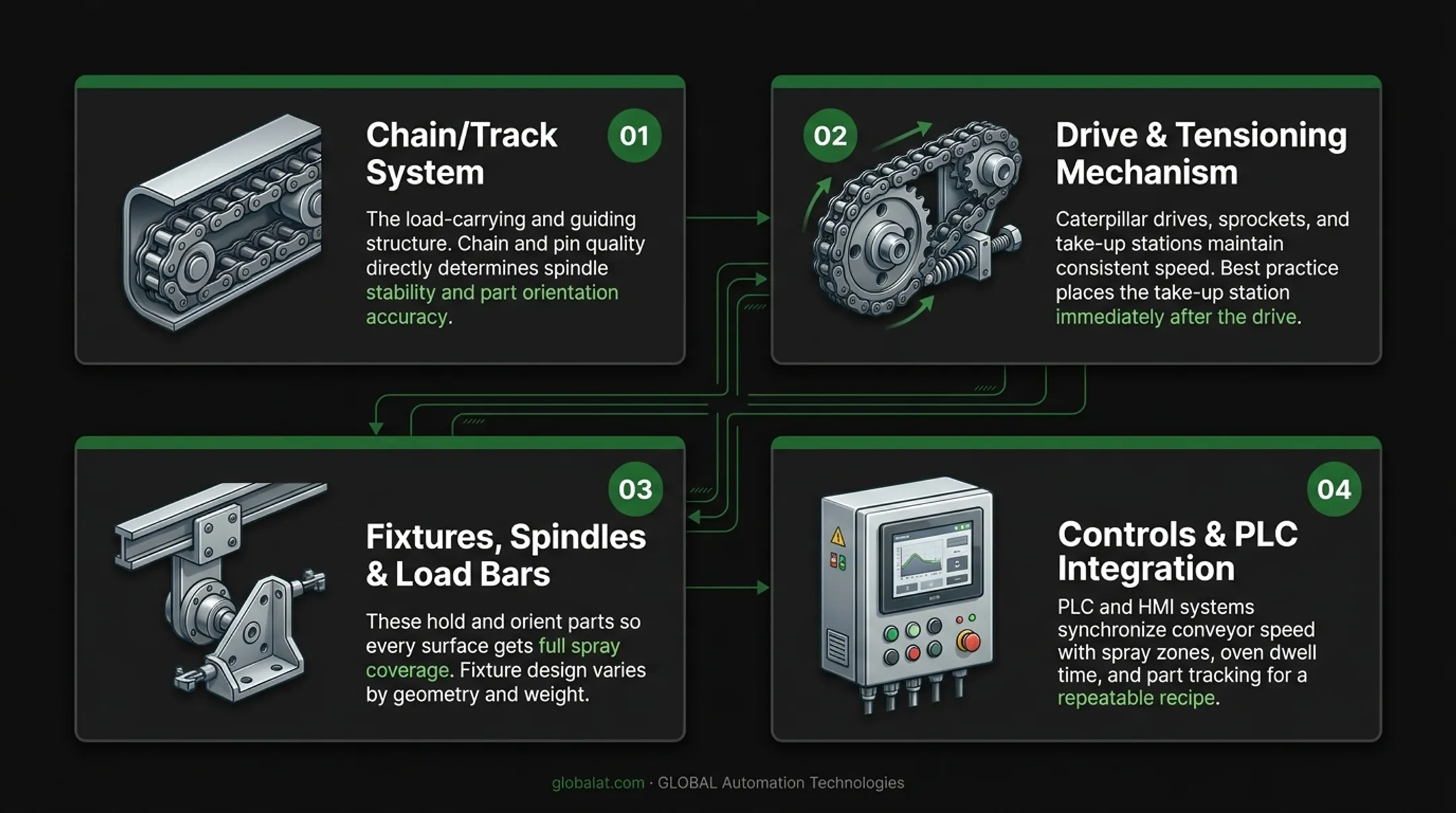

Core Components of a Paint Line Conveyor
Every paint line conveyor shares the same functional anatomy. These four components decide whether you get consistent results or watch first-pass yield keep slipping.
Chain/Track System. The load-carrying and guiding structure (I-beam, enclosed track, or chain-on-edge rail, depending on type). Chain and pin quality directly determines spindle stability and part orientation accuracy. Worn pins or a stretched chain show up as inconsistent positioning under the spray gun.
Drive & Tensioning Mechanism. Caterpillar drives, sprockets, and take-up stations maintain consistent speed and prevent chain slack. Best practice is to place the take-up station immediately after the drive so initial tension stays steady and the chain does not bunch in the track. Slack chain reads on parts as uneven paint application.
Fixtures, Spindles & Load Bars. These hold and orient parts so every surface gets full spray coverage. Fixture design varies by geometry and weight: a bracket and a wheel rim need entirely different holding strategies. Get this wrong and you get missed spray zones and rework.
Controls & PLC Integration. PLC and HMI systems synchronize conveyor speed with spray zones, oven dwell time, and part tracking. That integration is what makes a "recipe" repeatable: the same part, run a thousand times, gets the same treatment every time.
Benefits of a Well-Matched Paint Line Conveyor
Get the conveyor right, and the payoff shows up across the entire line:
- Consistent film build and finish quality from repeatable part positioning and coverage
- Higher throughput with less manual handling and fewer bottlenecks
- Lower paint waste because parts sit in the same place under the gun every cycle
- Reduced worker exposure to overspray and VOCs, especially with robotic spray automation
- Cleaner integration with robotic spray cells and vision-guided inspection
What to Consider When Choosing the Best Paint Line Conveyor System
Conveyor selection isn't one-size-fits-all. Part mix, production targets, and coating chemistry all shape the ideal configuration. The six factors below connect technical specs to measurable outcomes (throughput, first-pass yield, downtime) instead of defaulting to habit or budget alone.
Part Size, Weight & Geometry
Rotationally symmetric parts (wheels, cylinders, small brackets) favor chain-on-edge systems, since COE spindles rotate parts for full 360-degree coverage in liquid or powder applications. Large or irregular fabrications, like frames and weldments, generally favor overhead systems built to keep them suspended and untouched through the process.
Get this wrong and it shows up fast:
- Coverage completeness: missed zones on awkward parts mean rework
- Fixture cost: custom holding hardware for the wrong conveyor type gets expensive
- Rework rate: driven directly by how well the conveyor presents the part to the gun
Production Volume & Throughput Requirements
Parts-per-hour targets, shift schedules, and annual volume drive conveyor speed, part spacing, and indexing requirements. A line running two shifts at moderate volume has very different spacing needs than one running high throughput across multiple shifts.
That choice shows up in cycle time, line utilization, and cost-per-part. Spacing set too tight risks collisions or incomplete cure; too loose wastes conveyor length and cycle time.
Conveyor Type & Process Compatibility
COE, overhead, and floor-mounted systems each pair differently with coating type and required part orientation:
- COE: strong fit for liquid and powder spray on parts needing controlled rotation
- Overhead/power & free: common in e-coat and pretreatment, since carriers can accumulate, stop, and route independently
- Floor-mounted/specialty: used when neither standard format can present the part correctly
The pairing drives transfer efficiency, dry film thickness consistency, and how easily robots integrate on the line.
Material Durability & Environmental Exposure
Chains, tracks, and fixtures live inside pretreatment stages and spray booths, where solvents, humidity, and chemical exposure are constant. Stainless steel chain is a common answer for corrosion resistance in finishing environments, but exposure conditions and lubrication practices still shape actual service life.
Watch unplanned maintenance frequency, equipment lifespan, and contamination-related defects.
Automation & Controls Integration
Conveyor speed and positioning must sync precisely with robotic spray paths, vision inspection, and recipe-driven controls. If the conveyor and robot aren't communicating in real time, you get wasted coating, missed spots, or a robot chasing a part that isn't where the program expects it.
Integration quality shows up in robot programming time, first-pass quality, and changeover speed between part types.

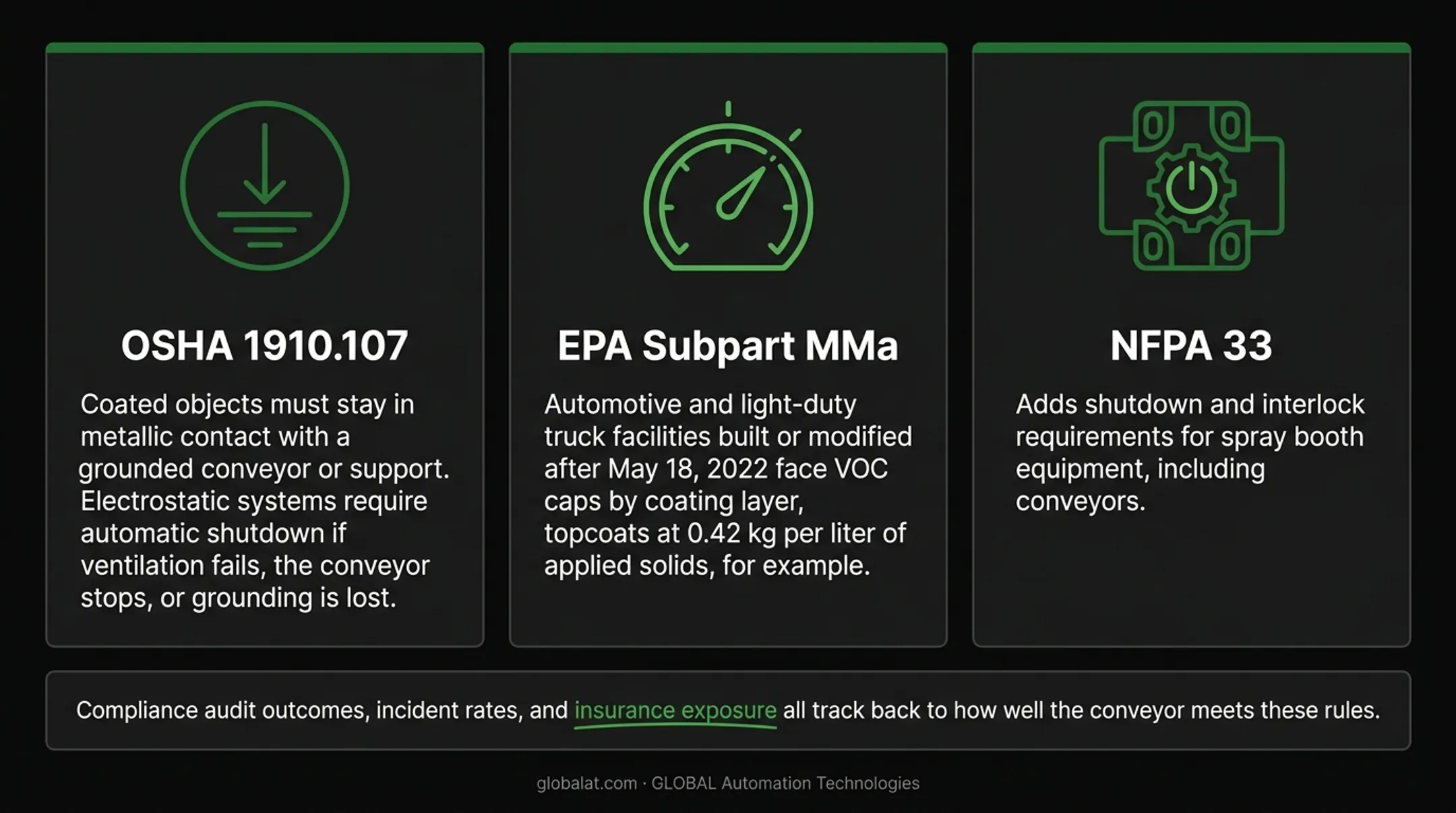

Safety & Regulatory Compliance
Conveyor design intersects directly with federal safety and environmental rules:
- OSHA spray finishing (1910.107): coated objects must stay in metallic contact with a grounded conveyor or support; electrostatic systems require automatic shutdown if ventilation fails, the conveyor stops, or grounding is lost
- EPA Subpart MMa: automotive and light-duty truck facilities built or modified after May 18, 2022 face VOC caps by coating layer (topcoats at 0.42 kg per liter of applied solids, for example)
- NFPA 33: adds shutdown and interlock requirements for spray booth equipment, including conveyors
Compliance audit outcomes, incident rates, and insurance exposure all track back to how well the conveyor meets these rules.
How GLOBAL Automation Technologies Can Help
GLOBAL, a Level 5 FANUC Authorized System Integrator, doesn't sell conveyors as standalone equipment. Conveyor integration is engineered as part of a complete turnkey robotic paint line, so the conveyor, spray robots, and controls operate as one synchronized system from day one, not bolted together after the fact.
That synchronization matters because GLOBAL's FANUC-based painting systems are built to hold film build within specification shift after shift. That repeatability depends entirely on the conveyor delivering parts at a consistent, predictable speed and position. A robot can't compensate for a part that arrives late, fast, or off-track.
That requirement shapes the full engagement:
- Full turnkey layout and design — booth layout, robot selection, and conveyor path planning happen together, so part flow and robot reach envelopes align before equipment is specified
- PLC-to-PLC controls integration — GLOBAL's controls engineers handle speed matching, trigger signals, fault handling, and E-stop coordination between robot and conveyor
- AI-assisted simulation — robot programs, including conveyor-tracking logic, are modeled and tested before installation, cutting programming time from weeks to days
- Operator protection — Intrinsically safe FANUC hollow-wrist paint robots handle booth spraying, keeping operators clear of VOCs, isocyanates, and overspray
- Engineering talent on demand — GLOBAL's engineering services and technical staffing supply controls engineers, PLC programmers, and commissioning engineers, contract or direct-hire, to run and maintain the line long after installation
That last point reflects how GLOBAL keeps its offerings distinct: automation systems designs and builds the line, while engineering services and technical staffing supply the people who keep it running. For a conveyor-integrated paint line, that means one point of contact for both the equipment and the engineers behind it.
Manufacturers evaluating a project can reach GLOBAL's engineering team directly to walk through conveyor and robot synchronization for their specific parts.
Conclusion
No paint line conveyor is universally best. The right one is engineered around your specific parts, volumes, and coating process. A COE system that works beautifully for round parts will frustrate you with irregular fabrications, and an overhead system sized for high volume will sit underutilized on a low-volume line.
Conveyor performance also isn't a set-it-and-forget-it decision. As production volumes shift, part mixes change, or coating chemistries evolve, revisit whether your conveyor still fits the job.
Treat conveyor selection as part of a broader automated finishing line strategy, not an isolated equipment buy. It has to work with the robots, controls, and booth beside it—so design those pieces together. GLOBAL Automation Technologies builds paint and coating lines this way, scoping the conveyor as part of the full system from layout through commissioning.
Frequently Asked Questions
What is the difference between overhead and chain-on-edge conveyors for paint lines?
Overhead conveyors suit large, irregular, or suspended parts that need to stay untouched through the process. Chain-on-edge systems provide precise indexing and rotation for smaller, rotationally symmetric parts needing full 360-degree coverage.
How does conveyor speed impact paint finish quality?
Speed that's too fast can leave thin or uneven coverage, since the gun has less dwell time on each surface. Speed that's too slow risks pooling or dripping, and both outcomes typically mean rework.
What safety standards should a paint line conveyor comply with?
Conveyors in spray environments fall under OSHA's ventilation and grounding requirements, NFPA 33's standards for spray booths, and EPA VOC limits for applicable coating operations. Grounded, metallic contact with parts is a core requirement for electrostatic systems.
Can a paint line conveyor be integrated with robotic spray systems?
Yes. PLC-controlled conveyors can sync speed, trigger signals, and positioning data with robotic spray paths and vision inspection systems for repeatable, recipe-driven quality control.
How much does a paint line conveyor system cost?
Cost varies widely based on conveyor type, part complexity, fixture requirements, and automation level. A project-specific consultation is the most reliable way to get an accurate estimate.
How often should paint line conveyors be maintained?
Maintenance frequency depends on chain and track wear, chemical exposure, and production volume. Daily lubrication checks and periodic tension inspections are common baselines. Predictive maintenance tools can flag wear before it causes downtime.
