A Systematic Approach to [Robotic System Design](/service/innovative-robotic-solutions) A systematic approach to robotic system design is the structured engineering methodology manufacturers use to plan, validate, and deploy a robotic system before it ever touches the production floor. It's not a single purchasing decision. It's a multi-phase process that determines whether a cell hits its targets on day one or spends its first three months in rework.

This matters most for manufacturing engineers, plant managers, and automation buyers running automotive, Tier 1, and heavy industry lines, where a mis-specified robot cell doesn't just cost money. It costs uptime, safety margin, and trust in the automation program itself.

Too often, robotic system design gets reduced to "picking a robot arm." In reality, it's an engineering process most people outside integration teams never see. This article breaks down how that process actually works, what shapes it, and when the full systematic version is worth the investment.

Key Takeaways

  • Systematic robotic system design follows five to six distinct phases, not a single hardware purchase.
  • Problem definition, concept design, simulation, build, and validation must finish before deployment.
  • Skipping requirements gathering or simulation drives rework and startup delays.
  • Payload, reach, environment, and safety compliance determine which robot and cell configuration works.
  • Combining system design with technical staffing reduces risk on complex, high-volume deployments.

What Is a Systematic Approach to Robotic System Design?

A systematic approach to robotic system design is a structured engineering methodology for building automation that works the first time. It moves a robotic system through problem definition, concept design, simulation, build, and validation before it goes live on the floor. The goal is straightforward: a system that reliably hits throughput, quality, and safety targets with minimal rework after installation.

Compare that to ad-hoc deployment, where a plant buys a robot arm and improvises the integration on-site. There's no requirements document, no simulation, no stage-gate review. Problems surface during commissioning instead of during design, which is the most expensive place to find them.

Design and integration aren't the same thing, either:

  • Robotic system design is the planning and engineering phase — requirements, concept selection, simulation.
  • Robotic system integration is the execution — physically building, installing, and commissioning what was designed.

Keep them separate and you get either a plan that never leaves the screen, or a robot bolted to a fixture with no validated process behind it. GLOBAL Automation Technologies, a top-tier Level 5 FANUC Authorized System Integrator, treats these as one continuous scope, where the engineering that validates a process on screen carries directly into the physical build.

Why Manufacturers Need a Systematic Design Process

High-volume, high-precision manufacturing doesn't leave much room for guesswork. Tight tolerances, hazardous environments, and demands for uptime that runs well beyond a single shift between scheduled maintenance windows mean a cell either works as specified or it becomes a daily headache for the maintenance team.

A 2009 Control Engineering survey of more than 1,800 system integrators found that as much as 80% of automation-project problems traced back to inadequate communication between client and integrator. That's not a hardware failure statistic. It's a planning failure statistic, and it's exactly what a systematic design process is built to prevent.

What typically happens without one:

  • Misjudged payload or reach forces a mid-project robot swap.
  • Machine tending cells fail to hit expected spindle utilization because cell design never accounted for part staging or multi-machine scheduling.
  • Safety guarding gets bolted on late instead of engineered in from the start.
  • Cycle time targets get missed because the process was never modeled before the robot arrived.

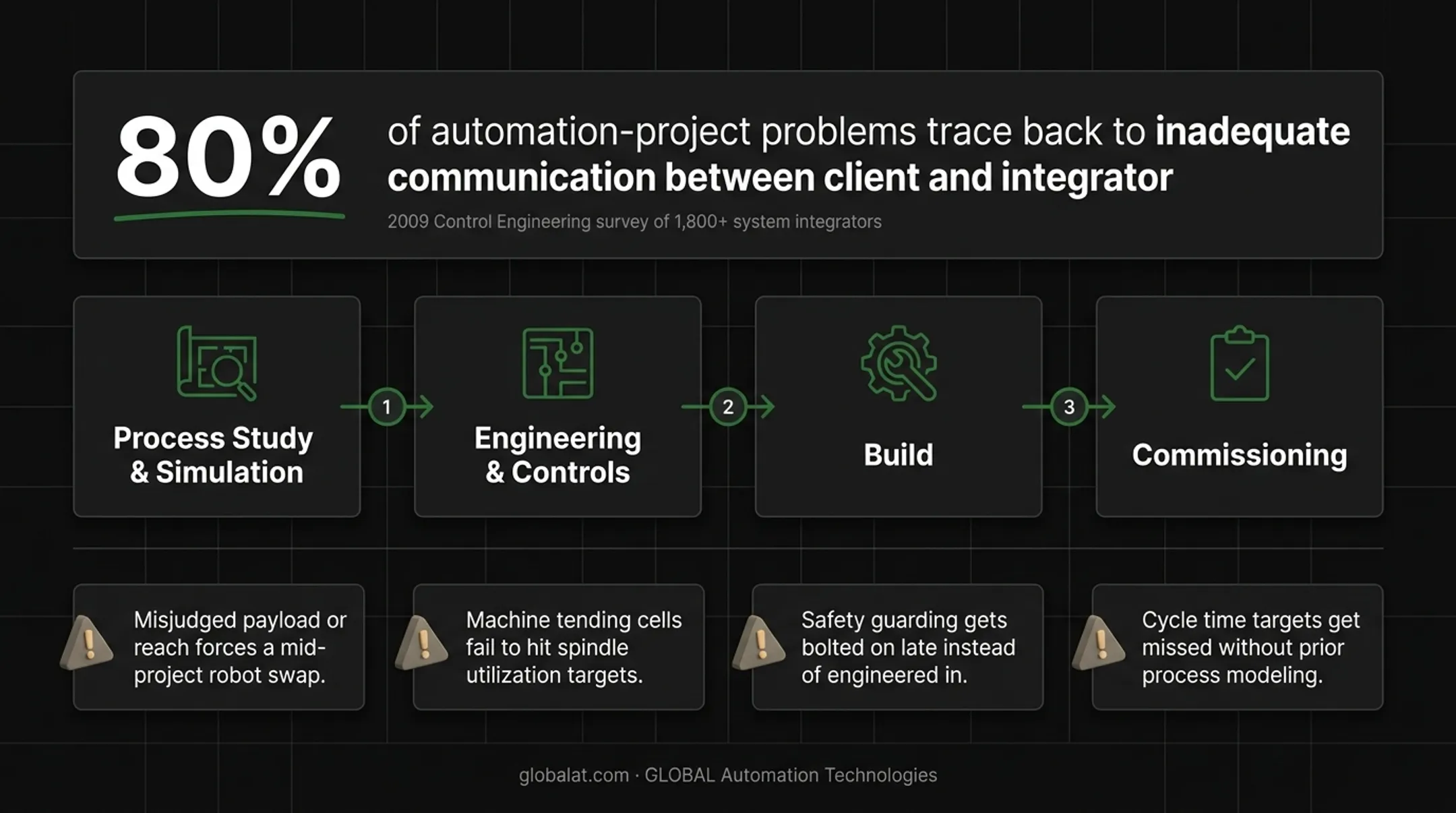

infographic showing four risks of skipping systematic robotic design process

Full turnkey delivery under one scope has become the practical industry standard for a reason. That scope covers layout, design, build, programming, validation, installation, and commissioning.

GLOBAL structures its integration projects the same way, with each phase feeding the next:

  • Process study and simulation first
  • Engineering and controls next
  • Build, then commissioning

The Robotic System Design Process: A Step-by-Step Framework

The end-to-end flow runs from defining constraints to deploying and supporting the system on the floor. Key inputs include:

  • Production requirements and throughput targets
  • Part geometry and plant layout
  • Safety standards and compliance constraints

Specifications, simulation data, and stage-gate reviews govern the process. A project does not advance until the current phase checks out.

Step 1: Define the Problem and Requirements

Before engineers evaluate any hardware, they translate production requirements, part geometry, throughput targets, and safety constraints into a design brief. That document becomes the reference point for every decision that follows.

Step 2: Research and Concept Design

Engineers compare two or three alternative robot types, end-effectors, and layout configurations against the requirements brief. They commit only after weighing options against payload, reach, cycle time, and floor space.

Step 3: Simulation and Digital Validation

Engineers model cell layout, reach, and cycle time virtually to catch collisions and timing conflicts before anyone cuts steel.

In one documented case, JR Automation used a digital twin built in Siemens Process Simulate to model a FANUC robot cell and reported saving weeks of debugging time by catching mechanical interference in simulation instead of on the floor. GLOBAL applies the same principle with AI-assisted simulation tools, which can compress robot programming time from weeks to days.

Step 4: Hardware-Software Co-Design and Build

Teams engineer mechanical structure, controls, and programming in parallel, not sequentially. A gripper design decision affects programming logic; a controls architecture choice affects mechanical clearances. Running these disciplines together avoids the rework that happens when one team finishes before the other has weighed in.

Step 5: Installation, Commissioning, and Validation

Teams install the system and test it against the original spec. Cycle time, quality output, and safety compliance must all clear validation before handoff to production. This checkpoint confirms the design meets the brief on the floor.

Step 6: Ongoing Support and Continuous Improvement

Design does not end at handoff. After deployment, teams monitor systems with AI-driven predictive maintenance health assessments that flag equipment issues before they cause unplanned downtime. The same discipline that shaped the cell now protects daily uptime.

six-step robotic system design process flow from problem definition to support

Key Factors That Influence Robotic System Design Outcomes

No two cells are designed the same way, because no two applications share the same constraints. The main variables:

  • Payload, reach, and part geometry — these determine which robot family is even viable before anything else gets considered.
  • Operating conditions — paint booths, hazardous materials, cleanrooms, and extreme temperatures drive equipment selection. A paint booth needs intrinsically safe robots with hollow-wrist routing, not a standard industrial arm.
  • Equipment dependencies — conveyor speed matching, machine tending interfaces, tooling compatibility, and PLC integration with existing line controls.
  • Scale and throughput — a single CNC tending cell is a contained design problem; a multi-robot welding line with synchronized conveyors needs coordinated motion programming and heavier controls complexity.
  • Safety and regulatory constraints — ANSI/A3 R15.06-2025, harmonized with ISO 10218, now covers collaborative applications, end-effectors, and cybersecurity in standard safety planning for automotive and heavy industry cells.

Common Mistakes, Misconceptions, and When to Bring in Outside Expertise

Misconception: "Systematic" means slower. In practice, it's the opposite. A structured process front-loads the problems that trial-and-error deployment discovers during commissioning, which is a far more expensive place to find them. Total time-to-production is usually shorter, not longer.

Misconception: a capable robot equals a designed system. The robot is one component. Without engineered tooling, fixturing, safety guarding, and controls integration, a capable robot is just an expensive paperweight on the plant floor.

That said, not every application needs the full framework:

  • Small-scale, one-off, low-risk applications can often run on a simpler, off-the-shelf cell.
  • Mid-complexity cells still benefit from clear requirements and basic simulation before hardware arrives.
  • Skipping requirements gathering or simulation on larger, safety-critical lines is a red flag, not a legitimate shortcut.

This is where the right partner matters. An integrator that combines robotic systems design with technical staffing under one roof gives manufacturers both the engineered system and the engineers who can run it.

That shared technical picture reduces risk on complex, high-volume deployments. GLOBAL Automation Technologies pairs its automation systems and engineering services with technical staffing because a system without trained people running it carries almost as much risk as no system at all.

The process itself doesn't guarantee results. Correct application of that process, phase by phase, is what determines reliability and ROI.
