The fix isn't a bigger robot. It's a coordinated team of them.
Multi-robot systems (MRS) let manufacturers assign different tasks to different robots working in sync, tending machines, inspecting parts, and moving materials simultaneously. Automotive alone accounted for about 40% of new US industrial robot installations in 2024, according to the International Federation of Robotics, and much of that growth involves coordinated cells rather than isolated units.
This guide covers what MRS actually are, how they work, the benefits and challenges, and how to implement one in your facility.
Key Takeaways
- Multi-robot systems split work across coordinated robots—not one overloaded multitasking unit
- Choose centralized or decentralized control based on scale, coordination needs, and failure risk
- Plan for communication latency and integration complexity as the top deployment hurdles
- Simulation before deployment cuts programming time from weeks to days
- Ongoing engineering support is often as critical as the hardware itself
What Is a Multi-Robot System?
A multi-robot system (MRS) is a group of robots working together toward a shared manufacturing goal, sharing information and coordinating actions rather than operating in isolation.
There are two structural types:
- Homogeneous systems: Identical robots performing the same function, such as a multi-robot welding line where every unit runs the same process
- Heterogeneous systems: Specialized robots with different capabilities, such as machine tending, inspection, and palletizing units working the same cell
Cooperation vs. Coordination vs. Collaboration
These terms get used interchangeably, but they mean different things:
- Cooperation — robots work together on a shared task
- Coordination — each robot accounts for the actions of others, following a shared protocol
- Collaboration — in standards language, this typically refers to a robot working alongside a human, not robot-to-robot teamwork
True team coordination expands what the group can accomplish beyond what any single robot could do alone.
Multitasking Robot vs. Multi-Robot System
A multitasking robot is one robot programmed to handle several operations, say, machine tending and inspection, sequentially. That's different from an MRS, which spreads those same tasks across separate robots working in parallel. One robot doing more jobs isn't the same as several robots doing one job together.
How Do Multi-Robot Systems Work?
Multi-robot systems rely on sensors, communication protocols, and control algorithms so robots can share information in real time. On the plant floor, that stack shows up in three practical choices: control architecture, task allocation, and pre-deployment simulation.

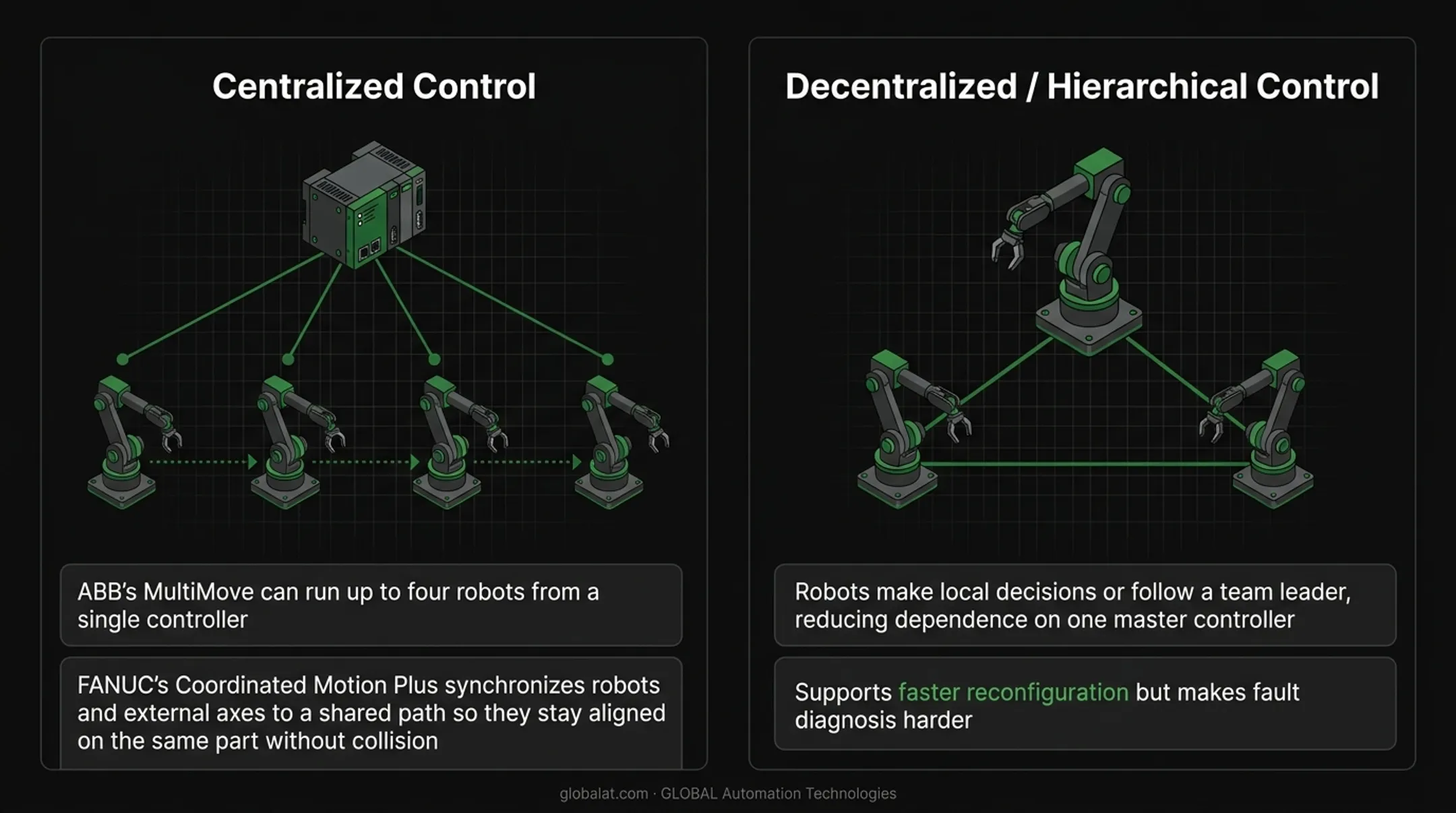

Control Architectures
Manufacturers typically choose between two models:
- Centralized control: One controller directs multiple robots. ABB's MultiMove can run up to four robots from a single controller. FANUC's Coordinated Motion Plus synchronizes robots and external axes to a shared path so they stay aligned on the same part without collision.
- Decentralized/hierarchical control: Robots make local decisions or follow a team leader, reducing dependence on one master controller. That supports faster reconfiguration but makes fault diagnosis harder.
Task Allocation Logic
Tasks get divided based on each robot's capability, position, and specialization:
- A robot near the CNC machine handles loading and unloading
- A robot with vision-guided end-of-arm tooling handles inspection
Allocation can be fixed at commissioning or recalculated in real time as conditions change.

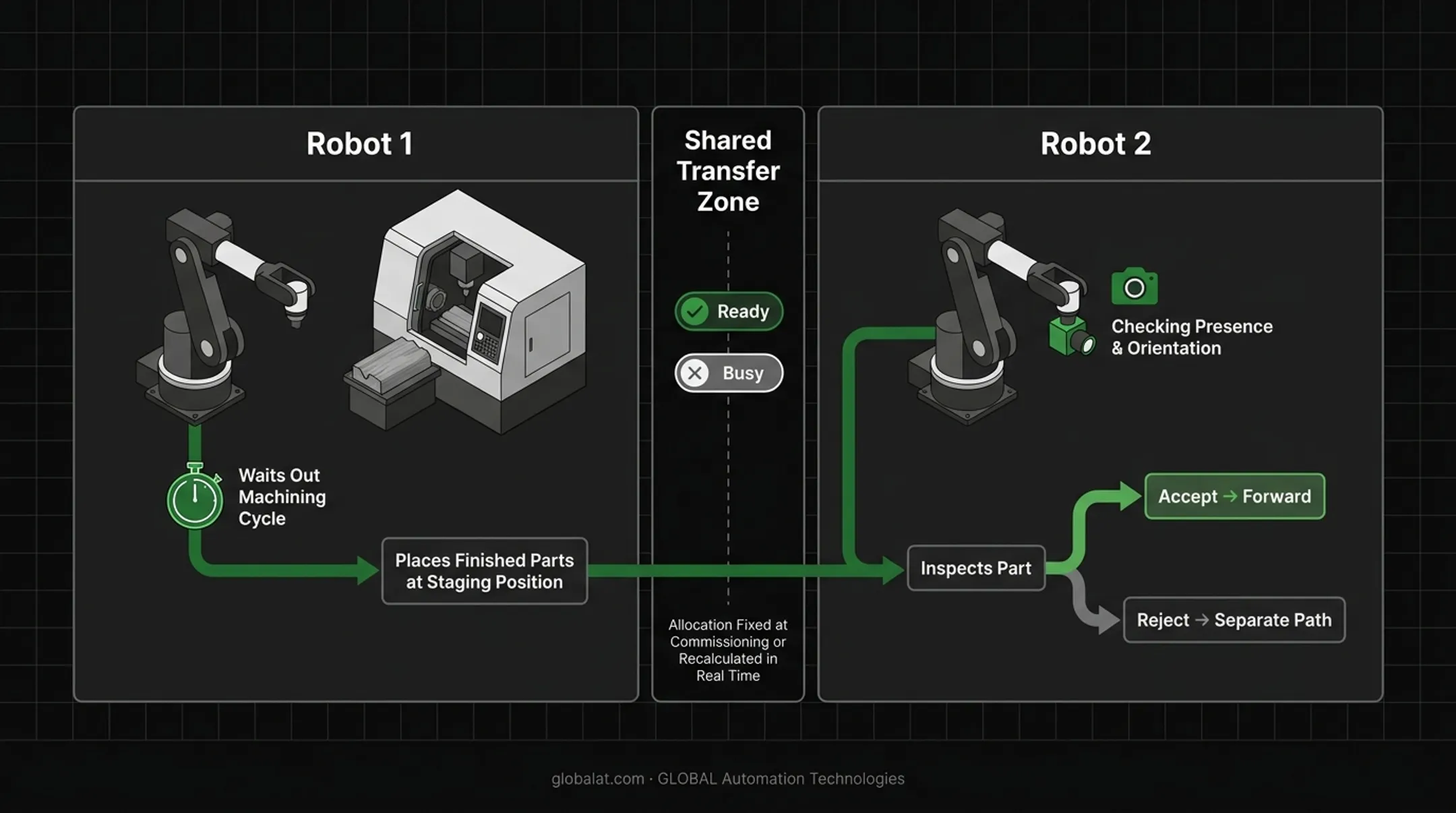

A concrete example: In a machine-tending-plus-inspection cell, one robot loads raw stock into a CNC, waits out the machining cycle, and places finished parts at a staging position. A second robot, guided by machine vision, checks presence and orientation, inspects the part, then routes accepts forward and rejects to a separate path.
Ready/busy signals keep either robot out of the shared transfer zone until the other has cleared it.
The Role of Simulation
AI-assisted simulation models robot interactions before deployment, catching collision risks, timing conflicts, and reachability issues on a screen instead of the shop floor. GLOBAL Automation Technologies uses this approach to model, test, and optimize robot programs before commissioning, cutting programming timelines from weeks to days on many projects.

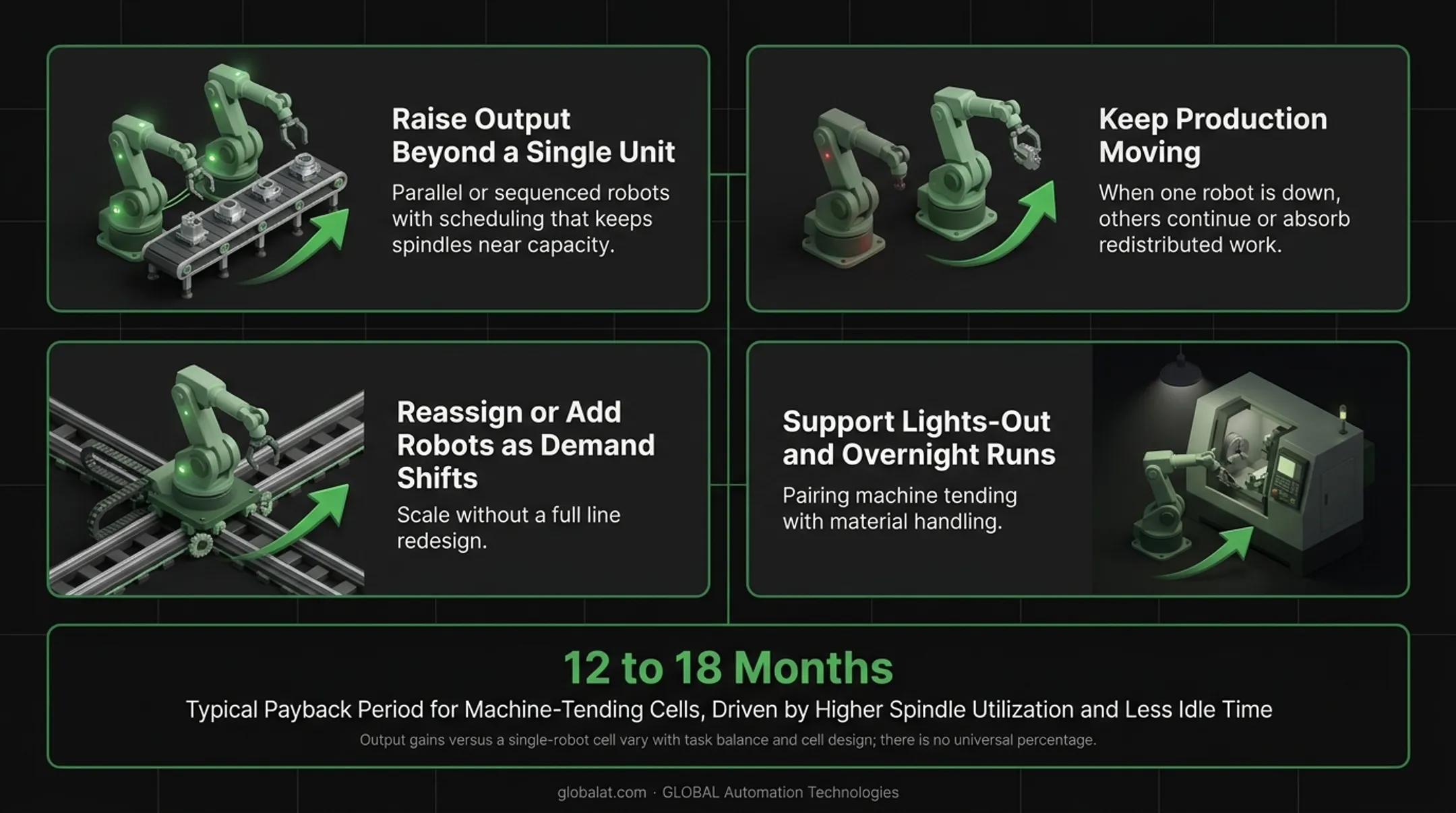

Key Benefits of Multi-Robot Systems for Manufacturers
Coordinated robot teams solve problems single-robot cells simply can't.
Key advantages include:
- Raise output beyond a single unit by running robots in parallel or sequence, with scheduling that keeps spindles near capacity
- Keep production moving when one robot is down—others continue or absorb redistributed work
- Reassign or add robots as demand shifts, without a full line redesign
- Support lights-out and overnight runs by pairing machine tending with material handling
Output gains versus a single-robot cell vary with task balance and cell design; there is no universal percentage. Manufacturers consistently report that machine-tending cells typically pay for themselves in 12 to 18 months, driven by higher spindle utilization and less idle time.
Common Challenges in Deploying Multi-Robot Systems
More robots means more can go wrong if the system isn't engineered carefully. More robots means more can go wrong if the system isn't engineered carefully. The friction usually shows up in three places: communication latency, workflow fit, and multi-unit troubleshooting.
Communication Complexity
As robot count grows, low-latency data exchange becomes harder to guarantee. Any lag in a coordinated task, like a hand-off between a tending robot and an inspection robot, can halt the entire sequence. Dedicated networks for coordinated motion, kept off shared plant traffic, cut this risk.
Integration With Existing Workflows
Fitting a multi-robot cell into current plant layouts, PLCs, and human workflows requires careful engineering. Safety zones, interlocks, HMI updates, and operator paths all shift when another robot joins the cell. Retrofitting an existing line is rarely as simple as adding a second arm next to the first.
System Complexity and Troubleshooting
Diagnosing issues across multiple interacting robots, controllers, vision systems, and PLCs is far harder than troubleshooting one unit. You need a global picture built from each robot's local sensor data, then a path to trace inconsistencies back to the source. That depth is more than most in-house maintenance teams keep on staff. Plan for it during design, not after the first multi-robot fault.
How to Implement a Multi-Robot System in Your Facility
Getting an MRS right starts long before any robot arrives on the floor.
- Set clear goals. Define which tasks actually need coordination and what success looks like, whether that's cycle time, uptime, or quality metrics.
- Design and simulate before deployment. Use layout planning and simulation to model robot interactions, timing, and shared workspace conflicts before committing to hardware.
- Test incrementally. Start with simple coordinated tasks in a controlled environment before scaling to full production complexity.
- Plan for ongoing support. Trained engineers to operate and maintain the cell are often as critical as the system itself.
Where GLOBAL fits into this process:
GLOBAL Automation Technologies runs a full turnkey process for multi-robot cells:
- Layout and design
- Build and programming
- Validation, installation, and commissioning
- Training and ongoing support
As a Level 5 FANUC Authorized System Integrator, GLOBAL builds primarily FANUC-based systems. The team uses AI-assisted simulation to model programs before deployment, plus AI-driven predictive maintenance health assessments that flag equipment issues before they cause downtime.
GLOBAL also pairs systems integration with technical staffing under one roof. Once a multi-robot cell is running, clients can bring on embedded controls engineers, robotics technicians, and commissioning engineers through contract, contract-to-hire, or direct placement—rather than scrambling for talent after the fact. One call gets the cell and the people who keep it running.

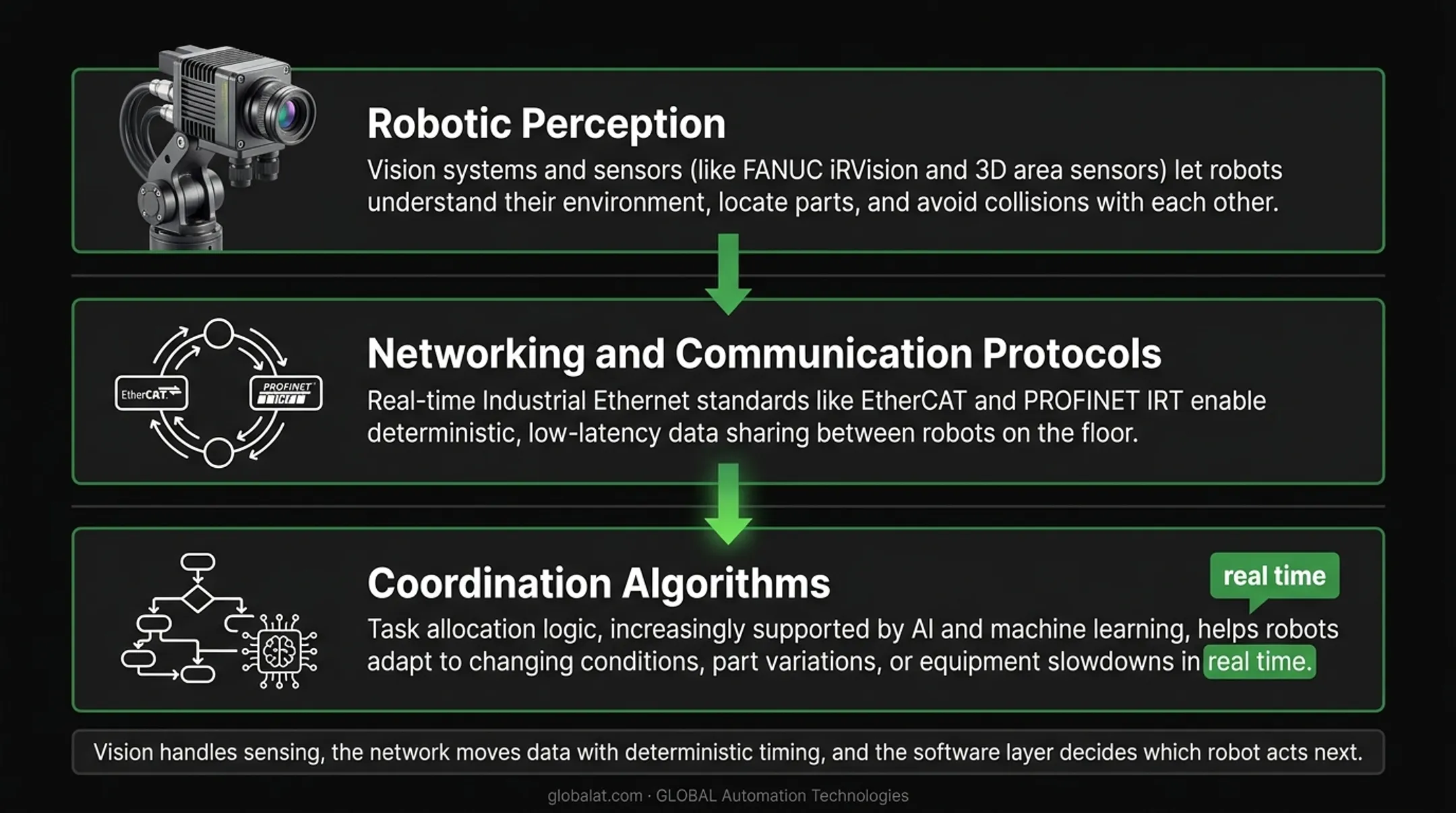

Key Technologies Powering Multi-Robot Systems
Three technology layers make coordination possible:
- Robotic perception: Vision systems and sensors (like FANUC iRVision and 3D area sensors) let robots understand their environment, locate parts, and avoid collisions with each other.
- Networking and communication protocols: Real-time Industrial Ethernet standards like EtherCAT and PROFINET IRT enable deterministic, low-latency data sharing between robots on the floor.
- Coordination algorithms: Task allocation logic, increasingly supported by AI and machine learning, helps robots adapt to changing conditions, part variations, or equipment slowdowns in real time.
Each layer solves a different problem. Vision handles sensing, the network moves data with deterministic timing, and the software layer decides which robot acts next.
Frequently Asked Questions
What are multi-robot systems?
Multi-robot systems (MRS) are groups of robots that coordinate to complete tasks beyond what a single robot could accomplish alone. They fall into two types: homogeneous (identical robots) and heterogeneous (specialized robots working together).
What is a multitasking robot?
A multitasking robot is a single unit performing multiple operations sequentially, like tending a machine and inspecting parts. An MRS spreads those same tasks across multiple robots working in parallel.
What are the main types of robots?
Industrial categories include articulated arms (multi-jointed manipulators), SCARA robots (fast, planar movement), collaborative robots or cobots (designed to work alongside humans), and autonomous mobile robots (AMRs) for material transport.
Is ROS an actual operating system?
No. ROS (Robot Operating System) is a middleware framework, a set of software libraries and tools for building robot applications, that runs on top of a conventional operating system.
What industries benefit most from multi-robot systems?
Automotive leads adoption, representing roughly 40% of new US industrial robot installations in 2024. Metal, machinery, and heavy equipment manufacturing follow closely, using coordinated robots for welding, machine tending, and material handling.
How much does a multi-robot system cost to implement?
Costs vary widely based on robot count, process complexity, tooling, vision requirements, and facility integration needs. ROI typically comes through higher throughput and less downtime. A systems integrator can provide a project-specific estimate.
