Introduction
Search "pick and place primary loading" and you'll get flooded with viral robot compilation videos. That's not what most manufacturers actually need.
Plant managers and automation buyers want something different: proof that these systems can handle real loading work: CNC machine tending, conveyor transfers, and palletizing, not just stacking boxes on a demo table.
Packaging-line pick and place (light parts, high speed, low payload) gets lumped in with true industrial primary loading, which needs heavier payloads, longer reach, and tougher duty cycles. A robot that excels at sorting candy bars won't survive a press-tending job.
This guide breaks down what primary loading actually means, which robot types handle it best, and how to evaluate a system before you buy one.
Key Takeaways
- Primary loading covers machine tending, conveyor transfers, and palletizing — not just packaging
- Six-axis articulated robots dominate this category due to their payload range and reach
- Well-specified machine tending cells typically pay back in 12 to 18 months
- Your integration partner matters as much as your robot brand for long-term uptime
What Is Robotic Pick and Place Primary Loading?
Primary loading refers to getting raw stock, components, or in-process parts into a machine, cell, or first production step. This is different from secondary packaging, which handles finished or semi-finished goods at the end of a line.
Loading a lathe with unfinished billet is primary loading. Placing a finished part into a shipping carton is secondary. Different jobs, different demands.
The Core Pick and Place Cycle in Primary Loading

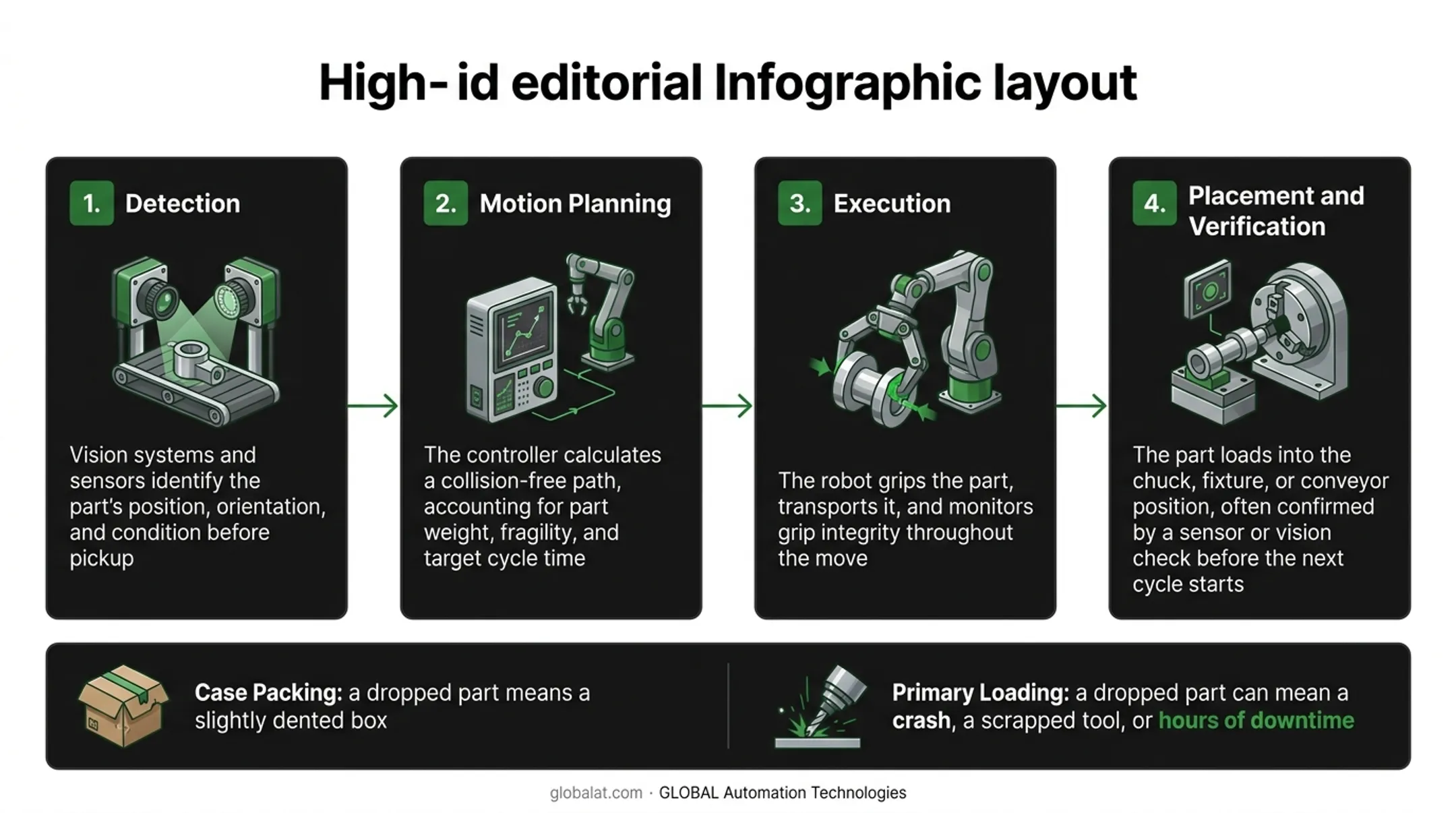

Most industrial pick and place work follows a similar functional sequence:
- Detection — Vision systems and sensors identify the part's position, orientation, and condition before pickup. FANUC's iRPickTool, for example, tracks parts moving on conveyors and coordinates pickup timing accordingly.
- Motion planning — The controller calculates a collision-free path, accounting for part weight, fragility, and target cycle time.
- Execution — The robot grips the part, transports it, and monitors grip integrity throughout the move.
- Placement and verification — The part loads into the chuck, fixture, or conveyor position, often confirmed by a sensor or vision check before the next cycle starts.
Why does this matter more for primary loading than for downstream case packing? Because the stakes are higher. A dropped part on a packaging line means a slightly dented box. A dropped part in a CNC spindle can mean a crash, a scrapped tool, or hours of downtime.
Primary loading tasks demand tighter placement tolerances and higher payload capacity, since these robots directly control spindle utilization and how long a machine can run unattended.
Types of Pick and Place Robots Used for Primary Loading
Not every robot configuration fits every loading task. Here's how the major types stack up.
Six-axis articulated arms handle the widest range of primary loading work: heavy, irregular, or awkwardly shaped parts going onto machines, fixtures, or pallets. GLOBAL, which purchased more FANUC robots than any other North American integrator in 2025, primarily deploys FANUC six-axis robots for high-precision primary loading in CNC cells and other demanding industrial environments, thanks to their reliability and hollow-wrist cable routing.
Other configurations serve more specialized roles:
- SCARA robots: High-speed horizontal loading for lightweight, small parts. Fast, but limited to lighter payloads.
- Cartesian/gantry robots: Cover large work envelopes, ideal for wide-span or pallet-to-conveyor transfers.
- Delta robots: The fastest option for sorting and loading small, lightweight items at high volume.
- Collaborative robots (cobots): Lower-payload loading where humans and robots share space, useful for low-volume runs or frequent changeovers.
Here's a general comparison based on published manufacturer specifications:
| Robot Type | Payload Range | Reach/Workspace | Best Fit |
|---|---|---|---|
| Six-axis articulated | 7-600 kg | 900–3,700+ mm (model-dependent) | Heavy or irregular parts, machine tending |
| SCARA | 3-6 kg | 350-650 mm | Small, lightweight, high-speed feeding |
| Cartesian/gantry | Up to 78 kg | Up to 2,500 mm stroke | Wide-span or pallet transfers |
| Delta | 1-8 kg | 1,200-1,600 mm horizontal | Fastest sorting of small items |
| Collaborative | 3-50 kg | 550-1,889 mm | Low-volume, shared workspace |
Published speed specs vary depending on whether they measure axis velocity, TCP speed, or a specific loaded test cycle. Don't compare robot types on speed alone: simulate the actual application first.
Primary Loading Applications: A Real-World Compilation
Primary loading extends well beyond packaging. Here's what it actually looks like across plant floors today.
CNC and Machine Tending Loading
Robots load and unload raw stock into CNC machines, lathes, and presses, freeing machines to run longer without a human standing by.

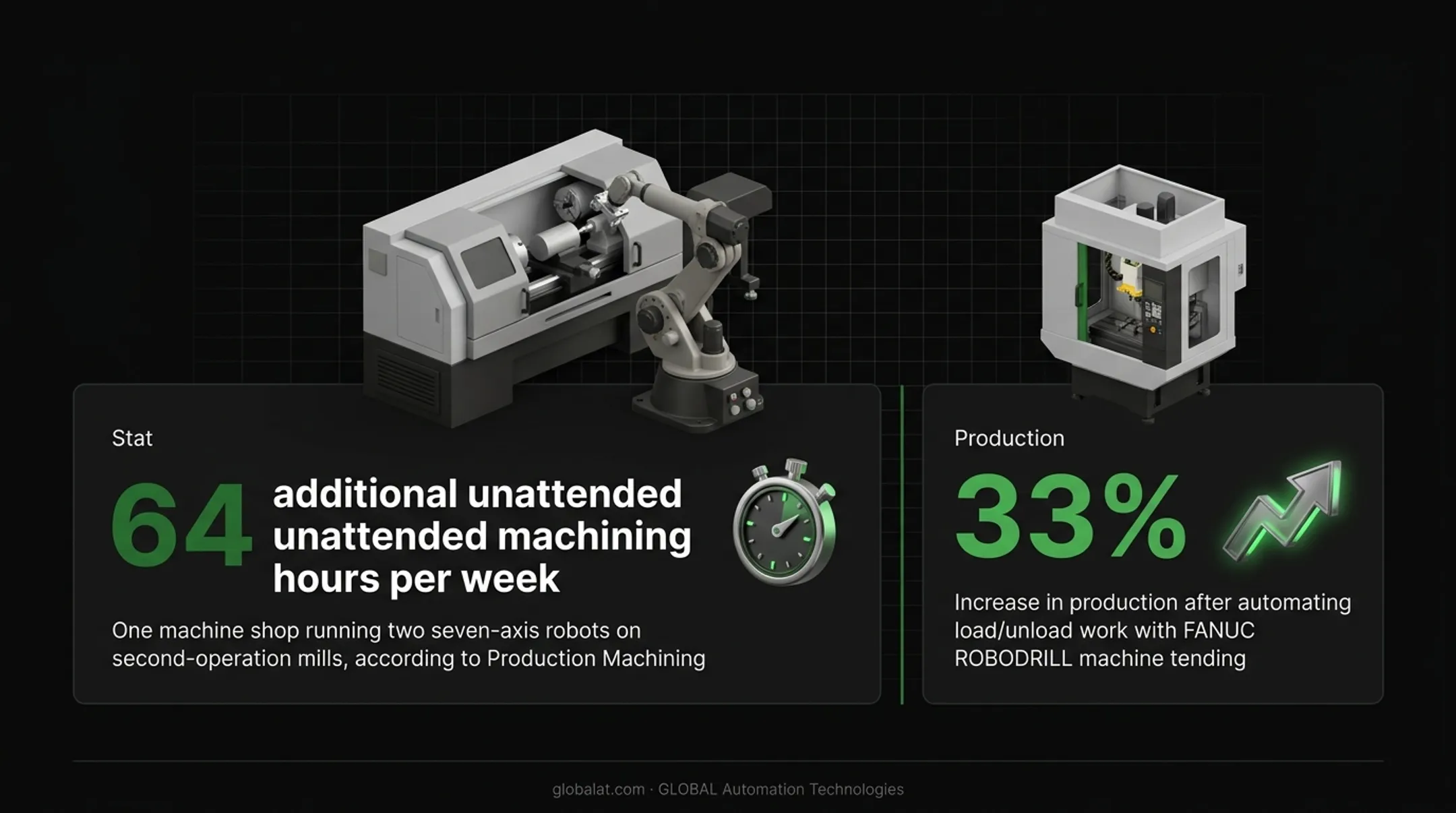

The payoff is measurable. One machine shop running two seven-axis robots on second-operation mills gained 64 additional unattended machining hours per week, according to Production Machining.
Another manufacturer using FANUC ROBODRILL machine tending reported a 33% increase in production after automating load/unload work. Results vary by part and cycle time, but the direction is consistent: fewer idle spindles, more unattended runtime.
Packaging, Transfer, and Staging
Robots also load products into first-stage packaging (cartons, trays, blister packs) ahead of secondary case packing. This is where speed matters most.
The Association for Advancing Automation notes robotic pick-and-place throughput can reach up to 200 products per minute in vision-guided setups, though actual rates depend on part size and grip complexity.
Between production stages, robots transfer in-process components without manual handoffs, feeding parts into welding cells, assembly stations, or inspection points. That keeps a line moving continuously instead of stalling at every transfer point.
Robotic palletizers load finished or semi-finished goods onto pallets for shipment or staging ahead of the next process step. Engineers program layer patterns to match specific SKU mixes, keeping stacking consistent shift after shift.
Assembly and Fixture Loading in Automotive and Heavy Industry
In automotive and heavy equipment manufacturing, robots load components into weld jigs, fixtures, and assembly stations. GLOBAL works with automotive OEMs, Tier 1 suppliers, and heavy equipment manufacturers on fixture design, tooling integration, and servo positioning for weld cells across body shop, powertrain, and final assembly lines.
Benefits of Robotic Pick and Place Primary Loading
Three benefits show up consistently across primary loading deployments:
- Increases throughput by extending unattended operation well beyond a single shift, with lights-out running between scheduled maintenance windows and faster, more consistent cycle times
- Cuts operator injury risk by removing repetitive heavy lifting and awkward motions OSHA links to musculoskeletal disorders and lost work time
- Improves part quality through repeatable placement accuracy that reduces misloads and scrap versus manual handling
Actual gains still depend on part geometry, cycle time, and how well the cell is engineered. The direction of improvement is well documented across manufacturer and trade publication case studies.
How to Choose the Right System and Automation Partner
Picking a robot off a spec sheet is the easy part. Picking the right one requires matching specs to your actual heaviest or most complex load, not a generic catalog listing.

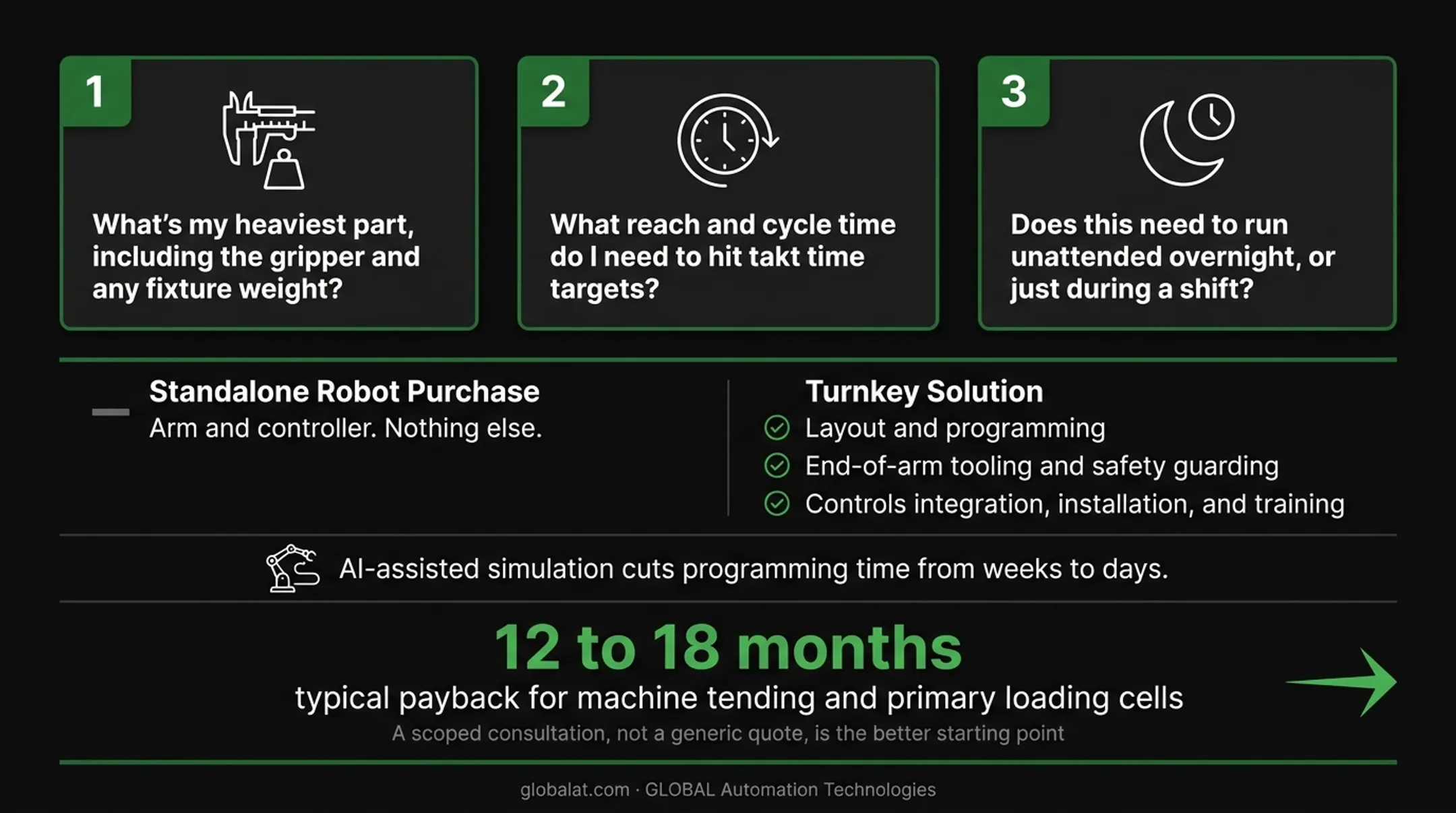

Start with three questions:
- What's my heaviest part, including the gripper and any fixture weight?
- What reach and cycle time do I need to hit takt time targets?
- Does this need to run unattended overnight, or just during a shift?
Then evaluate integration depth. A standalone robot purchase gets you an arm and a controller — nothing else. A turnkey solution covers:
- Layout and programming
- End-of-arm tooling and safety guarding
- Controls integration, installation, and training
GLOBAL's engineers use AI-assisted simulation to model and test robot paths virtually before anything hits the floor. That cuts programming time from weeks to days and reduces surprises during commissioning.
Finally, look at total cost of ownership. Machine tending and primary loading cells typically pay for themselves in 12 to 18 months. The math is straightforward: more parts per shift, fewer direct labor hours on repetitive loading.
Actual payback depends on part volume, shift structure, and labor costs at your facility. A scoped consultation, not a generic quote, is the better starting point.
Frequently Asked Questions
How do pick and place robots work?
Pick and place robots follow a detect-plan-execute-place cycle: sensors locate the part, the controller plans a collision-free path, the robot grips and transports the part, then places it with sensor-based verification before repeating.
How much does a robotic case packer cost?
Public vendor pricing starts around $100,000-$175,000, but that rarely reflects a fully installed system. Actual cost depends on payload, speed, tooling, vision, guarding, and integration complexity — get a scoped quote for an accurate number.
What is considered "primary loading" versus secondary packaging in automation?
Primary loading covers getting raw material, stock, or in-process parts into a machine or first production step. Secondary packaging handles finished goods at the end of the line, such as case packing or palletizing for shipment.
Which robot type is best for heavy industrial primary loading?
Six-axis articulated robots, particularly FANUC models, are the standard choice for heavy or irregular parts requiring high precision and long reach in demanding environments like CNC tending or spray booths.
Can collaborative robots (cobots) handle primary loading tasks?
Cobots work well for lighter, lower-volume loading where humans and robots share space, such as low-mix production. They're generally not built for heavy-duty or high-speed primary loading applications.
How long does it take to see ROI from a robotic loading cell?
Well-specified machine tending and loading cells typically pay back within 12 to 18 months, driven by increased parts per shift and reduced direct labor needs. Timelines vary based on part volume, shift structure, and labor costs.
